PRODUCT DESCRIPTION

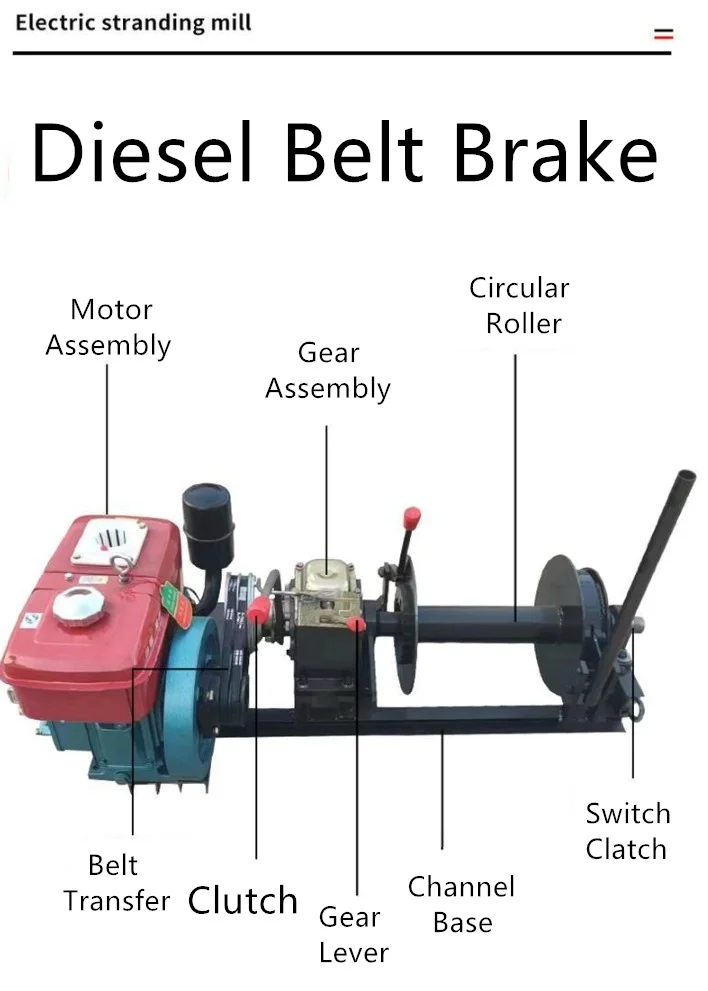

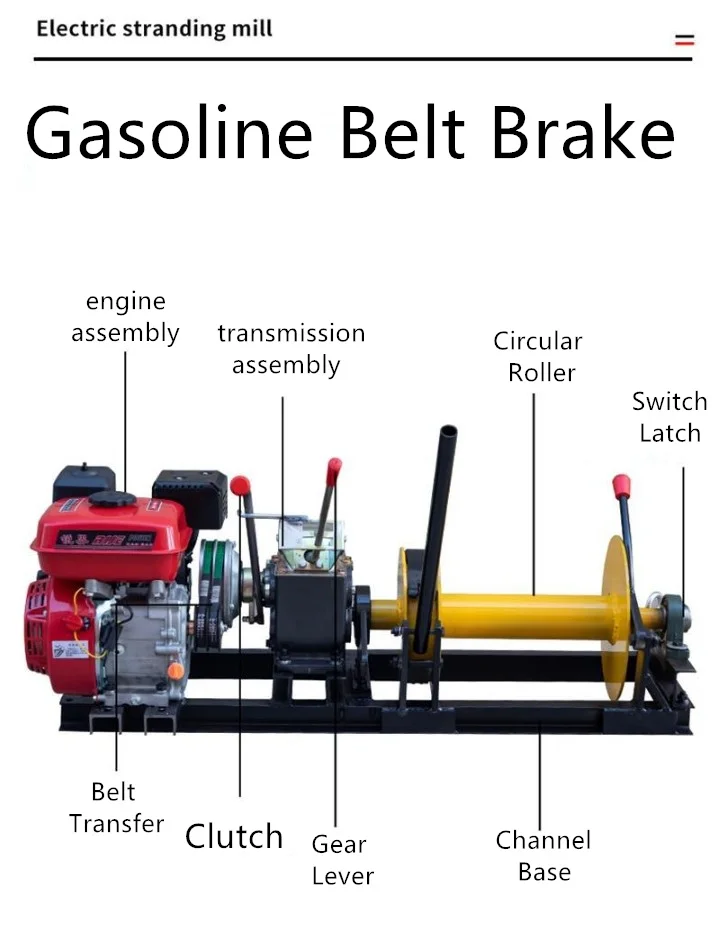

Fast Speed Motor Winch is composed of roller drum, gearbox, diesel engine or gasoline engine and base frame. Working principle:
The winch groove is used to directly connect the wire rope to the traction slot, with gasoline or diesel engine, motor as power,Box speed to achieve the required speed, the machine is located in the steel structure, stable and easy to move. Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up. Apply to use in the wild non-transformer station, it will be convenient and agility.
The winch groove is used to directly connect the wire rope to the traction slot, with gasoline or diesel engine, motor as power,Box speed to achieve the required speed, the machine is located in the steel structure, stable and easy to move. Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up. Apply to use in the wild non-transformer station, it will be convenient and agility.
|
Core Grinding Winch(Belt Drive)
|
||||||||||||||||
|
Model
|
Rotation direction
|
Gear
|
Rotational speed(RPM)
|
Traction Speed(m/min)
|
Tractive force(T)
|
Power
|
Outline Size
(mm) |
Weight
(kg) |
||||||||
|
KL-30 Gasoline engine
|
forwarder
|
slow
|
9.0
|
11.0
|
3.0
|
6HP
|
840*450*500
|
82
|
||||||||
|
fast
|
16.0
|
6.6
|
1.8
|
780*450*500
|
85
|
|||||||||||
|
reversal
|
reverse
|
7.5
|
3.3
|
No lifting
|
||||||||||||
|
KL-30 170F Diesel engine
|
forwarder
|
slow
|
11.5
|
5.0
|
3.0
|
4HP
|
840*600*500
|
108
|
||||||||
|
fast
|
21.0
|
9.0
|
1.8
|
|||||||||||||
|
reversal
|
reverse
|
10.0
|
4.5
|
No lifting
|
||||||||||||
|
KL-30 Electirc Motor
|
forwarder
|
slow
|
8.5
|
4.0
|
3.0
|
3KW
|
770*600*460
|
108
|
||||||||
|
fast
|
10.5
|
6.5
|
1.8
|
|||||||||||||
|
reversal
|
reverse
|
7.0
|
3.0
|
No lifting
|
||||||||||||
FOR MORE DETAILS, PLEASE FEEL FREE TO CONTACT
SARAH WHATSAPP&WECHAT: 0086 13373901028

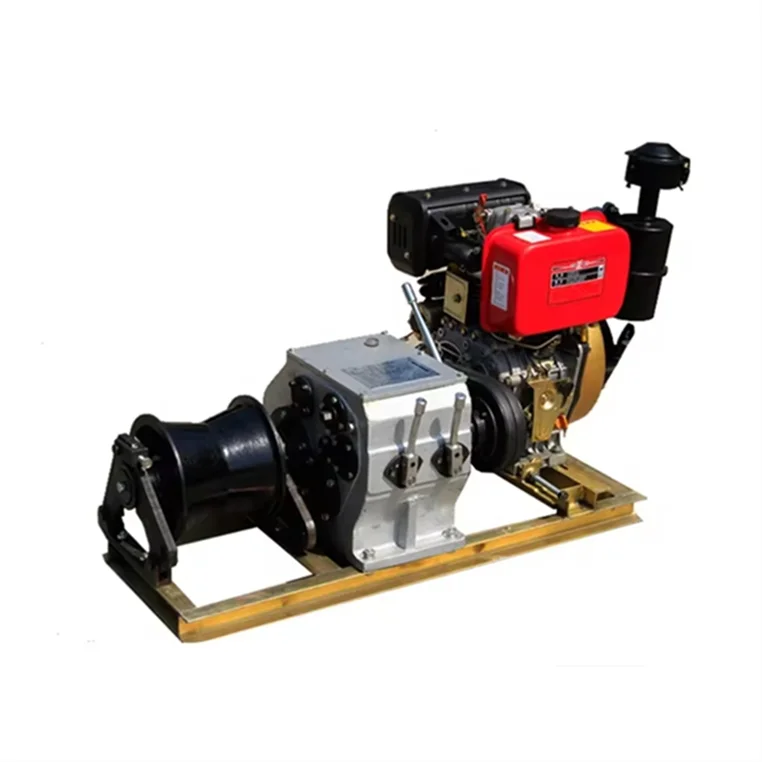

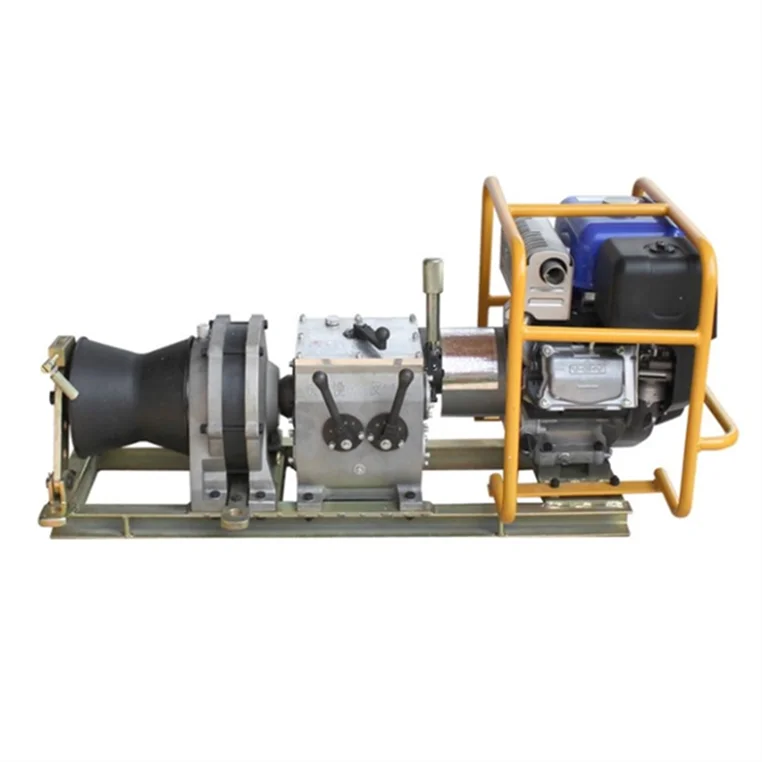

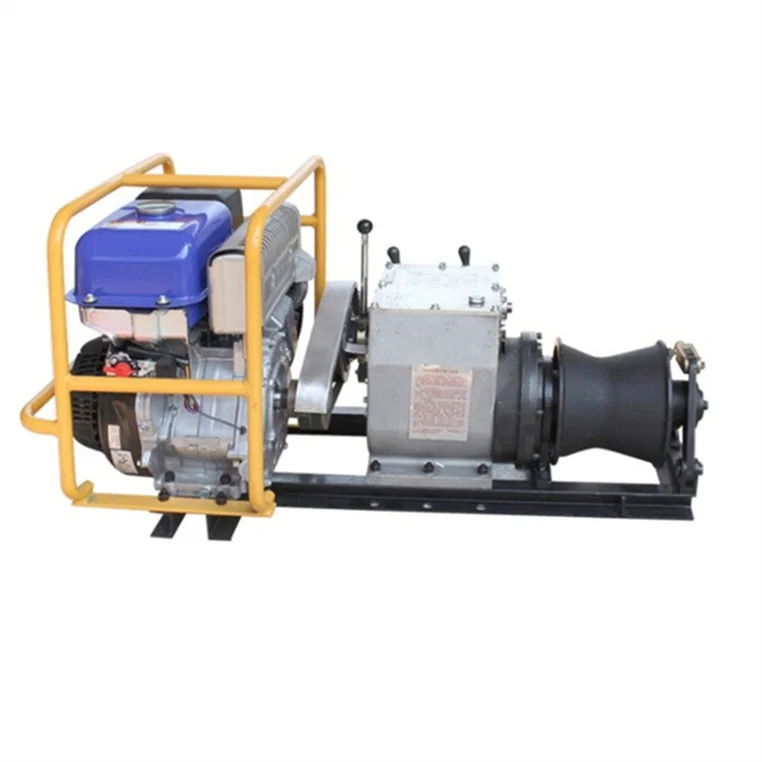

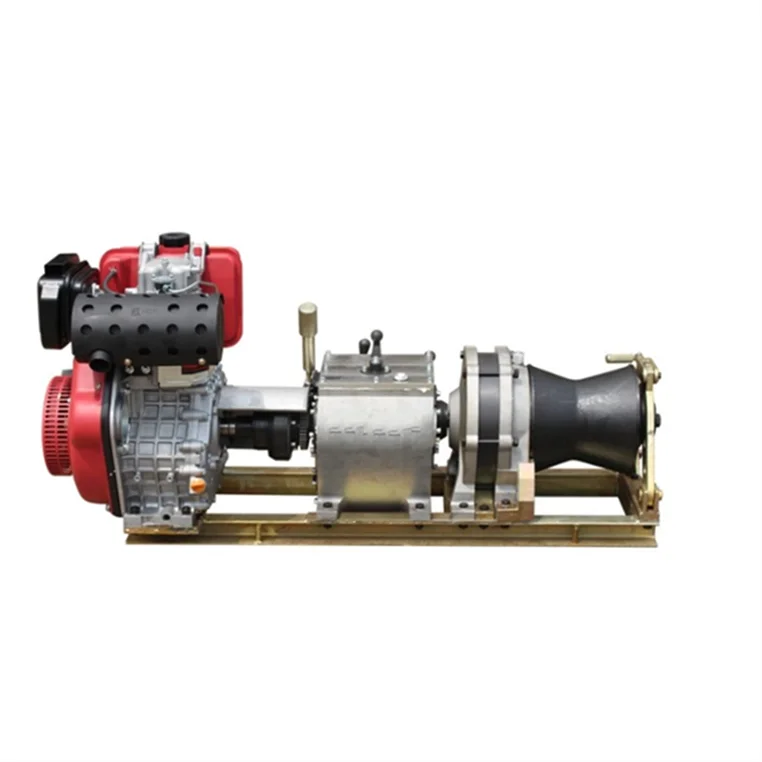

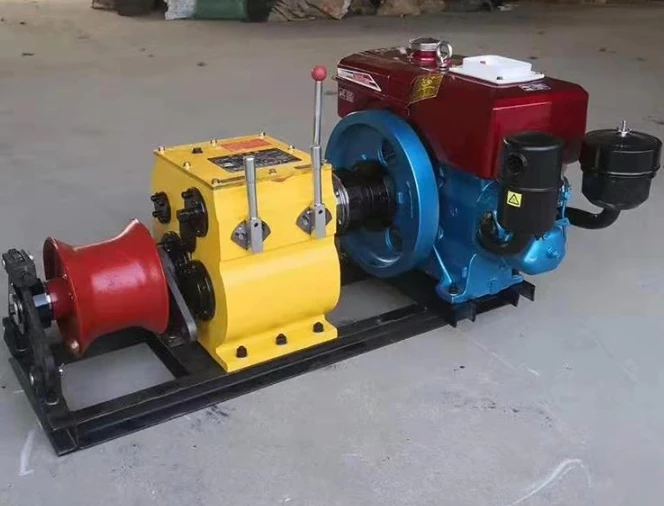

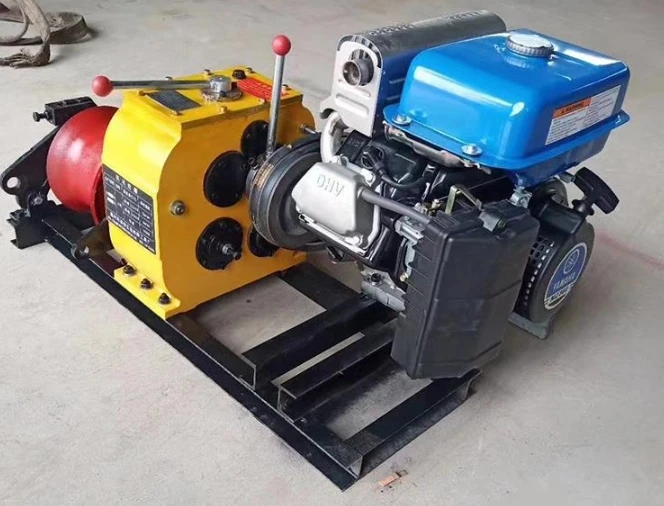

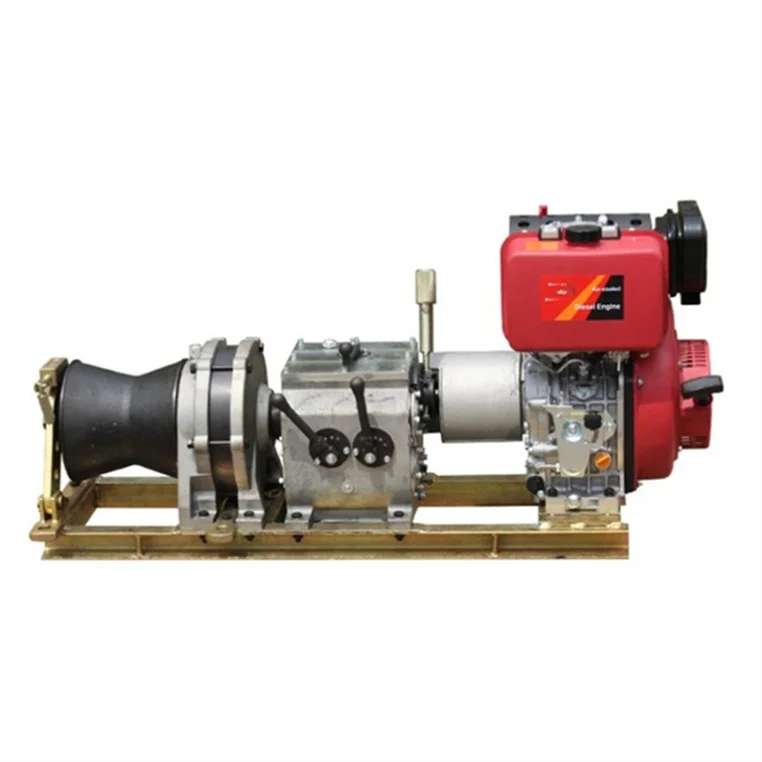

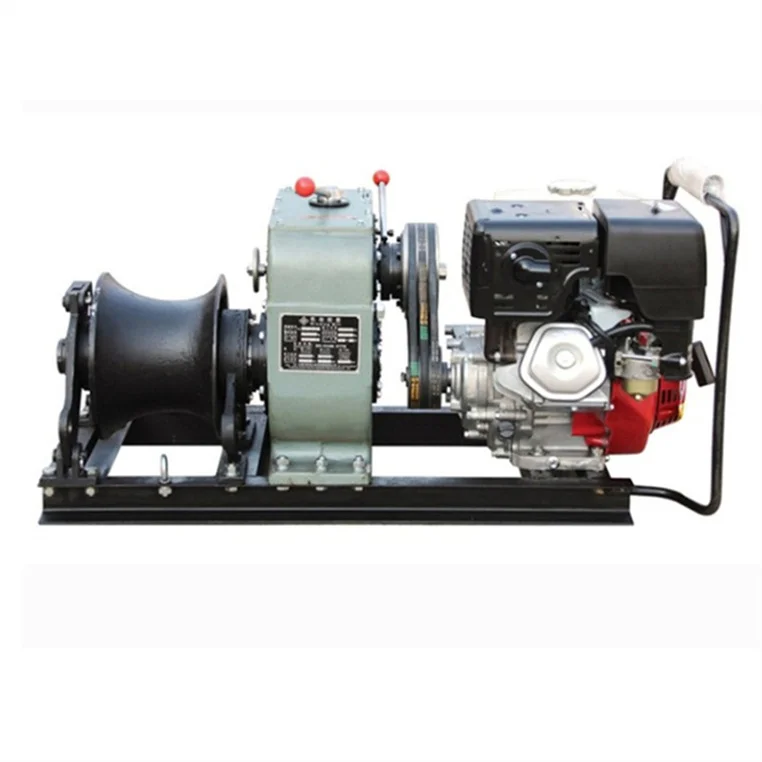

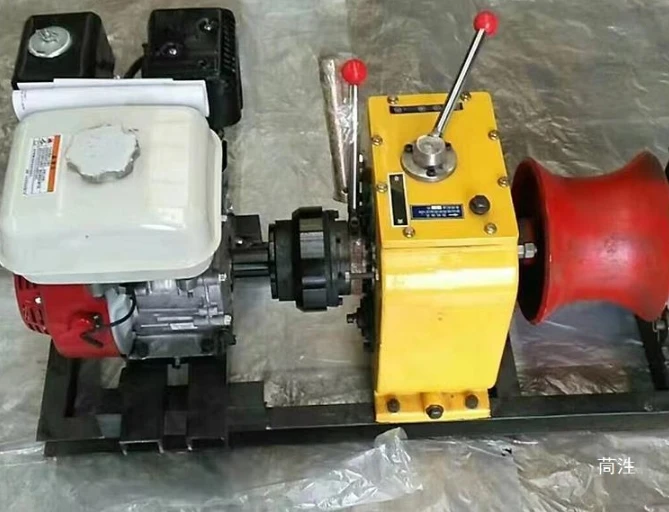

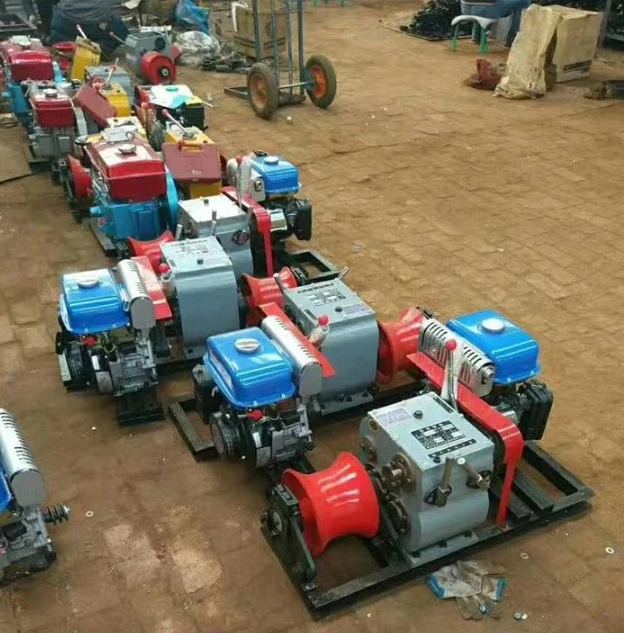

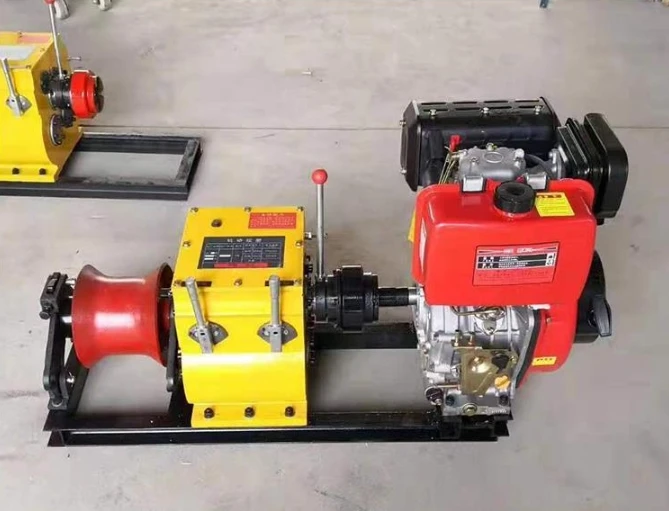

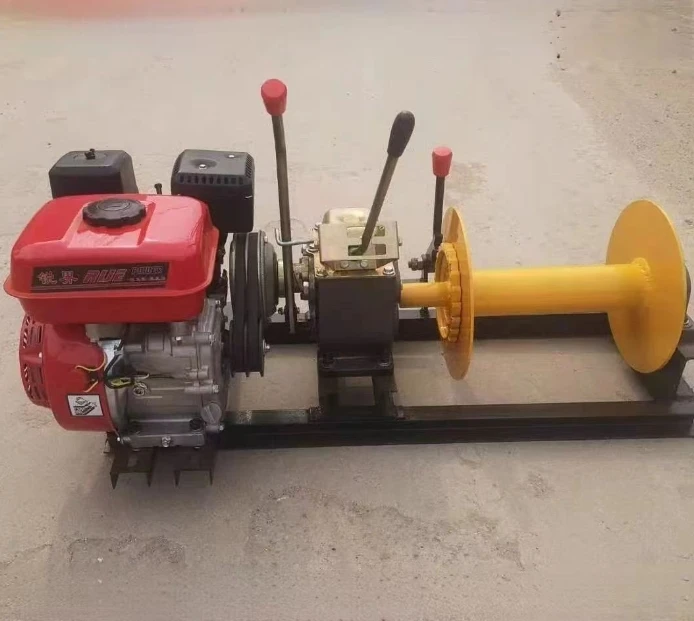

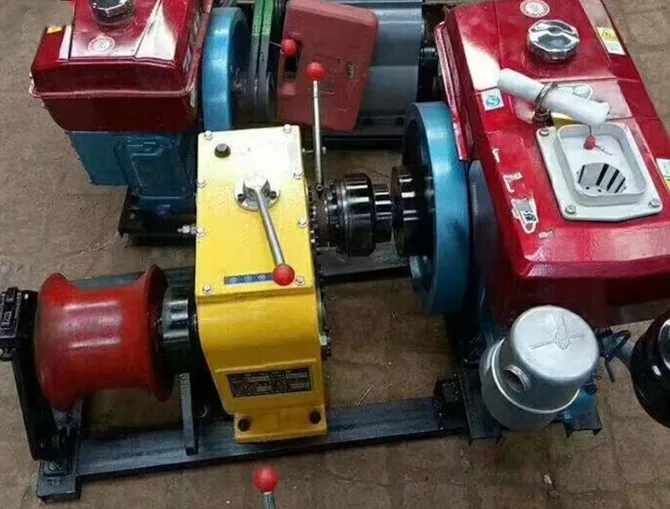

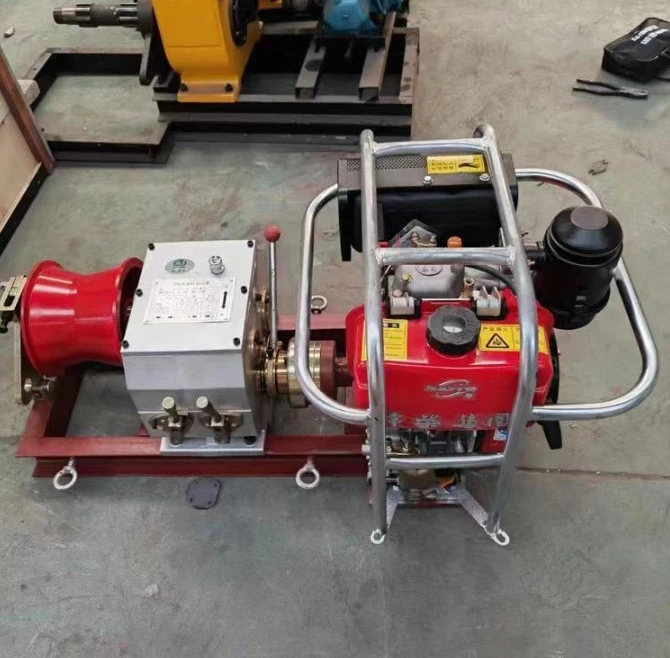

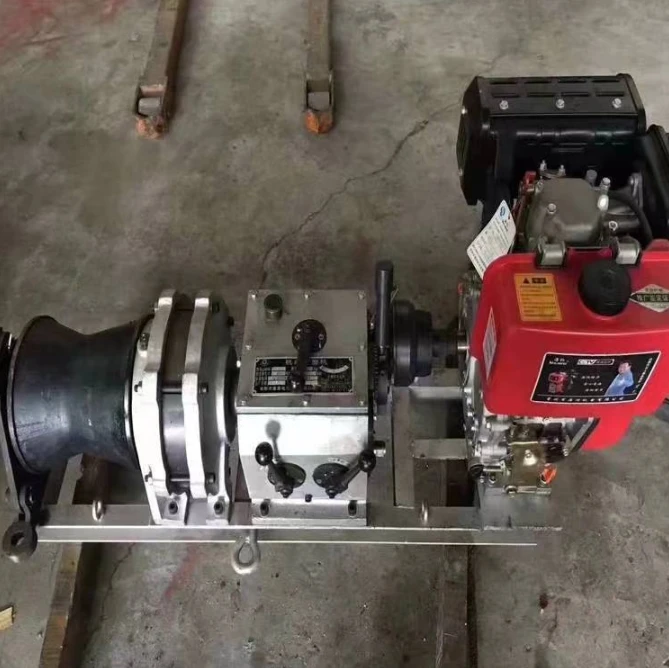

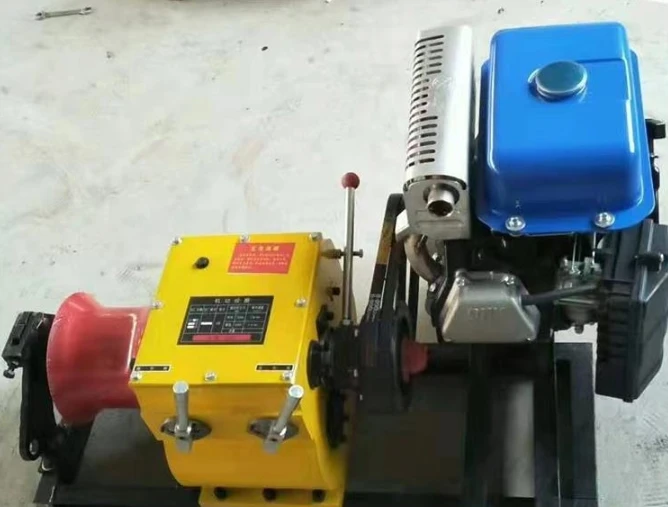

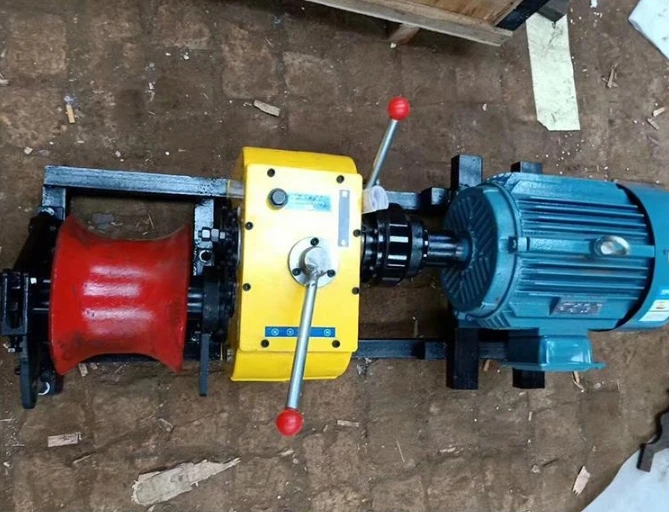

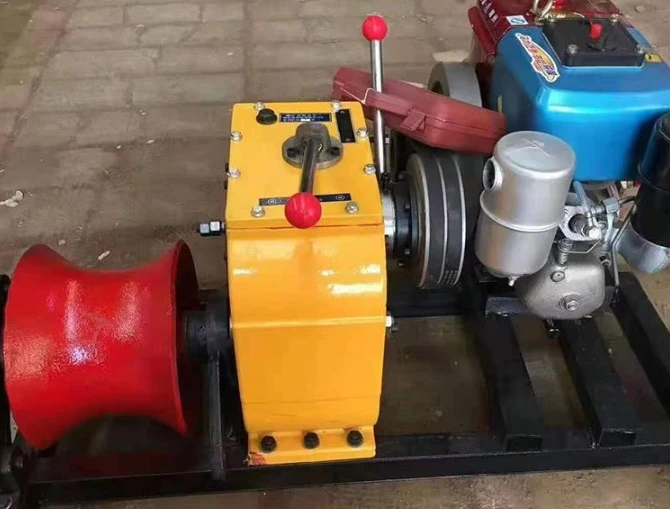

Product real picture
Why choose us？
The following is the introduction of our products and company.
1. Our products have exported to more than 30 countries, including the USA,Peru,South Korea,Canada ect. And our product have received a lot of good feedback due to quality and price(Our products have CE).We also provide the best after-sale service.
2. We are real manufacturer. We have 4 factories to manufacture different products. Our factories are usually visited and welcome you to visit our factory. We have this capacity to provide the spare parts for you as soon as possible.
3. Our company have established 12 years. We have built a reputation for reliability and excellence,serving clients from diverse sectors to suit your customized needs.
1. Our products have exported to more than 30 countries, including the USA,Peru,South Korea,Canada ect. And our product have received a lot of good feedback due to quality and price(Our products have CE).We also provide the best after-sale service.
2. We are real manufacturer. We have 4 factories to manufacture different products. Our factories are usually visited and welcome you to visit our factory. We have this capacity to provide the spare parts for you as soon as possible.
3. Our company have established 12 years. We have built a reputation for reliability and excellence,serving clients from diverse sectors to suit your customized needs.
