- Hign-concerned Chemical: None
- Model Number: DRT
- Origin: Mainland China
- Certification: CE
- Product Keywords 1: Five axis rotating table
- Product Keywords 2: Servo stepper turning table
- Product Keywords 3: 5th axis cnc
- Product Keywords 4: CNC rotary table
- Product Keywords 5: Glue dispensing machine turning table
- Product Keywords 6: Hollow rotating platform
- Product Keywords 7: CNC rotating platform
- Product Keywords 8: CNC electric rotary table
- Product Keywords 9: cnc 5th axis
- Product Keywords 10: cnc 5th axis Rotating Platform
- Product Keywords 12: Industrial visual inspection platform
- Product Keywords 11: Welding flipping table
- Product Keywords 13: Flipped hollow rotating platform
- Product Keywords 14: CNC Indexing Rotary Table
- Product Keywords 15: Motorized Indexing Rotary Table
- Product Keywords 16: 5 axis cnc
- Product Keywords 17: 5th axis rotary table
- Product Keywords 18: 5th axis cnc
- Product Keywords 19: rotating axis for cnc
- Product Keywords 20: cnc turntable
- Product Keywords 21: welding turntable
- Product Keywords 23: welding table positioner,Adhesive Welding Flipping Table
- Product Keywords 24: cnc rotating table
- Product Keywords 25: Adhesive Welding
- Product Keywords 26: Flipping Table

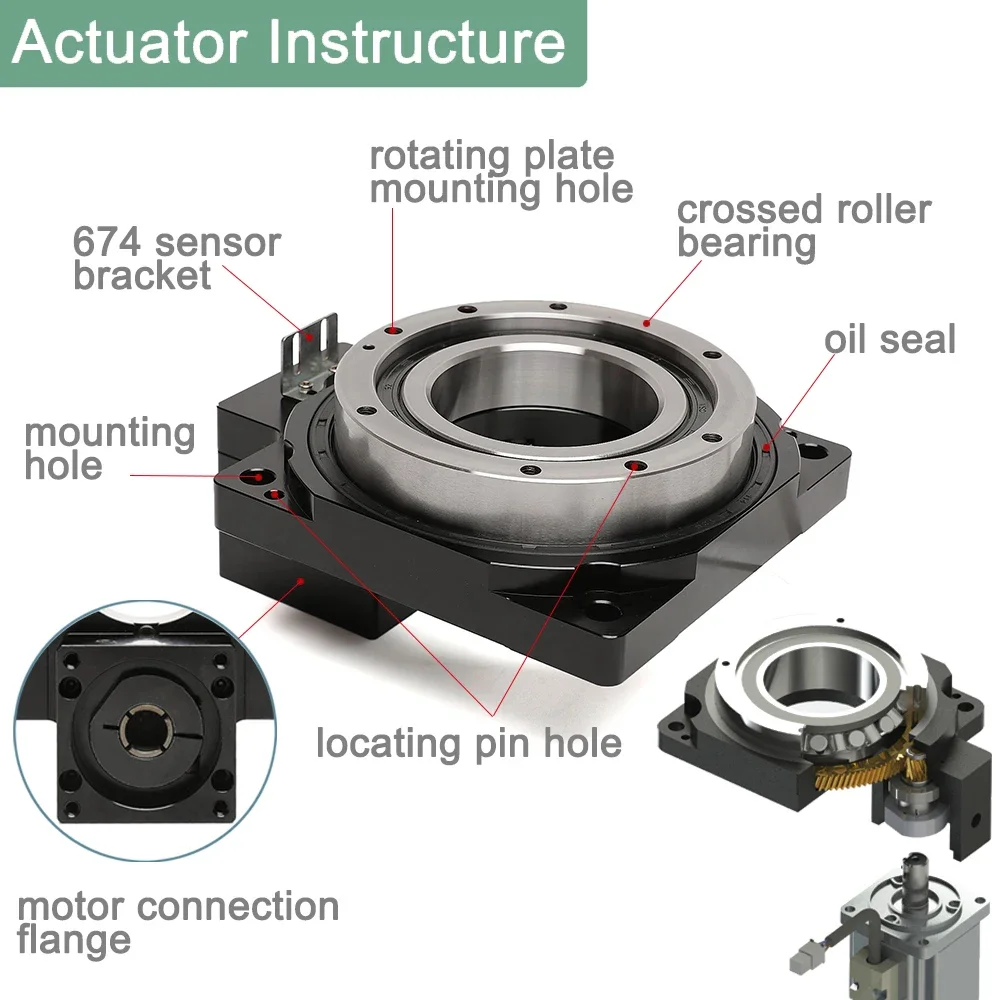

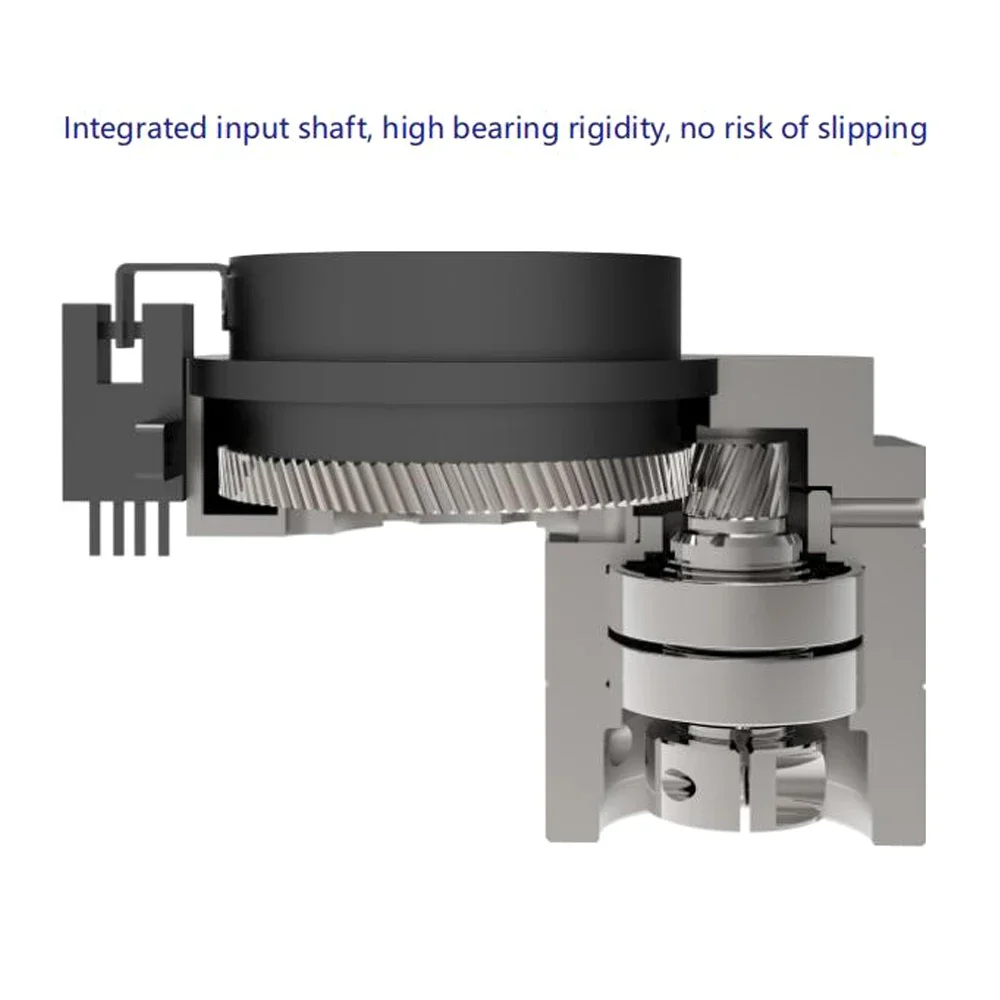

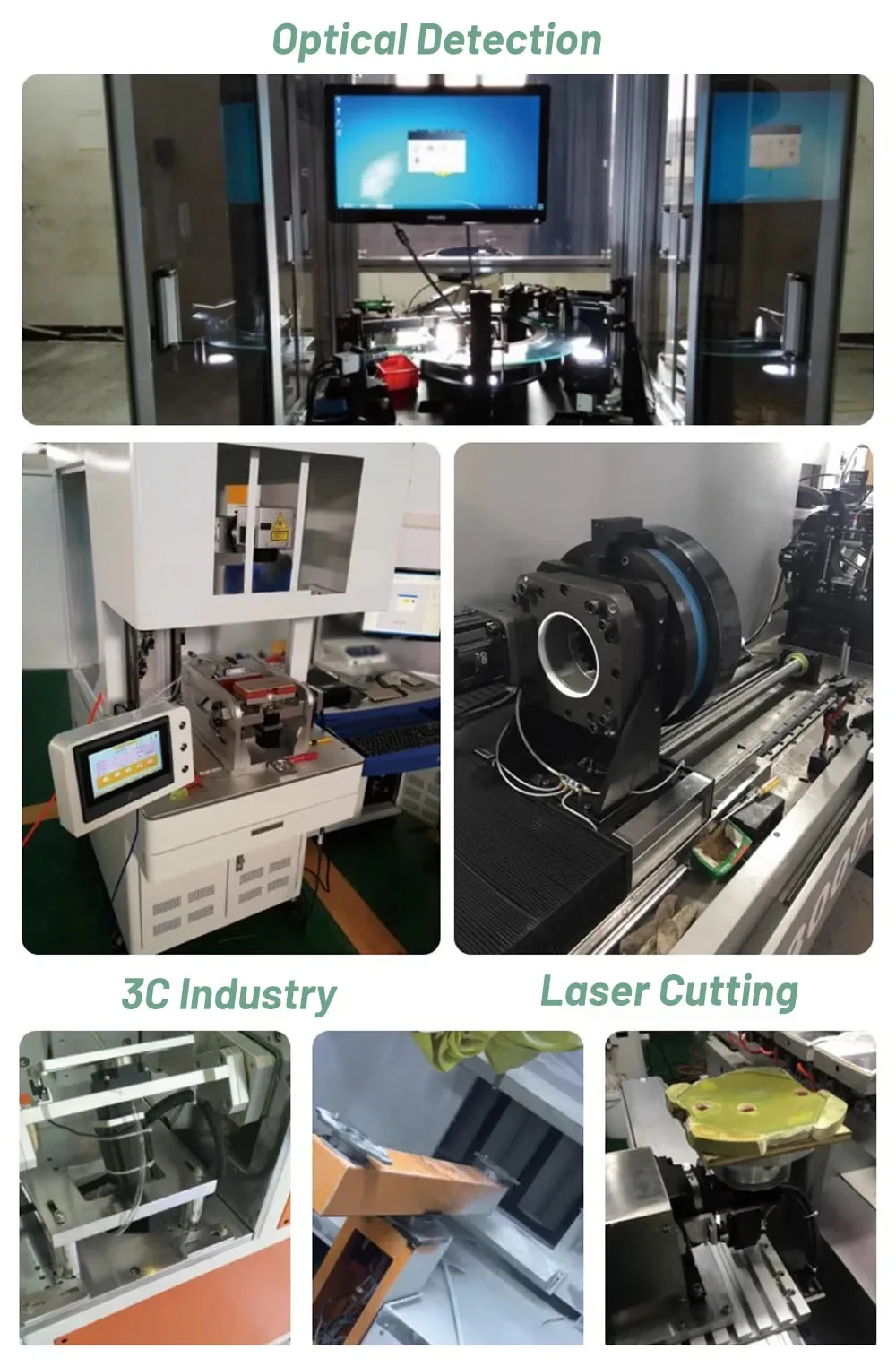

Hollow rotating platform

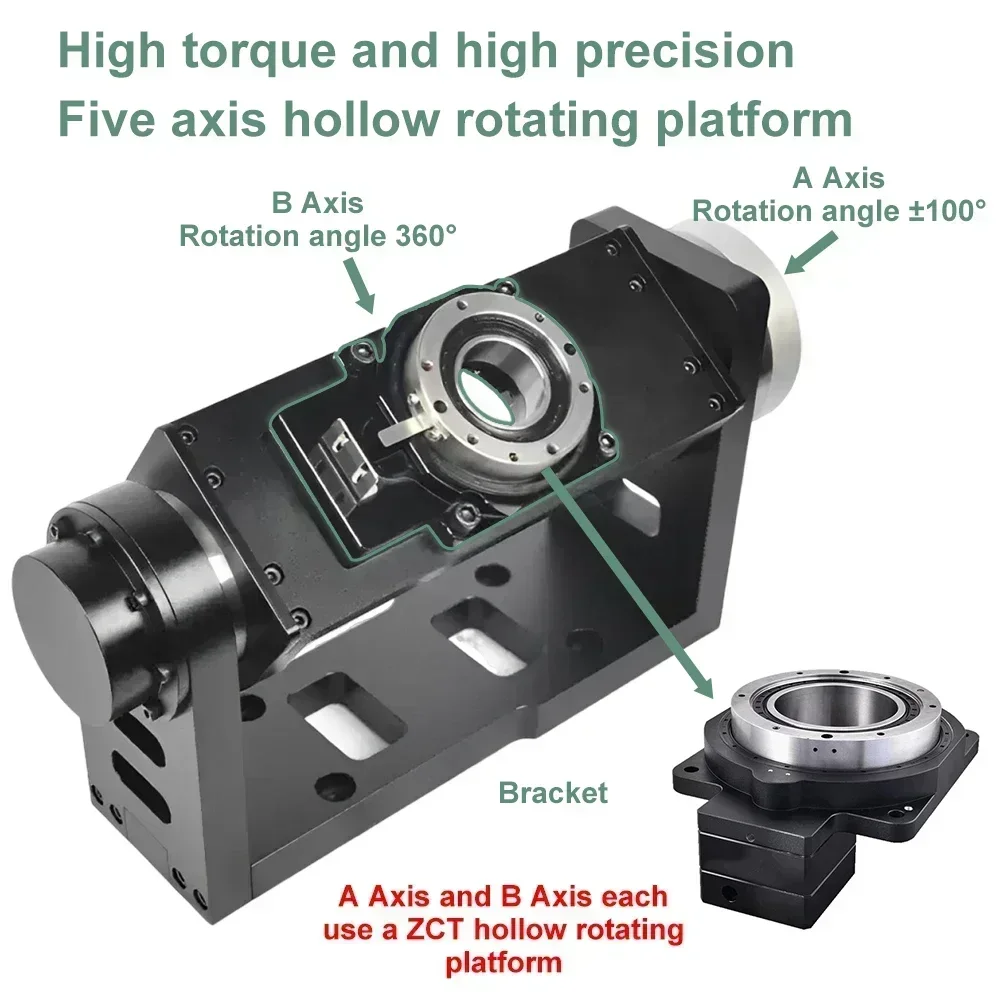

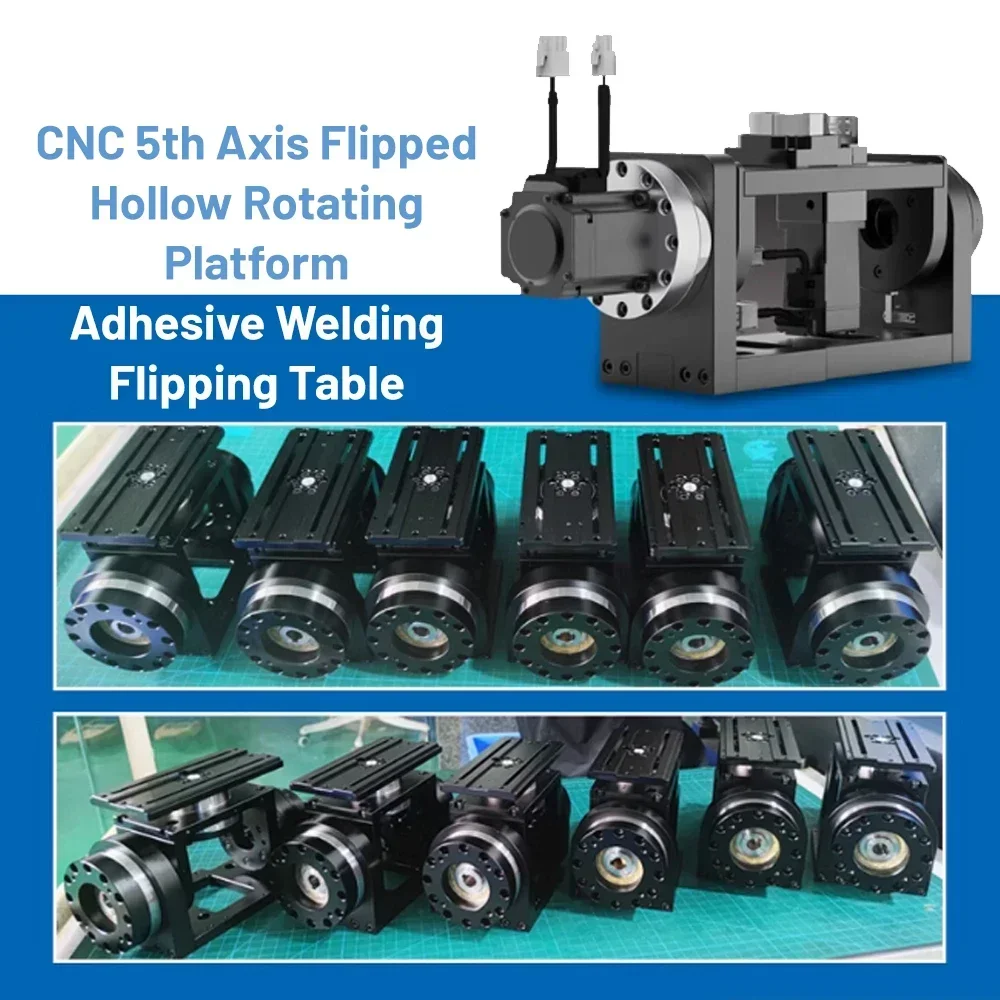

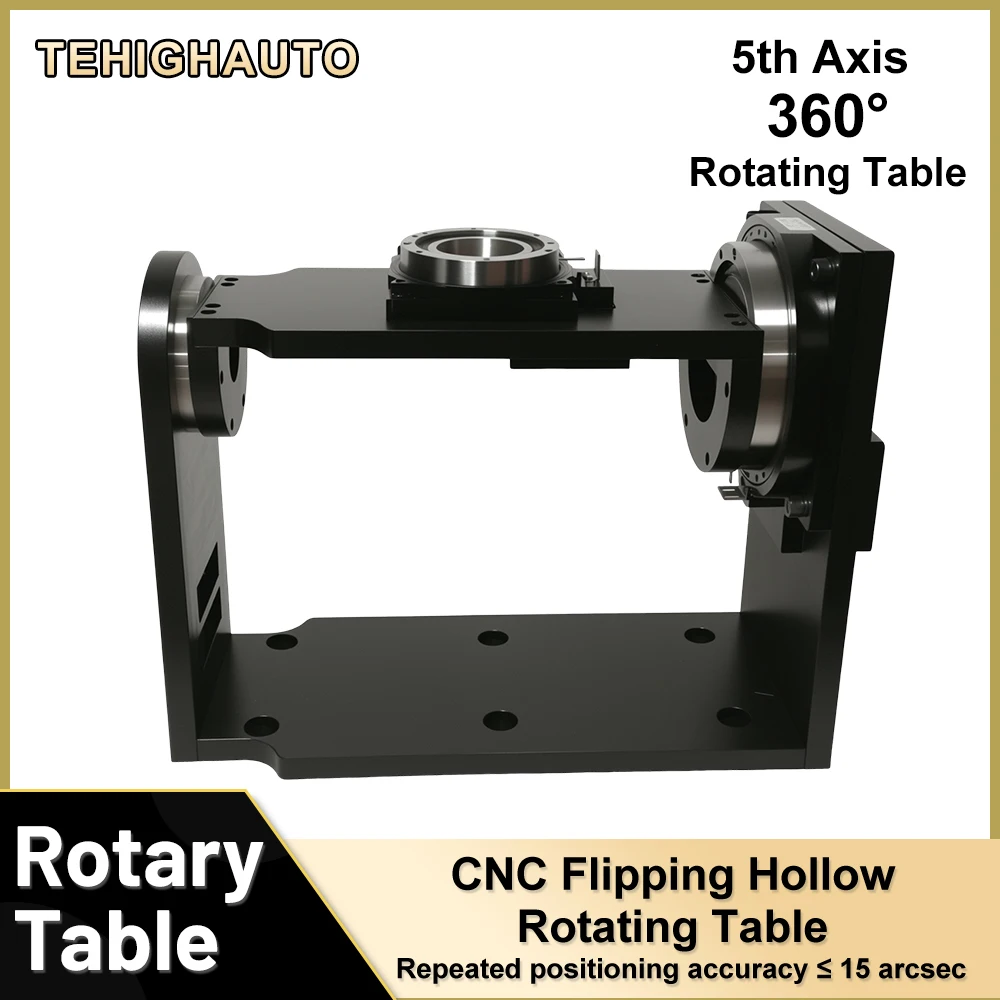

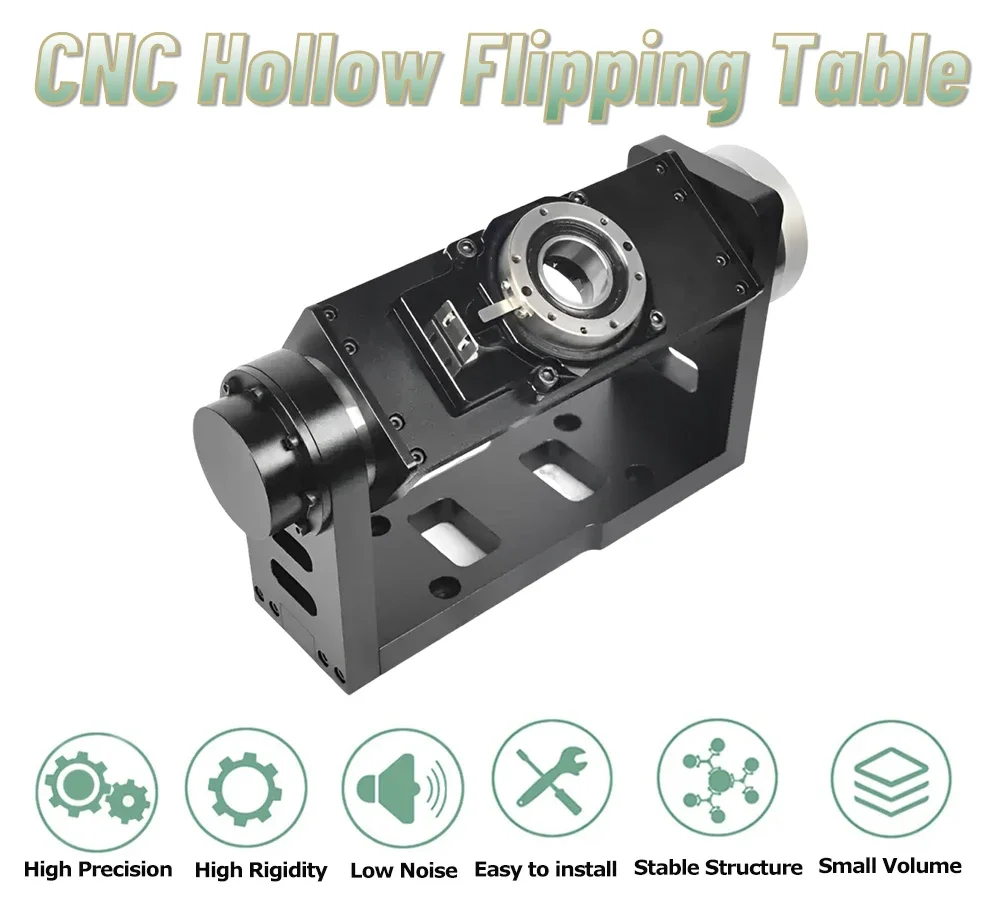

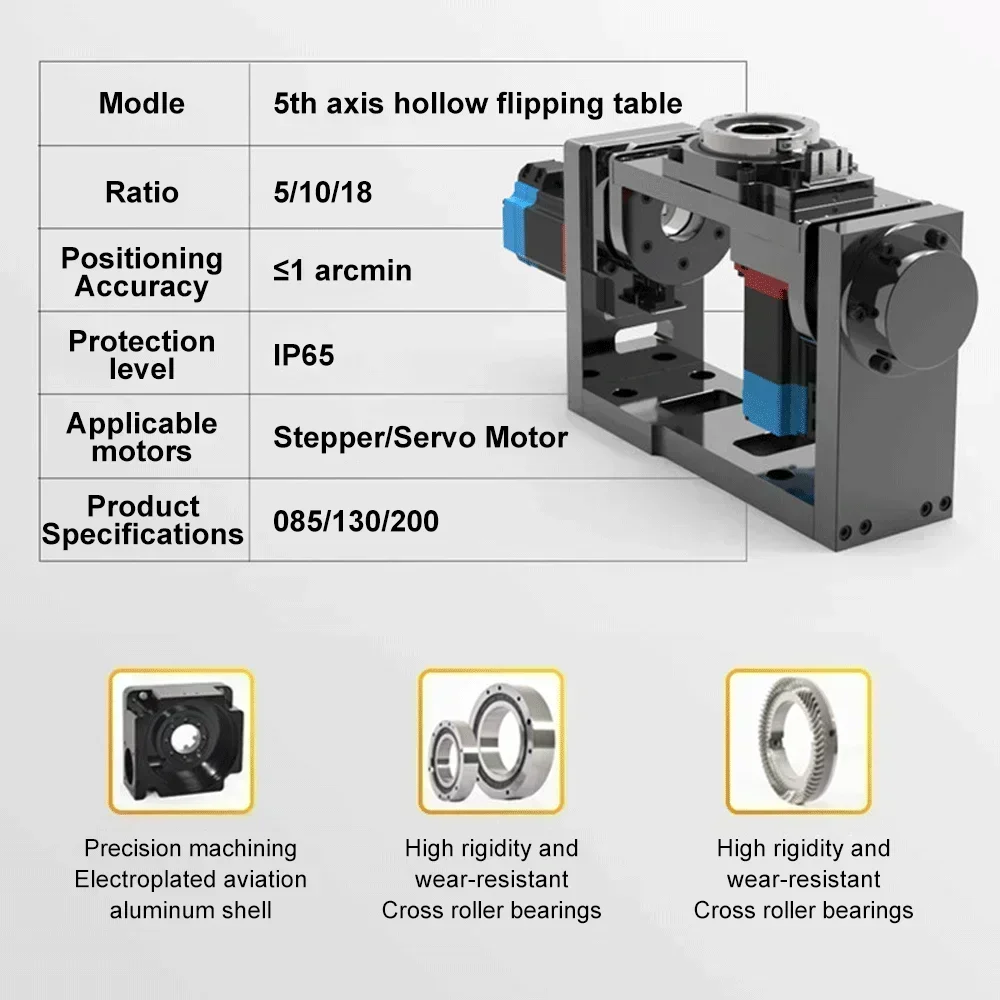

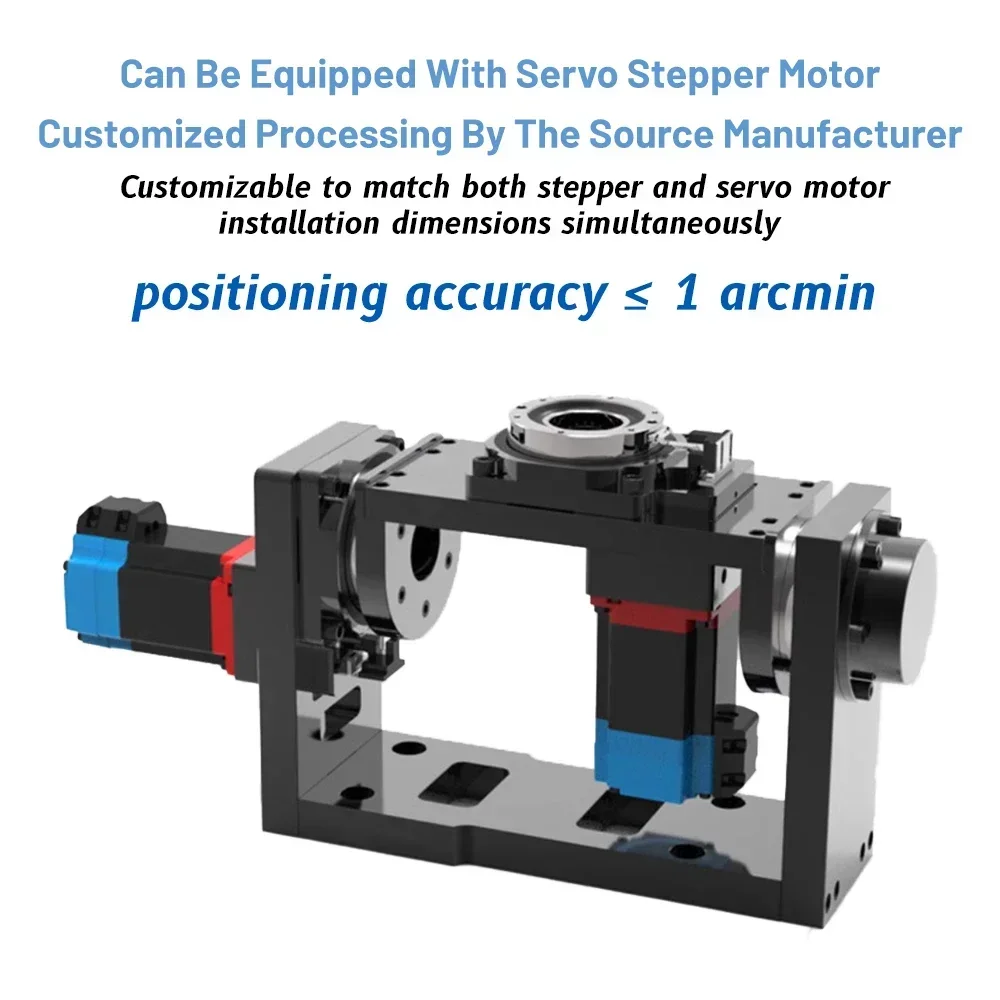

1* 5 Axis Flipped Hollow Rotating Platform
If you need a 3D model, please contact us

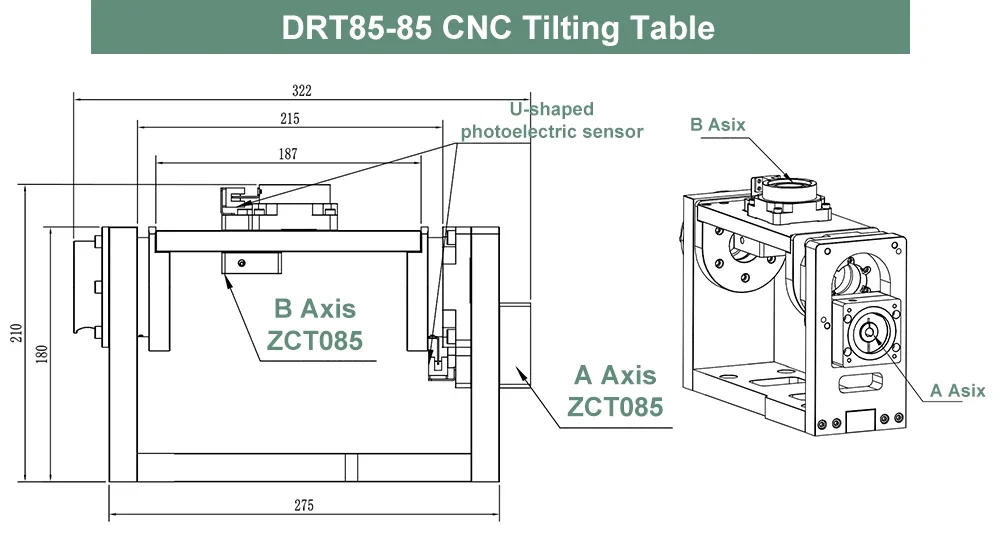

| Model | DRT085-060 | DRT085-085 | DRT130-085 | |||
| Axis | A-Axis | B-Axis | A-Axis | B-Axis | A-Axis | B-Axis |
| Model Number | ZCT085 | ZCT060 | ZCT085 | ZCT085 | ZCT130 | ZCT085 |
| ratio | 5:1/ 10:1 | 5:1/ 10:1 | 10:1 | |||
| torque(Nm) | 20 | 4 | 20 | 20 | 52 | 20 |
| Inertial load capacity(Nm) | 55 | 20 | 32 | 32 | 72 | 32 |
| Rotation angle | ±100° | 360° | ±100° | 360° | ±100° | 360° |
| Rotation positioning accuracy | ≤1 arcmin | |||||
| Repetitive positioning accuracy | ≤15 arcsec | |||||
| Maximum rotation radius(mm) | 187 | |||||
| Rotation parallelism(mm) | ±0.01 | |||||
| Rotation concentricity(mm) | ±0.01 | |||||
| Rotation table deviation(mm) | ±0.005 | |||||
| speed(r/min) | 200 | |||||
| Protection level | IP65 | |||||
| Load Torque(kg) | 7 | 10 | 13 | |||

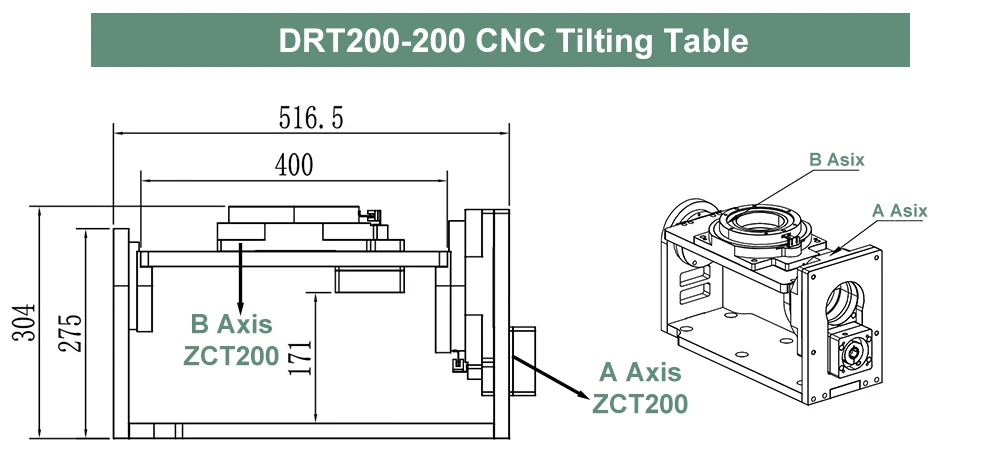

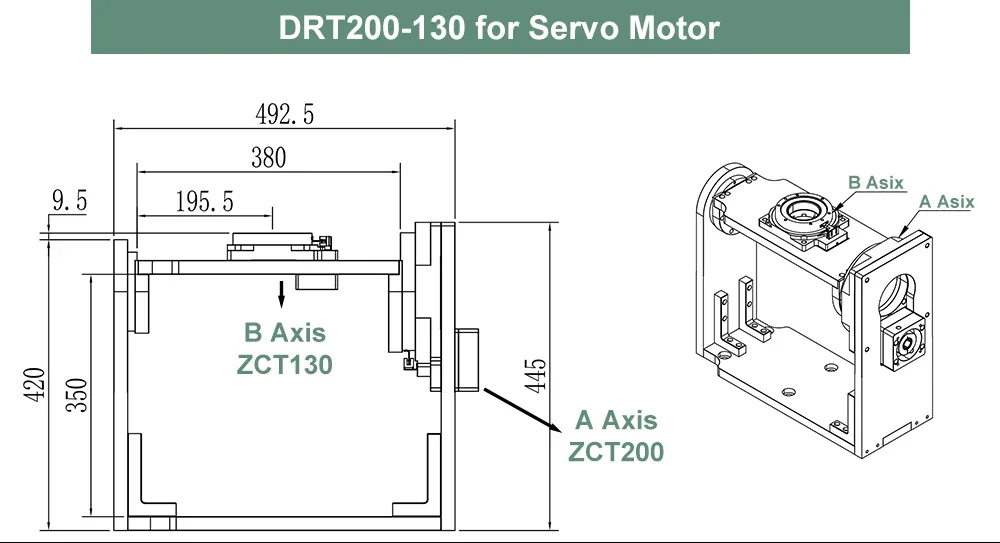

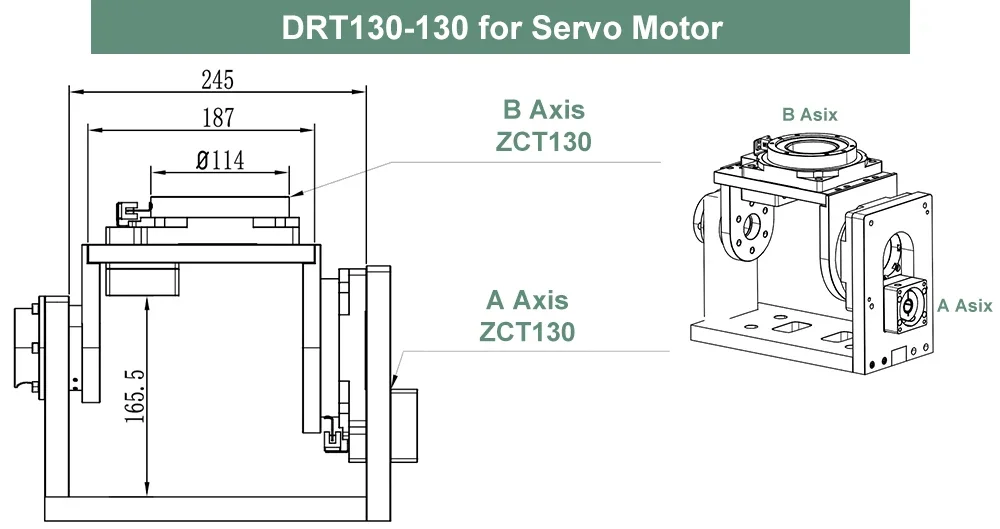

| Model | DRT130-130 | DRT200-130 | DRT200-200 | |||||
| Axis | A Axis | B Axis | A Axis | B Axis | A Axis | B Axis | A Axis | B Axis |
| Model Number | ZCT130 | ZCT130 | ZCT130 | ZCT130 | ZCT200 | ZCT130 | ZCT200 | ZCT200 |
| ratio | 10:1 | 18:1 | 10:1/18:1 | 10:1/18:1 | ||||
| torque(Nm) | 52 | 52 | 32 | 32 | 92 | 78 | 60 | 60 |
| Inertial load capacity(Nm) | 72 | 72 | 52 | 52 | 120 | 50 | 92 | 92 |
| Rotation angle | ≤1arcmin | |||||||
| Rotation positioning accuracy | ≤15arcsec | |||||||
| Repetitive positioning accuracy | 187 | |||||||
| Maximum rotation radius(mm) | ±0.01 | |||||||
| Rotation parallelism(mm) | ±0.01 | |||||||
| Rotation concentricity(mm) | ±0.005 | |||||||
| Rotation table deviation(mm) | 200 | |||||||
| speed(r/min) | IP65 | |||||||
| Protection level | IP65 | |||||||
| Load Torque(kg) | 20 | 20 | 25 | 40 | ||||

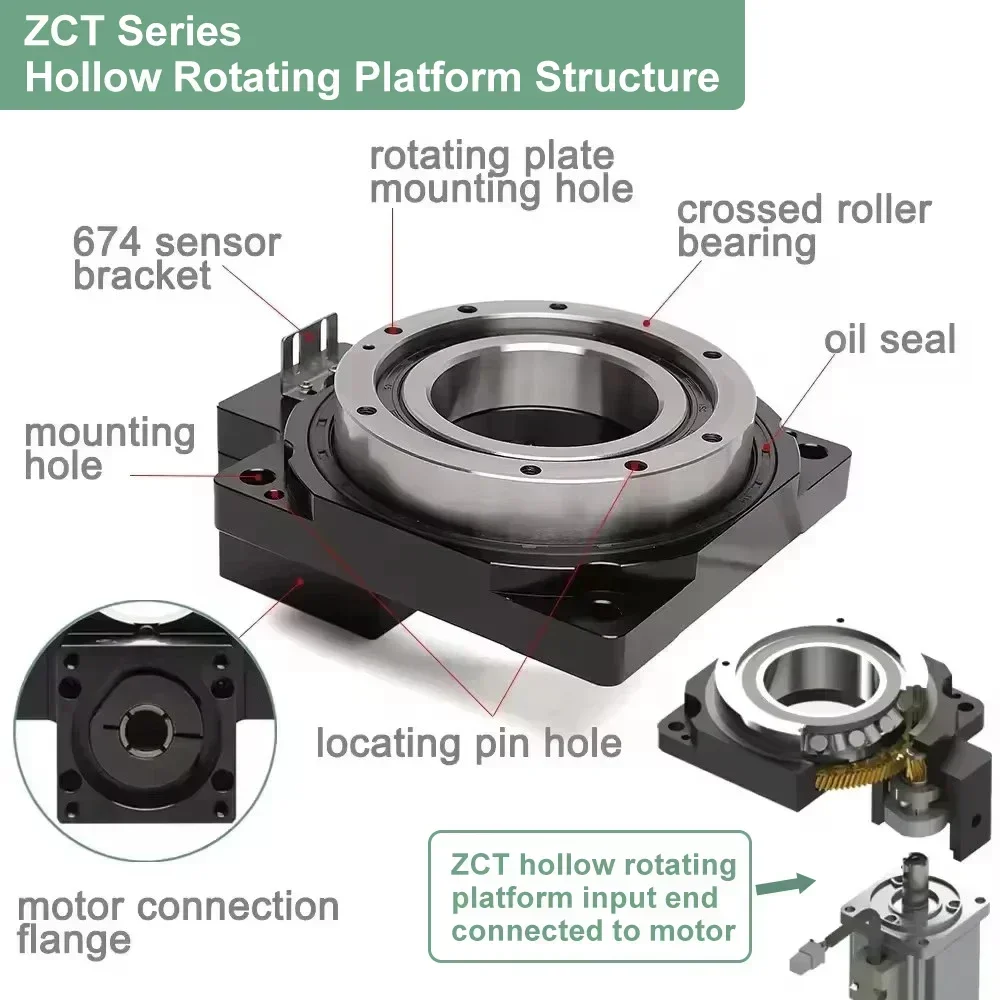

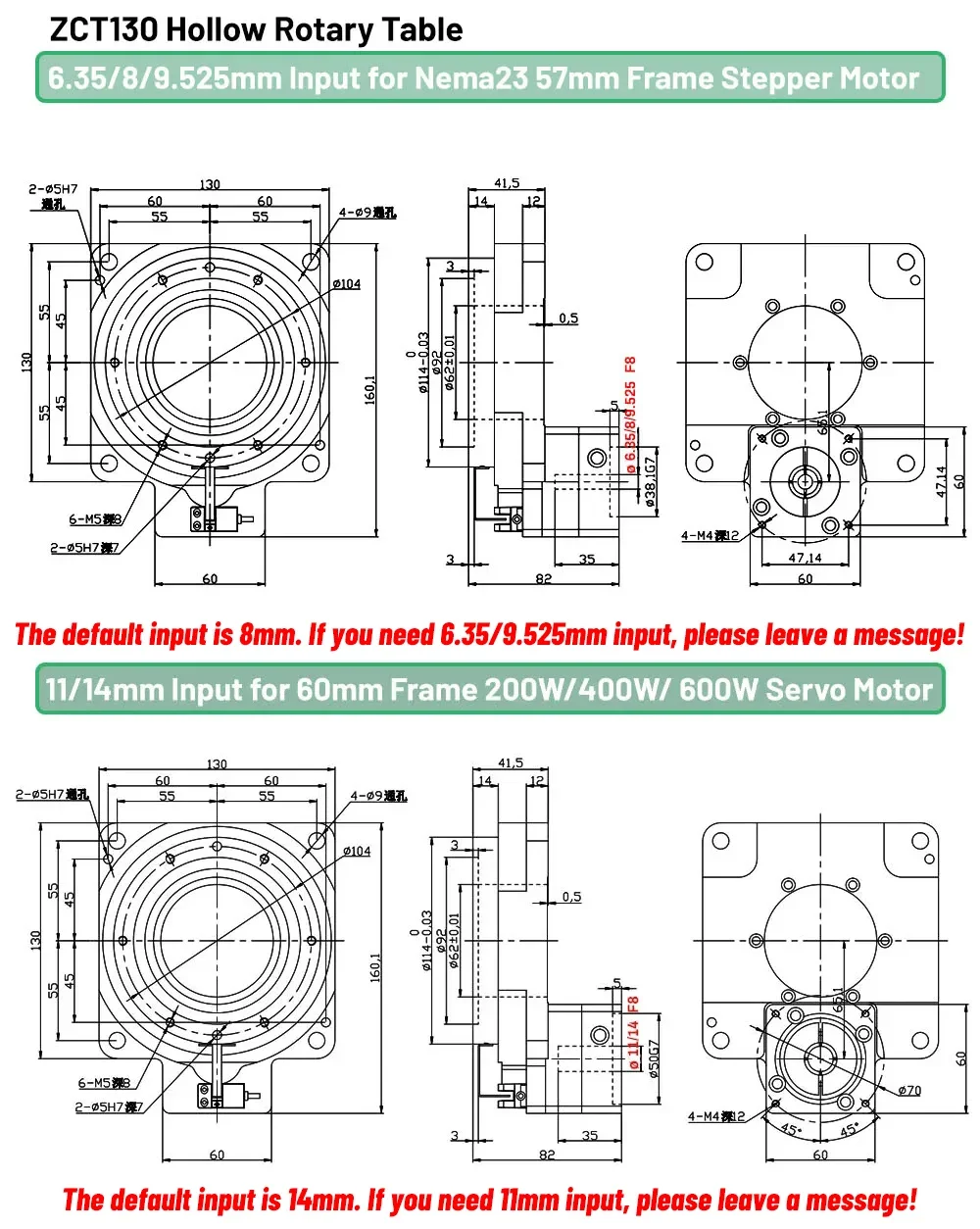

| Hollow Rotating Platform Technical Parameters | |||||||||

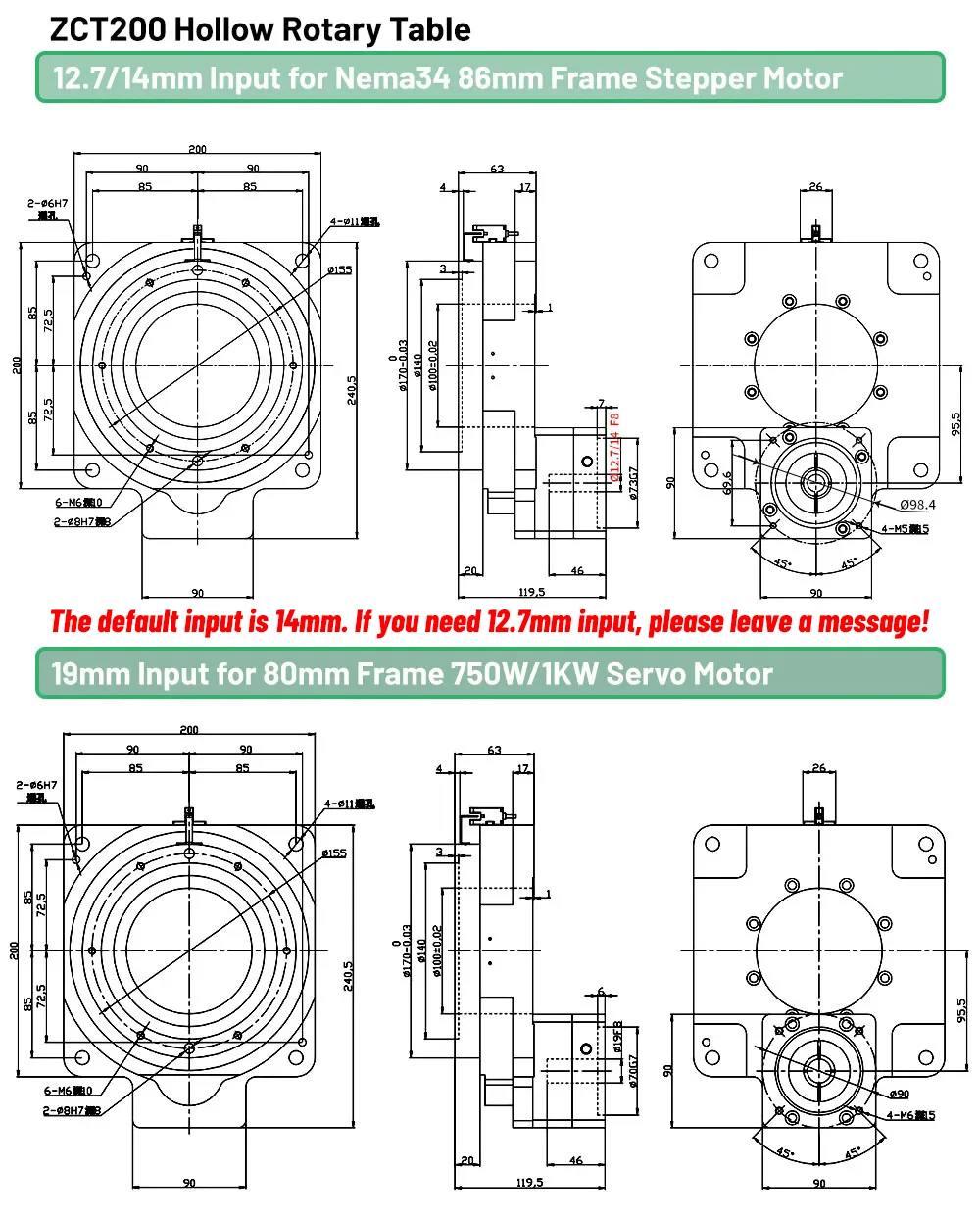

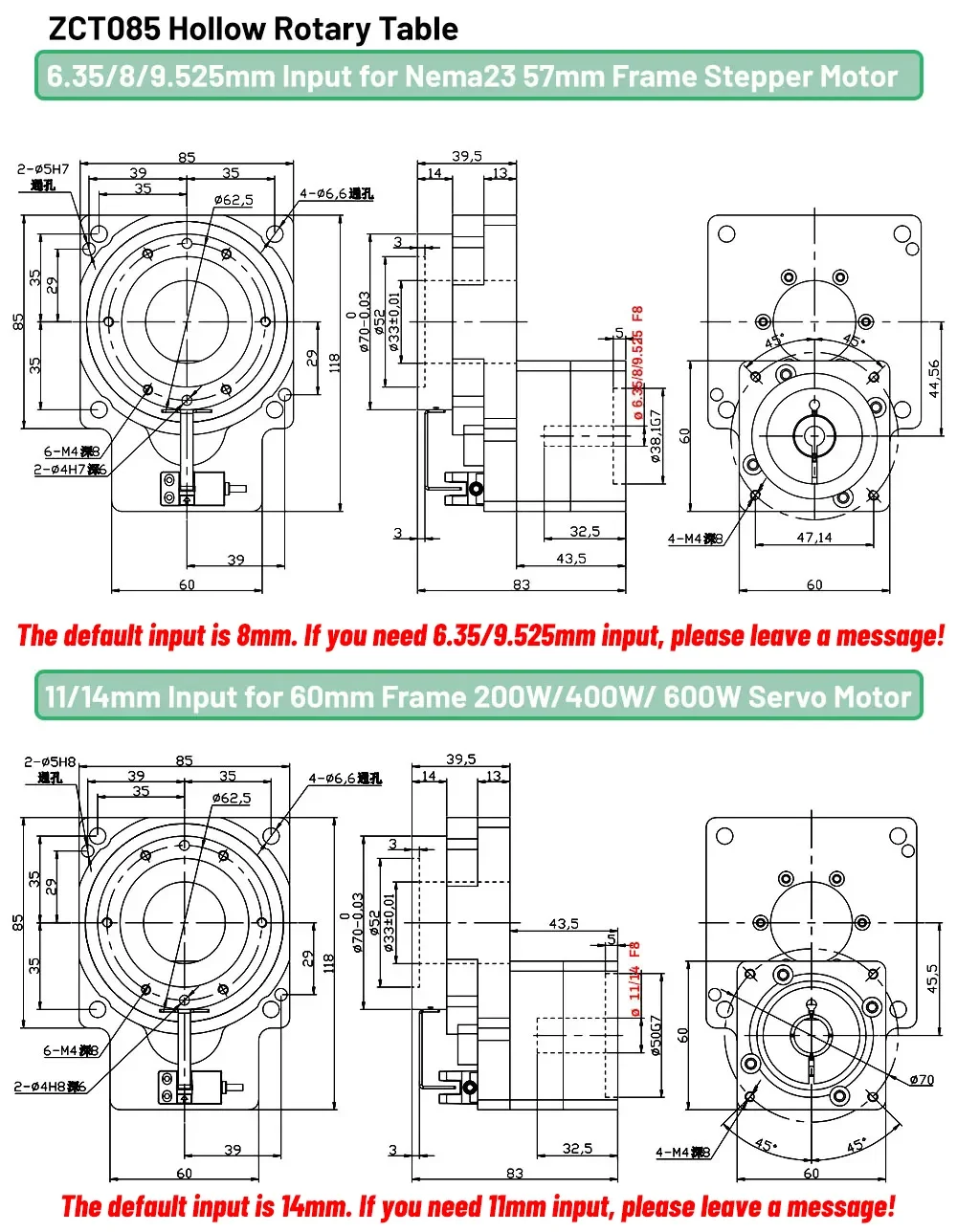

| Model | ZCT060 | ZCT085 | ZCT130 | ZCT200 | |||||
| Reduction ratio | 5:1 | 10:1 | 5:1 | 10:1 | 10:1 | 18:1 | 10:1 | 18:1 | |
| Max axial load | 230N | 500N | 2000N | 4000N | |||||
| Max moment of inertia | 5N.m | 10N.m | 50N.m | 100N.m | |||||
| Table Size | 60*84.6mm | 85*118mm | 130*160.1mm | 200*240.5mm | |||||
| Through-hole Dia. | 28mm | 33mm | 62mm | 100mm | |||||
| Positioning accuracy | ≤2 arc-min | ≤1 arc-min | ≤1 arc-min | ≤1 arc-min | |||||
| Torsional rigidity | 2.5N.m/arcmin | 6N.m/arcmin | 19N.m/arcmin | 32N.m/arcmin | |||||
| Parellelism | ≤0.01mm | ≤0.01mm | ≤0.013mm | ≤0.02mm | |||||
| Concentricity | ≤0.01mm | ≤0.01mm | ≤0.013mm | ≤0.02mm | |||||
| Allowable disk speed (Intermittent operration) | 200rpm | 200rpm | 200rpm | 200rpm | |||||
| Noise | ≤55dB | ≤55dB | ≤60dB | ≤63dB | |||||
| Weight | 0.6kg | 1.4kg | 2.6kg | 8.1kg | |||||
| Backlash | No backlash (Adjustable structure) |
Accuracy life | 30000h (Intermittent operration) |
||||||

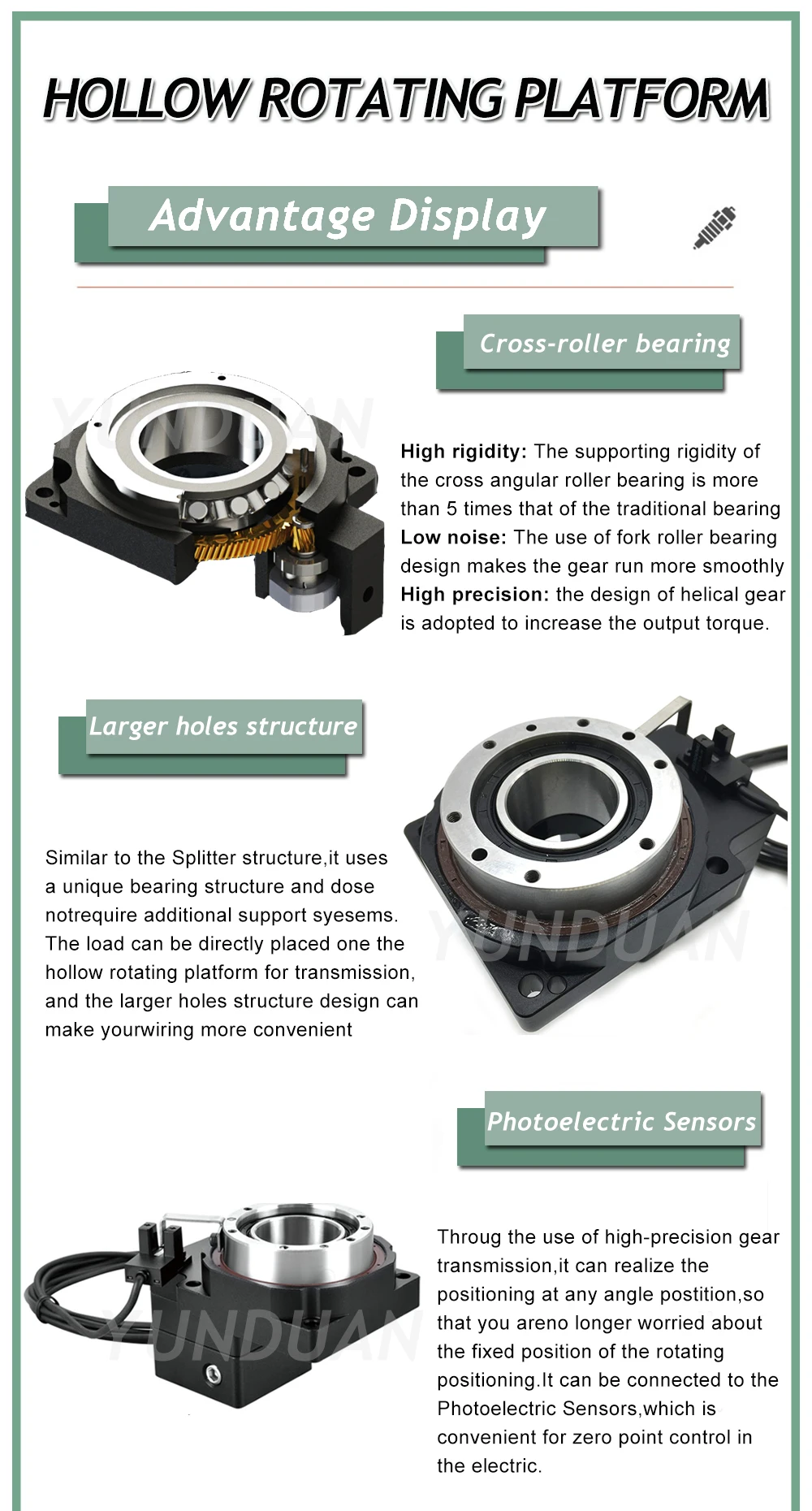

| Bearing structure | Cross roller bearing | Lubrication method | Long-term lubrication | ||||||
| Transmission efficiency | 95% | Protection level | IP50 | ||||||
| Installation method | Arbitrary | Lubrication method | Long-term lubrication | ||||||
| Limit switch voltage | 5-24VDC | Repeated positioning accuracy | ≤15 arc-sec | ||||||
| If you need output terminals of other sizes, please contact us or leave a message!!! | |||||||||
