- High-concerned chemical: None
- Origin: Mainland China
- Free installation service: No
- Place of Origin: Guangdong, China
- Model Number: ES-5KW
- Application: Home
- Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
- Battery Type: Lithium Ion
- Controller Type: MPPT
- Mounting Type: Ground Mounting
- Load Power (W): 5 kW, 10 kW
- Output Voltage (V): 220V
- Output Frequency: 50/60HZ
- Work Time (h): 5 Hours
- Pre-sales project design: Y
- Product name: MPPT high frequency inverter Off Grid 1KW Solar Power System
- Certificate: ISO9001/14001 CE ROHS
- Solar panel: 180W 18V Mono Solar Panel
- Keyword: MPPT high frequency inverter Off Grid 1KW Solar Power System
- Warranty: 10 Years
- Battery: MPPT high frequency inverter Off Grid 1KW Solar Power System
- Controller: PWM 50A Solar controller
- Inverter Type: Off-grid
- Material: Aluminum Alloy.Stainless Steel
- Key word: MPPT high frequency inverter Off Grid 1KW Solar Power System
Dear customer, Welcome to my store,We sell all kinds of automotive products. If you have any other items you wish to purchase, please feel free to consult us.There is a discrepancy between the current price and the actual price (configuration and logistics). To obtain product details and accurate prices, please add WA for confirmation Manager: Liu Mr WhatsApp:+86 17680717689 Email：maoyishunda@gmail.com
Technical Parameters
| 5KW Off Grid Solar Power System | ||
| Items | Description | Quantity |
| Solar panel | 500W 36V Mono Solar Panel (have mono 400W to 650W optional) |
3 pcs |
| Inverter with MPPT 80A Solar controller, smart paralle card | MKSII-5K hybrid solar inverter, 5KW/48V/80A, 120-430VDC, 230VAC | 1pc |

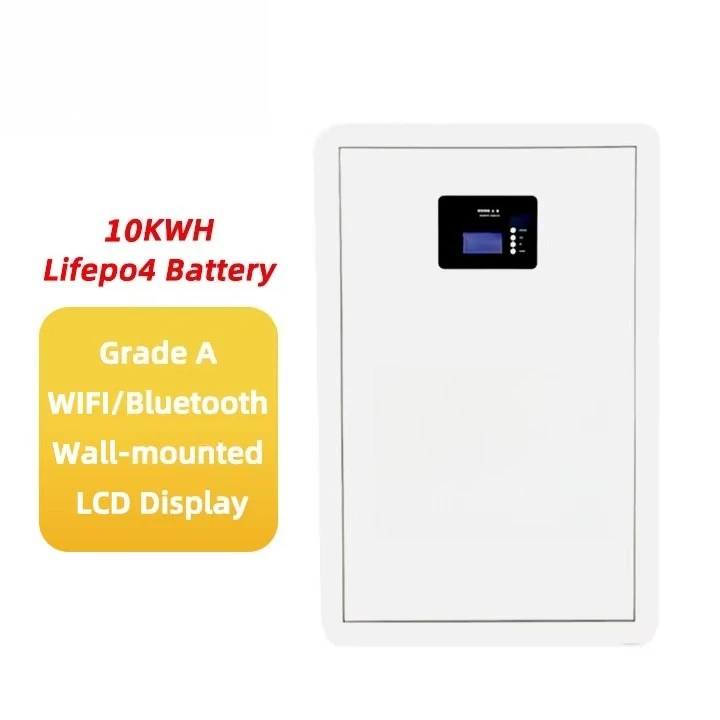

| Battery | Lithium battery 51.2V 100Ah | 1pcs |
| Solar mounting brackets | Aluminium brackets can mount 10pcs solar panels | 1set |
| Solar cable & connectors | 100m 4mm2 solar cable & 2sets MC4 connectors | 100m+2sets |
Household solar system 5000W 5000W hybrid solar system 3KW 4KW 5KW 8KW 10KW 12KW solar system
| Basic Parameters | 51.2V 100Ah |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (Ah) | 100Ah |
| Nominal Power (Wh) | 5.12KWh |
| Dimension (mm) | 578.5×458.5×172.4mm |
| Weight (Kg) | 48Kg±3kg |
| Working voltage range | 42V~58.4V |
| Max. Charge/Discharge Current (A) | 100A |
| Communication Interface | CANBUS,RS485 |
| Configuration | 2P16S |
| Working Temperature | 0~40℃(Charge) /-20~40℃(Discharge) |
| Cell chemistry | Lithium iron phosphate (LiFePO4) |
| Cycle life | 6000 cycles @25℃ 50A charging/discharging current 80% DOD |
| IP level | IP 20 |
Household solar system 5000W 5000W hybrid solar system 3KW 4KW 5KW 8KW 10KW 12KW solar system
