Name: 5 axis 6040 mini CNC milling machine 2.2KW CNC carving machine with 2.2KW 3d cnc wood carving router
SKU: 1005009689371165
Availability: InStock

Hign-concerned Chemical: None
DIY Supplies: Electrical
Brand Name: WMWMNU
Origin: Mainland China
cnc or not: CNC
place of origin: Guangdong, China
voltage: 110v/220v
dimension(l*w*h): 855*875*600mm
power (kw): 2.2
weight (kg): 125
warranty: 3 years
key selling points: Easy to Operate
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Condition: New
After-sales Service Provided: Online support
Certification: CE
Carving speed: 0-2500mm/min (different materials differ)
Rotate speed: 0-24000PRM/min
Usage: Engraving, drilling, milling for personal use
Computer systerm: windows 10/8/7/xp

Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Echo WhatsApp:+86 19898845451 Email:qianruip09@gmail.com

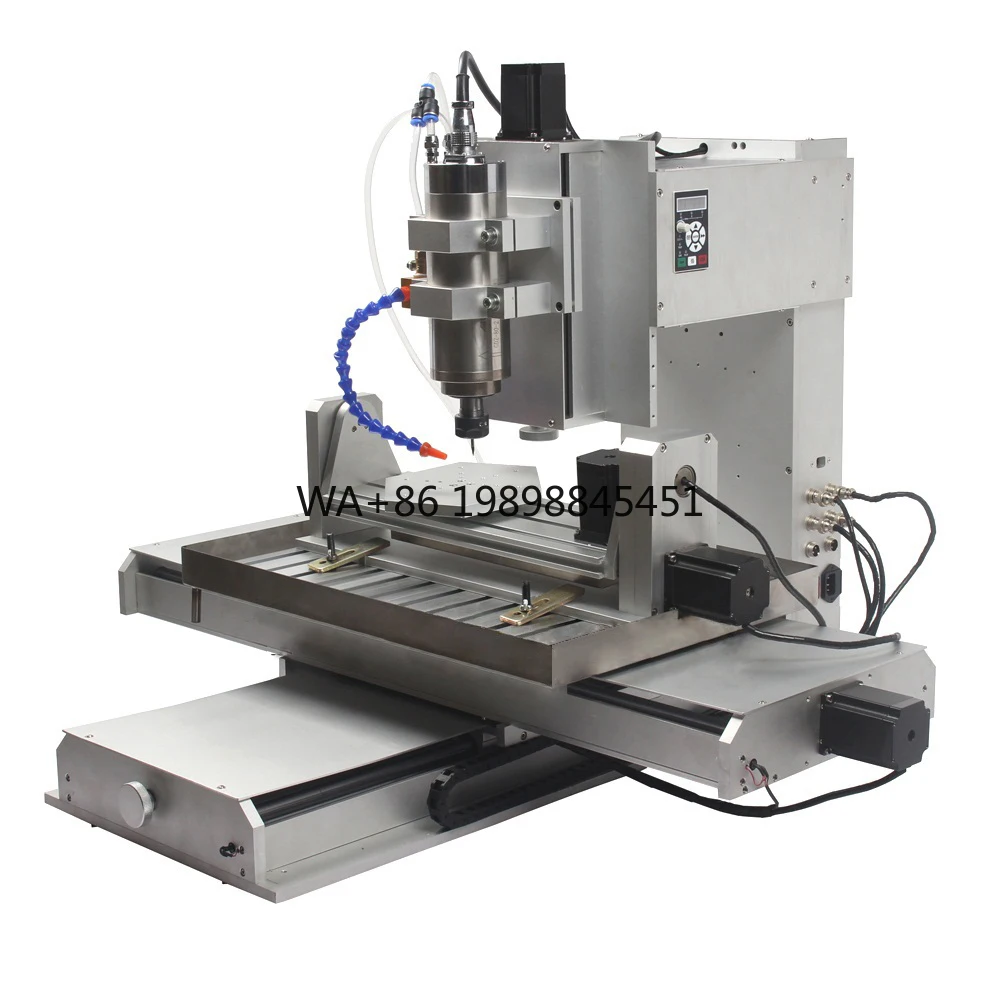

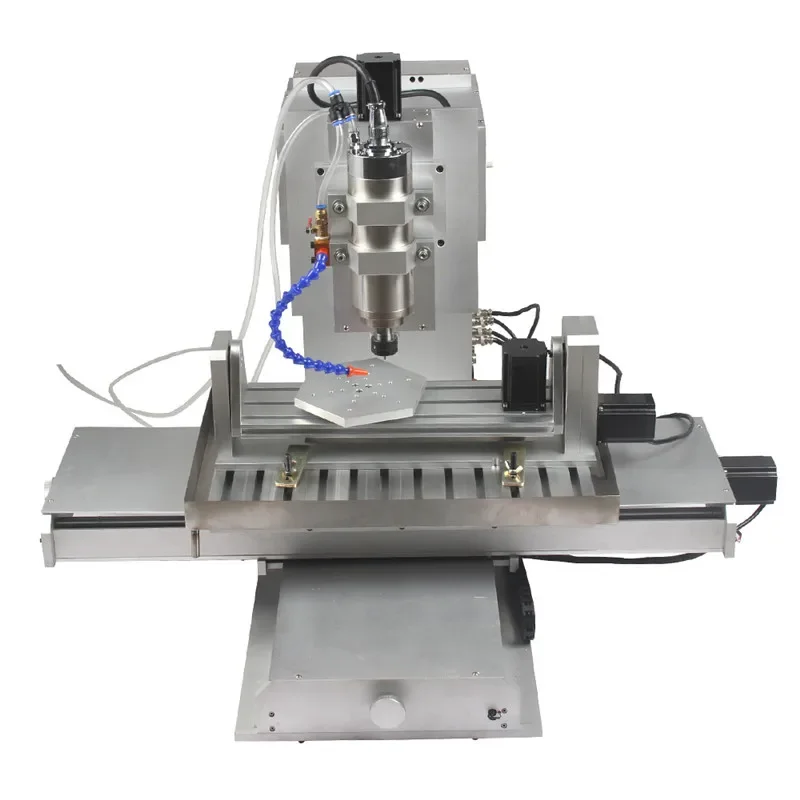

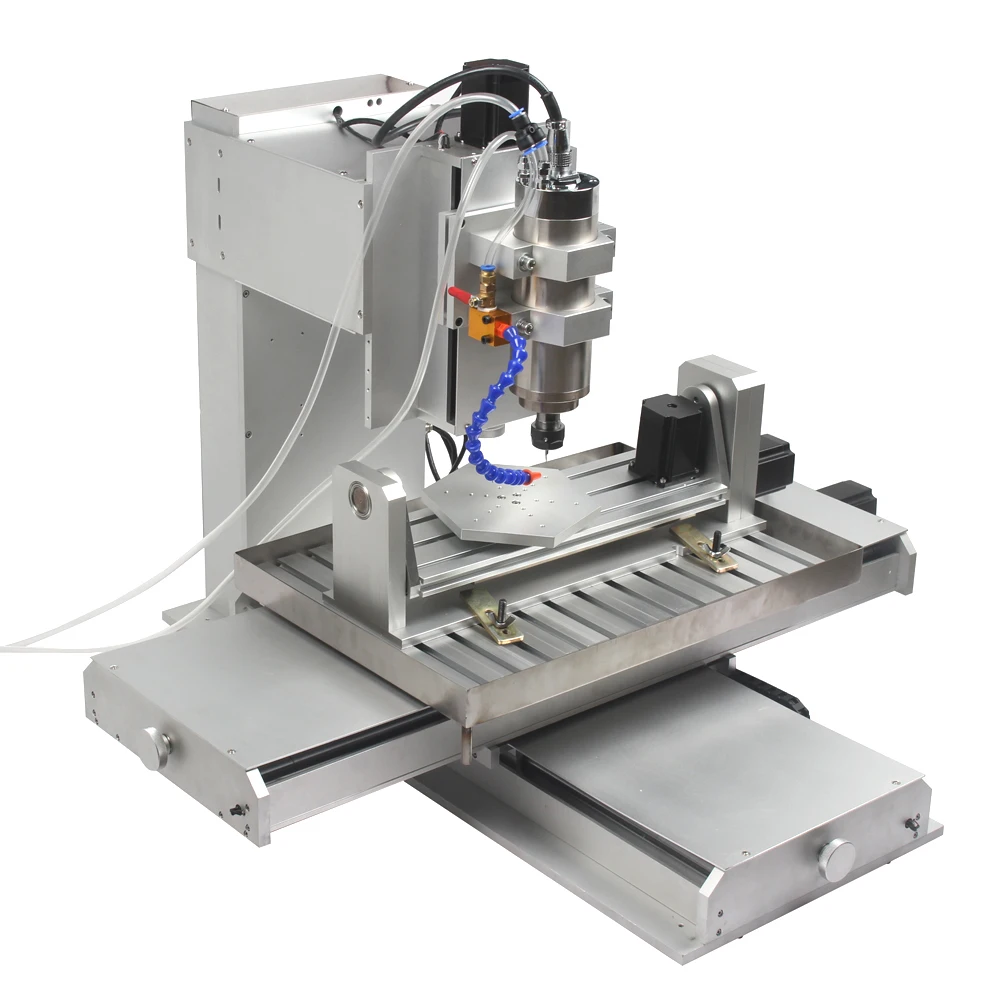

CNC 6040 5 axis CNC Router Engraving Machine with Ball Screw CNC Pillar Type CNC Wood Aluminum Copper Metal Milling Machine CNC

Product Description

The HY-6040 engraving machine supports wood, acrylic, metal, stone and stainless steel engraving USB interface, can connect computer through USB cable, spindle support 1500/2200w, can engrave material which hardness below 45.can work with 3 axis/4 axis/5 axis; support Mach 3 software.

Highlights

Features:

Easy operating because:

It can work with 3 axis / 4 axis / 5 axis, just as you like !

Independent high-speed micro computer intelligent controller.

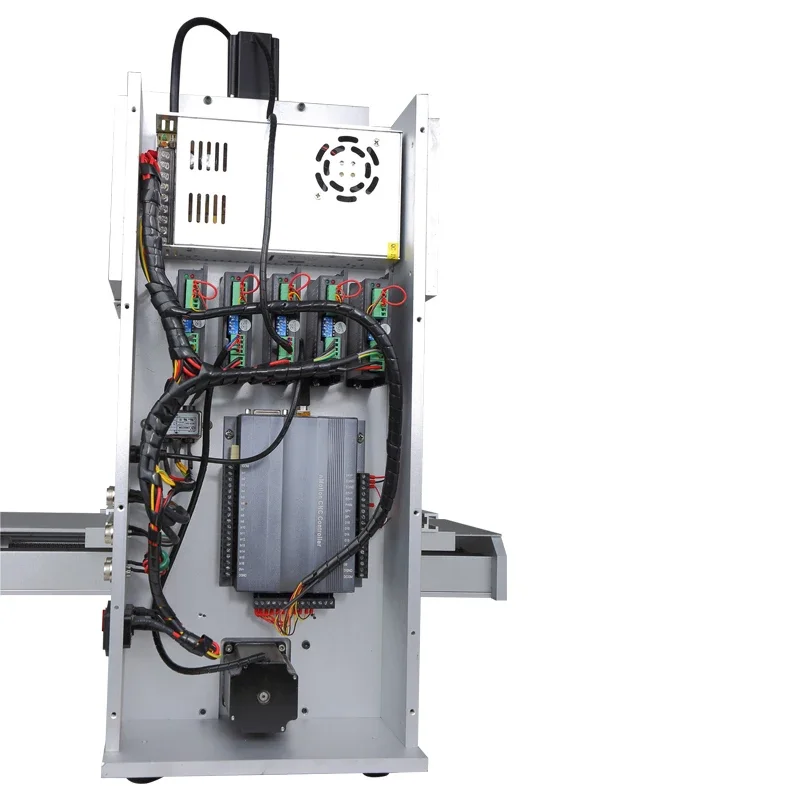

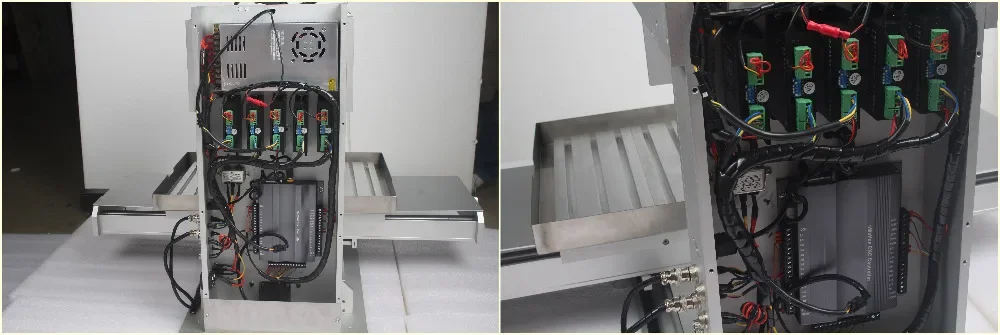

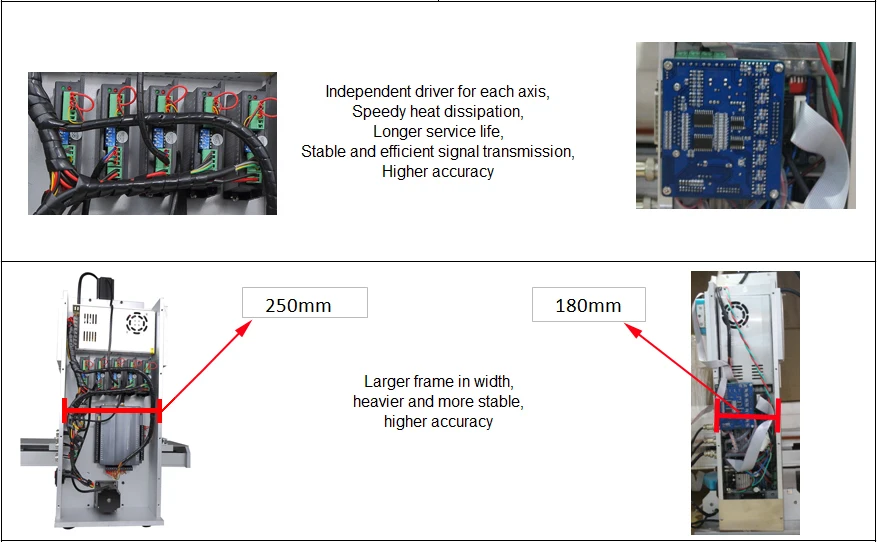

Independent drivers for each axis.

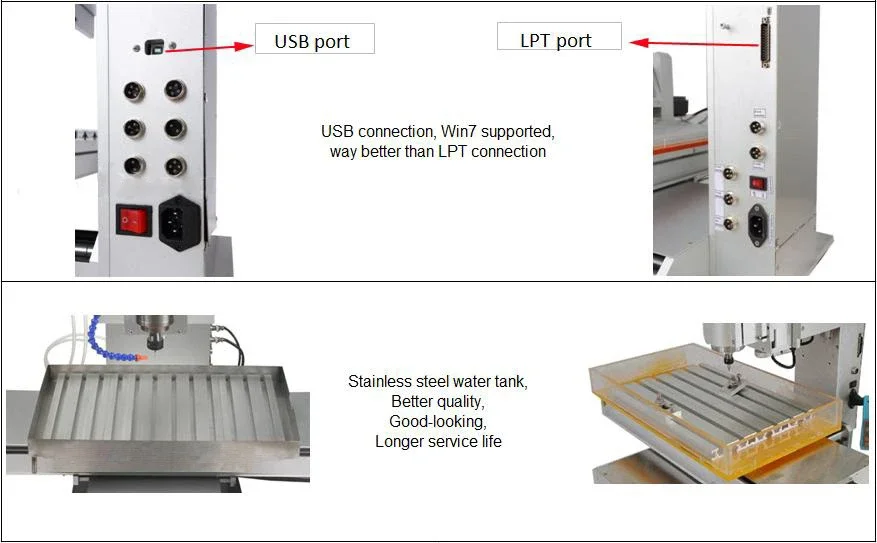

Mach 3 software USB connection

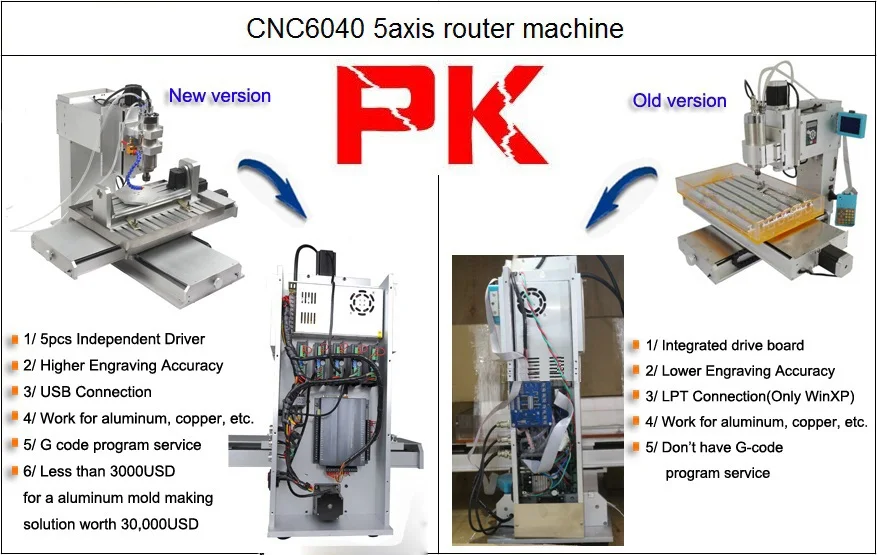

Upgraded with more stable structure than old type

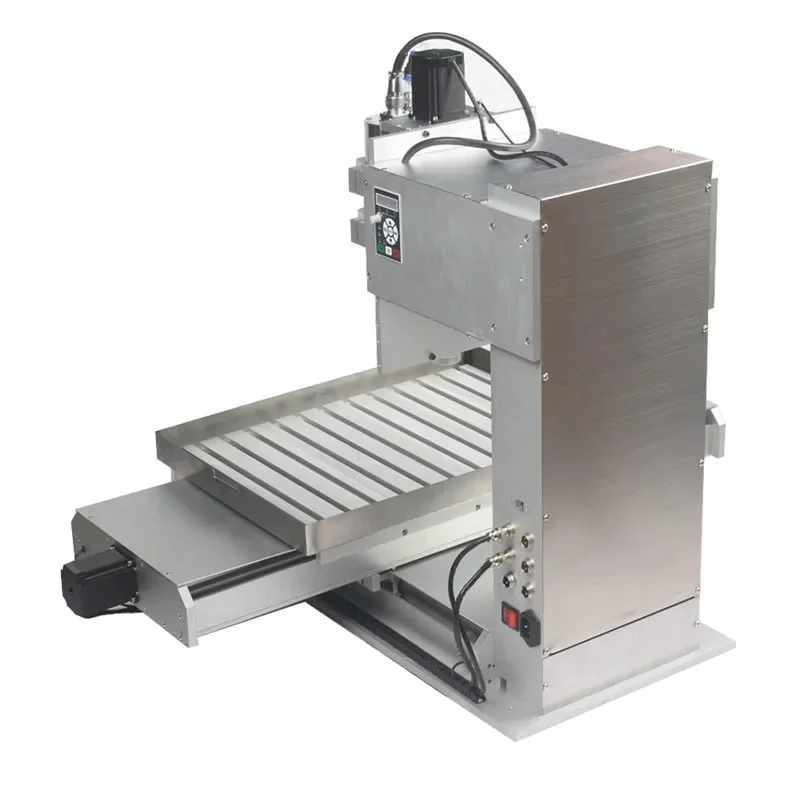

Built in frequencey converter and without controller box.

Higher precision because:

Cross slippery platform design rather than gantry design.

Aluminum base sheet is heavy which can make sure less vibration when work.

With auto-checking function.

1500/2200w water-cooled spindle.

Ball screw

Stainless Steel sink for bits cooling

You can buy this machine from us without any worry because:

CE approved.

Video support.

English manual available.

Mach 3 software send with the machine as a CD.

Can engrave material which hardness below 45.

From reliable & trustable profesional China CNC Router manufacturer

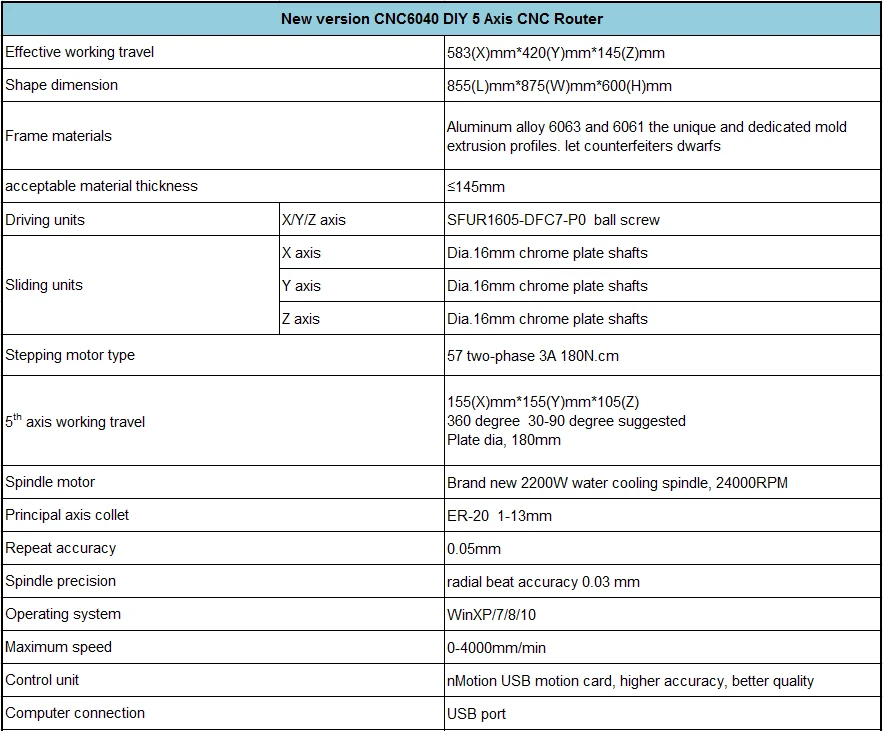

Specifications

Effective working travel		583(X)mm'420(Y)mm*145(Z)mm

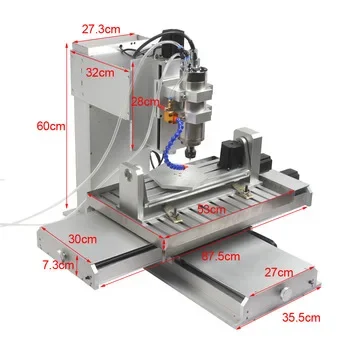

Shape dimension		855(L)mm"875(W)mm'600(H)mm
Frame materials		Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.let counterfeiters dwarfs
acceptable material thickness		≤145mm
Driving units	X/Y/Z axis	SFUR1605-DFC7-P0 ball screw
Sliding units	X axis	Dia. 16mm chrome plate shafts
	Y axis	Dia. 16mm chrome plate shafts
	Z axis	Dia. 16mm chrome plate shafts
Stepping motor type		57 two-phase 3A 180N.cm

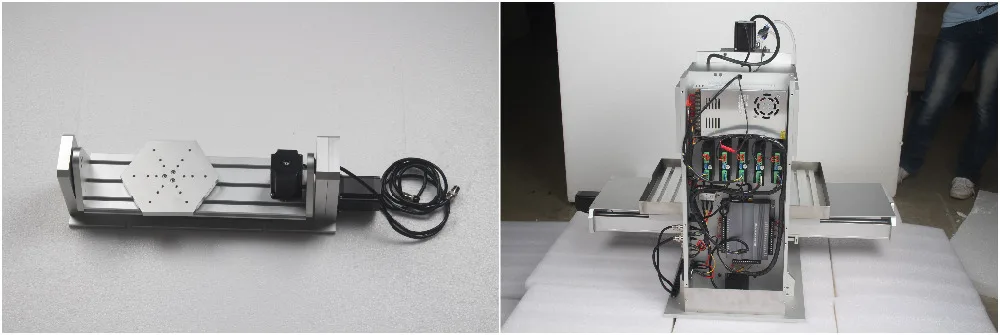

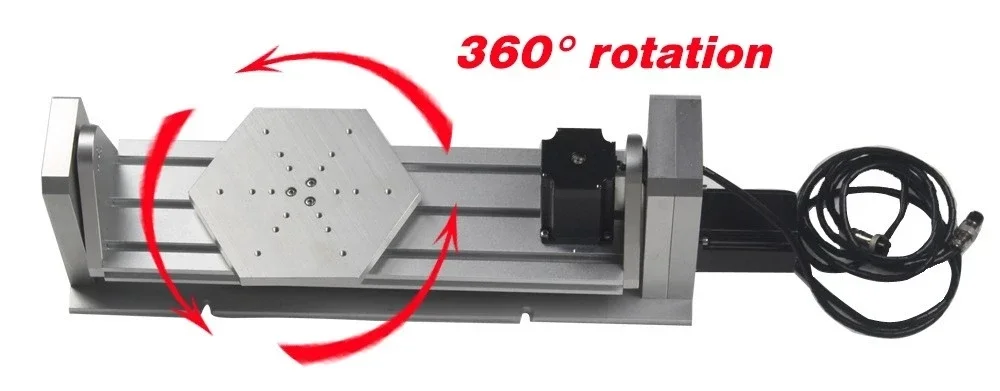

5th axis working travel		155(X)Mm155(Y)mm105(Z) 360 degree 30-90 degree suggested Plate dia,180mm
Spindle motor		Brand new 2200W water cooling spindle, 24000RPM
Principal axis collet		ER-20 1-13mm
Repeat accuracy		0.05mm
Spindle precision		radial beat accuracy 0.03 mm
Operating system		Winxp/7/8/10
Maximum speed		0-4000mm/min
Control unit		nMotion USB motion card, higher accuracy, better quality
Computer connection		USB port

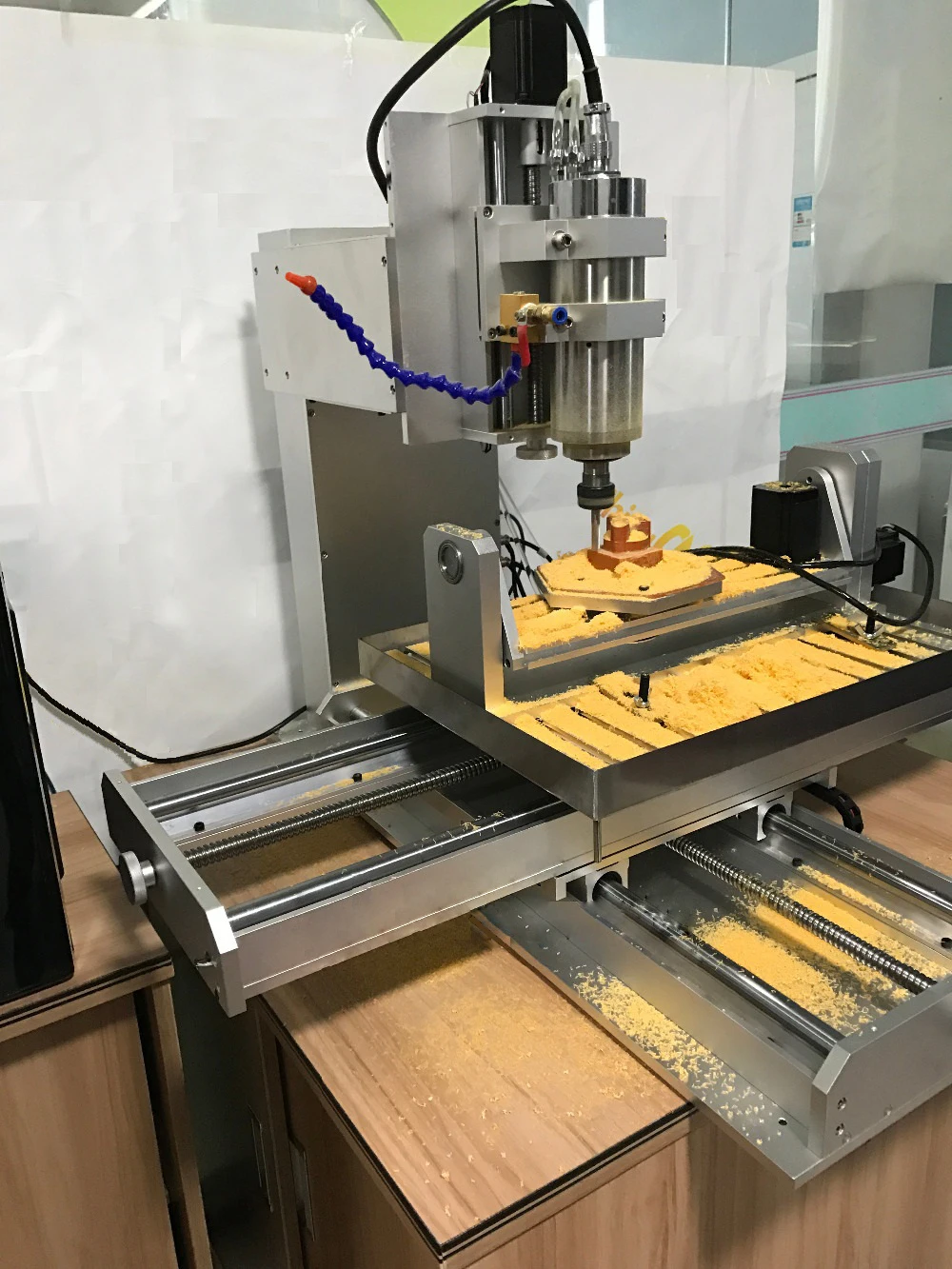

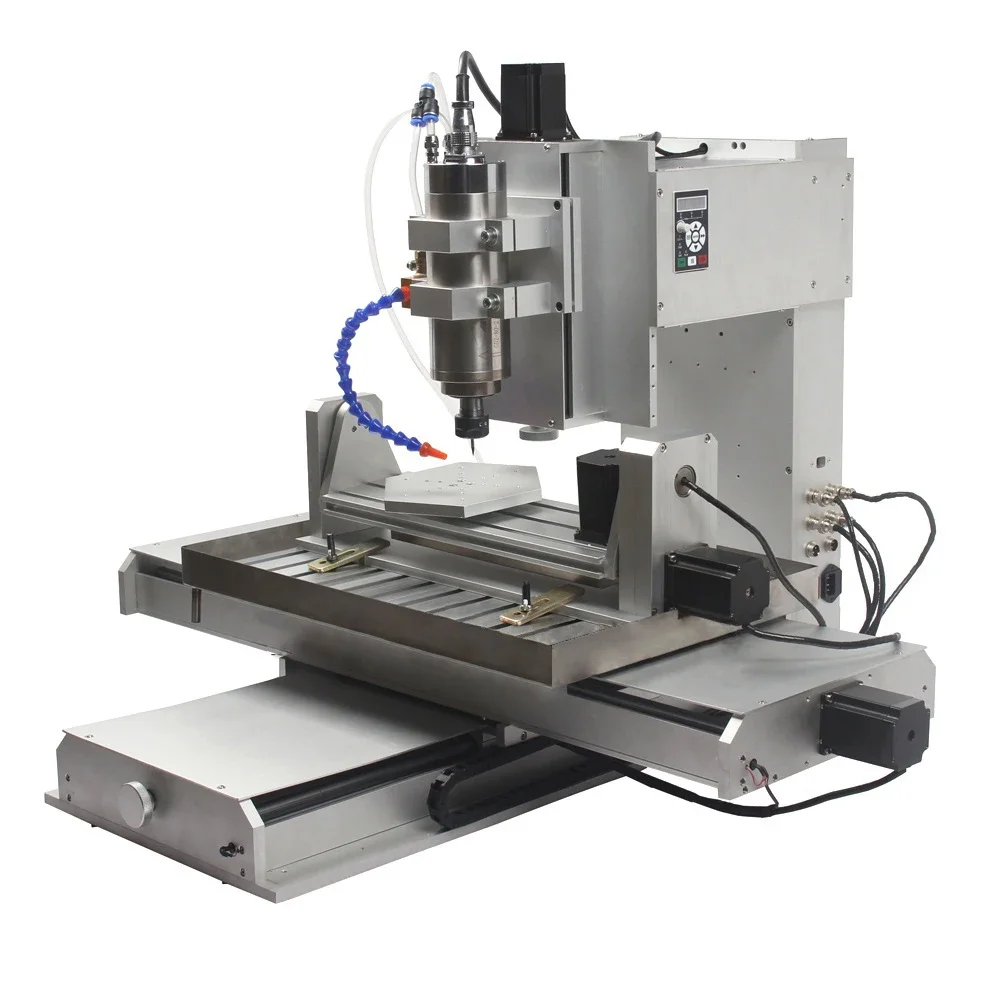

Detail images

Note:

We are offering 5axis technical support for our 5axis machine!! REAL 5axis machine, simultaneous 5 axis motion.

We are different from other sellers who have no idea what real 5 axis machine is.
