4 Axis 3D Rotary Axis Cnc Router Wood Cutting Cnc Router Cnc Wood Machinery for Machinery Repair Shops
What is the 4th-Axis rotary on the CNC Router?

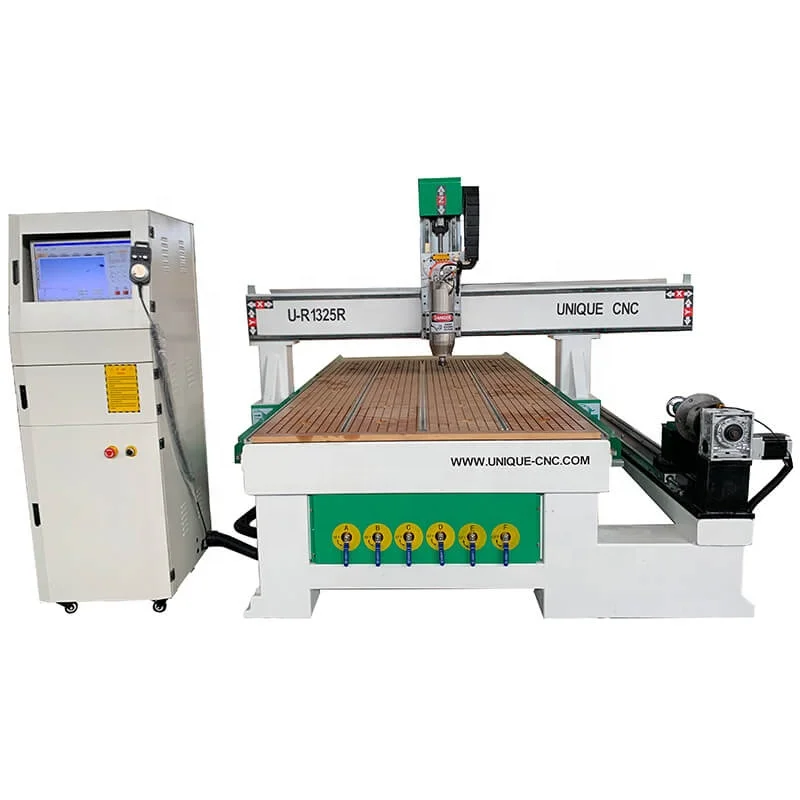

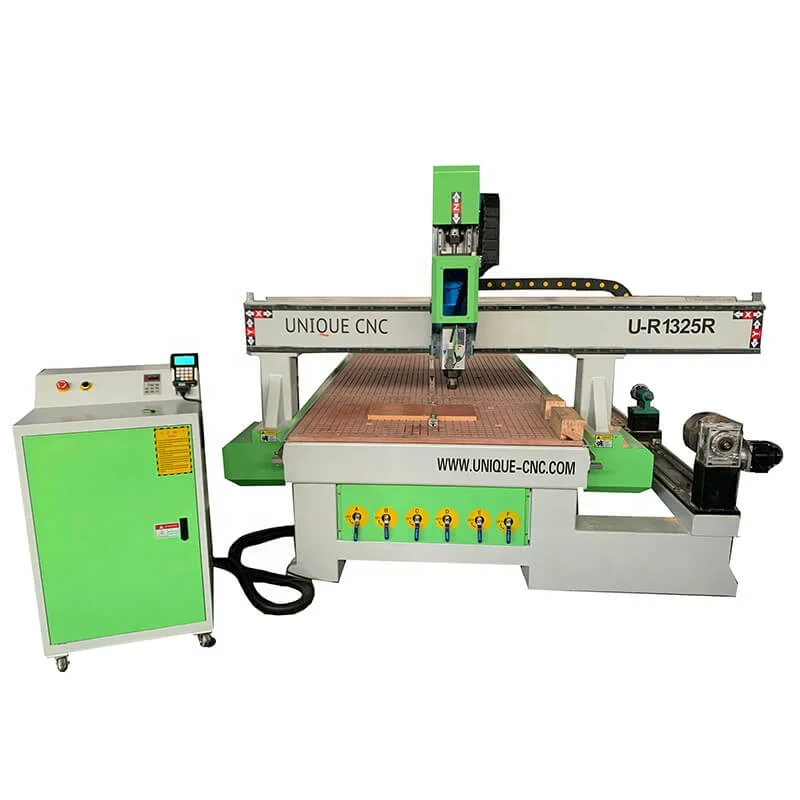

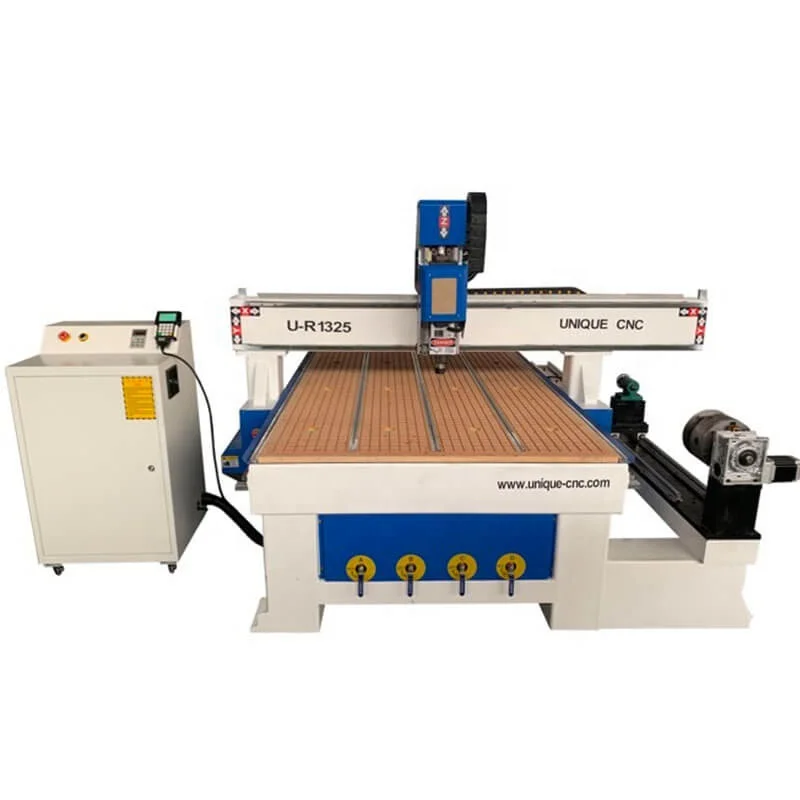

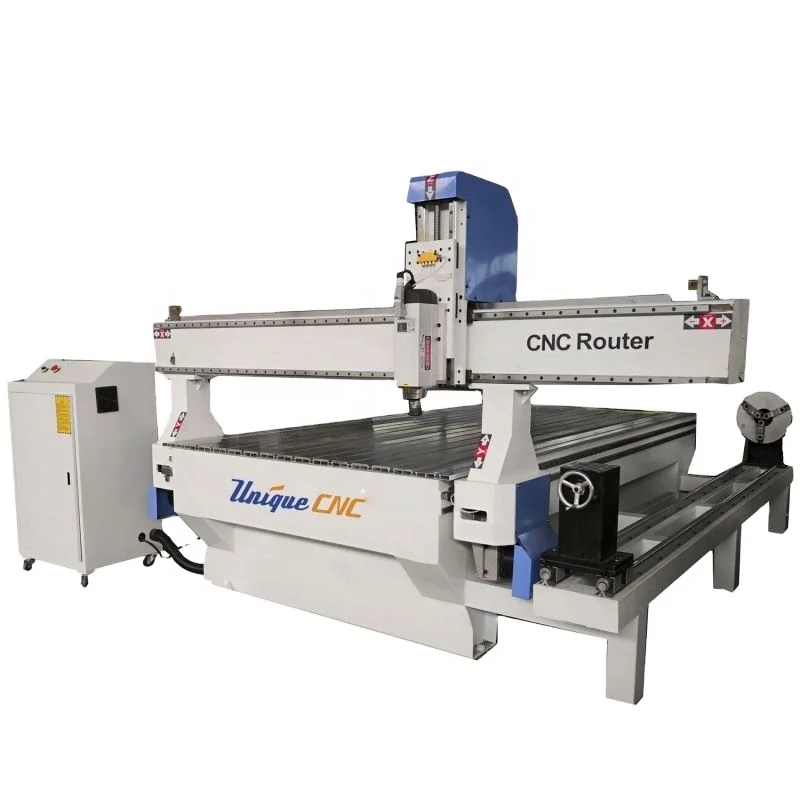

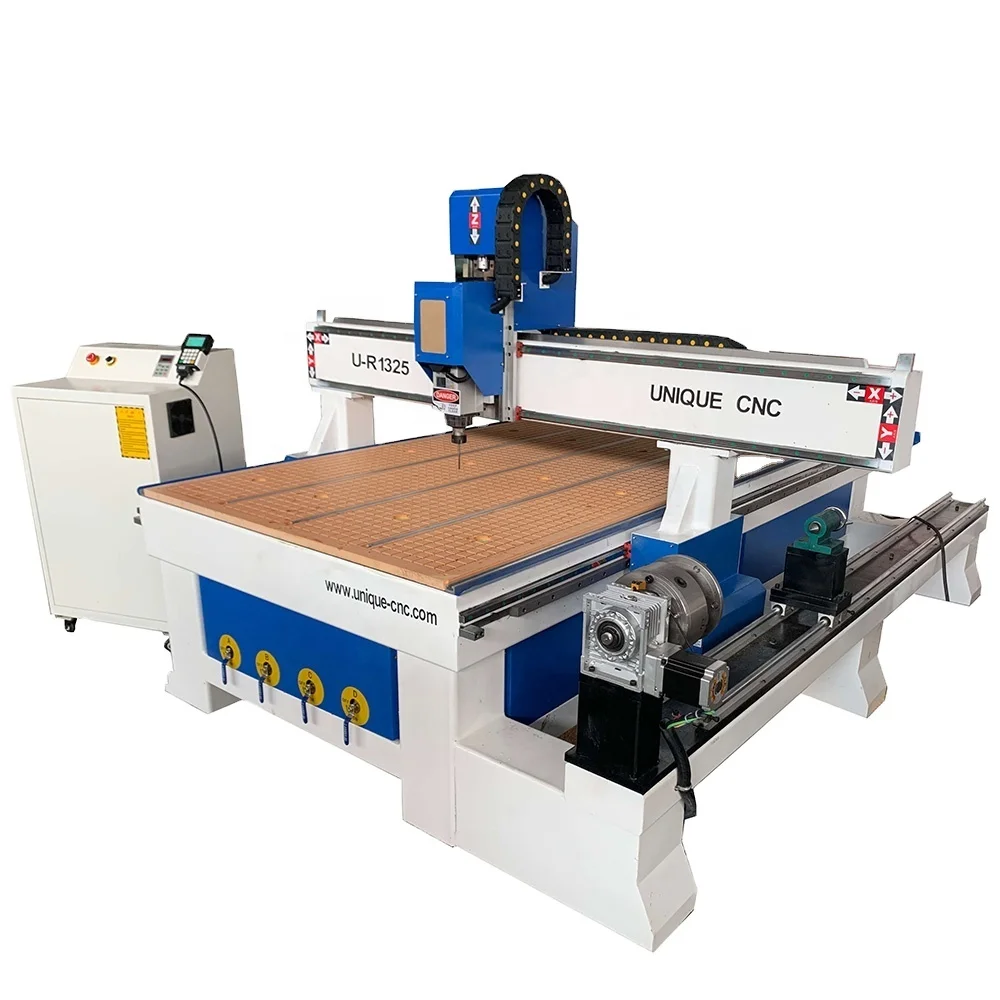

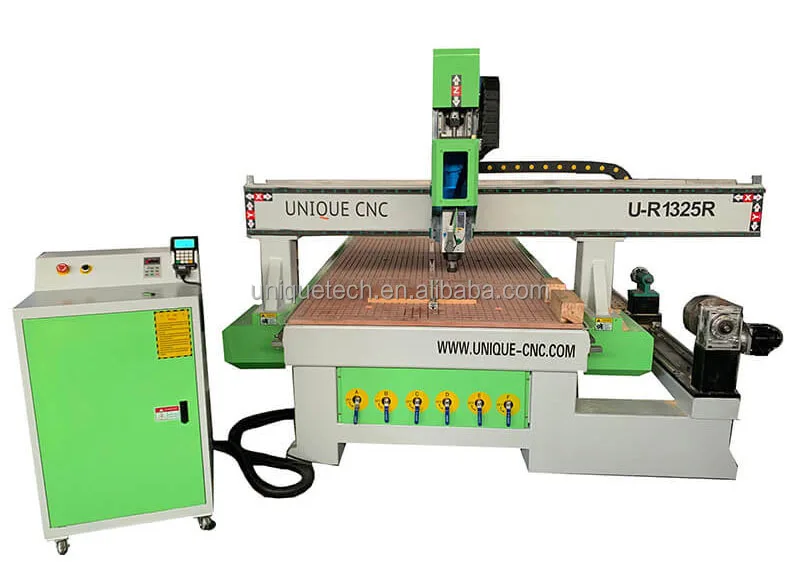

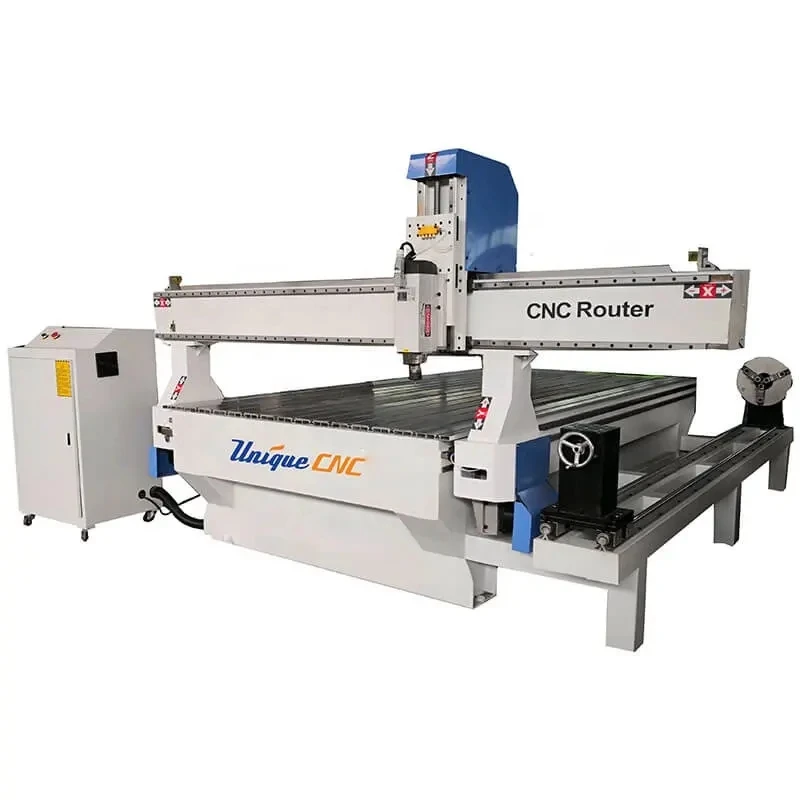

The U-R1325R four axis cnc router with rotary is a type of multifunctional CNC machine table with 4x8ft or 5x10ft working size.The machine combines the functions of panels cutting, engraving, drilling, grooving and columns surface engraving or milling.Unique CNC always put the 4th lathe rotary at side of table, so it is convenient to load and unload the workpiece.
The 4th-Axis rotary of this wood CNC Router is composed of a 3-jaws or 4-jaws chuck, live center, tailstock, rail and stands, it located at the side of the machine body, it does not cover the plate table space, what is more, it is very convenient to load and unload the columns. Standard rotaries diameters are 150mm, 200mm,300mm or 400mm.
The U-R1325R four axis cnc router with rotary is a type of multifunctional CNC machine table with 4x8ft or 5x10ft working size.The machine combines the functions of panels cutting, engraving, drilling, grooving and columns surface engraving or milling.Unique CNC always put the 4th lathe rotary at side of table, so it is convenient to load and unload the workpiece.
The 4th-Axis rotary of this wood CNC Router is composed of a 3-jaws or 4-jaws chuck, live center, tailstock, rail and stands, it located at the side of the machine body, it does not cover the plate table space, what is more, it is very convenient to load and unload the columns. Standard rotaries diameters are 150mm, 200mm,300mm or 400mm.
Description
Features of the 4 axis CNC Router with Rotary:
* The machine equips with a 4th rotary locating at the side of the table,so no need to move the heavy rotary when use the flat table.What is more,very convenient to load and unload the workpiece.
* It uses 4 axis controller instead of 3 axis controller. When we input the 4 axis file, the controller can recognize it is 3
axis or 4 axis automatically,no need to switch from 3 axis and 4 axis.
* The 4 axis machine not only can make 2D or 3D relief on the surface of columns,but also can make irregular profiles like
statue,figures,furniture legs and so on.
* It reads G code generated by artcam,powermill,rhino,mastercam,vcarve,etc.
* The whole 4 axis cnc router machine uses thick weld-steel, milled and drilled by professional machine center, so the surfaces for installing the rails are rather flat. High level machine body processing can guarantee the high precision and lower noise.
* Taiwan made high quality linear square guide rails and ball screws on the wood cnc router with lathe attachment have the advantages of harder, higher precision, wear resistant, lower noise and longer life.
* Famous and top quality water cooled or air cooled spindle for different functions and different operating environment, ensure longest lifespan and lowest maintenance cost.
* DSP handheld control handle no need to connect with PC when working. Operators can set all the parameters on it. What is more, it is easy to learn and operate, especially for the users who have no PLC and programming experience.
* The 4 axis wood carving machine can install various worktable for different jobs: T-slot table, vacuum table, combined table or water tables.
* The 4 axis cnc router table equips with auto lubricate system. Lubrication is very important to all mechanical parts including Gears, Racks,Ball Screws, Runner Blocks, Bearings and so forth. Due to the fact that so many components require lubrication regularly, we have installed the one push lubrication system that ensures the lubrication of every component on our machines.
* Using normal vehicle engine oil is advised. And all you have to do is refill the oil tank and push the pump lever once a week to ensure the oil reaches all the necessary components.
* It uses 4 axis controller instead of 3 axis controller. When we input the 4 axis file, the controller can recognize it is 3
axis or 4 axis automatically,no need to switch from 3 axis and 4 axis.
* The 4 axis machine not only can make 2D or 3D relief on the surface of columns,but also can make irregular profiles like
statue,figures,furniture legs and so on.
* It reads G code generated by artcam,powermill,rhino,mastercam,vcarve,etc.
* The whole 4 axis cnc router machine uses thick weld-steel, milled and drilled by professional machine center, so the surfaces for installing the rails are rather flat. High level machine body processing can guarantee the high precision and lower noise.
* Taiwan made high quality linear square guide rails and ball screws on the wood cnc router with lathe attachment have the advantages of harder, higher precision, wear resistant, lower noise and longer life.
* Famous and top quality water cooled or air cooled spindle for different functions and different operating environment, ensure longest lifespan and lowest maintenance cost.
* DSP handheld control handle no need to connect with PC when working. Operators can set all the parameters on it. What is more, it is easy to learn and operate, especially for the users who have no PLC and programming experience.
* The 4 axis wood carving machine can install various worktable for different jobs: T-slot table, vacuum table, combined table or water tables.
* The 4 axis cnc router table equips with auto lubricate system. Lubrication is very important to all mechanical parts including Gears, Racks,Ball Screws, Runner Blocks, Bearings and so forth. Due to the fact that so many components require lubrication regularly, we have installed the one push lubrication system that ensures the lubrication of every component on our machines.
* Using normal vehicle engine oil is advised. And all you have to do is refill the oil tank and push the pump lever once a week to ensure the oil reaches all the necessary components.
Parameters of the 3D CNC Router With Rotary:
|
Parameters
|
Standard Specifications
|
|
Machine Model No.
|
U-R1325R four axis cnc router
|
|
X Y Z axis working area
|
1300x2500x200mm
|
|
4th rotary diameter
|
100-400mm
|
|
4th rotary position
|
At side of machine,at front of table or onto the worktable
|
|
Spindle power
|
4.5KW (Options: 3KW,5.5KW,6KW,9KW)
|
|
Spindle cooling way
|
Air cooled or water cooled
|
|
Spindle speed
|
0-18000rpm or 0-24000rpm
|
|
X Y Z traveling positioning accuracy
|
± 0.01mm
|
|
Table
|
Combined vacuum table and T slot table
|
|
Vacuum pump
|
5.5KW (Options: 7.5KW,11KW)
|
|
X Y Z rail and transmission
|
Taiwan TBI ball screw and helical gear rack
|
|
Max.rapid travel speed
|
3meters/min for stepper machines, 5m/min for servo machines
|
|
Driver motors
|
Stepper (Servo is option)
|
|
Working voltage
|
220V/380V/50HZ
|
|
Command language
|
G code
|
|
Control system
|
DSP A18 (Mach3,Ncstudio are optional) four axis system
|
|
Software compatibility
|
Artcam,Ucancam,Type3,Powermill,Mastercam,Vcarve
|
|
Running environment
|
Temperature:0~45°C
Relative humidity:30%~75% |
|
Lubricate system
|
Yes
|
|
Tool sensor
|
Yes
|
|
Frame structure
|
Thick and rigid seamless steel tube welding structure
|
Application
Application of High quality 4 axis cnc router 1325 wood machine with rotary device:
1. Woodworking industry: wood, MDF, solid wood, etc cutting and 3D engraving, wooden doors, cabinets, furniture legs, stairs, wall decorations, wooden lamp shells, photo frame, wooden statues and so on.
2. PVC furniture industry: PVC cutting, PVC windows and other furnitures.
3. Advertising: the machine can process all kinds of signs, nameplates, trademark, 3D lettrs, acrylic letters, souvenir and so on.
4. Soft metal 3D engraving, cutting and milling: aluminum carving,drilling and cutting, soft metal molds and decoration, bronze and copper mold processing and so on.
5. Other industries like phenolic duct cutting and so on.
2. PVC furniture industry: PVC cutting, PVC windows and other furnitures.
3. Advertising: the machine can process all kinds of signs, nameplates, trademark, 3D lettrs, acrylic letters, souvenir and so on.
4. Soft metal 3D engraving, cutting and milling: aluminum carving,drilling and cutting, soft metal molds and decoration, bronze and copper mold processing and so on.
5. Other industries like phenolic duct cutting and so on.
Our Advantages
01 Professional Advantage
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service
FAQ
Q Why should we choose you ?
A If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
