- Hign-concerned Chemical: None
- Material: Plastic
- Type: Other
- Origin: Mainland China
- Rated Current: 13.6A
- Rated Voltage: 220,230,240,110/220
- Model Number: DG3000
- Place of Origin: Jiangsu, China
- Frequency: 50/60HZ
- Speed: 3000rpm/3600rpm
- Generator model: 3KW diesel generator for car
- Engine model: HR178F
- Engine power: 6HP
- Start system: Recoil or Electric start
- Control system: common panel control
- Warranty: 1 Year, 1 year
- Alternator: 100% Copper Alternator
- Engine Brand: Hi-earns
- Certification: CE, ISO, EURO V

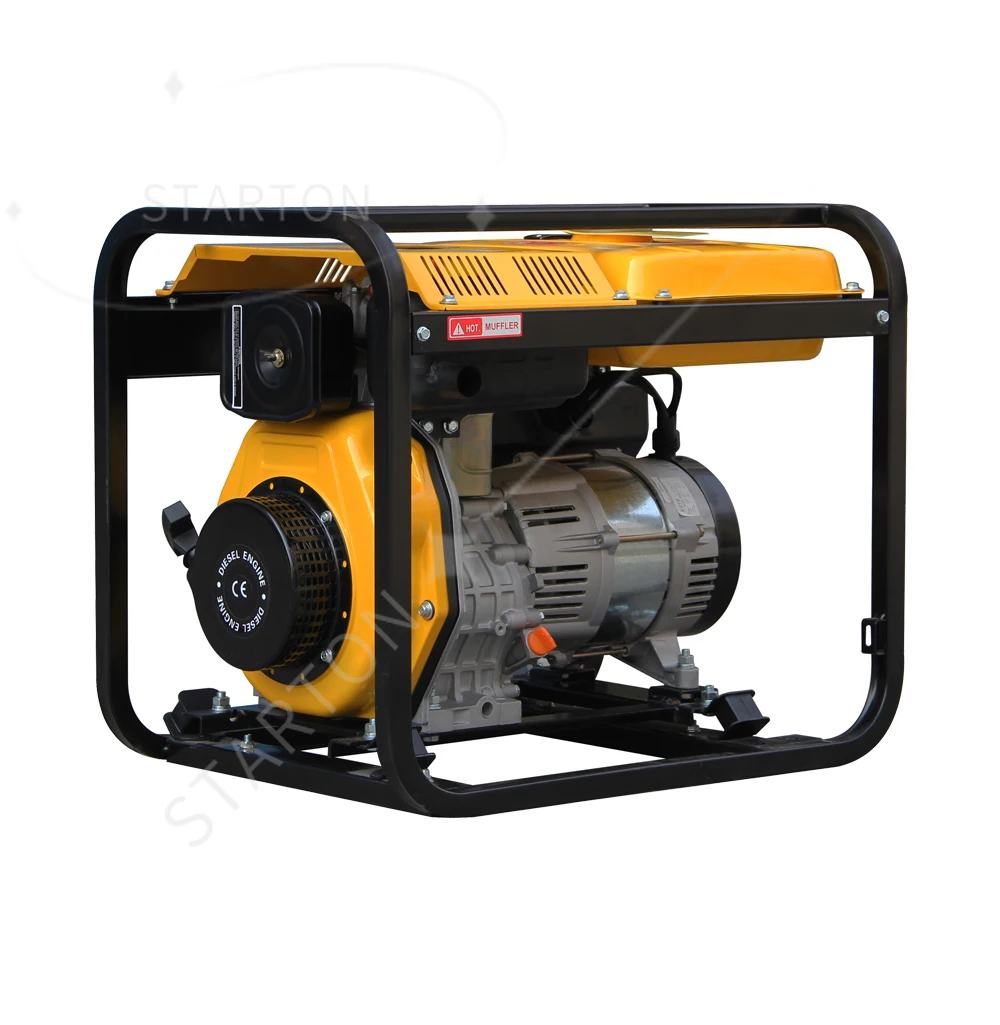

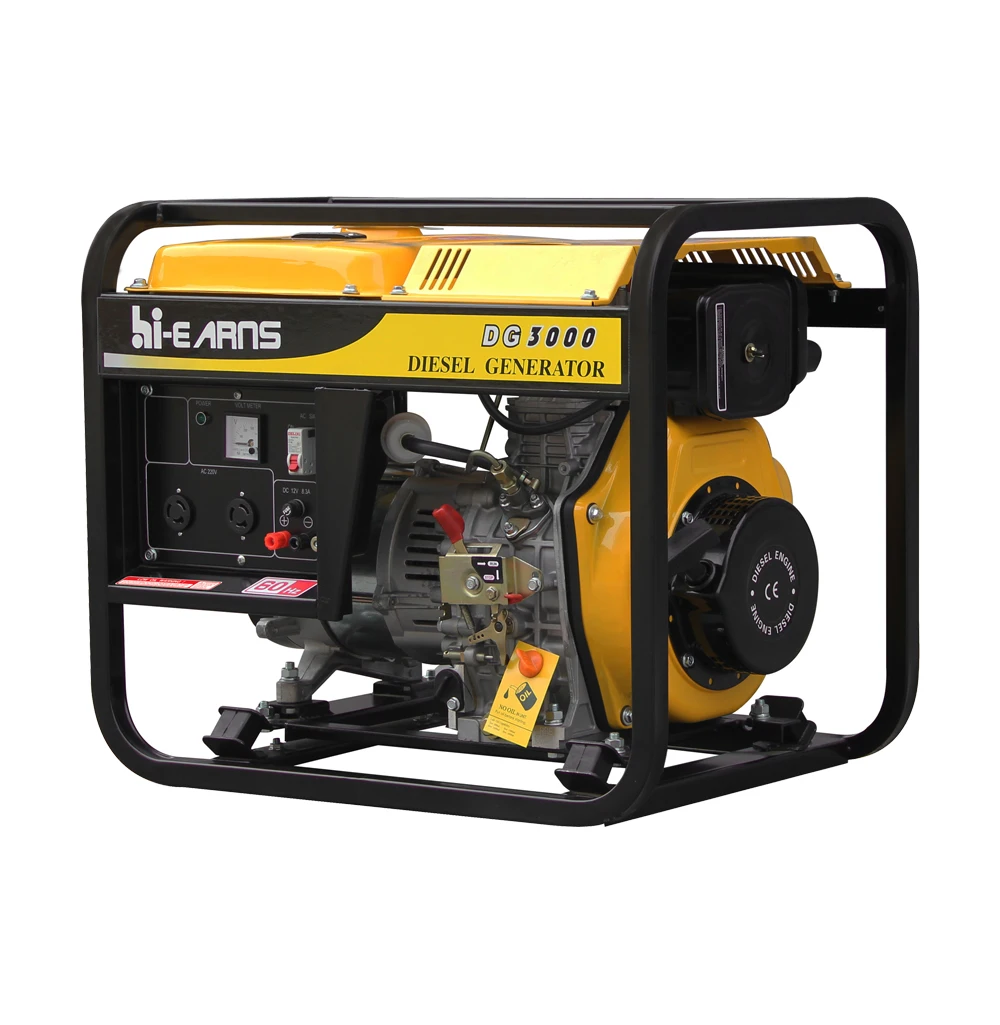

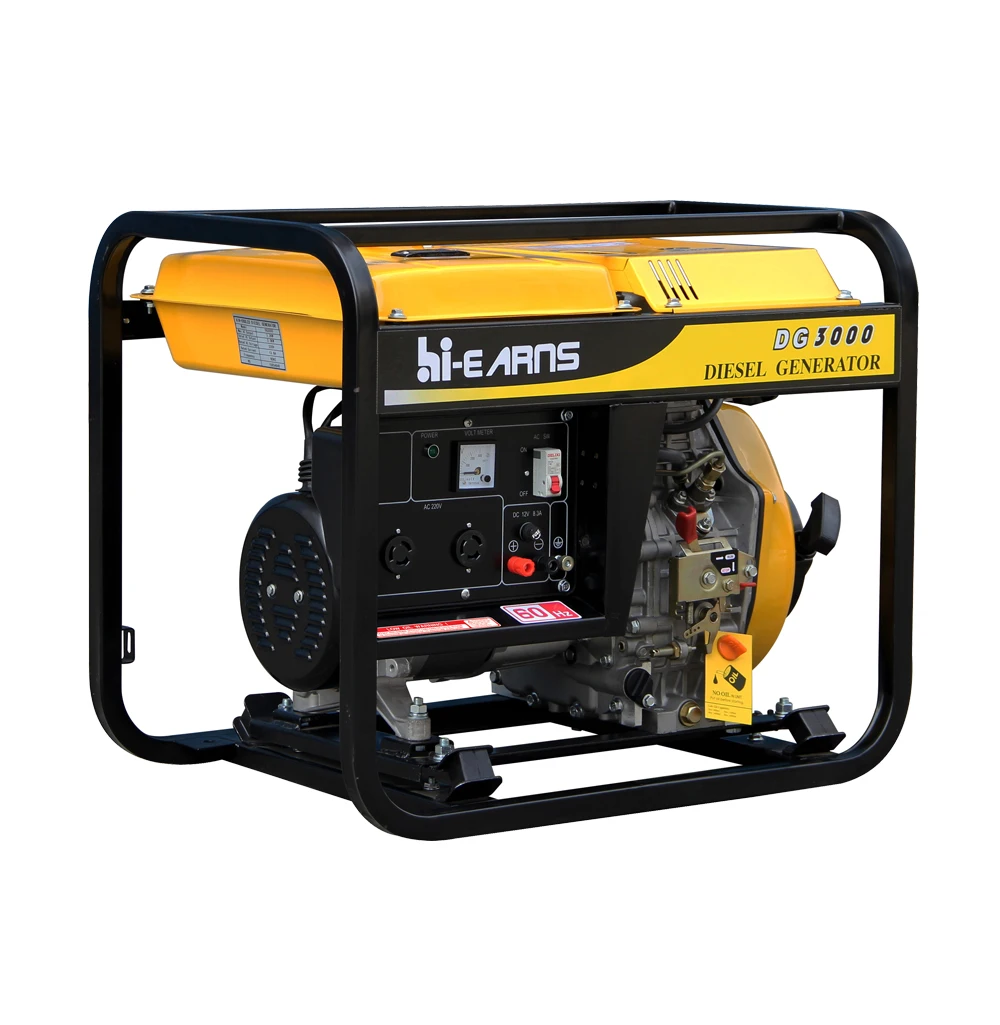

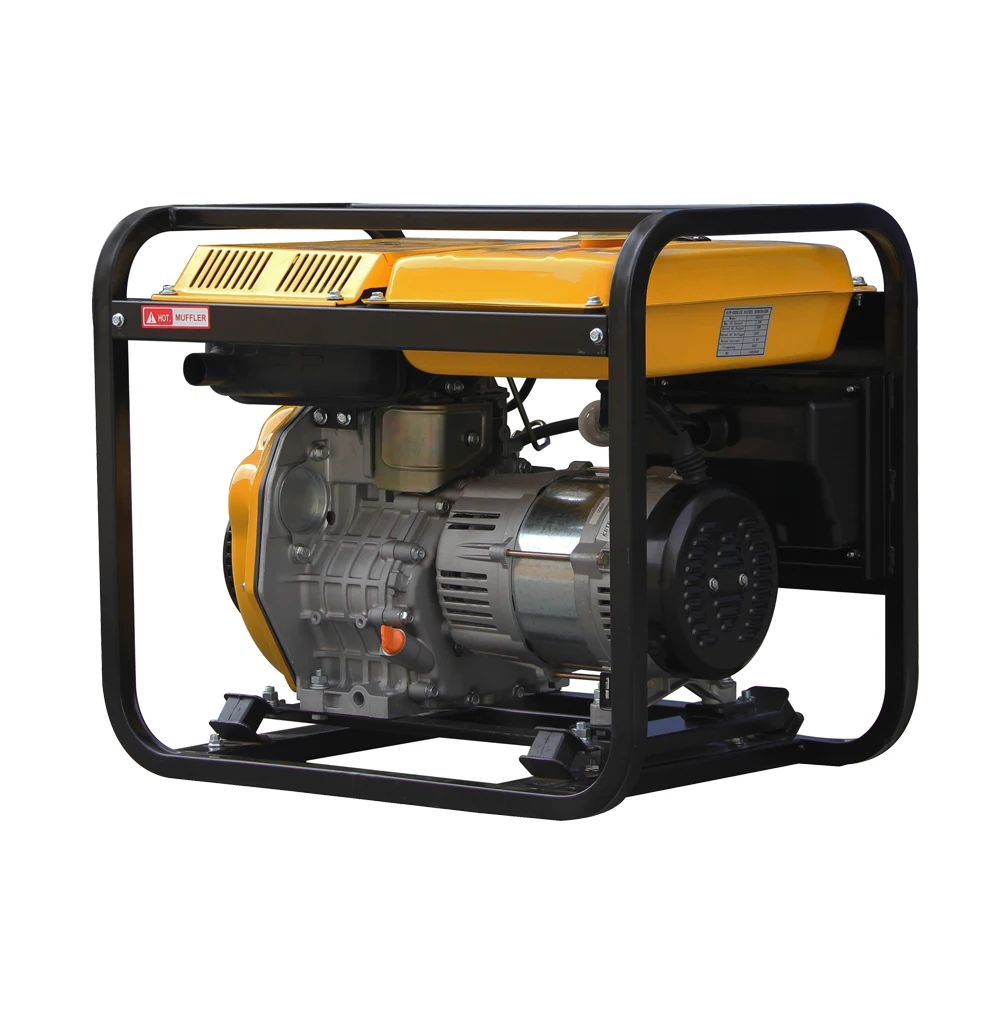

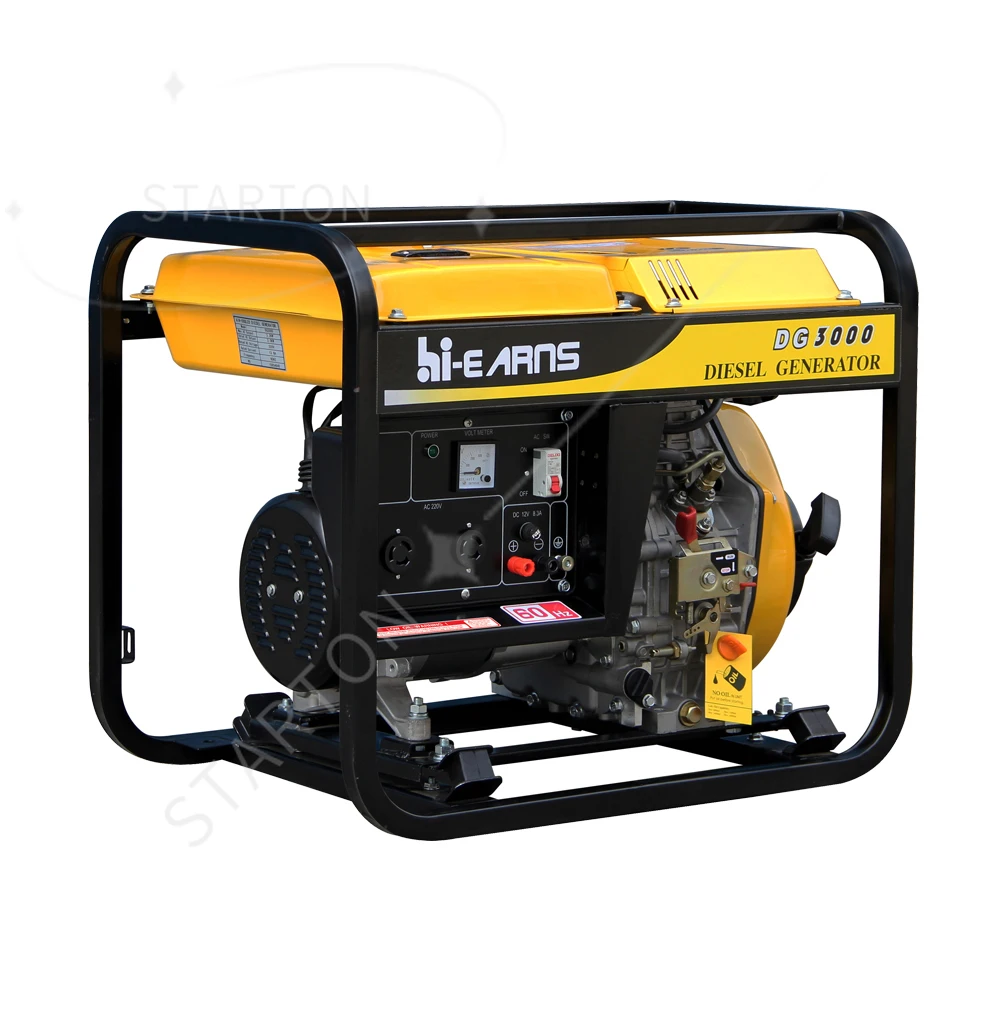

3KW 60HZ portable diesel generator for south america ar
DG3000 model: With HR178F HP HR186FA diesel engine and 100% copper alternator ensure a 2.8KW rated output, and 3KW max. output!
| GENERATOR | Model | DG3000 | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3 | 3.3 | |
| Rated output(kw) | 2.8 | 3 | |
| Rated. AC voltage(v) | 120, 220, 230, 240 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 9.7 | 9 | |
| ENGINE | Model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78× 62 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.1 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
|
OPTIONAL FEATURES |
DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 700× 480× 590 | |
| Net weight(kg) | 64 | ||
| 20FT | 130 | ||
