380v 3kw 4hp 24000rpm er20 1-13mm motor de eixo ac refrigerado a água e bomba vfd 4kw 100mm kit braçadeira para roteador cnc gravura madeira

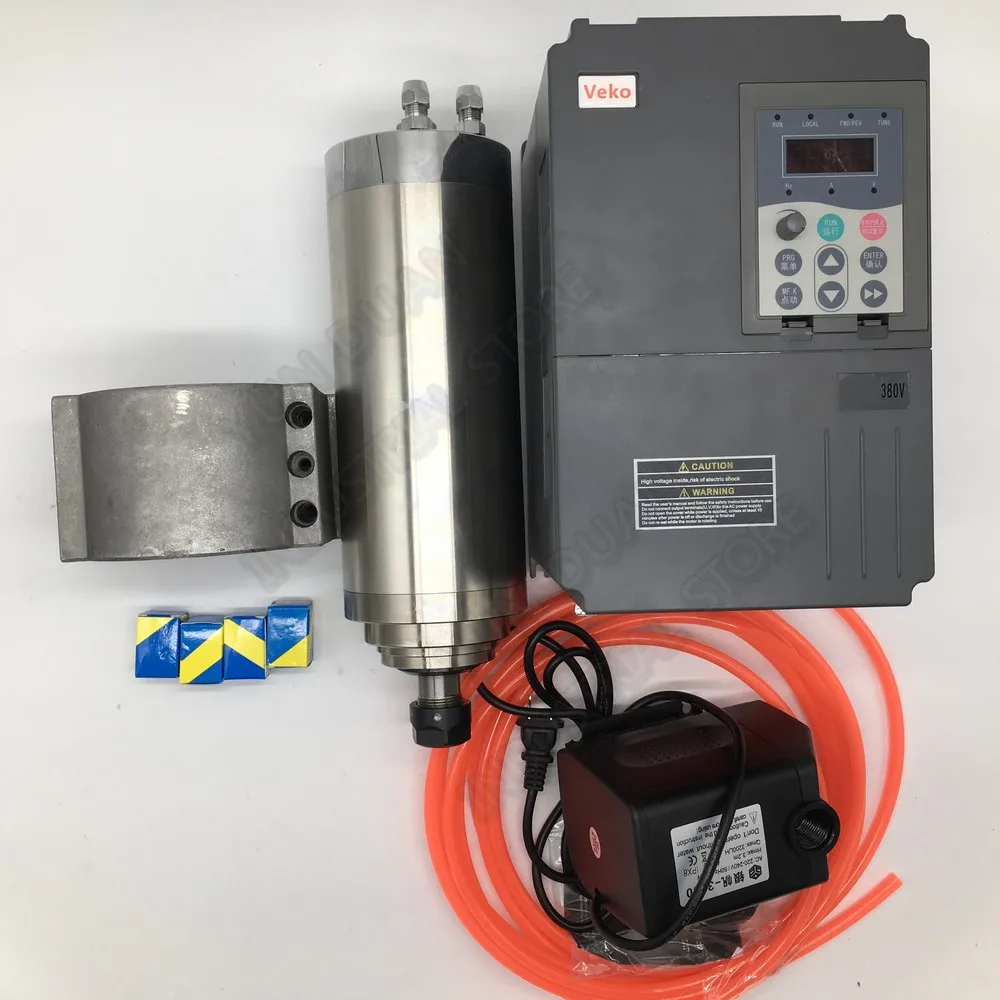

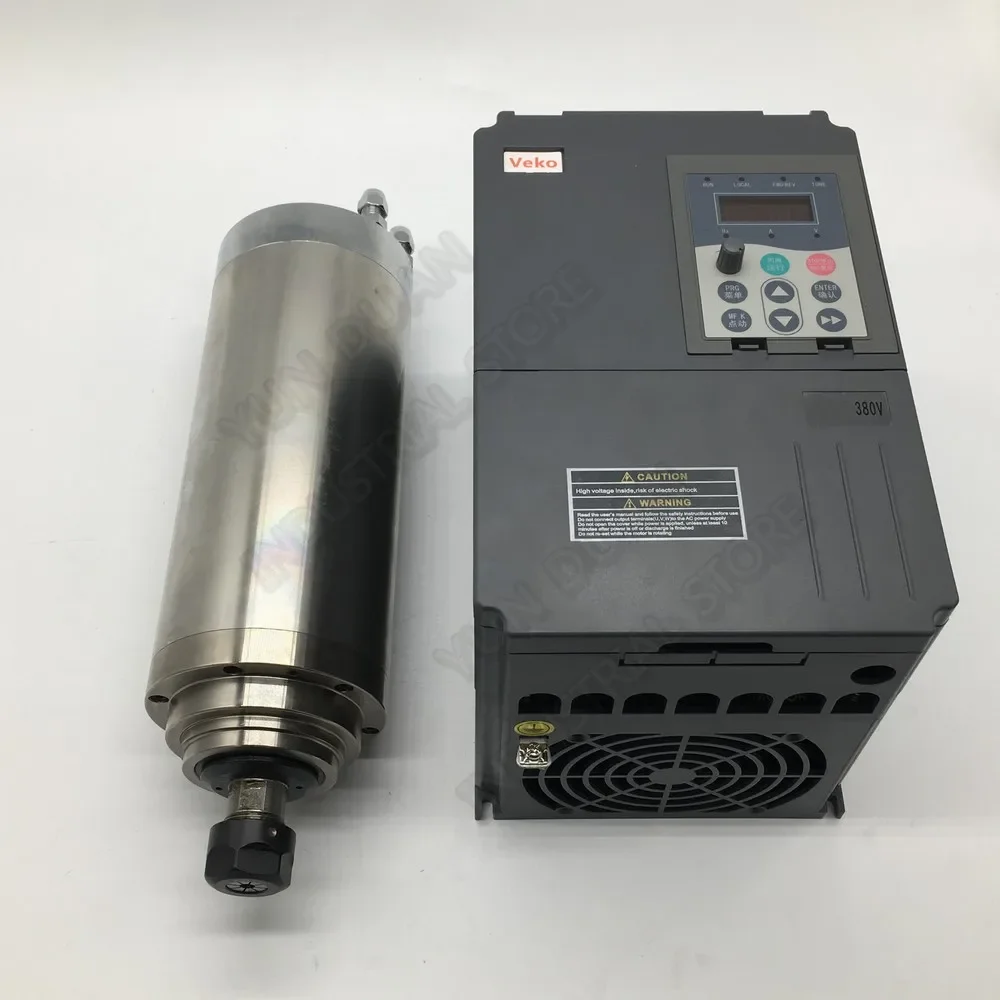

Package listing:

1* 3KW 24000RPM 380v Spindle Motor

1*4kw 380V VFD

1*75W water pump

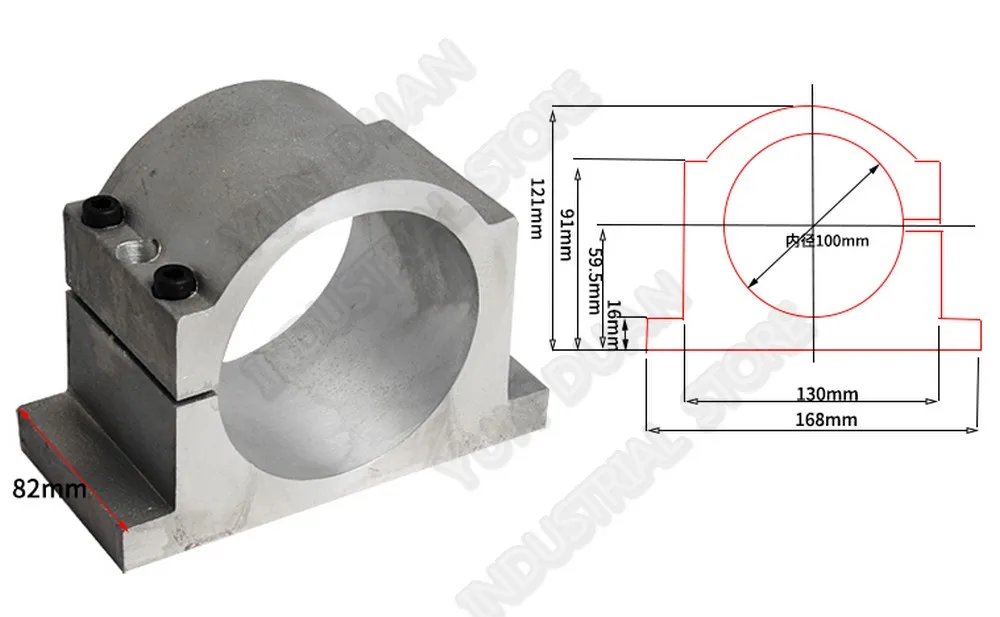

1* 100mm Spindle Clamp

1* 5M Water Pipes

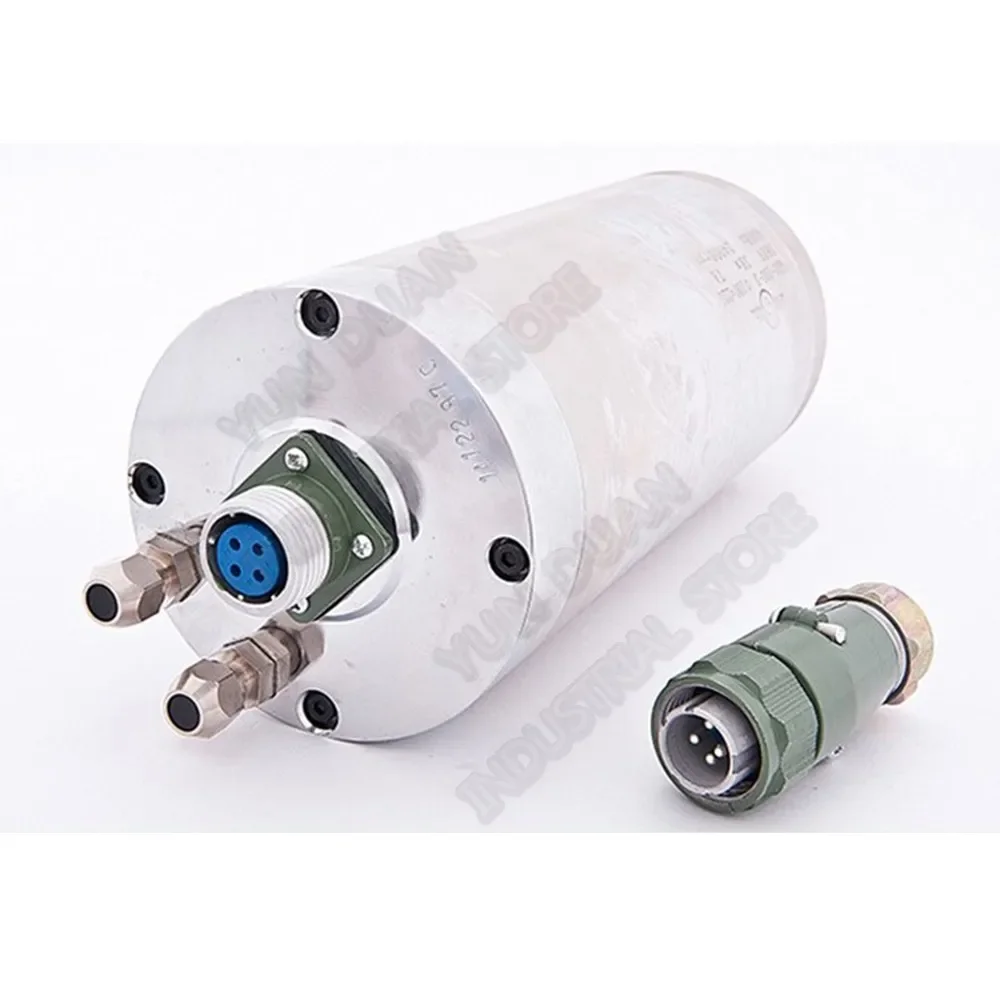

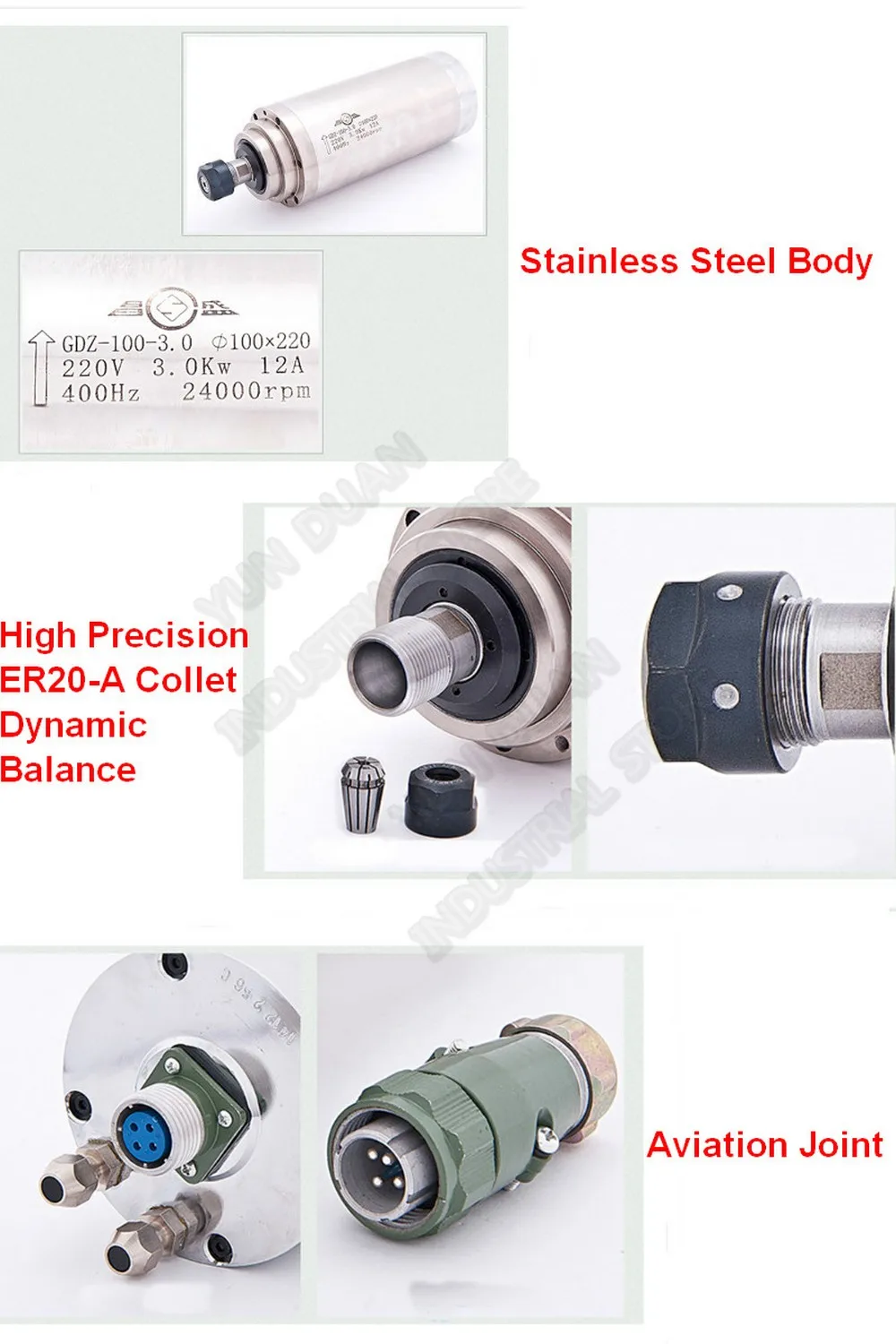

Spindle Parameters :

Model: Changsheng

Spindle Model: GDZ100-3-24000-380v
Power: 3kw

Speed: 0-24000rpm
Voltage: AC380v (Must to be used with VFD)

Frequency: 400Hz
Current: 7A
Diameter: 100mm

Radial runout: 0.01mm
Coaxial degree: 0.025mm

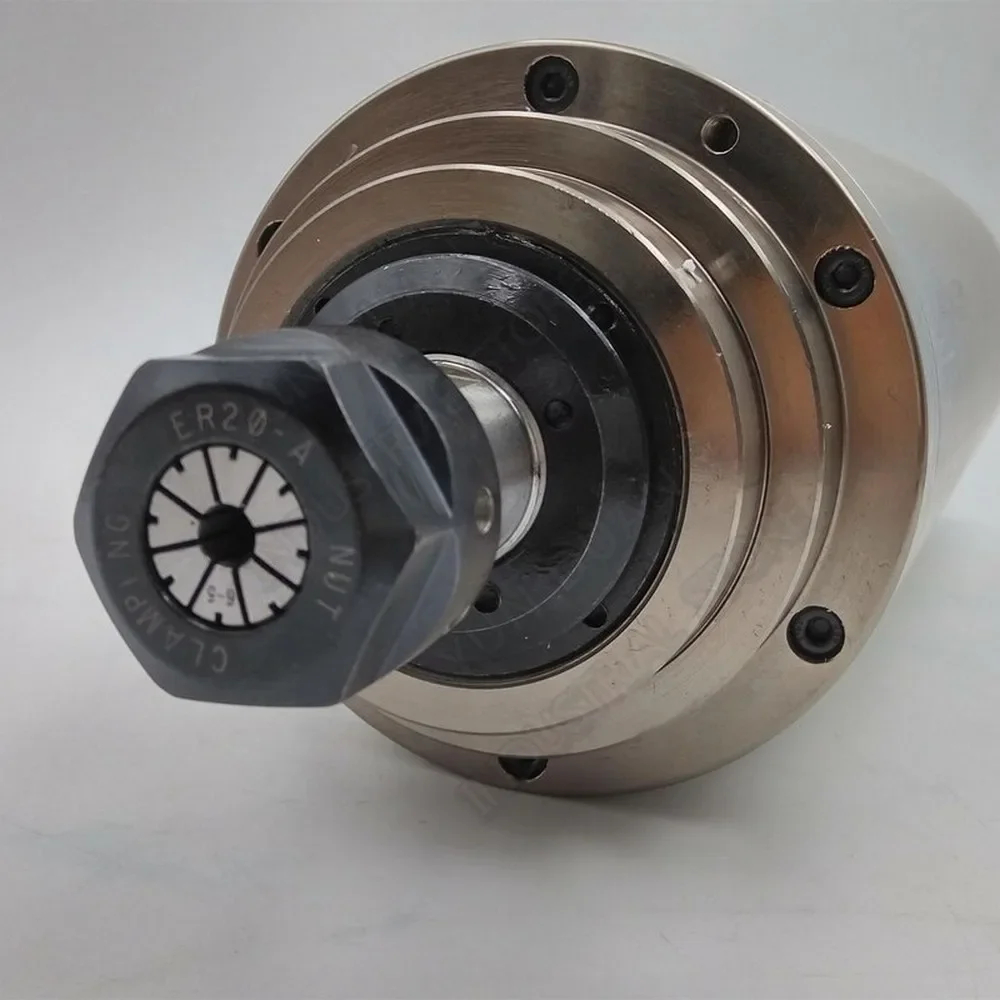

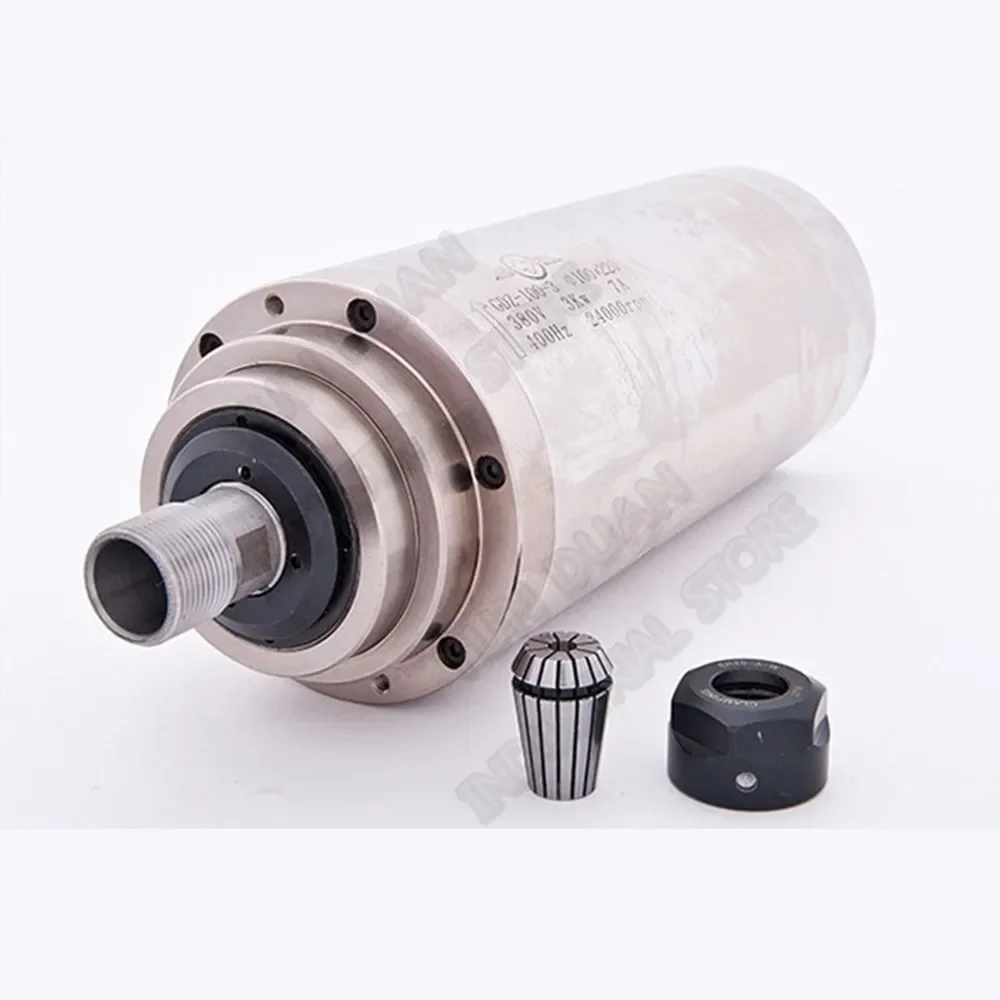

Clamping diameter: ER20 collet
Nut model: ER20 type optional

Clamping range:1-13mm
Cooling: water-cooled
Material: 304 stainless steel

Processing materials: wood, plastic, PVC, ABS, etc.

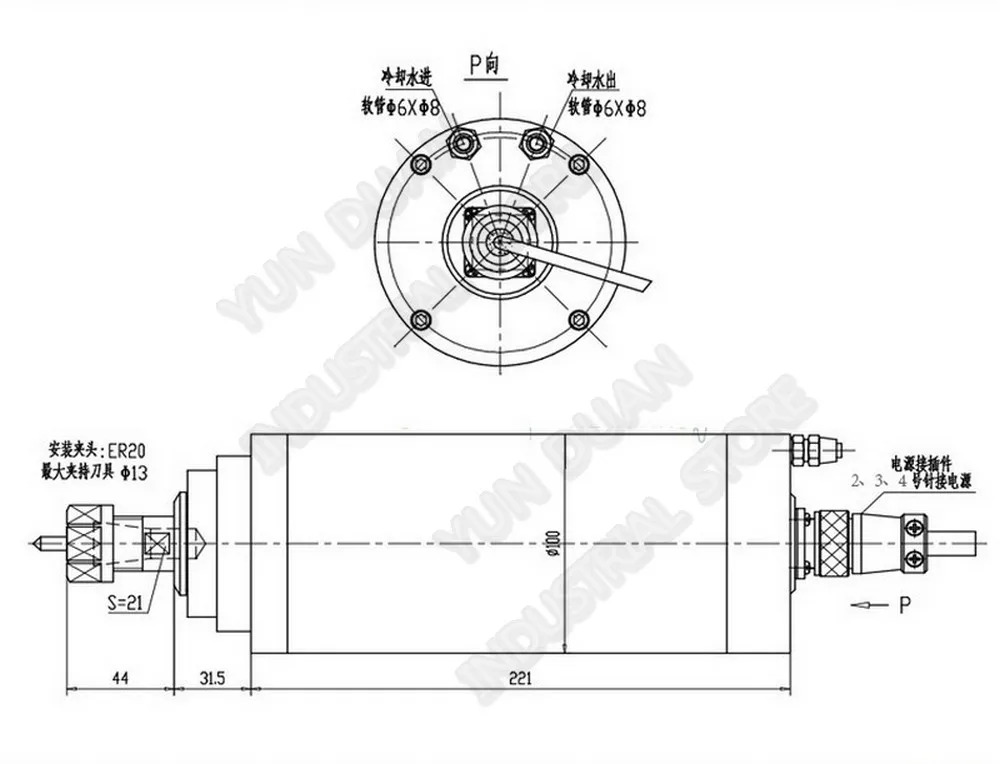

Dimension Drawing:

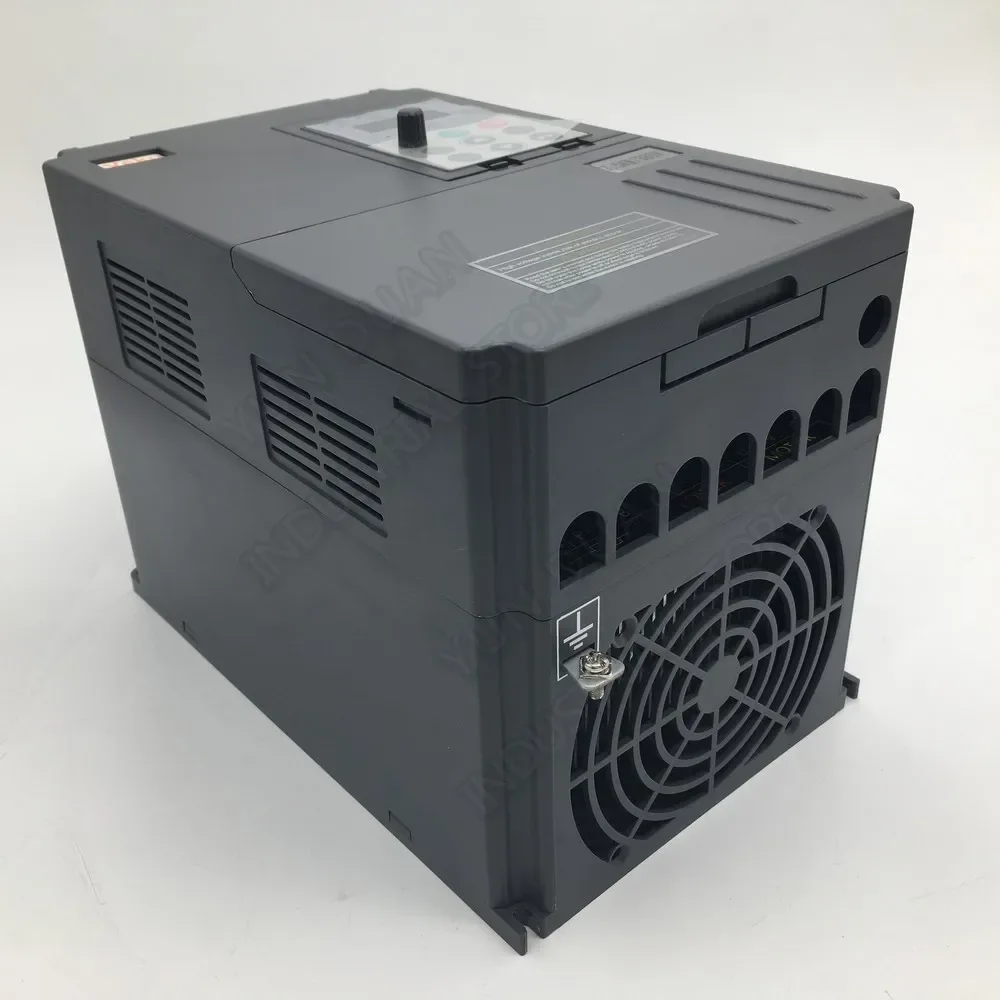

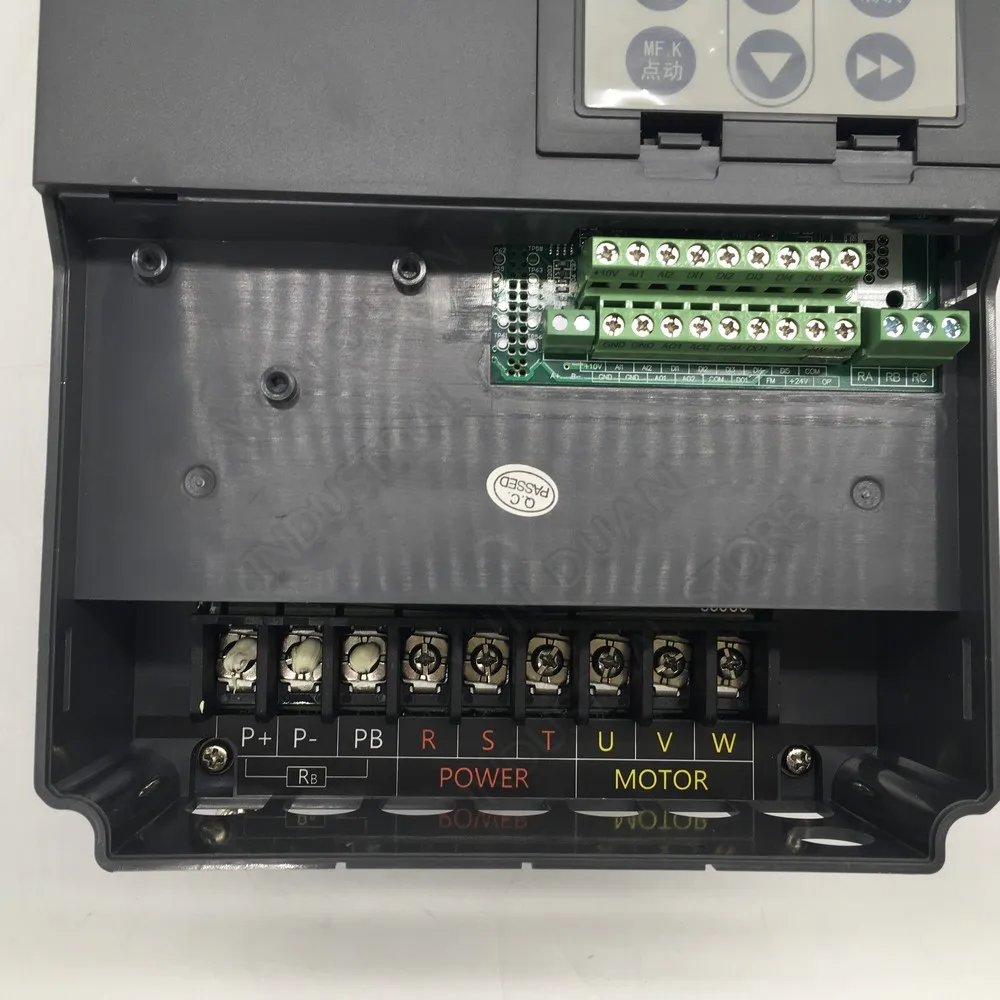

VFD basic parameters:

Model: V8M4T4R0GB

Power: 4KW

Input Voltage: 3Phase 320~460V

Output Voltage: 3Phase 0~380V

Current: 9A

Input Frequency: 50/60Hz

Output Frequency: 0~400Hz

Control method: V/F control and Vector control

Working Temperature:-10~40 degree

Material: Industrial flame retardant ABS plastics

Level of protection: IP20

Cooling Type: Air-cooled

Certification: CE

Please set the following parameters before using the inverter:
P0010=400 (maximum frequency)
P0012=400 (upper limit frequency)
P0033=400 (rated motor frequency)

Cooling Pump&5M Pipe Specifications

Power:75W

Voltage(V):1PH 220~240V AC 50Hz

Hmax:3M

Qmax:3000L/H

Pipe:5m
