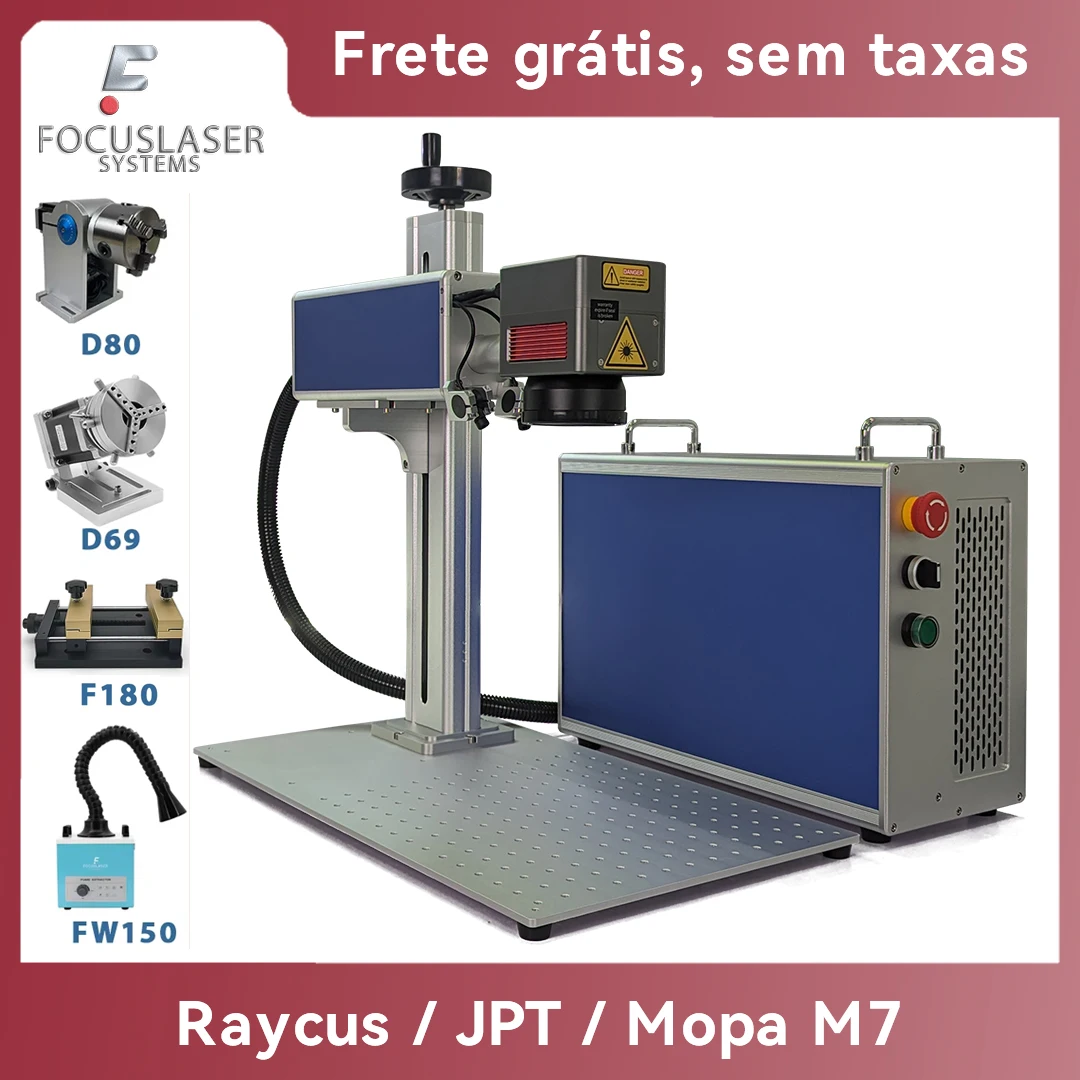

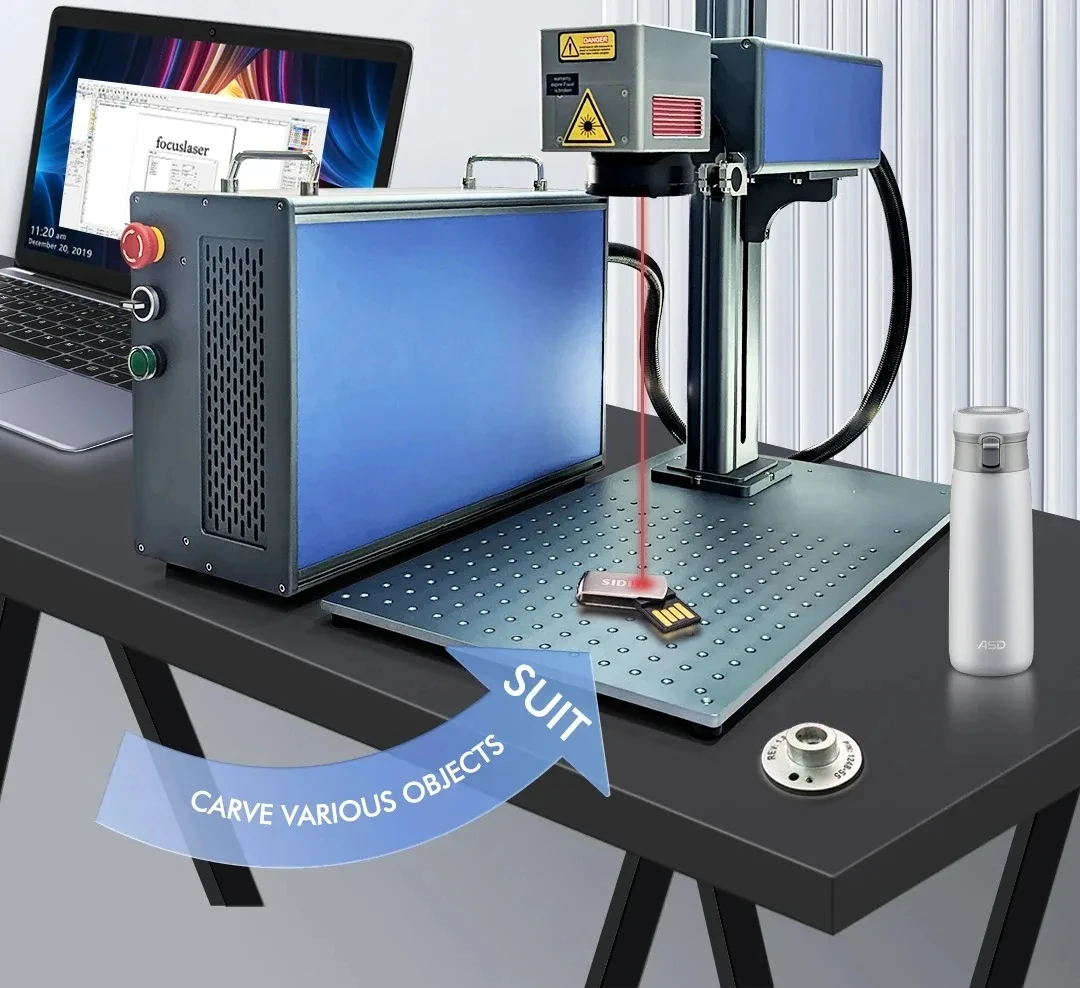

30W 50W 60W Raycus JPT MOPA M7 Fiber Laser Marking Machine Engraving Gold Silver Bracelet Ring Jewelry Stainless Steel Cup

Price range: R$ 7.437,93 through R$ 13.598,79

REF: 1005010307902642
  • High-concerned chemical: None
  • Origin: Mainland China
  • operating syste: EZCAD2
  • Certification: CE
  • Certification: ce
  • Brand Name: FOCUSLASER
  • Model Number: FLFB-BE
  • FOCUSLASER Model: FLFB-BE
  • Laser Source Power: 30W 50W
  • Laser module Brand: Raycus

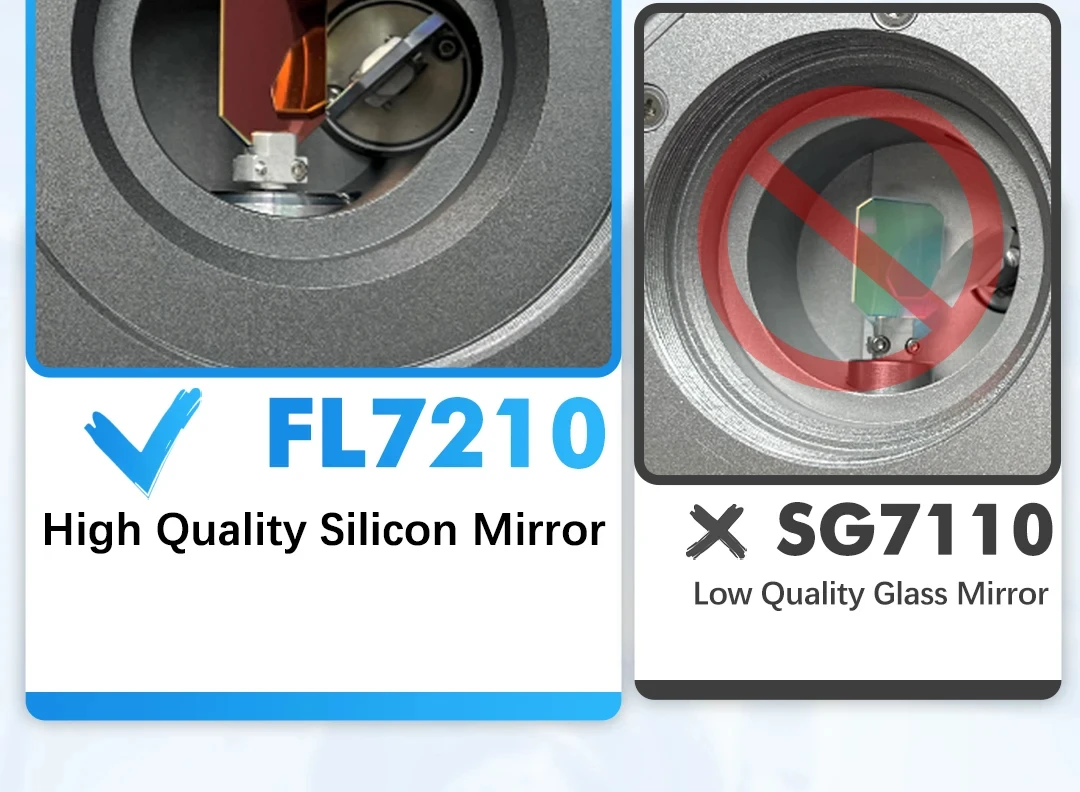

  • Scanner: FL7210
  • Lens: Singapore Wavelength F-theta
  • Engraving Speed: <9000mm/s
  • Raycus Pulse Repetition Rate: 30W QS 40-60KHZ / 50W QB 50-100KHZ
  • Raycus Pulse Width: 30W QS 130-160ns / 50W QB 120-150ns
  • Repetition Precision: ±0.003mm
  • Minimum Line Width: 0.01mm
  • Character Size: 0.5-110mm
  • Beam Quality ㎡: <1.1
  • Laser Wavelength: 1064nm
  • Power supply: Meanwell HF
  • Operating Voltage: AC 110V/220V 50/60HZ 5A
  • Engraving Range: 70*70/110*110/175*175/200*200/300*300mm
  • Software: EZCAD 2
  • Supported: BMP, JPG, GIF, TGA, DXF, PLT, PNG, TIF, AI, DXF, DST, etc.
  • Language: English,French,German, Korea, Arabic, Portuguese,Japanese ,Russian,Spanish,Brazilian,Mexican, Italian Etc.
  • Cooling System: Air Cooling
  • Working Temperature Range: 10-30℃
  • Warranty: 12 months



Data sheet

Configuration

Model

FLFB

Laser Source Power

20W/30W/50W/60W/70W/80W/100W

Laser module Brand

Raycus/JPT/Mopa M7

Scanner

FL7210

Lens

F-theta

Engraving Speed

≤9000mm/s

JPT LP Series Pulse Frequency Range

1-600KHZ

JPT LP Series Pulse Width

200ns

MOPA M7 Series Pulse Frequency Range

1-4000KHZ

JPT MOPA M7 Series Pulse Width

20W / 30W 2-350ns ,60W / 80W / 100W 2-500ns

Raycus Pulse Repetition Rate

20W QS 30-60KHZ / 30W QS 40-60KHZ / 50W QB 50-100KHZ

Raycus Pulse Width

20W QS 120-150ns / 30W QS 130-160ns / 50W QB 120-150ns

Repetition Precision

±0.003mm

Minimum Line Width

0.01mm

Character Size

0.5-110mm

Beam Quality ㎡

<1.1

Laser Wavelength

1064nm

Power supply

Meanwell / HF

Operating Voltage

AC 110V/220V 50/60HZ 5A

Engraving Range

70*70/110*110/175*175/200*200/300*300mm

Software

EZCAD2

Format Supported

BMP, JPG, GIF, TGA, DXF, PLT, PNG, TIF, AI, DXF, DST, etc.

Language

All

Cooling System

Air Cooling

Working Temperature Range

10-30℃

Warranty

12 months

Net Weight of Machine

45kg

Packing Weight

55kg


Advantages

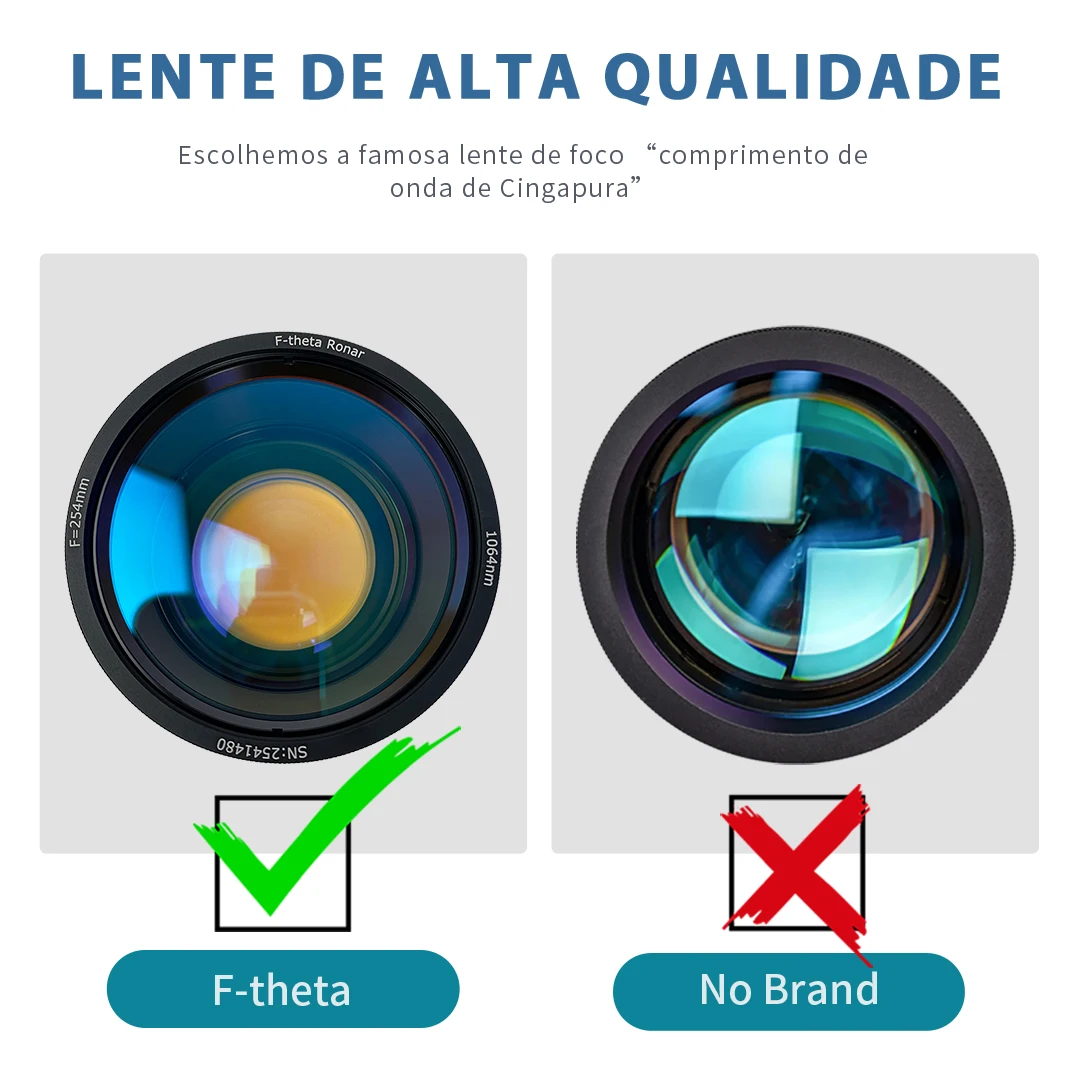

1.We choose famous “Singapore wavelength”focus flied lens to ensure best coating materials on the lens to get a best engraving result. If use unknown brand lens can not ensure better engraving result.

2.Fiber laser source we choose Raycus, JPT with detail selected laser source with high quality spot size and long lifetime over 110,000 hours running. Like 8 hours a working day running more than 30 years.

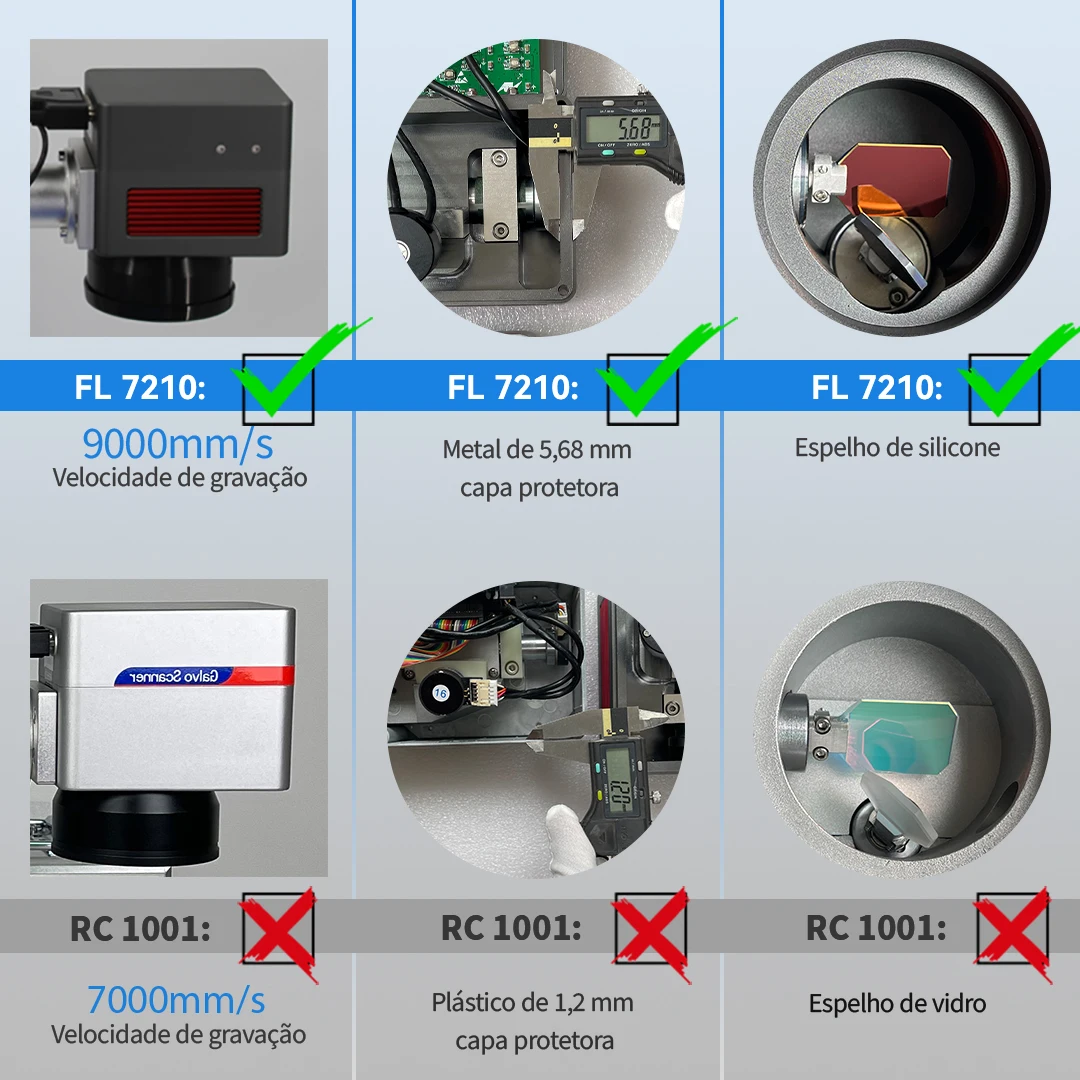

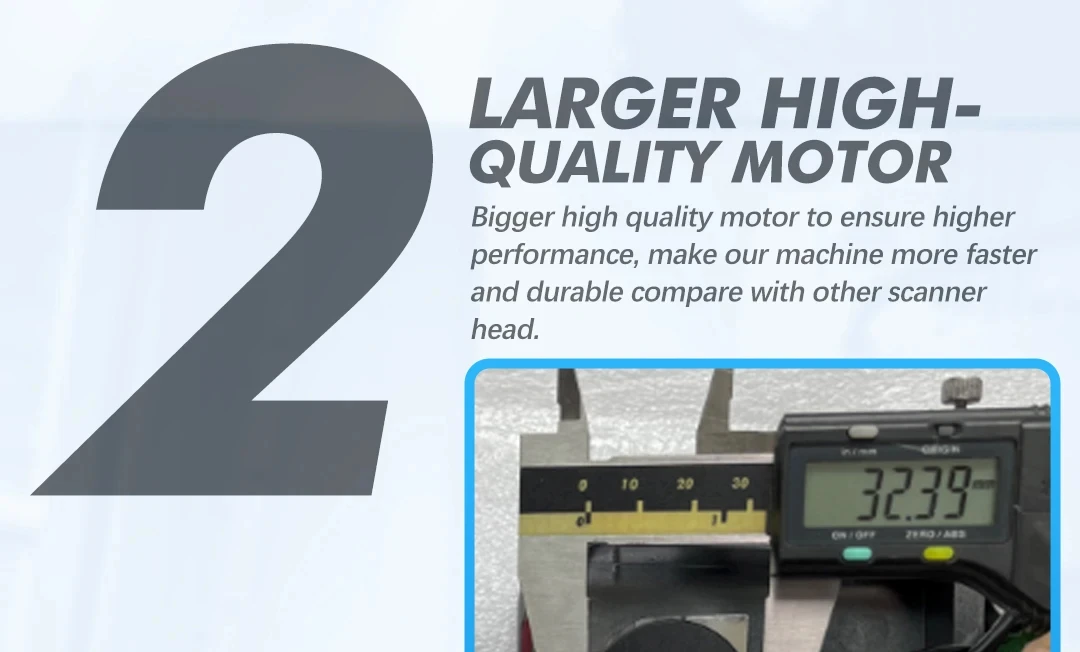

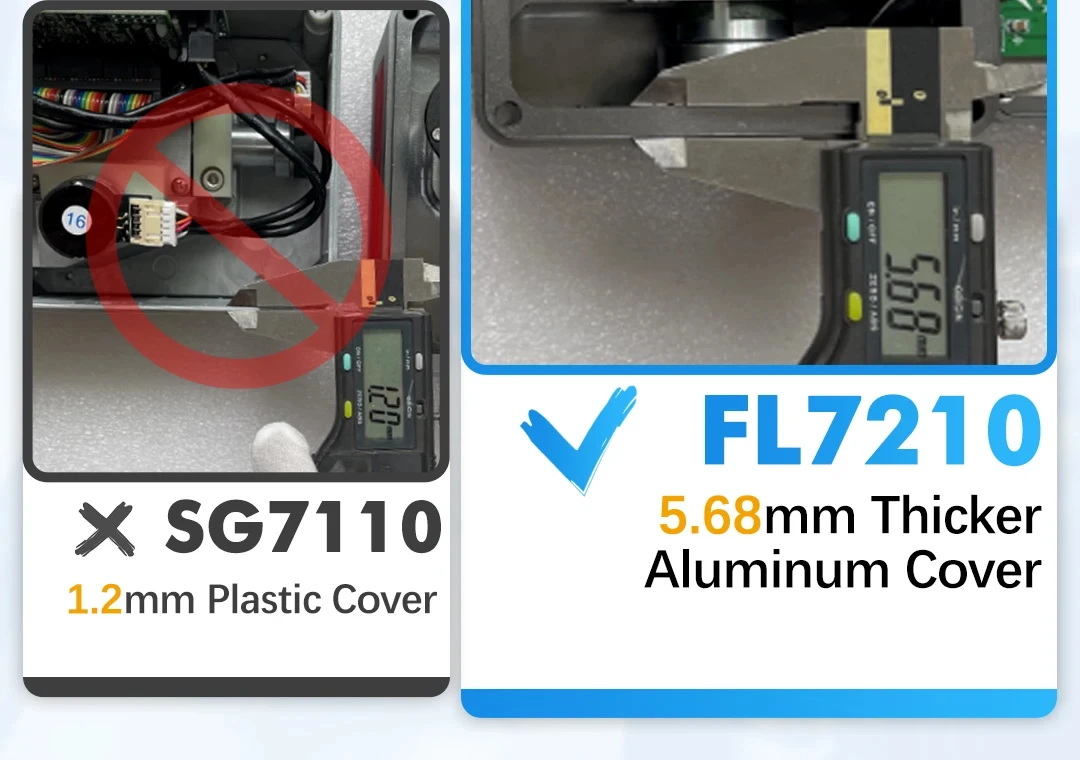

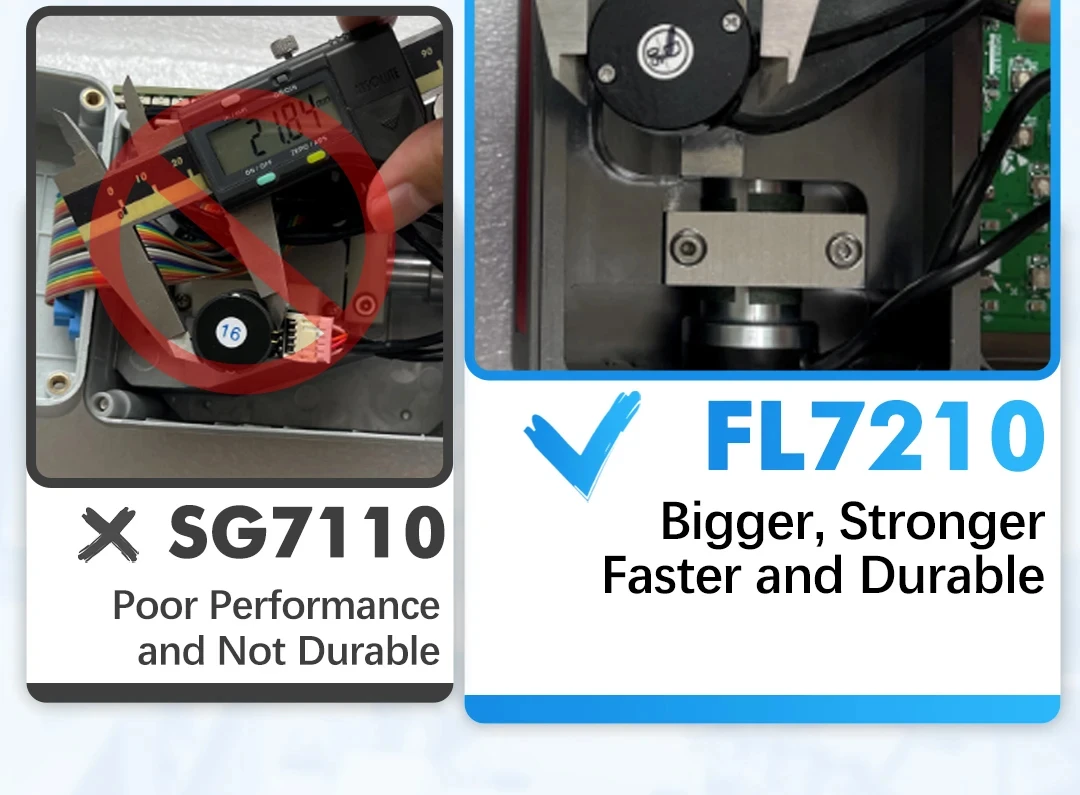

3.Scan head Fast Speed <8000mm/s with focuslaser brand selected high scanning and accuracy.

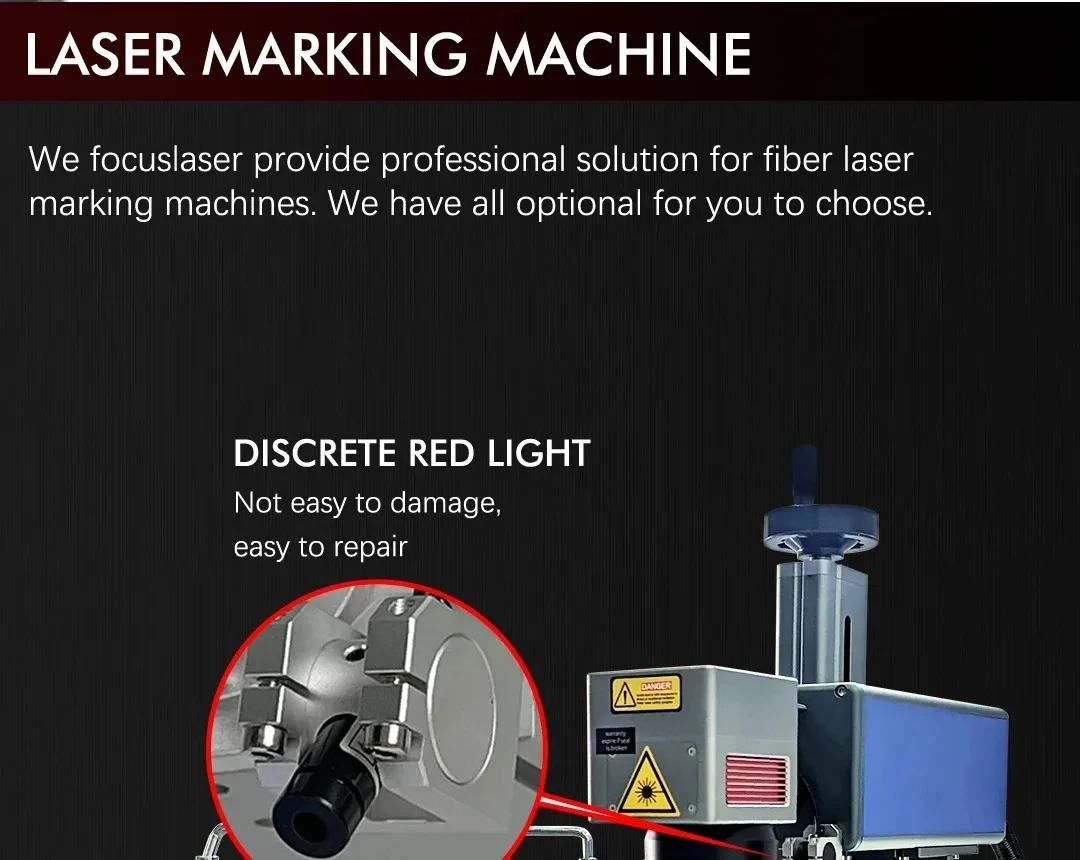

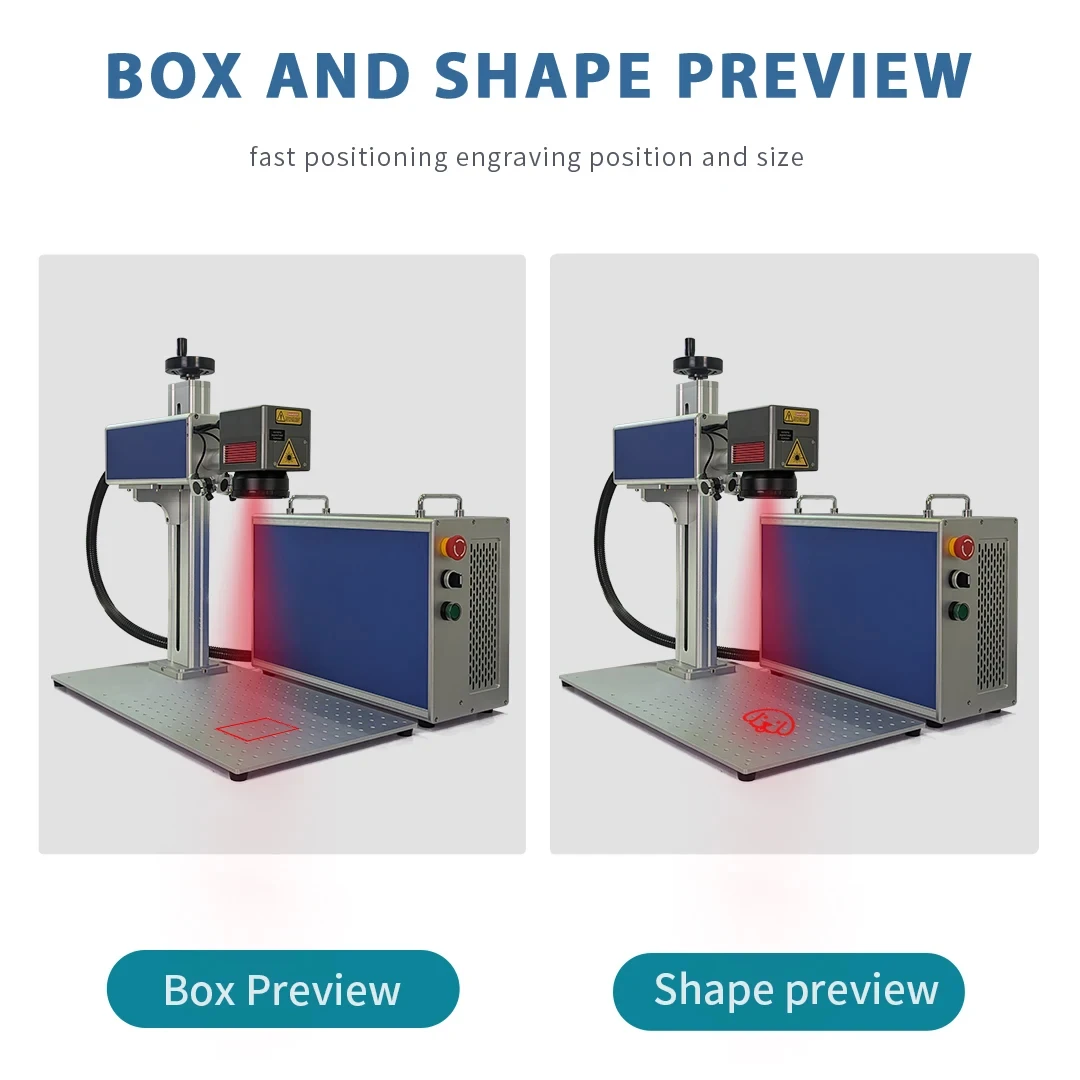

4.Red dot pointers we choose best quality with insulation out coating materials to ensure long time use, with inner and outer red laser dot which compare with scan head inbuilt type small red dot. Big professional red dot pointers are durable and easy for future maintain.

5.Famous Taiwan “Meanwell”“HF”power supply adopted with most stable continues power supply energy with longest lifespan use.

6.Switches and buttons:Imported adopts Taiwan famous brand with longest turn on and turn off times. Compare with other competitors no one use such expensive switches and buttons.

7.EZCAD 2 software: is a flexible and powerful software package ideal for engraving applications and compatible with a widerange of modern imaging solutions such as QR codes and barcodes. The software supports Support Latest Windows 10 64 Bit, 2.14.11 (Updated On 23rd,November, 2020) Compatible With CorelDraw Files Such As .Plt, .Ai, .Dxf,. Dst, .Svg, .Nc,.G, Gbr , .Jpc, And Pictures File Such As: .Bmp, .Jpg, .Jpeg, .Gif, .Png, .Tif, .Tga Ect. Support All The Language: English, French, German, Korea, Arabic, Portuguese, Japanese, Russian, Spanish, Brazilian, Mexican, Italian Etc.

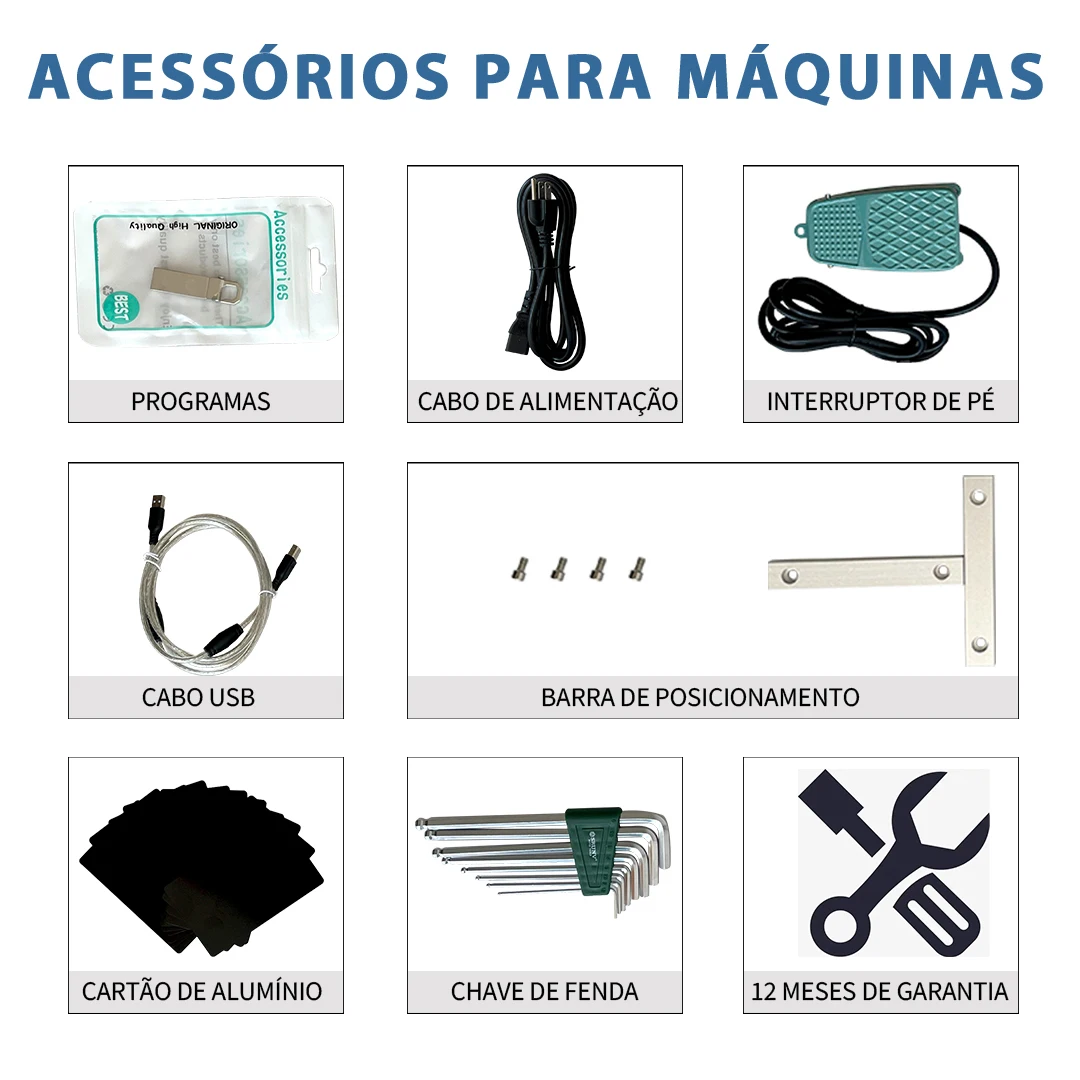

Package lncludes:

1 Set Fiber Laser Marking Machine
1 Pcs U Disk (USB)
1 Pcs Data Line
1 Software Ezcad Lite
1 Set Foot Switch
1 Set Assembly Tools
4 pcs Fixed Sheet Metal
1 Set Power Cable
10 Pcs Metal Card


How To Choose the Fiber Laser Marking Machine? Raycus or Jpt?

Raycus And Jpt Is Different Laser Source Brand , They Have The Same Function ,
But Raycus Is Good At Deep Engrave , Hollow Design And Cutting, Jpt Is Good At Engrave Have A Fine Touch.


How To Choose Lens Size

With Same Lens , The Higher Power , The Deeper Engrave .
With Same Power, The Smaller Lens, The Deeper Engrave ,
Bigger Lens Engrave Bigger Area ,
Smaller Lens Engrave Deeper Depth,

If 20w Laser Choose 300mm*300mm Lens , That Means Your Focus Distance Is Very Tall ,power Come To Mark Object Is Cery Very Weak , So Not Biggest Lens Area Is Best ,but Choose Suitable Lens.

20w Choose 70mm*70mm , 110mm*110mm,
30w Choose 70mm*70mm , 110mm*110mm , 175mm*175mm
50w Choose 70mm*70mm , 110mm*110mm , 175mm*175mm ,200mm*200mm ,300mm*300mm.

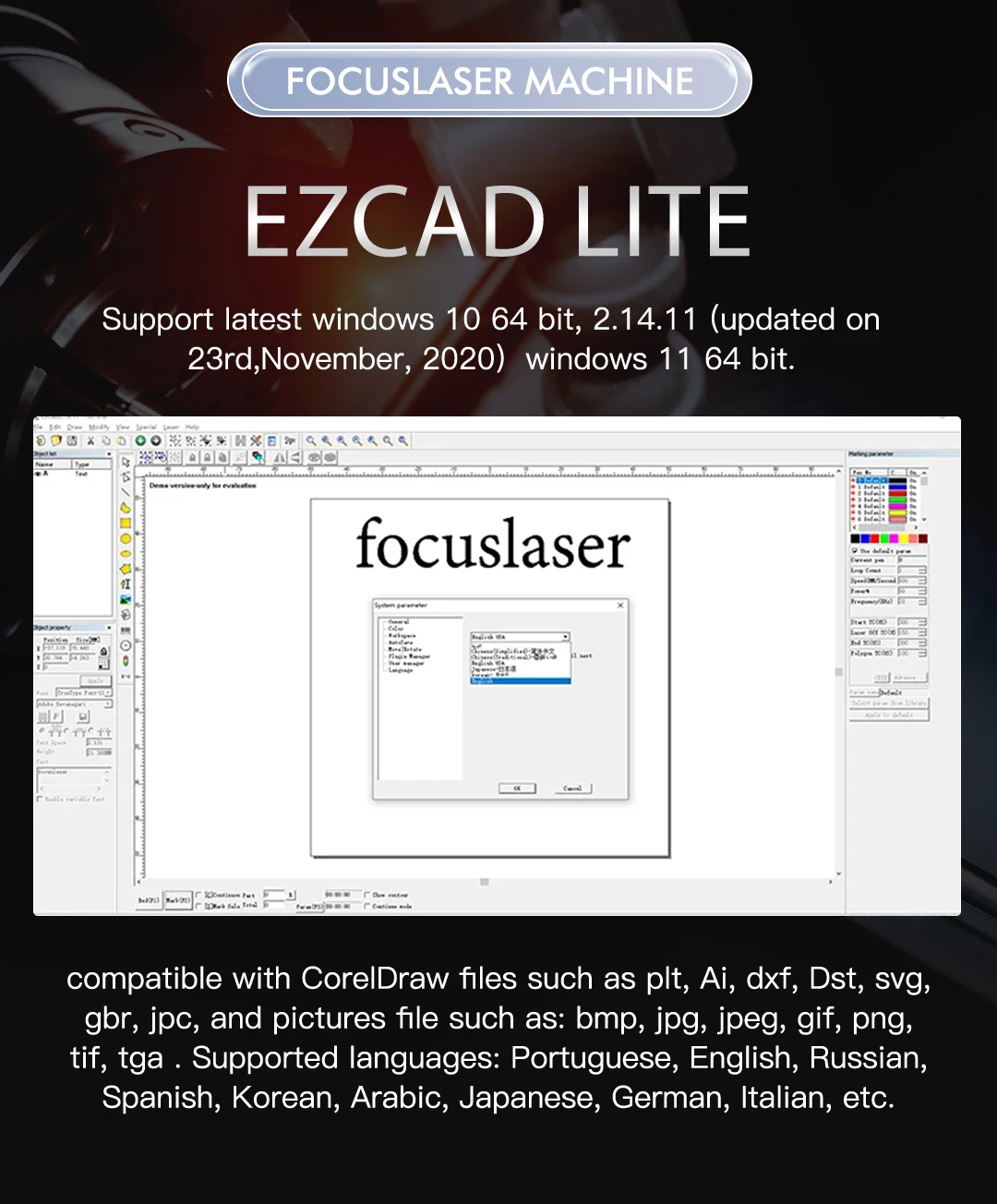

Ezcad 2 Software

Support Latest Windows 10 64 Bit, 2.14.11 (Updated On 23rd,November, 2020) Compatible With CorelDraw Files Such As .Plt, .Ai, .Dxf,. Dst, .Svg, .Nc,.G, Gbr , .Jpc, And Pictures File Such As: .Bmp, .Jpg, .Jpeg, .Gif, .Png, .Tif, .Tga Ect. Support All The Language: English,French,German, Korea, Arabic, Portuguese,Japanese ,Russian,Spanish,Brazilian,Mexican, Italian Etc.

Good Detail Work

We focuslaser high educated engineers make machines with heart for these detail we can see it takes time to make a good machine.
