300w er8 60000rpm eixo ac75v 1000hz motor refrigerado a água de alta precisão para roteador cnc máquina gravura pvc pcb

Package list:

1pc 300w 75V Spindle

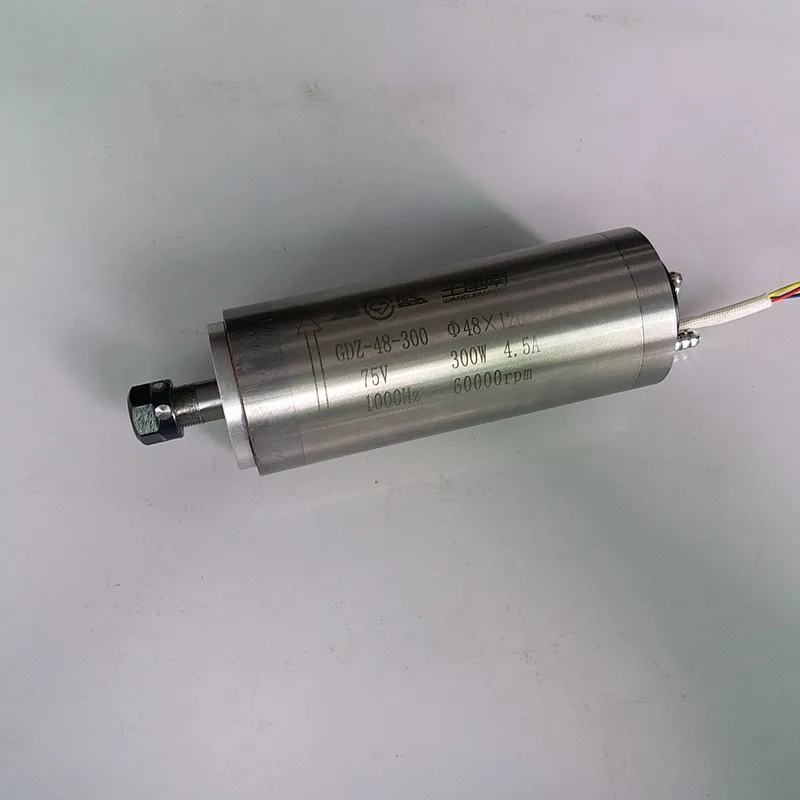

Motor Parameters:

Spindle type:GDZ48-300

Diameter :  48mm

Speed:    60000rpm

Power:    0.3KW

Voltage:  AC75V(Must to be used with VFD)

Current:  4.5A

Frequency:1000HZ

Lub:   grease

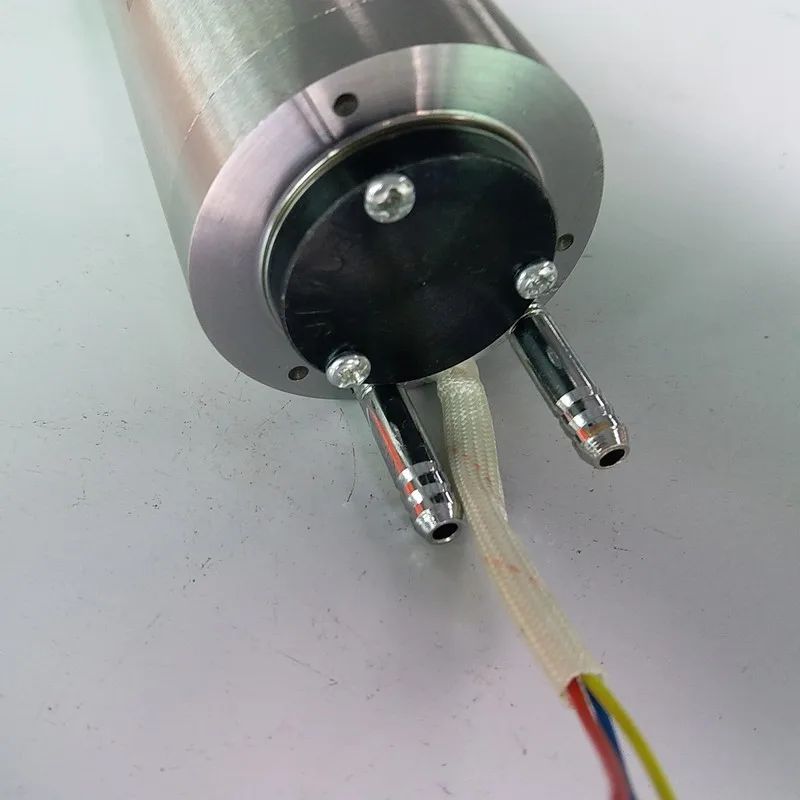

Cool:  water cooling

Bearing type:    136101CP4*1+136018CP4*1

Weight:   2KG

Torque:   0.052Nm

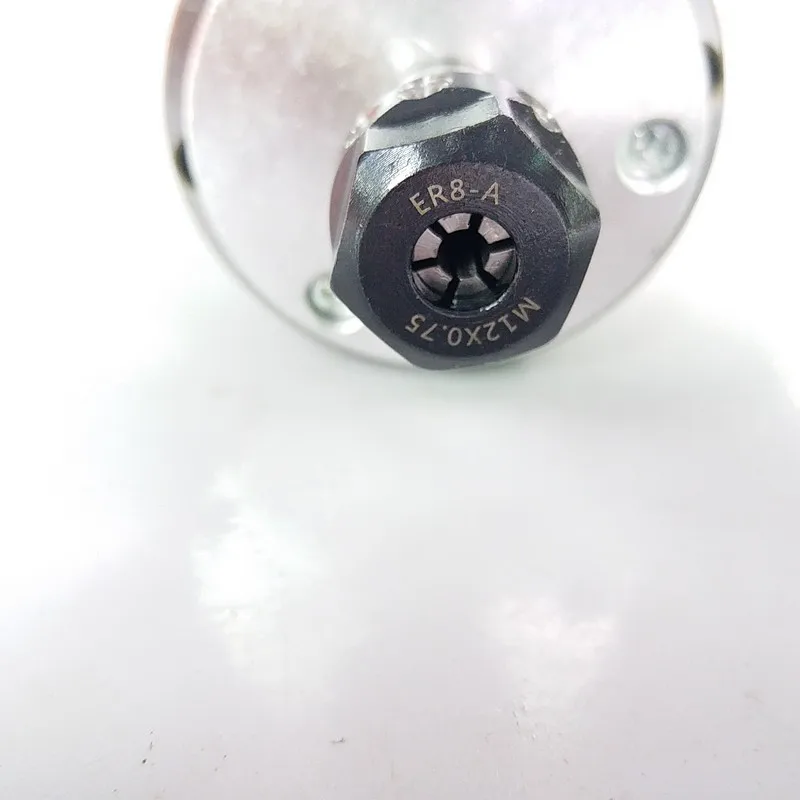

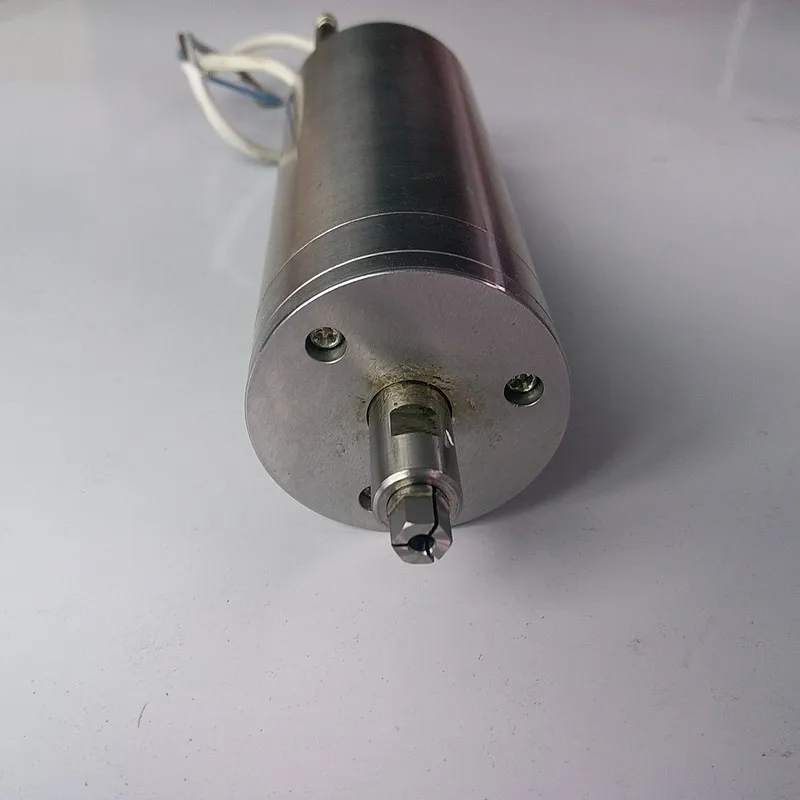

Collet:     ER8

Collet nut: 3.175mm

Wattanty: period bearings=half a year other parts a year

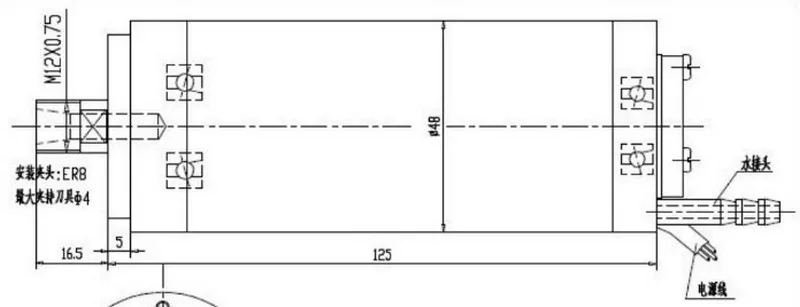

Motor Drawing :

1. Electric Spindle Practices :

Electric spindle is a high-speed high-precision components  rigidity, we must strictly follow the practices used spindle spindle motor,  otherwise it will increase equipment failures, shorten equipment life. Please  use the rule as follows:

(1) Before the boot, first ensure that the spindle cooling  system to work properly, and then turn the power spindle. Do not use the spindle  without the cooling conditions, it is necessary to check the fan and pump are  working properly before use. If the spindle is water cooled, to check whether  the cooling water containing impurities to ensure water is smooth.

(2) When using electric spindle, spindle from low according to  the principle of high speed, gradually increasing speed to warm up, when the  spindle load up to speed and smooth operation of the state after the required  processing, can better protection spindle, to reduce the wear.

(3) during use is strictly prohibited beat, hit threaded  spindle clamp and rotor end, so as not to reduce the component life, affect the  results spindles used.

(4) During the operation, the tool must be replaced in the  correct way. When the knife, the focus should be uniform, the tool should be  aligned with the threaded end of the screw rotor, clamping can be. During  operation the tool needs to be replaced before the replacement to wait Spindle  cooling, avoid tool change at hot temperature state.

(5) During the operation, if the fixture card spindle rotor  end, non-beat way to remove Jigs. Only under the premise of no damage to the  rotor shaft threads with pliers and other tools to remove the chuck, and clean  the rotor tapered bore and clamp the spindle to avoid Movies shorten life,  affecting the quality of workpiece. If the fixture has completely lost  precision, it must be replaced immediately.

2. The spindle maintenance specification :

(1) to control the spindle actual time worked. Theoretically  prohibit spindle 24 hours of continuous work, operating 12 hours per spindle  Spindle let rest at least 2 hours, in order to prevent the formation of  shortened due to mechanical fatigue life of the spindle.

(2) to understand the conditions, the ambient temperature and  the spindle temperature control. Spindle operating ambient temperature not  higher than 35 centigrade degree, when the ambient temperature is above 35  centigrade degree should use air conditioners or other protective measures to  reduce the room temperature, thereby reducing spindle temperature.

(3) The spindle cooling water must be kept clean and free of  impurities, recommendations to clean up after the end of the spindle shaft  waterway, scale and water holes to avoid clogging due to rust. Also, always pay  attention to circulating water temperature in the tank, so the water temperature  is too high, the cooling effect can not be achieved prefetching.

(4) Always check the power supply connector, to avoid damage  to the connector loose or aging brings to the spindle and the drive.

(5) If the downtime to use again, you must tranches from low  speed to high speed spindle run-in steps according to the spindle load running,  in order to use in the run-through.

(6) during the loading and unloading cutter knife, must tool  chuck nut clean.

3. Use Caution :

(1) must match the drive spindle chosen  correctly according to the electric spindle nameplate good debugging power,  voltage and frequency.

(2) Set the frequency converter should be set  command channel, and then set the display channel, and finally set the  parameters. When setting parameters, be sure that the reference frequency, the  frequency of the three highest rated frequency and consistency.

(3) The spindle is generally clockwise in the  wrong direction, the drive can change settings or swap any two rotating wire the  inverter output UVW terminal on.

(4) In general, water-cooled spindle surface  temperature and ambient temperature greater than 20 degrees, the heat can be  considered a spindle; when air-cooled spindle surface temperature greater than  ambient temperature of 30 degrees, can be identified as the main heat seriously,  immediately shut down cooling, a check .

4. Maintenance Caution :

(1) Spindle found abnormal sound, should  immediately stop checking. If you can not be resolved, should be sent to the  manufacturer or repair to professionals.

(2) the operation of an abnormal burning smell,  immediately stop checking. If you can not be resolved, should be sent to the  manufacturer or repair to professionals.

(3) If the spindle does not run the boot, do  not start over, you should carefully check the following related matters: first  check the drive parameters to determine the input and output voltage, the  spindle parameter settings are correct. Second, check the power cord and wiring  connector is plugged in and determine whether the contact connector problem.

(4) Since the electric spindle is a high speed,  high rigidity precision components and must therefore be sent back to me by  professionals or for repair.
