- High-concerned chemical: None
- Origin: Mainland China

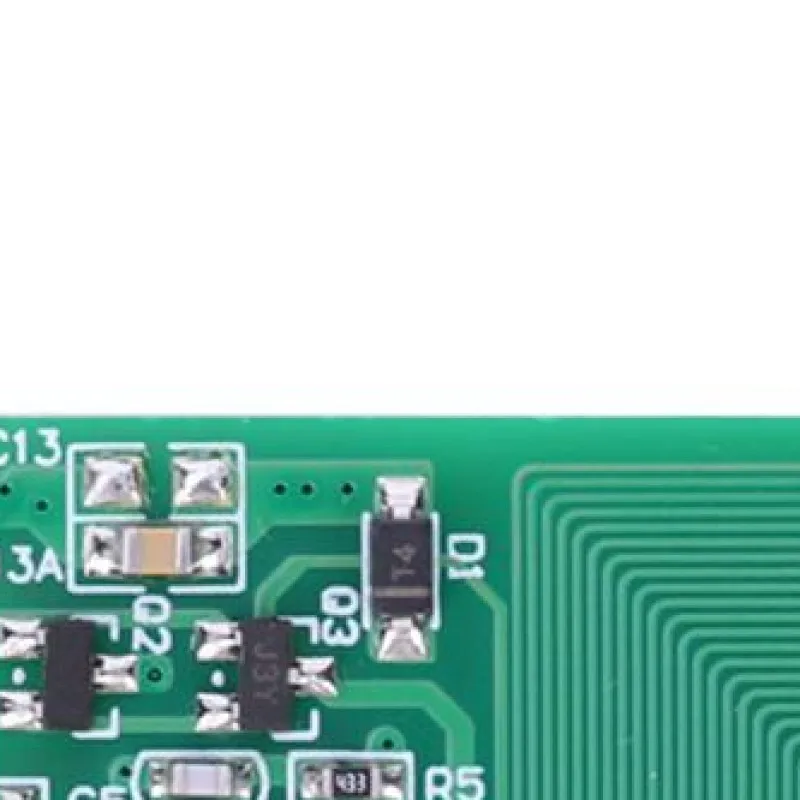

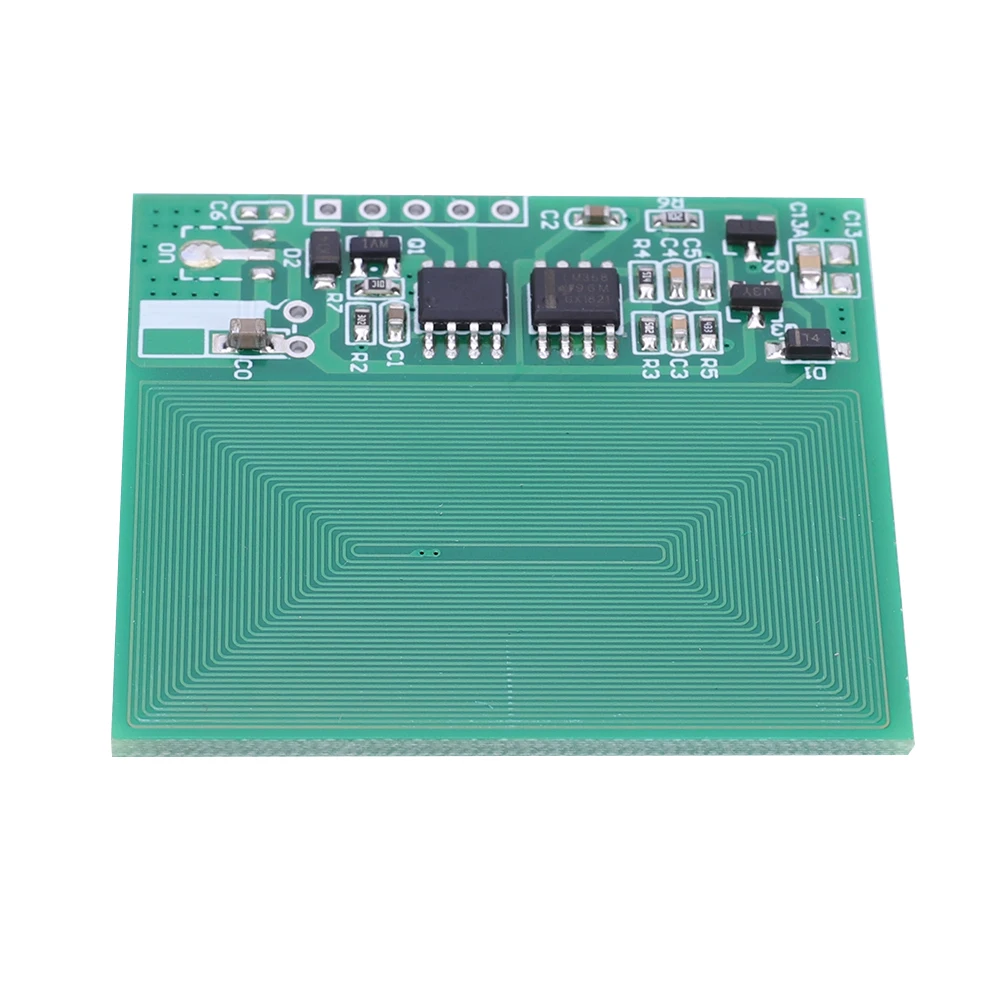

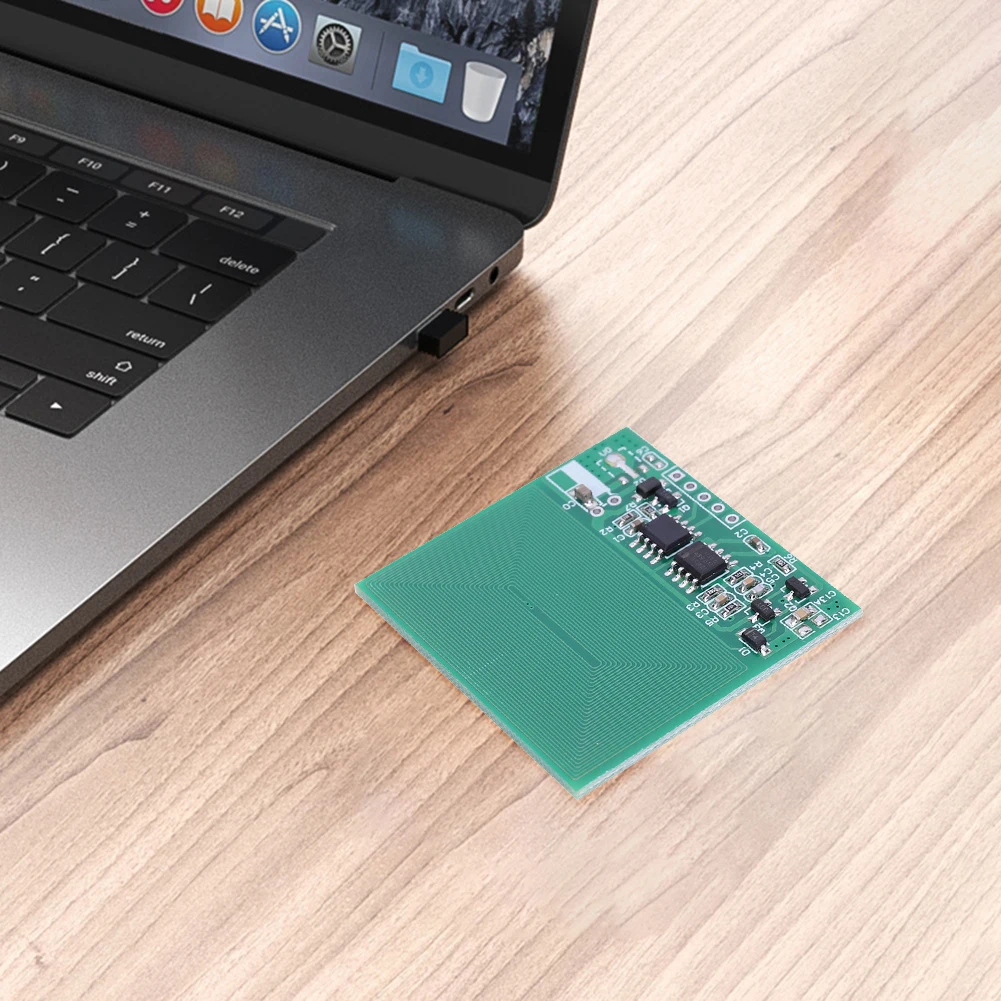

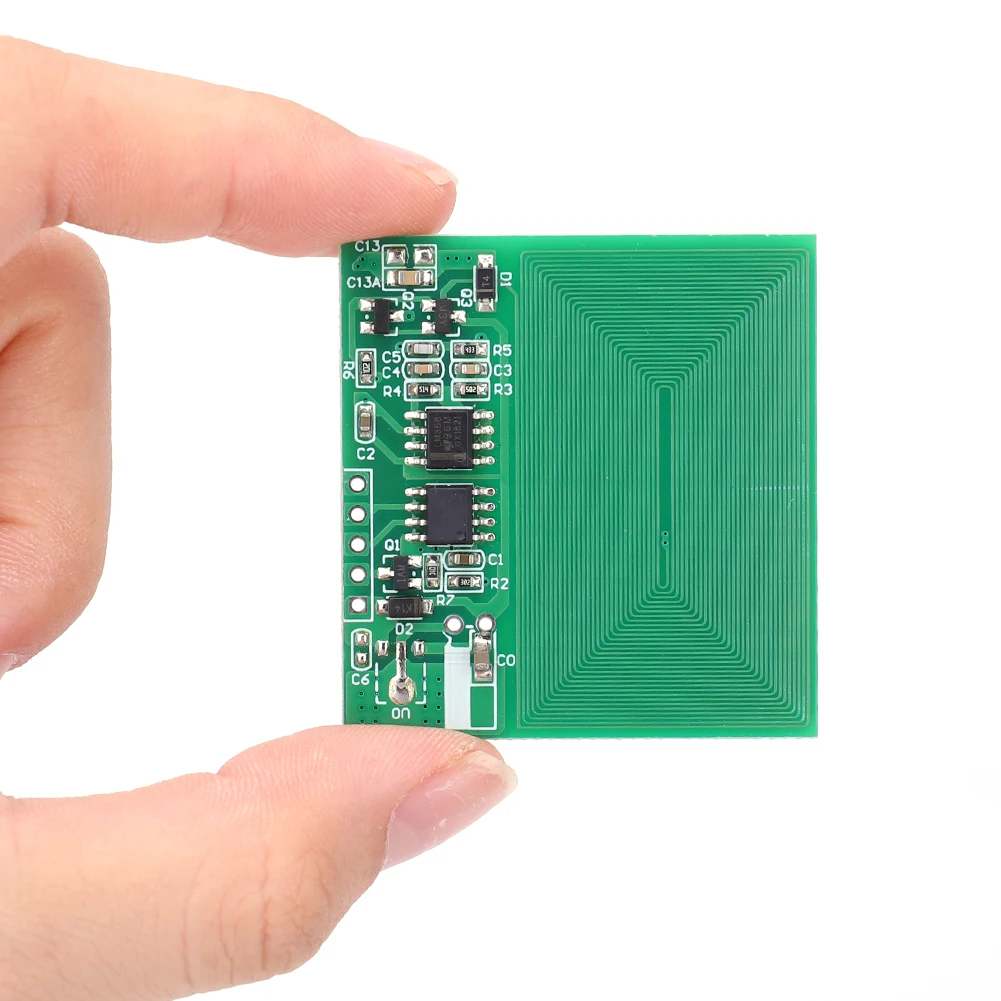

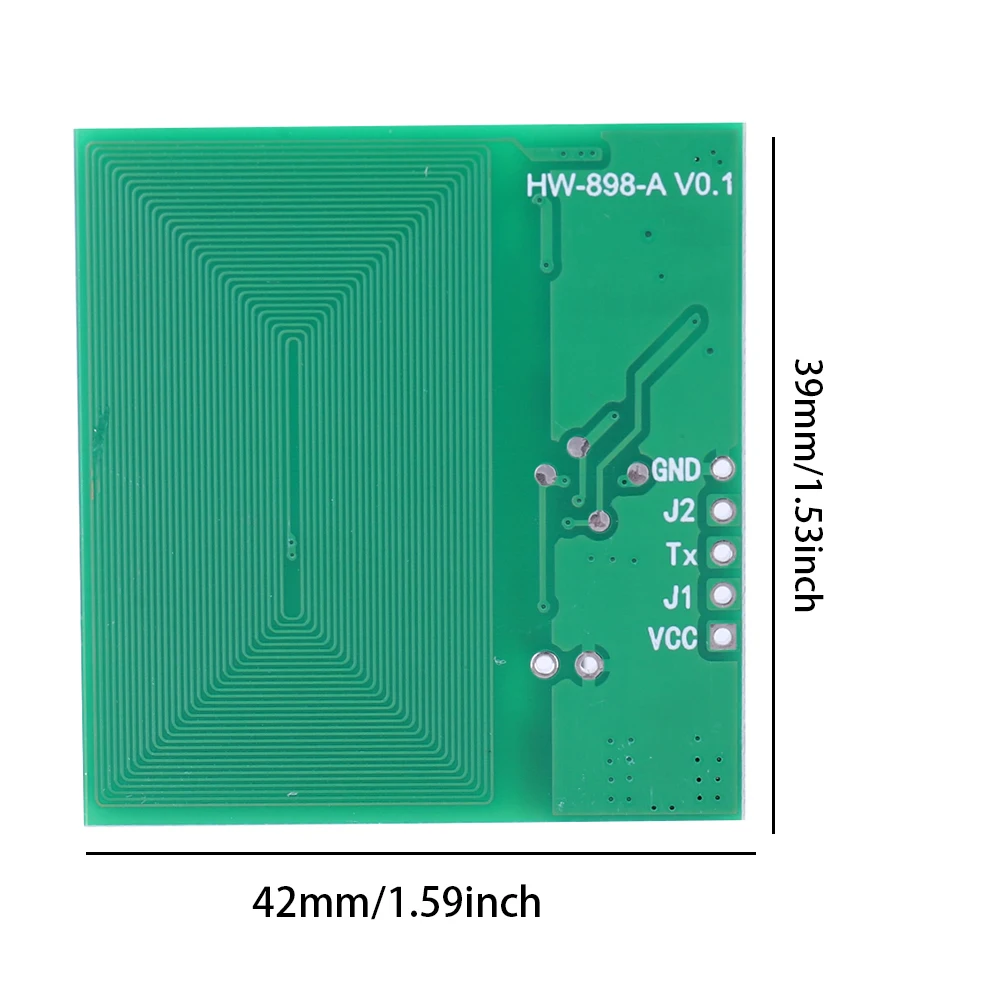

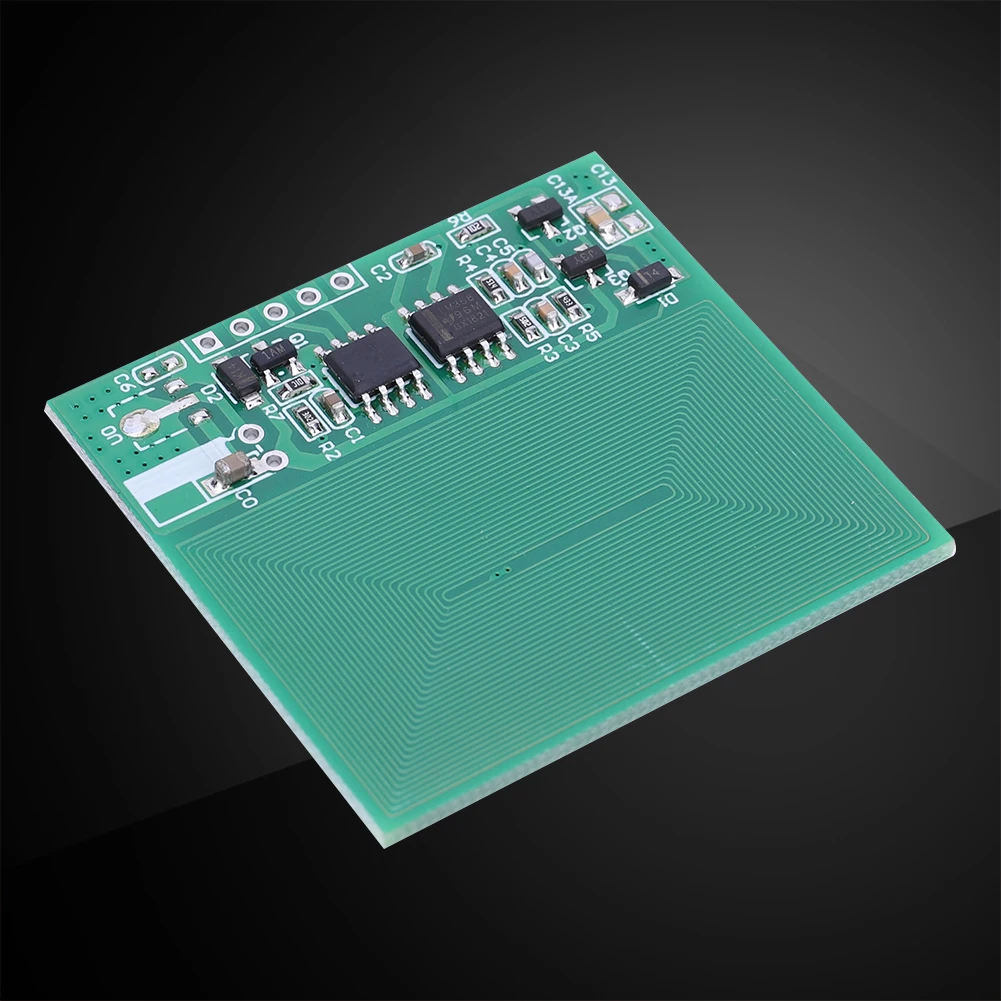

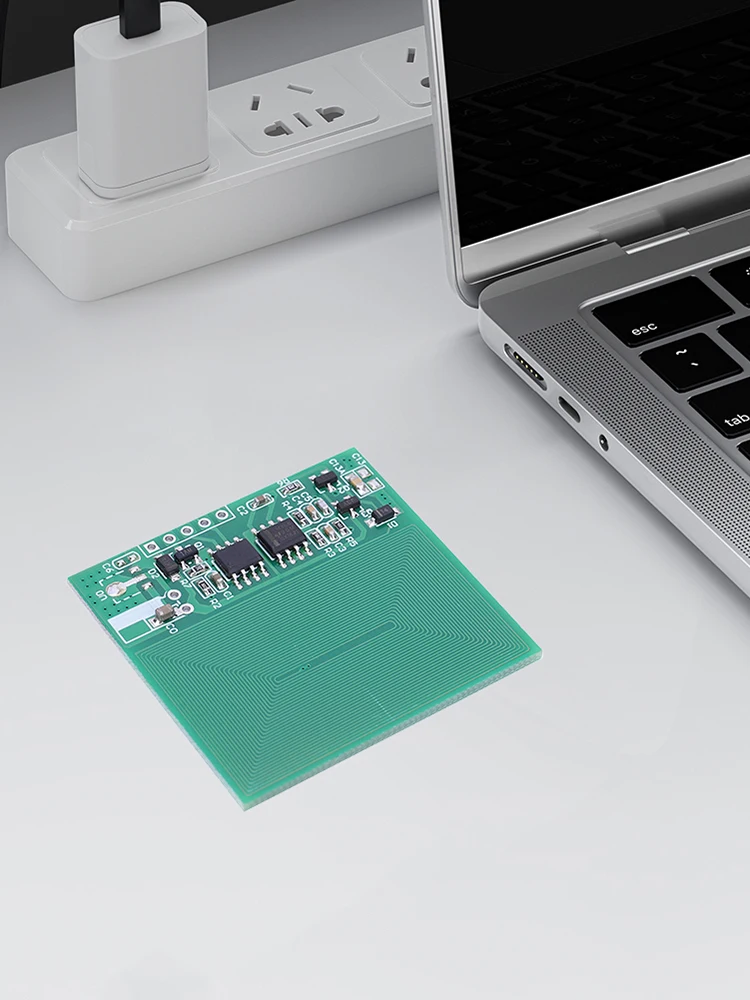

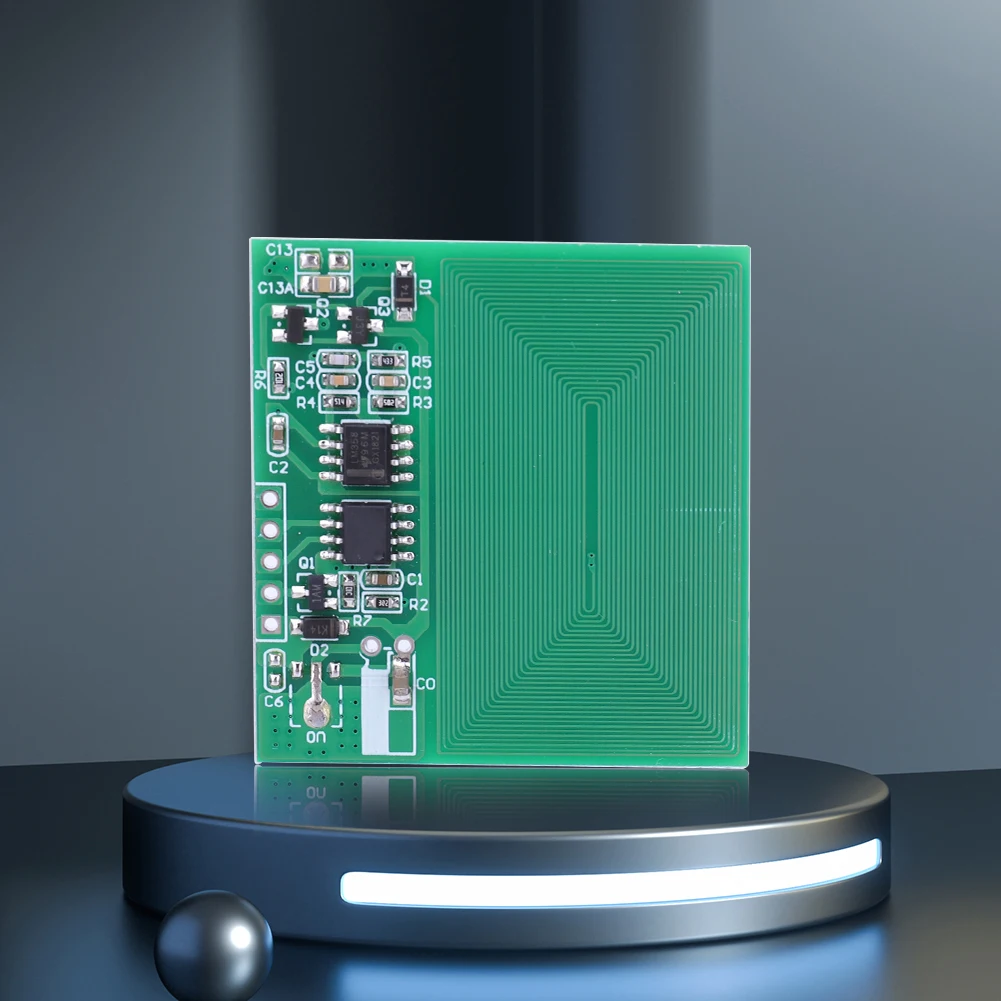

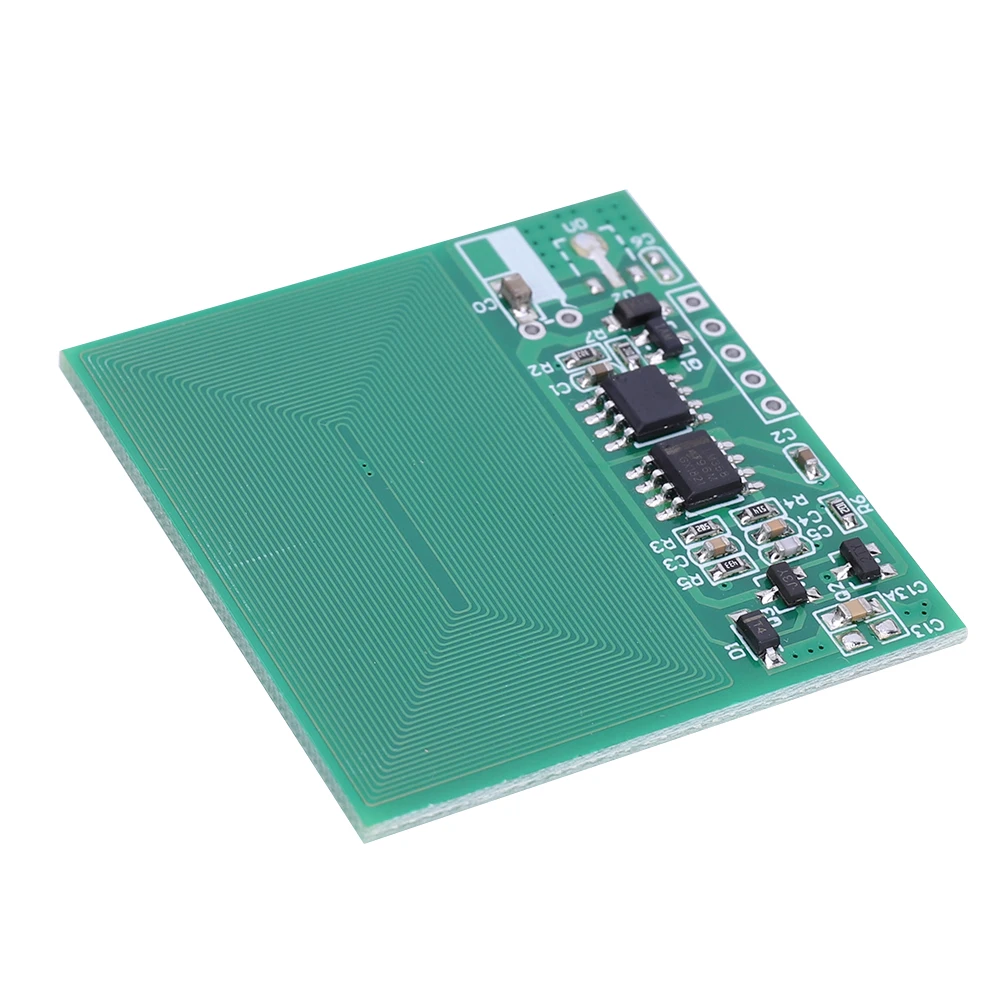

 3.3-5V RF Card Reader Module 125khz RFID IC Wireless Module UART Interface IC KEY Reader Module Built-In Antenna Output Super RDM6300 Feature: 1. Versatile 125kHz RFID Decoding: Decode and read 125kHz RFID cards effortlessly with this RFID card reader module, which conveniently integrates an antenna on the PCB itself.The module supports decoding of various 125kHz RFID cards, making it compatible with a wide range of applications. 2. User-Friendly Interface: Equipped with a 5-pin interface (VCC, J1, Tx, J2, GND), this RF card reader module ensures easy connectivity while incorporating reverse polarity protection using Schottky diodes.The 5-pin interface simplifies the installation process, allowing users to connect the module seamlessly to their systems.The built-in reverse polarity protection safeguards the module from potential damage caused by incorrect power connections. 3. Broad Compatibility: This RFID IC wireless module supports most low-frequency ID cards, providing a versatile solution for multiple access control scenarios.Whether used in office environments or systems, the module reliably works with a wide range of low-frequency ID cards, ensuring compatibility with existing setups. 4. Multiple Output Options: Enjoy flexibility in output configurations with three available output modes -UART output, direct IO output, and open-drain transistor output.The UART output mode enables straightforward integration with various systems via the UART serial interface.The direct IO output mode allows for direct handling of card data, offering greater customization options.The open-drain transistor output mode facilitates easy connection with other electronic devices, expanding the module's usability. 5. Reliable Performance: Built with high-quality components and designed for durability, this RFID reader module ensures consistent and accurate card reading capabilities.The module's high-quality construction ensures stable performance over extended periods of use, reducing maintenance and replacement costs.Its efficient decoding algorithm guarantees reliable and precise scanning, minimizing errors and enhancing overall user experience. Specification: Origin: Mainland China Type: Module Condition: New Model Number: RFID Card Reader Module Power supply voltage: 3.3-5V (5V recommended) Working current: less than 50mA, the typical value is 35mA. Serial parameters : baud rate 9600 bit/s, data bit 8 bit, no parity, 1 bit stop bit Card reading frequency range: 125KHz Size: 42mmx39mmx3mm pay attention: 1. The input voltage should not be too high to avoid damage to the module 2. The read 10-digit hexadecimal number is not the card number, the card number is the number after converting the last 6 digits of the read-out number from hexadecimal to decimal. 1. This product is a 125KHz RFID card decoding module, and the antenna is integrated in the PCB. 2. The interface adopts 5PIN interface, which are VCC, J1, Tx, J2, and GND. At the same time, Schottky diodes are added to the power supply for anti-reverse connection protection. 3. This module is suitable for most low-frequency ID cards. 4. The module has 3 output modes: UART output, IO direct output, and transistor open-drain output. The module adopts three kinds of interface output: 1. Pin Tx uses UART to output data, the output data format is 10 ASCII codes + 1 space, and the card number is 10 data (see Figure 1). The baud rate is set to receive data in the way of sampling figure 1. 2. If the product does not need to use UART to read the specific card number, it can directly read whether the card is swiped successfully through the IO port of J2. Successful card swiping will be accompanied by UART data output. During data output, J2 port maintains high level. When the data output is completed or in the idle state, it always outputs low level. 3. The J1 port and the J2 port have an opposite level, but this port is an open-drain output, and the corresponding level can be output through a pull-up resistor. It can also be connected to 12V load and 24V load. The port design is for subsequent product upgrades, driving relays, etc. The sink current of the port cannot exceed 100mA. (If the customer needs to directly drive the relay, the corresponding program needs to be replaced). Note:  1 X RF Card Reader Module 1 X 5-Pin Pin
|
