- Engraving Area: Other
- High-concerned chemical: None
- Controller: GRBL
- Is Smart Device: No
- Origin: Mainland China
- Certification: CE
- Model Number: CNC 1310
- Condition: New
- Brand Name: XMSJ
- CNC or Not: CNC
- Operating Voltage: AC220V/110V
- Communication Interface: USB port
- Support system: Windows XP/WIN7/8/10
- Collet type: ER11 3.175mm
- Rack material: Aluminum profile + aluminum plate
- Processing material: Wood, acrylic, PVC, nylon, epoxy resin, glass fiber PCB board, POM, carbon fiber board
- Ball screw type: T8 lead screw
- Spindle motor: 775 Spindle (12-36V) (8000r/min, if 24V)
- XYZ Stroke: 135*115*45mm
- Power Supply: 12V 5A (110V-240V)

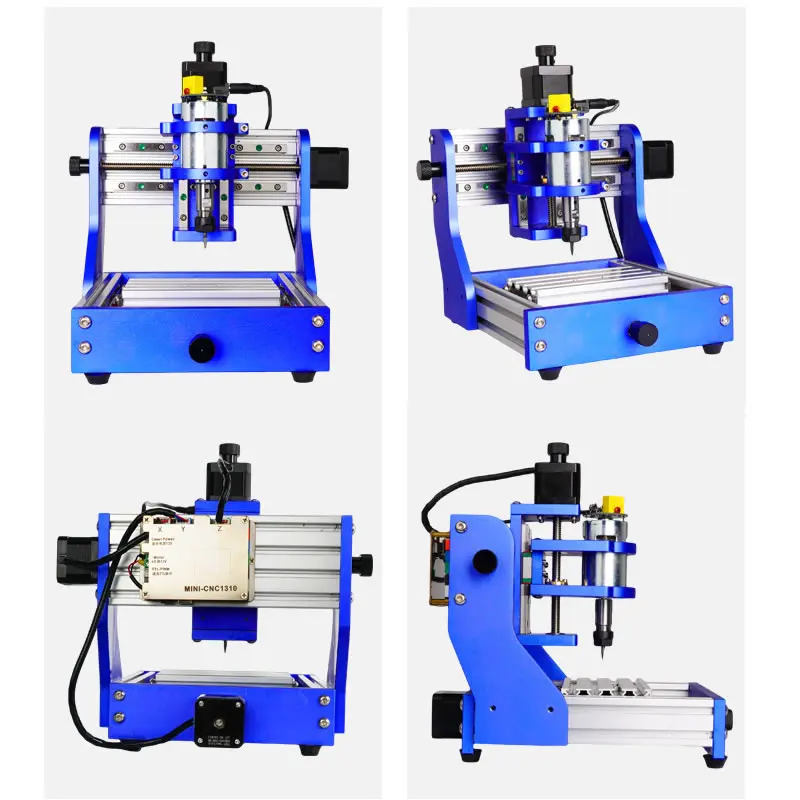

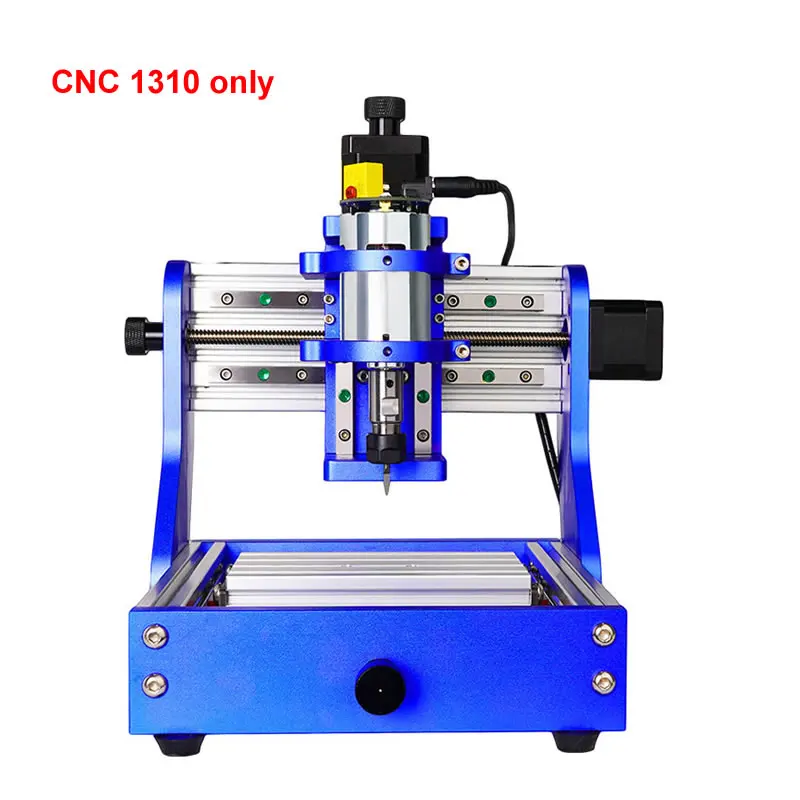

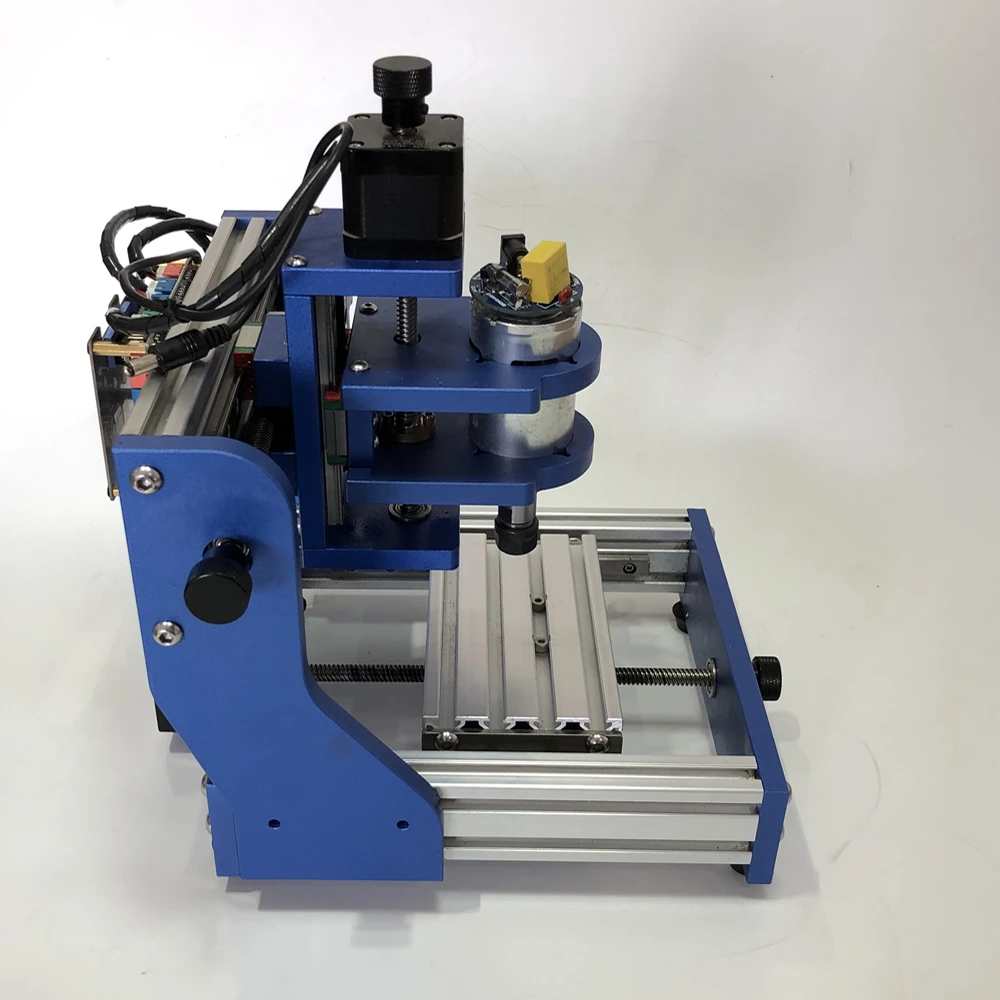

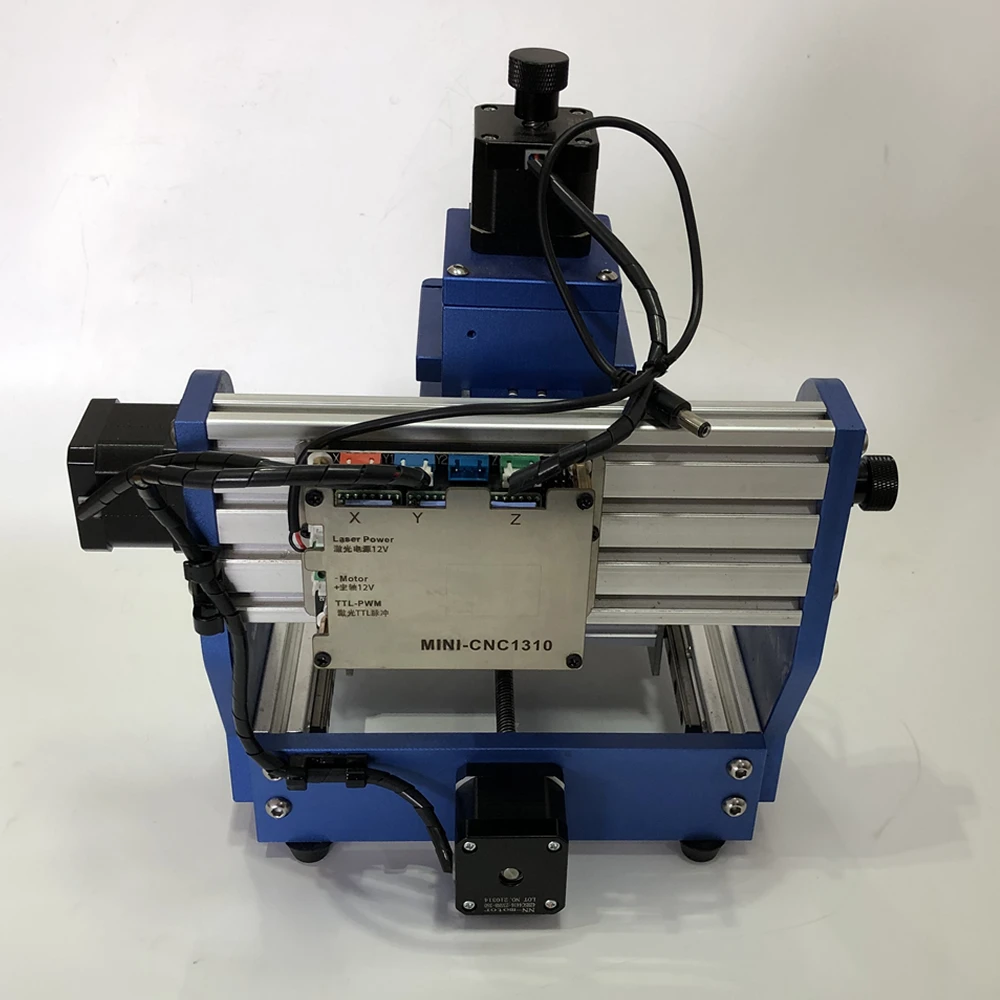

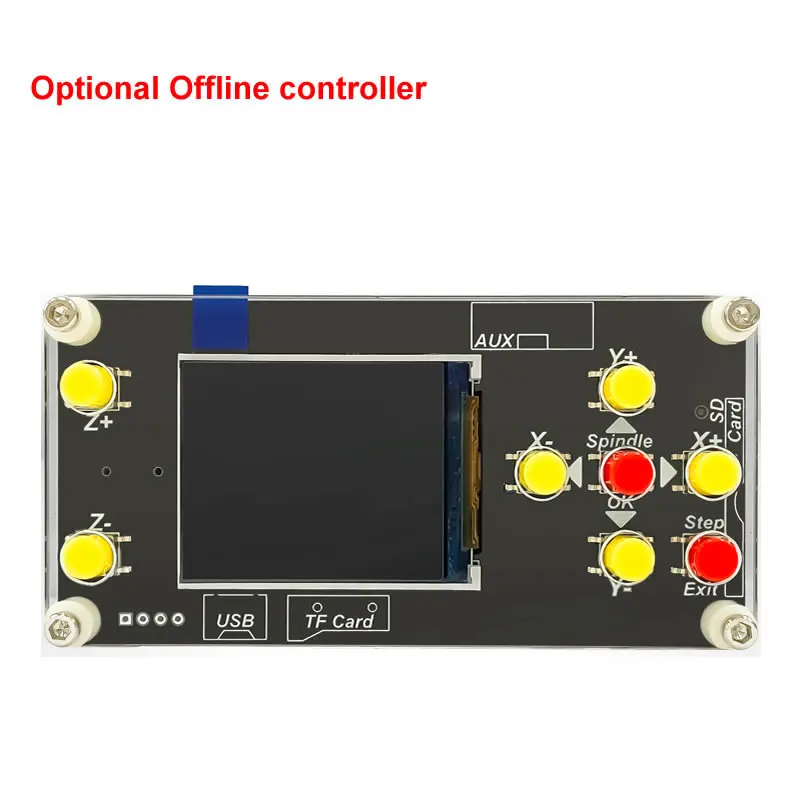

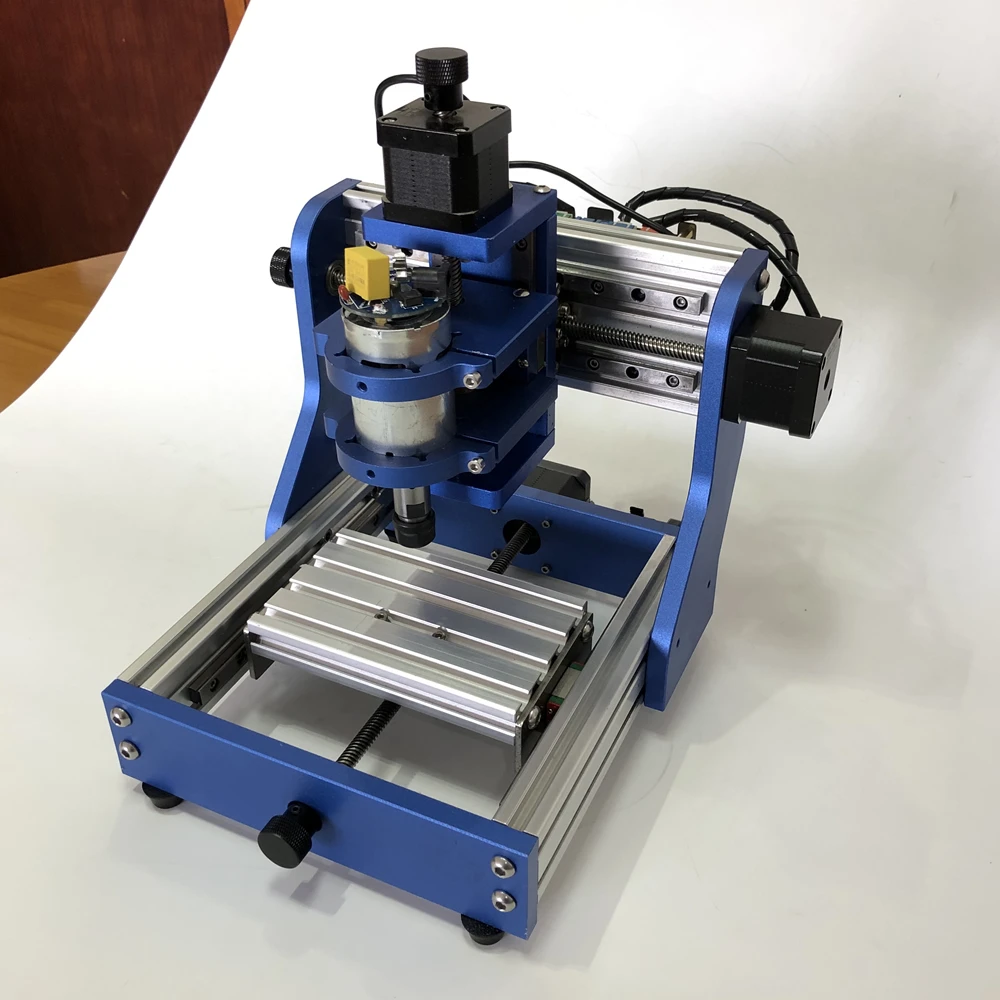

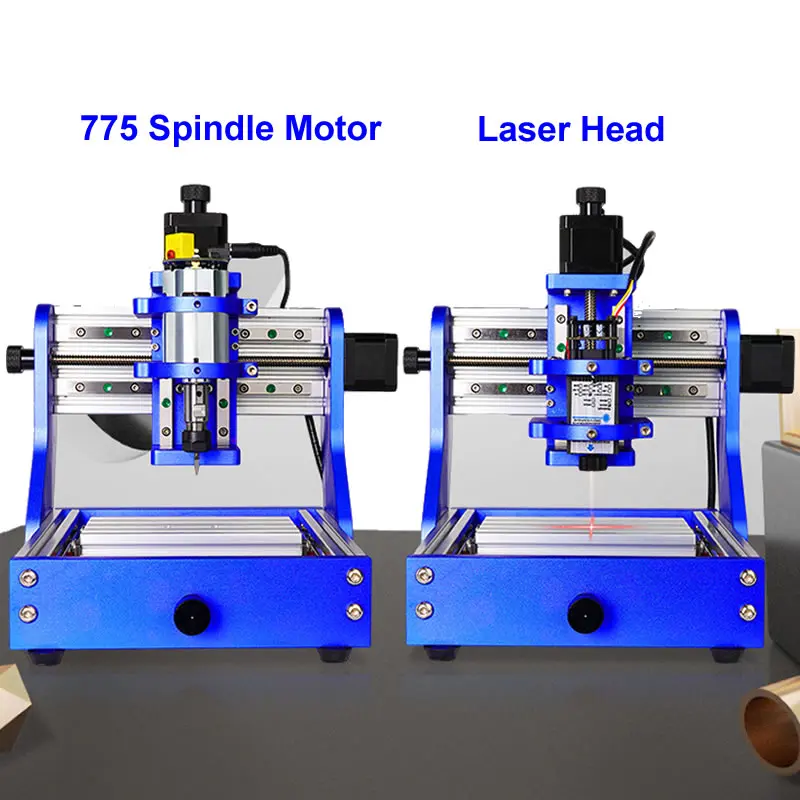

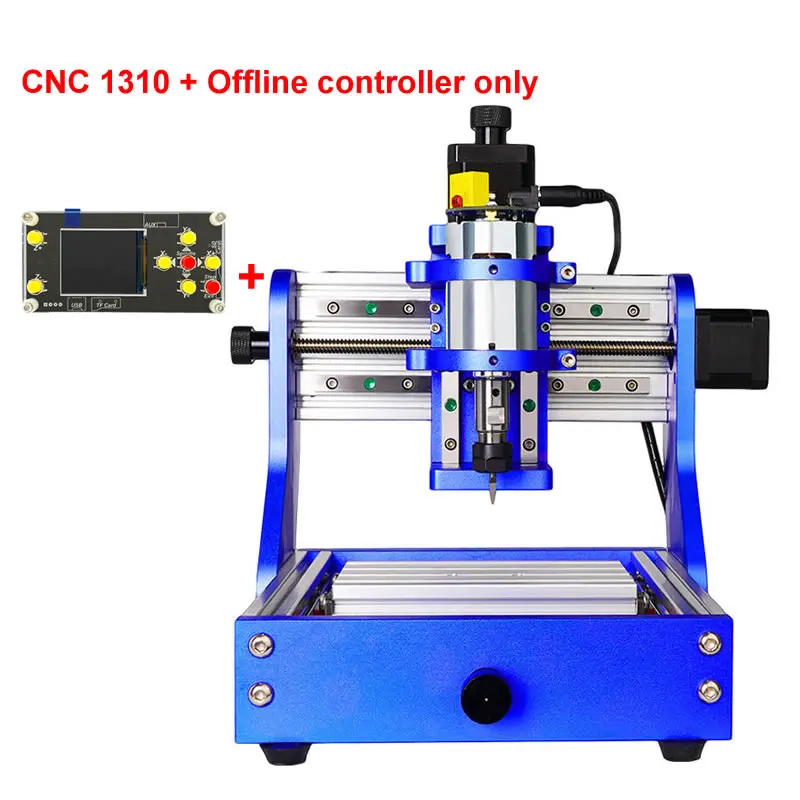

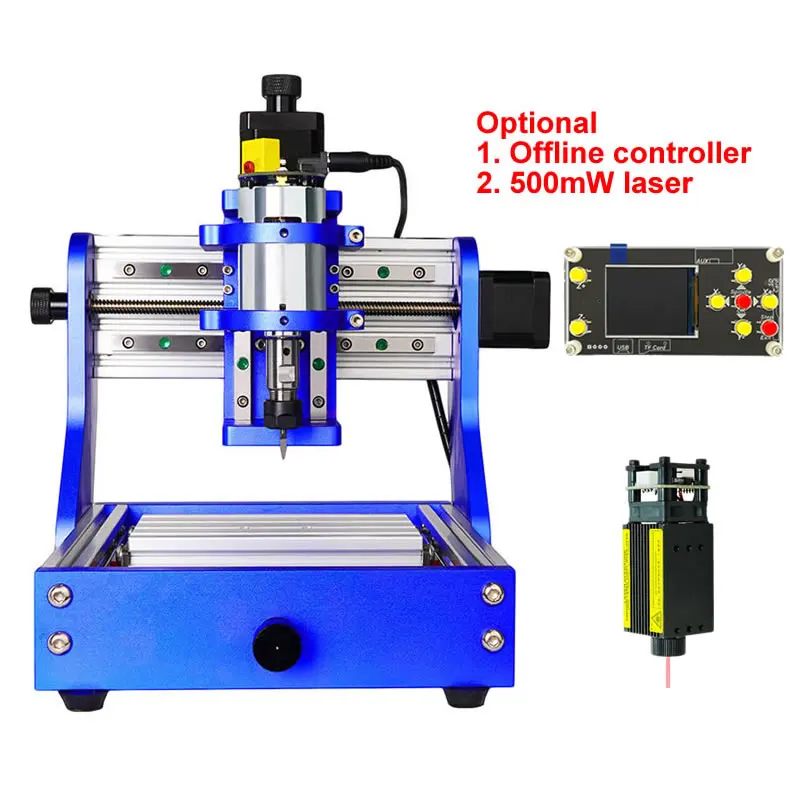

220V 110V Aluminum CNC Router Engraver 1310 Desktop PCB Milling Cutter Machine Wood Carving Optional 500mW Laser Offline Control

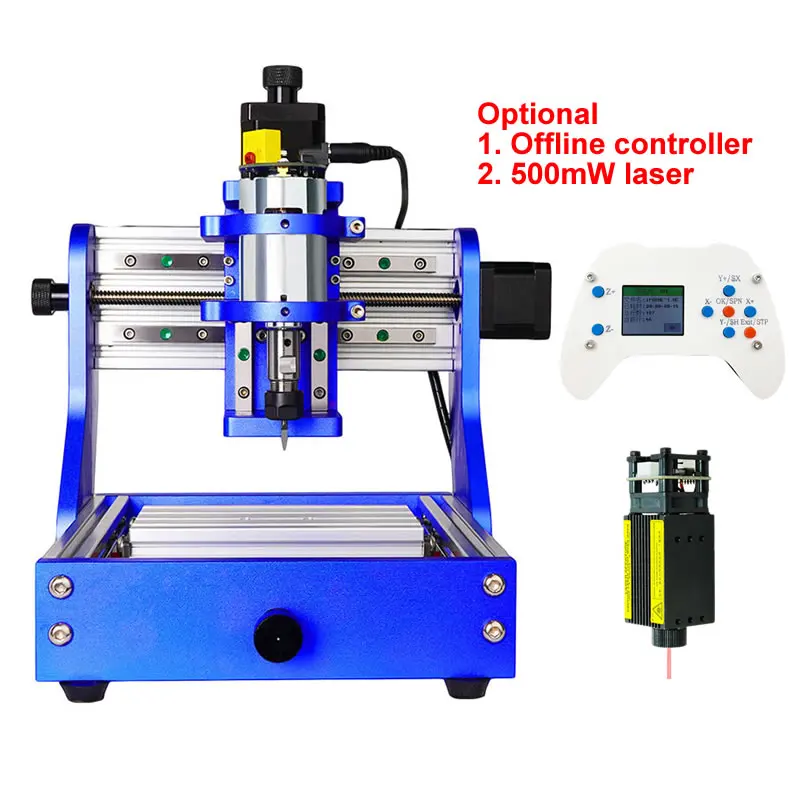

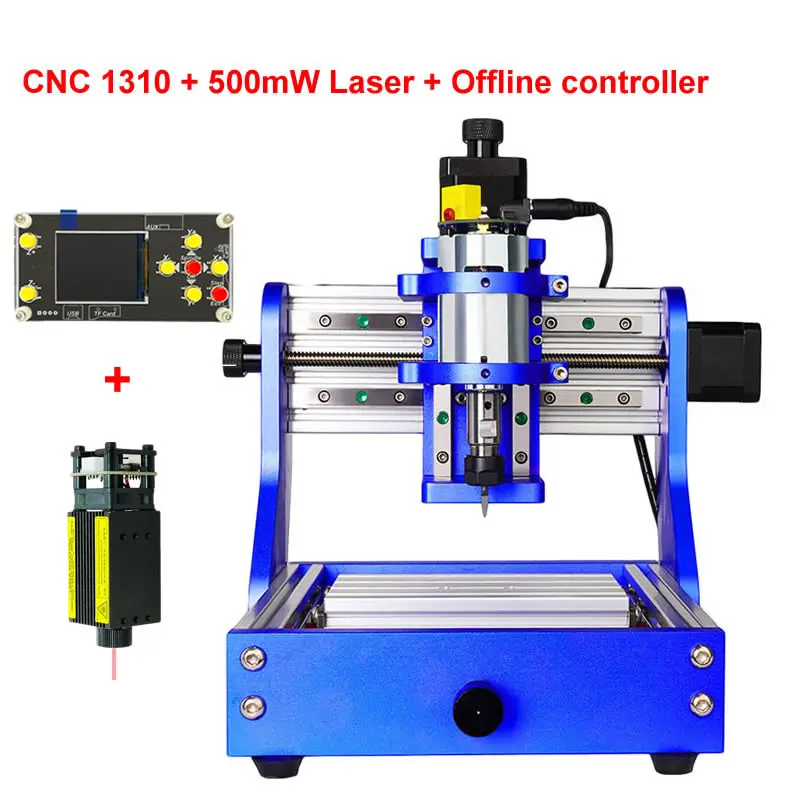

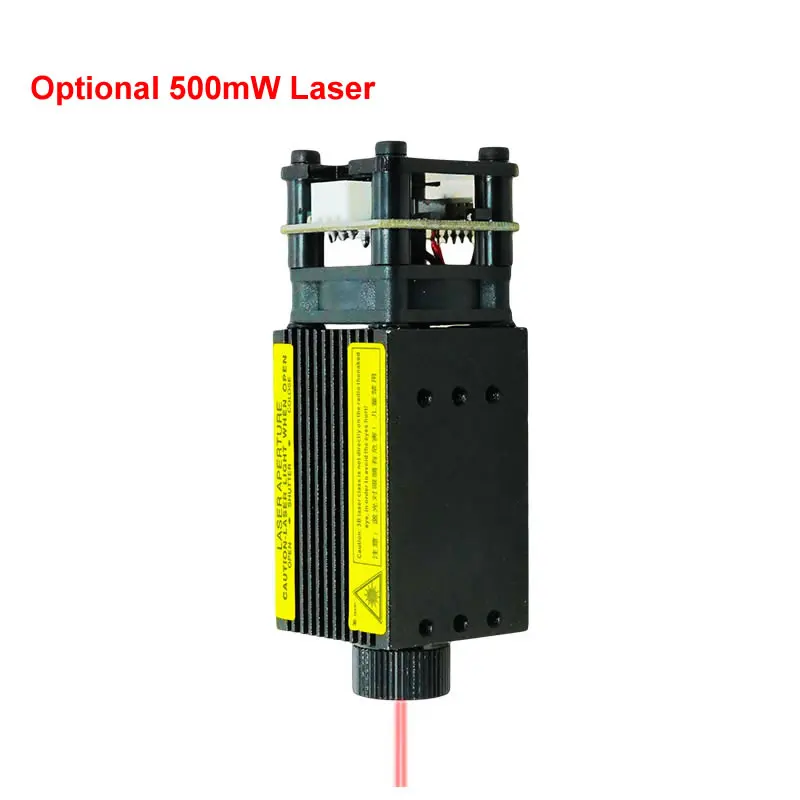

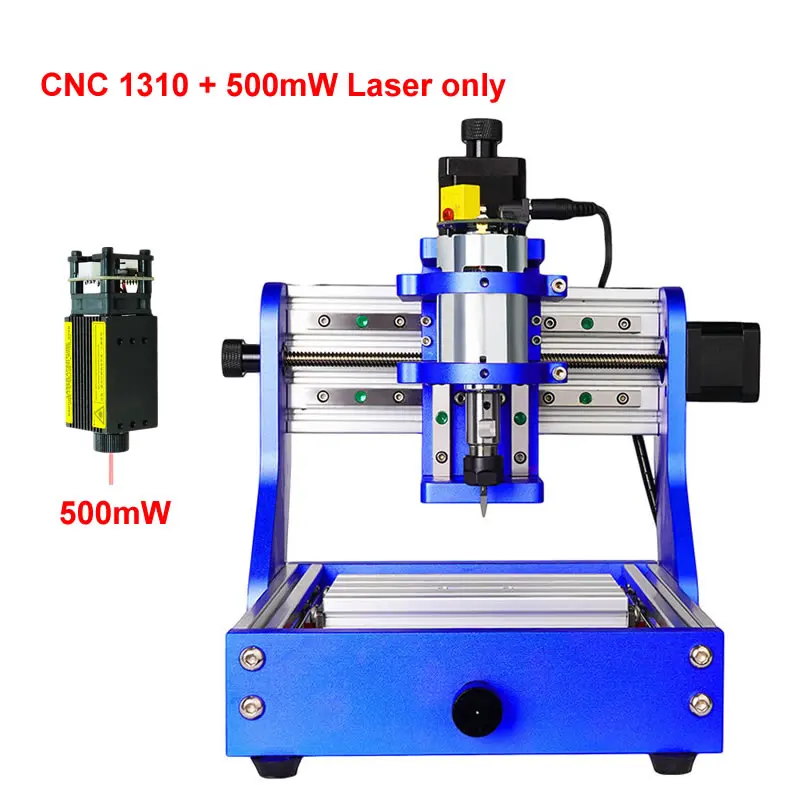

500mW laser for Optional.
Parameter
Model: CNC1310

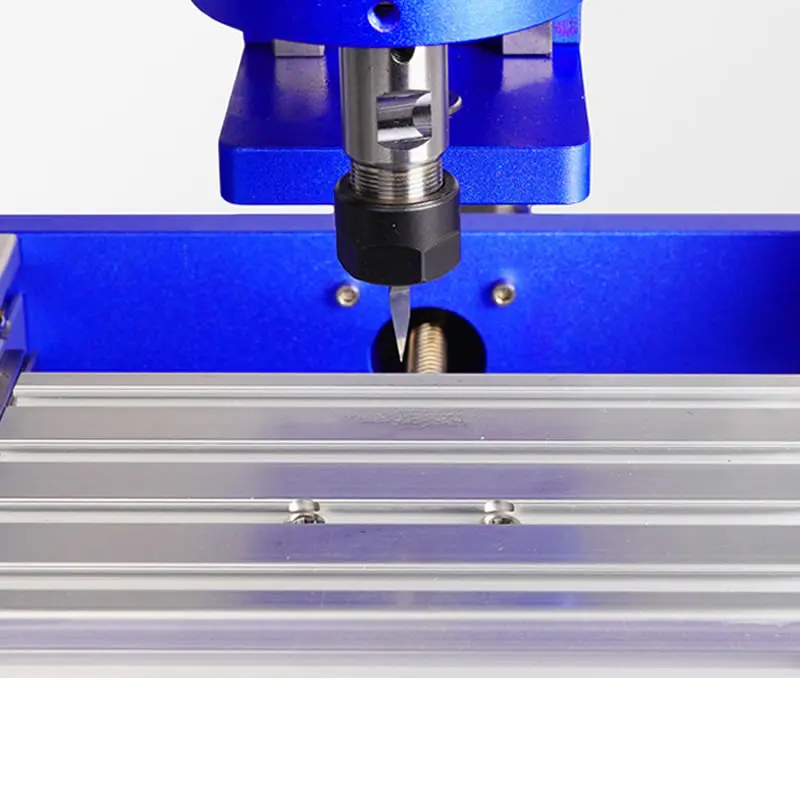

Collet type: ER11 3.175mm
Rack material: Aluminum profile + aluminum plate
Laser power: 500mW

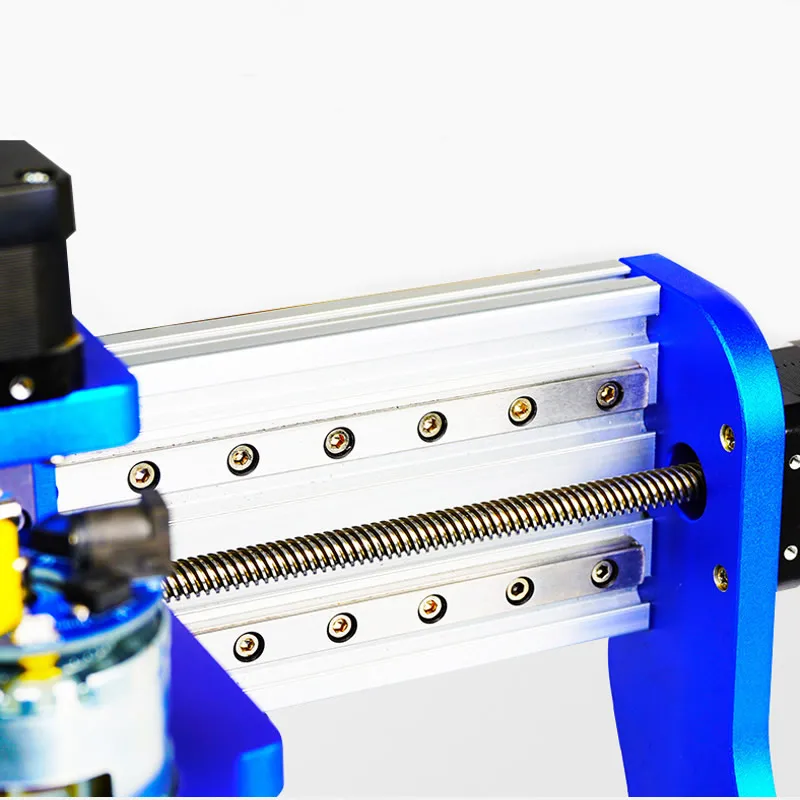

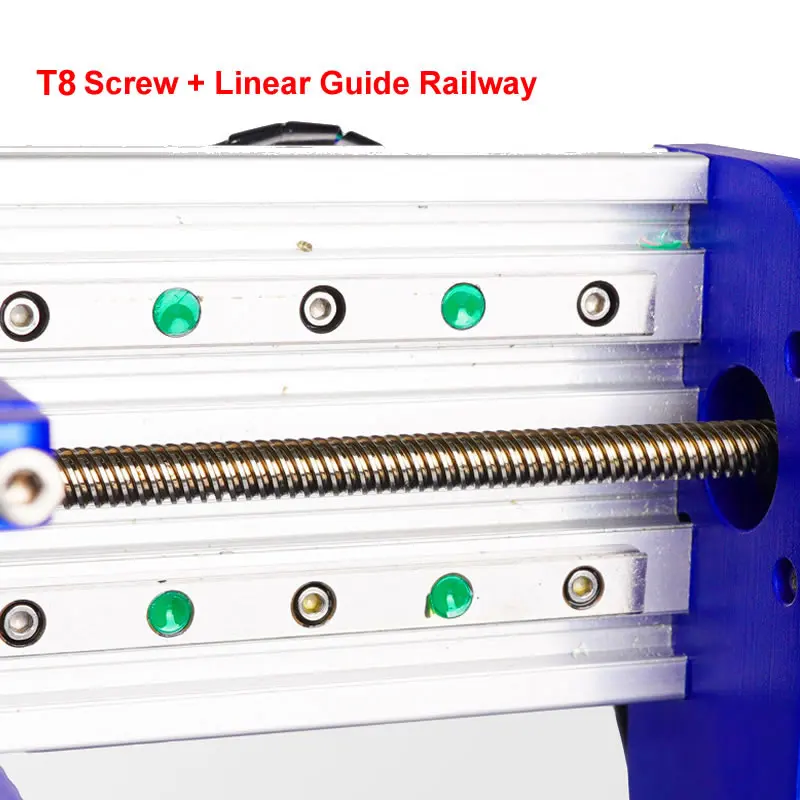

Ball screw type: T8 lead screw, stroke 8mm.

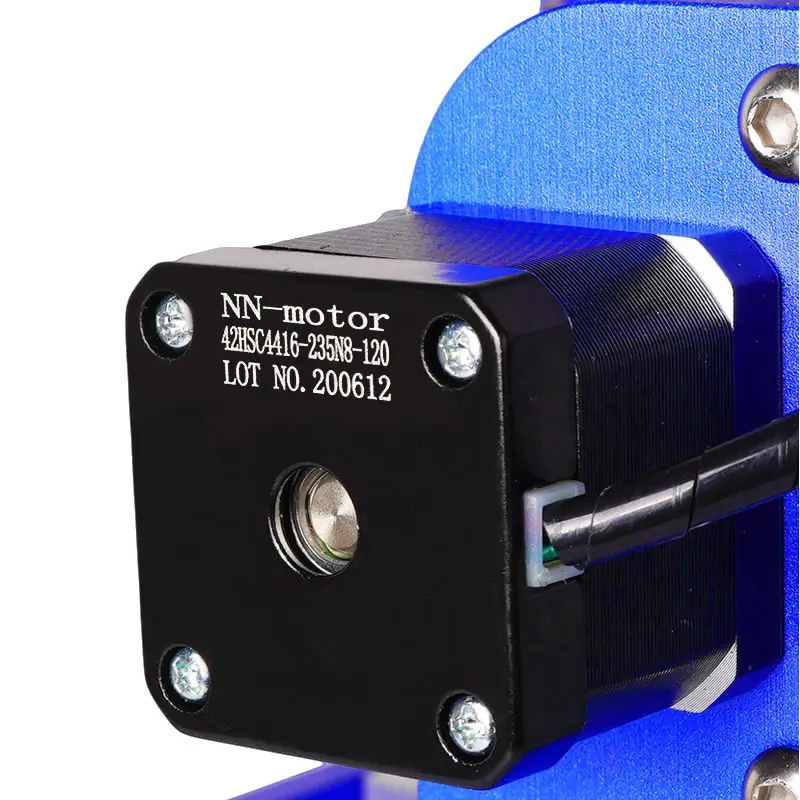

Stepper Motor: 2-Phase 4-Wire Stepper Motors (1.3A 0.25N.m)

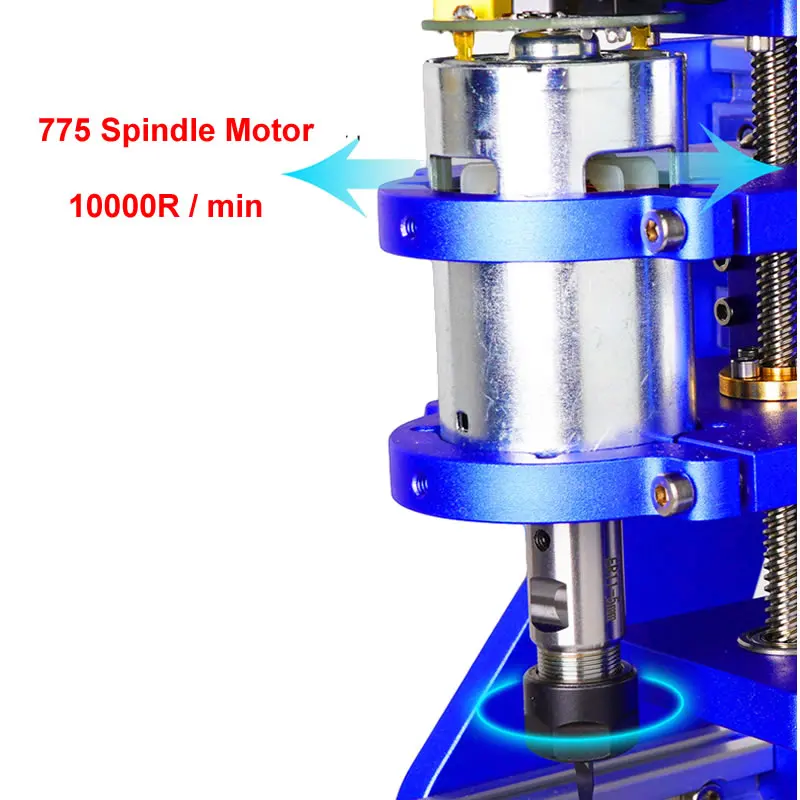

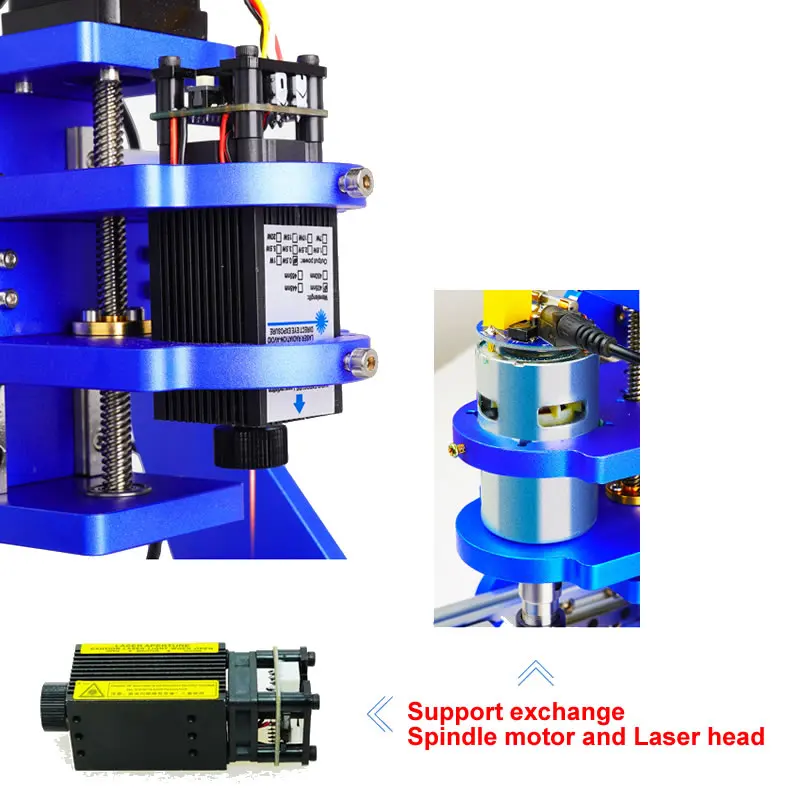

Spindle motor: 775 Spindle (12-36V) (8000r/min, if 24V)
Power Supply: 12V 5A (110V-240V)

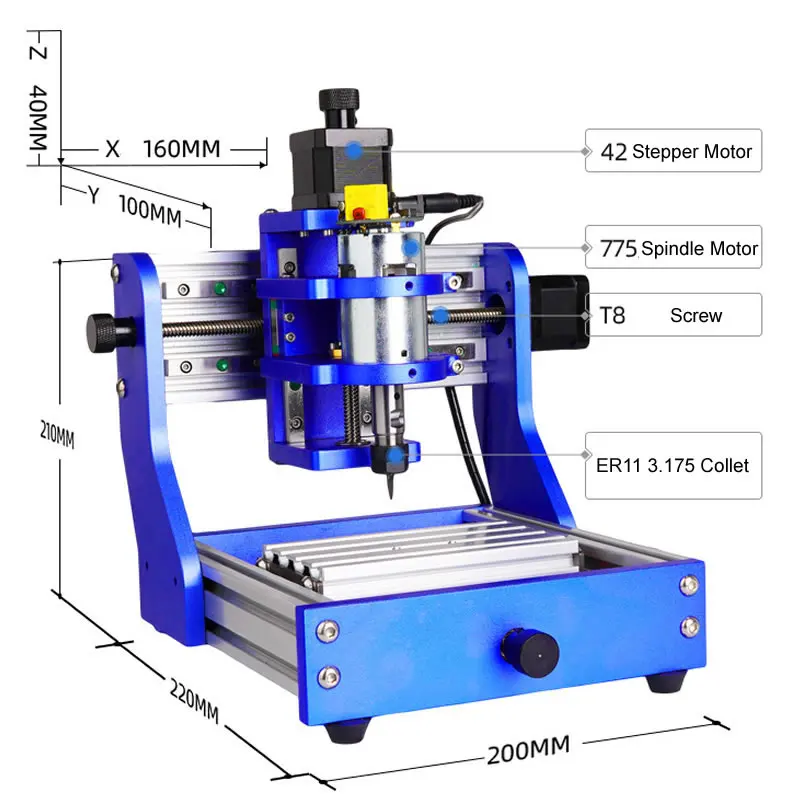

XYZ Stroke: 135*115*45mm
Support system: Windows XP, 7,8,10
CNC Software: Candle Control
Laser Software: LiteFire
Applicable Material: Copper, Aluminum and other soft metal, Plastic, Wood, Acrylic, PVC,PCB,etc...
Package Size: 330*330*330 mm
