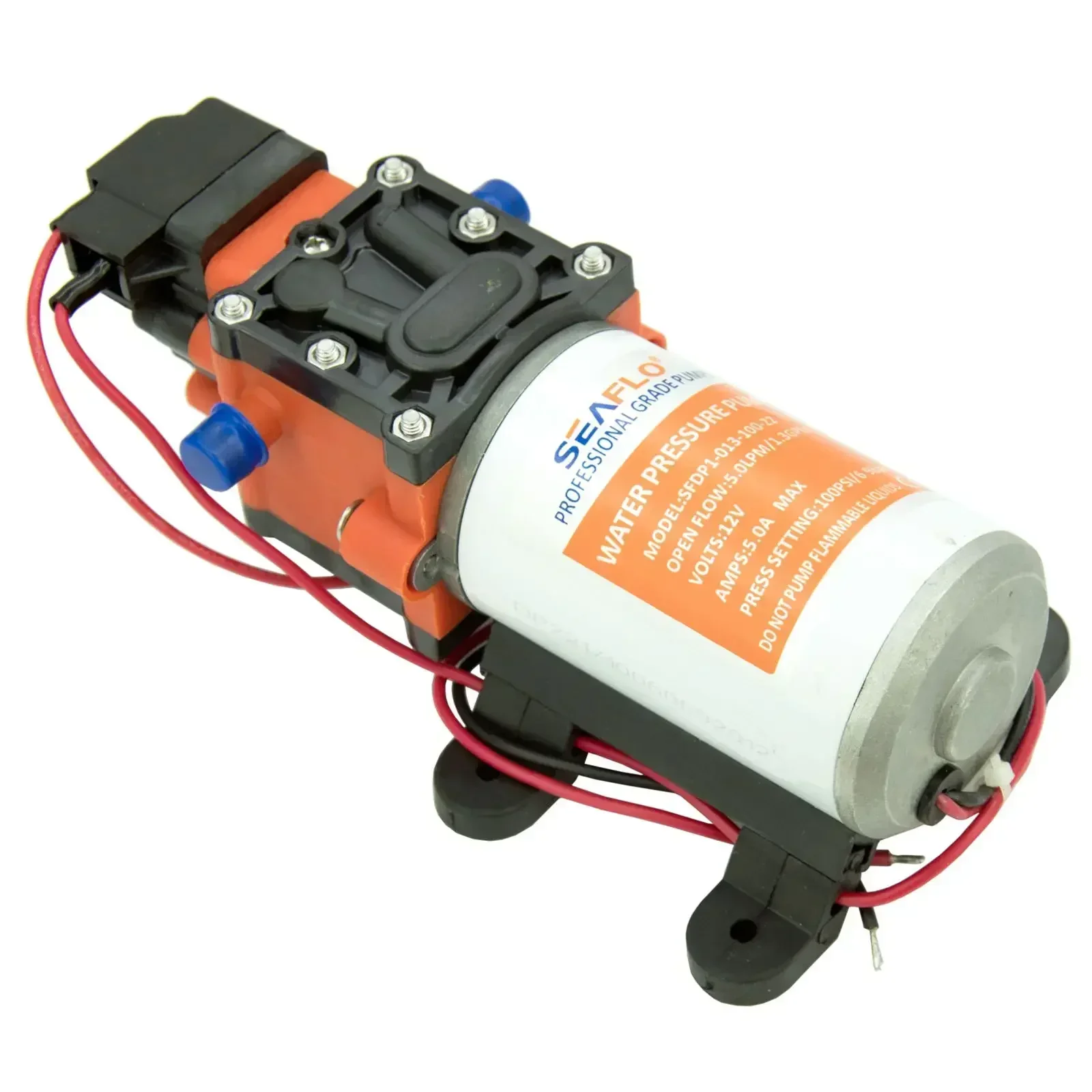

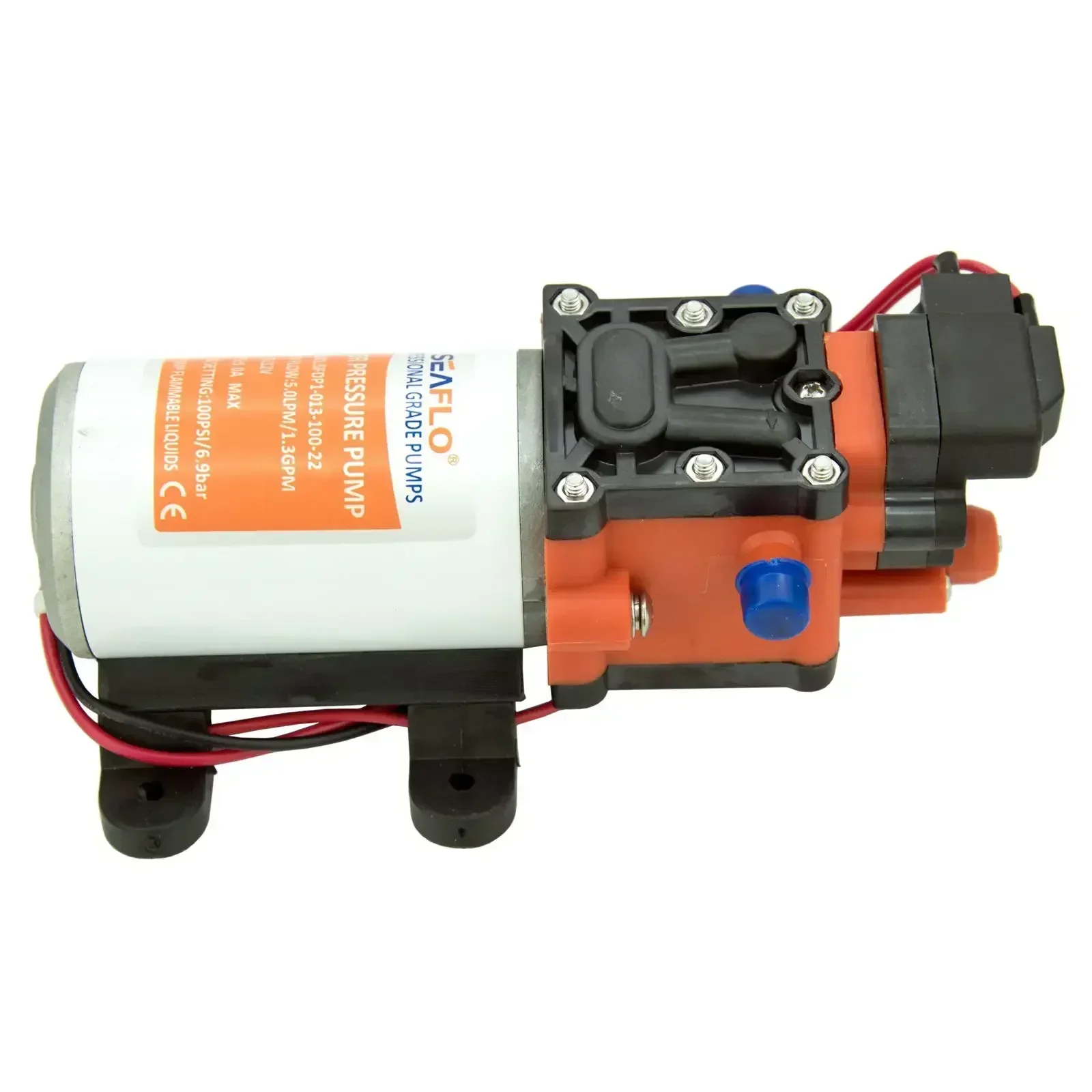

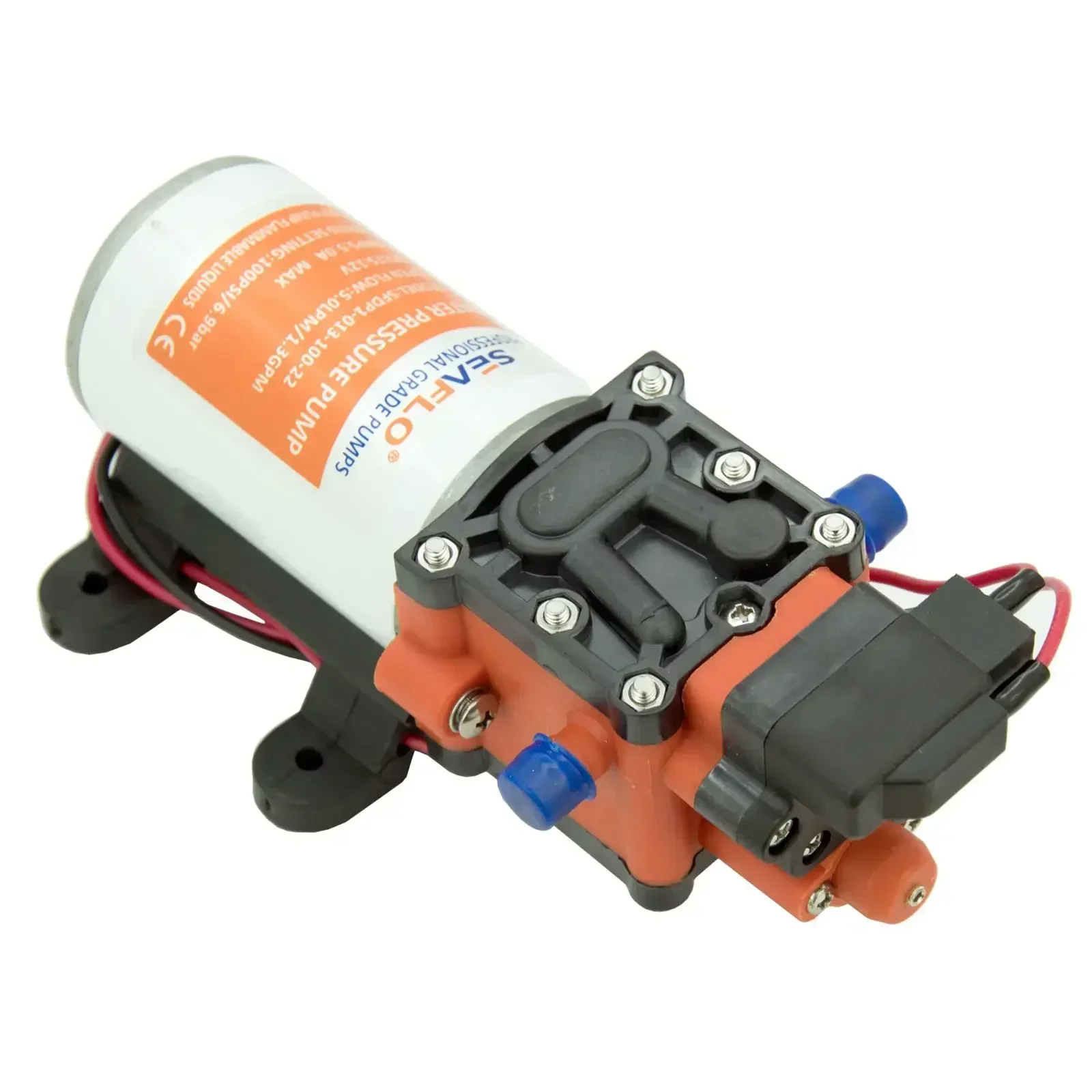

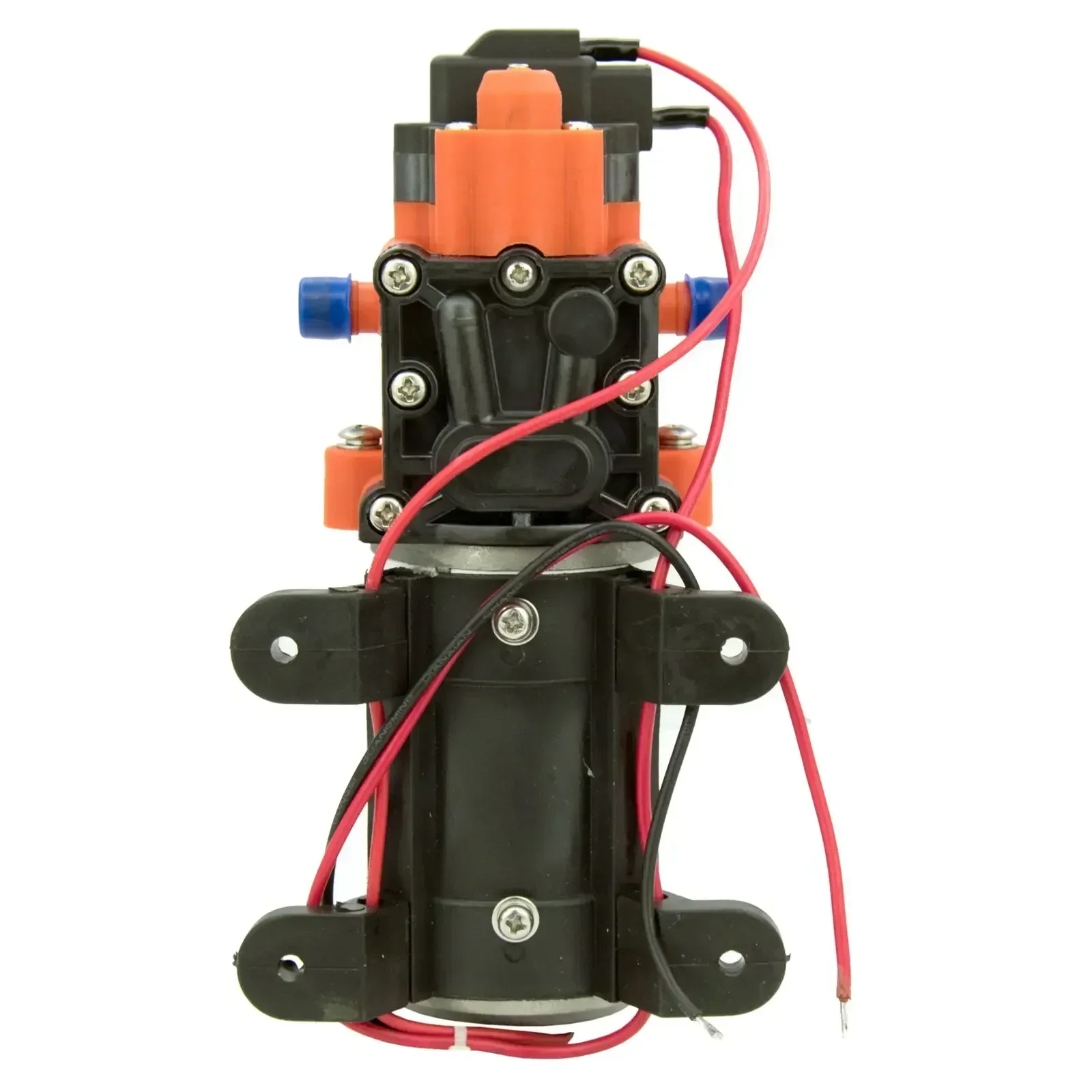

22-Series Diaphragm Pressure Pump Boat RV Self Priming Water Pump 12V 100 PSI 1.3 GPM

R$ 165,77

REF: 1005009102658176
  • Hign-concerned Chemical: None
  • Flow Rate: 501 - 1000GPH
  • Rated Current: 5 - 10A
  • Certification: ce,ROHS
  • Voltage: 12V
  • Brand Name: BYSSEA
  • Origin: Mainland China
  • GPM: 1.3GPM
  • Max Draw(A): 6A
  • Working Voltage: 12 V
  • PSI: 100PSI
  • Manufacturer Part Number: SFDP1-013-100-22
  • Ports: 3/8
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8" (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

Model

Voltage

Open Flow

(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

(PSI/BAR)

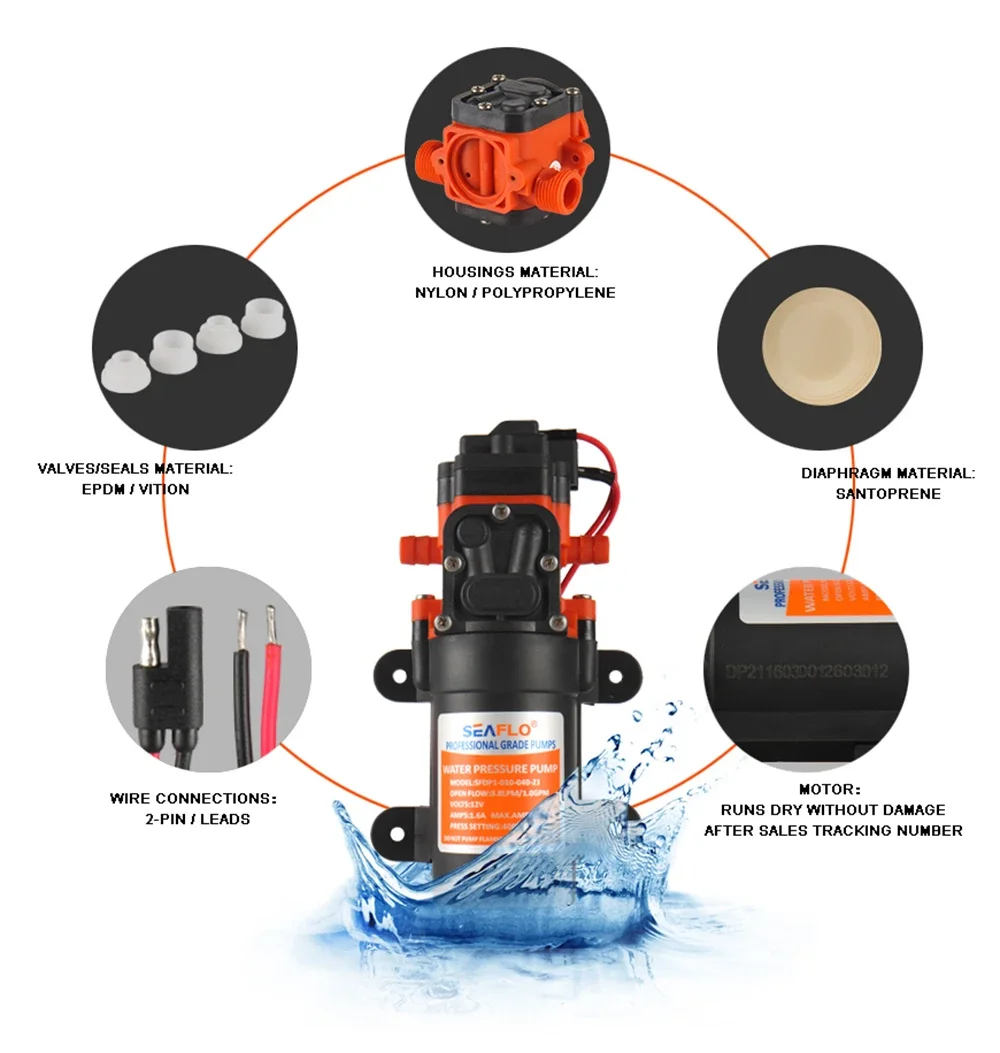

Valves

Diaphragm

Ports

Wire Connections

SFDP1-013-100-22

12V

1.3 / 5.0

Demand & Bypass

6.0A

100 / 6.9

EPDM

Santoprene

3/8" Barb

2-Pin/Leads
