Easy Operation
Product Description

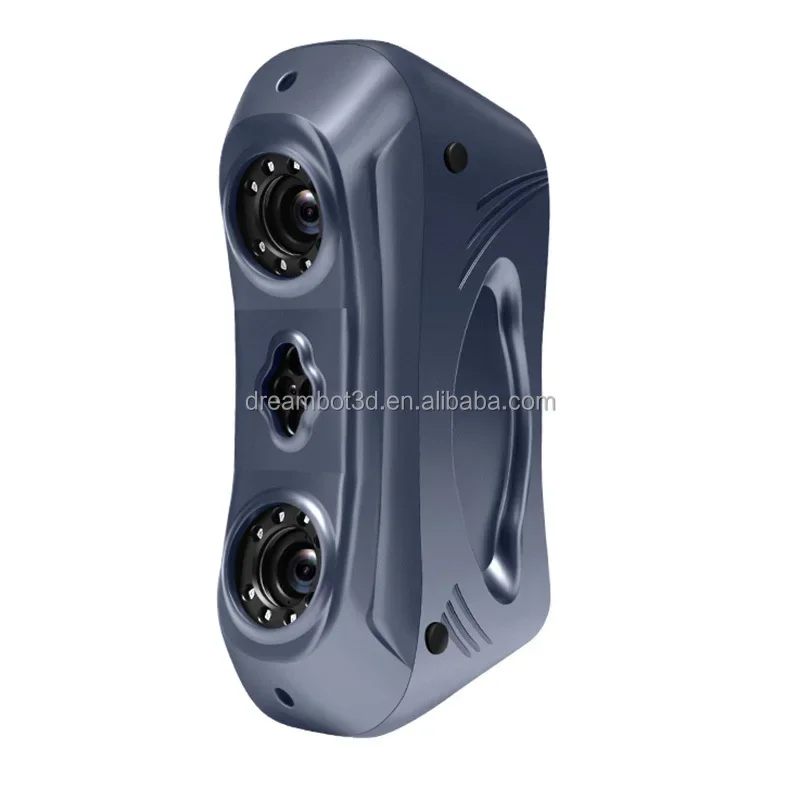

Dreambot 3D Handheld 3d scanner
Dreambot 3D scanner adopts multiple beam laser to obtain the three-dimensional point from
object surface. Operator can hand-hold the device and adjust the distance and angle between the scanner and measured object timely. It is ideal for digitizing medium to large parts such as dies and molds, let you scan small to large objects that are difficult to reach or move, provides the most effective and reliable way to acquire 3D measurements of physical objects, works with our 3D software platform, gathering all scanned data and displaying on software end. Meanwhile, the real time visualization provides a simple, enjoyable scanning experience.
object surface. Operator can hand-hold the device and adjust the distance and angle between the scanner and measured object timely. It is ideal for digitizing medium to large parts such as dies and molds, let you scan small to large objects that are difficult to reach or move, provides the most effective and reliable way to acquire 3D measurements of physical objects, works with our 3D software platform, gathering all scanned data and displaying on software end. Meanwhile, the real time visualization provides a simple, enjoyable scanning experience.
Outstanding features:
* Truly portable and fast scanning speed
* Metrology scanner, high accuracy up to 0.010mm
* Free to move, scan freely for hard-to-reach areas
* Ideal choice for small to large objects' scan
* Customized export file formats
* Compatible to most 3D software
* Truly portable and fast scanning speed
* Metrology scanner, high accuracy up to 0.010mm
* Free to move, scan freely for hard-to-reach areas
* Ideal choice for small to large objects' scan
* Customized export file formats
* Compatible to most 3D software

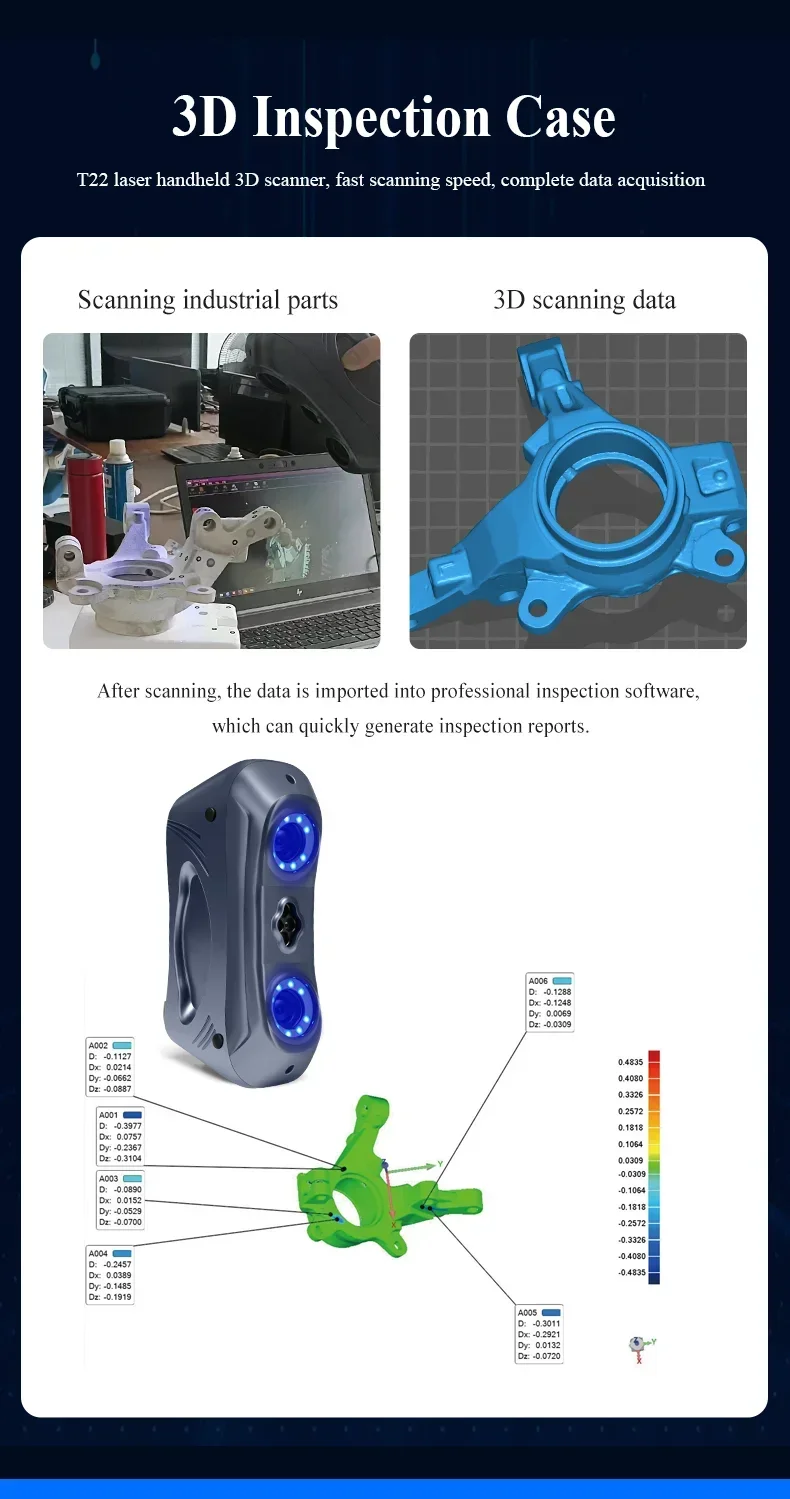

Application and Model Show

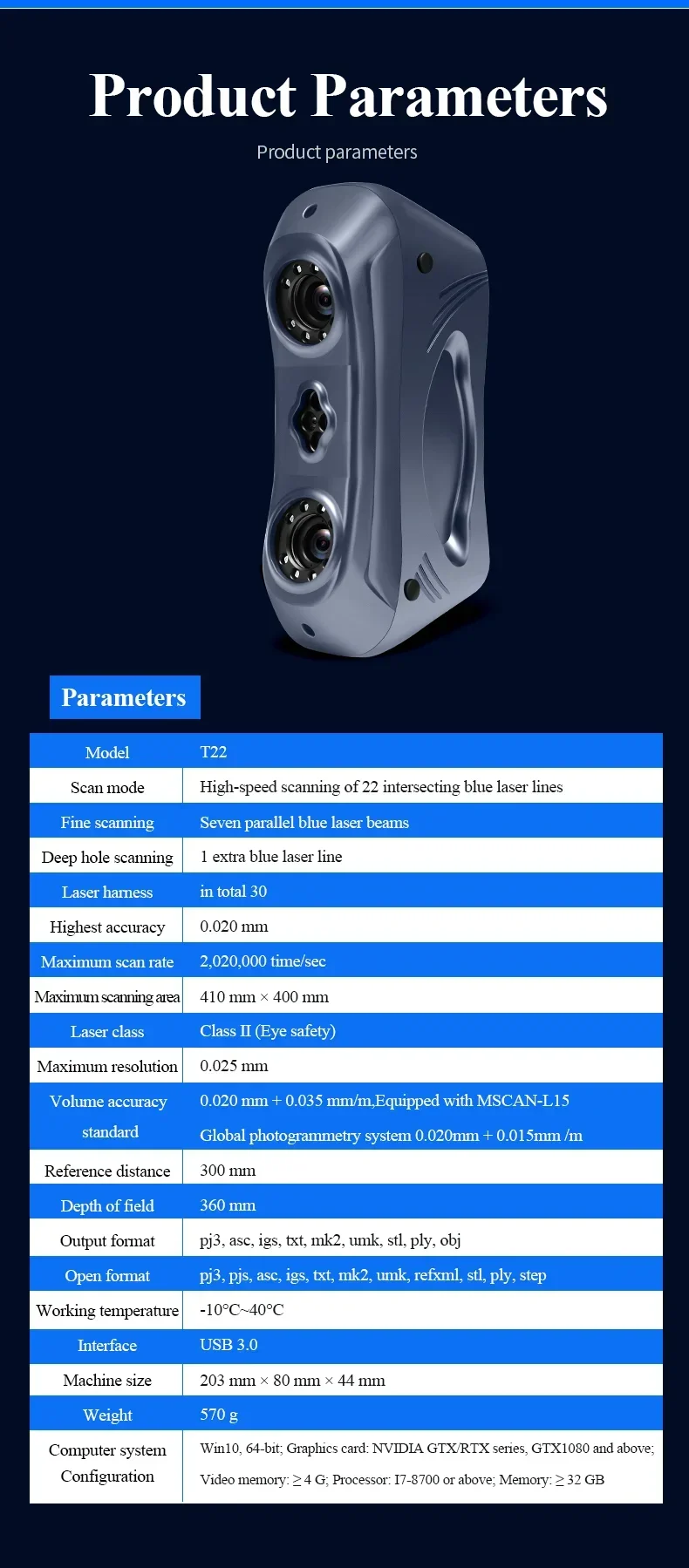

Product Paramenters
T22+ Laser 3D Scanner
- Portable, lightweight and free movement
-Easy to scan large and small object
High Efficiency;
-22 cross blue laser lines + 7 parallel blue laser lines+ 1 extra blue laser line
- Single red laser line scan the deep hole
High precision;
- Metrology-grade accuracy up to 0.02mm
-resolution is up to 0.02mm
-Easy to scan large and small object
High Efficiency;
-22 cross blue laser lines + 7 parallel blue laser lines+ 1 extra blue laser line
- Single red laser line scan the deep hole
High precision;
- Metrology-grade accuracy up to 0.02mm
-resolution is up to 0.02mm
-Volumetric accuracy 0.02mm+0.06mm/m
|
Scanner Model
|
T22+
|
|
Product name
|
Laser Car Scanner ,3d Laser Scanner, Portable Handheld 3D Scanner
|
|
Scan Type
|
Handheld scanning/ Laser scanning
|
|
Scanning accuracy
|
Maximum 0.02mm (0,0008 in)
|
|
Volume accuracy
|
0.02+0.06mm/m (0.0008+0.0007in/ft)
|
|
Scanning Speed
|
2020000 measures/s,22 beams
|
|
Scanning area
|
0.2-2M
|
|
Light source
|
22 cross blue laser lines + 7 parallel blue laser lines+ 1 extra blue laser line
|
|
Laser Class
|
Class II (eye-safe)
|
|
Resolution
|
up to 0.02mm (0.0020in)
|
|
Depth of field
|
150-450mm (9.8in)
|
|
Stand off distance
|
300mm (11.8in)
|
|
Space point distance
|
0.2-2mm
|
|
Weight
|
0.57kg
|
|
Dimension
|
203x80x44mm
|
|
System Supported
|
Win7 Win8 Win10 64bit
|
|
Computer requirement
|
Graphics card: NVIDIA GTX770 or higher; Video Memory: >4G; Processor:i7 or higher; Memory: 16G or more; Port: high speed USB3.0
|
Packing & Delivery
Whole 3D printer machine with plywood carton box,standard package for express airway and shipping. The forklift mouth is designed at the bottom,to reduce the risk of damage to the machine during transportation.
