- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- Condition: New
- Place of Origin: Hubei, China
- Brand Name: VOHOBOO
- Use: Drywall Panel Hoist, Construction Hoist, Mining Hoist, Other
- Power Source: Electric
- Sling Type: Chain
- Lifting Speed: 8m/min, 2m/min
- Warranty: 1 Year
- Weight (KG): 64
- Material: metal
- Voltage: 380V
- Load Capacity: 250kg
- Machinery Test Report: Provided
- Product name: European type Electric Chain Hoist
- Model: HH-A
- Work Level: M6 M5 M4
- Protection Level: IP55
- Lifting height: 4m
- Operation Method: Line-controlled pushbutton
- Ambient Temperature: -20 to +40 ℃
- Humidity: Below 85% relative humidity
- Insulation Class: Class G (allowing within 180℃)
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP(+8618175123594) Email:782569894@qq.com
Product Description
Specification
Fixed Type European Standard Electric Chain Hoist
|
Type
|
Rated load
|
Lift speed (m/min)锛坉ouble speed锛�
|
|
Hoist motor 3 phase
|
|
Work
duty
|
Chain diameter锛�φ锛�
|
Weight锛坘g锛�
|
||
|
|
|
High speed
|
Low speed
|
Output Power锛坘W锛�
|
Motor speed
|
|
|
|
||
|
HH-A 0.25-01
|
0.25T
|
8
|
2
|
0.8/0.2
|
1440
|
M5
|
5.6mm
|
30
|
||
|
HH-A 0.5-01
|
0.5T
|
8
|
2
|
0.8/0.2
|
1440
|
M5
|
5.6mm
|
30
|
||
|
HH-A 01-02
|
1T
|
4
|
1
|
0.8/0.2
|
1440
|
M5
|
5.6mm
|
35
|
||
|
HH-A 01-02
|
1T
|
8
|
1.3
|
1.8/0.3
|
1440
|
M5
|
7.1mm
|
40
|
||
|
HH-A 02-02
|
2T
|
4
|
0.7
|
1.8/0.3
|
1440
|
M5
|
7.1mm
|
50
|
||

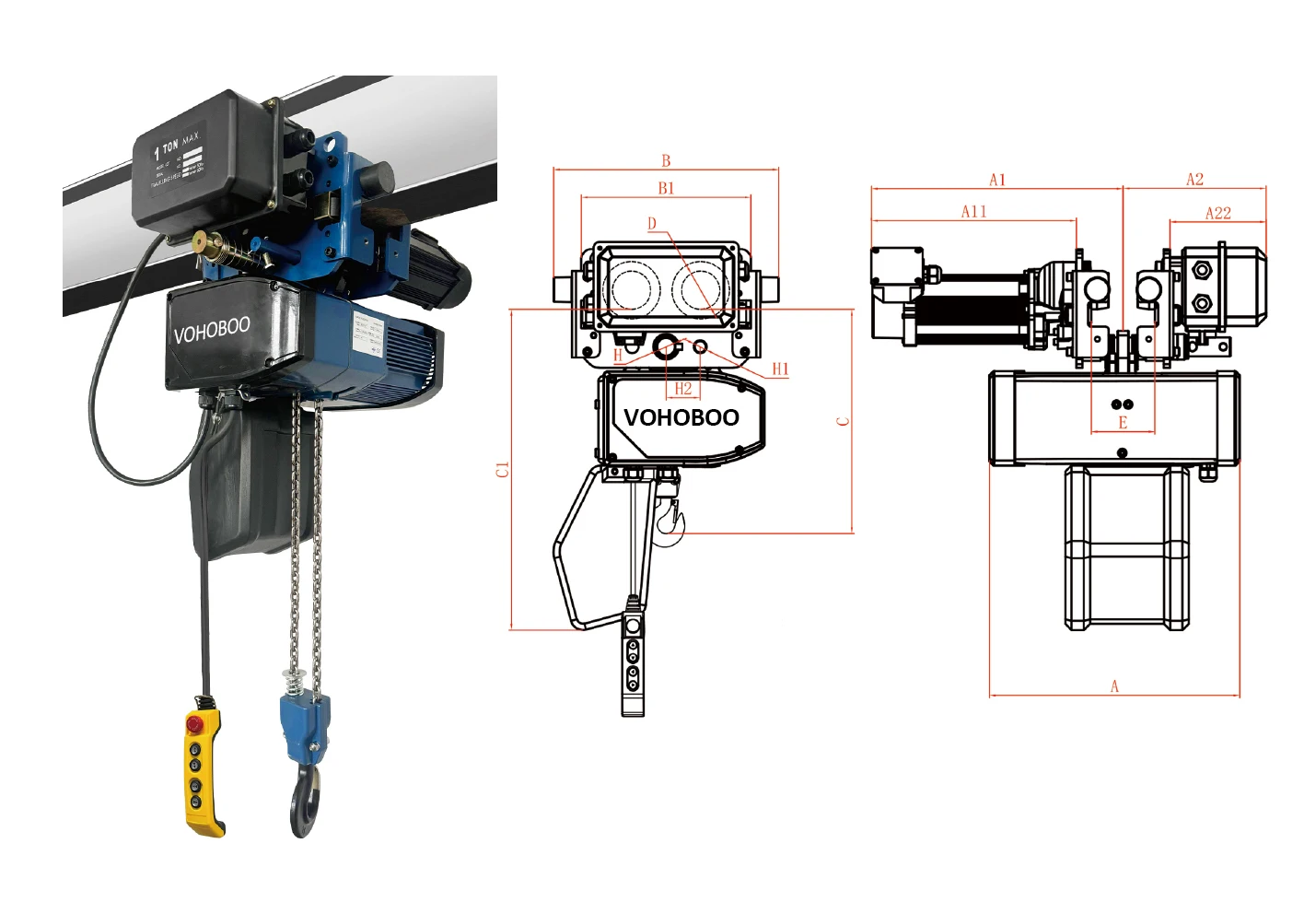

Electric Trolley Type European Standard Electric Chain Hoist
|
Type
|
Rated
load
|
Lift speed (m/min)锛坉ouble speed锛�
|
|
Hoist motor 3 phase
|
Running motor (3 phase)
|
|
|
Chain diameter锛�φ锛�
|
Weight锛坘g锛�
|
|||
|
|
|
High speed
|
Low speed
|
Output Power锛坘W锛�
|
Power锛圞w锛�
|
Motor speed
|
Travel speed锛坢/min锛�
|
|
|
|||
|
HH-A 0.25-01Y
|
0.25T
|
8
|
2
|
0.8/0.2
|
0.4
|
1440
|
11
|
5.6mm
|
60
|
|||
|
HH-A
0.5-01Y
|
0.5T
|
8
|
2
|
0.8/0.2
|
0.4
|
1440
|
11
|
5.6mm
|
60
|
|||
|
HH-A
01-02Y
|
1T
|
4
|
1
|
0.8/0.2
|
0.4
|
1440
|
11
|
5.6mm
|
70
|
|||
|
HH-A
01-02Y
|
1T
|
8
|
1.3
|
1.8/0.3
|
0.4
|
1440
|
11
|
7.1mm
|
80
|
|||
|
HH-A
02-02Y
|
2T
|
4
|
0.7
|
1.8/0.3
|
0.4
|
1440
|
11
|
7.1mm
|
90
|
|||

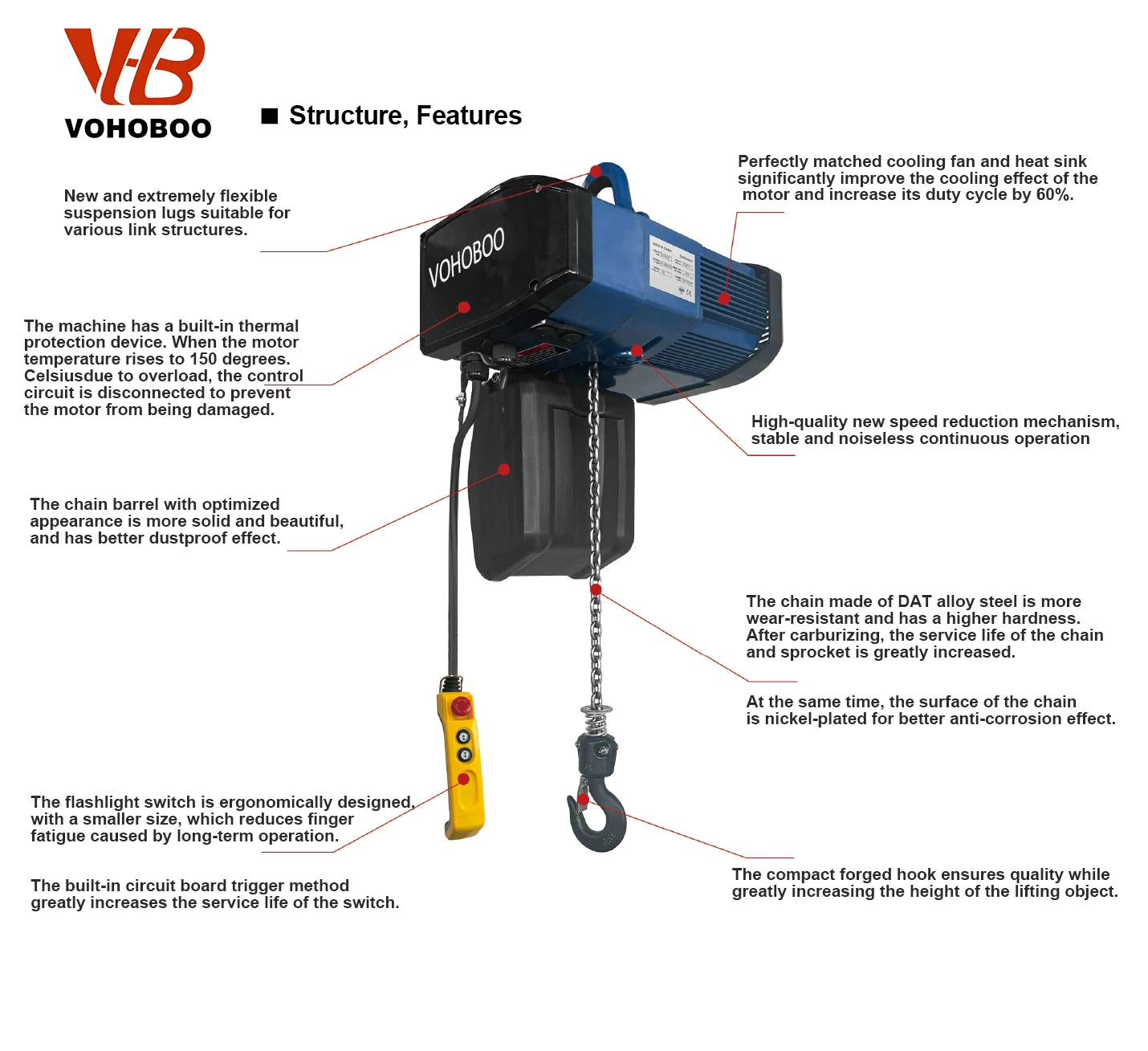

Product Features
Product Features

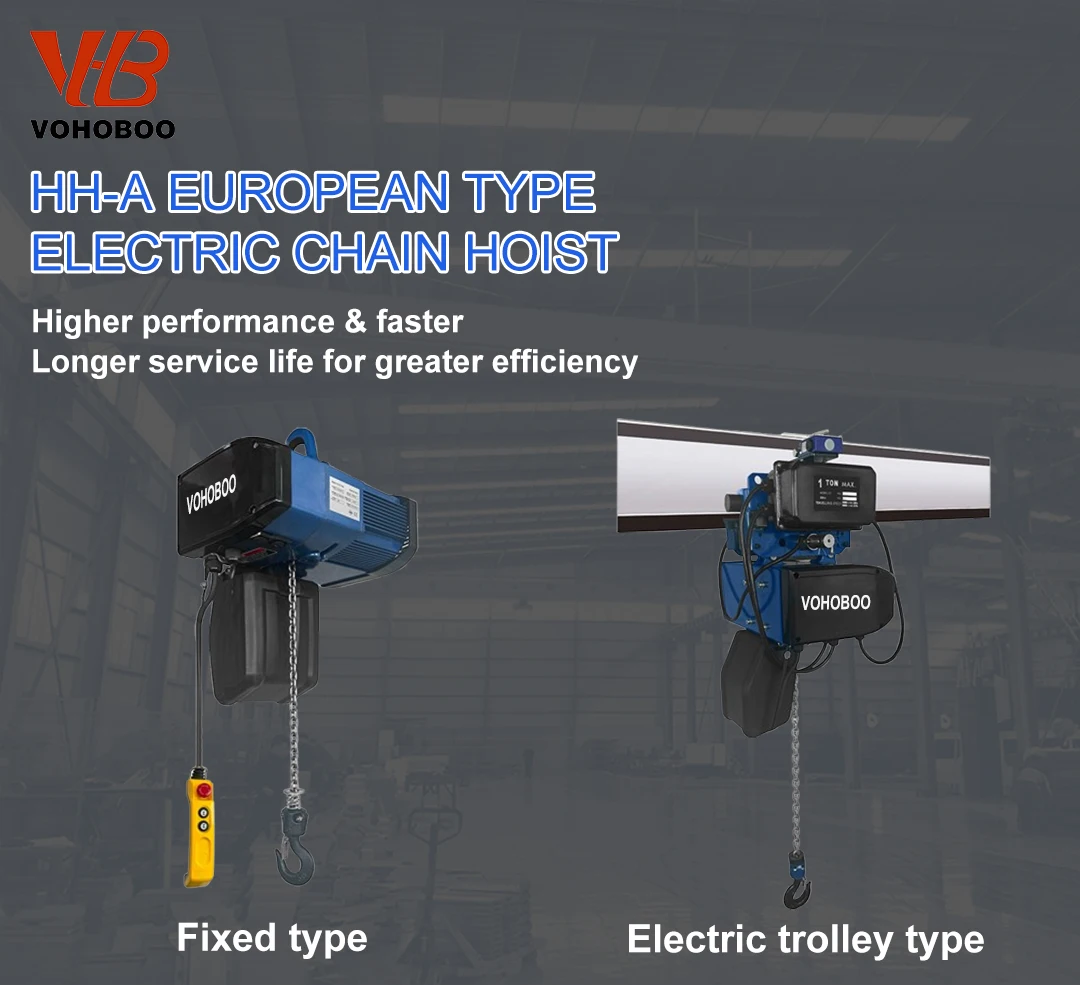

Higher Performance & Faster
HH-A type European electric chain hoist has the advantages of high performance and high safety reliability. Adopting a humanized design concept, it increases your productivity and enables work to achieve the highest efficiency.
Sensitive and Fast
HH-A European electric chain hoist with flexible action, positioning accuracy Lord stood up quickly and efficiently speedlow speed hoisting load smoothly, accurate positioning.
Longer service life for greater efficiency
In practical terms, HH-A European electric chain service life is extended by approx,20%in comparison with the conventional 2m classification for chain hoists FEM rating.This results in significantly prolonged time between service intervals and general overhauls.This extra operating life is only offered by HH-A european electric chain.

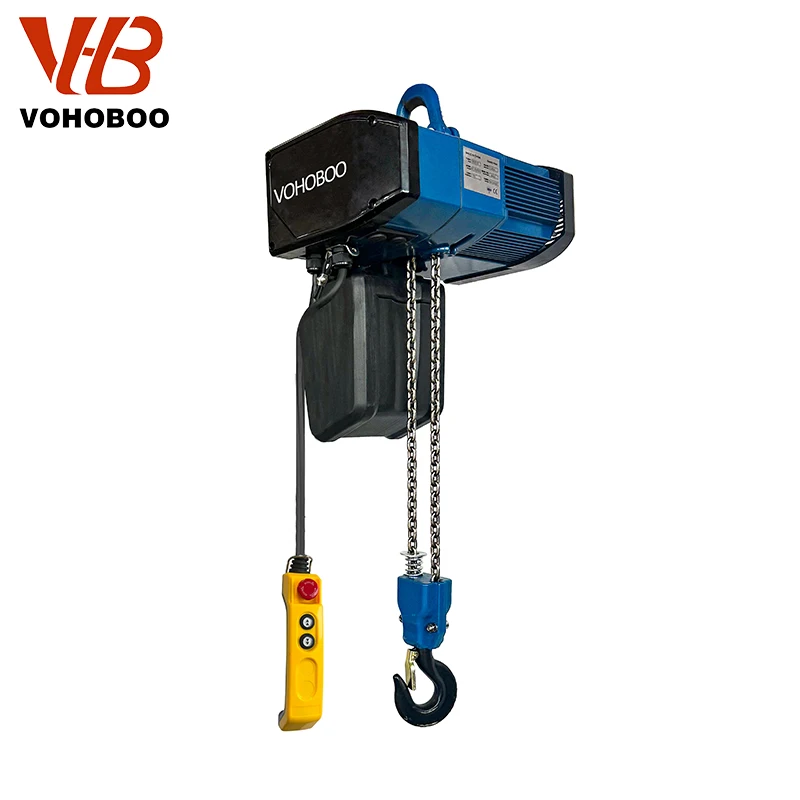

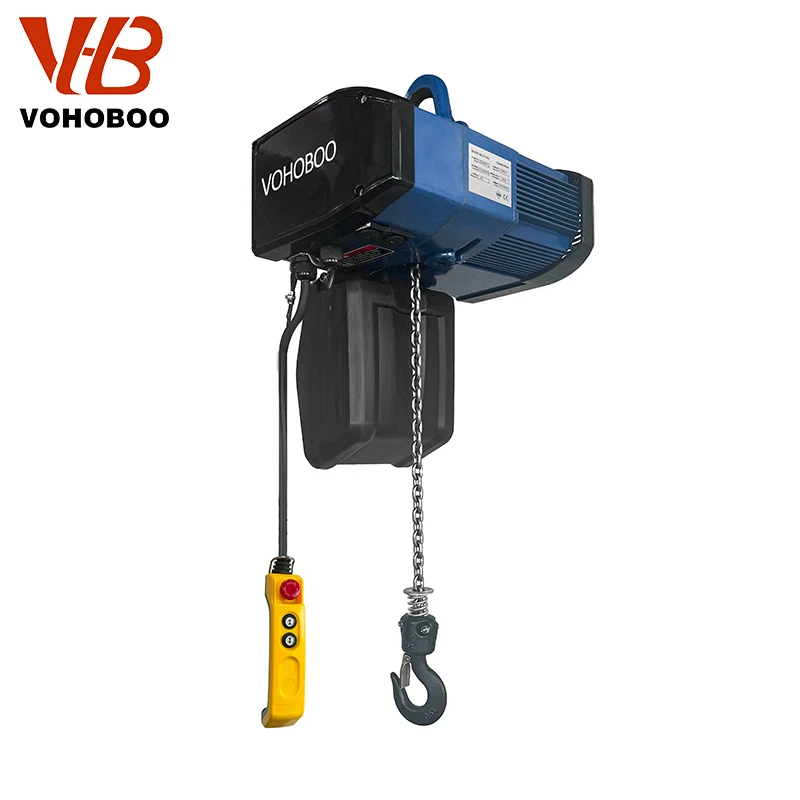

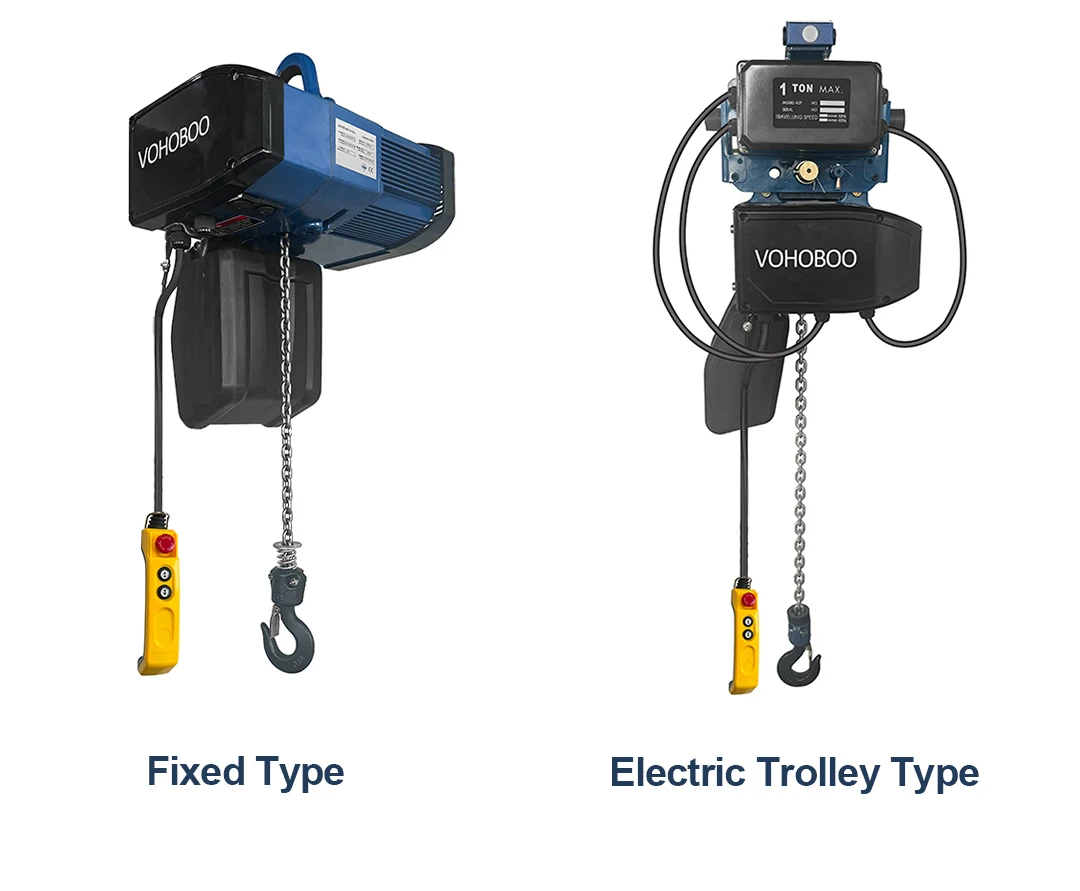

European Electric Chain Hoist With Hook Type
鈼�HH-A series hoist is especially suitable for use on aluminum rails rigid rails, KBK flexible rails, etc.

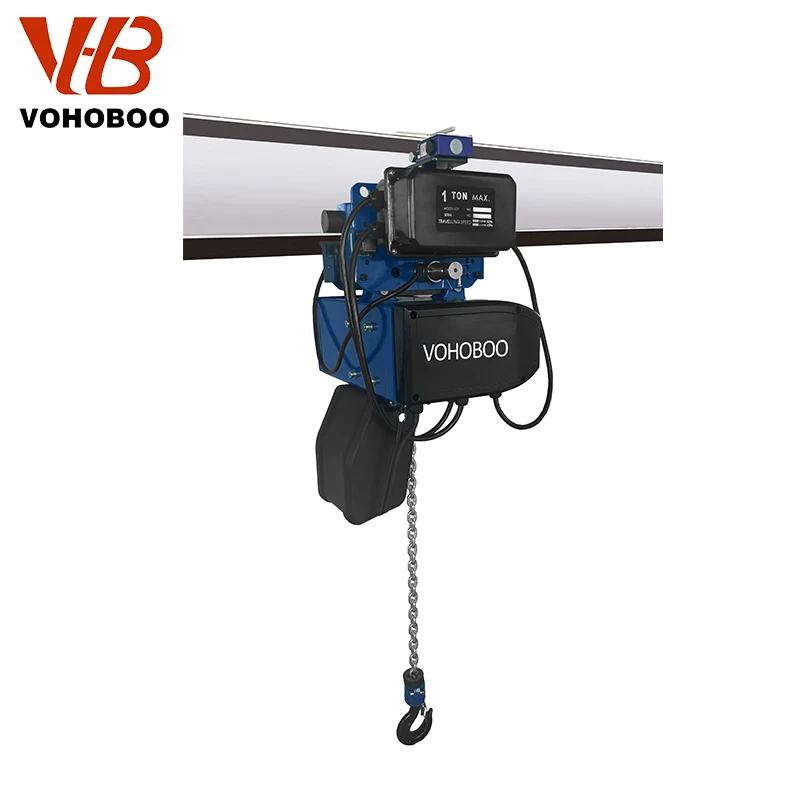

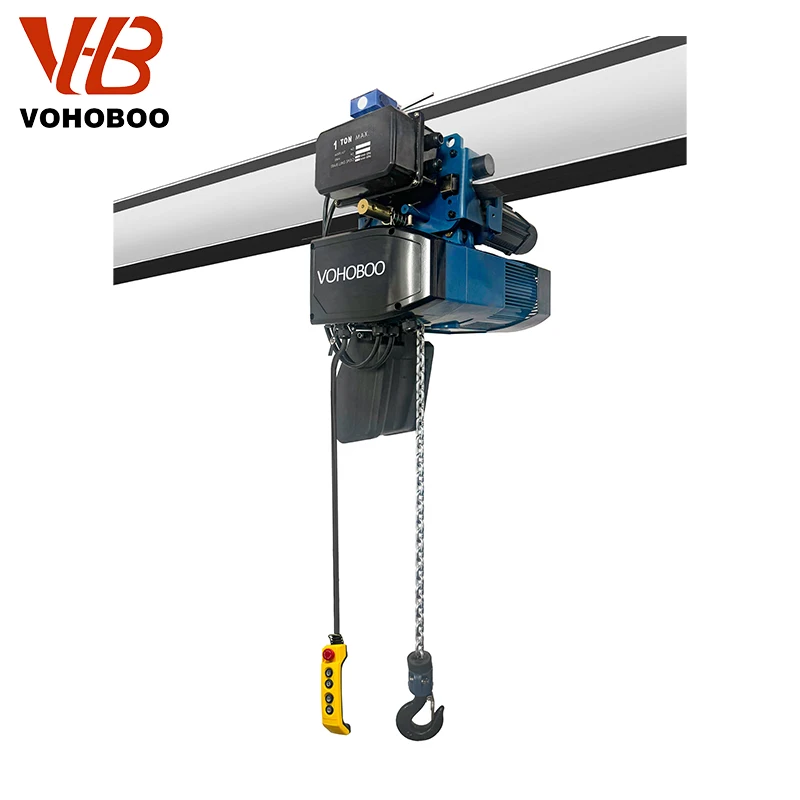

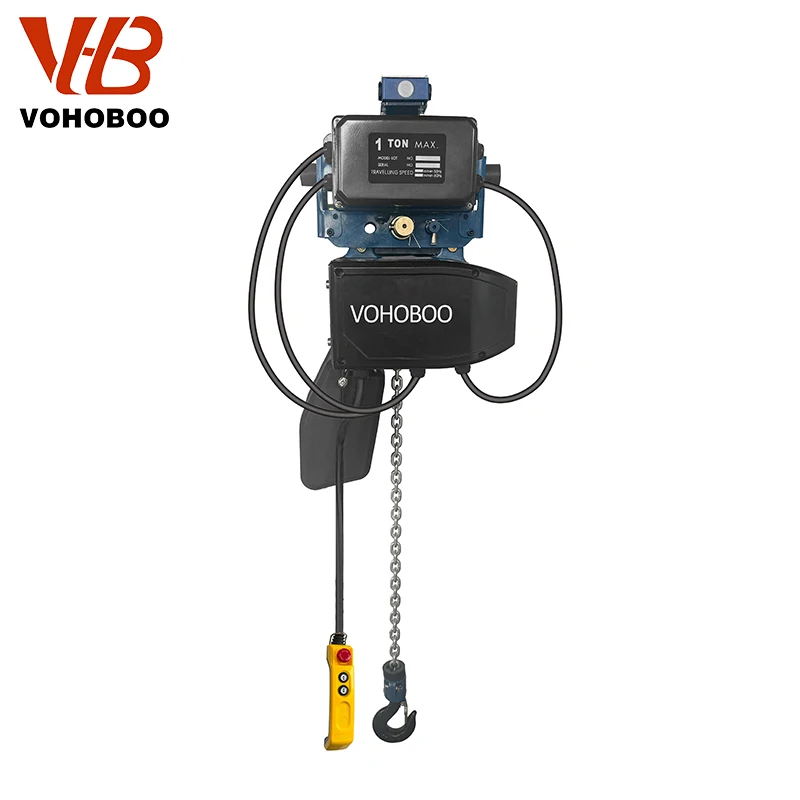

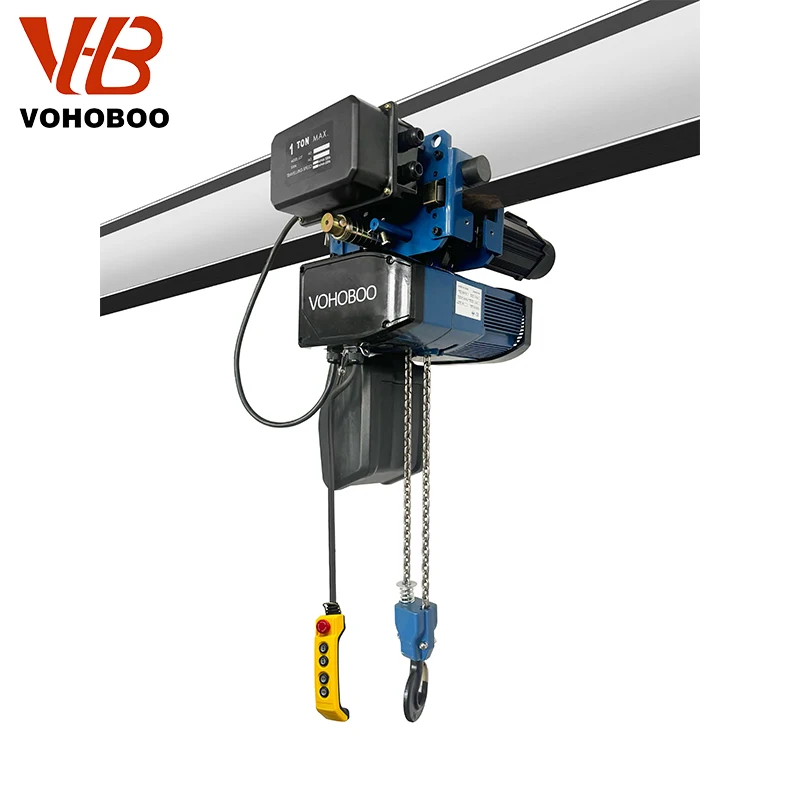

European Electric Chain Hoist With Electric Trolley
鈼�The trolley has added track-assisted side wheels, which make walking smoother and greatly enhance the durability of the wheels. 鈼�The tower is equipped with an anti-fall structure, which greatly increases the safety of the car. 鈼�The trolley has a double-axle design and does not shake during operation.
