Interface description

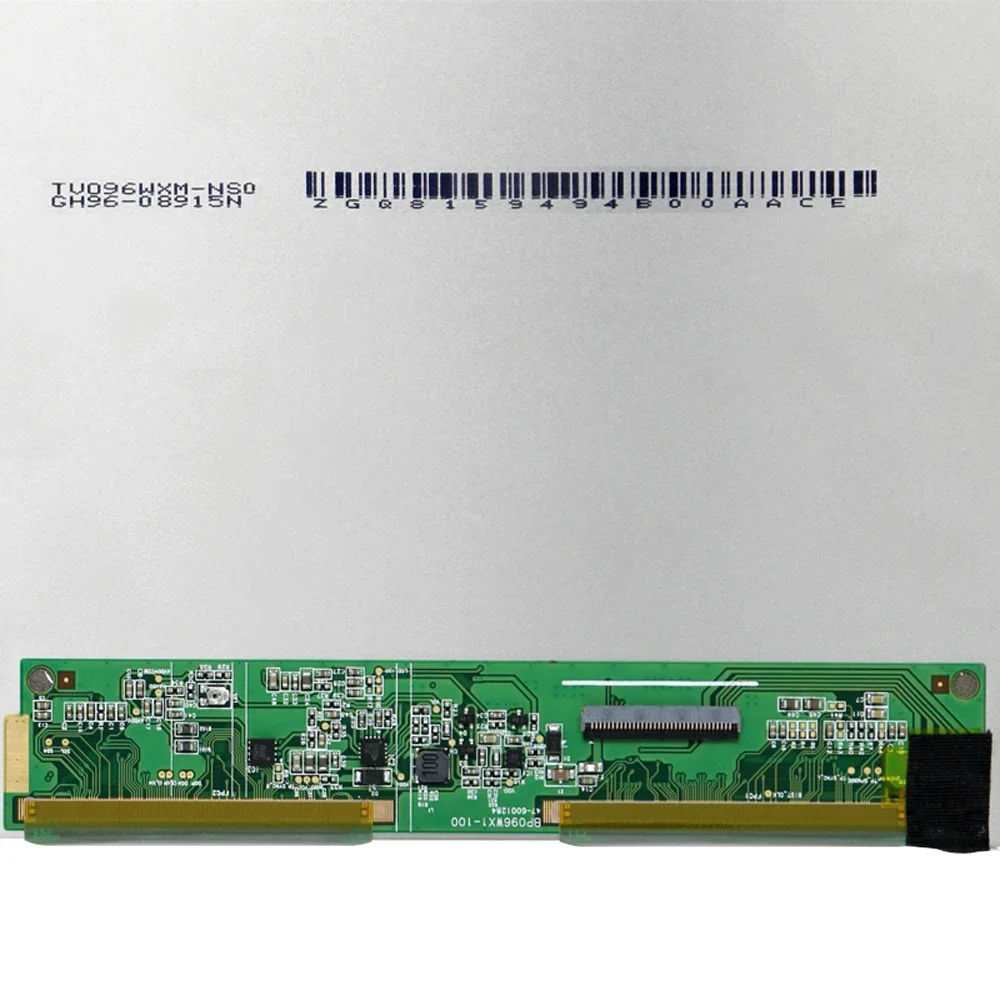

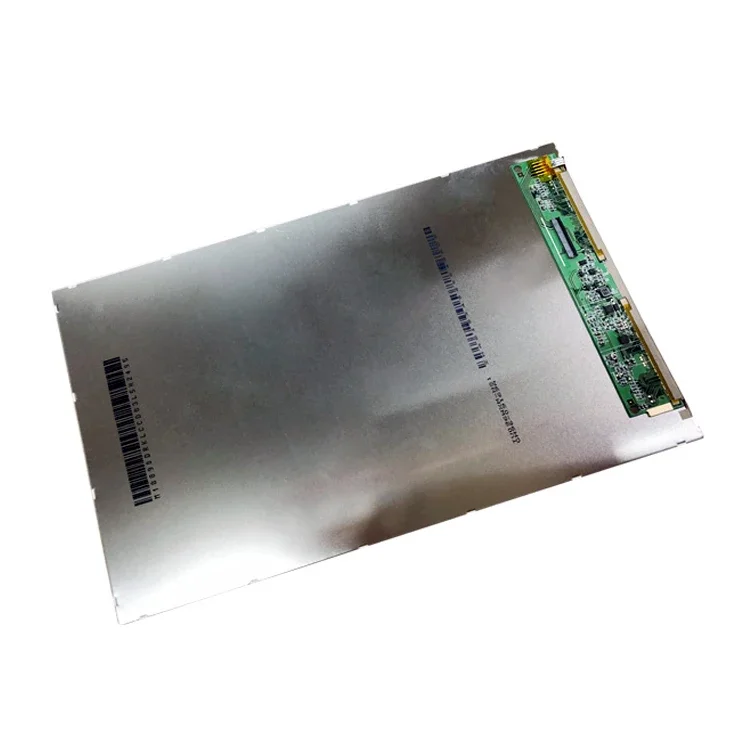

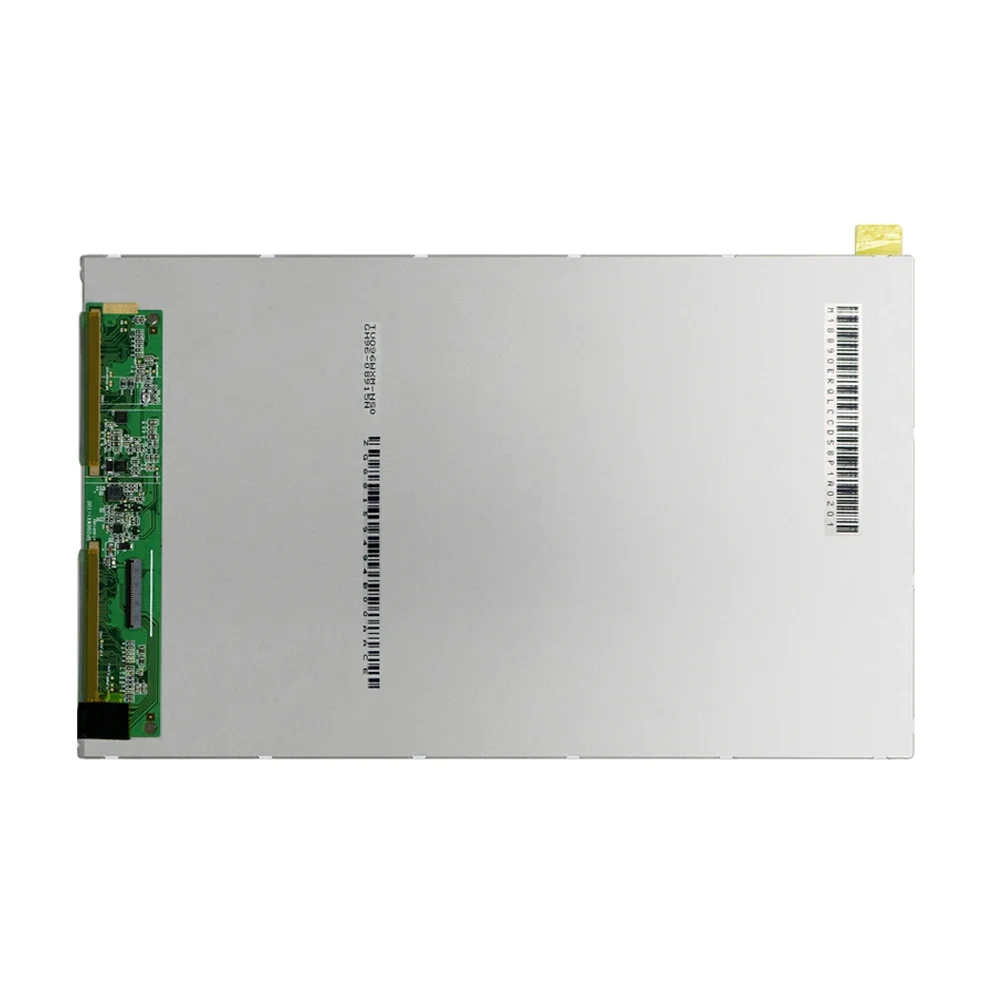

BOE 9.6 inch ips lcd screen 800x1280p mipi lcd panel TV096WXM-NS0 for 10inch tabler pc lcd
Product Paramenters
BOE 9.6 inch ips lcd screen 800x1280p mipi lcd panel TV096WXM-NS0 for 10inch tabler pc lcd
|
LCD SPECIFICATION
|
|
|
|
|||
|
Diagonal Size
|
9.6 inch
|
Type
|
a-Si TFT-LCD , LCM
|
|||
|
Pixel Format
|
800(RGB)×1280 , WXGA
|
Configuration
|
RGB Vertical Stripe
|
|||
|
Display Area
|
129(W)×206.4(H) mm
|
Outline Dim.
|
-
|
|||
|
Outline Size
|
136.7(W)×217(H) ×4.65(D) mm
|
Surface
|
Hard coating, Antireflection
|
|||
|
Luminance
|
450 cd/m² (Typ.)
|
Contrast Ratio
|
900:1 (Typ.) (TM)
|
|||
|
View Direction
|
Symmetry
|
Response Time
|
-
|
|||
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
ADS, Normally Black, Transmissive
|
|||
|
Support Color
|
16.7M 47% NTSC
|
Light Source
|
7S4P WLED , 20K hours , Without Driver
|
|||
|
Weight
|
170±8.5g
|
Designed For
|
Pad & Tablet
|
|||
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|||
|
Interface Type
|
MIPI (4 data lanes) , 34 pins Connector
|
|
|
|||
|
Power Supply
|
3.3V (Typ.)
|
|
|
|||
|
Environment
|
Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -30 ~ 80 °C
|
|
|
|||
|
Environment
|
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
|
|
|
|||
|
|
|
|
|
|||

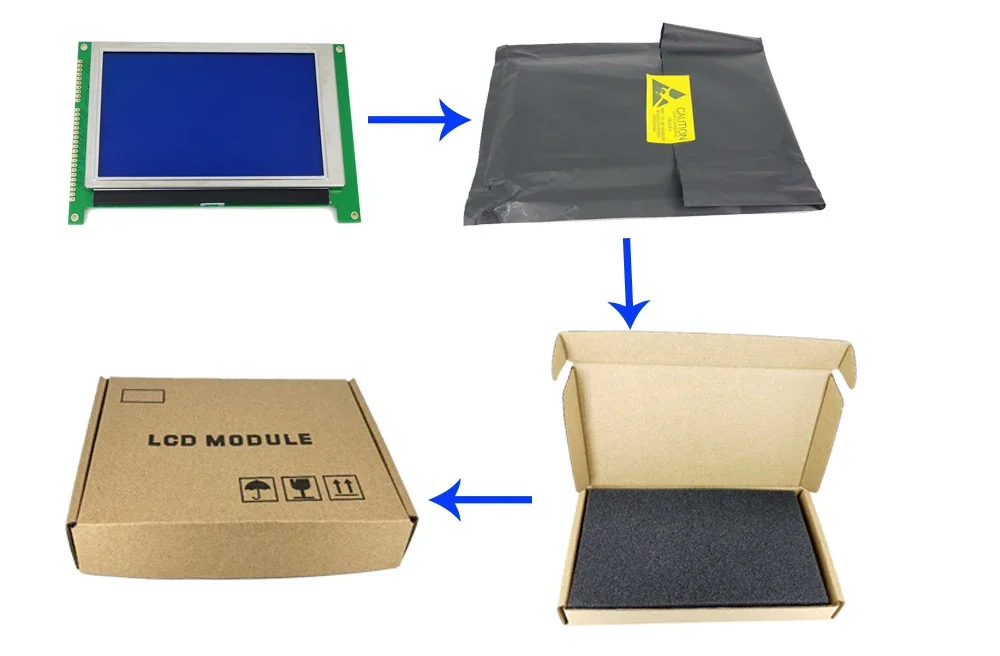

Product packaging
Packing Details for volume production order: (1) Packed the Monitor into air bubble bag/film (2)Put the above together into box (3) Packed the box into a carton box to protect the Driver Board during transportation. (4) Seal the carton by tape
Industrial Grade 15 - 32 inch VGA HDMI to LVDS universal LED LCD TV panel Driver Board with USB
1锛孡CD panel 1pcs
Our Advantages
Provide professional OEM / ODM
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
