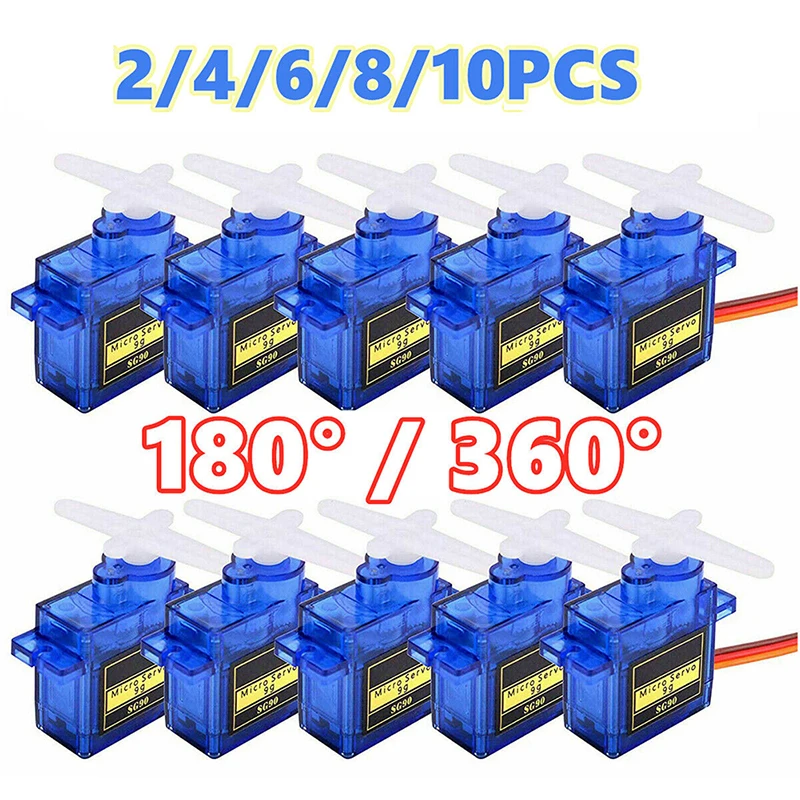

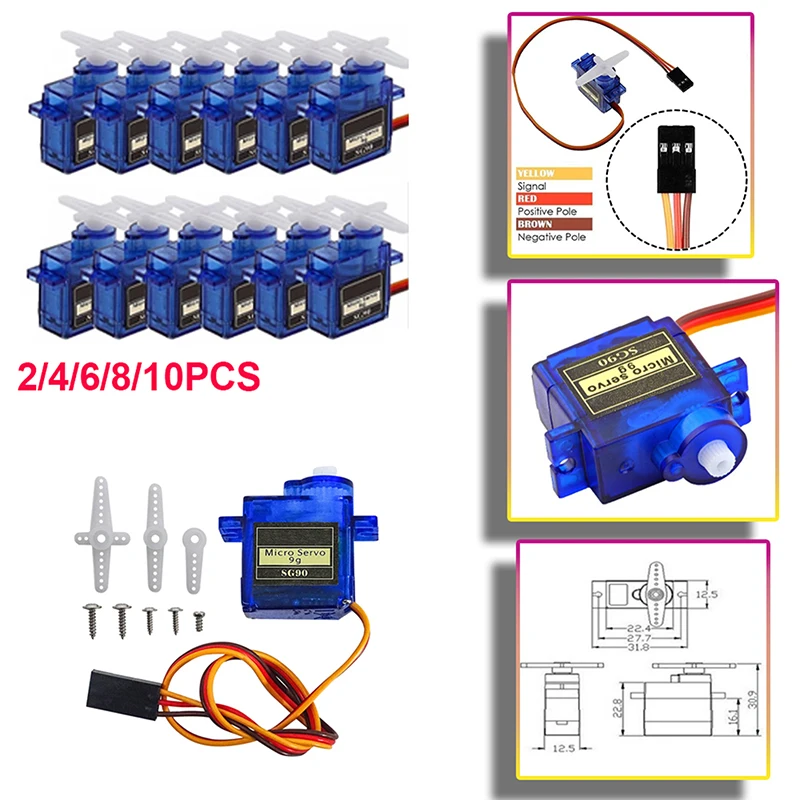

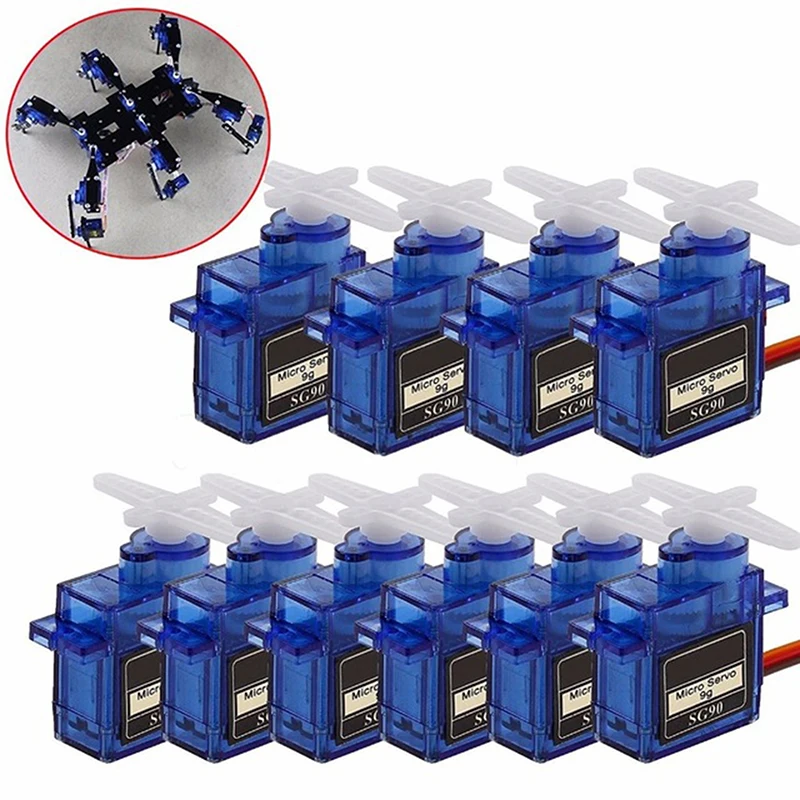

2/4/6/8/10 PCS SG90 9G Micro Servo Motor Control for RC Robot Arm Servomotor Toy Airplane Helicopter Aircraft Models 180°/360°

Description



Digital SG90 9G Servo for

RC Helicopter Car Boat Plane Robot Arm Airplane Remote Controller Motor



Features:

High quality and high cost performance.

All Nylon Gear.

245mm connector wire.

Large stall torque of 1.6 Kg.

Small size and light weight.

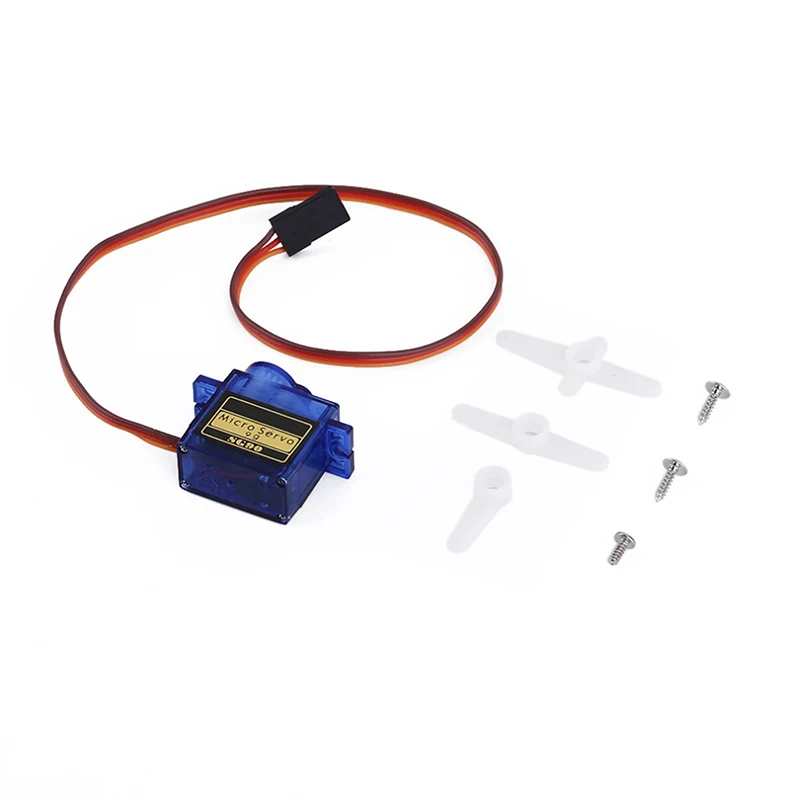

With 3 sets of servo horns and fittings.



180 °

Specification:

Colour: blue

Operating Speed (4.8V no load): 0.12sec/60 degrees

Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)

Operating voltage: 4.8V~6V

Dead band width: 7usc

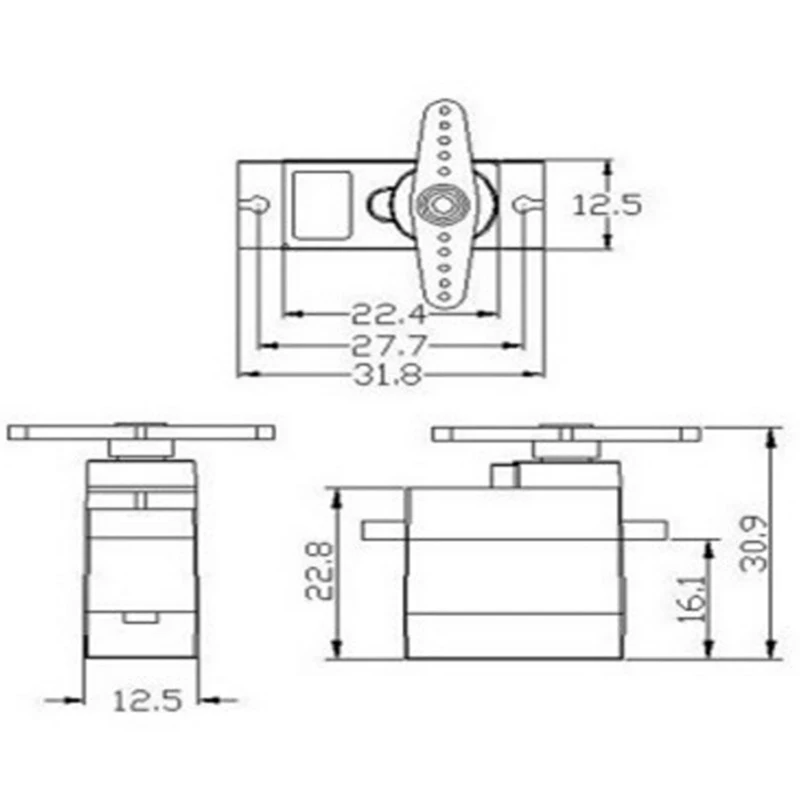

Item size: 2.3 * 1.22 * 2.9cm

Item weight: 9g

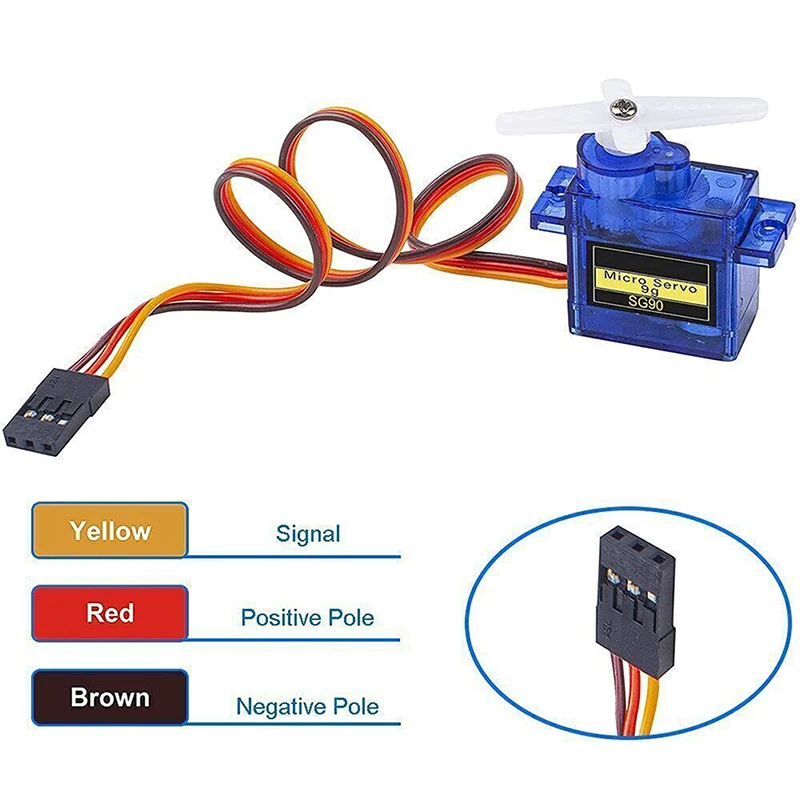

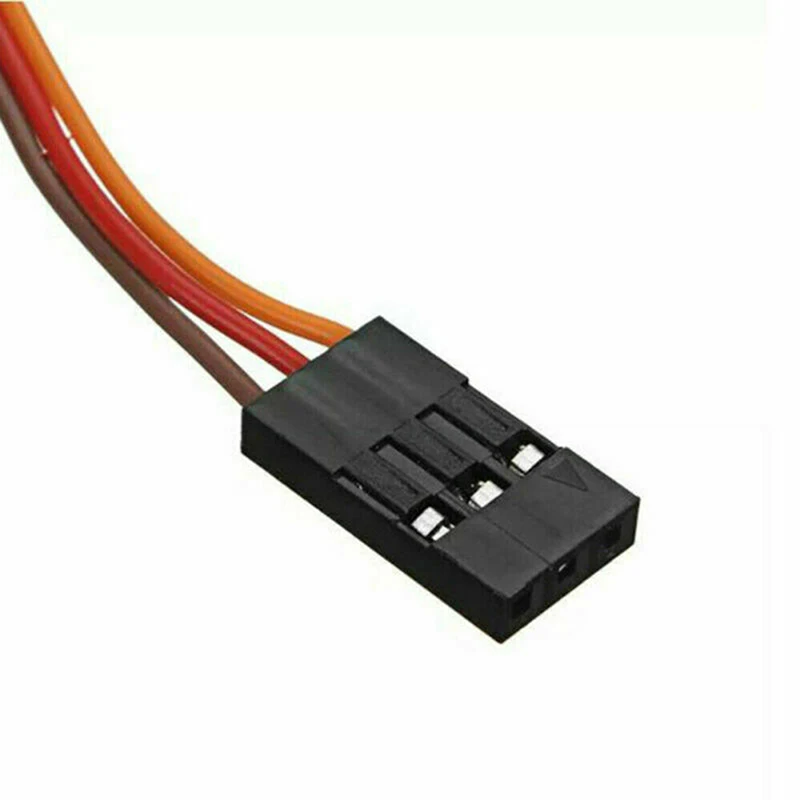

Connector wire length: 25cm(Approx.)

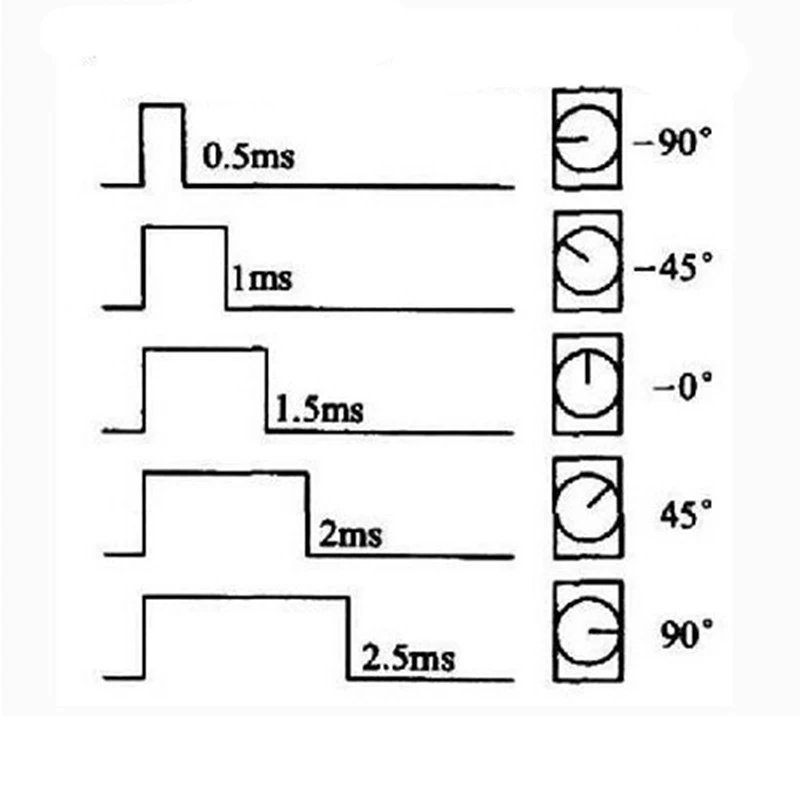

Maximum angle: 180 °（Note: This refers to moving back and forth within a 90 ° range, with positive and negative 90 ° being 180 °）





360 °



Sepcificattion:

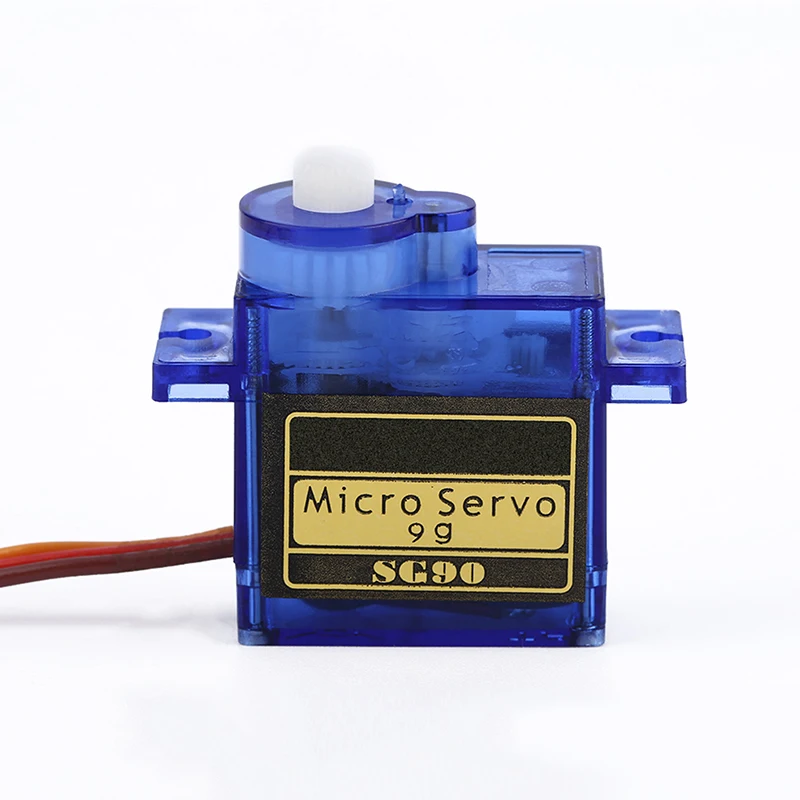

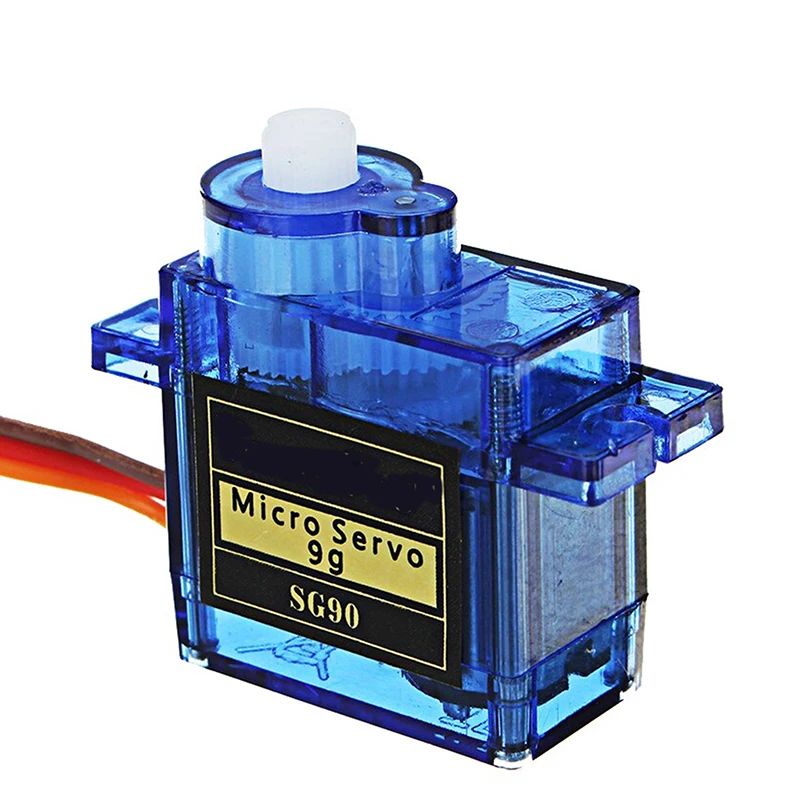

SG-90 Micro Servo

All Nylon Gear

Connector Wire Length: 150MM

Name: 9 grams of steering gear

Size: 23mmX12.2mmX29mm

Weight: 9 grams

Maximum angle: 360 °（Note: This refers to moving back and forth within a 180 ° range, with positive and negative 180 ° being 360 °）

Torsional moment: 1.5kg/cm

Working voltage: 4.2-6V

temperature range: 0 ℃ --55 ℃:

Operating speed: 0.3 seconds /60 degree

Dead band width: 10 microseconds



Package include:

2/4/6/8/10 pcs x SG90 Gear Micro Servo（choice your want size Specification）





Note:

Please allow 1-2cm errors due to manual measurement.

Because of the different display of each computer, the pictures may not reflect the actual color of the item.
