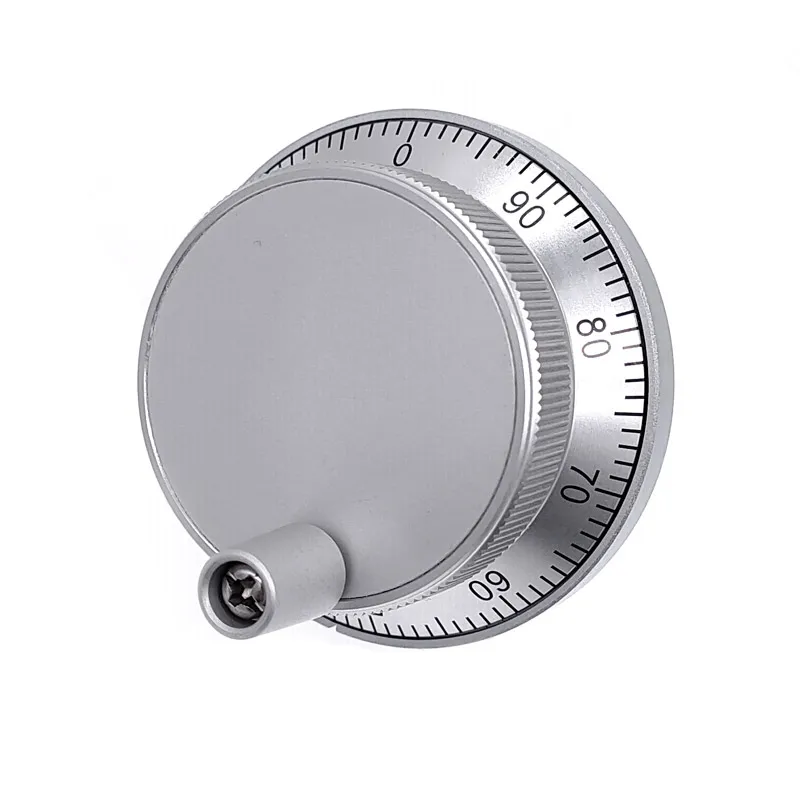

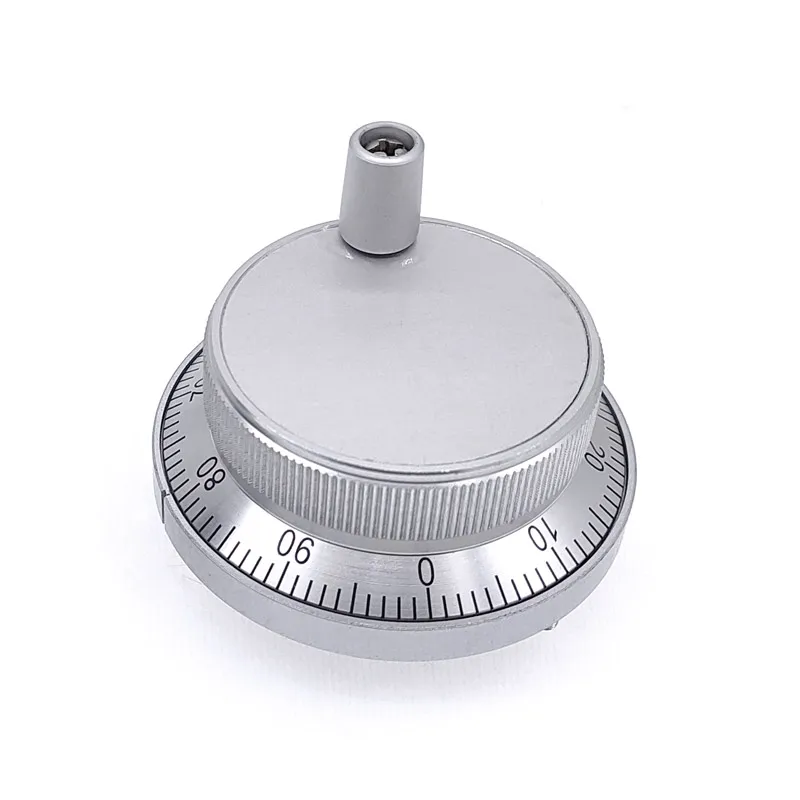

1Pc Handwheel CNC Pulser 60mm Pulse 100 5V 4Pin 6Pins Manual Pulse Generator Hand Wheel CNC Machine Rotary Encoder

◆Description

●Color: Silver

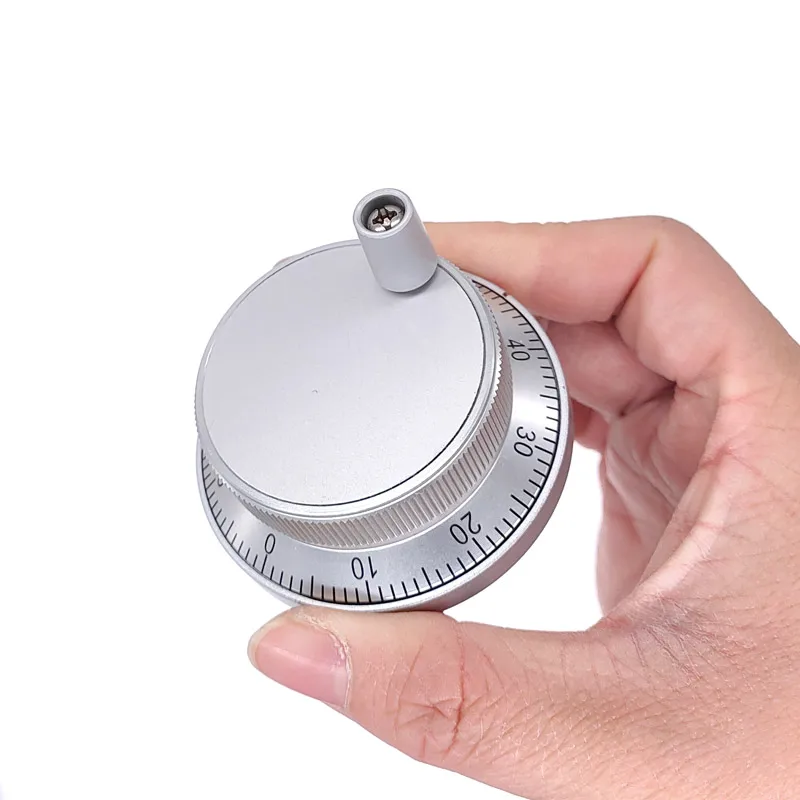

●Diameter: 60mm

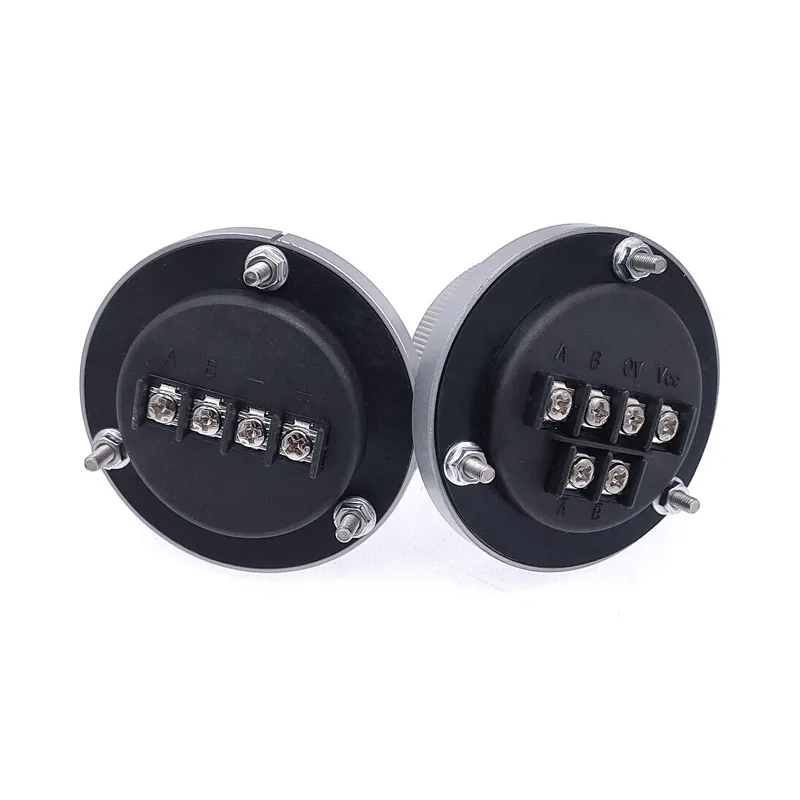

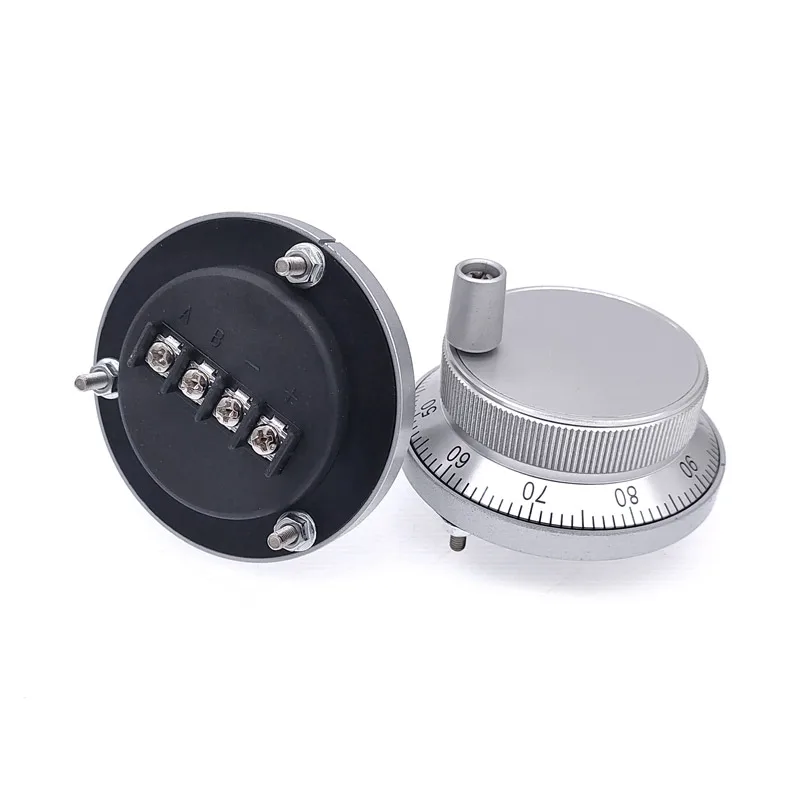

●4-wire handwheel: VCC, 0V, A, B

●6-wire handwheel: VCC, 0V, A, B,-A,-B

●Voltage:5V

●Pulses: 100 pulses

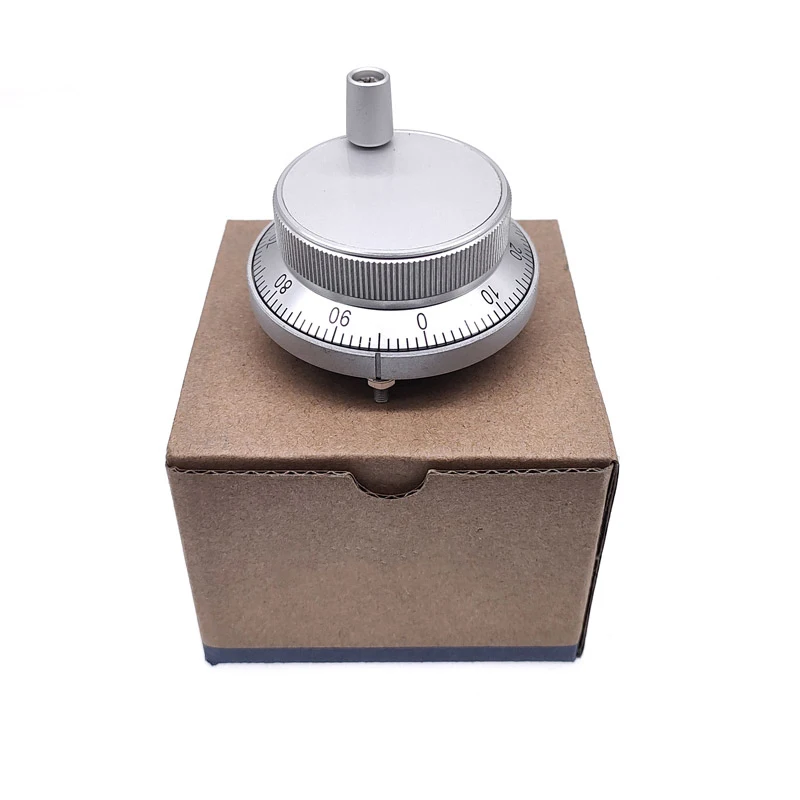

◆Package Contents

1 * Pulse handwheel handle cover

◆Features

●General hardware cover and hardware body, economical, 9.5mm thickness

●Traditional static and dynamic grating structure, simple and practical

●Suitable for origin repair of CNC machine tools

●Wide voltage protection circuit, prevent wrong connection and current breakdown

Note:

●This is a CNC electronic pulse generator, the working voltage is 5V, 100 pulses, if you need other voltages and pulses, you can customize

●Voltage 5V*6 terminal*100 pulse

Applicable to: SIEMENS, LNC, KND, HNC, FAGOR, all imported domestic systems, etc.

●Voltage 5V*4 terminals*100 pulses

Applicable to: FANUC, SYNTEC, LNC, KND, etc.

●Mitsubishi system (voltage 12V pulse 25)

PLC (voltage 24V standard pulse 100 can be customized 25 pulse)
