- High-concerned chemical: None
- Is Smart Device: Yes
- Rated Voltage: 220V
- Origin: Mainland China

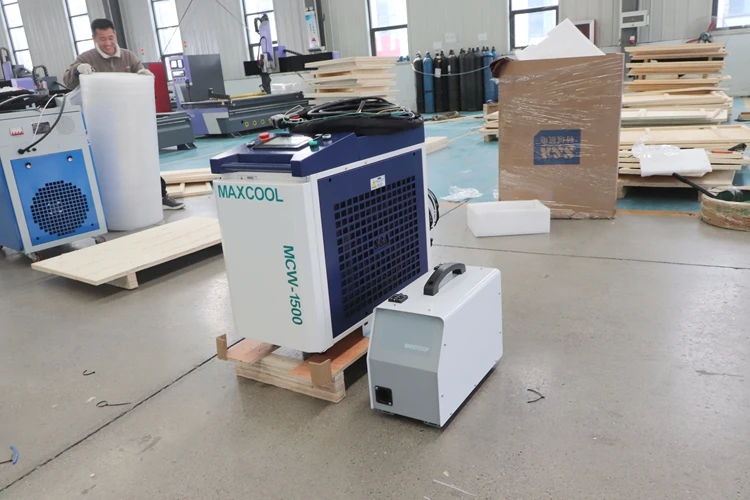

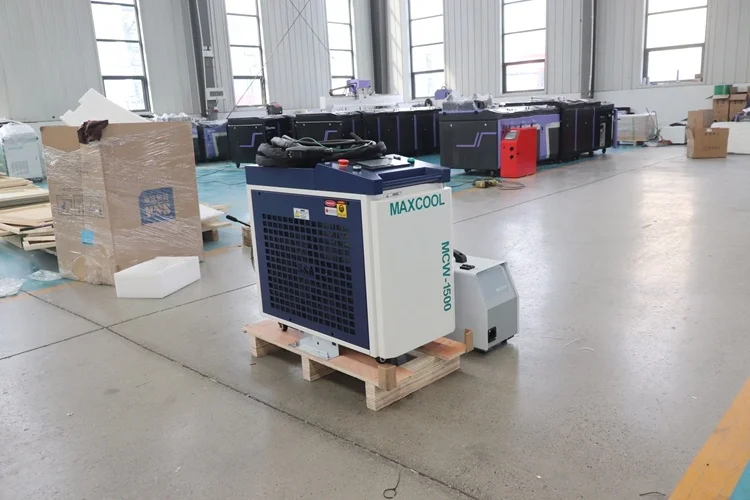

- Model Number: MCW-1500
- Max. Output Power: 3000w
- Certification: CE
- Wavelength: 1080
- Use: cleaning welding cutting
- Key word: 3000W Fiber Laser Welder

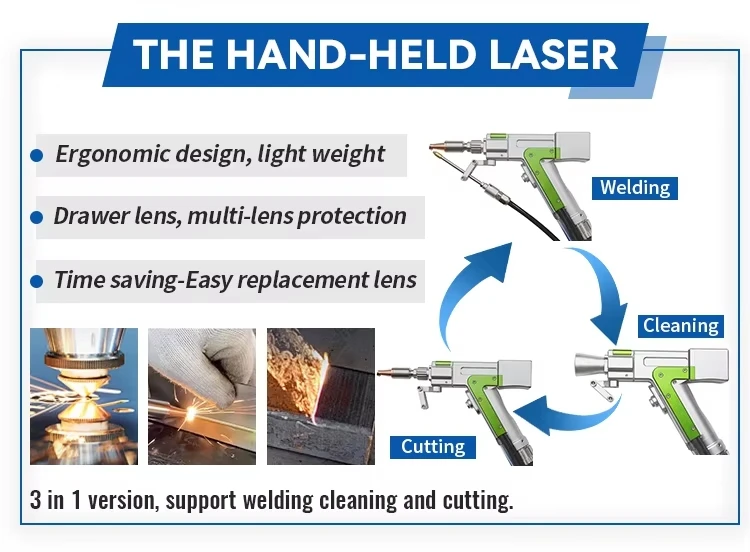

- Name: 3 In 1 Weld Laser Cleaner Welder Cutter
- Laser power: 1500w 2000w 3000w
- Laser generator: BWT Max Raycus laser generator
- Laser head: Au3tech laser head
- Controller: Au3tech controller
- Water chiller: S&A water chiller
- Cable: 10m
Please don't pay directly.
Before you buy, please contact us to confirm the machine detail and shipping detail.
Susan
E-mail: sales06@maxcoolcnc.com
Whatsapp: +86 13365319859
1500W 2000W 3000W Fiber Laser Welder 3 In 1 Weld Laser Cleaner Welder Cutter For Car Repair
Laser welding is a new type of welding method. Mainly for thin-wall materials, as well as precision parts welding. It can be realized that the welding depth is deep, the welding width is small, the heat affected area is small, the deformation is small, and the welding speed is fast.

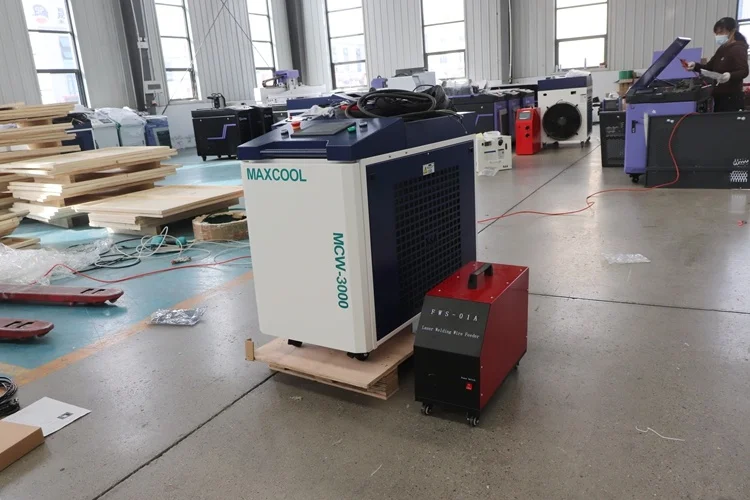

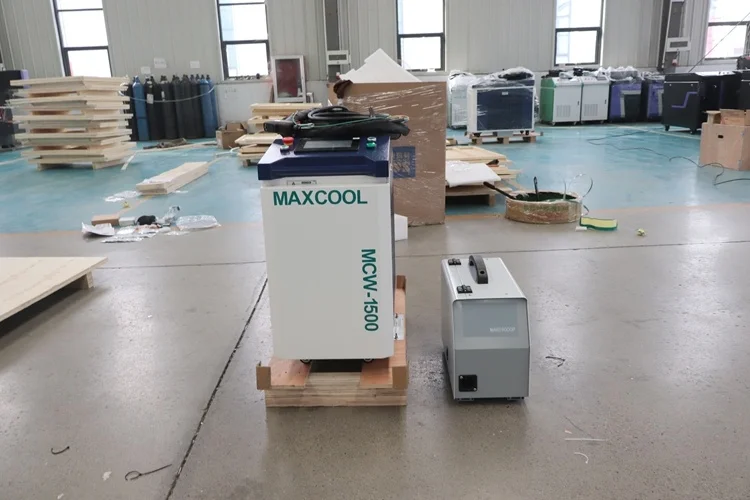

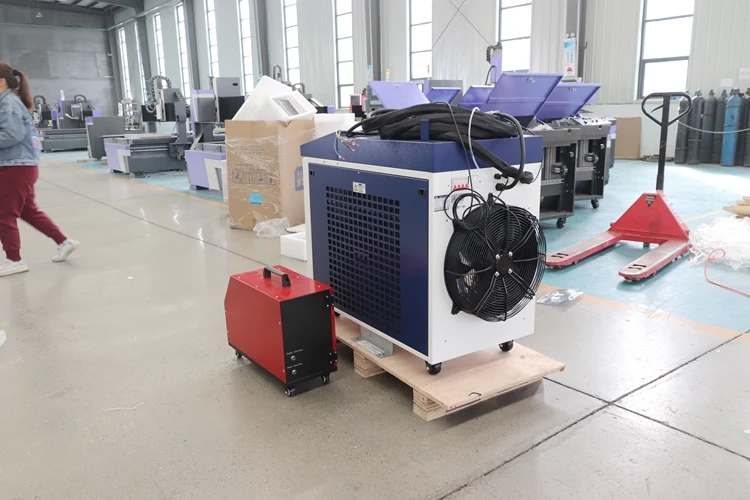

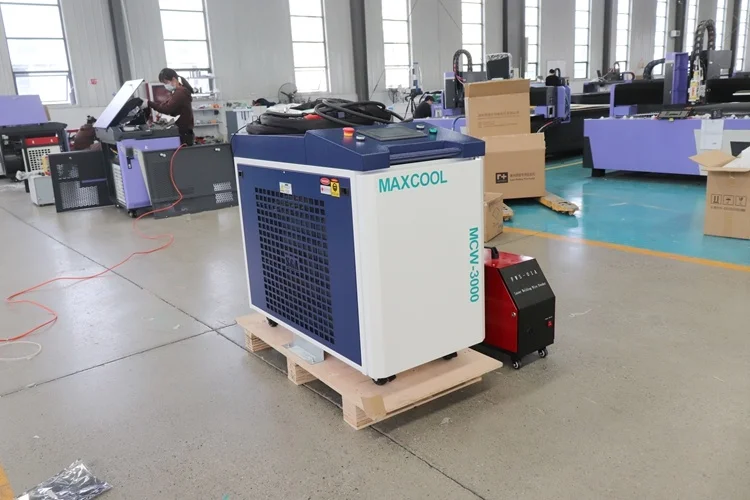

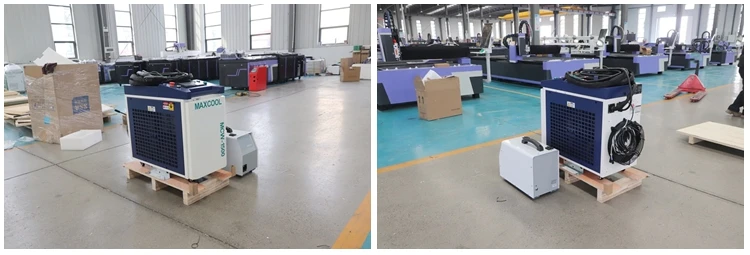

3000W Fiber Laser Welder detail show:

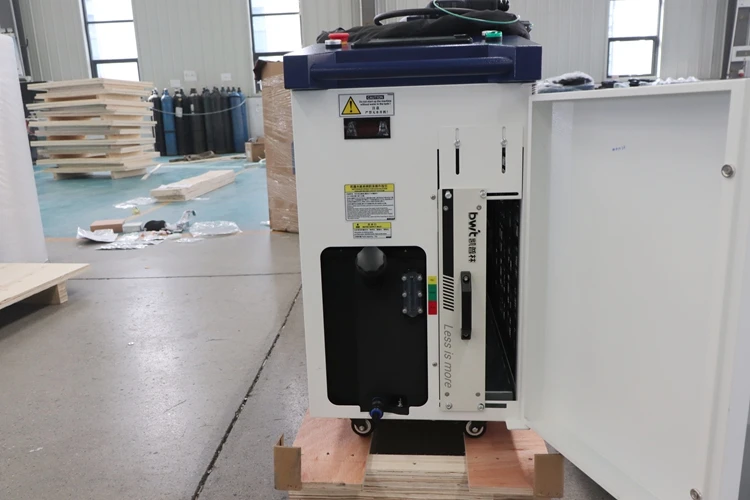

Max/Raycus/BWT laser generator
Stable, high efficiency, energy saving, basically maintenance-free, good experience, low cost.
S&A water chiller
Intelligent control, self-adaptive hot and cold dual temperature adjustment. Separate cooling of cleaning head and laser souirce. Stable laser output, fast and energy saving.

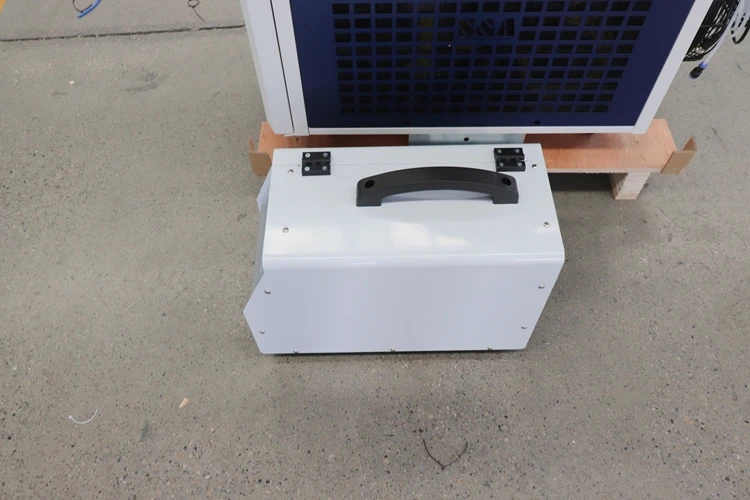

Single Double Wire Feeding System
Automatic feeding system with 0.8/1.0/1 2/1.6 mm wire, wire feed speed is adjustable.
Cerfication:

3000W Fiber Laser Welder parameter data:
Description | Parameter |
Welding head | Suplaser |
Fiber Laser Generator | Raycus/ Max/ BWT 1500W/ 2000W/ 3000W |
Control System | Au3tech/ SUP laser |
Weight of the laser head | 0.85KG |
Cable Length | 10 meter |
Cooling method | Water chiller |
Working way | Continuous modulation simple pendulum laser |
Laser wave length | 1080NM |
Welding speed range | 0~100mm/s |
Welding gap requirements | ≤0.5mm |
Working temperature | 10-40℃ |
Working humidity | <70%(No condensation) |
Voltage | 220V/380V |
Language | English,Chinese,Japanese,Korean,Russian,German,French,Thai |
Weldingthickness recommendations | 1.5kw max 4mm,2kw max 5mm,3kw 7-8mm |
3000W Fiber Laser Welder sample show:
Hand-held laser welding machine can be widely used in complex and irregular welding processes in kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, and stainless steel homes.

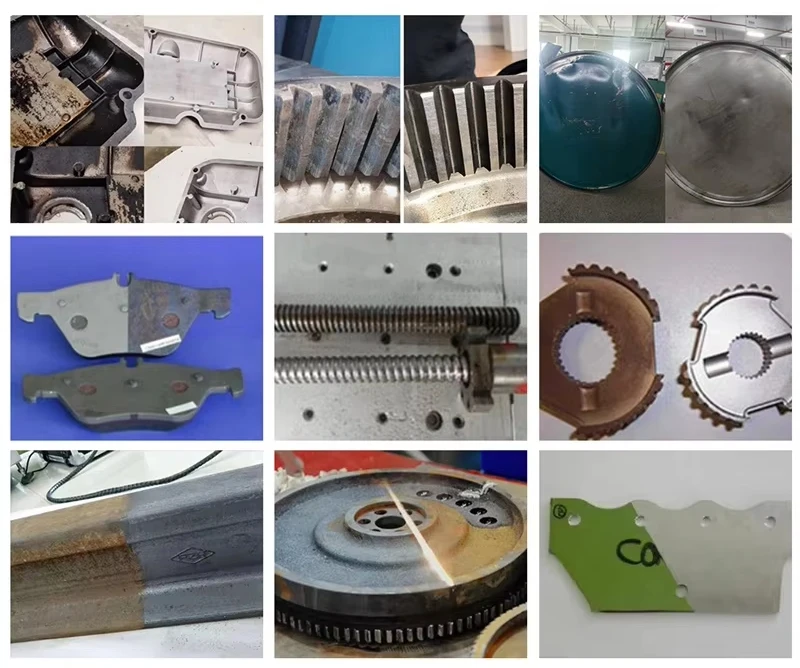

Laser cleaning machine used in metal rust cleaning, welding seam cleaning, surface woolen cleaning, oil cleaning, coating removal, the main application of materials are carbon steel, stainless steel, aluminum alloy, galvanized sheet, copper and all kinds of alloys. Can be used to clean organic pollutants, can also be used to clean inorganic substances, including metal rust, metal particles, dust, etc.


Company information:


Customer feedback:

FAQ:
Q1. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.
Q2. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong
Q3. Do you arrange shipment for the machines?
Yes. we can do FOB or CIF or DAP price,we will arrange shipment for you. For EXW price, buyer need to arrange shipment by yourselves
Q4.How to place order?
1. After confirming order details, we will make Proforma Invoice or draft Alibaba Trade Assurance for you.
2. After receiving 30% deposit will start test machine . Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the machine, there have user manual and video guide you install,operate and maintain.At the same time our engineer will provide online service online.
