- Semi-finishedproduct: No
- High-concerned chemical: None
- Electronic: No
- DIY Supplies: Electrical
- Origin: Mainland China
- brand name: Stonex
- place of origin: Guangdong, China
- customized support: OEM, ODM, OBM
- warranty: 1 year
- Product name: GNSS RTK
- Brand: Stonex S9ii RTK
- Channel: 1408 channels
- Internal radio: 1W/2W adjustable, radio support 410-470Mhz
- External radio: 5W/35W adjustable,
- Data storage: 8GB
- Electric bubble: support
- Tilt survey: 60 degree
- Protocol: GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
- Battery capacity: Built-in smart lithium battery, 2x3400mAh, 7.2V
Dear friends, welcome to my store. Our store operates with integrity. Please rest assured to place your order. If you need to inquire about products or other matters, please contact (WhatsApp+86 19083374579), (WeChat: 19083374579 ). Due to the time difference, I will reply to you within 12 hours at the latest. Thank you.
*The internal antenna supports the all satellite system signals like Beidou, GPS, GLONASS, Galileo, QZSS, IRNSS. The users no longer have to worry about upgrading RTK hardware to support other satellite systems.
*The internal use of the latest Sensor Fusion system allows the field to take the tilt measurement without calibration, and the field surveying is more convenient.
Product Description

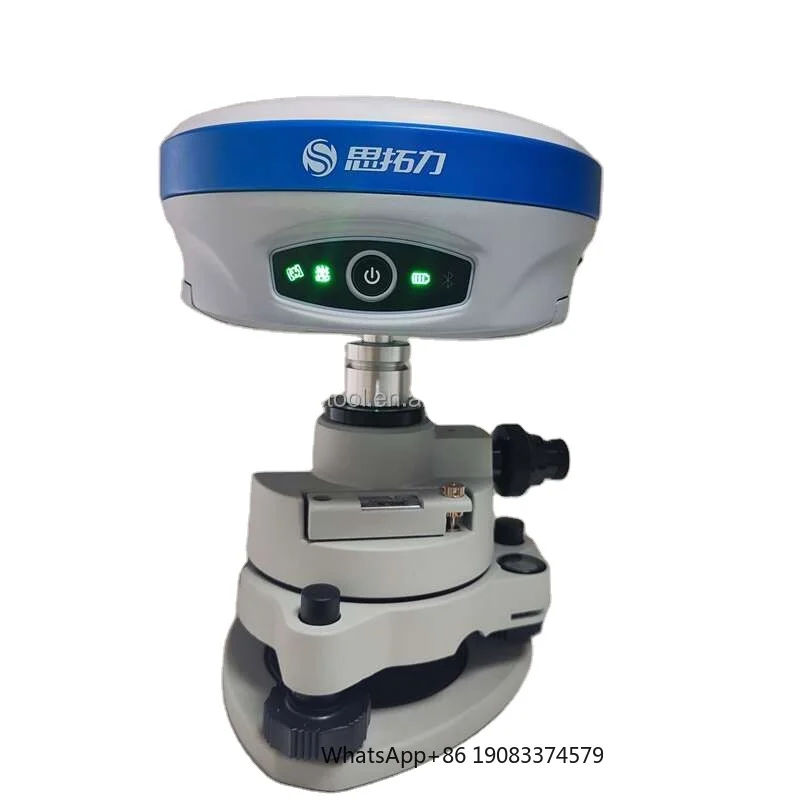

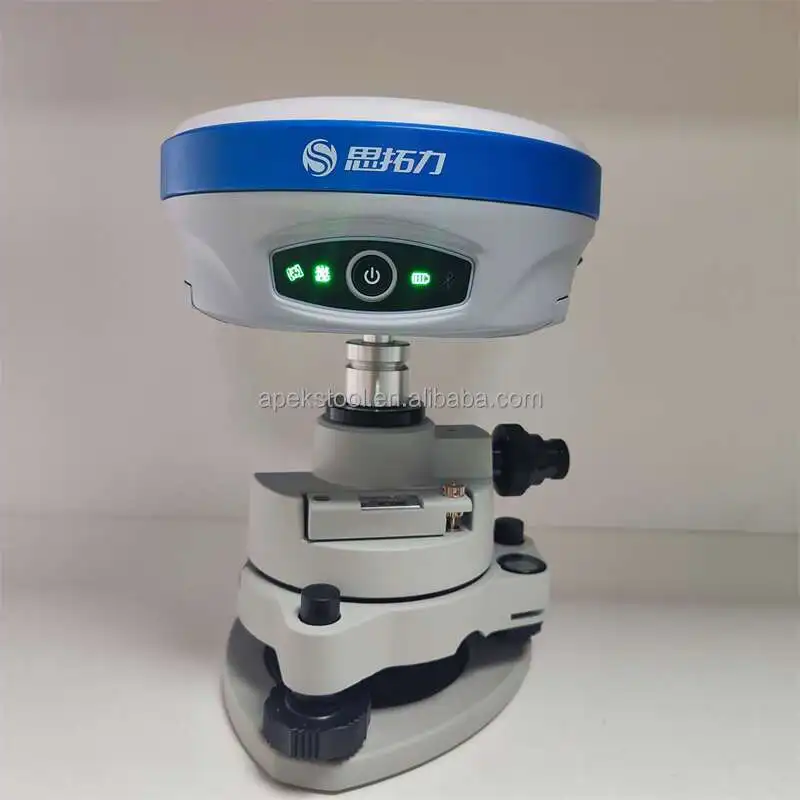

Hot Sale 1408 Channels S9ii S900 Gps Surveying Equipment Stonex Gps Differentiel
*STONEX GNSS receiver is a multiple-frequency receiver and designed for GNSS surveying applications. It is available as a base station, or as a standalone rover,which can be switched freely whenever and wherever, offering maximum versatility in the system configuration to meet your specific requirements. At the same time, receiver can upgrade easily to continually meet your new demand.
*The internal antenna supports the all satellite system signals like Beidou, GPS, GLONASS, Galileo, QZSS, IRNSS. The users no longer have to worry about upgrading RTK hardware to support other satellite systems.
*The internal use of the latest Sensor Fusion system allows the field to take the tilt measurement without calibration, and the field surveying is more convenient.

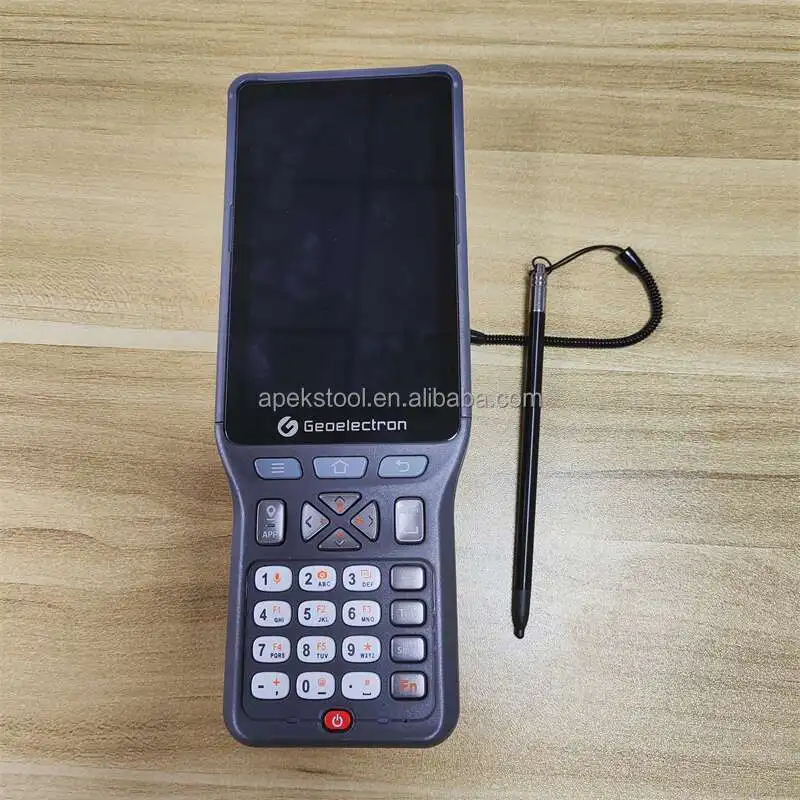

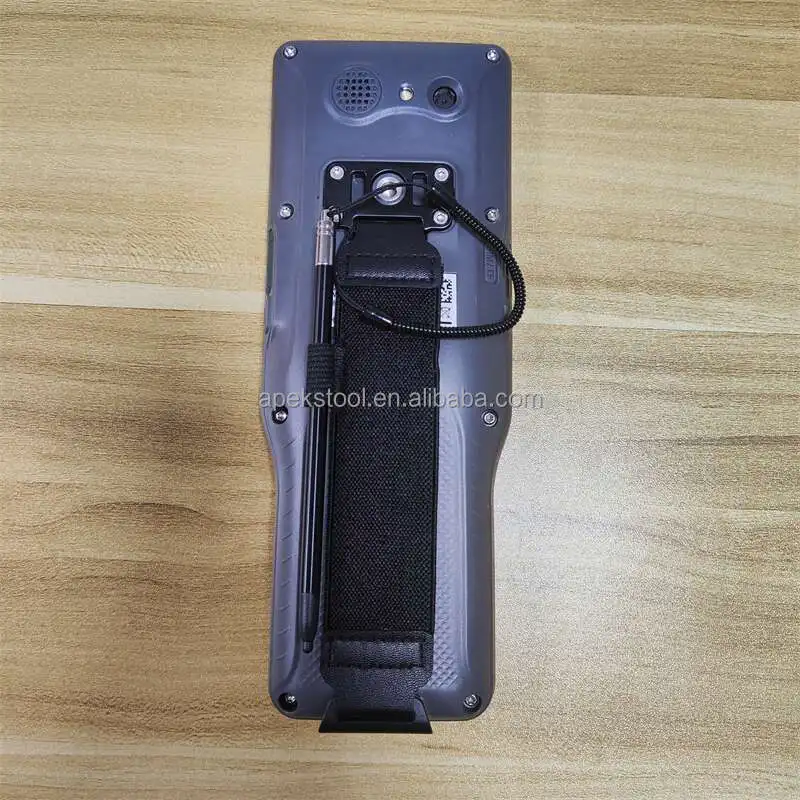

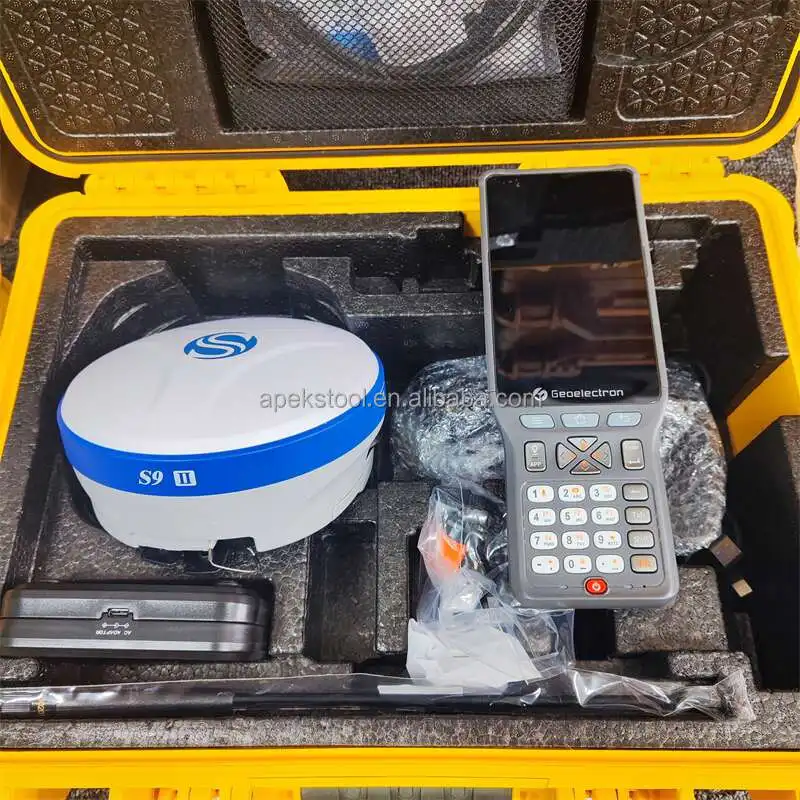

Data Collector

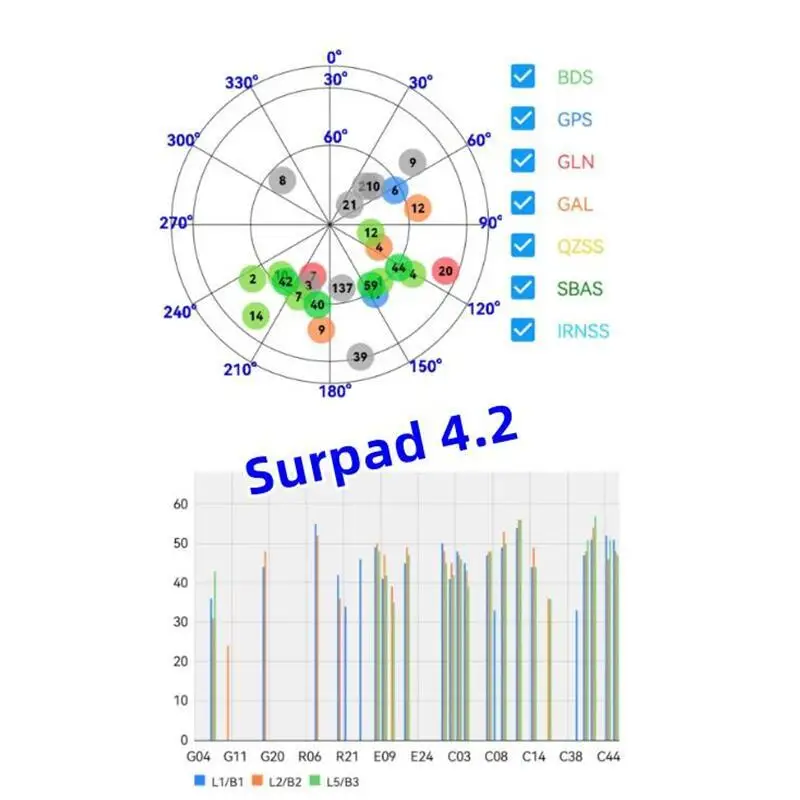

Software
Specification
|
High Precision Land Surveying Equipment Stonex S9ii S900 S900A S900T Rtk
|
||||
|
Model
|
S9ii
|
|||
|
GNSS
|
Channels
|
1408
|
||
|
Signals
|
BDS: B1, B2, B3
|
|||
|
GPS: L1CA, L1P. L1C, L2P, L2C, L5
|
||||
|
GLOASS: G1,G2, P1, P2
|
||||
|
GALILEO: E1BC, E5a. E5b
|
||||
|
QZSS: L1CA. L2C. L5, L1C
|
||||
|
SBAS: L1CA, L5;
|
||||
|
L-Band
|
||||
|
Accuracy
|
Static
|
H: 2.5 mm±1ppm , V: 5 mm±1ppm
|
||
|
RTK
|
H: 8 mm±1ppm, V:15 mm±1ppm
|
|||
|
DGNSS
|
<0.5m
|
|||
|
ATLAS
|
8cm
|
|||
|
System
|
Initialization Time
|
8s
|
||
|
Initialization Reliable
|
99.90%
|
|||
|
Operating System
|
Linux
|
|||
|
Merrory
|
8GB, support expanable MisroSD
|
|||
|
Wifi
|
802.11 b/g/n
|
|||
|
Bluetooth
|
V2.1+EDR/V4.1Dual,Class2
|
|||
|
E-Bubble
|
support
|
|||
|
Tilt Survey
|
IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
|
|||
|
Datalink
|
Audio
|
support TTS audio broadcast
|
||
|
UHF
|
Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
|
|||
|
Protocol
|
support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
|
|||
|
Network
|
4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
|
|||
|
Physical
|
Interface
|
1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
|
||
|
Button
|
1 Power Button
|
|||
|
Indication Light
|
4 Indication Lights
|
|||
|
Size
|
Φ156mm * H 76mm
|
|||
|
Weight
|
1.2kg
|
|||
|
Power supply
|
Battery capacity
|
7.2V, 24.5Wh(standard two batteries)
|
||
|
battery Life Timer
|
Static Survey: 15 hours, Rover RTK survey: 12h
|
|||
|
External power source
|
DC 9-18V, with overvoltage protection
|
|||
|
Environment
|
Work Temporature
|
-35℃ ~ +65℃
|
||
|
Storage Temporature
|
-55℃ ~ +80℃
|
|||
|
waterproof&dustproof
|
IP68
|
|||
|
Humidity
|
100% anti-condensation
|
|||

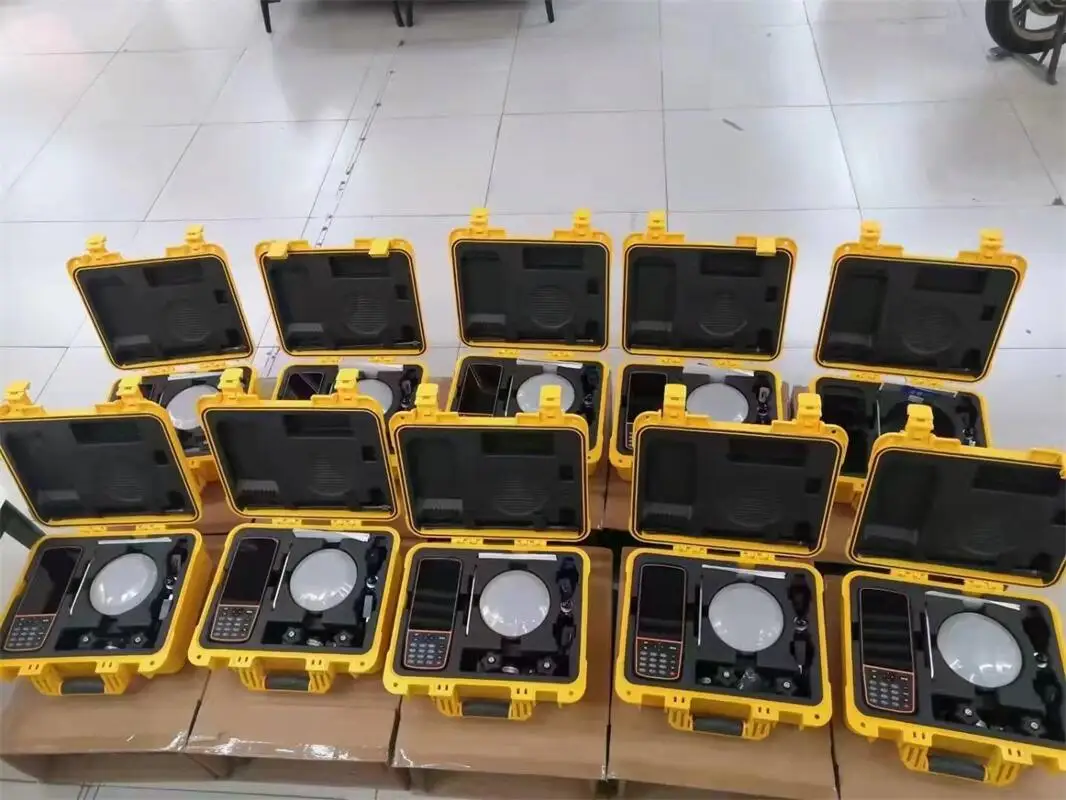

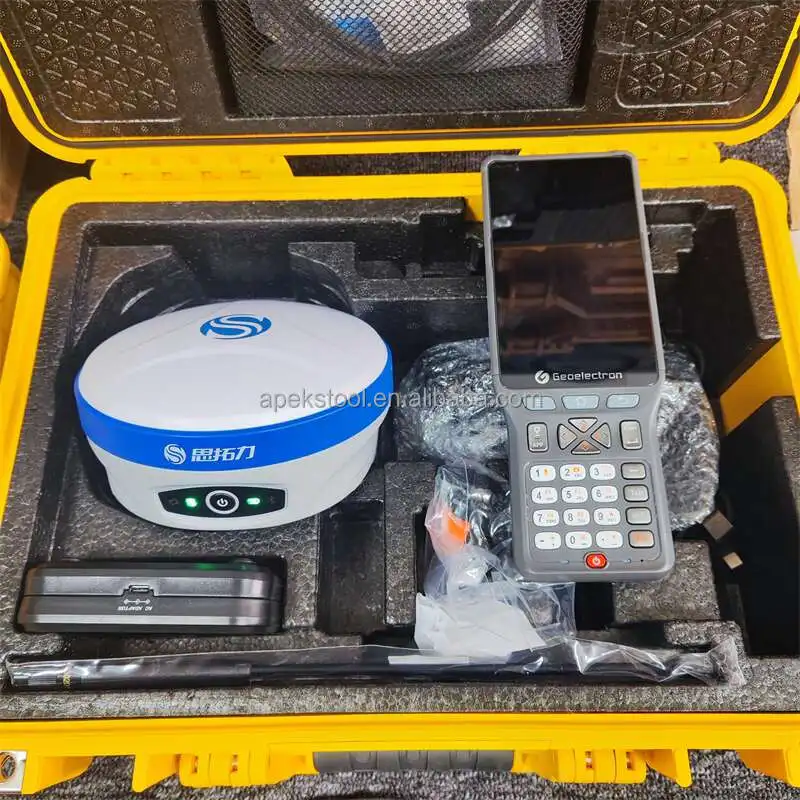

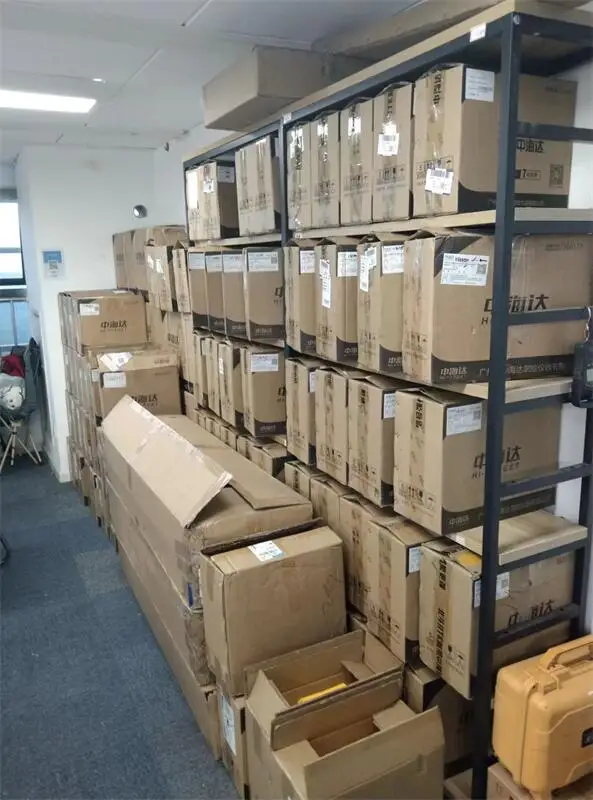

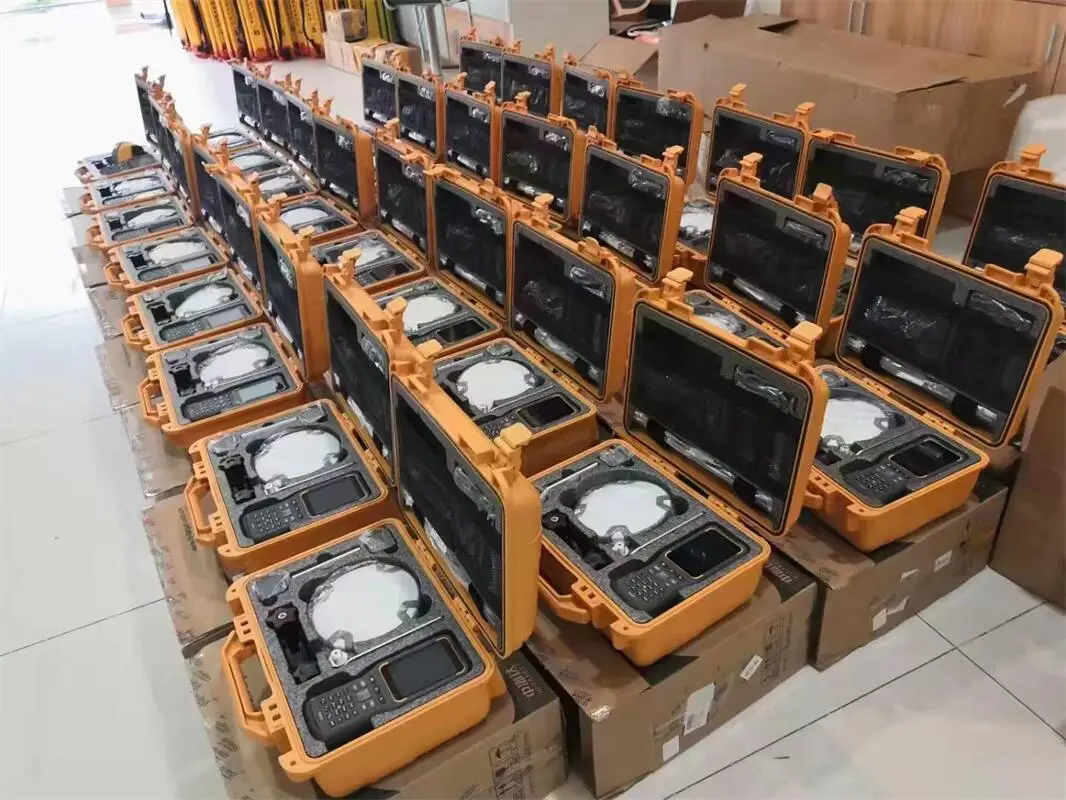

Packages
