Name: 10Pcs PT2.5-QU Push-In Spring 4-Conductor Strip Plug PT 2.5 QUATTRO Wire Electrical Connector Din Rail Terminal Block PT 2.5-QU
SKU: 32979349696
Availability: InStock

10Pcs PT2.5-QU Push-In Spring 4-Conductor Strip Plug PT 2.5 QUATTRO Wire Electrical Connector Din Rail Terminal Block PT 2.5-QU

REF: 32979349696

Hign-concerned Chemical: None
Model Number: PT-2.5-QUATTRO
is_customized: Yes
Brand Name: WONKEDQ
Type: Push-in Terminal
Origin: Mainland China
Certification: CE,RoHS
Conductor Size: 24-12 AWG, 24-12 AWG
Color: Grey, Blue, other color can be customized
Connection method: Push-in connection
Rated Voltage/Current: 800V/31A
Mounting Type: NS 35/7.5
Number of Contacts: 1 - 10
Type: Push-in
Length/Wide/Height (mm): L72.2/H36.5/W5.2 mm
Material: Nylon PA66
Cross section, solid/soft Cable: 0.2-4mm²/0.2-2.5mm²
Standard: IEC 60947-7-1

DESCRIPTION
ACCESSORIES ( Click the pictures to the links)


END COVER D-ST2.5-QU	JUMPERS BRIDGE FBS 10-5	MARKER STRIPS ZB5	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT2.5-QU-PE

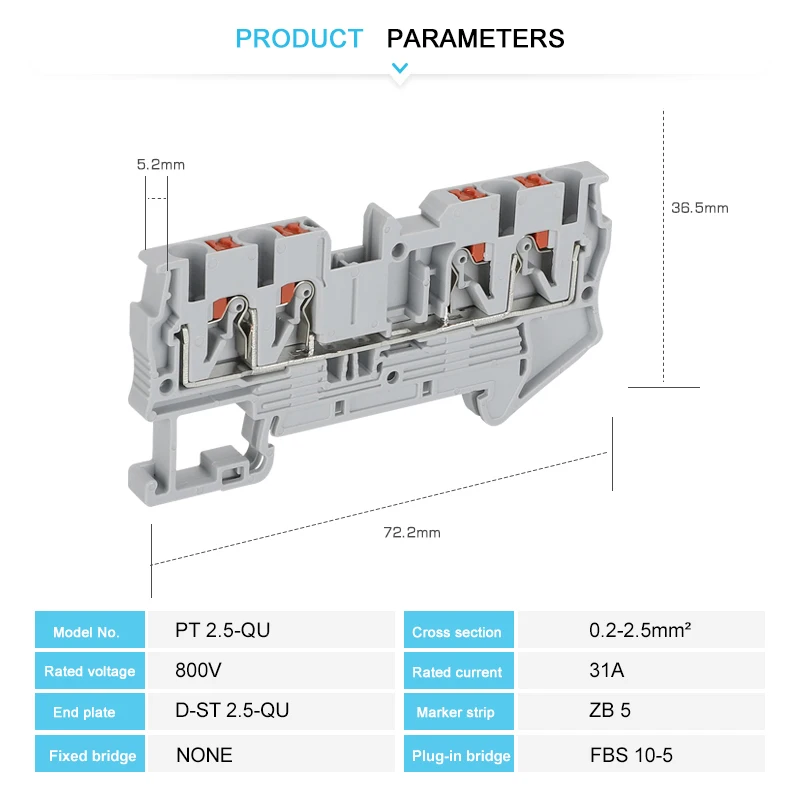

Technical Parameters

Type No.	Details	Accessories
PT 2.5-QU	800V/31A 0.2-4mm²/0.2-2.5mm² L72.2/H36.5/W5.2 mm	End cover: D-ST2.5-QU
		Plug-in bridge: FBS 2-5,3-5,4-5,5-5,10-5
		Marker strip: ZB5

Model Number	PT 2.5-QU
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	72.2/36.5/5.2
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm2/ 0.2-2.5mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	9.52g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
