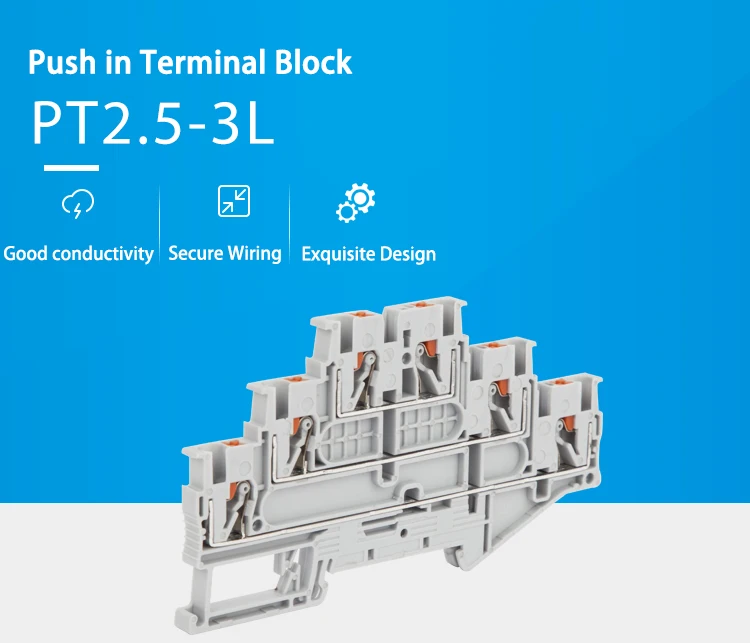

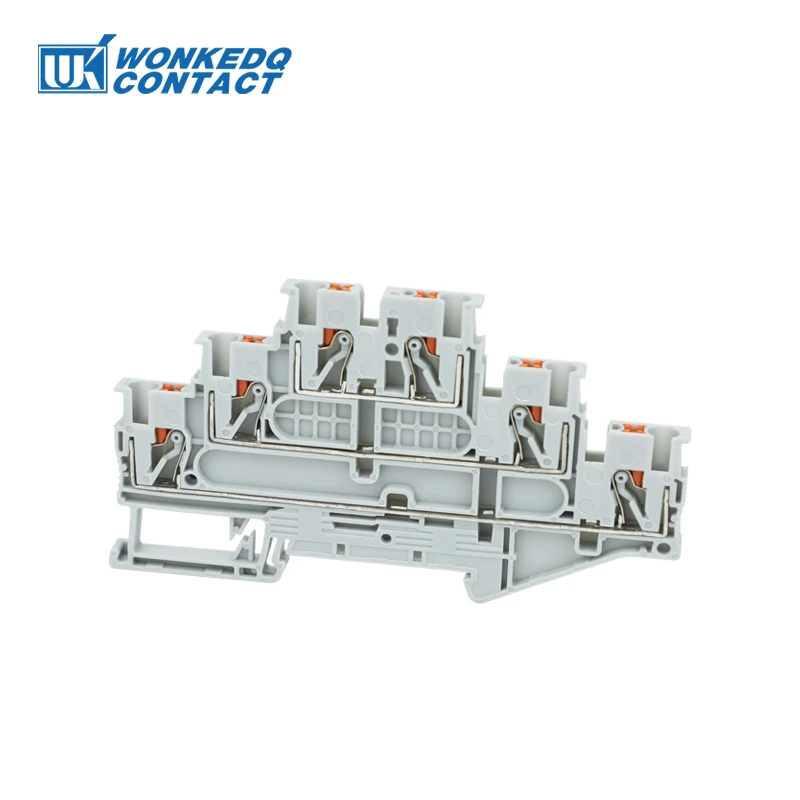

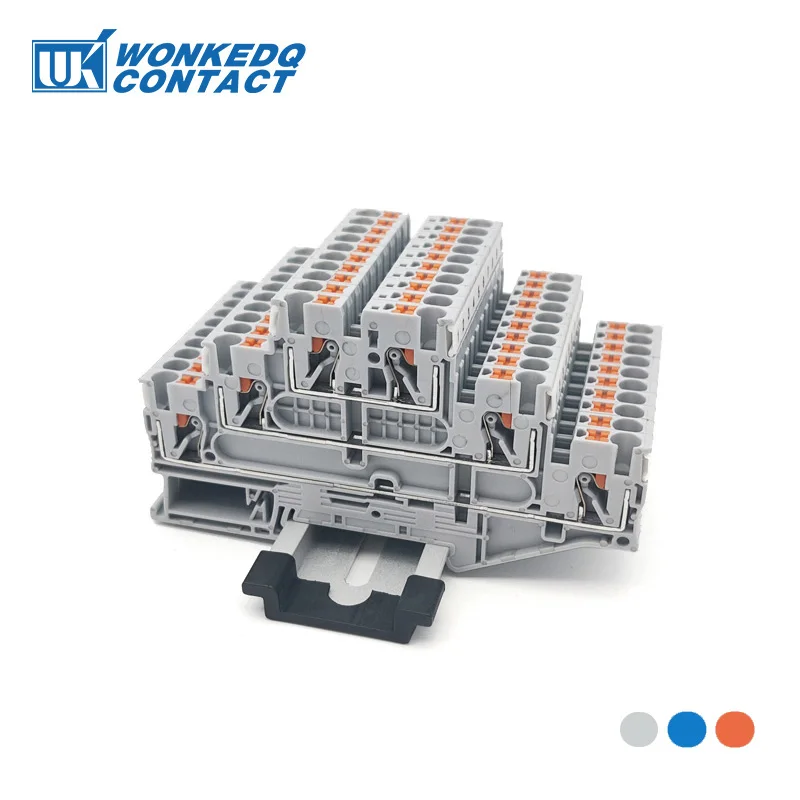

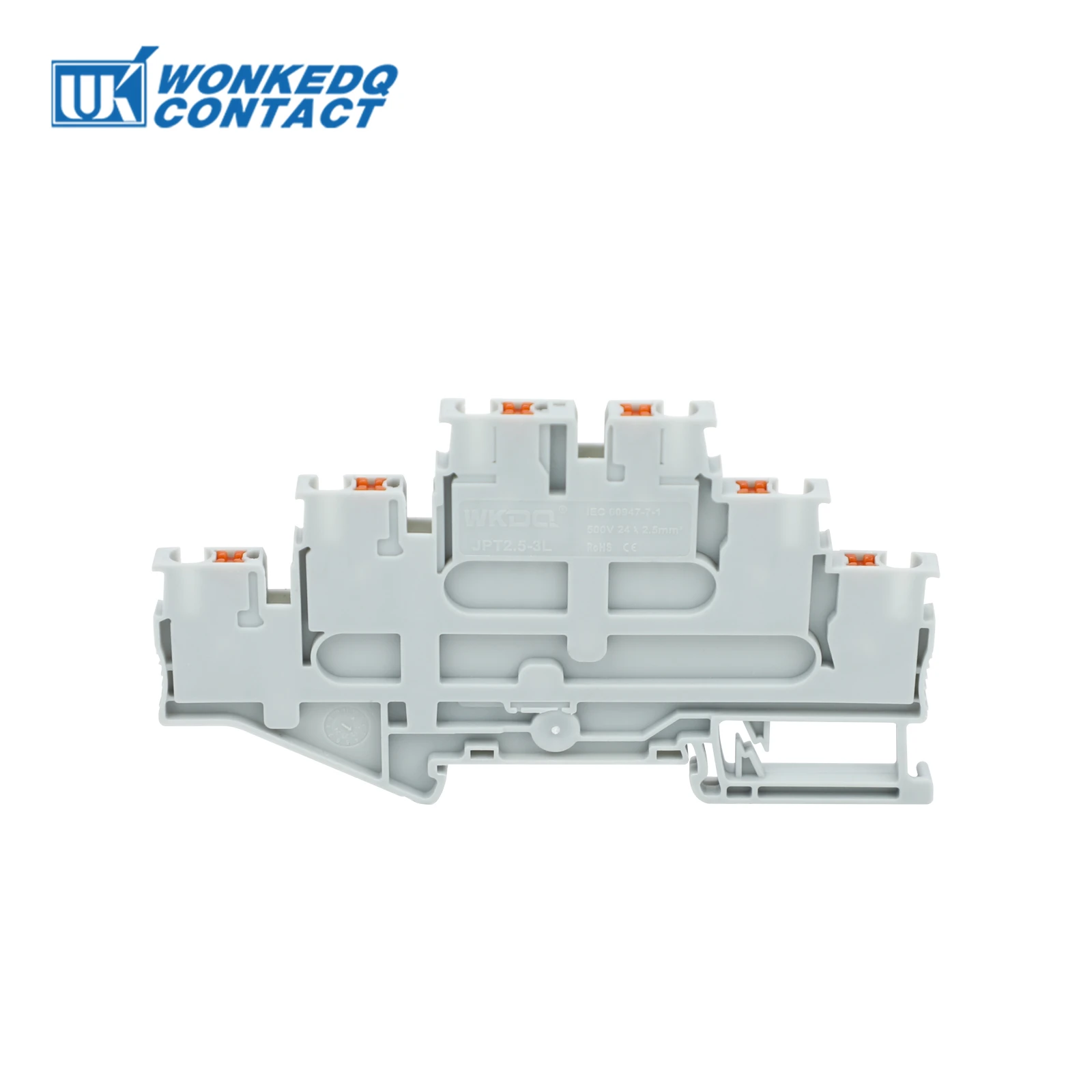

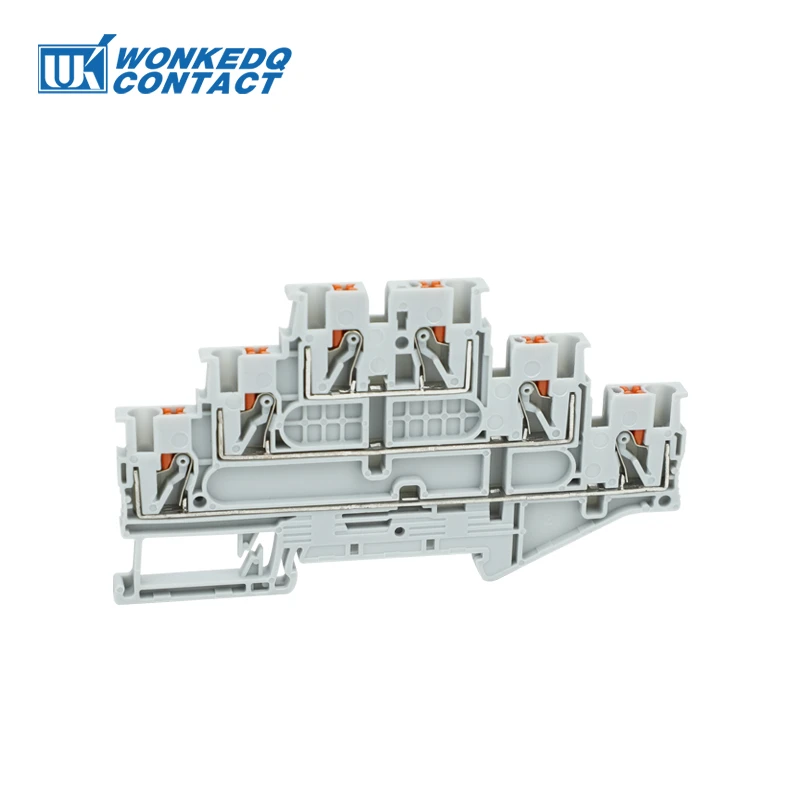

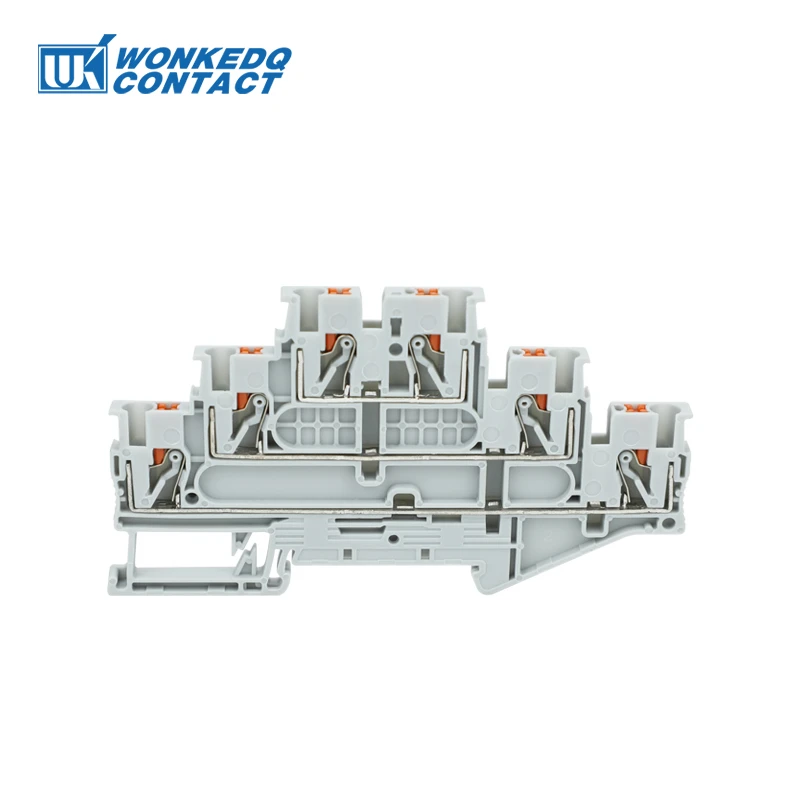

Name: 10Pcs PT 2.5-3L Din Rail Terminal Block Push-in Wiring Connector Triple Levels 2.5mm Electrical Cable PT2.5-3L
SKU: 1005008626041371
Availability: InStock

10Pcs PT 2.5-3L Din Rail Terminal Block Push-in Wiring Connector Triple Levels 2.5mm Electrical Cable PT2.5-3L

REF: 1005008626041371

Hign-concerned Chemical: None
is_customized: Yes
Model Number: PT2.5-3L
Type: Plug-in
Brand Name: WONKEDQ
Origin: Mainland China
Certification: CE,RoHS

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)


END COVER D-PT 2.5-3L	JUMPERS BRIDGE FBS 2/3/4/5/10-5	MARKER STRIPS ZBFM-5	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT 2.5-3L-PE

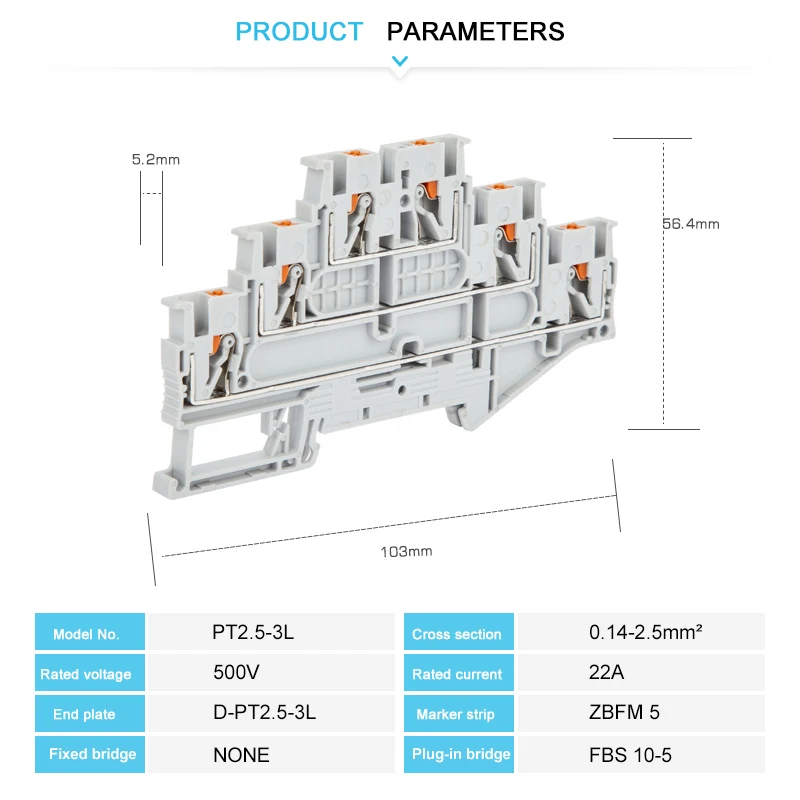

TECHNICAL PARAMETERS

Type No.	Details	Accessories
PT2.5-3L	500V/22A 0.14-4mm²/0.14-2.5mm² L103/H56.4/W5.2 mm	End cover: D-PT2.5-3L
		Plug-in bridge: FBS 2-5,3-5,4-5,5-5,10-5
		Marker strip: ZBFM 5

Model Number	PT2.5-3L
Color	Grey
Length/Wide/Height (mm)	103/56.4/5.2
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	500V/22A
Cross section, solid/soft Cable	0.14-4mm²/0.14-2.5mm²
Conductor Size	26-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	25g/pc
Certification	CE/RoHS/CQC/ISO 9001
