- Hign-concerned Chemical: None
- is_customized: Yes
- Conductor Size: 5 - 10 AWG
- Number of Contacts: 1 - 10
- Model Number: DK 4QV 35
- Type: Screw
- Brand Name: WONKEDQ
- Origin: Mainland China
- Certification: CE,RoHS
- Usage: Distribution cabinet
- Application: Electrical Wiring Terminal Block
- Mounting Type: Din Rail
- Size L/H/W: 55.5/56/6mm
- Voltage: 500V
- Current: 32A

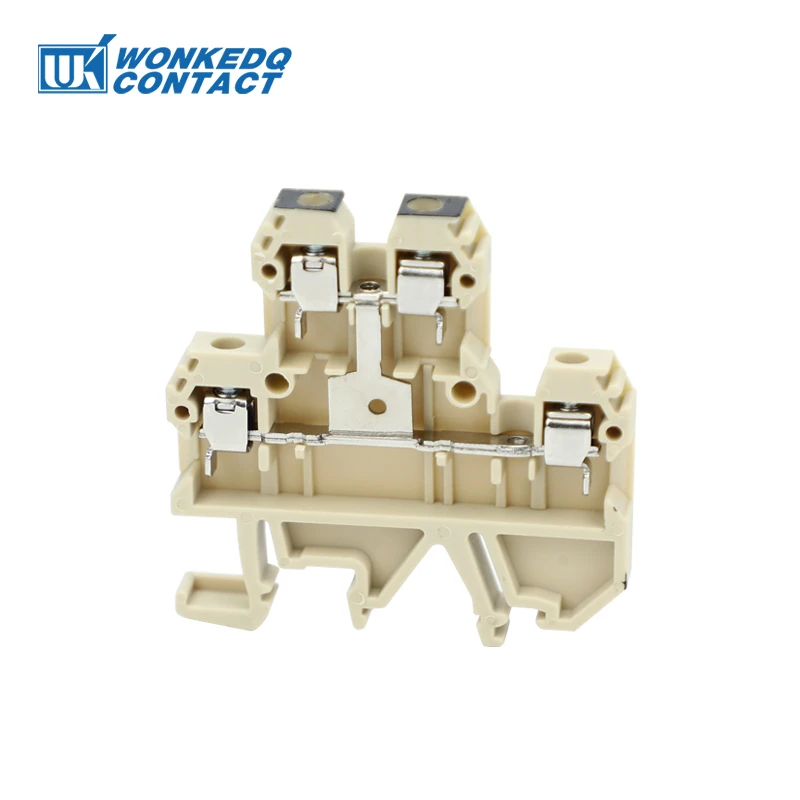

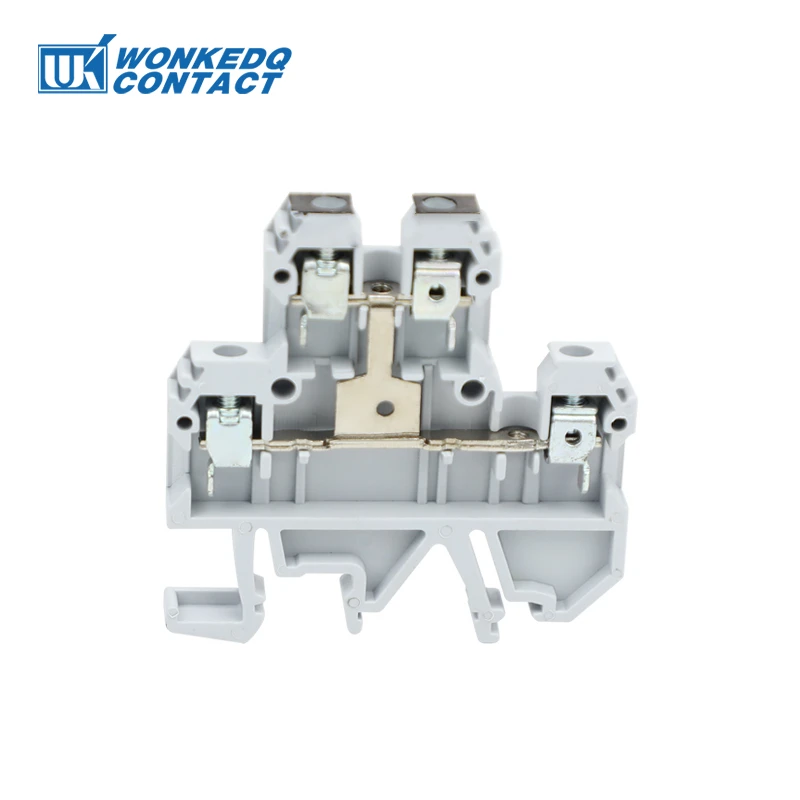

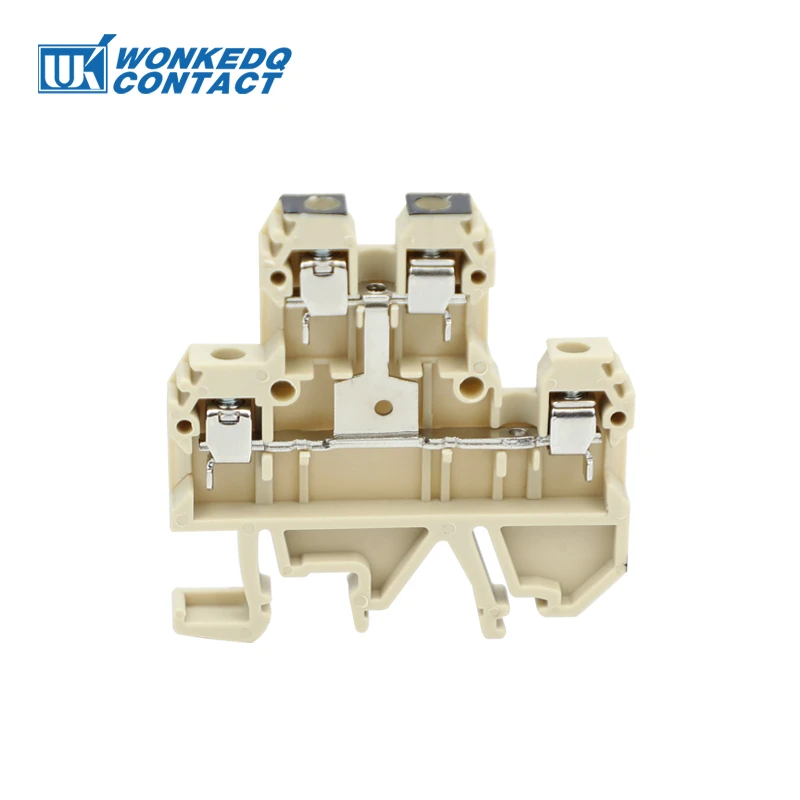

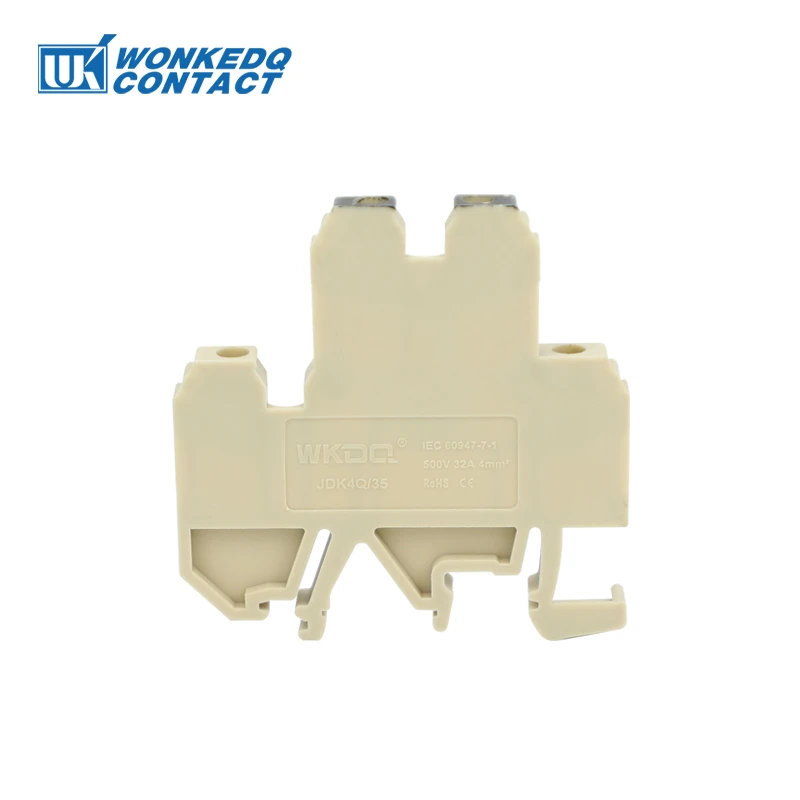

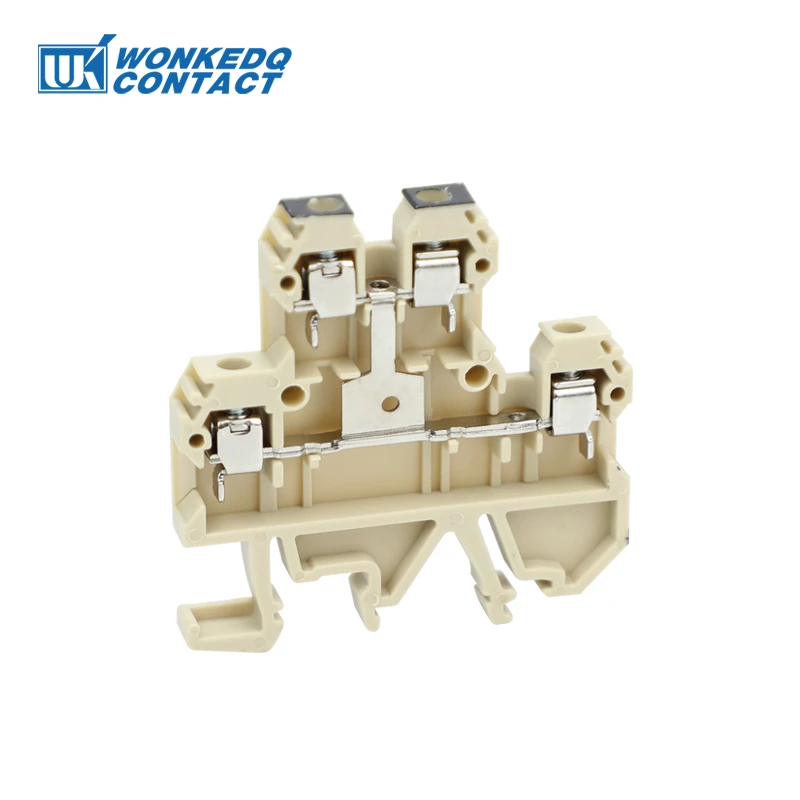

DESCRIPTION

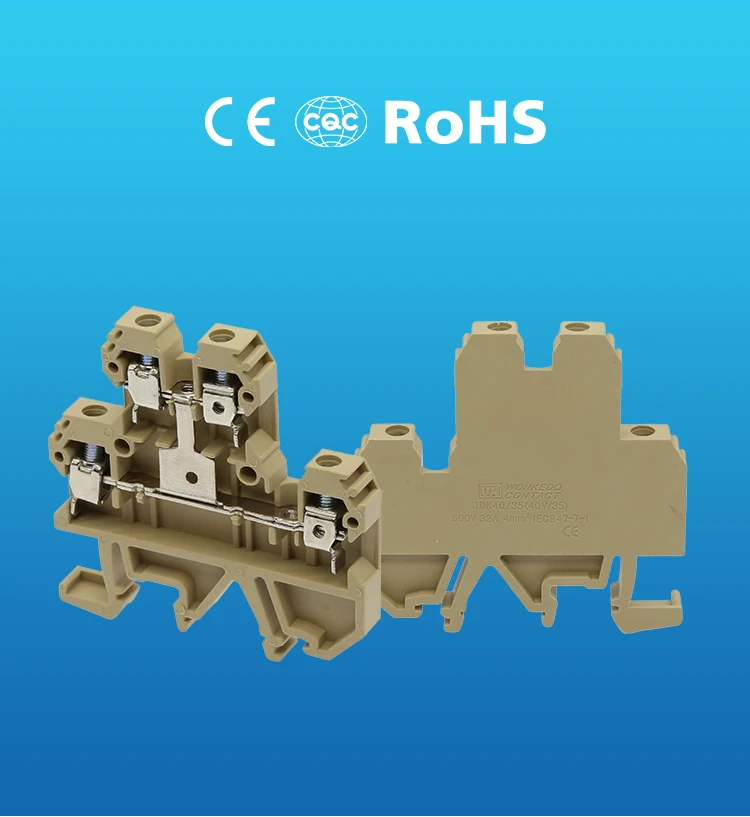

The SAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.

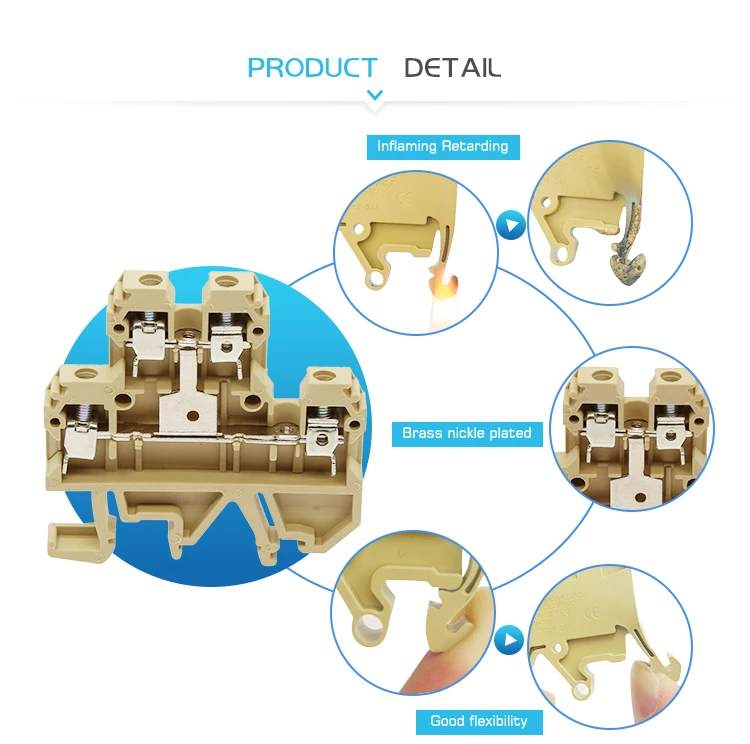

Made from engineering antiflaming nylon PA66 with brass screw metal.
Maintenance-free and vibration-proof screw connection
Low voltage drop and gas-tight contact point

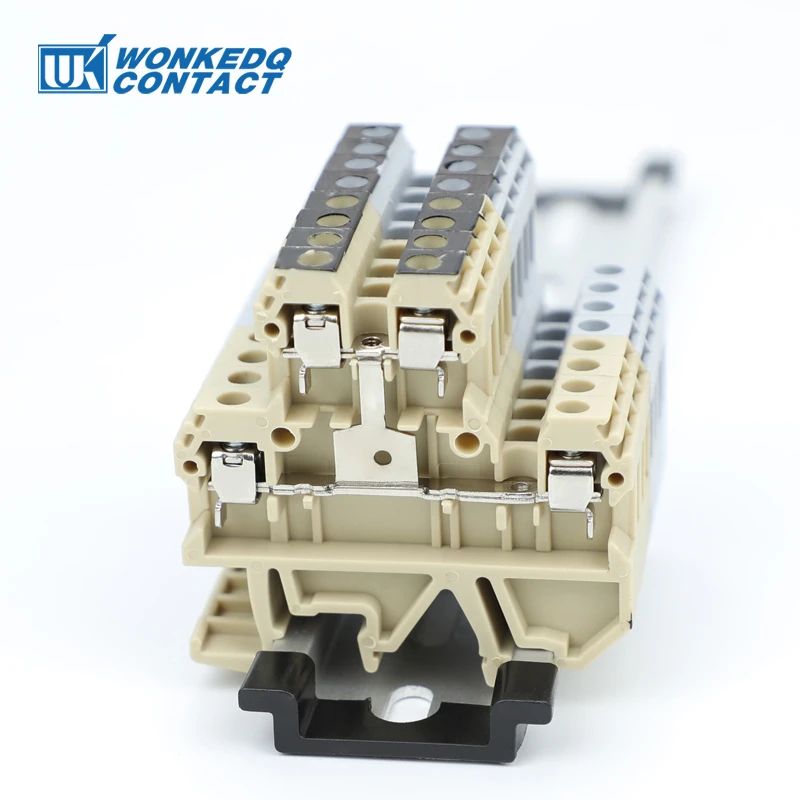

With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center o.
Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.
ACCESSORIES ( Click the pictures to the links )
|
|
|
|
END COVER | FIXED BRIDGE | MARKER STRIPS | END STOP |
|
|
|
|
MARKER CARRIER | DIN RAIL | RECOMMEND (222-413) | RECOMMEND (222-412) |
Type No. | Details | Accessories |
DK 4QV/35 | 500V/32A Cross section: 4mm² L55.5/H56/W7 mm | End cover: AP DK4Q |
Fixed bridge: DK 4Q 10 | ||
Marker strip: DEK 6 |

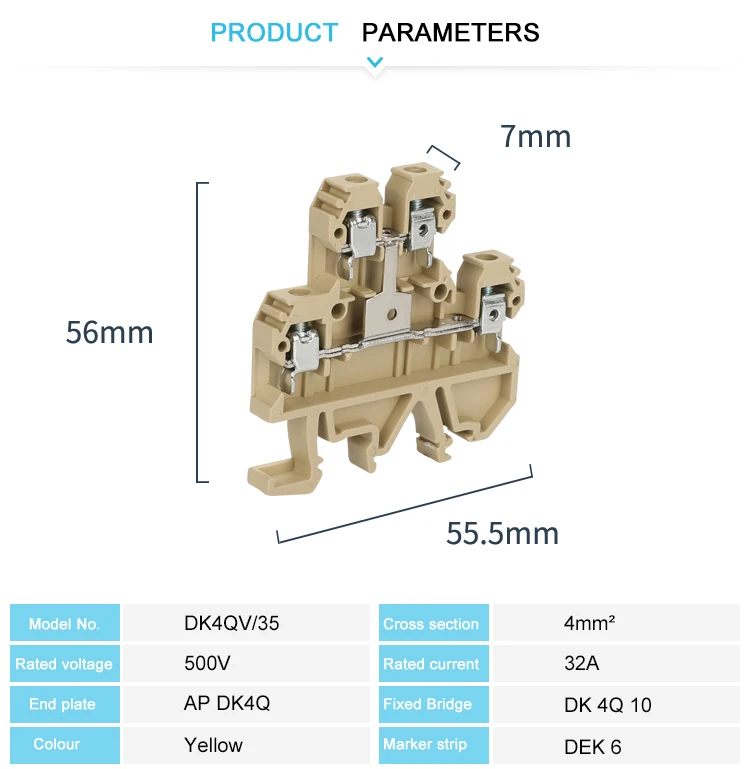

Technical Parameters
Model Number | DK 4QV/35 |
Color | Yellow, other color can be customized |

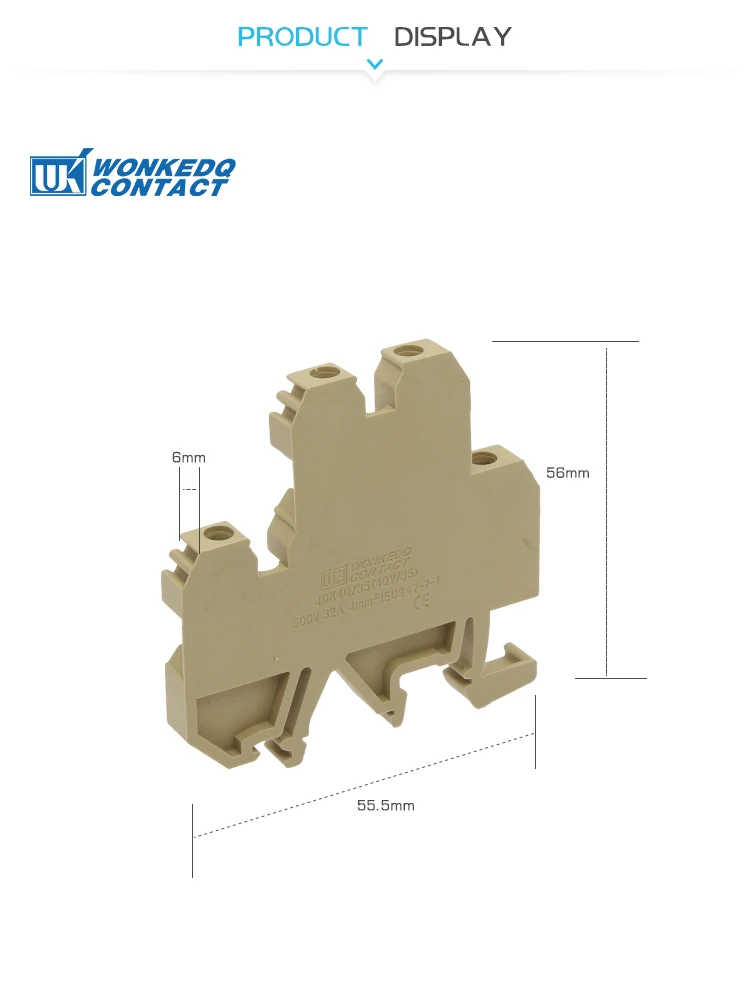

Length/Wide/Height (mm) | 55.5/56/6 |
Connection method | Screw connection |
Material | Nylon PA66 |
Rated Voltage/Current | 500V/32A |
Rated Cross section | 4 mm2; |
Mounting Type | NS 35/7.5 |
Standard | IEC 60947-7-1 |
LOGO | Customized logo are supported |
Packing Detail | 14.06g/pc, 50PCS/BOX |
Certification | CE/RoHS/CQC/ISO 9001 |
