- Is it electrified: Yes
- Does it include a Battery?: Yes
- High-concerned chemical: none
- Origin: Mainland China
- Cooling System Type: Water Cooling System
- Rated Current: As actual
- Rated Voltage: 220V, 230V, 380V, 400V
- Starting System: 12V DC Electric Start
- Model Number: 403D-11G
- Brand Name: WELLPOWER
- Place of Origin: Jiangsu, China
- Frequency: 50HZ/60HZ
- Speed: 1500RPM/1800RPM
- Type: Trailer Type, Silent Type, Super Silent Type, Open Frame, Mobile Type,
- Weight: 900KG
- Product Name: Diesel Generator/Diesel Genset
- Engine Model: 403D-11G
- Alternator: Stamford/Leroy Somer/Marathon/Mecc Alte..
- Control panel: DeepSea/SmartGen
- Options: ATS,oil heater,engine heater,Seperator
- Base fuel tank: 8 Hours
- Phase: 1 Phase/3 Phase
- Certification: CE,ISO,EPA,COC,SASO,OEM
- Warranty: 1 Year/1000 Running Hours
Hello my friend！Thank you very much for clicking to visit our products.You can purchase them directly after seeing them. We will arrange delivery for you as soon as possible. After seeing your message, I will reply to you as soon as possible.Or add my
𝐖𝗛𝐀 +𝟴𝟲𝟭𝟲𝟲𝟴𝟬𝟱𝟭𝟲𝟵𝟯𝟴
𝐄𝐌 𝟮𝟵𝟬𝟲𝟱𝟮𝟳𝟬𝟭𝟳@𝐐𝐐.𝐂𝐎𝐌
I wish you a happy shopping!
𝐖𝗛𝐀 +𝟴𝟲𝟭𝟲𝟲𝟴𝟬𝟱𝟭𝟲𝟵𝟯𝟴
𝐄𝐌 𝟮𝟵𝟬𝟲𝟱𝟮𝟳𝟬𝟭𝟳@𝐐𝐐.𝐂𝐎𝐌
I wish you a happy shopping!
Products Description
The styles you can choose:

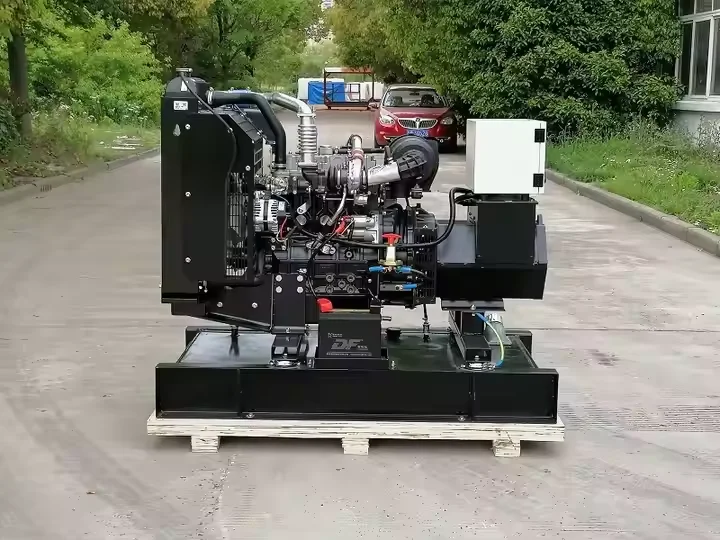

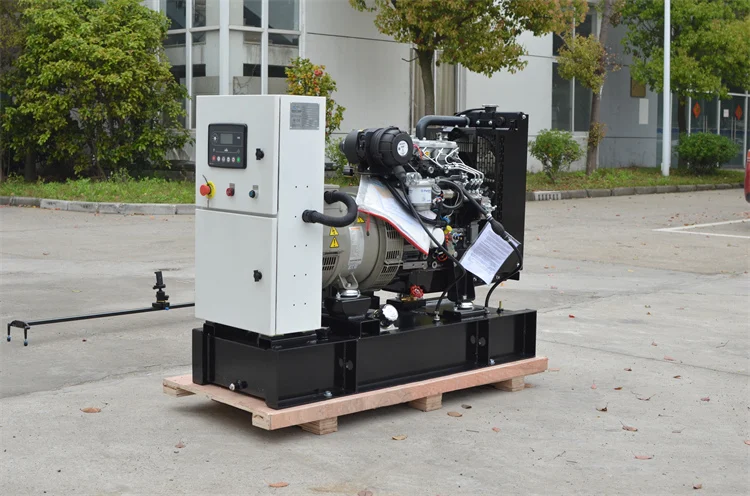

open type

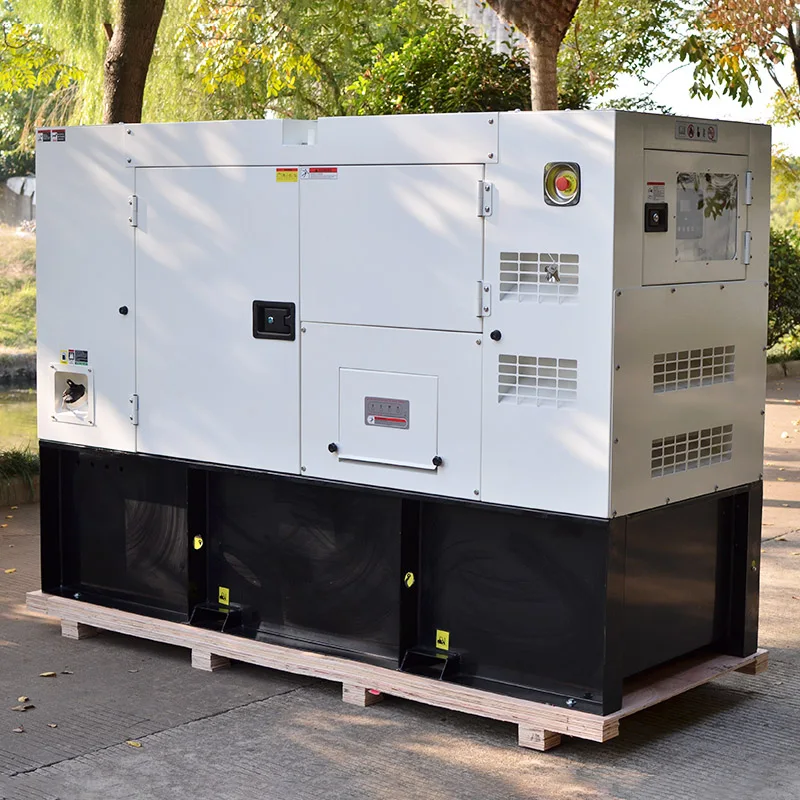

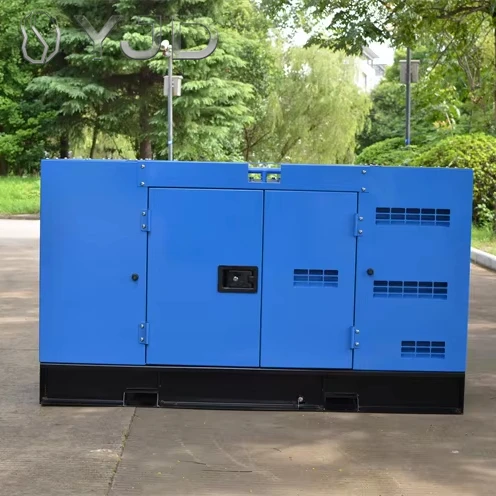

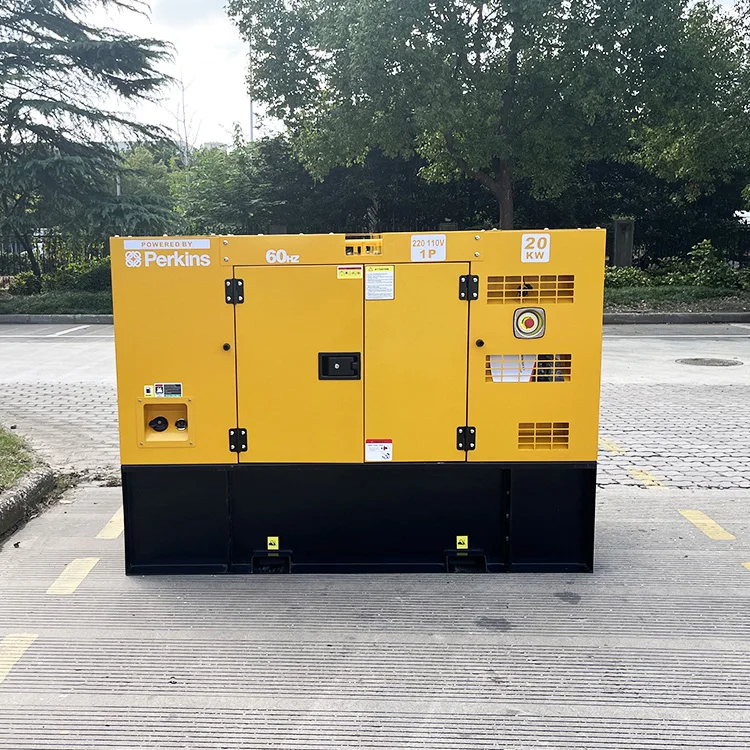

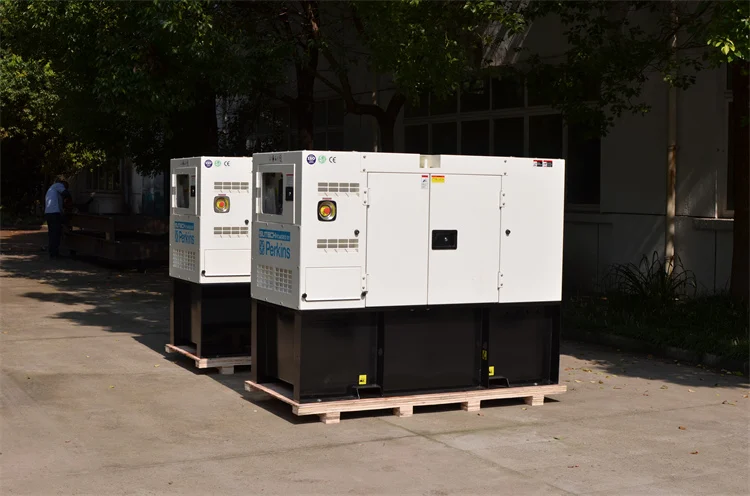

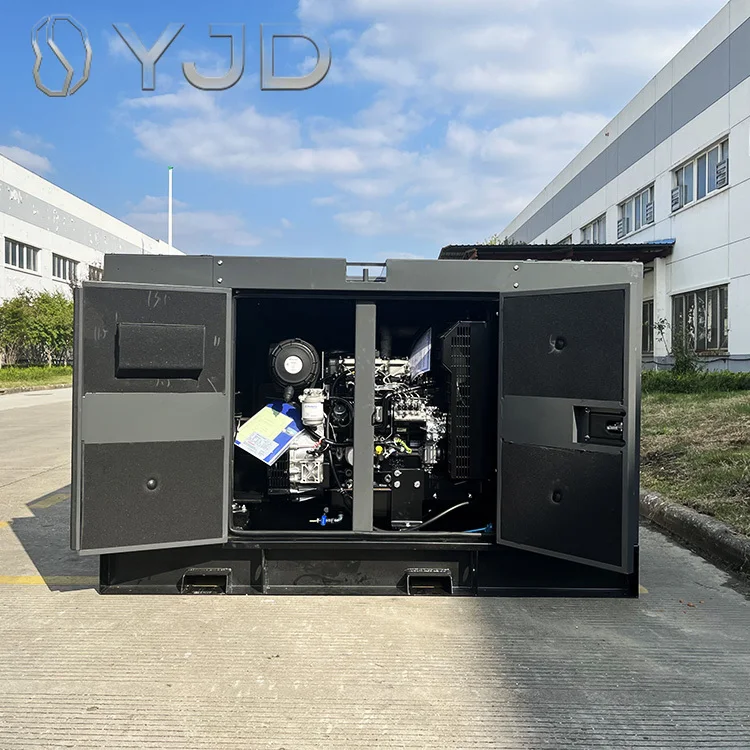

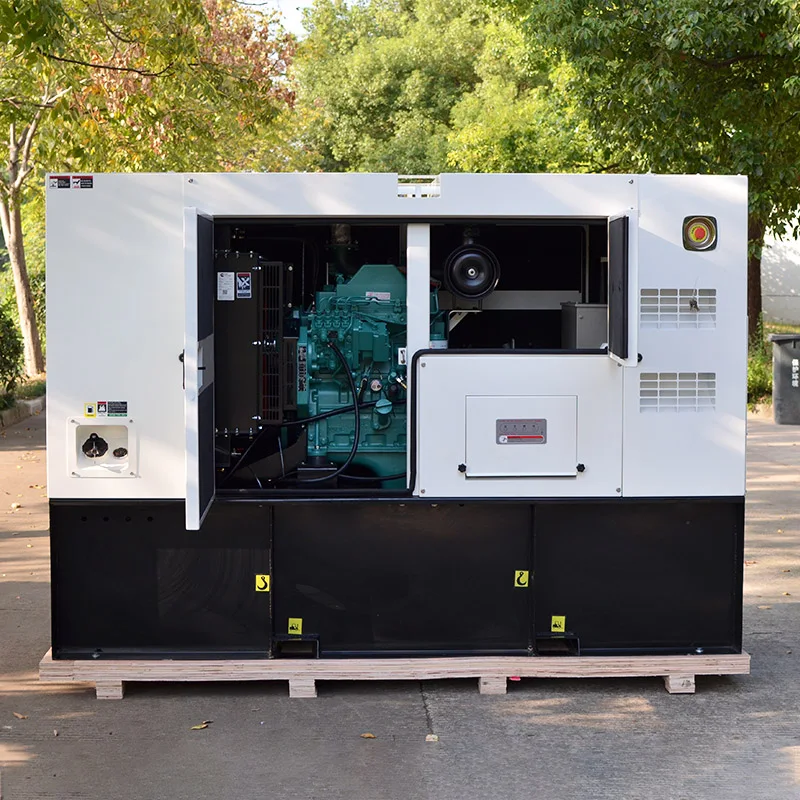

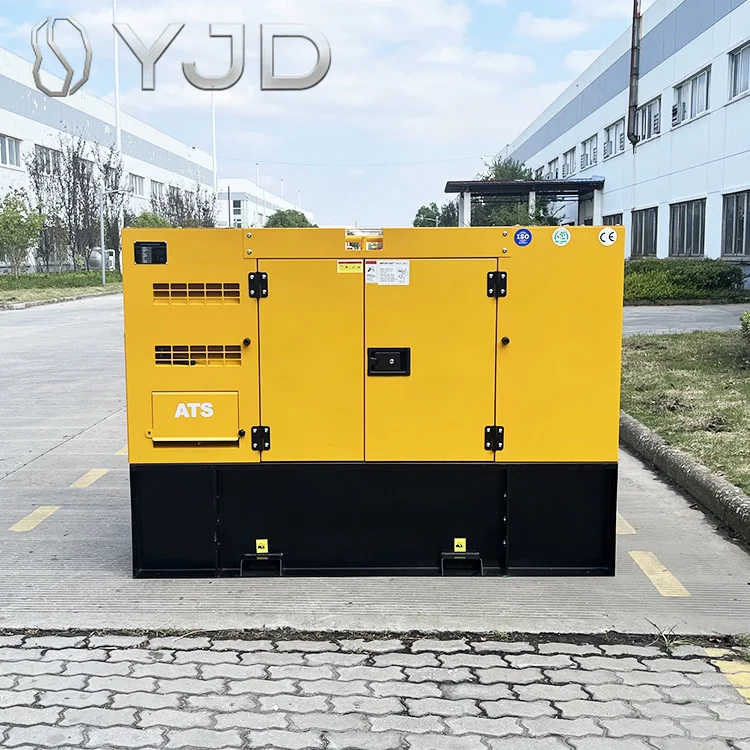

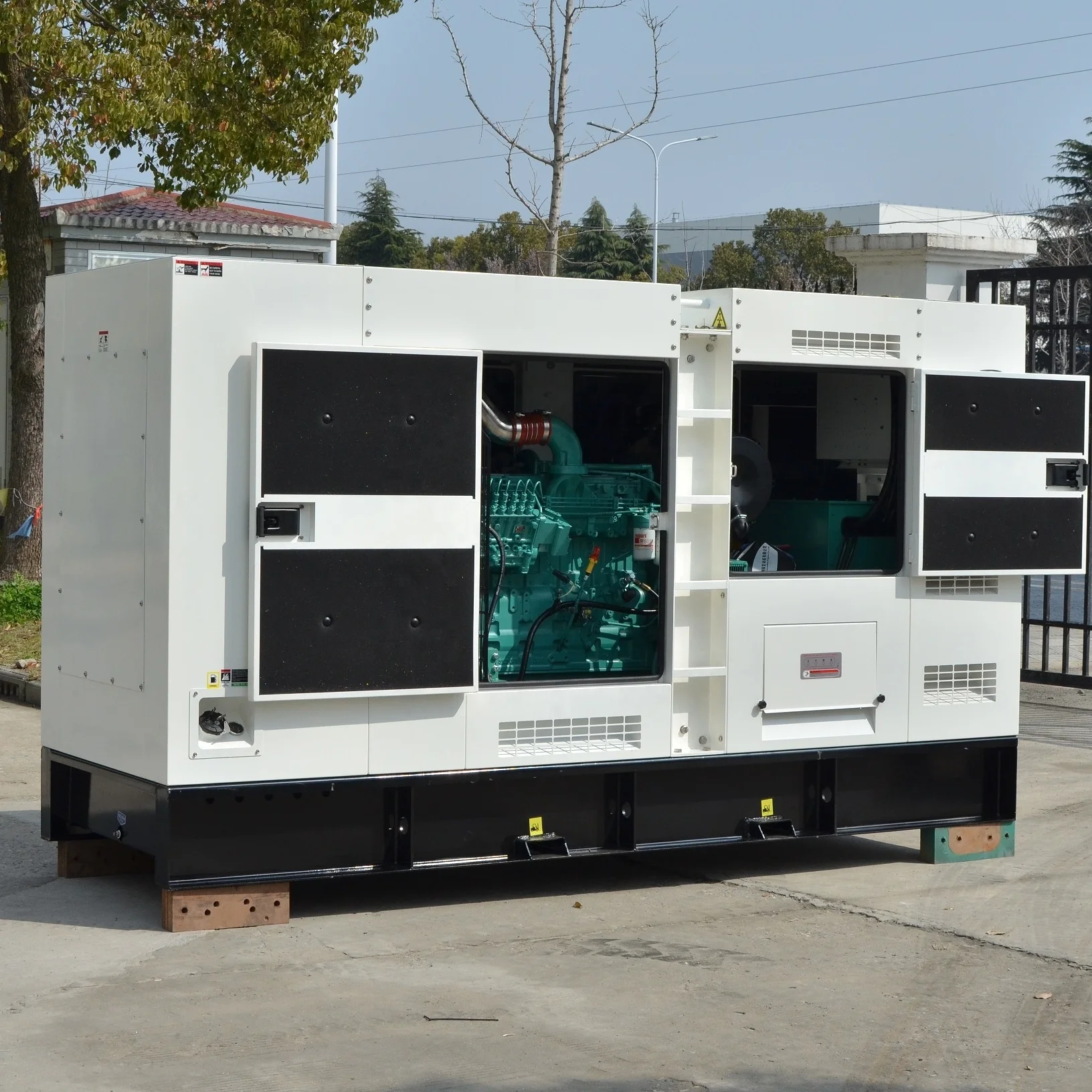

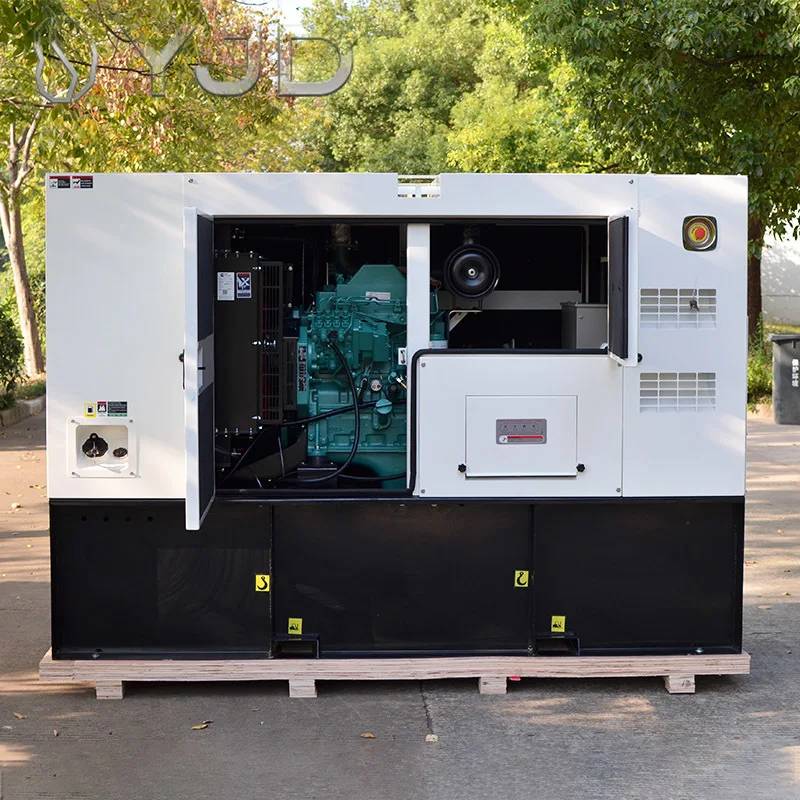

silent type

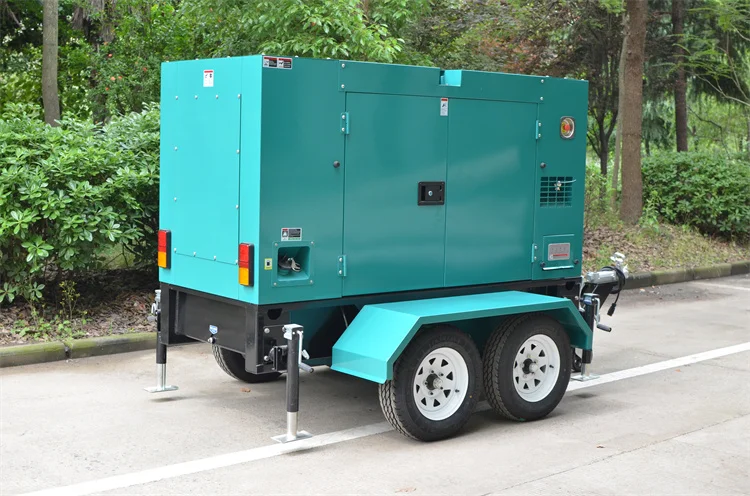

trailer type
|
Cummins Engine Data
|
|
|
|
Engine Model
|
403D-15G
|
|
|
Number of Cylinders
|
3 cylinders
|
|
|
Cylinders arrangement
|
Vertical in line
|
|
|
Cycle
|
4 stroke
|
|
|
Aspiration
|
Naturally
|
|
|
Bore×Stroke
|
77mm x81mm
|
|
|
Displacement
|
1.131L
|
|
|
Compression ratio
|
23:1
|
|
|
Output Power/Speed
|
12.4kw/1800rpm
|
|
|
Speed Governor
|
Mechanical/Electronic
|
|
|
Cooling System
|
Forced water cooling cycle
|
|
|
Steady speed droop
|
≤1%
|
|
|
Total lubrication system capacity
|
4.9L
|
|
|
Fuel Consumption at 100% Load
|
248g/kw.h
|
|
|
Total coolant capacity
|
5.2L
|
|
|
Starter Motor
|
DC12V
|
|
|
Alternator
|
DC12V
|
|
|

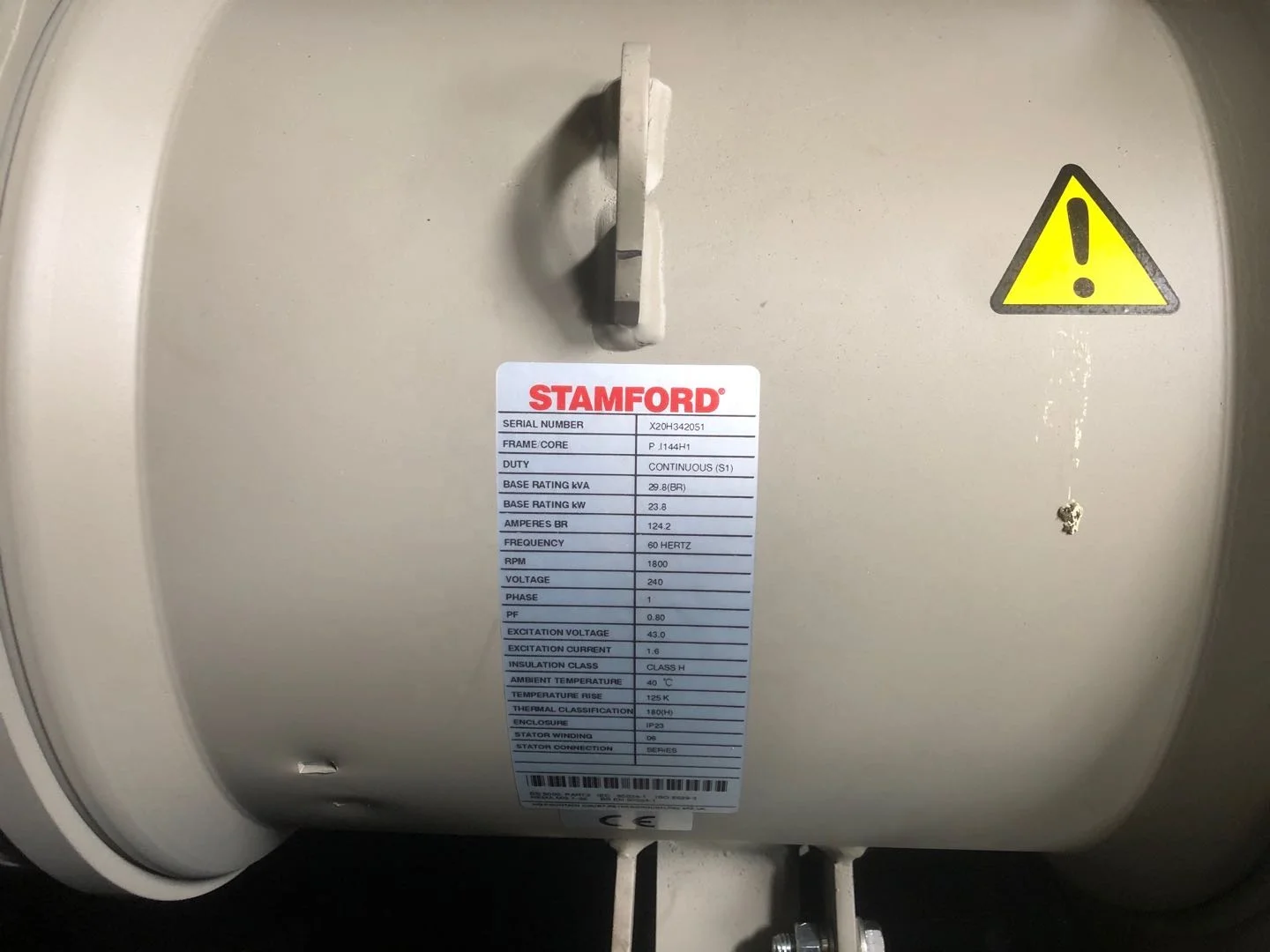

Alternator Data
|
|
|
|
Optional Brands
|
Stamford/Leroy Somer/Mecc Alte/Marathon
|
|
|
Prime power
|
7KW(9KW)
|
|
|
Frequency/speed
|
50HZ/1500rpm(60HZ/1800rpm)
|
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust range
|
≥5%
|
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Phase
|
Three phases
|
|

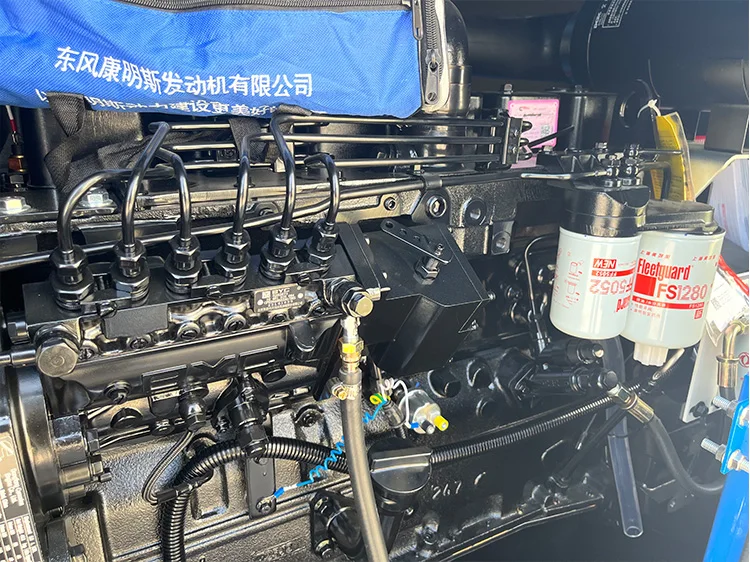

Cummins Engine
Top3 engine brand;
Acknowledged quality;
Global after-sales, spare parts easy to get;
Quick delivery;
Customized Alternator Select
Stamford, Leroy somer, Marathon, Mecc alte,
ABB for your choice;
ABB for your choice;

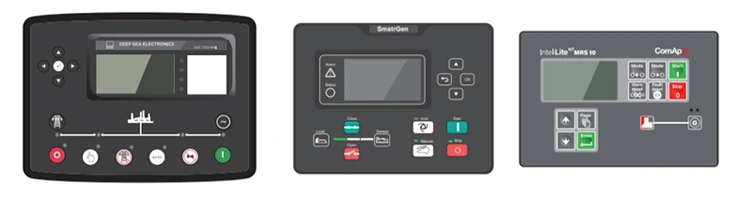

Intelligent Control
ComAp, Deepsea, Smart Gen available;
Digital readouts of running parameters;
Real-time monitoring for emergency handling;
Standardized wire connecting for easy maintenance;

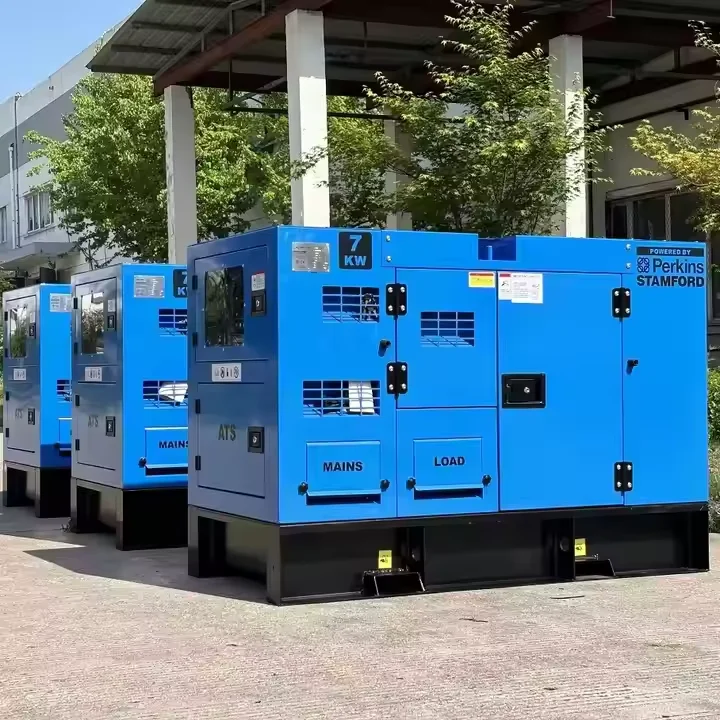

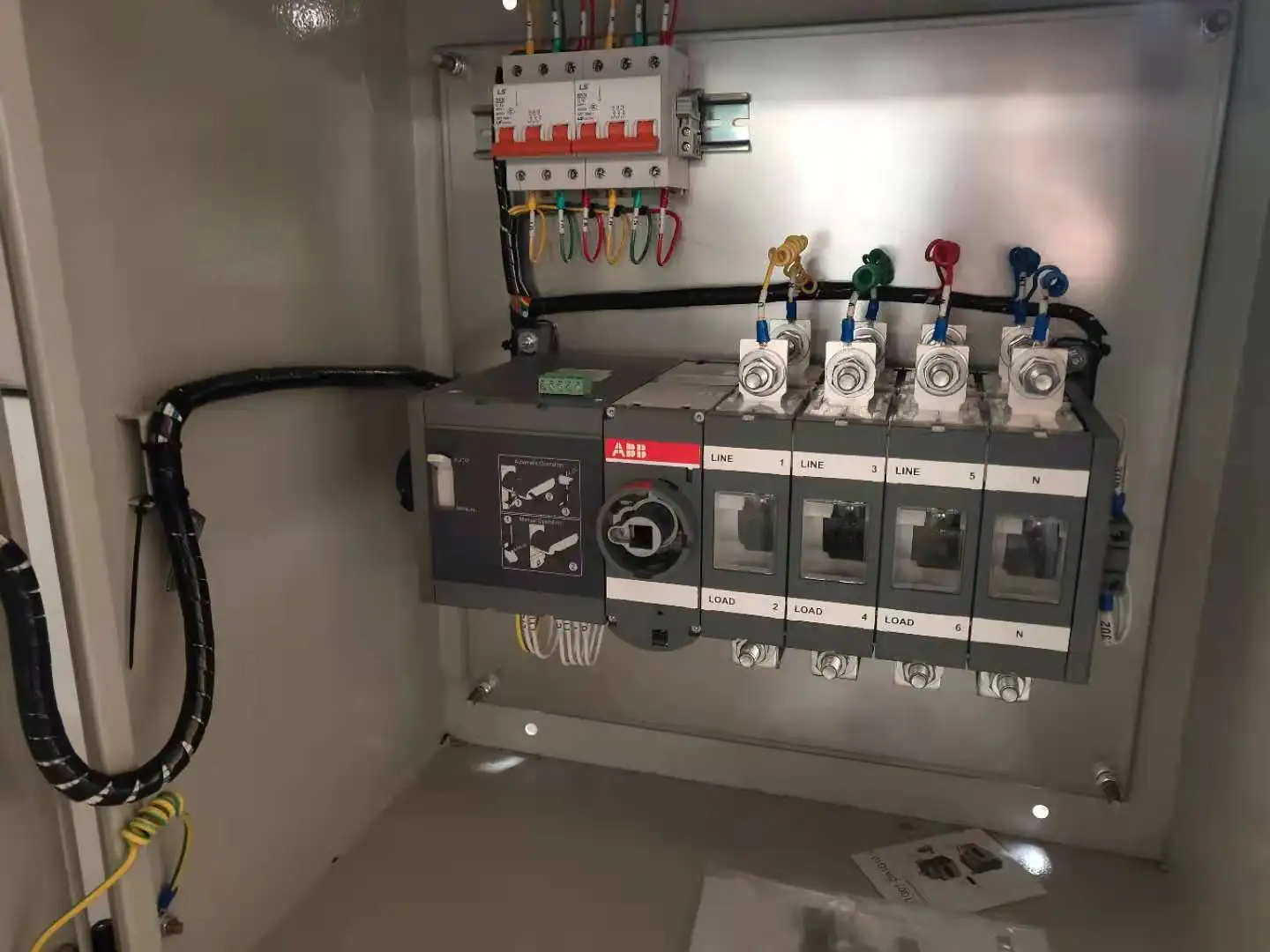

ATS
Both internal & external version available;
ABB can be choiced.

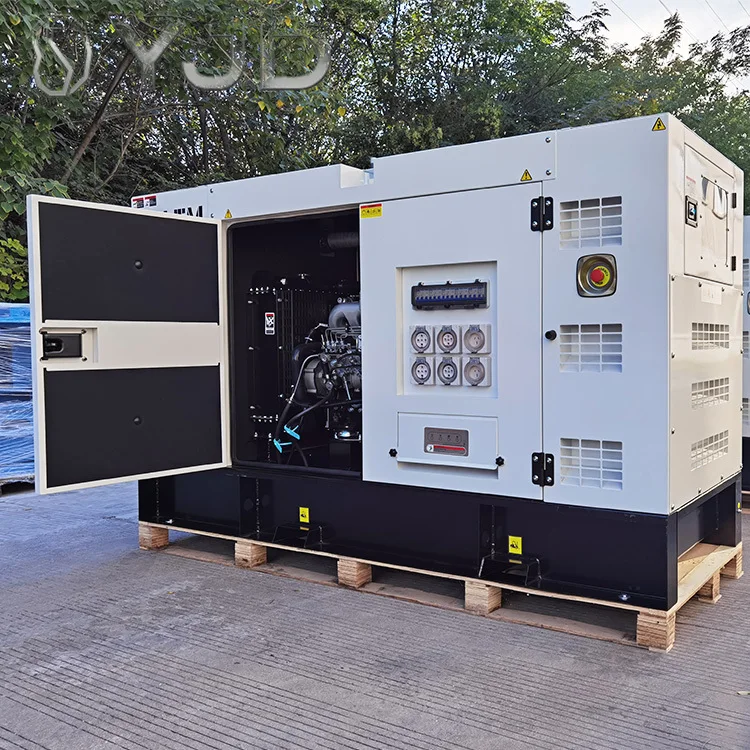

Solid quality Canopy
3mm material thickness;
Anti-rust coating;

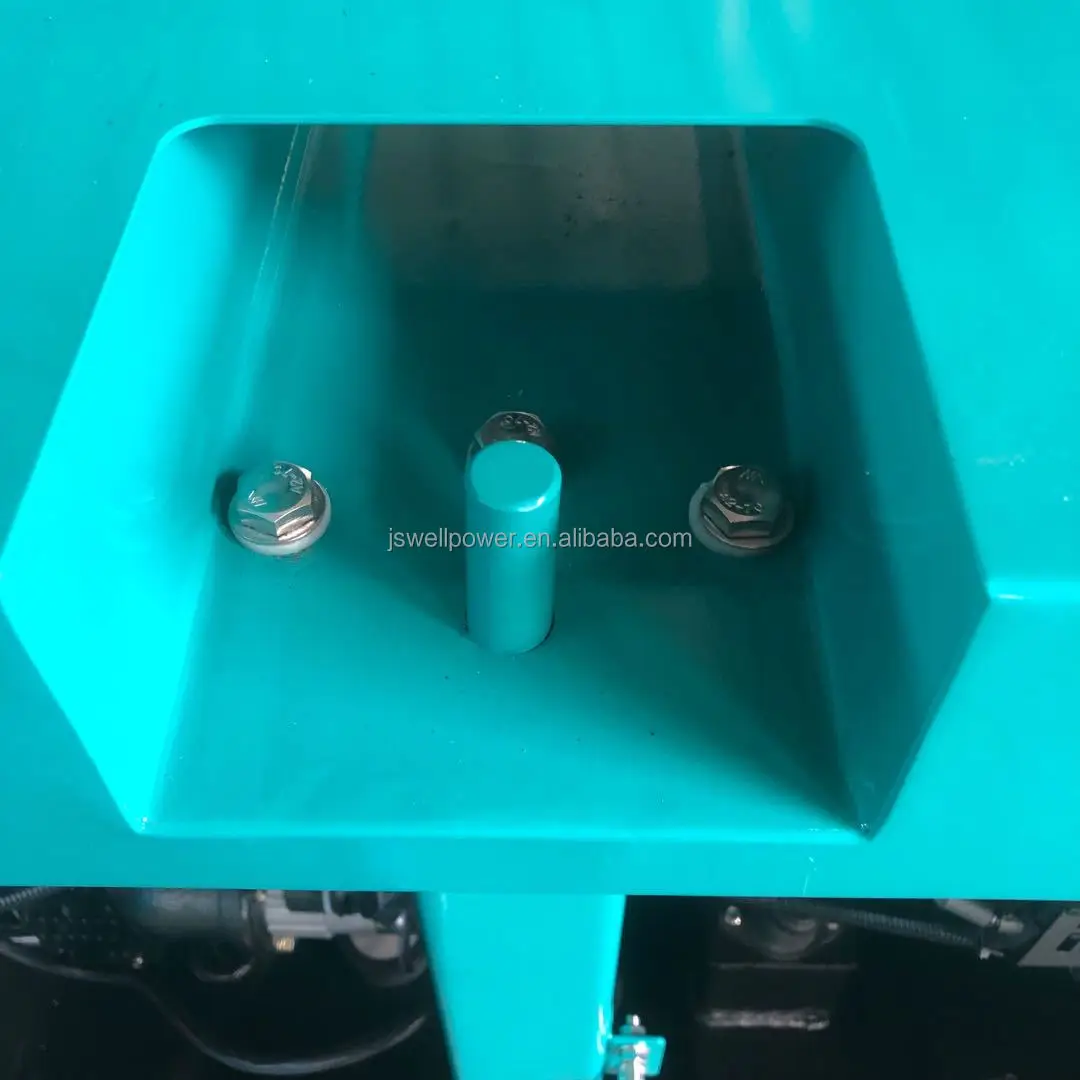

With Forklift point & swing lift point;
color can be customized;
color can be customized;
Security
External emergency stop button, quick access and operation;
Locks with keys to ensure safety;
|
Standard Parts
|
|
|
||
|
|
Open Type
|
Silent Type
|
||
|
Sound-proof & Weather-proof Canopy
|
N/A
|
√
|
||
|
Daily base fuel tank. 8 hours capacity
|
N/A
|
√
|
||
|
Cummins engine, WellPower Generator, Smartgen Controller
|
√
|
√
|
||
|
Electric start and 24v charger, batteries
|
√
|
√
|
||
|
Standard air filter, oil filter, fuel filter
|
√
|
√
|
||
|
High-efficient silencer
|
√
|
√
|
||
|
Steel base-frame against vibration
|
√
|
√
|
||
|
Soft pipe for fuel and handle for lube going-out
|
√
|
√
|
||
|
Full set of manuals and wire connecting drawings
|
√
|
√
|
||
|
Diesel Generator (optional engine brands, alternator brands and Control panel)
|
|
|
|
|||
|
Rated power
|
Engine
|
Alternator
|
Control panel
|
|||
|
20 kw~1300kw
|
Cummins
|
Stamford
Leroy somer Marathon Mecc alte ABB Chinese alternators |
Deepsea
ComAp Harsen Smartgen |
|||
|
8kw~1640kw
|
Perkins
|
|
|
|||
|
68kw~504kw
|
Volvo
|
|
|
|||
|
20 kw~500kw
|
Deutz
|
|
|
|||
|
220 kw-2400kw
|
MTU
|
|
|
|||
|
280kw-800kw
|
MAN
|
|
|
|||
|
640kw-1800kw
|
Mitsubishi
|
|
|
|||
|
50kw-650kw
|
Doosan
|
|
|
|||
|
2kw~2500kw
|
Chinese engine
|
|
|
|||
|
Customized Parts
|
|
|
|
|||
|
Engine
|
Fuel System
|
Cooling system
|
Exhaust System
|
|||
|
Coolant Heater
Lube oil heater Electronic governor Engine oil temperature |
External Tank
Water Separator |
50-60 Radiator,
Remote radiator Cooling tower |
Heavy Duty air filter
Silencer Enclosures |
|||
|
Alternator
|
Control System
|
Others
|
Voltage Connections
|
|||
|
Anti Condensation
Heater Permanent Magnet Generator-PMG Drop CT-for paralleling |
Remote Control Panel
Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet |
Rainproof Type
Soundproof Type Containerized Type Trailer Type Spare Parts |
480/277V
440/254V 416/240V 400/230V 380/220V 240/139V 220/127V 208/120V |
|||
|
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
|
|
|
|
|||
