100Pcs UK1.5N UK1.5 Screw Feed-through Universal Plug Connductor UK-1.5N Wire Electrical Connector Din Rail Terminal Block

Name: 100Pcs UK1.5N UK1.5 Screw Feed-through Universal Plug Connductor UK-1.5N Wire Electrical Connector Din Rail Terminal Block
SKU: 1005009175734176
Availability: InStock

R$ 75,35

Availability: 9999 em stock

REF: 1005009175734176

Descrição
Avaliações (0)

电压: 1V 2V 4V 5V 12V 12V 等或自定义
Hign-concerned Chemical: None
Model Number: UK1.5N
Voltage: 自定义编辑
Origin: Mainland China
Certification: CE
Voltage: 690V 17.5A

Technical Parameters

Model Number	UK 1.5 N
Color	Grey, Blue, other color can be customized

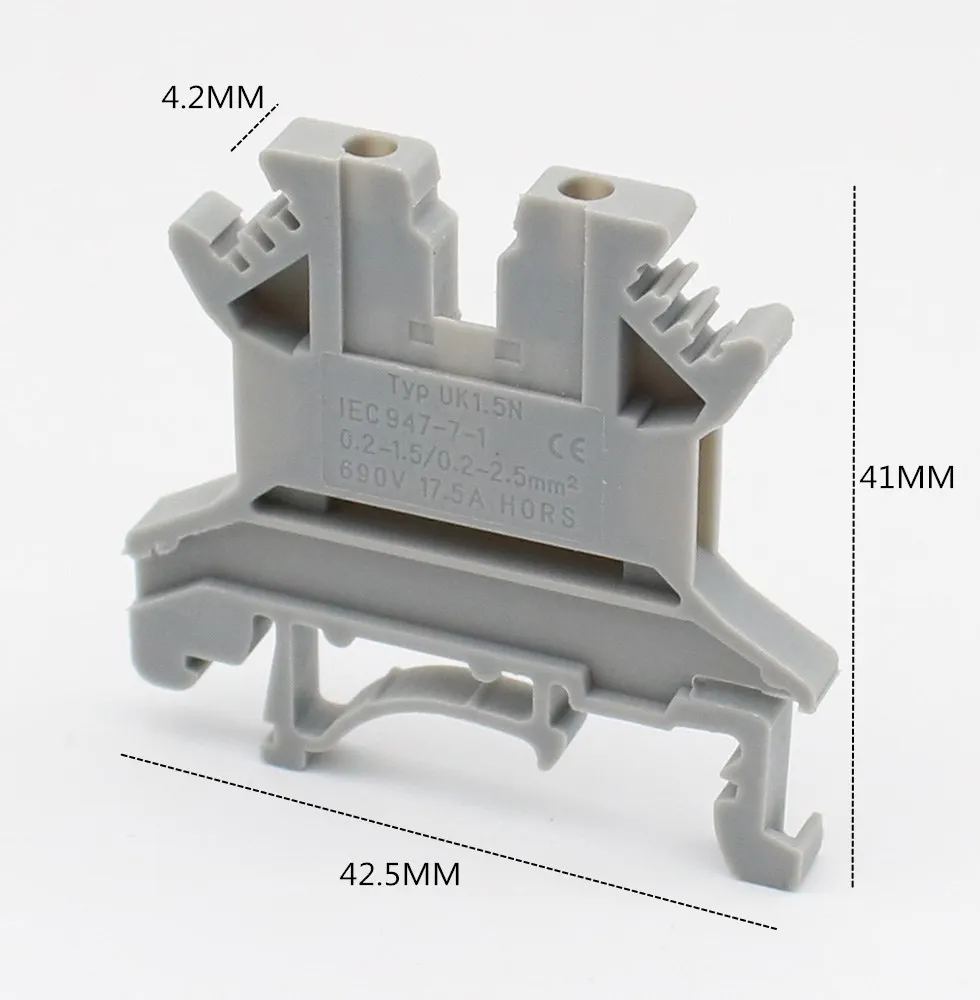

Length/Wide/Height (mm)	42.5/41/4.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	690V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm2/ 0.14-1.5 mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported

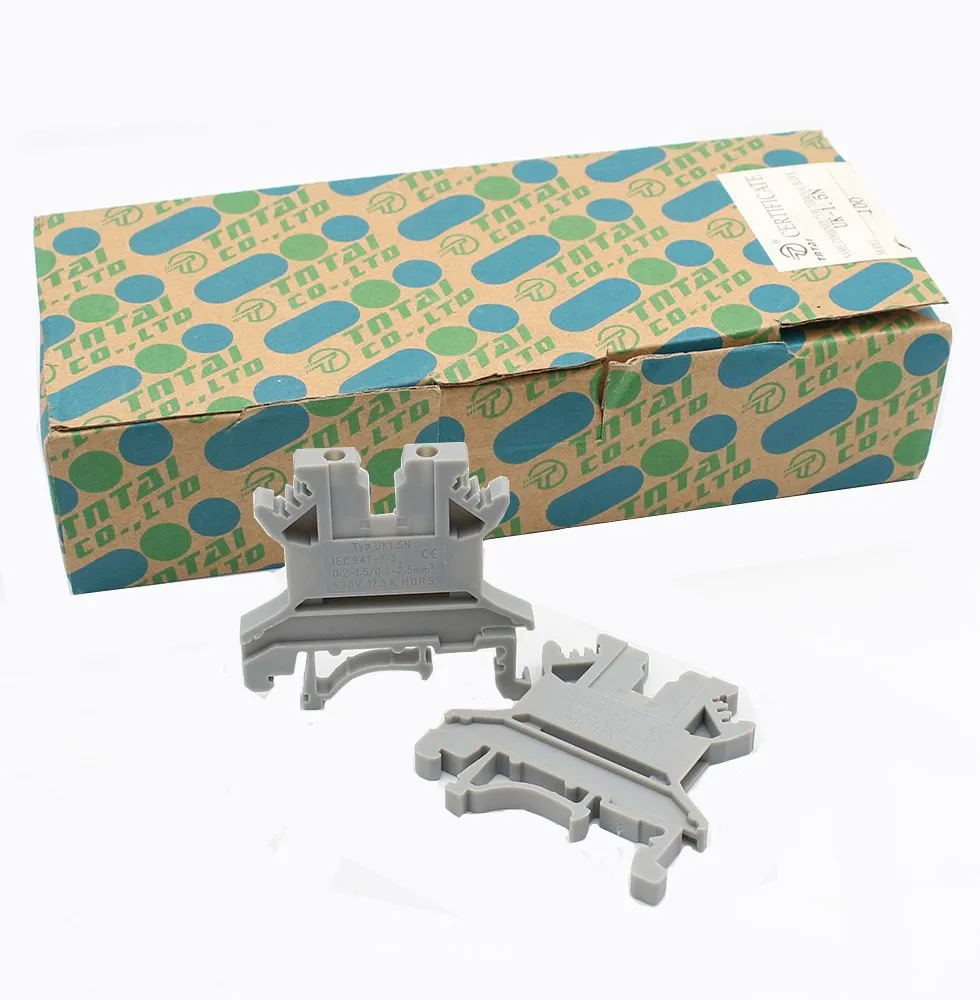

Packing Detail	100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
