Name: 100mm 3/4 Jaw K11 K12 100:1 CNC A Rotary Axis Dividing Head Gapless Harmonic Reducer Gearbox With Nema34 Motor And MT2 Tailstock
SKU: 1005008312569058
Availability: InStock

100mm 3/4 Jaw K11 K12 100:1 CNC A Rotary Axis Dividing Head Gapless Harmonic Reducer Gearbox With Nema34 Motor And MT2 Tailstock

REF: 1005008312569058

High-concerned chemical: None
Condition: New
Model Number: T17-100-100A/B
Type: Vertical
Origin: Mainland China
Certification: CE,None
Chuck Diameter: 100mm
Center Height: 65mm
Total Height: 105mm
size: 200mm*130*105mm
Angle: 0.018Degree/ step
Weight: 11KG
Tailstock: MT2 65MM
Motor: 86mm nema34 45a two Phase,86HS82 4.5Nm

H E N G L I Z I D O N G H U A

Packing Content

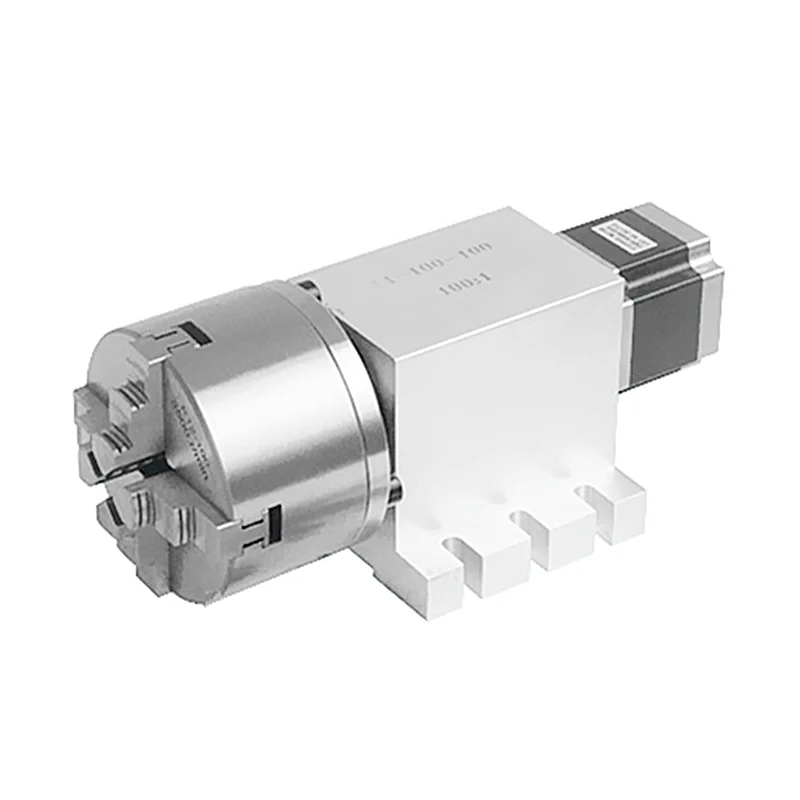

1 Pcs 100:1 Dividing Head Harmonic Reducer With Nema34 Motor

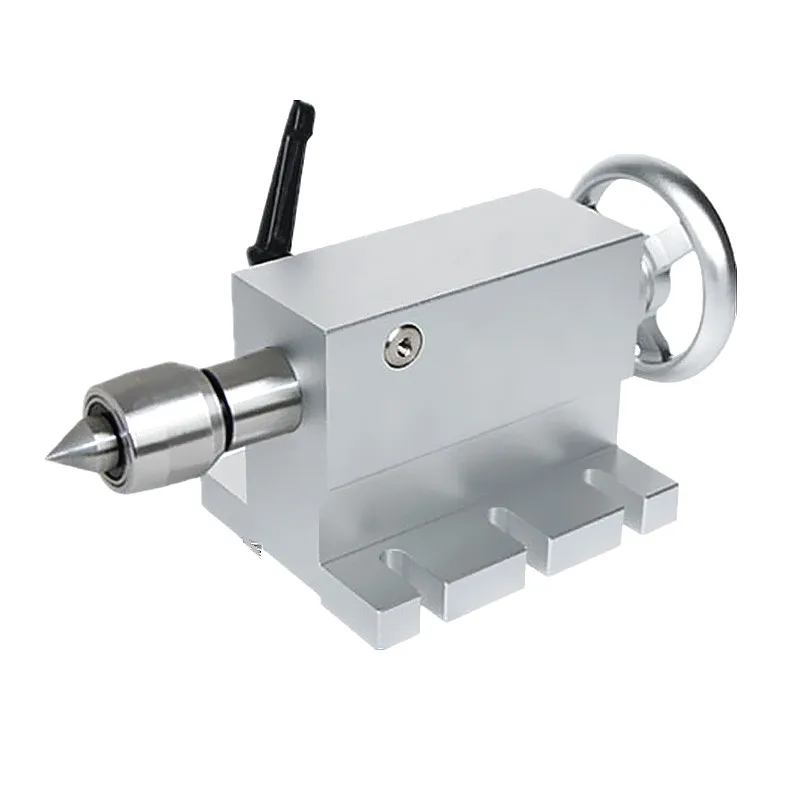

1 Pcs MT2 Tailstock

H E N G L I Z I D O N G H U A

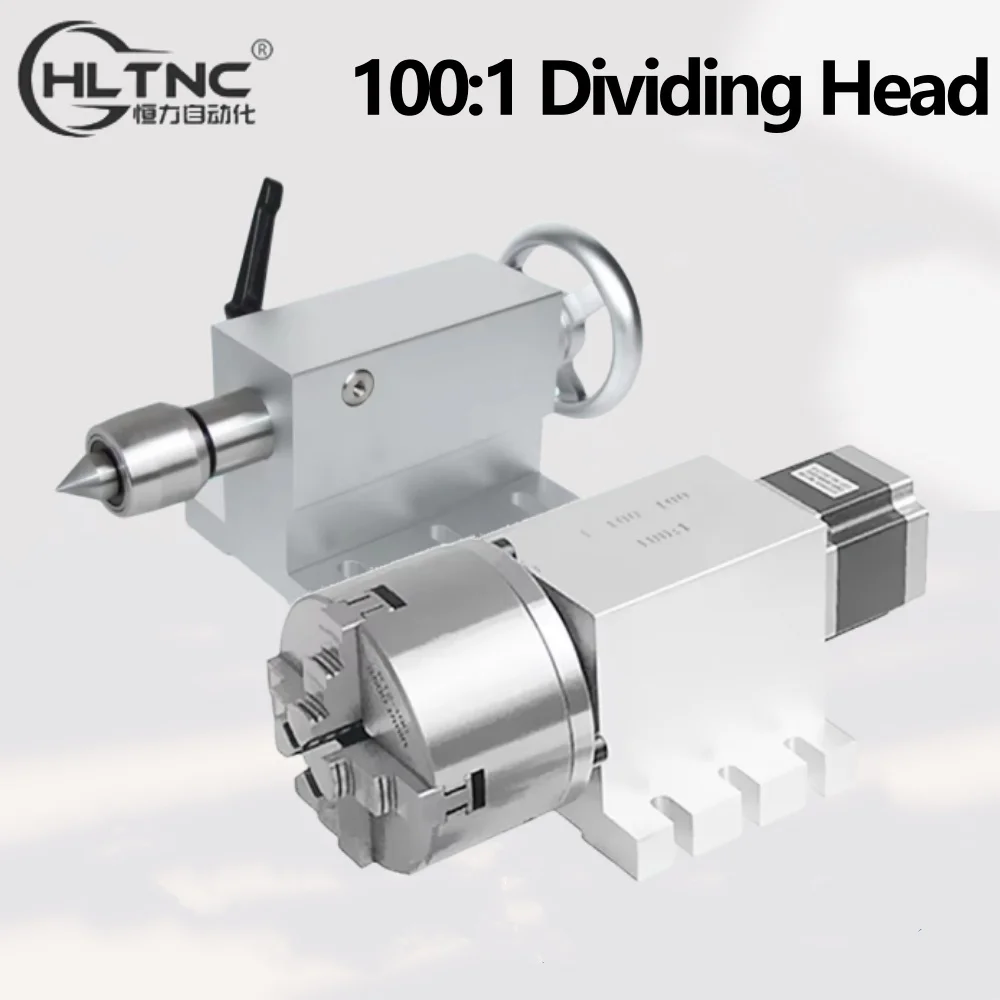

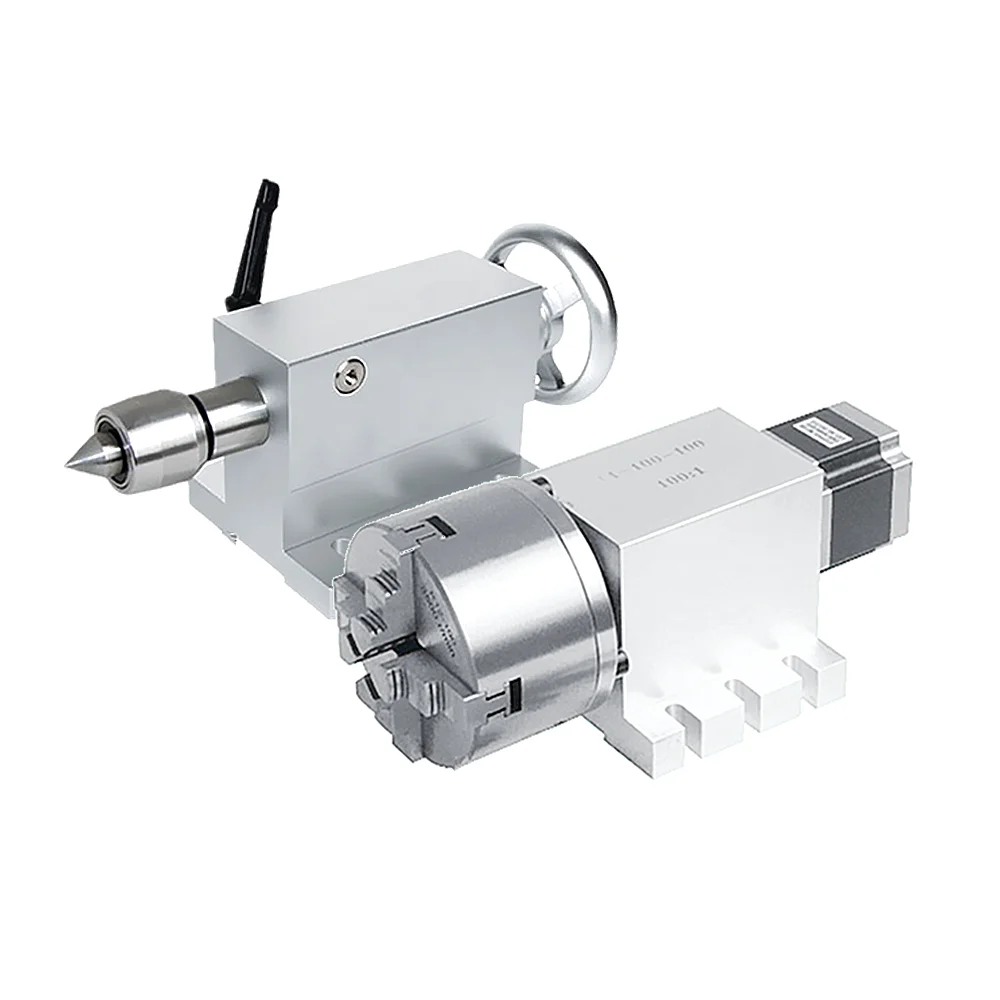

100:1 Dividing Head Kit

H E N G L I Z I D O N G H U A

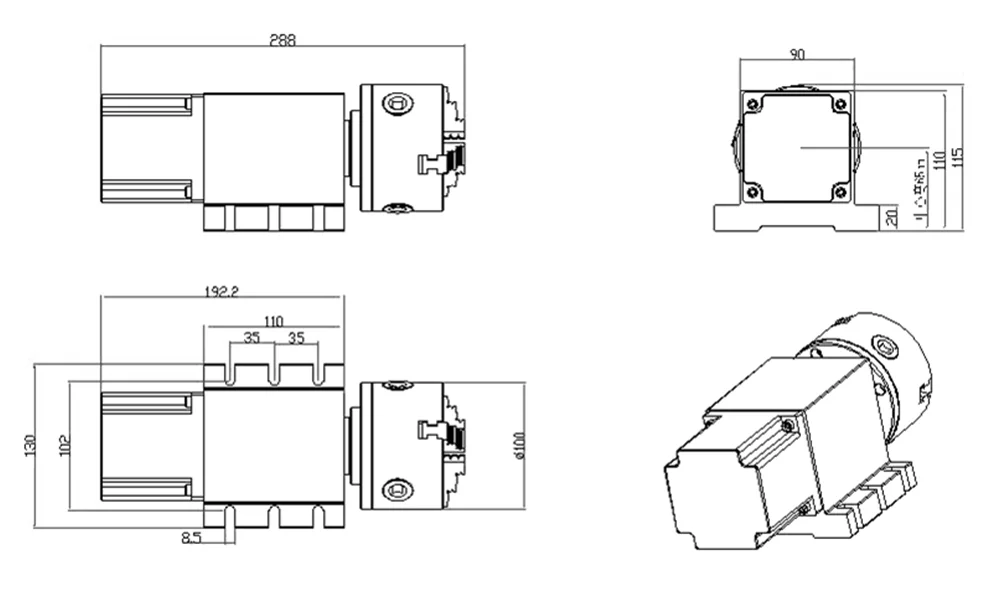

Dividing Head Size Display

H E N G L I Z I D O N G H U A

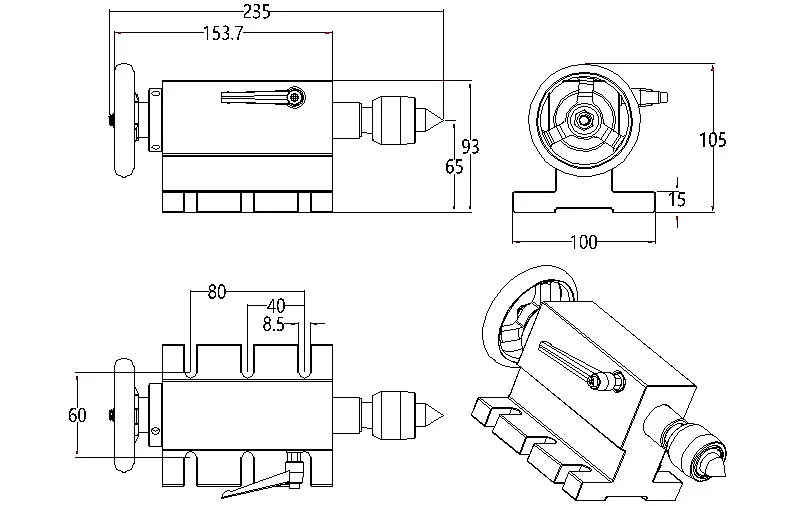

MT2 Tailstock Size Display

H E N G L I Z I D O N G H U A

86HS82 Motor Size Display

Product parameter Comprehensive understanding, buy more at ease
Step Angle:1.8± 5%Current:4.5A
Phase No: 2 Resistance: 0.32±10%Ohm
Insulation Resistance: 100Ohm(500V DC) Inductacne:2.8±20%mH
Inuslation Class:B Holding Torque:4.5N.m

A+ : RED A-:GREEN B+:YELLOW B-:BLUE
