- Hign-concerned Chemical: None
- is_customized: Yes
- Conductor Size: 26-12AWG
- Number of Contacts: 1 - 10

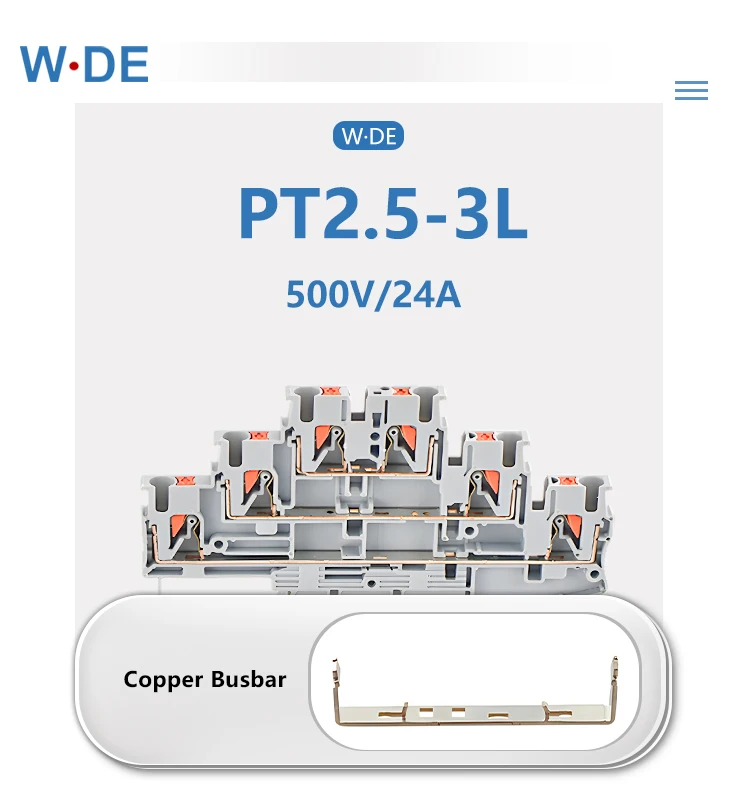

- Model Number: PT-2.5-3L
- Type: Spring
- Brand Name: W.DE
- Origin: Mainland China
- Certification: CE,RoHS
- Usage: Distribution Cabinet
- Connect Way: Spring
- Application: Electrical wiring Conductor
- Mount Type: Din Rail
- Cross section solid cable: 0.14-4 mm2
- Cross section soft cable: 0.14-2.5 mm2
- Current: 24A
- Voltage: 500V
- Size L/H/W: 103/56.4/5.2

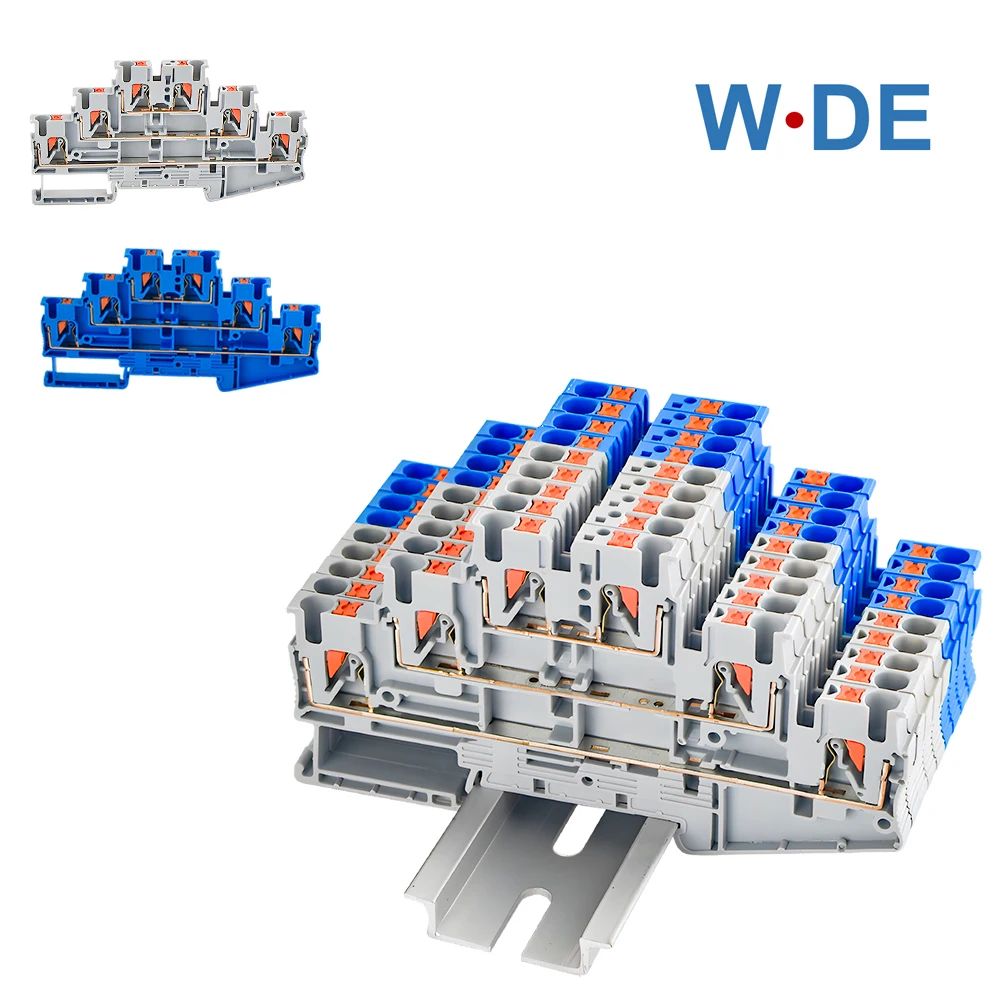

- Item1: spring terminal block
- Item2: Din Rail Terminal Block Conductor
- Item3: Universal Compact Wire Wiring Connector
- Item4: terminator
- Item5: terminal block
- Item6: screwless terminal block
- Item7: spring connector
- Item8: wire terminal block
- Item9: wire connector block
onAliexpress
orEmail:hugh@xuchendq.com
Whatsapp:0086-18367781100
More contact information is at the bottom ...
Accessories
(Click the picture to buy)

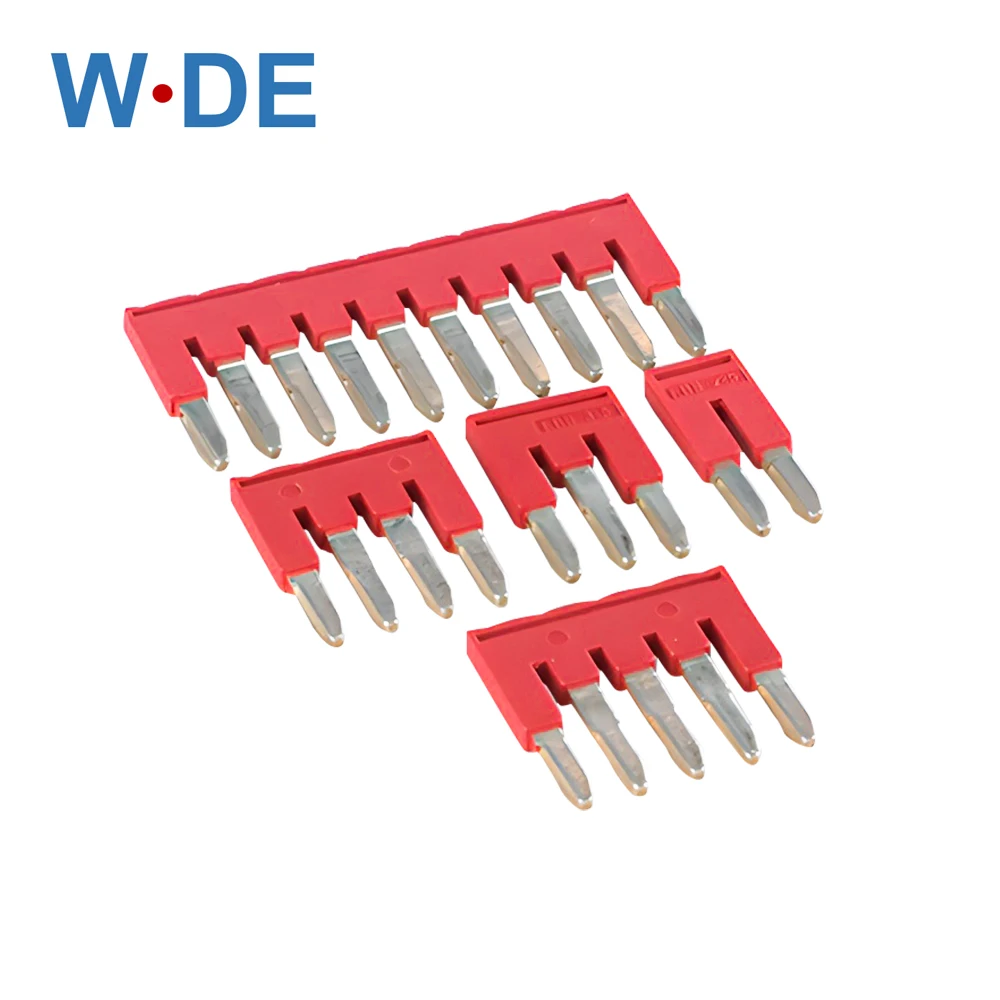

End cover | Jumpers Bridge FBS 10-5 | Marker strip ZBFM5 | End stop E-UK |
|
|
|
|

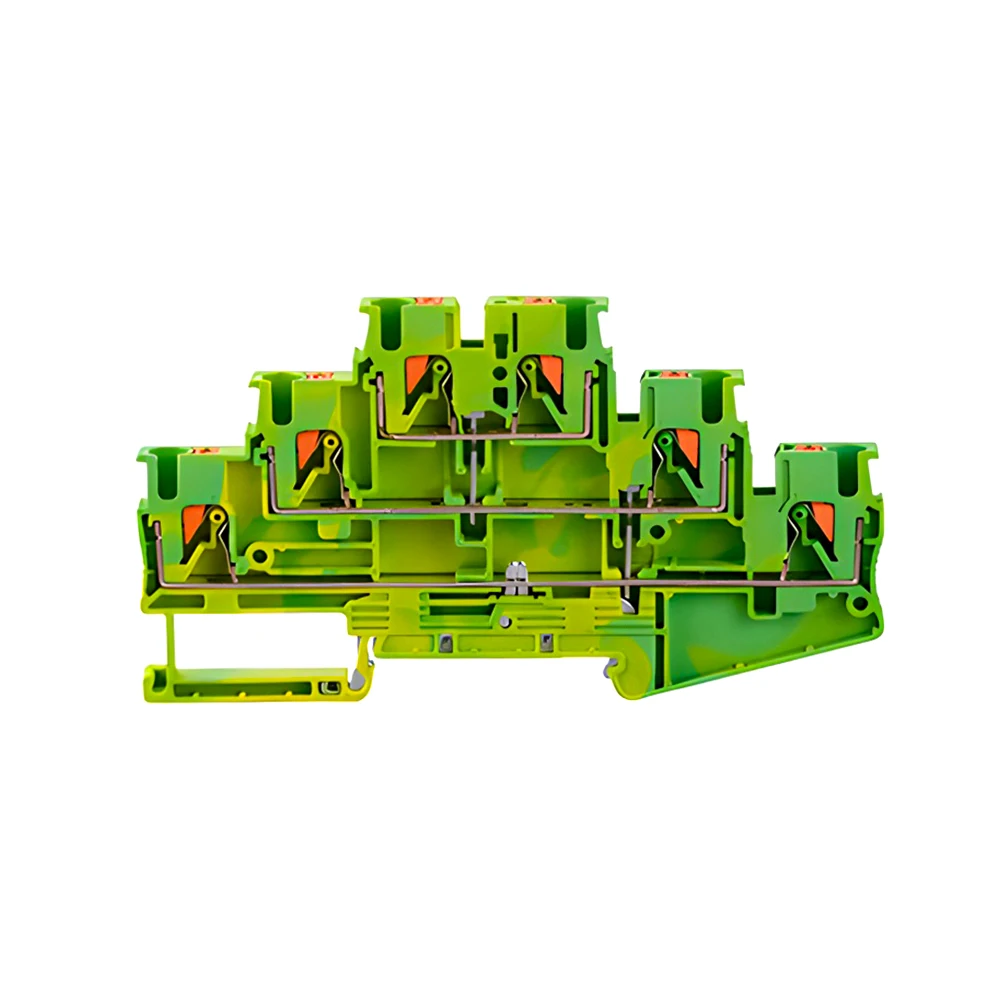

Marker Carrier B1/B2 | Marker Carrier KLM-A | Ground terminal block PT2.5-3LPE | Din Rail |
|
|
|
|
Type No. | Details | Accessories |
PT 2.5-3L | 500V/24A | End cover: |
Plug-in bridge: | ||
Marker strip: |

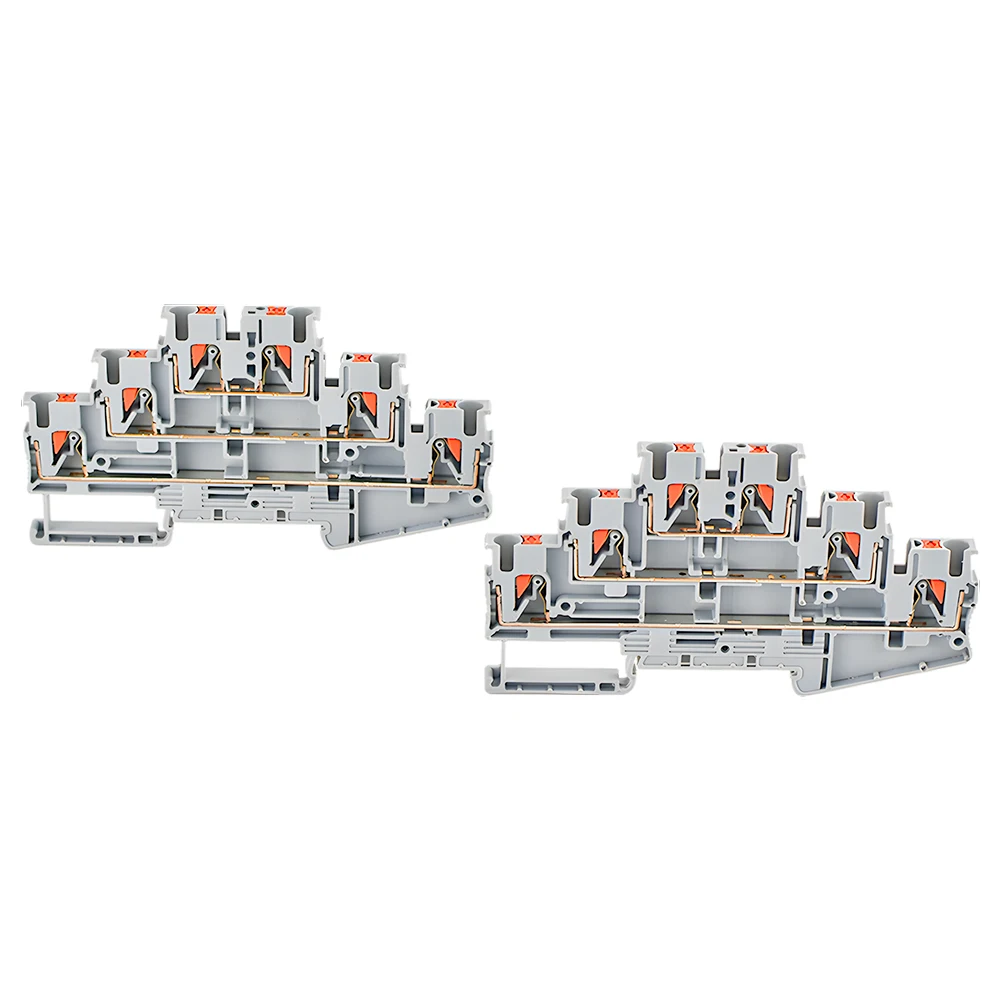

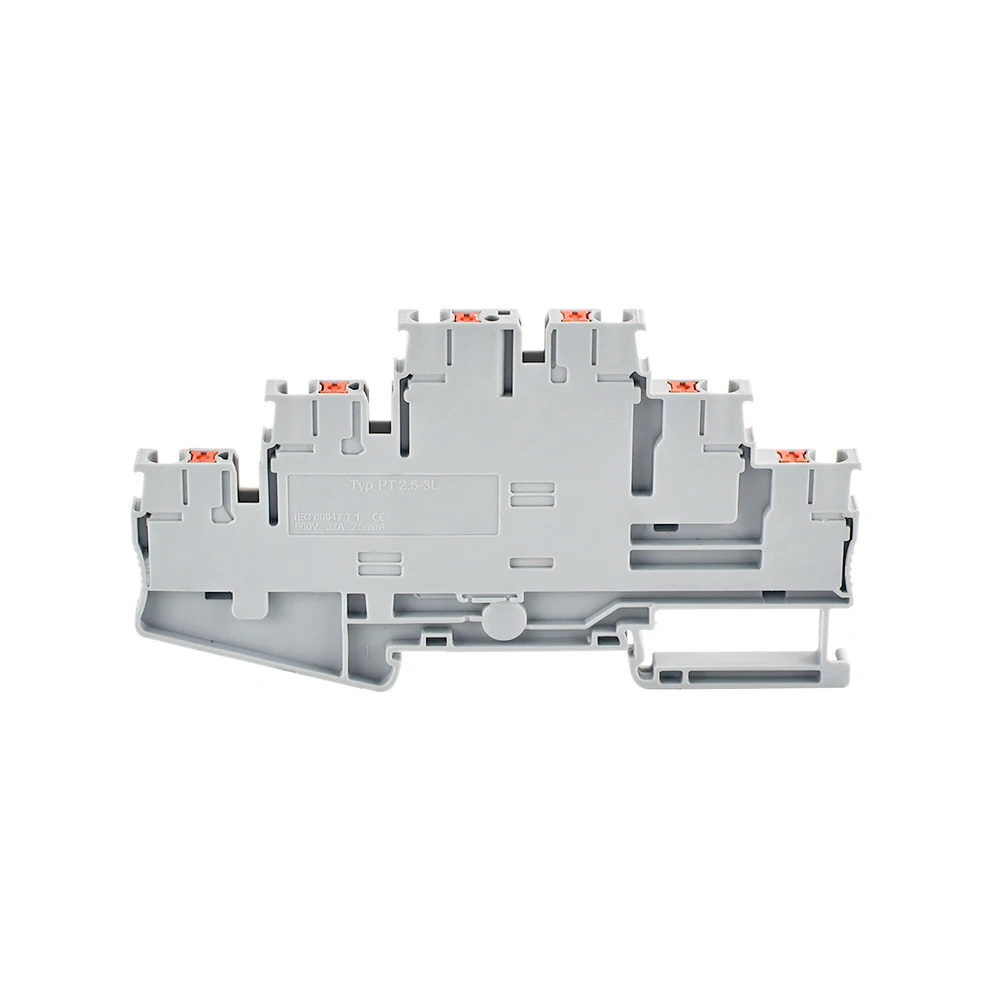

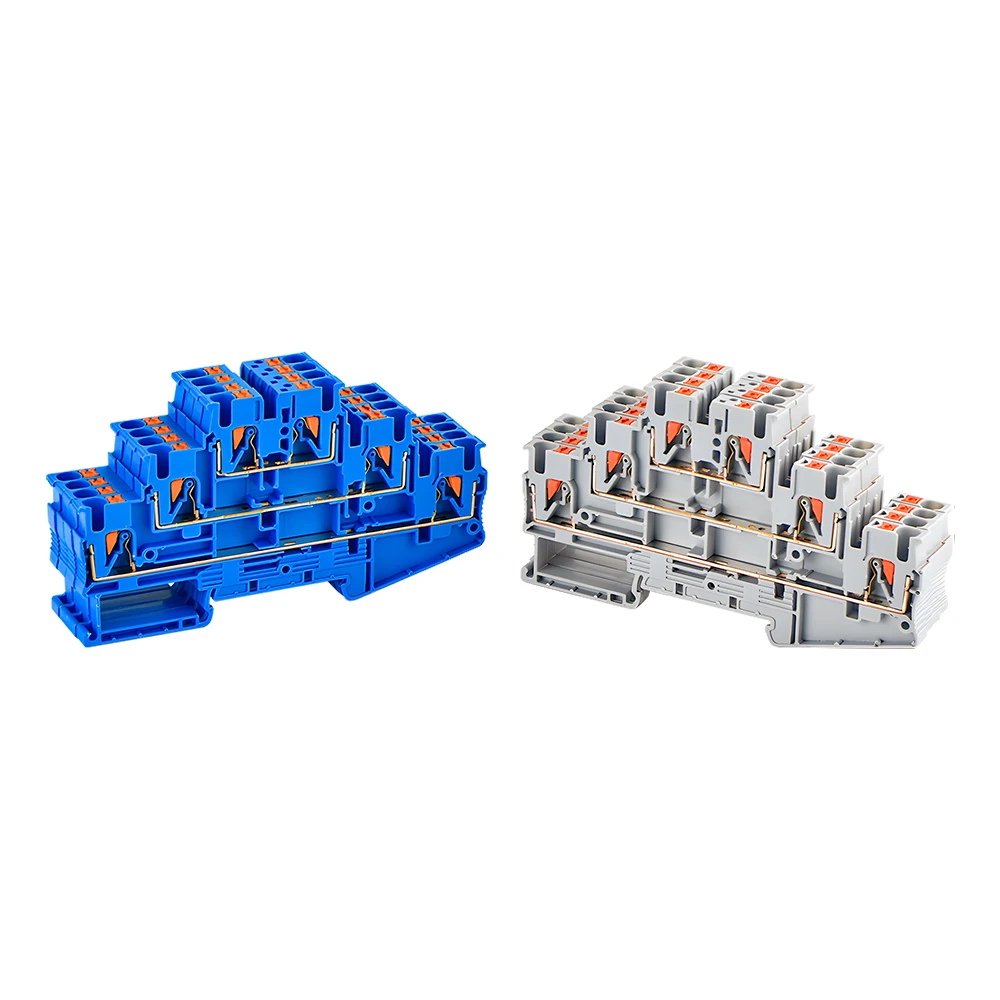

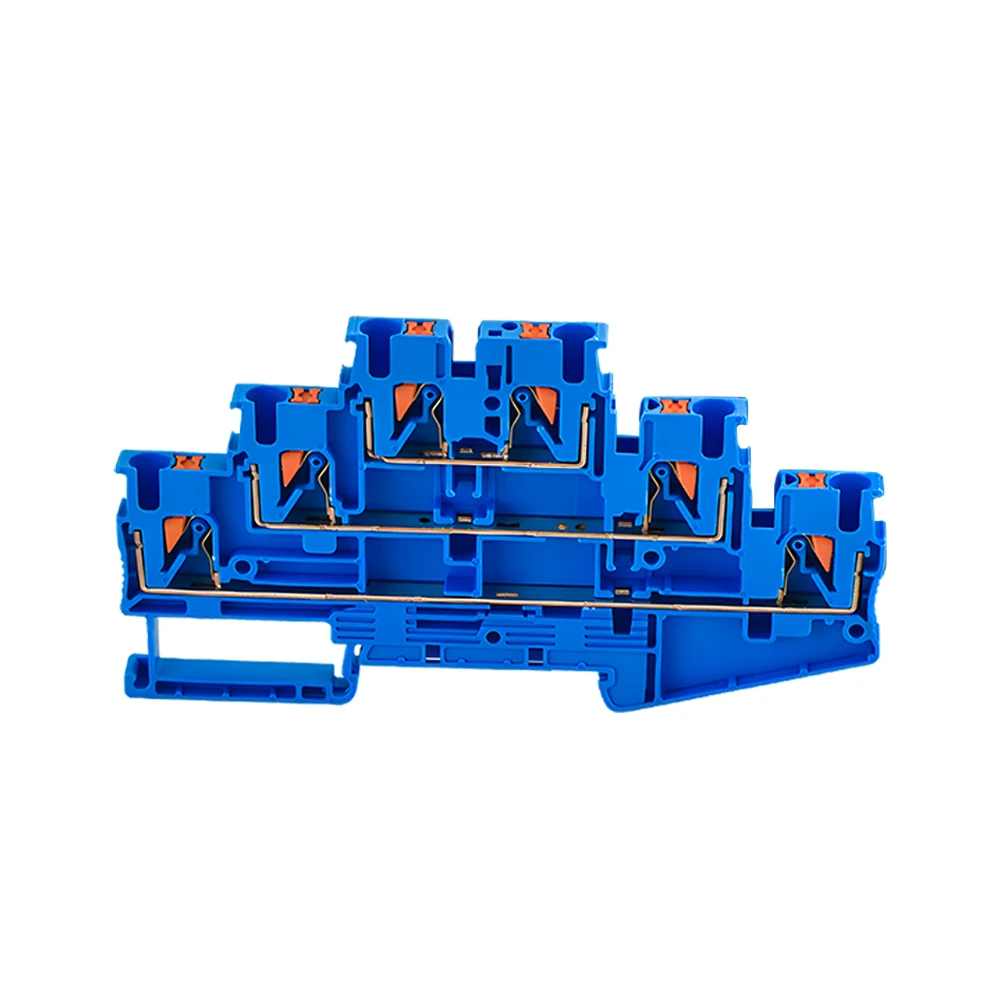

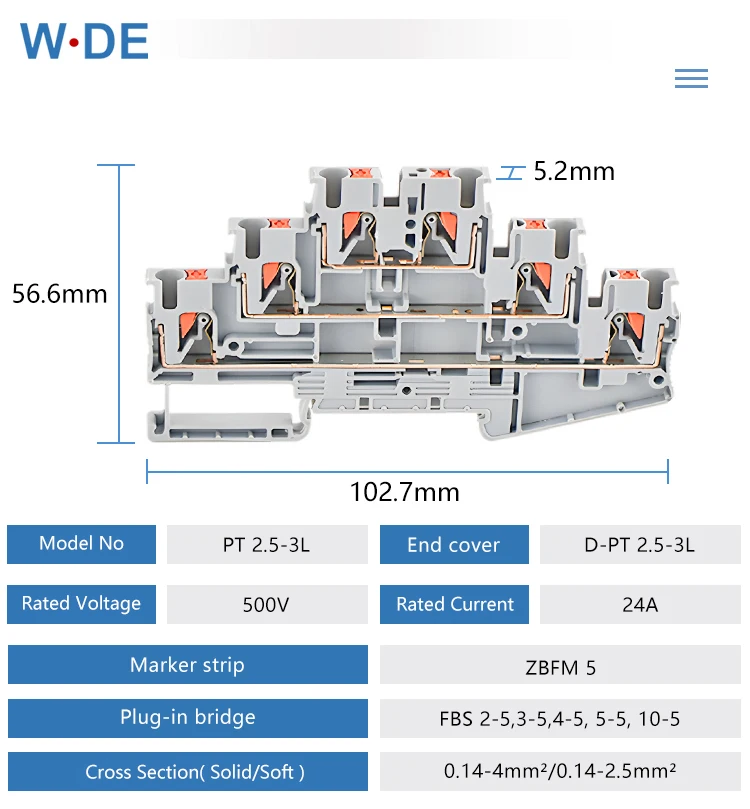

Model Number | PT 2.5-3L |
Color | Grey |

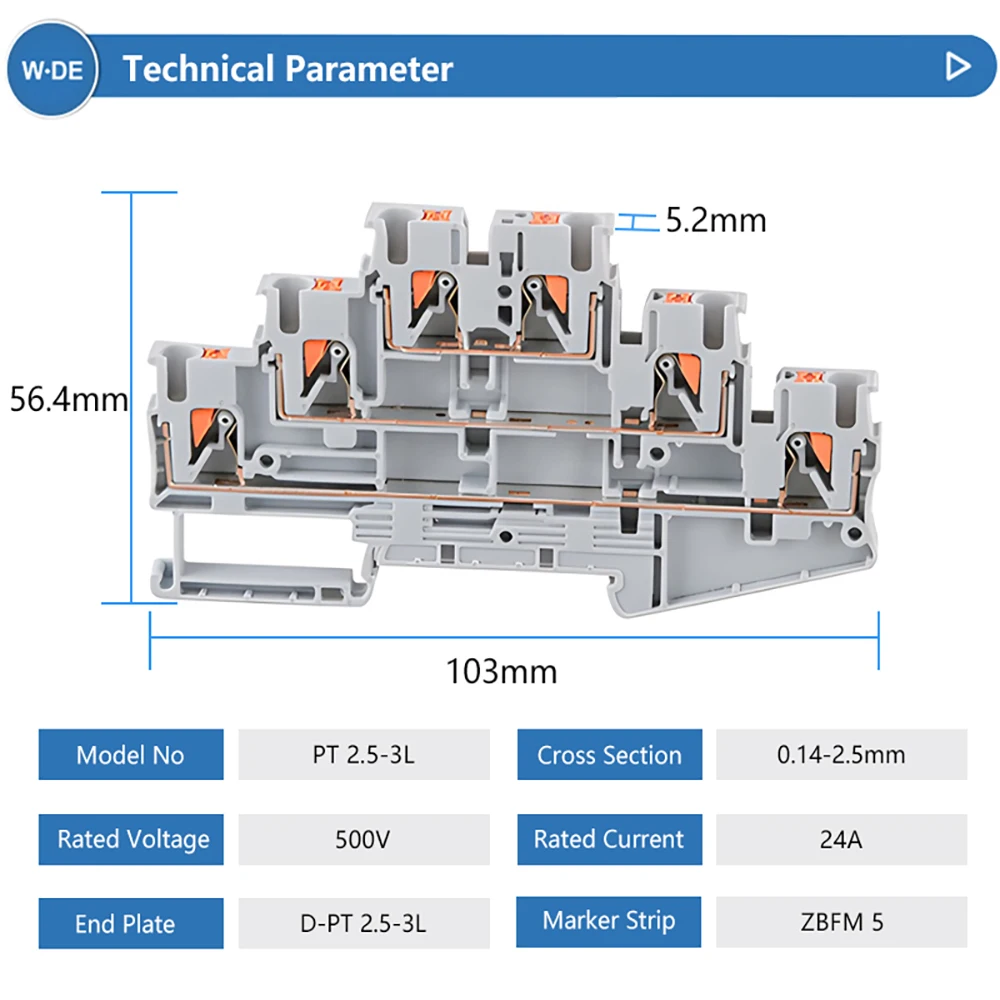

Length/Wide/Height (mm) | 103/56.4/5.2 |
Connection method | Spring-cage connection |
Material | Nylon PA66 |
Rated Voltage/Current | 500V/24A |
Cross section, solid/soft Cable | 0.14-4mm2 / 0.14-2.5 mm2 |
Conductor Size | 26-12 AWG |
Mounting Type | NS 35/7.5 |
Recommend
Type No. | Cross section | Voltage/Current | Picture | Click it |
UK2.5B | 0.2-4mm²/0.2-2.5mm² | 800V /32A |
| |
ST2.5 | 0.2-4mm²/0.2-2.5mm² | 800V /31A |
| |
PT2.5 | 0.2-4mm²/0.2-2.5mm² | 800V /31A |
| |
PTTB2.5 | 0.14-4mm²/0.14-2.5mm² | 500V /22A |
| |
UK5-HESI | 0.2-4mm²/0.2-4mm² | 800V /6.3A |
| |
DIKD1.5 | 0.2-4mm²/0.2-2.5mm² | 250V /32A |
|
