Hign-concerned Chemical: None
Scanning Light Source: Laser Light
Time to market: Mar-13
Novelty: New
Product Type: Bar Code Scanner
Model Number: RF7G
Colour Depth: 32 Bit
Signal Connection Type: Bluetooth,Wi-Fi
Scan Breadth: A4
Type: Flatbed Scanner
Interface Type: Wifi/Bluetooth/USB2.0/HDMI/RJ45
Scan Element Type: CMOS
Scan Speed: 200 scans/second
Optical Resolution: 800*1280
Brand Name: RUGLINE
Origin: Mainland China
Certification: CE,RoHS
OS: Windows Pro/Home/IOT option
Screen: 10.1" Capacitive Touch
Memory: 8G+128G
Battery: 5000mAh/7.6V
CPU: Intel Gemini lake N4120
Network Connections: WiFi,Bluetooth
Rugged Tablet PC: IP67
4G/GPS/NFC: optional

Standard Version (Without GPS ,Without 4G LTE)

About this item

【MIL-STD 810G Grade】1.5m drop protection, four corners wrapped by black high-strength plastic, precision triple protection, IP67 waterproof, dustproof, shockproof, some harsh sites, such as warehouses, geological surveys, nurseries, construction, factories, can be faced with ease, conventional equipment can not overcome the vicious conditions, so they can become rugged tablet.
【4G LTE & WiFi】SIM Cards Cellular can be used anytime, and don't need to be restricted anywhere. Field work or Business office can work like a desktop computer. Push notifications can be received online at any time, Lower notification delay, which is suitable for Business office. Stable cellular network connection.
【GPS navigation】GPS high-precision satellite system positioning, Bluetooth 4.2, to achieve faster and more stable data transfer reading and backup, can reflect the download map, in the offline or no network state, can be used to assist navigation, allowing you to use in the hot Arizona and cold Alaska normal use is no problem.


VARIOUS INTERFACES 2 x USB 3.0 1 x 3.5mm Earphone Jack 1 x Micro SD card slot 1 x Micro HDMI 2.0 1 x COM(Rs232) 1 x Type-C 3.1 1 x DC lnput	WINDOWS PRO Added features to manage devices and applications and protect sensitive corporate data; Windows 10 Pro supports remote and mobile work, allowing you to centrally manage batches of computers and share and manage resources very efficiently.	EXTRA LONG WORK Equipped with 16000mAh high-capacity battery. it can provide up to 8 hours of battery life on a singlecharge,ensuring long working hours outdoors. An essential productivity tool for getting the job done,ideal for mobile work in the enterprise.	5MP/2MP CAMERA Enjoy connecting internet and online chatting with your pals by using 2.4G / 5G Dual band Wi-Fi (802.11ac/b/g/n) Rear camera 500 megapixels Front camera 200 megapixels

Higher Efficient Intel Processor

Intel Gemini Lake N4120 CPU

Intel's new generation of Gemini Lake quad-core processors, 64-bit quad-core quad-threaded, 1.3 times higher performance than its predecessor.

The Intel Celeron N4120 has 4096 KB of L1 cache.
a base/maximum CPU frequency of 1.1 - 2.60 GHz, depending on the workload.
The Intel Celeron N4120 has a TDP of 6 W.
The processor also supports DDR4/LPDDR4 memory with a dual-channel interface.
The maximum memory officially supported is 8 GB.


4G LTE CELLULAR 4G LTE Cellular：SIM Card Cellular can be used anytime, anywhere without being restricted anywhere. It can be used in both and the United States. Fast data transmission：On-site work or business office can work like a desktop computer, with lower notification delay, suitable for business office. Stable network Stable cellular network connection, with 4G LTE cellular network, not limited to WiFi, can improve office efficiency and information synchronization.	GPS NAVIGATION Logistics distribution：GPS status information of vehicles and location information of customers is quickly and accurately reflected to the logistics system. Cargo tracking：Through GPS and electronic map system, you can know the vehicle location and cargo status in real time, and truly realize online monitoring. Route preference： Geographical analysis function can quickly choose a reasonableroute for the driver, as well as some information about this route.	FINGERPRINT LOCK More Security：Prevent data loss to keep information safe, just like digital screen unlocking, fingerprint recognition is safer and more convenient than numbers. Privacy Protection：Ensure your personal privacy, lock commonly used software, and prevent others from peeping when using your computer. Simple and convenient：No password input is required when logging in to the computer, just use your fingerprint to unlock it easily.

MIL-STD 810G Grade：It is a group of military-grade tests 2019 year Shenzhen NTEK Testing Technology Co., Ltd.
1.0 m drop protection： four corners wrapped by black high-strength plastic, precision triple protection,
IP67 waterproof grade： It could potentially be protected even in a heavy downpour during a storm

Specification

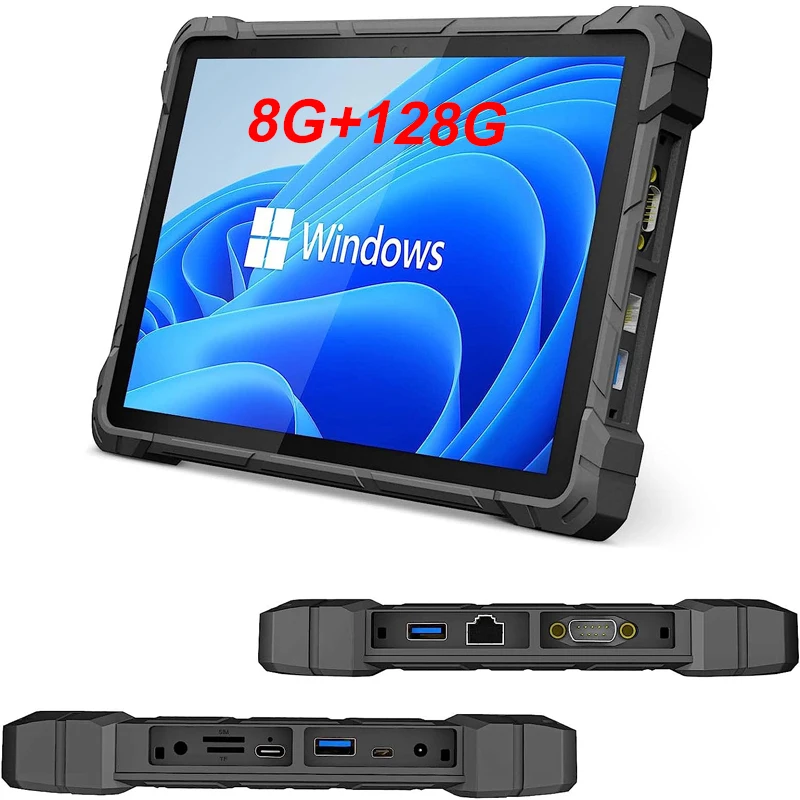

Product Number: RF7G (Intel N4120 + 8G + 128G + IP67 Rugged Tablet PC + Fanless)
Key Features	IP67, 10.1"IPS + N4120 + 8GB +128GB + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI2.0 + RS-232(DB9)+ USB3.0 + Type-C + TPM2.0 + Support Windows Pro
System Physical Standard Configuration:
Type	Details	Descriptions
Product Form	Form Factor	IP67 Rugged Tablet PC
	Dimensions	280×184×26.5mm
	Weight	1.15KG
LCD	Screen Size	10.1"
	Screen Resolution	800×1280 (IPS+HD+300ANSI) (Standrd)
		1920×1200 (IPS+FHD+1000ANSI) (Optional, MOQ=500pcs)
TP	Touch Module	G+G Multi-Touch (10 Points)
Battery	Type	Rechargeable lithium polymer
	Capacity	6000mAh/7.4V
	Working Time	Over 5 hours (FHD local video display)
System Hardware Configuration:
Type	Details	Descriptions
CPU	Type	Intel Gemini lake N4120 (Quad-Core)
	Speed	1.1GHz ~ 2.6GHz (N4120)
GPU	Type	Intel UHD 600 Graphics
Memory	Capacity	8GB LPDDR4
Storage	eMMC	128GB
	SSD	Optional (Mini PCI-E slot)
Camera	Front	2M
	Rear	5M
Speaker	Built-in	8Ω/1W*2pcs with water proof
Micphone	Built-in	Yes
G-sensor	Built-in	Yes
Light-sensor	Built-in	Optional
Network Connections:
Type	Details	Descriptions
WIFI	WIFI Module: Intel AC3165	WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Blue-tooth	BT Module: Intel AC3165	Blue-tooth4.2
4G LTE	Optional	Optional (Mini PCI-E slot)
QR code Scanners	Standard	Optional
GPS	BD2/GPS/Glonass (Choose two of the three)	Optional
NFC	Optional	Optional
Fingerprinter	Optional	Optional
RFID	UHF band	Optional
Ethernet Network	RJ-45	1000Mbps Gigabit Lan

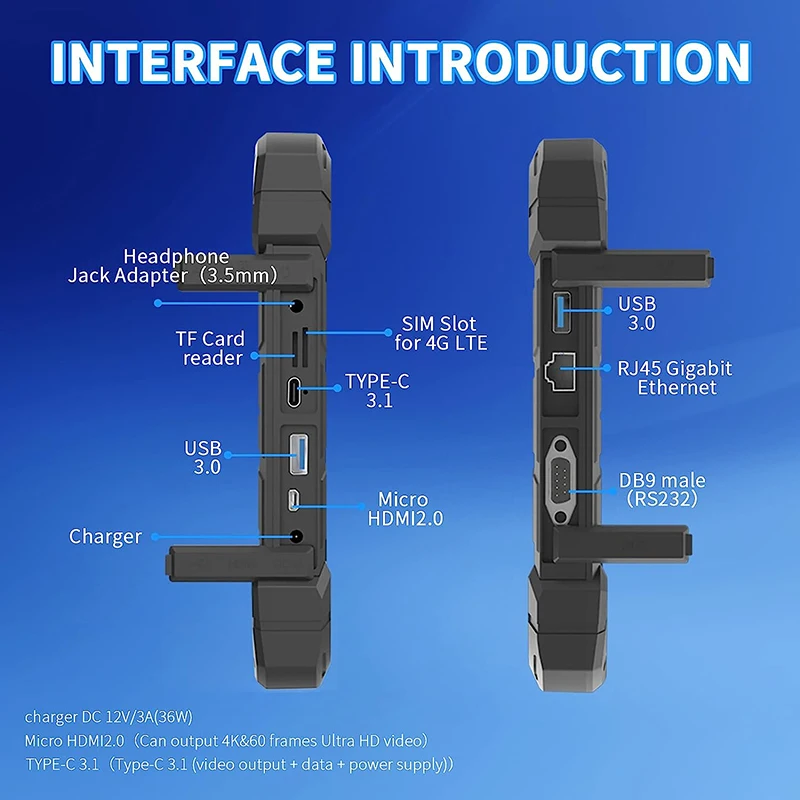

Interface Configuration:
Type	Details	Descriptions
Type-C	Type-C 3.1	×1pc
USB Interface	USB3.0	×2pcs
SD / TF Card reader	TF Card reader	×1pc (up to 512GB)
SIM Card Slot	SIM Slot for 4G LTE	×1pc
Audio Jack	3.5mm standard headphone+Microphone	×1pc
HDMI	Micro HDMI 2.0	×1pc (Output 4K@60fps UHD video)
COM Port	DB9 (RS232)	×1pc
Button Switch:
Type	Details	Descriptions
Power	On/Off	×1pc
Volume	Down/UP	×1pc
HotKey	Hot Key for QR Scanner	×1pc
Forced outage	Power restart when push restart button	×1pc
Main Accessories:
Type	Details	Descriptions
Power adapter	DC 12V/3A	×1pc
User's Manual	User's Manual	×1pc
Handle Straps	Handle straps and hand clasping	Optional
Extension Docking	USB2.0; Power charging; RJ45; RS232	Optional
Vehicle Bracket	USB2.0; Power charging; RJ45; RS232	Optional
Software Configuration:
Type	Details	Descriptions
Power on Function	By Power Button or Auto Power on	Optional
Wake up on Lan	Wake up on Lan by RJ45	Yes
PXE	Preboot Execution Environment	Yes
Security	TPM2.0 (Hardware) contained	Optional
Operating System	Windows 10 Pro or above	Yes (Officoal Windows license is Optional)
Environment:
Temperature	Operation Temperature	-10oC ~ 55oC (1080p or 4K local video display)
	Storage Temperature	-20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
Humidity	Oprating Humidity	35% ~ 80% relative humidity, Non-condensing
	Storage Humidity	20% ~ 93% relative humidity, Non-condensing
Certification:
IP67	IP67 Certification	Yes
CE	CE-Red	Yes
MIL-STD-810G	Match the military standard of USA	Yes
