10.1 inch Windows 11 Pro Rugged Tablet RAM/ROM 8GB+256GB,Industrial Tablet PC with 1D/2D Scanner and Docking Station

R$ 2.097,82

Availability: 500 em stock

REF: 1005009620939693
  • Battery Included: Yes
  • Hign-concerned Chemical: None
  • Color: black
  • Package: Yes
  • Model Number: ST11-J N5100
  • Type: Embedded Computer
  • Brand Name: sincoole
  • Origin: Mainland China
  • Certification: CE
  • Screen Size: 10.1 inch
  • OS: Windows 11 Pro
  • CPU: Celeron N5100
  • Battery: 6000mAh/7.6V
  • WWAN: 4LTE/WIFI/BT/GPS/NFC
  • interface in/out port: USB/HDMI/RJ45/RS232
  • LCD: 1920*1200 IPS 450 nits
  • RAM/ROM: 8GB/256GB


10.1 inch Windows 11 Pro Rugged Tablet RAM/ROM 8GB+256GB,Industrial Tablet PC with 2D Scanner and Docking Station.


Main features:


1. 10.1Inch 1200*1920 solution, 450nits and AG protector sunshine readable LCD

2.CPU: intel Jasper Lake, N5100 (4 core) 1GHZ to 2.8GHz

3.RAM/ROM 8GB/256GB.

4.6000mAh, 7.6V lithium battery(sliding battery cover optional).

5.Built-in 4G LTE/WIFI/GPS/BT/NFC

6.Front: 5MP; Real: 13MP

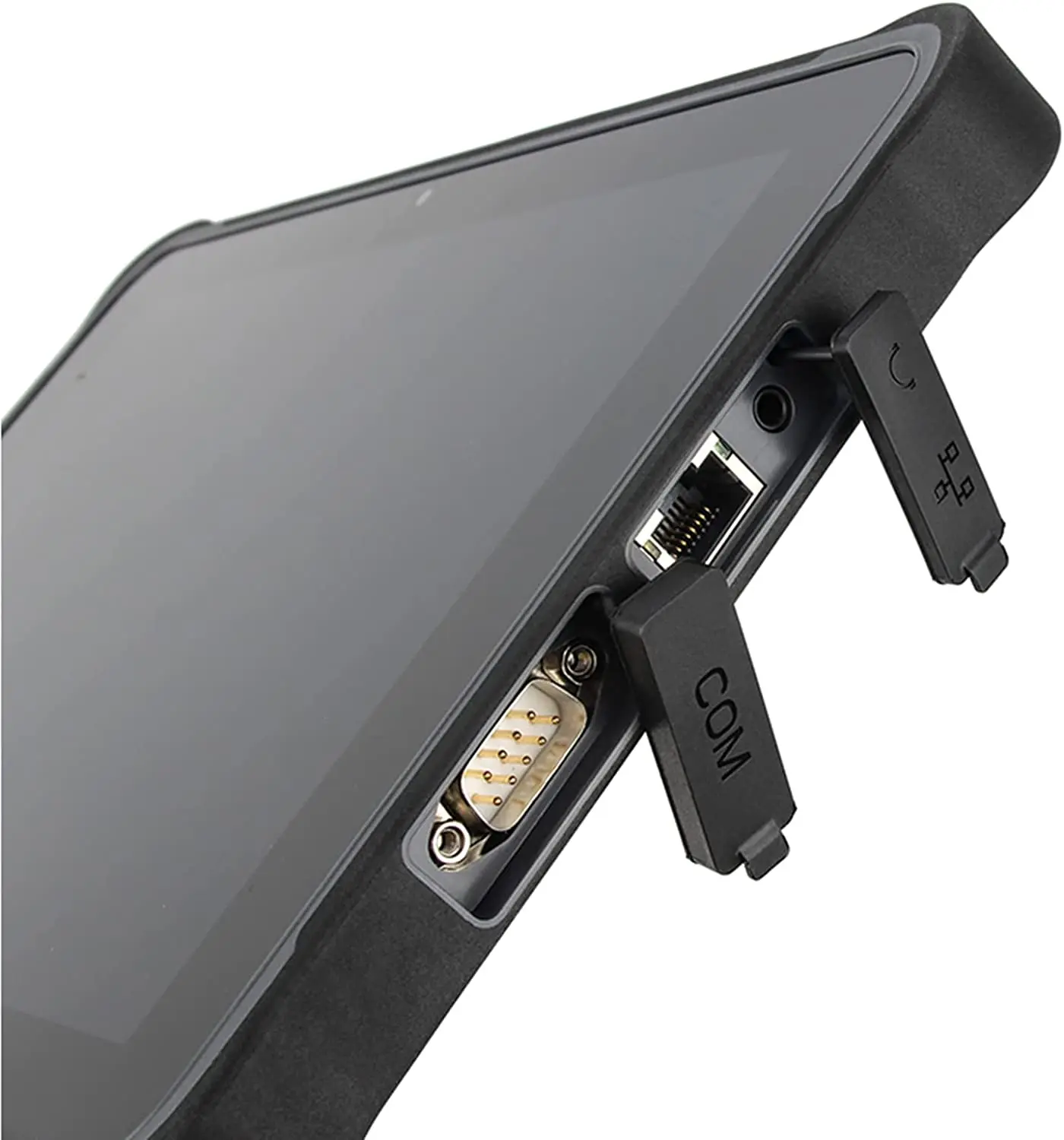

7.interface ports: USB3.0*2, Type-C*1, RJ45, bottom pogo pin, back pogo pin, DC*1 4.0*1.7mm, microphone + earphone, RS232, HDMI.





ITEM

DESCRIPTION

detail

OS

windows 11pr


CPU

intel Jasper Lake, N5100 (4 core) 1GHZ to 2.8GHz


RAM/ROM

8GB/256GB


LCD

10.1 inch 1200*1920;

max 500 nits sunshine readable

Touch screen

10 point touch
support tylus
support thin glove touch


Camera

5M/13M


Power and battery

6000mAh, 7.6V lithium battery


DC4.0*1.7mm, 12V 3A DC in put


WWAN

4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC

4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8

GPS

baidou,GPS, glonass


wifi

802.11a b, g,n,ac wireless internetWireless AP ( Mobile AP )2.4G, 5G

intel 3165

BLUETOOTH

4.2 version


NFC

13.56 MHz, distance 5cm or above


SPEAKER

1.5 watt


Sensor

1. light sensor
2. acceleration/gravity


size

275*178*18mm


Multi-media
(Hardware decoding)

Photo Viewer

BMP, JPG, GIF, PNG

Video Format

MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)

Audio Format

MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)

language 语言

multi language

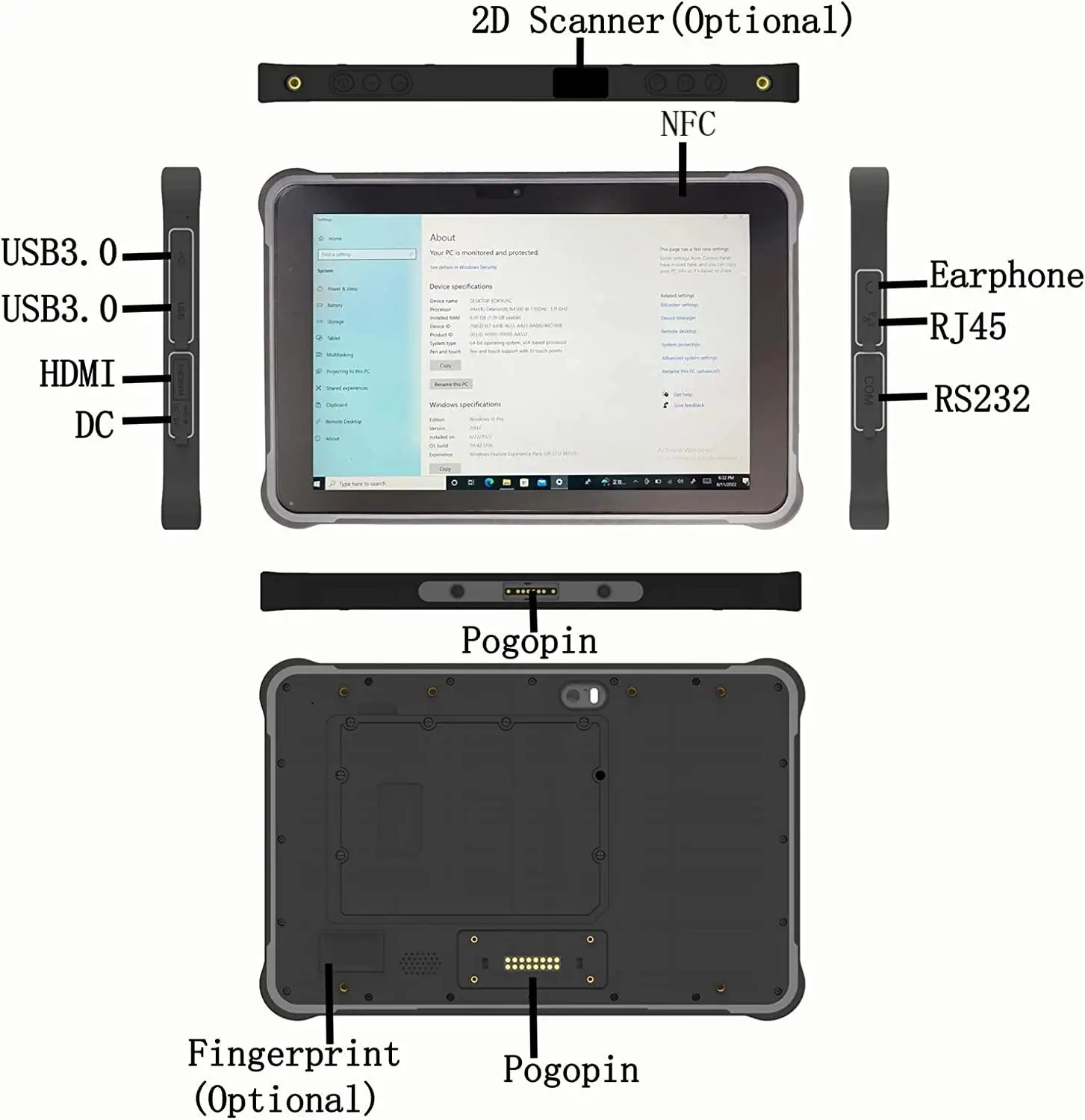

interface
in/out port

1.USB 3.0 *2
2. TYPE-C*1
3. RJ45*1
4. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. HDMI
9.RS232*1


Pogopin definition

1.16pin back of cover, include (1USB, 1 RS232, 1 UART, 3.3V, 5V)
2. 8pin in bottom; (1USB, 1 RS232, 1 UART, 5V)
VESA hole 75*75mm or 90*90mm


casing material

ABS/PC/rubber TPU/aluminum


button

V+ -, Power, P, F, H


2D barcode module

honeywell N3680

optional

UHF

900MHz

optional

fingerprint

support

optional

Front NFC

under the screen, the distance is 3-5cm, mifare one is optional

optional

high precision GPS

0.25-1 meter high precision GPS, support GPS, beidou, glonass

optional

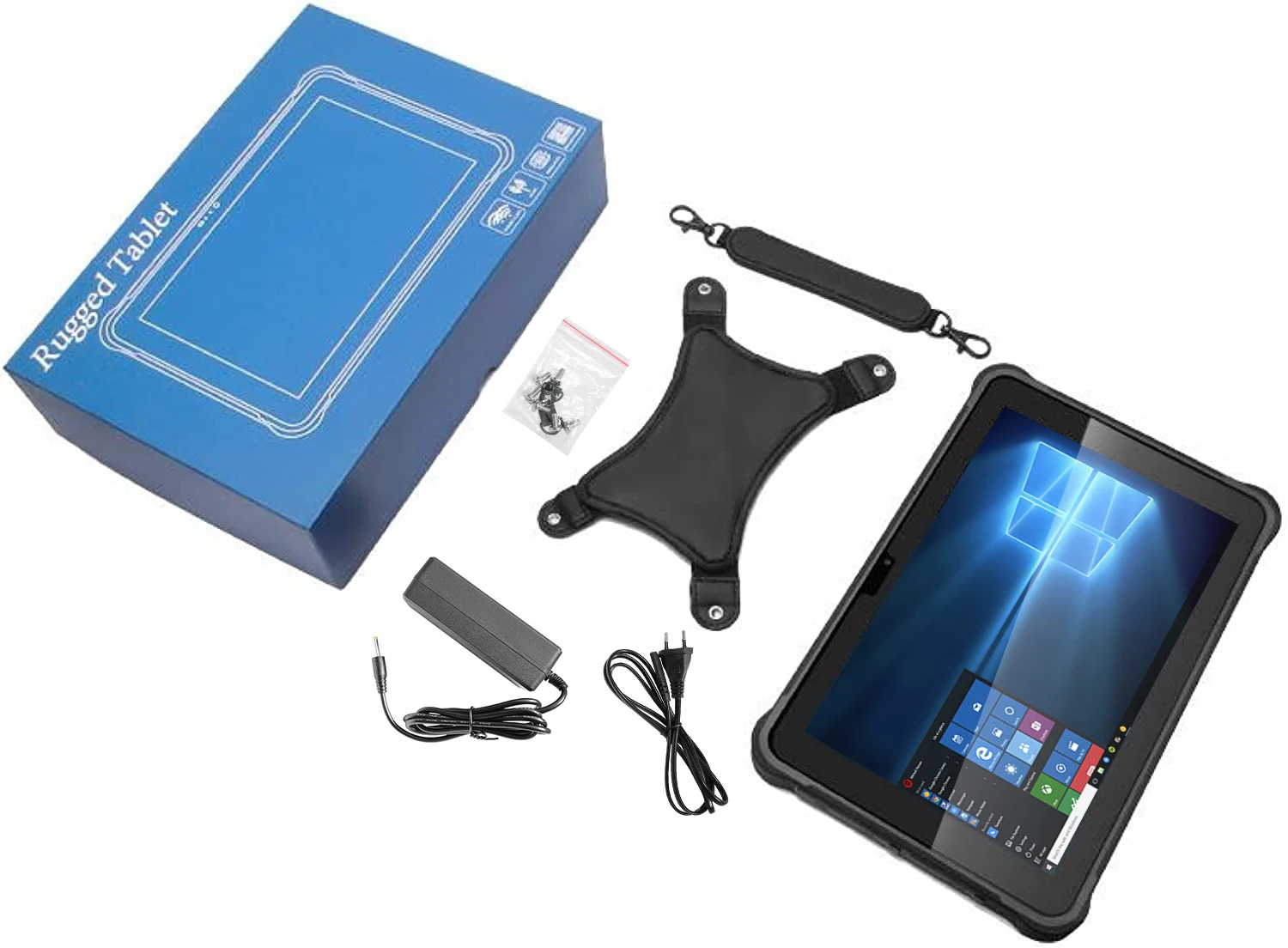

accessories

1. USB cable
2. charger
3. handstrap
4. car holder-----optional
5. docking station
6. car charger----optional
7. white box, no logo


proof rate

1. water proof IP65
2. Drapping proof 1.2 meter


Certification

1. 810G
2. CE,FCC


Temperature

1. storate temperature -25 to 80 degree
2. operation temperature -20 to 60 degree




Our Service :

1. All items will be 100% check or tested before shipping.
2. Warranty is 12 months, if there is no Man-made problem,we will replace or repair for your freely.
3. If you need to exchange or return,please request a return address from us.Items return must contains all accessories and packing well.The buyer should pay for the return shipping fee.
4. For the product maintenance,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
5. We own the best after-sale service, if any problems happened,our team will do our best to solve for customers.
6. We will provide technical assistance for the whole life.
7. Please send by FedEx/TNT/EMS or your local post when send back.

FAQ:

1. Are you manufacturer?
Yes, Sincoole Technology is professional industrial rugged tablet and handheld PDA terminal manufacturer and factory.
From industrial design, mainboard design, products reliability testing, and production. We control the quality in total process. So you don’t need worry.

2. Would you provide SDK for me ?
Yes, we offer free SDK if you order sample.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our products (Excluded the consumable parts).
4. What is the mimimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample, If the cusomer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
When they place the mass order ,we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal, Besides ,we accept Western Union ,T/T.L/C,Secure payment (Escrow Service from Alibaba) and so on
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment, For quantity, the leading time will be 1-4 weeks depends on exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or Aramex EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty.
b. Enough stock spare parts for guarantee.
c. Professional enginerrs provide 7*24 online service.


Feedback :


If you are satisfied with our products and service, welcome to re-order and give us a5-Starfor the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.Thank you!
