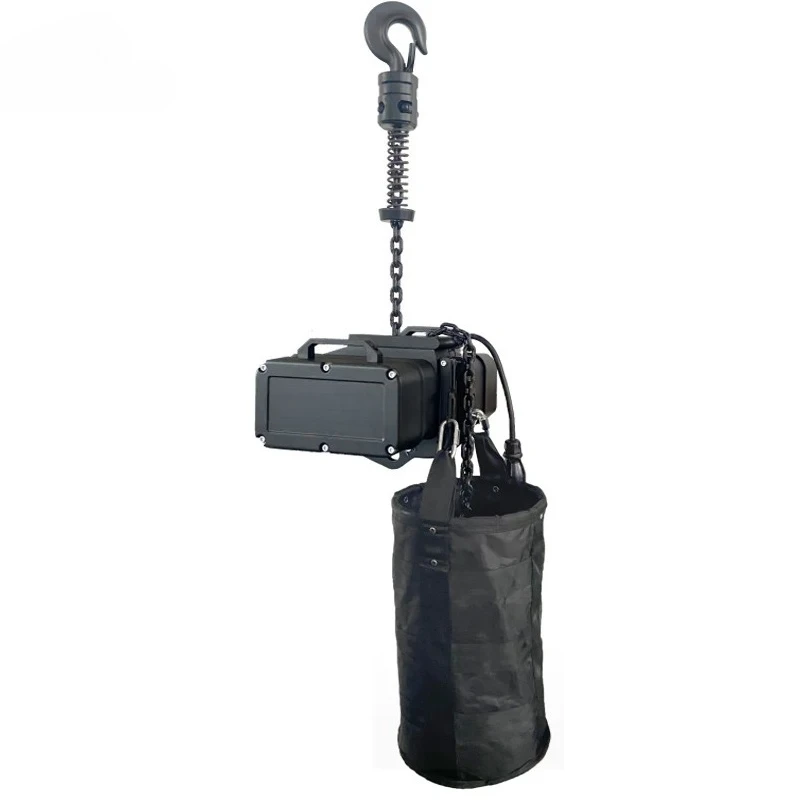

Products Description

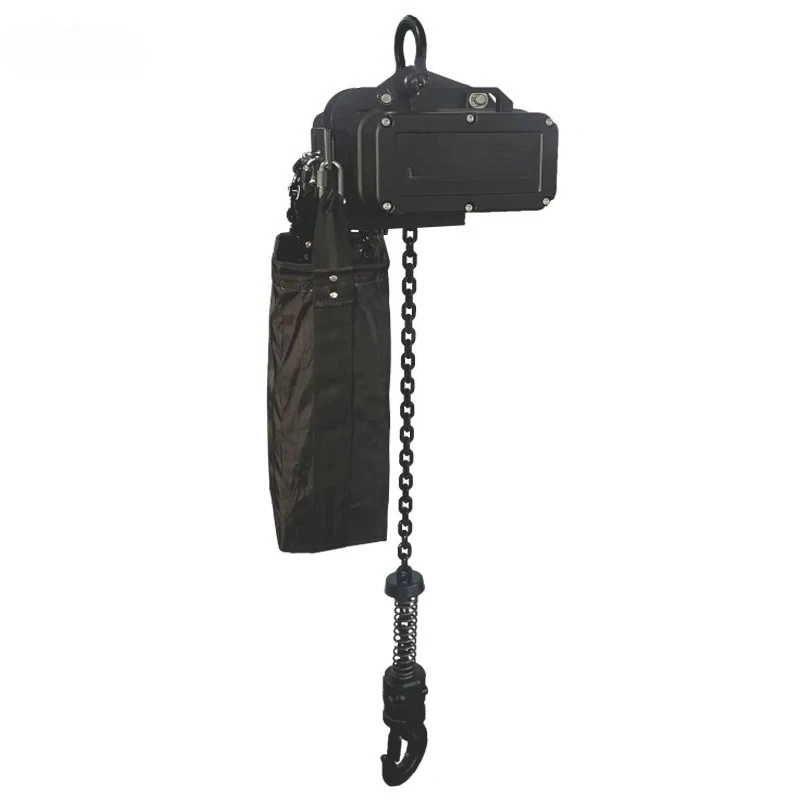

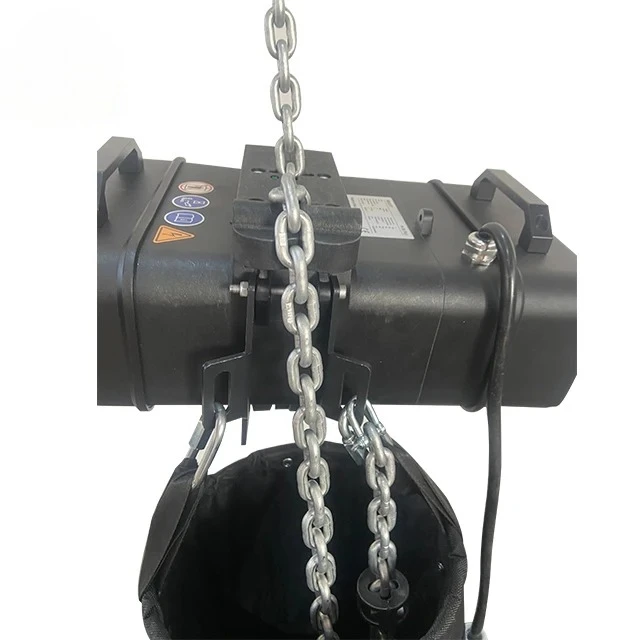

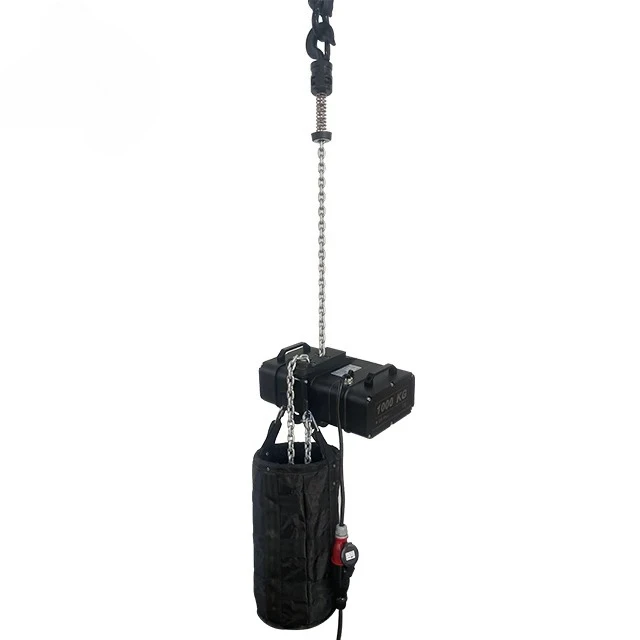

DSH-T1 D8
Product Features
Single Brake Individual mechanical brake and electromagnetic brake, ensure stage hoist safe during working. Overload Protection(Option) The stage hoist will stop working when overloaded.
Load Chain FEC DAT load chain according to EN818-7 standards. Mini break testing meet 8 times safety factor. High Strength Aluminum Light weight, high strength, corrosion resistance, Reach to IP 66. Alloy Steel Forging Hook It can be rotated 360° and meet 8 times safety factor, has protecting cover.
5-tooth Load Sprocket Finish machining by CNC machining center. Suspension type design, convenient maintenance. Compact Light Construction The weight of hoist body is 28 kg.
Technical parameters
|
Model
|
Capacity(t)
|
Test load(t)
|
Protection level
|
Classification FEM/IOS
|
Lifting Speed (m/min)
|
Motor(kw)
|
Load chain (mm)
|
Load chain falls
|
Net weight (kg)
|
|
DSH-T1-0.5
|
0.5
|
0.625
|
IP66
|
1AM/M4
|
4
|
0.8
|
Φ7.1*21
|
1
|
28
|
|
DSH-T1-1
|
1
|
1.25
|
IP66
|
1AM/M4
|
4
|
1.0
|
Φ7.1*21
|
1
|
29
|
|
DSH-T1-2
|
2
|
2.5
|
IP66
|
1AM/M4
|
4
|
2
|
Φ10*30
|
1
|
71
|
|
DSH-T1-2.5
|
2.5
|
3.2
|
IP66
|
1AM/M4
|
4
|
2
|
Φ11.2*34
|
1
|
73
|

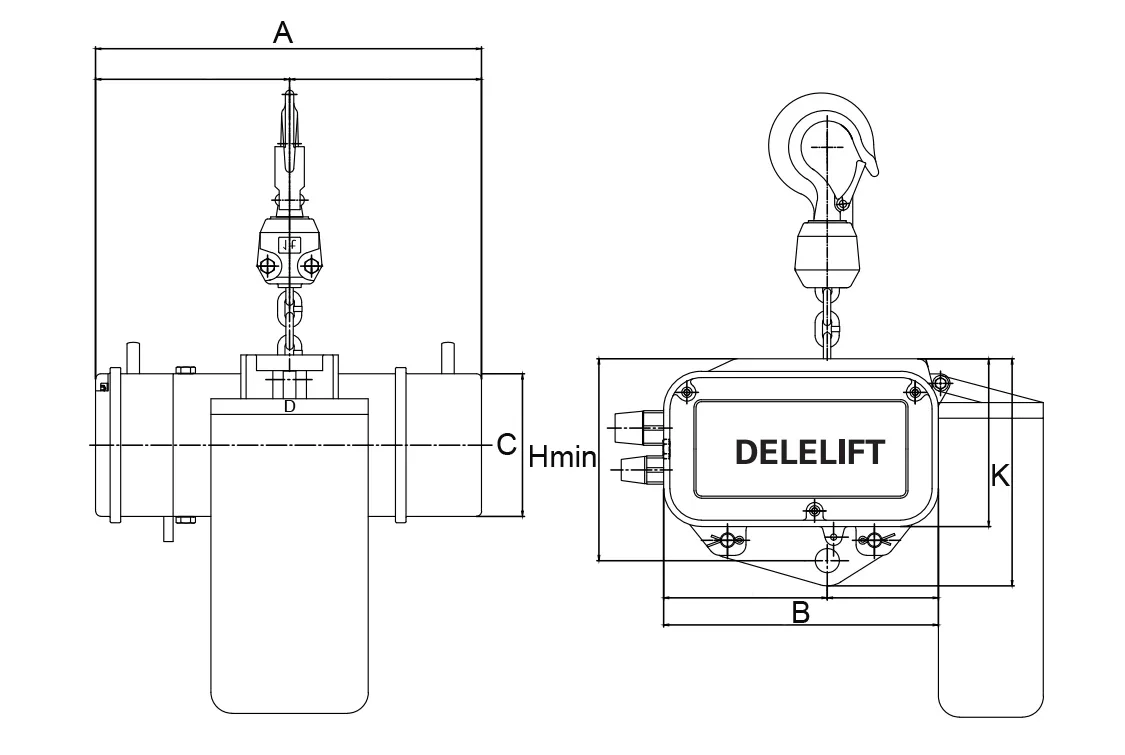

Dimension
|
Model
|
Capacity(t)
|
H
|
A
|
B
|
C
|
D
|
K
|
|
DSH-T1-0.5
|
0.5
|
394
|
426
|
262
|
136
|
50
|
216
|
|
DSH-T1-1
|
1
|
394
|
426
|
262
|
136
|
50
|
216
|
|
DSH-T1-2
|
2
|
585
|
426
|
262
|
182
|
85
|
330
|
|
DSH-T1-2.5
|
2.5
|
585
|
426
|
262
|
182
|
85
|
330
|

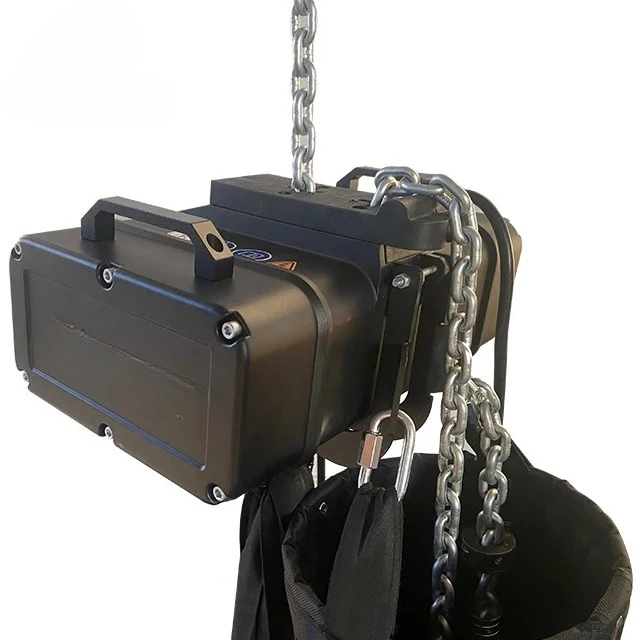

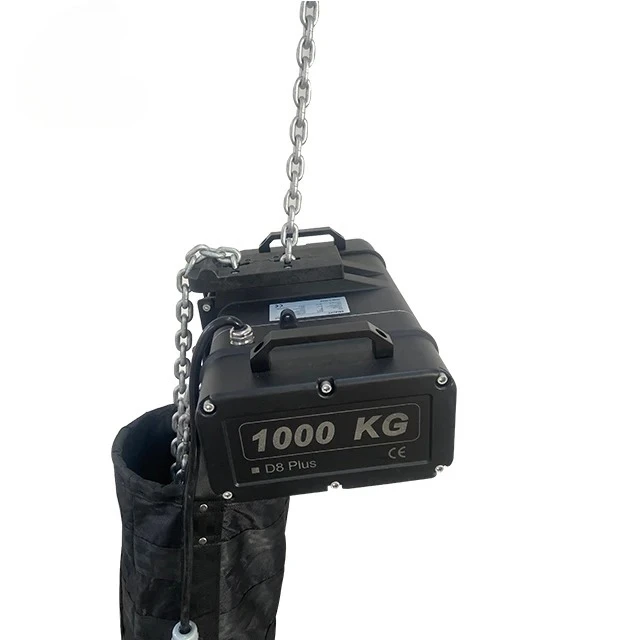

DSH-T3 PLUS 8/D8+
Product Features
鈽�1. Double brake. 鈽�2. Up and down limit switch(Option). 鈽�3. Emergency Stop. 鈽�4. Overload protection, shut down at 120%SWL(Option). 鈽�5. FEC DAT load chain according to EN818-7 standards.
6. Compact, light construction. 7. Smooth, quiet operation, ≤65dB. 8. Potable handle design, easy for transportation. 9. High strength aluminum. 10. Direct control 380 V AC or remote control 24 V DC. 11. Plastic chain guide, special design for chain exit. 12. Alloy steel forging hook. 10 times safety factor. 13. Black, low-reflective finish. 14. 18/25 m hoisting height. 15. 5-tooth load sprocket. Suspension type design, convenient maintenance,
Technical parameters
|
Model
|
Capacity(t)
|
Test load(t)
|
Protection level
|
Classification FEM/IOS
|
Lifting Speed (m/min)
|
Motor(kw)
|
Load chain (mm)
|
Load chain falls
|
Net weight (kg)
|
|
DSH-T3-0.5
|
0.5
|
0.625
|
IP66
|
1AM/M4
|
4
|
0.80
|
Φ7.1*21
|
1
|
30
|
|
DSH-T3-1
|
1
|
1.25
|
IP66
|
1AM/M4
|
4
|
1.0
|
Φ7.1*21
|
1
|
30.5
|
|
DSH-T3-2
|
2
|
2
|
IP66
|
IP66
|
4
|
2.0
|
Φ10*30
|
1
|
71
|
|
DSH-T3-2.5
|
2.5
|
2.5
|
IP66
|
IP66
|
4
|
2.0
|
Φ11.2*34
|
1
|
73
|
Dimension
|
Model
|
Capacity(t)
|
H
|
A
|
B
|
C
|
D
|
K
|
|
DSH-T3-0.5
|
0.5
|
394
|
426
|
262
|
136
|
50
|
216
|
|
DSH-T3-1
|
1
|
394
|
426
|
262
|
136
|
50
|
216
|
|
DSH-T3-2
|
2
|
585
|
426
|
262
|
182
|
85
|
330
|
|
DSH-T3-2.5
|
2.5
|
585
|
426
|
262
|
182
|
85
|
330
|

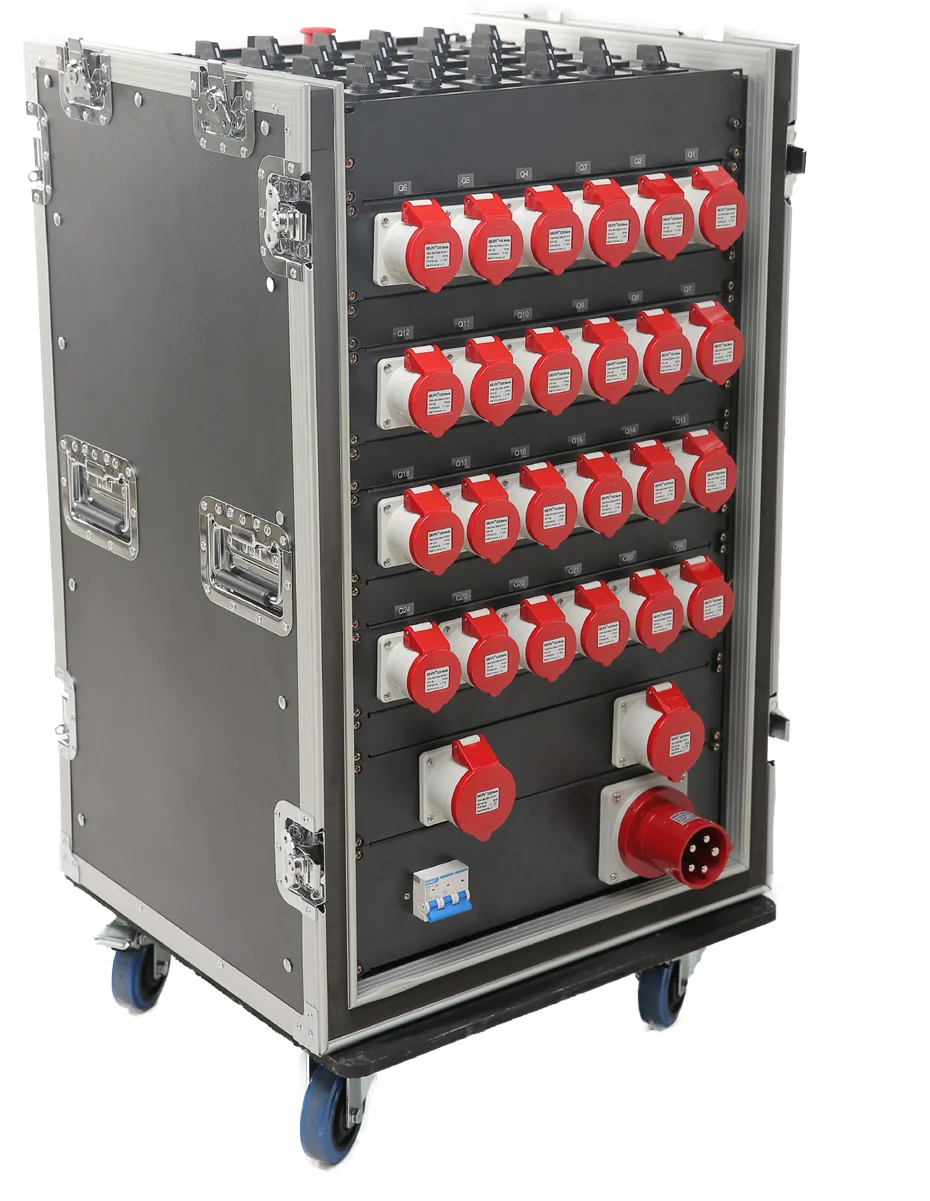

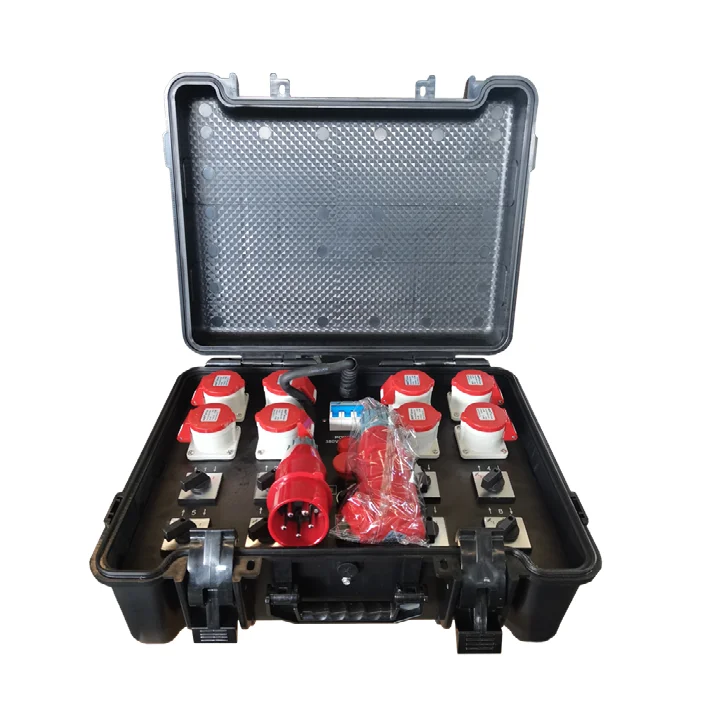

Controllers
Customized Controller
10-32channels
Fixed Controller
Customized Controller
2-8channels
Wireless Controller
Touch Controller
Wireless Shackle Load Cell
CE certified
Shackle meets ISO9001-2005
6000 service hours (theoretical value)
4:1 Safety factor
120% Overload protection
Shackle meets ISO9001-2005
6000 service hours (theoretical value)
4:1 Safety factor
120% Overload protection

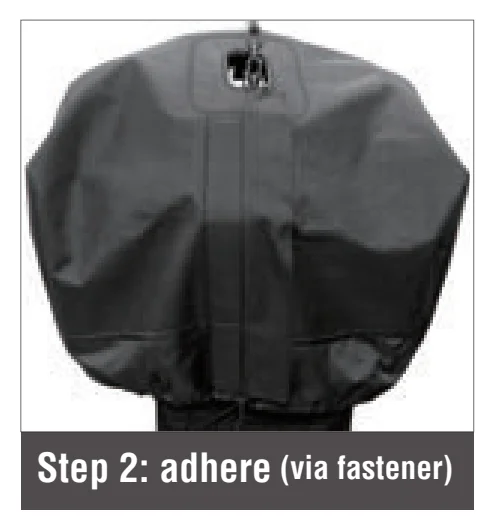

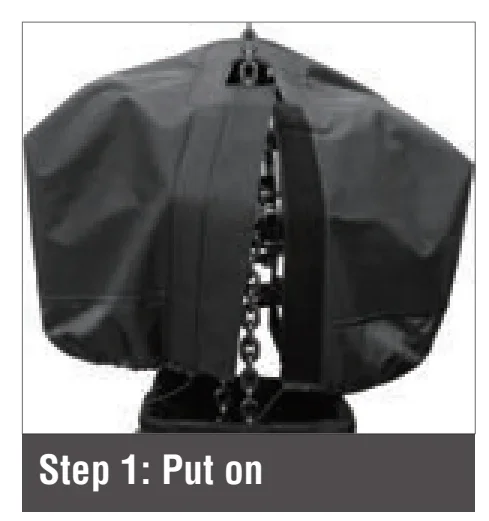

Hoist Jacket
As its name, it is the jacket to fit over the hoist body to help protect against rain ingress, dust, moisture, etc. It is made of
900 denier woven polyester and two coats of resin which proofs against the elements and provides long wearing. The standard color is black,CH- 52B. Customized color and logo embossed upon request with minimum order quantity.
900 denier woven polyester and two coats of resin which proofs against the elements and provides long wearing. The standard color is black,CH- 52B. Customized color and logo embossed upon request with minimum order quantity.

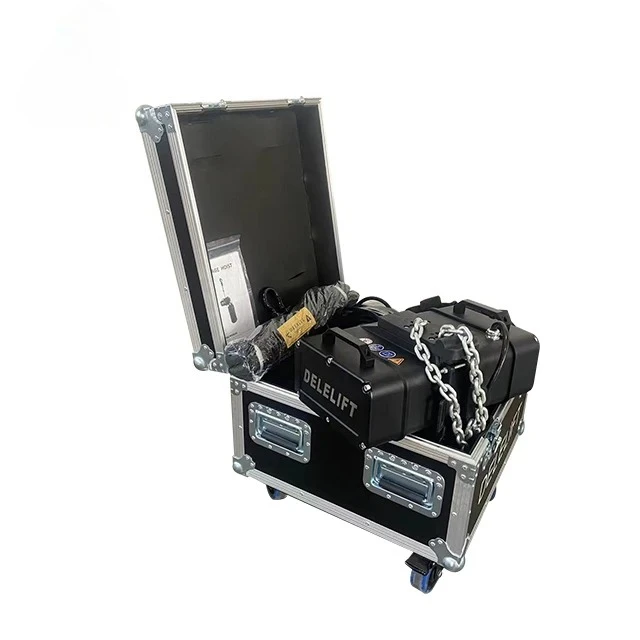

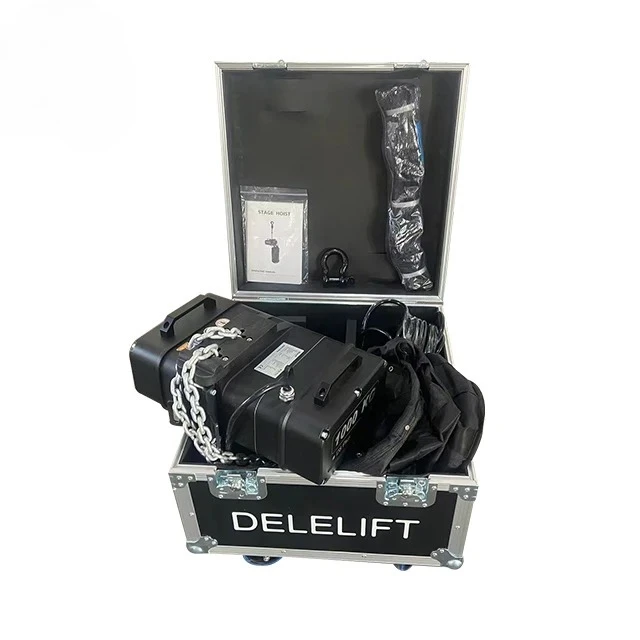

Flight Case(Standard package)
Wooden Case

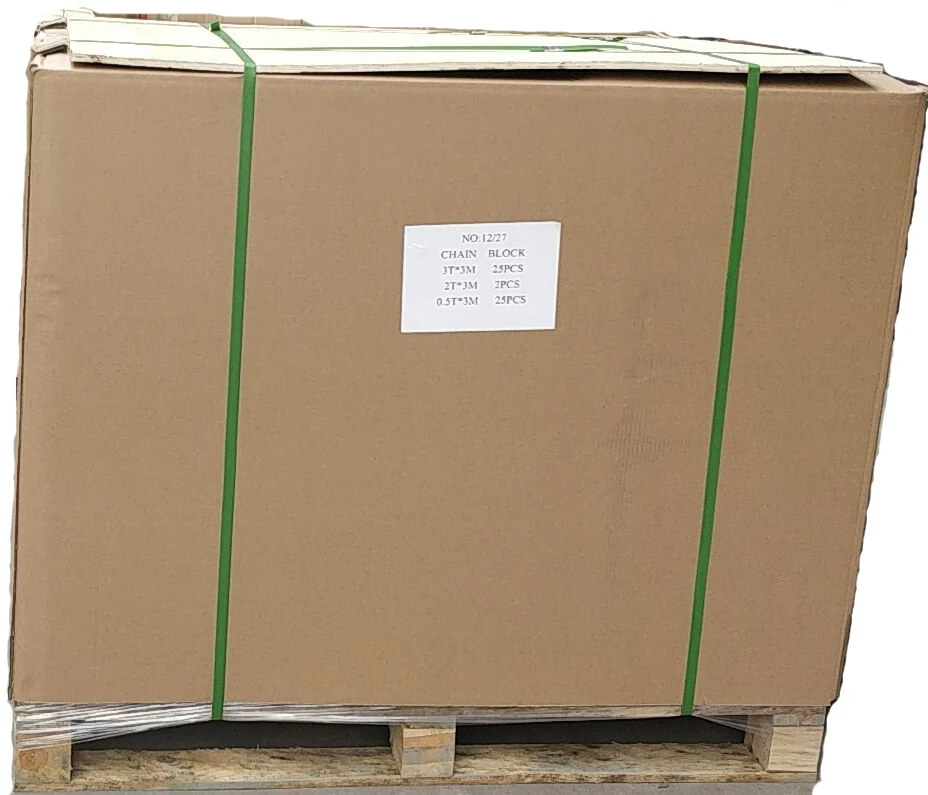

Carton+Pallet
Accessories

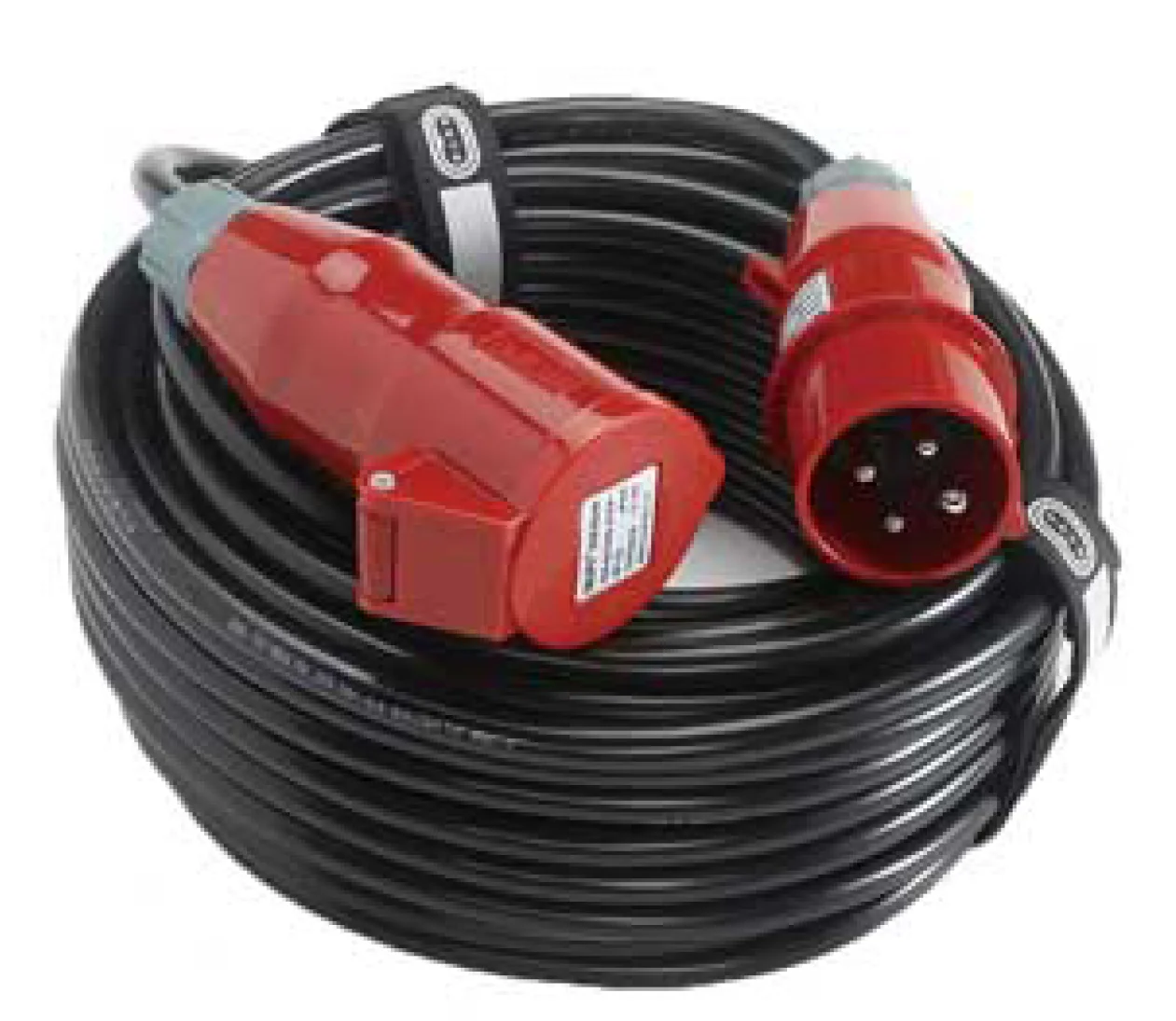

CABLE
Electric hoist connecting cable. Waterproof aviation plug, 4×15mm international cable.

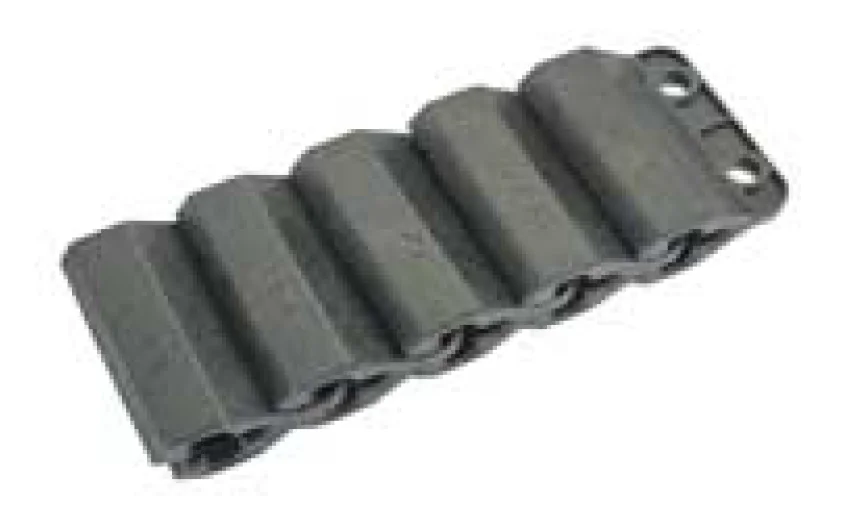

CABLE GUIDER
In the rise and fall, it's used for collecting cable. For this design, our company Has patent certificate.

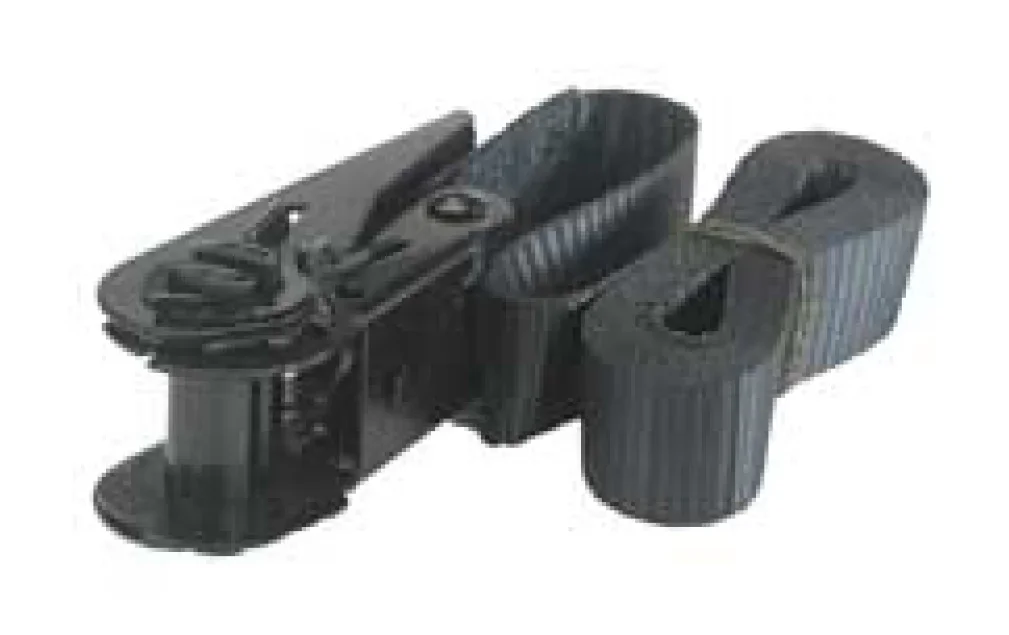

RATCHET TIE DOWN
Standard length is 8m, can custom-made 1-50m.Suitable environmental temperature is -40 - 100鈩�.Conform to European Standard EN12195-2

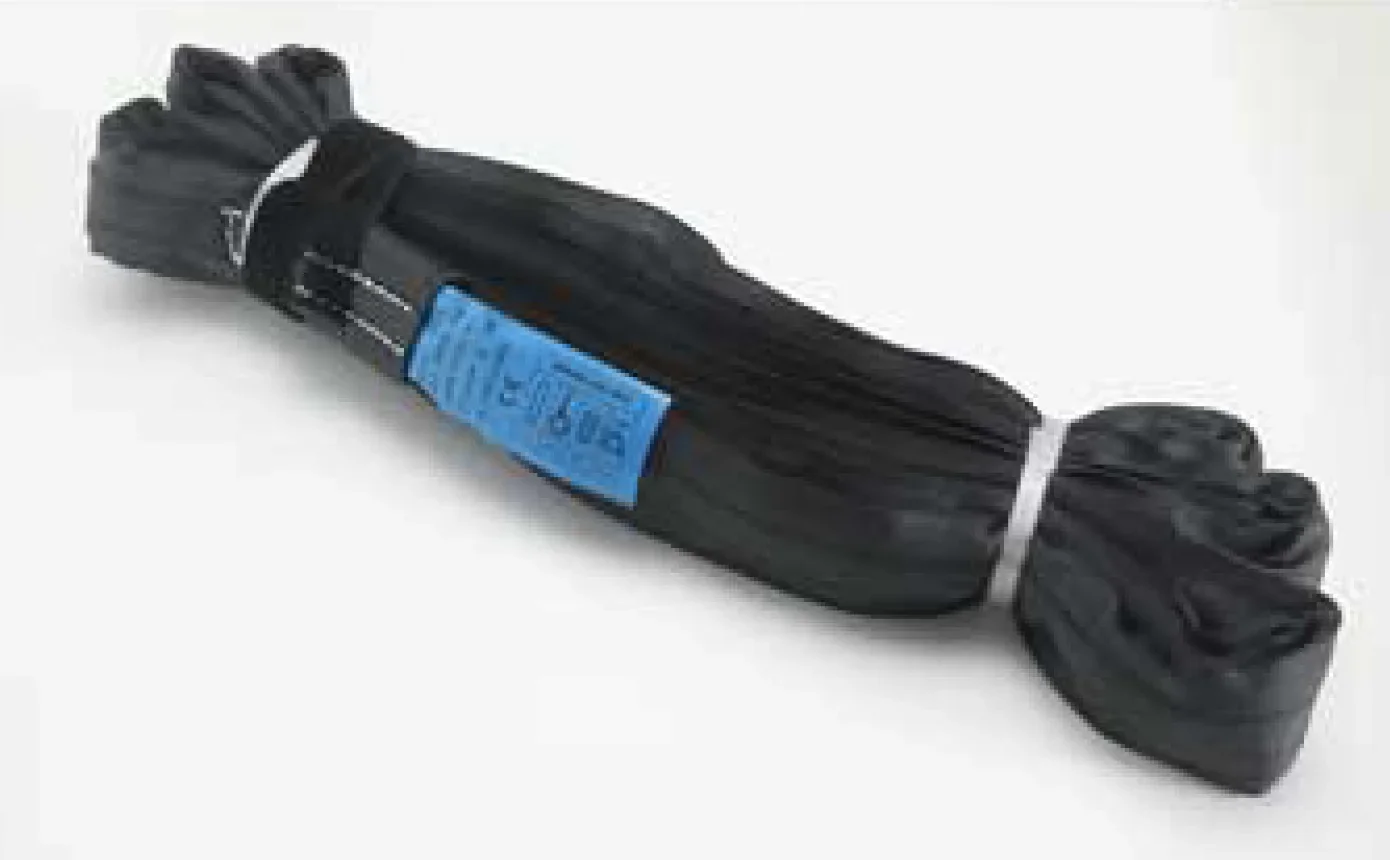

ROUND WEB SLING
Protect the surface of the goods from damage. Using imported UV can reduce and resist material aging. Moisture resistance, good heat resistance, up to 120 degrees.Low distortion, low loss and long life (100% polyester yarn). 7 times safety factor.(For higher deadweight and special length, it can be customized according to the requirements).

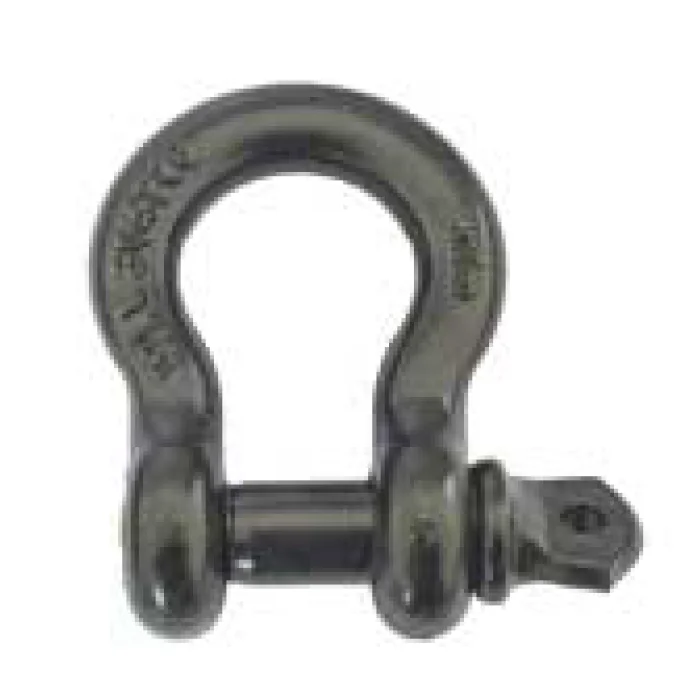

SHACKLE
Workload range: 1to 43 tons. Size from 3/16" to 2". Surface galvanized polishing treatment. The shackle itself is printed with the working load for easy identification. Safety 6:1. Heat treatment, long life. Wear resistance and fire resistance. Proven by testing. When a single shackle is used, the rated load is reduced to a qualified weight as recommended, CE compliance.

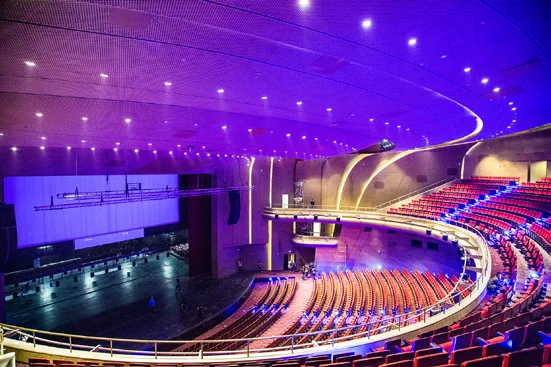

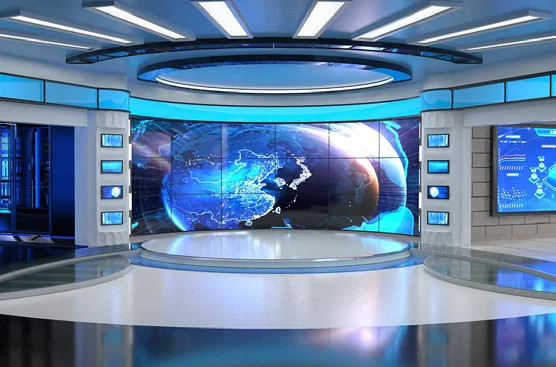

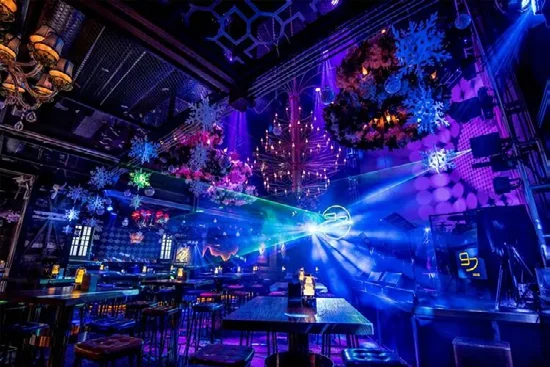

Use Occasion

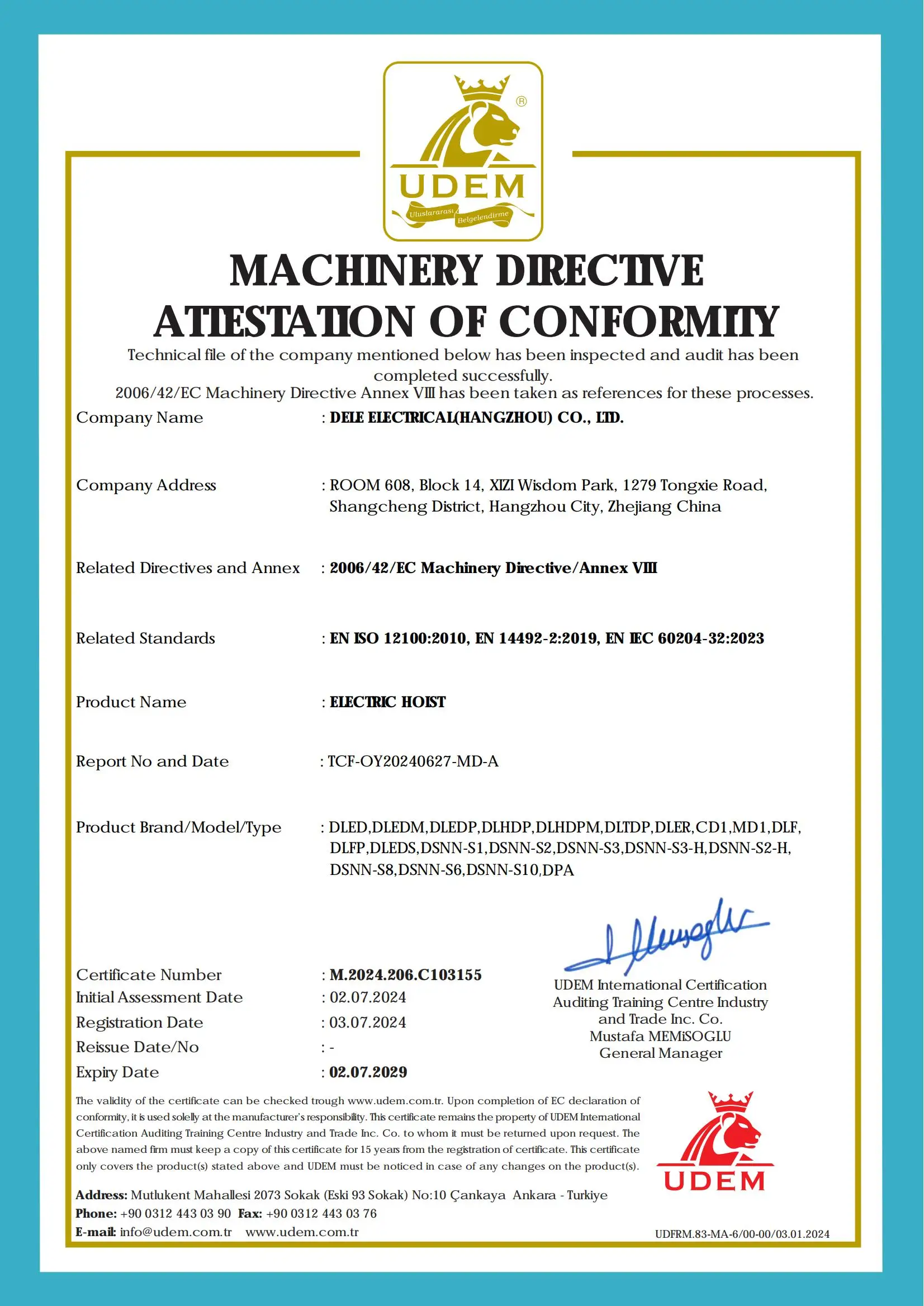

Certifications
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is OK for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is OK for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
