Name: ZICAR cnc router system wood working Milling Machine Kit 4 axis wood router 3d 1325 Cnc Woodworking Engraving Machine
SKU: 1005008389625387
Availability: InStock

Hign-concerned Chemical: None
DIY Supplies: Electrical
Brand Name: LanYuXuan
Origin: Mainland China
Certification: CE
Condition: New
Range of Spindle Speed(r.p.m): 1 - 18000 rpm
Positioning Accuracy (mm): 0.05 mm
Number of Axes: 2
No. of Spindles: Single
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 mm
Travel (Y Axis)(mm): 2500 mm
Repeatability (X/Y/Z) (mm): 0.05 mm
Spindle Motor Power(kW): 3
CNC or Not: CNC
Place of Origin: Shandong, China
Brand Name: ZICAR
Voltage: AC220V/380V or customized
Dimension(L*W*H): 3300*2200*1850mm
Weight (KG): 1200
Control System Brand: DSP
Warranty: 1 Year
Key Selling Points: Easy to Operate
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant,
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Z Working Area: 200mm
Table Surface: Vacuum table with 5.5kw water vacuum pump
Body structure: Steel structure
Max. Power Consumption(Without spindle): 1.84KW
Max. Rapid Travel Rate: 45000mm/min
Max. Working Speed: 25000mm/min
Control System: DSP A18
Oiling system: Manually oiling
Packing size (plywood packed): 3300*2200*1850mm
NW/GW: 1200KGS/1600KGS

welcome to our store! Please confirm the product model, cost and shipping method with me before purchasing the product! If you have any questions, please add my WHATS APP (+86 176 736 22604)

PARAMETER INTERPRETATION

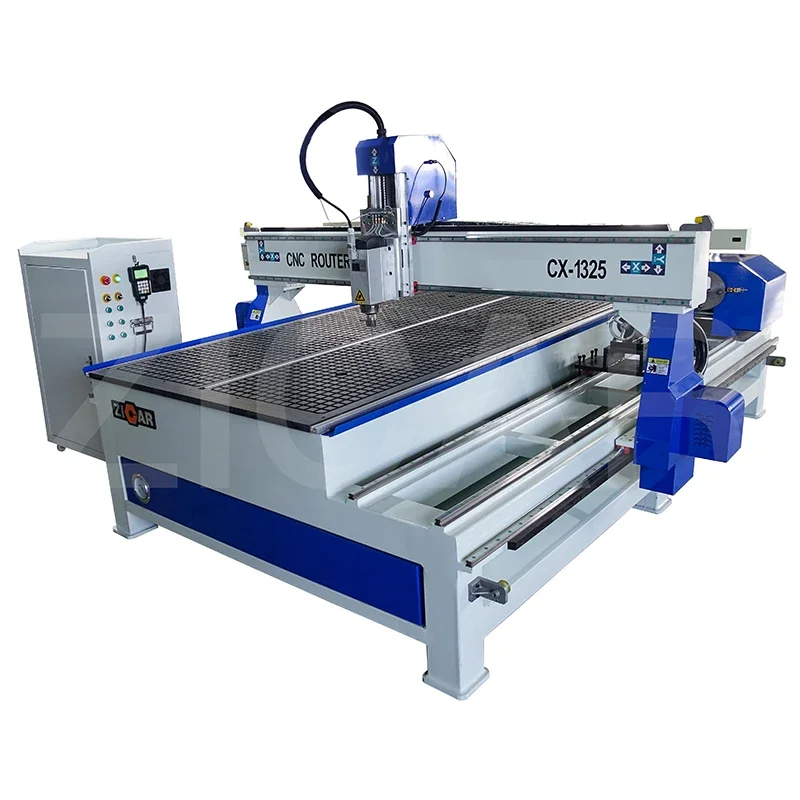

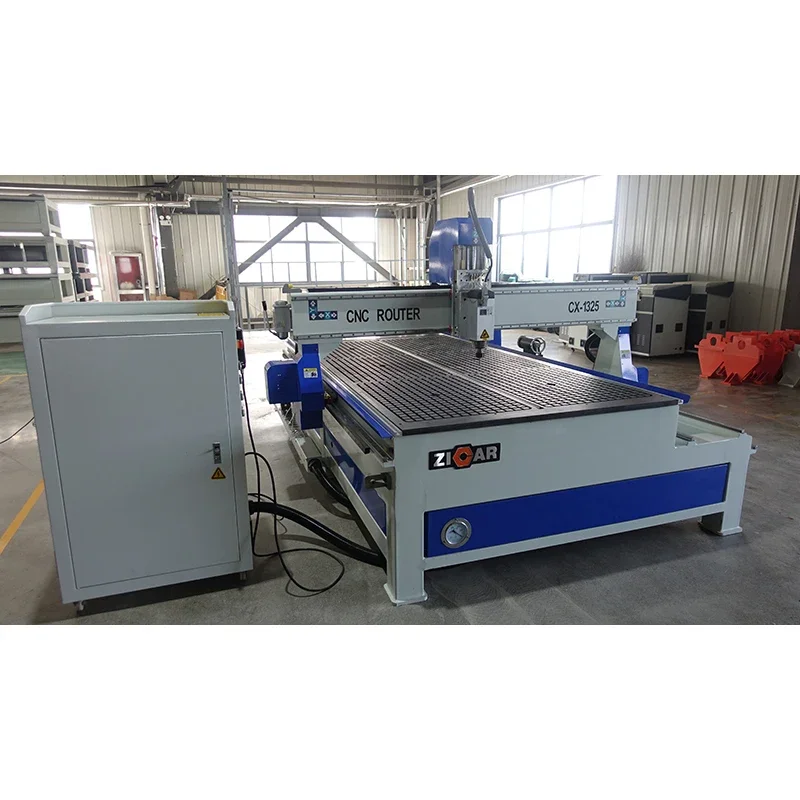

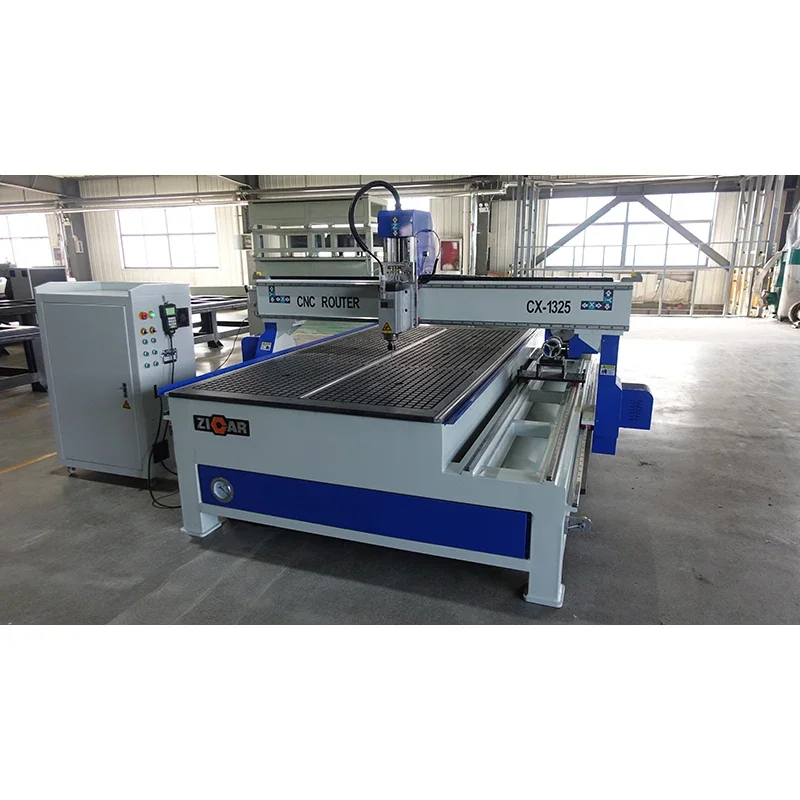

ZICAR DSP system 1325 CNC Router kit 4 aixs CNC machine for Woodworking cnc wood router 8x4 wood carving machine CX1325

ZICAR wood router advantages:

● Rotating axis: Rotating axis processing cylindrical and square cylindrical materials.

● High speed spindle: It adpot high speed motor power and air cooling spindle, which is more stable and high efficiency.

● DSP A18 control system: High processing efficiency automatic processing, complete support English.

● T-slot aluminum table, with clamps and materials holder to fix materials, very convenient.
● All the working area and specifications can be customized according to your requests.

Model	*CX1325*
*X Working Area*	*1300mm*
*Y Working Area*	*2500mm*
*Z Working Area*	*200mm*
*Traveling Positioning Accuracy*	*±0.05mm*
*Repositioning Positioning Accruacy*	*±0.05mm*
*Max.Power Consumption*	*1.84kw*
*Max.Rapid Travel Rate*	*45000mm/min*
*Max.Working Speed*	*25000mm/min*
*Spindle Power Motor*	*6.0kw water Cooling spindle made in China*
*Spindle Speed*	*0-18000rpm/min*
*Drive Motor*	*stepper motors and Leadshine driver*
*Working Voltage*	*AC220V/380V 50/60HZ*
*Packing size (plywood packed)*	**330022001850mm**
*NW/GW*	*1200KGS/1600KGS*
*Applicable material*	*Wood,plywood,acrylic,metal,aluminum,brass,glass etc*

PRODUCT DETAILS

DSP handle

DSP control system is with USB connection, which is more conven.

Driver

Adopt high speed drivers, the max speed is 25m/min, with spindle highly upgrade the processing speed.

Vacuum working table

The working table is vacuum working table, with very powerful absorbing power, can absorb materials of different size. it is with big density, won't be out of shape, it"s also with high temperature-resistant.

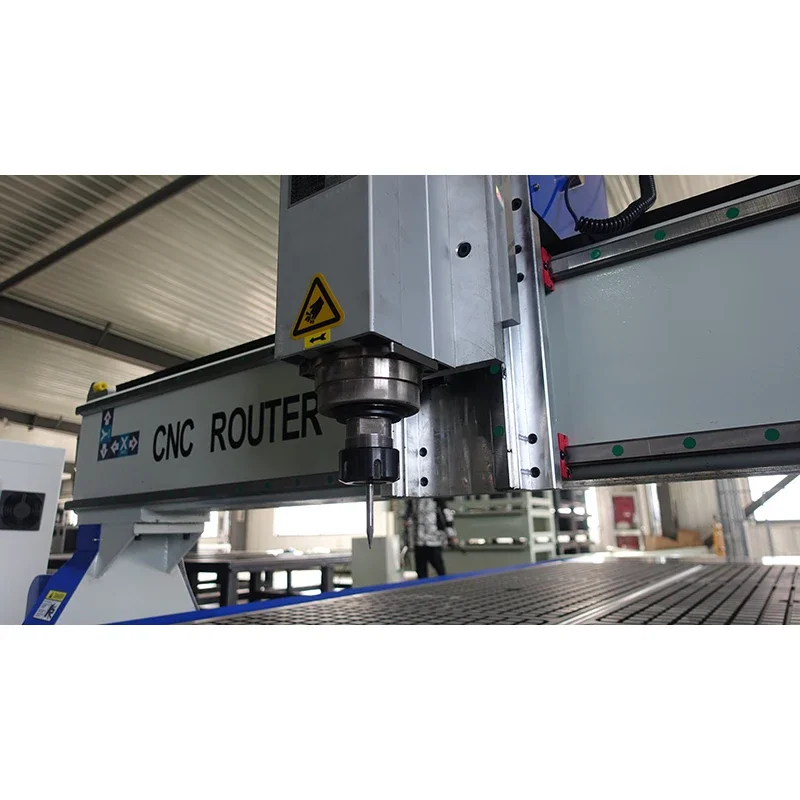

Spindle

The spindle is with fast working speed, high working efficiency. the engraving is precise enough, without any sawtooth ripple. and the cutting edge is quite clear and smooth.
