R$ 648,00 – R$ 1.278,00
Crédito sujeito a aprovação.
Dúvidas? Confira nossa página de Ajuda.
Descrição
- Químico Hign-em causa: Nenhum
- Número do modelo: 20W Laser Head
- Nome da marca: ZBAITU

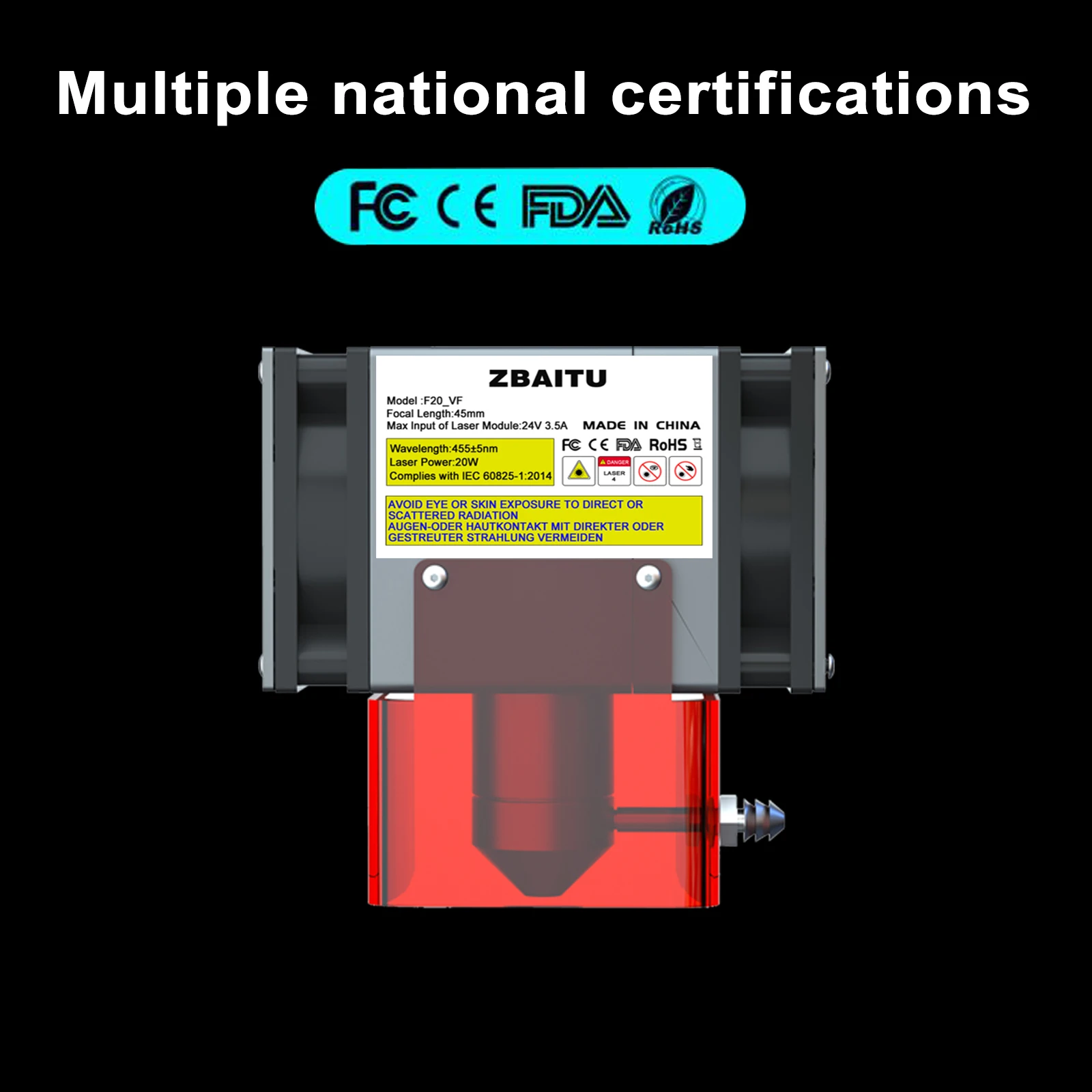

- Certificado: CE,DOT,FCC
- Origem: CN (Origem)
- Laser Power: 20W
- Effective Power: 130W
- Power Adapter: 24V
- Laser Spot Size: 0.08x0.08MM

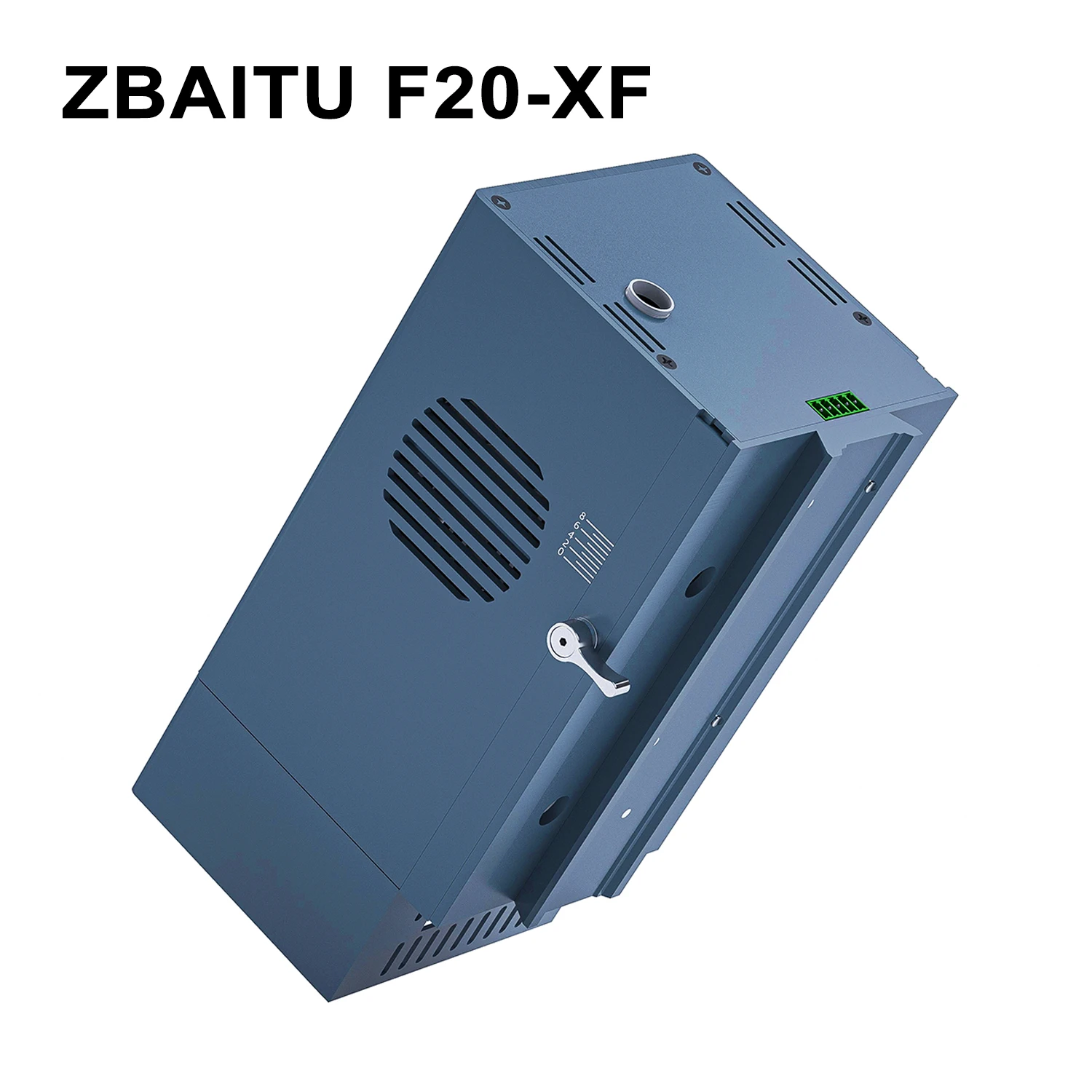

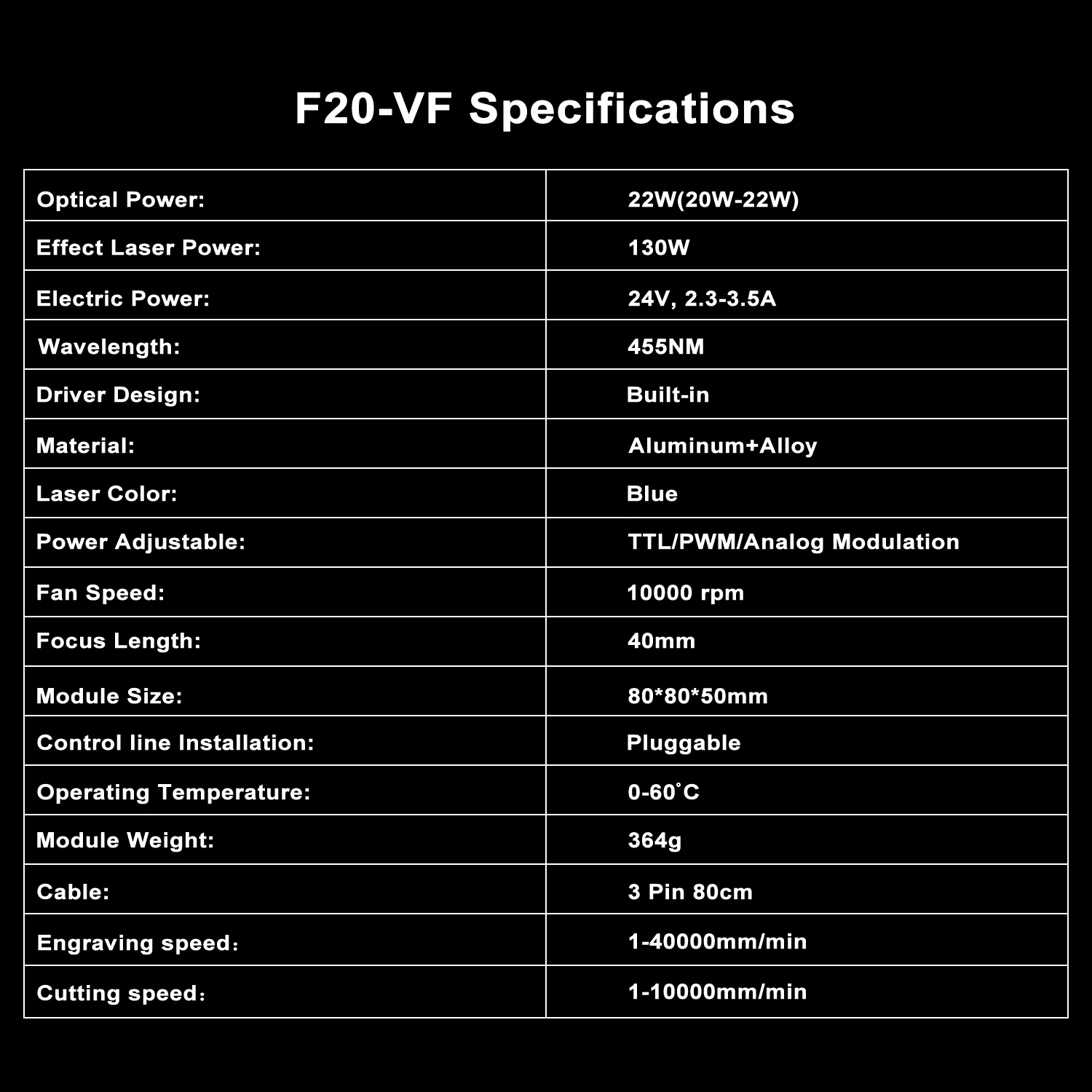

Module Model: F20-VF
Laser type: Diode
Diode No.: 4
Optical Output Power: 20-22W
Product Material: Aluminum 6061 Anode
Housing Size: 15*16*6CM
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Laser Beam Mode: Spot
Working Mode: Pulse Work
Light Spot Size: 0.08*0.08mm
Wavelength: 445±5nm
Engraving Accuracy: 0.01mm
Working Time: 20000H
Working Temperature: 0℃~70℃
Storage Temperature: 一40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 350g

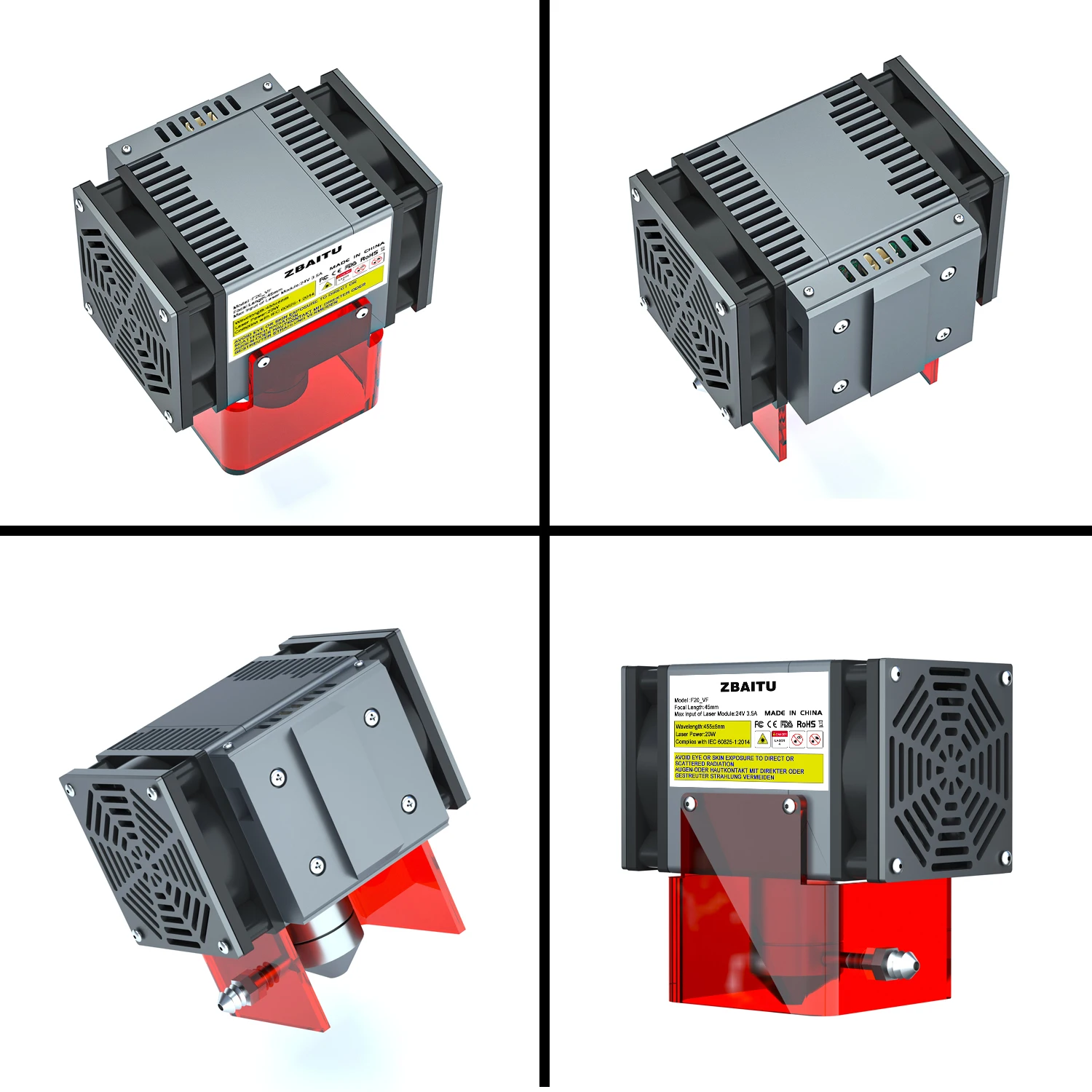

Strong Compatibility: The F20-VF laser module can be installed on any engraving machine model of ZBAITU laser engraver M37, M81, A40, and it can be used without any additional settings. Comes with a 3 adapter cable in the box, the laser module is compatible with Ortur, NEJE, Two-Trees, Xtool, Atomstack engraver as well.

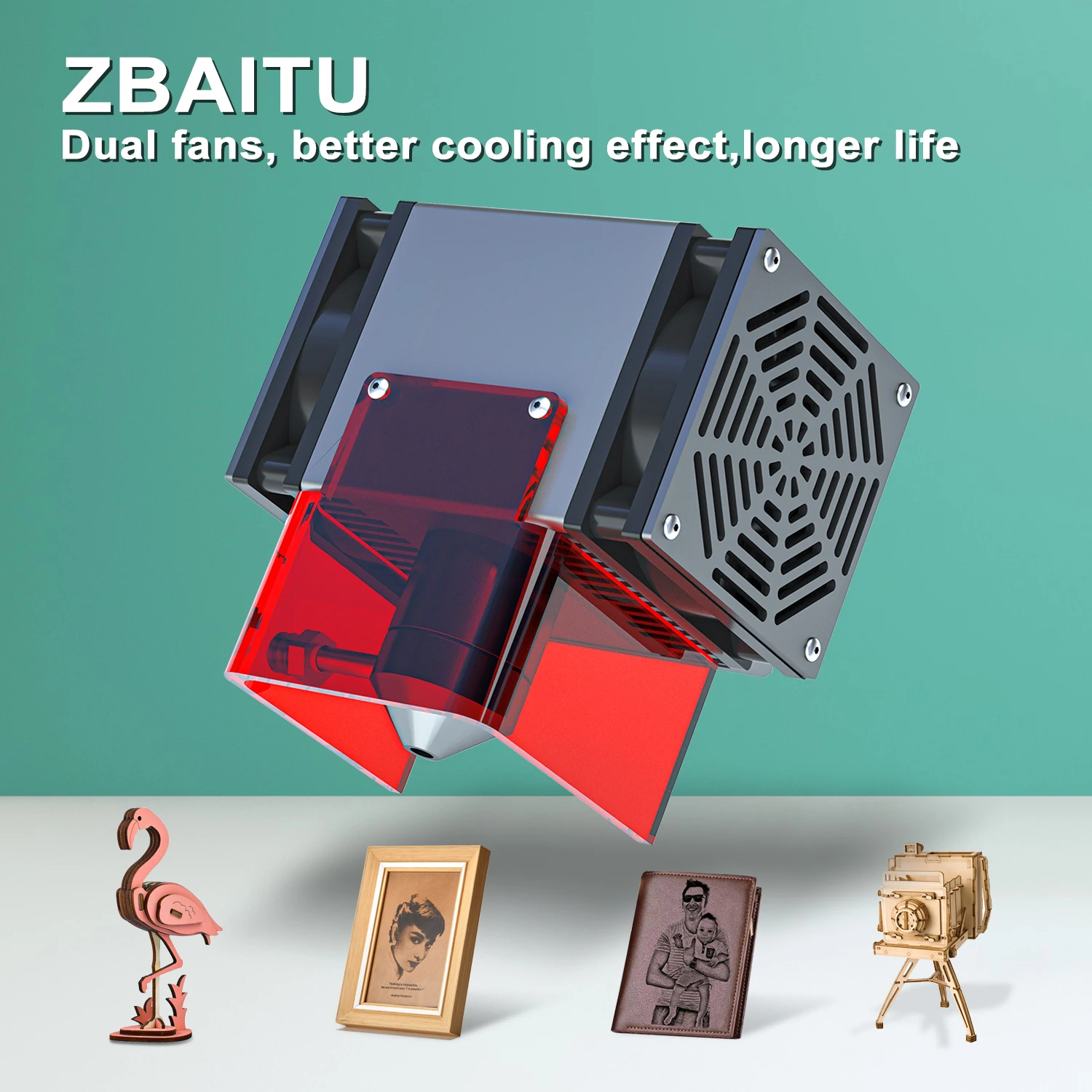

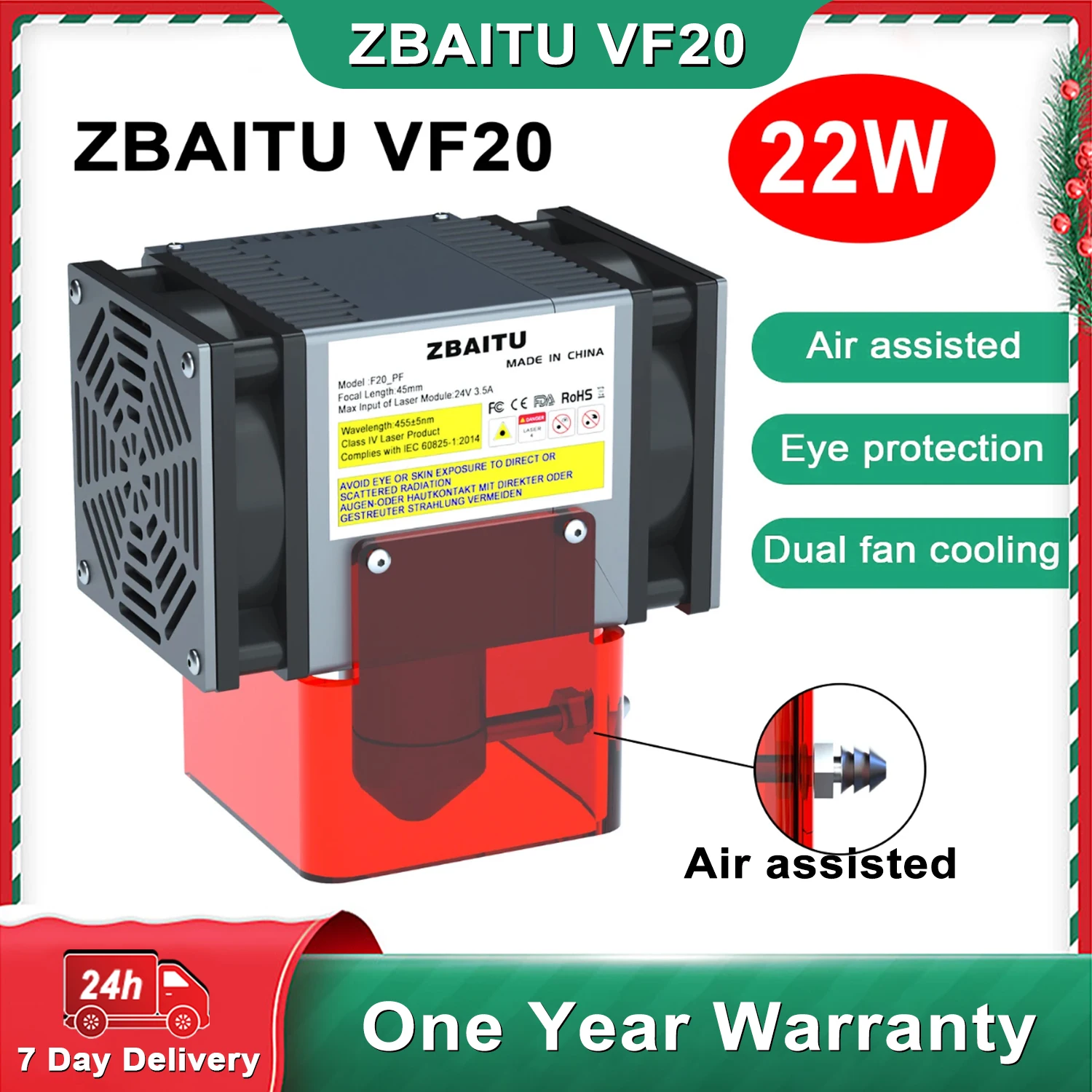

▶ Two Fans:The double-sided fan can effectively reduce the temperature when the laser is working, protect the driver of the laser, prolong the service life of the laser.
▶ Updated Air Assist : In order to make the air intake meet the needs of cutting and engraving, we increased the air intake from the original 3.5MM to 7MM. Now the cutting lines are thinner and the cutting speed is faster.

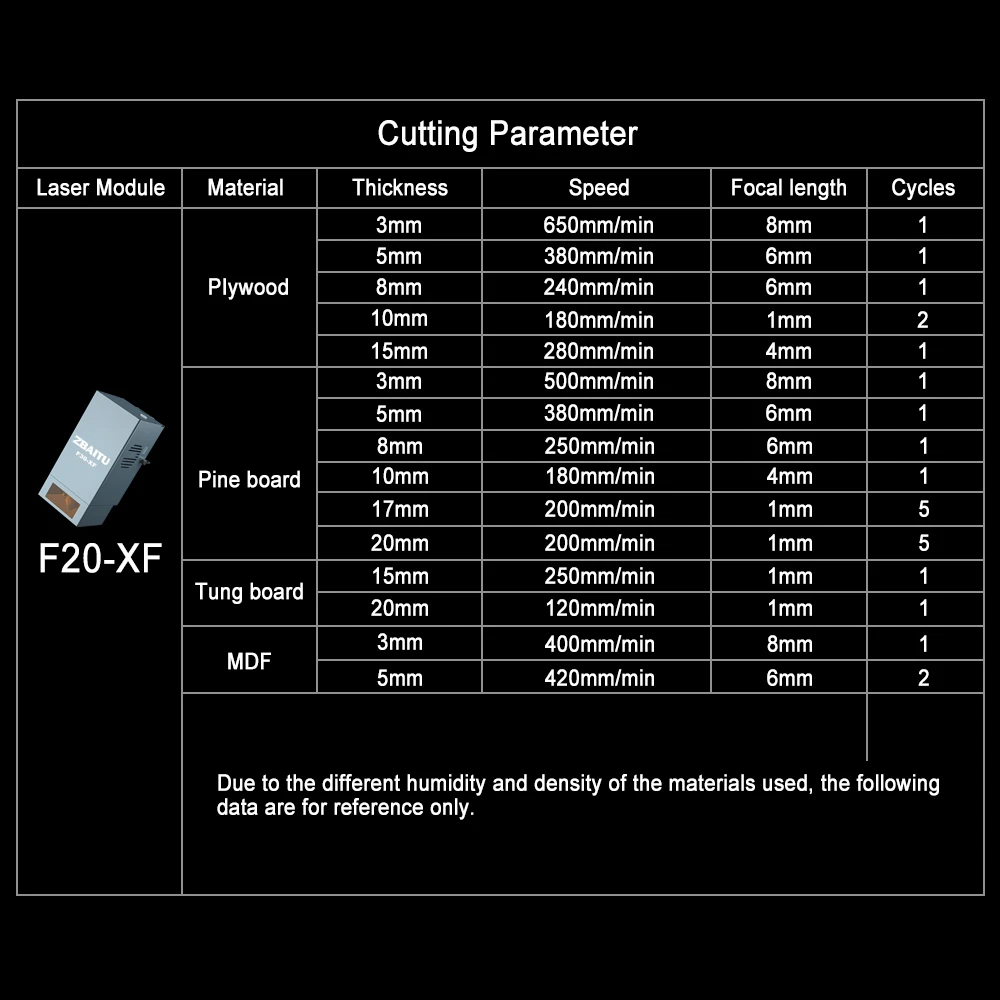

▶High Power and Faster Speed: 20W laser power engraver. The laser output power soars up with the latest generation of four 5W laser coupling technology, which is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

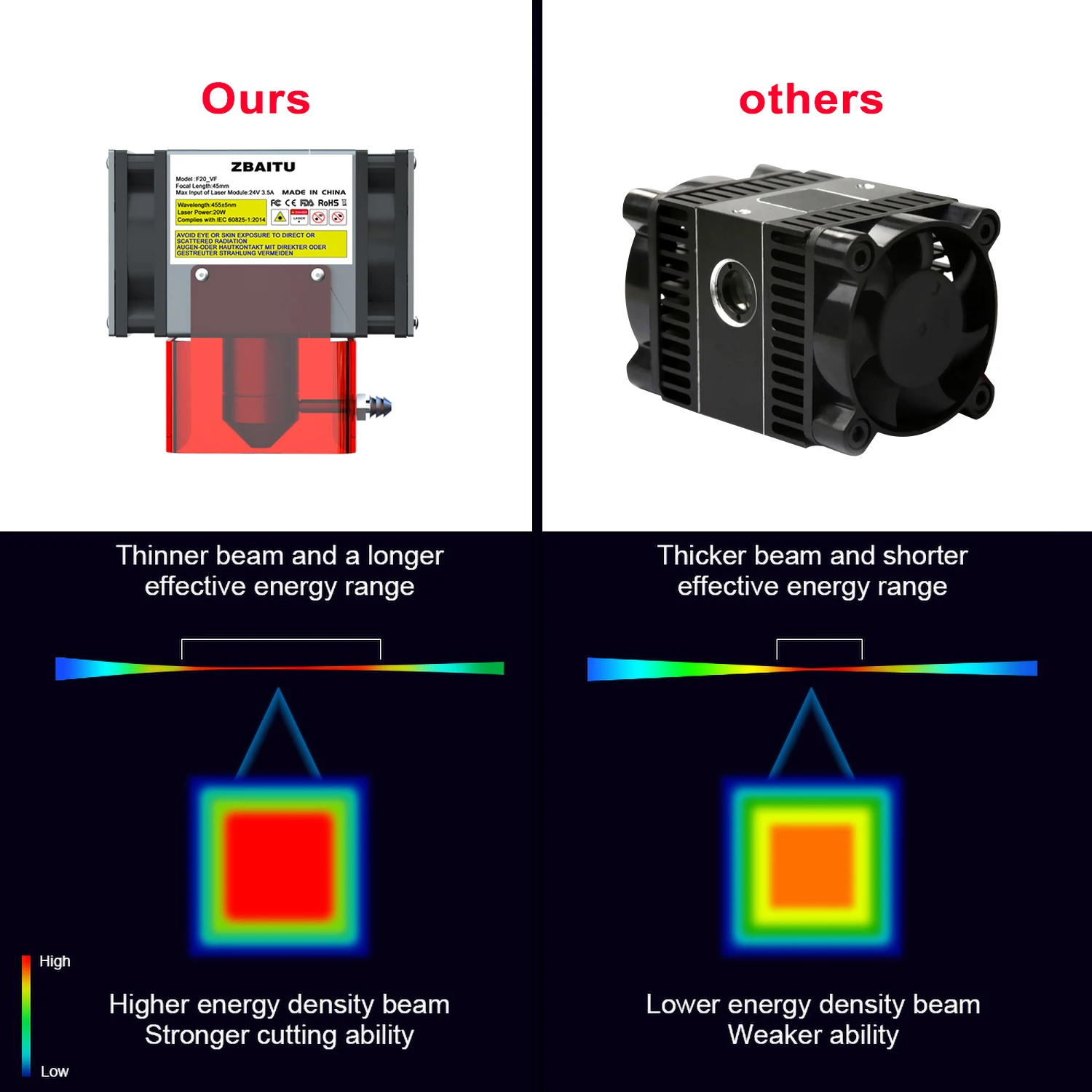

▶ Upgraded Laser:No need to adjust the focus before engraving. The focusing spot area is only 1/3 of other ordinary lasers. Combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

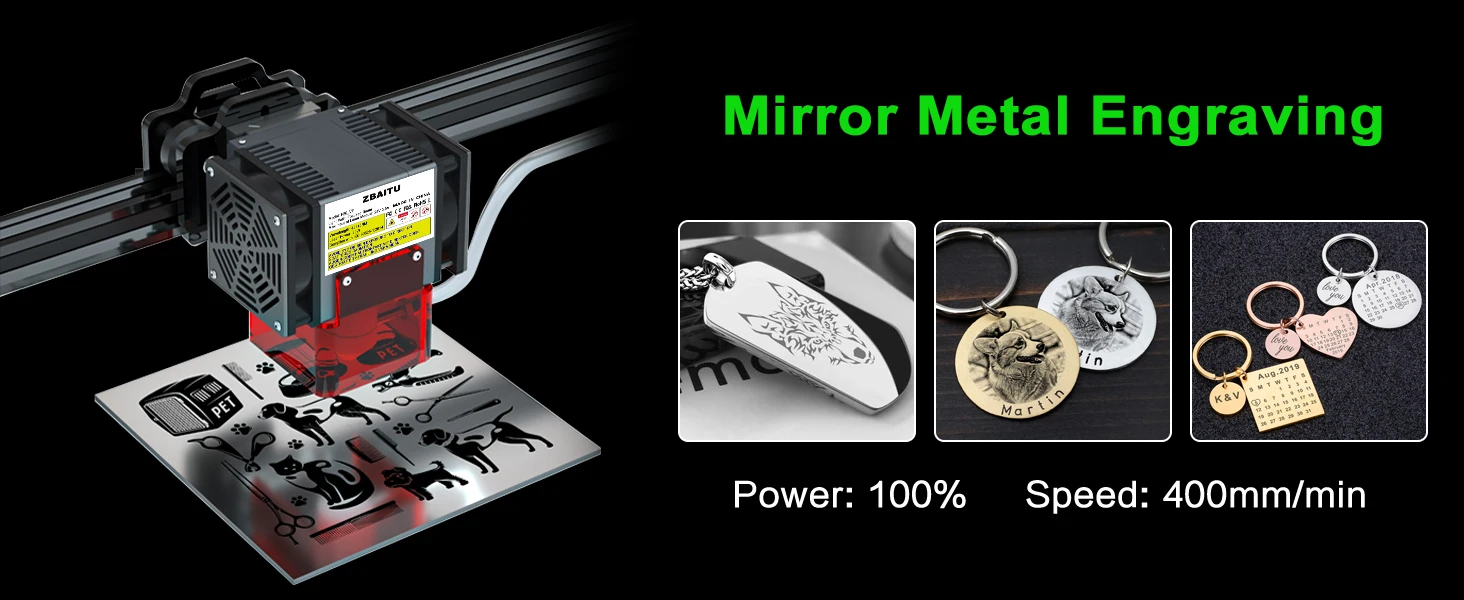

▶ Various Material to Cut and Engrave: Engraving materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife. Cutting materials are including cardboard, non-woven fabric, veneer, acrylic, some thin plastic board
