Products Description

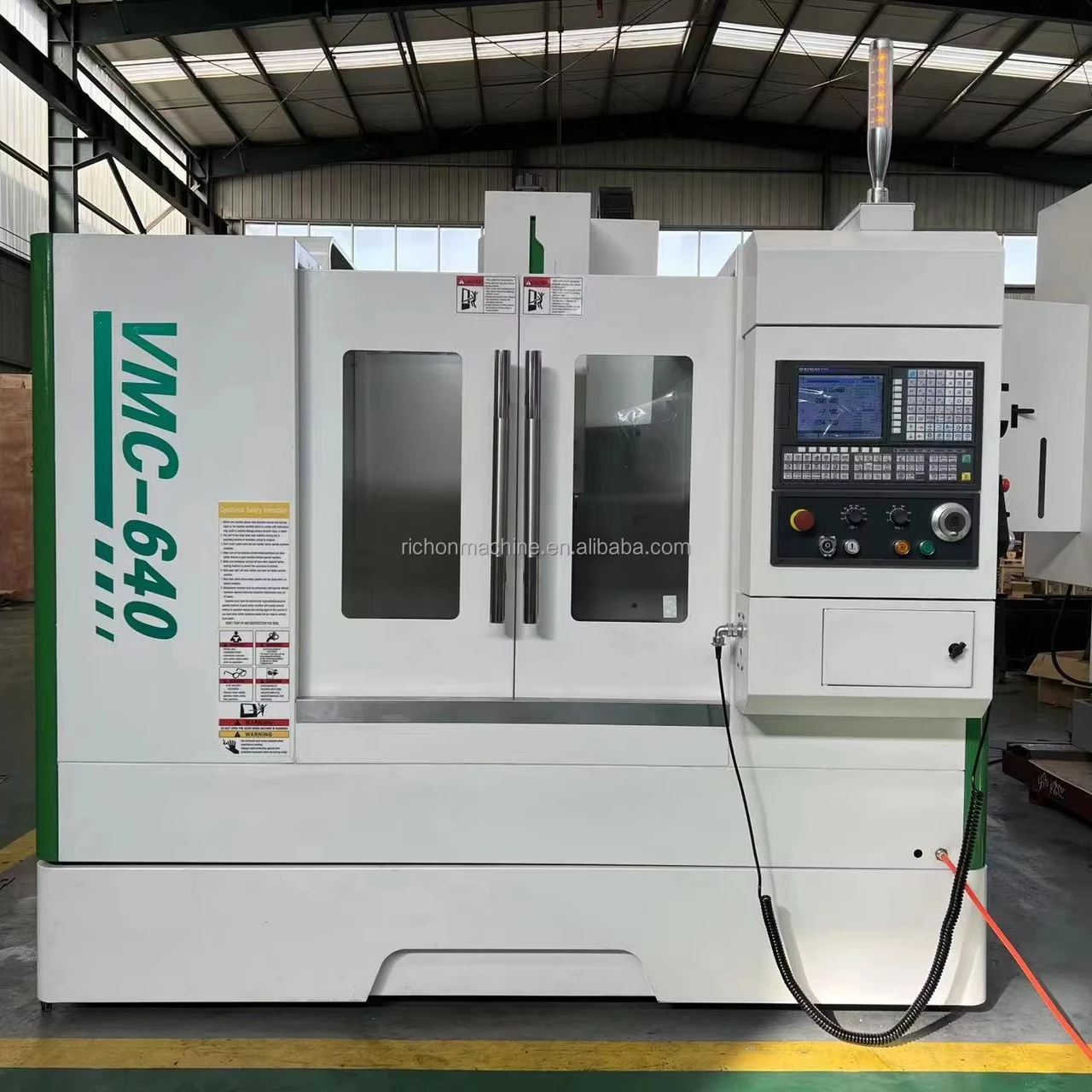

CNC Vertical Machining Center XK7132

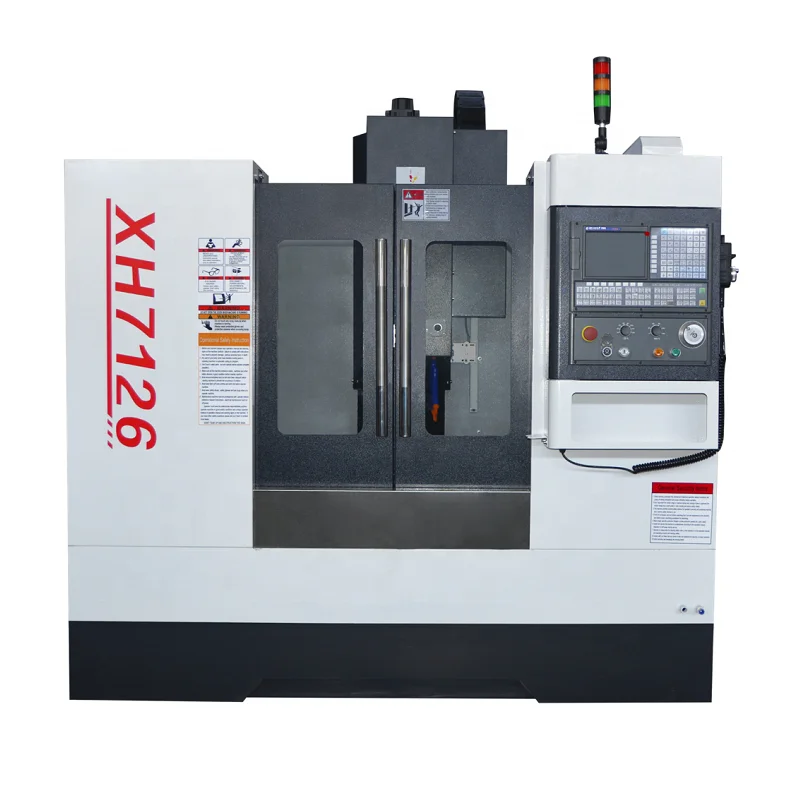

XH7136 / XH7132 with tool magazine

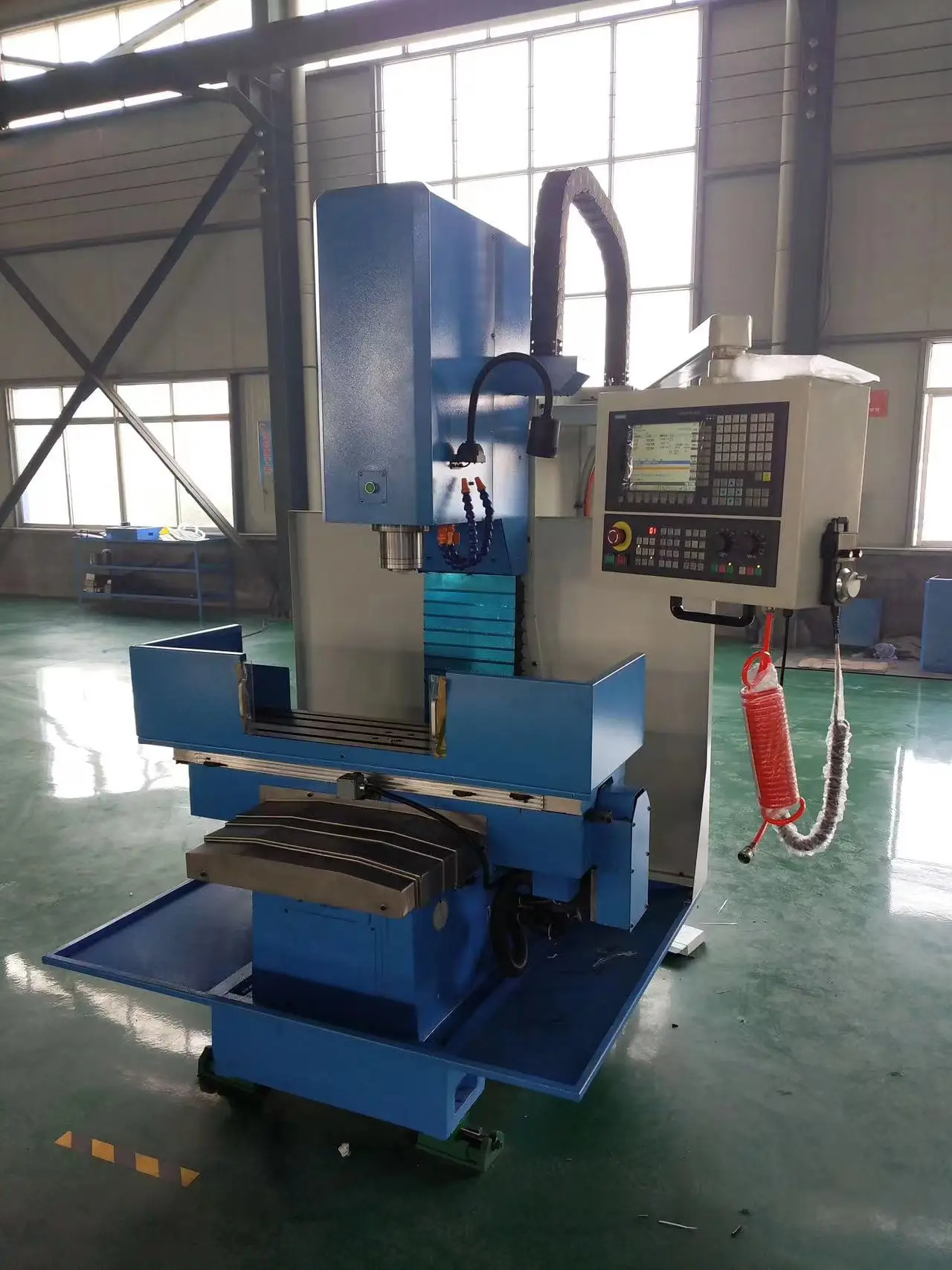

XK7132 / XK7132 without tool magazine
|
Model
|
XK7132
|
|
Main Motor Power KW
|
5.5kw
|
|
Spindle Max. Rotating Speed
|
Servo Spindle 8000rpm
|
|
Z Motor Torque
|
15N.m
|
|
X Motor Torque
|
6N.m
|
|
Y Motor Torque
|
6N.m
|
|
Spindle Taper
|
BT40
|
|
Worktable Size
|
800X320mm
|
|
Max. loading
|
350kgs
|
|
Travel（Longitudinal X/Horizontal Y/Vertical Z）
|
600 / 400 / 450mm
|
|
Rapid feed speed X/Y/Z
|
24/24/20
|
|
Distance of Spindle Axis to Guideway Plane
|
350mm
|
|
Distance of Spindle End to Worktable
|
80-530mm
|
|
The Vertical Permissible Error of Spindle Axis to Worktable Plane
|
≤0.02mm
|
|
Positioning Accuracy
|
0.02mm
|
|
Repeated Positioning Accuracy
|
0.01mm
|
|
Machine Overall Dimension (L*W*H) mm
|
2600*1950*2400
|
|
Machine Net Weight KG
|
2800
|
|
System Configuration
|
GSK / FANUC / SIEMENS
|
|
External Protection Level
|
Full Closed
|
