Name: Wood Cnc Router AKM1325D Atc CNC 4*8ft Linear/Disc/Carousel Auto Tool Changer MDF Furniture Making OEM/ODM Cnc Nesting Machine
SKU: 1005007789467520
Availability: InStock

warmly reminder that the price in here is FOB price without shipping, pls let me email or message me your address for checking transport cost. and the OEM service is provided, some OEM is free, some specifical configuration need extra cost, the additional cost can be find in price list

Deedy Song

Mob/whatsapp:+86 18765333729

Skype/wechat: songyuandi825

Email:export35(AT)acctekcnc.com

Wood Cnc Router AKM1325D Atc CNC 4*8ft Linear/Disc/Carousel Auto Tool Changer MDF Furniture Making OEM/ODM Cnc Nesting Machine

Application:

Cabinet door modeling, engraving, engraving and milling, cutting and other functions.

The
blanking machine optimizes cutting, drilling vertical holes, and
automatic blanking in one step, without interruption in the process, and
maximizes the efficiency and output.

Applicable industries for cabinet door engraving:

panel furniture, cabinet doors, cabinet doors, molded doors, plastic door panels, office furniture, custom furniture

Features:

1) The 1325 ATC CNC Router with 8pcs linear type automatic tool changer system,

meet customer's different working requirements. 10pcs, 12pcs or more magazines are optional.

2) The Wood Router Auto Tool Changer Machine with vacuum table and powerful vacuum pump,

allows you to hold the work-piece on the surface of the table automatically, increases working efficiency.

3) Low noise during spindle operation, fine working environment.

4) The ATC woodworking machine equipped with High-quality accessories,

allows the machine to work 24 hours a day continuously.

5) Easy to learn and operate, we will offer special educational video and other educational materials in English.

6) 36 months warranty time

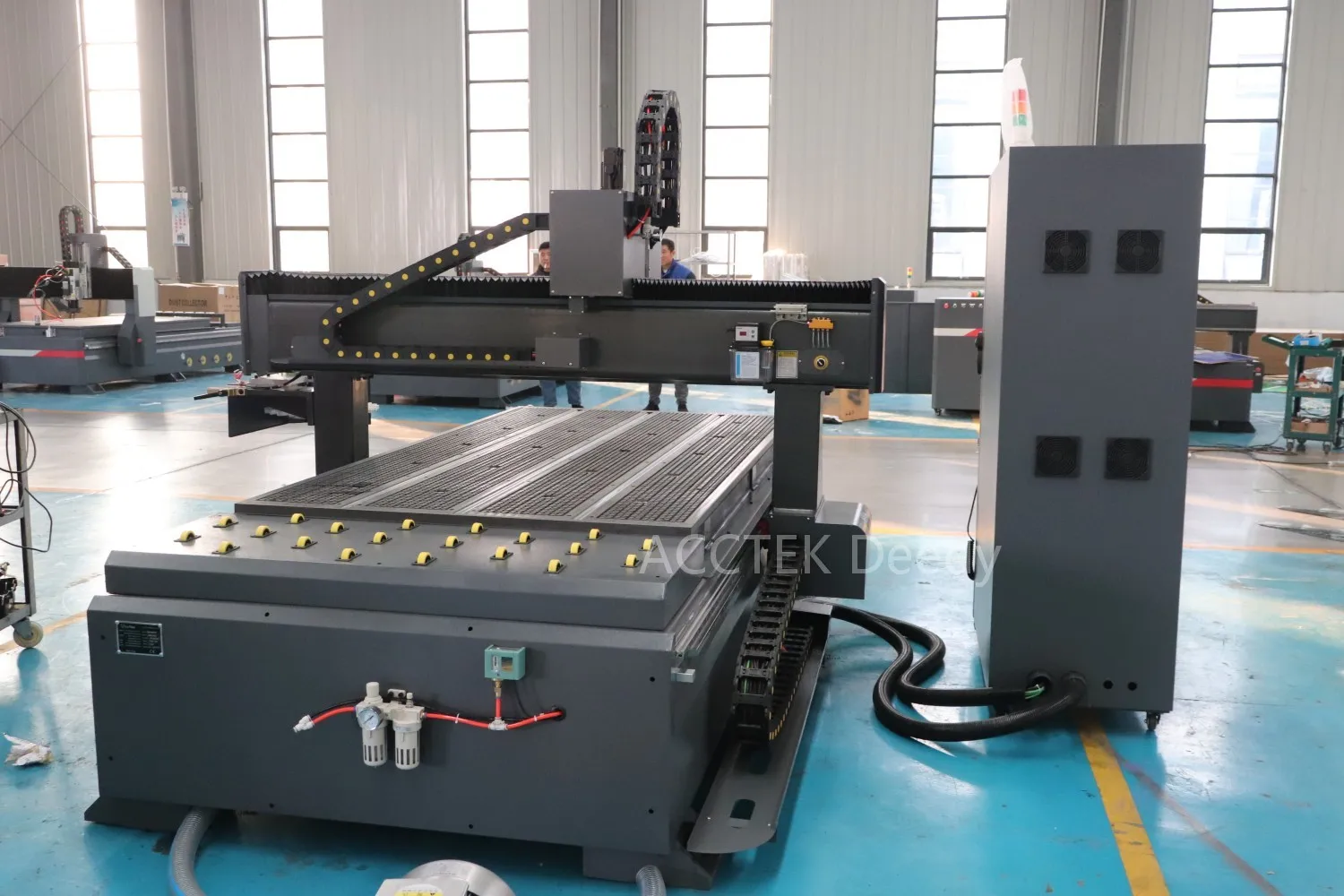

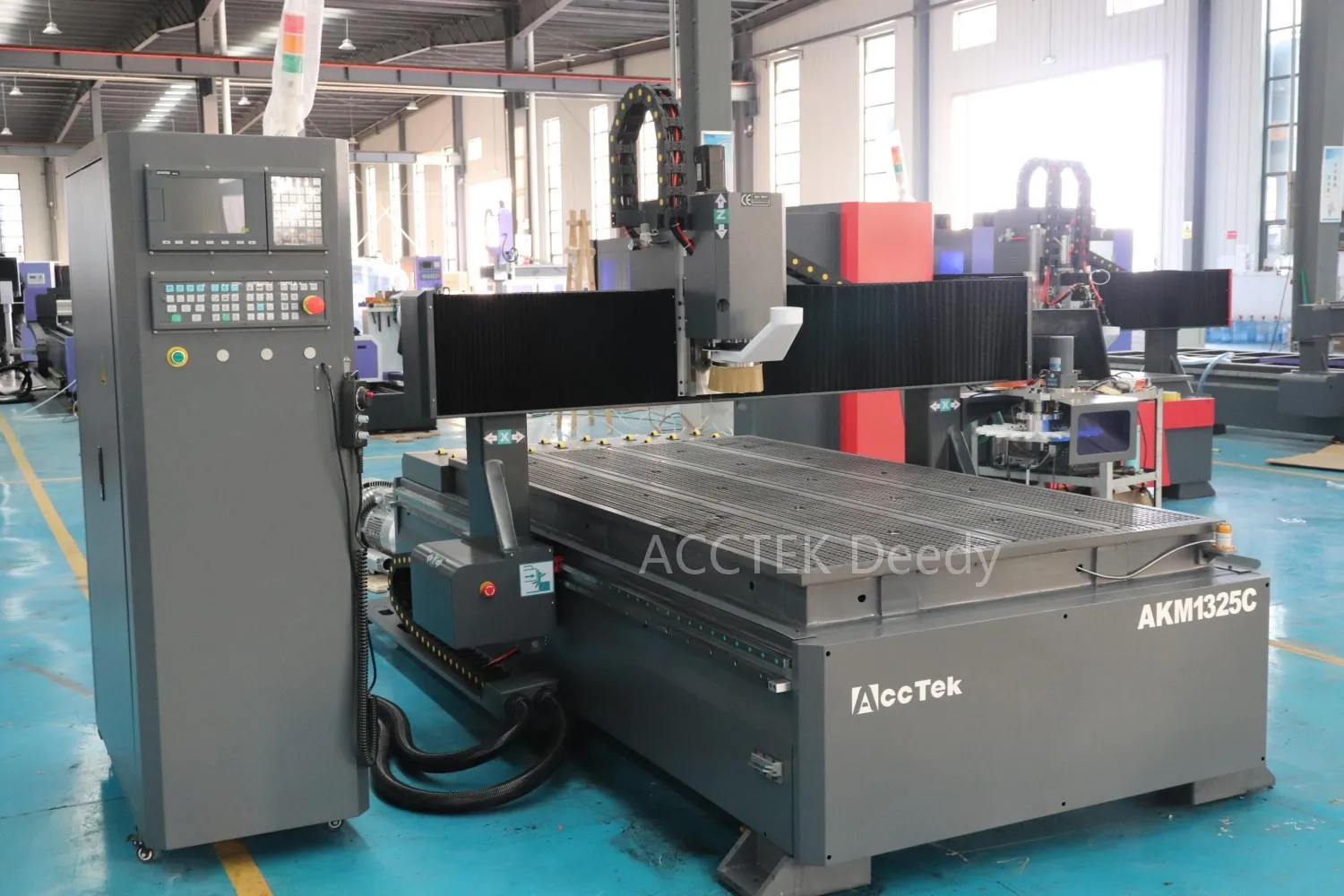

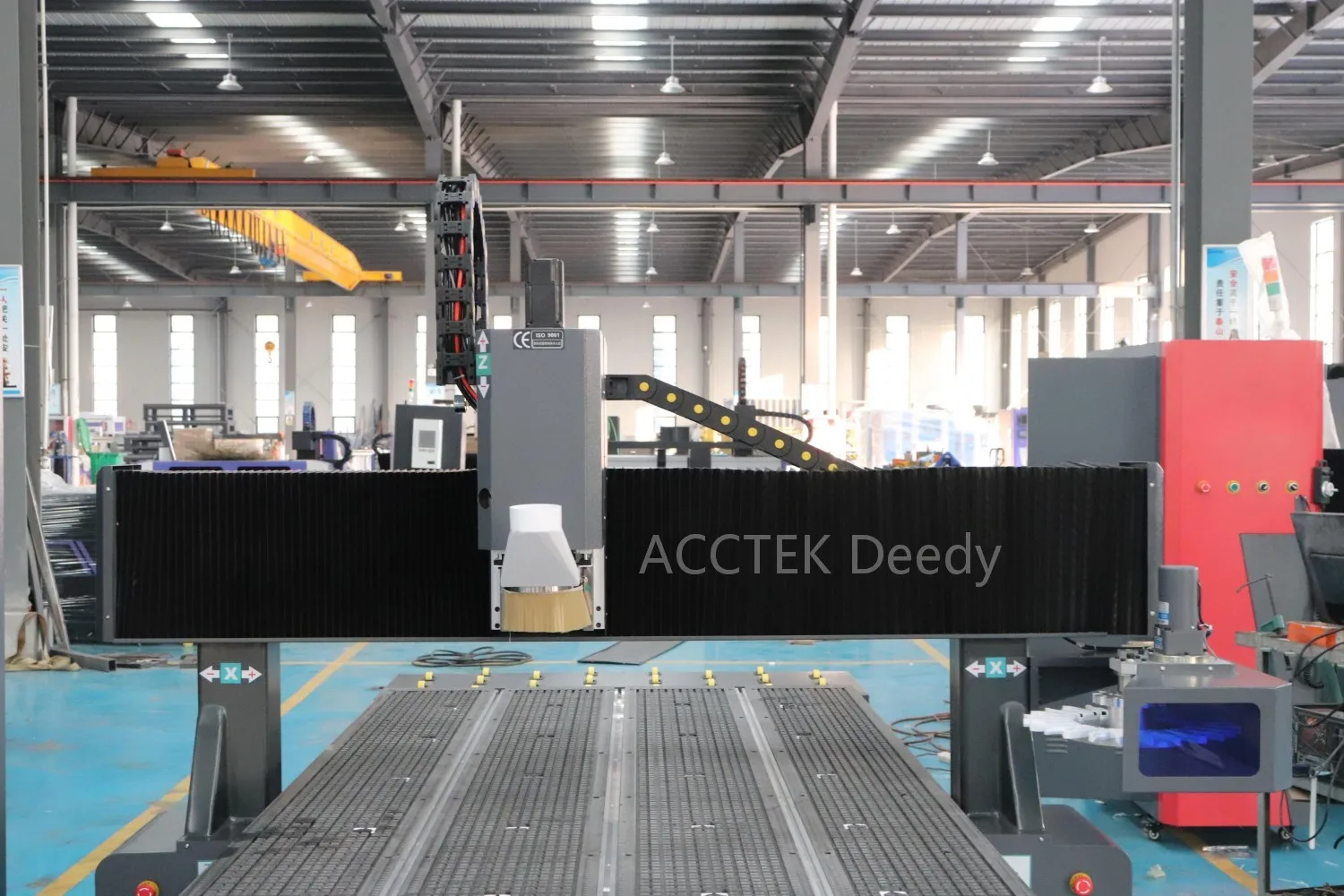

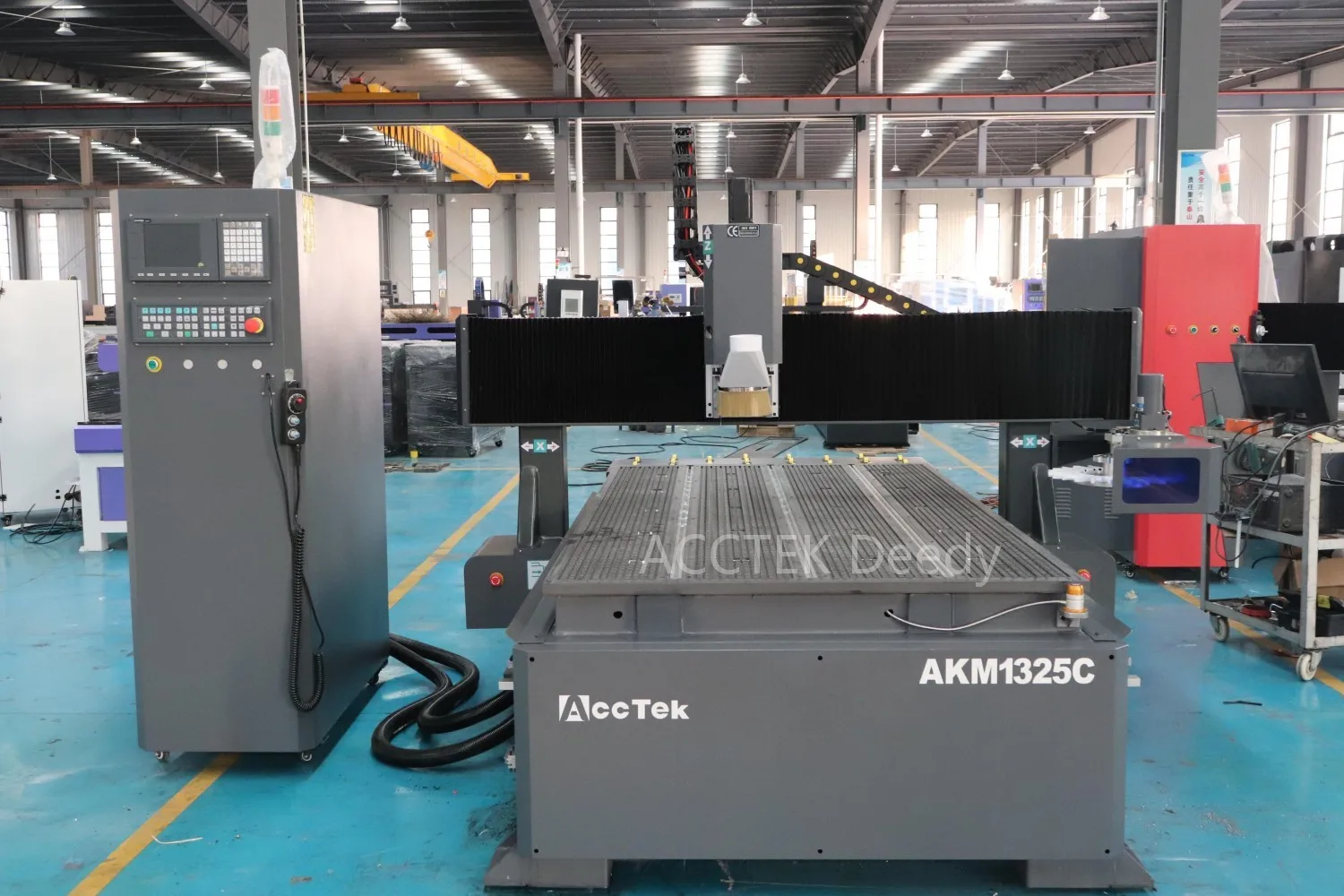

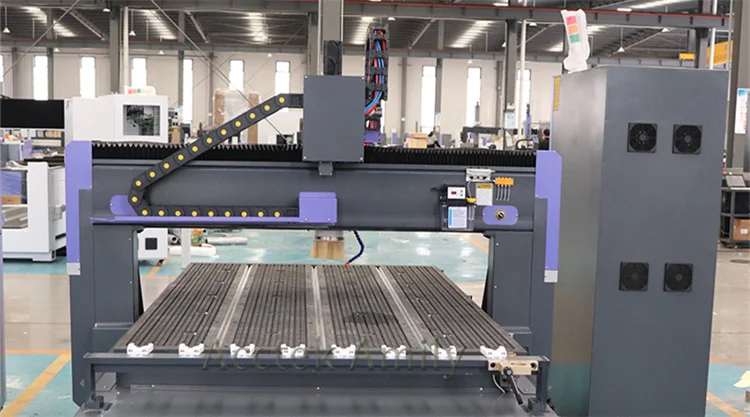

Detailed photos

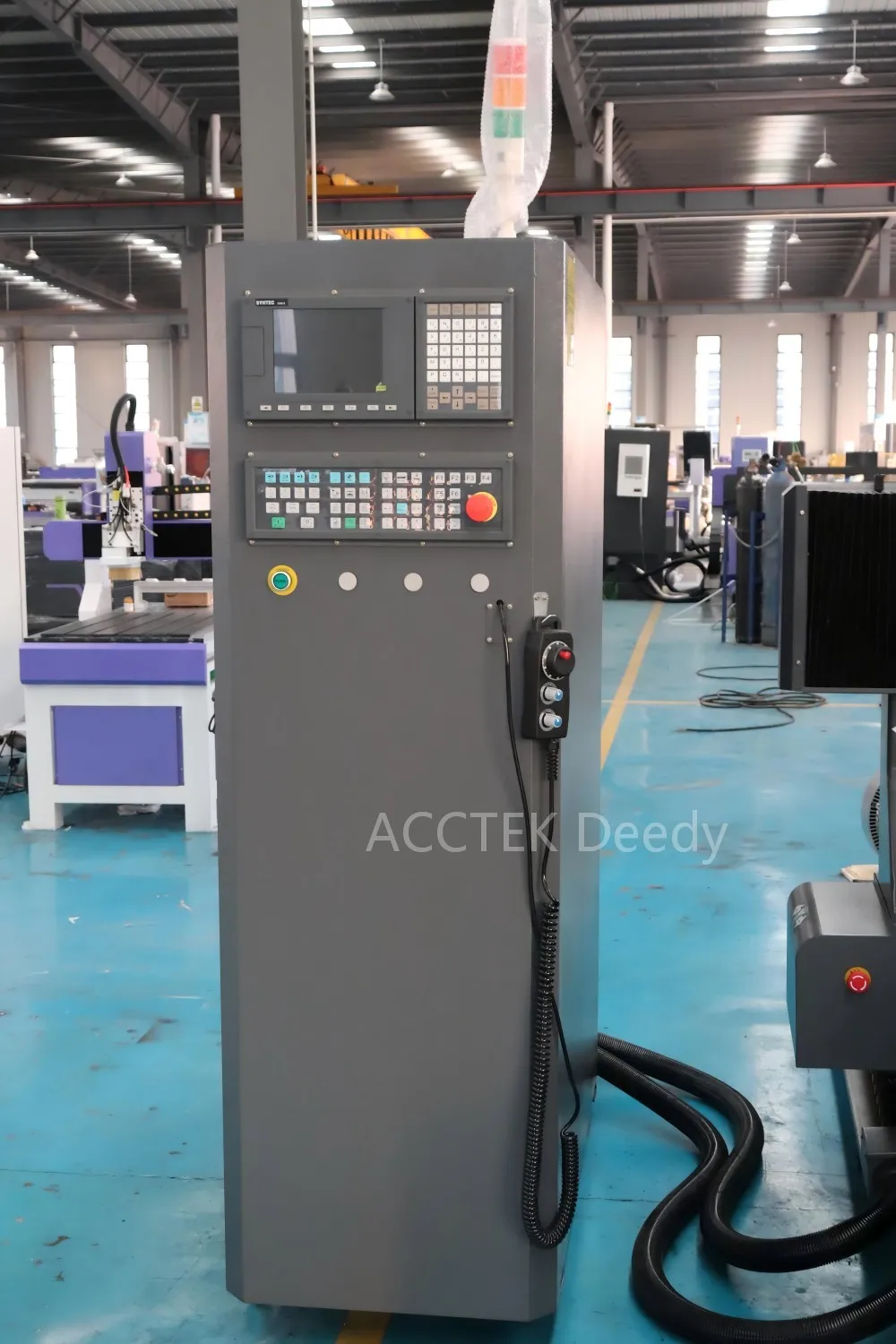

Controller:

TAIWAN SYNTEC controller is one of the best controller system in the CNC Machine industry.

Its price is suitable, performance is very stable, very easy to learn the operate for new starter.

Auto tool changer :

8 pcs tool library, which takes few seconds time to change the tool during working.

This kind if ATC machine can install with 8 different tools to meet different working requires for different carving tools,

save working time.

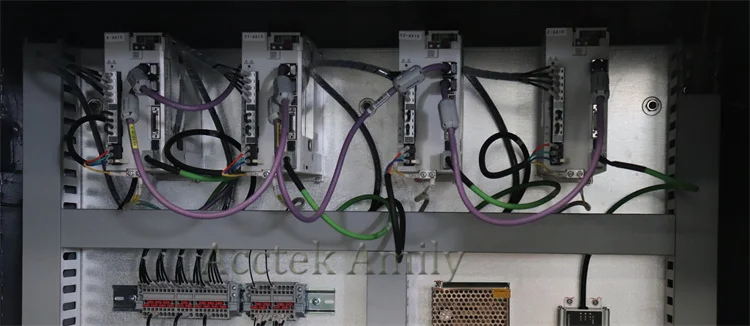

Servo drivers:

We have different servo motor and drivers brands for optional

according to customer's budget and requirements.

1.Japanese YASAKWA brand

2.Chinese Leadshine brand

These two brands are most popular brand in theCNC Machine industry

because of their strong power and stable performance.

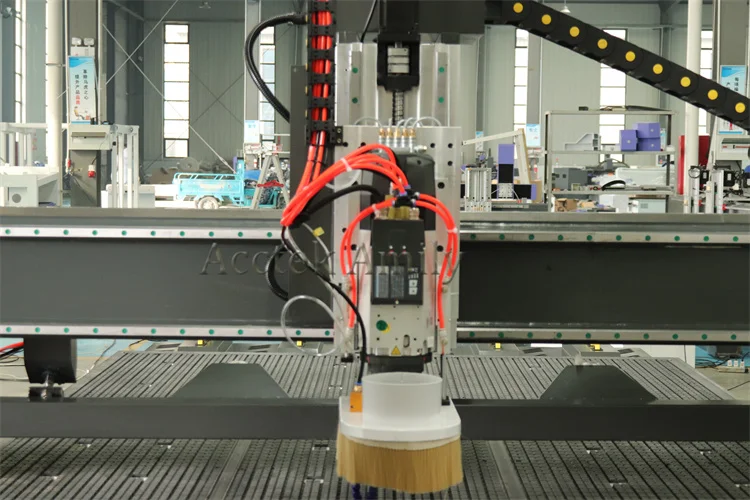

9.0KW air cooling ATC spindle (ISO30):

We use Chinese brand HQD 9.0KW ATC spindle, it has long working life, high power, high speed and stable performance,

is the best brand in this industry.

Italy brand HSD imported spindle is also be optional.

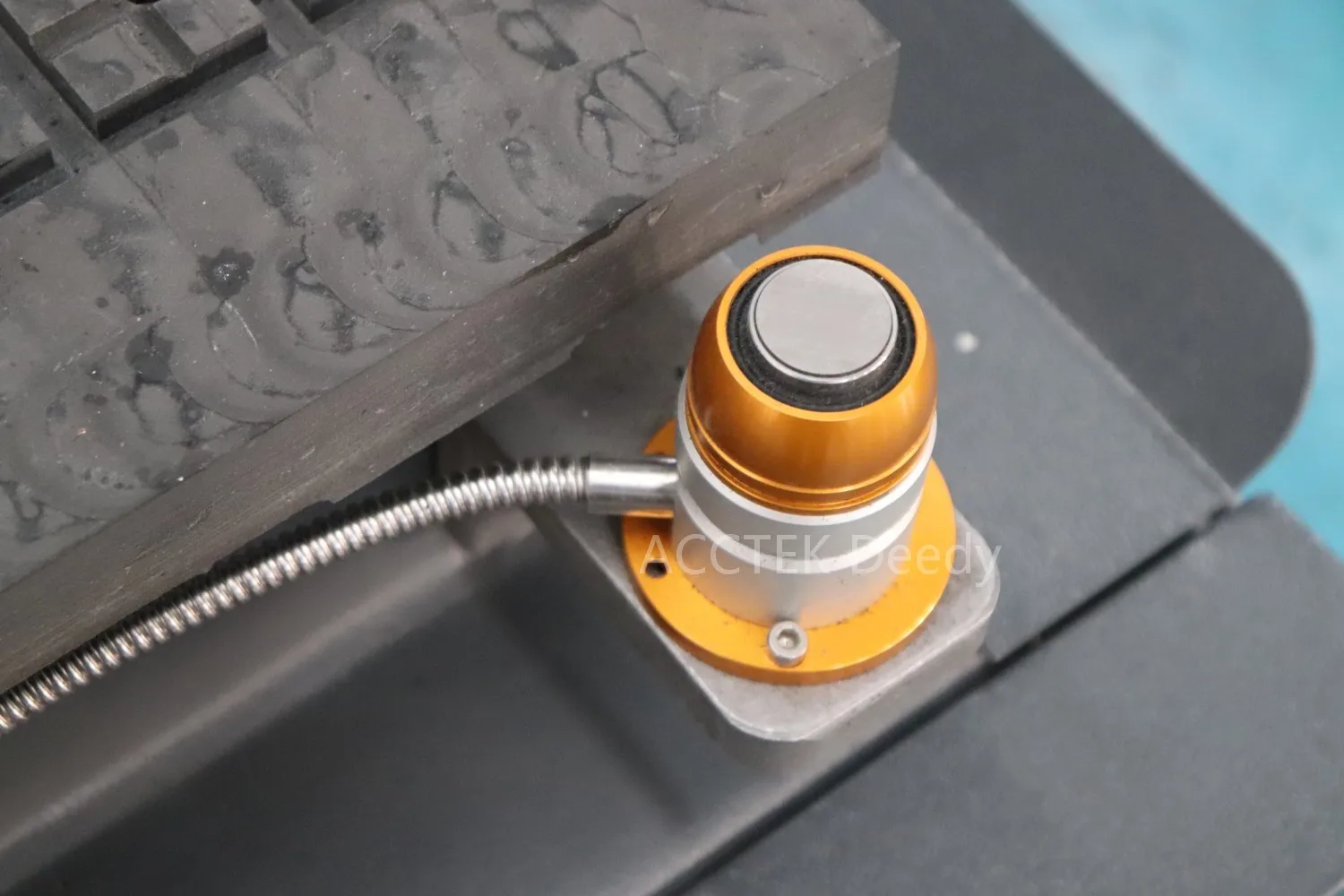

Auto Z zero Sensor:

High accuracy tool sensor with long working life, steady movement and a good starting performance.

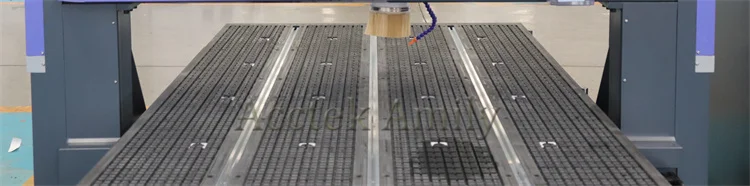

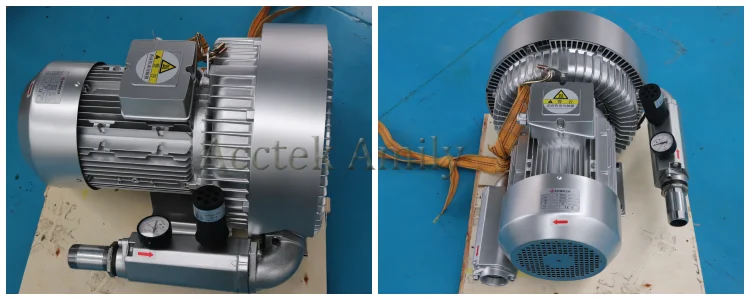

Vacuum table:

Vacuum table is used to adsorb materials onto worktable automatically.

Our vacuum table using high density with powerful suction strength, suitable for all kinds of materials.

For Acctek CNC Machine 1325 vacuum table come with standard 5.5KW vacuum pump.

For Acctek CNC Machine1530,2030, 2040 or bigger size machine,come with standard 7.5KW or bigger power vacuum pump.

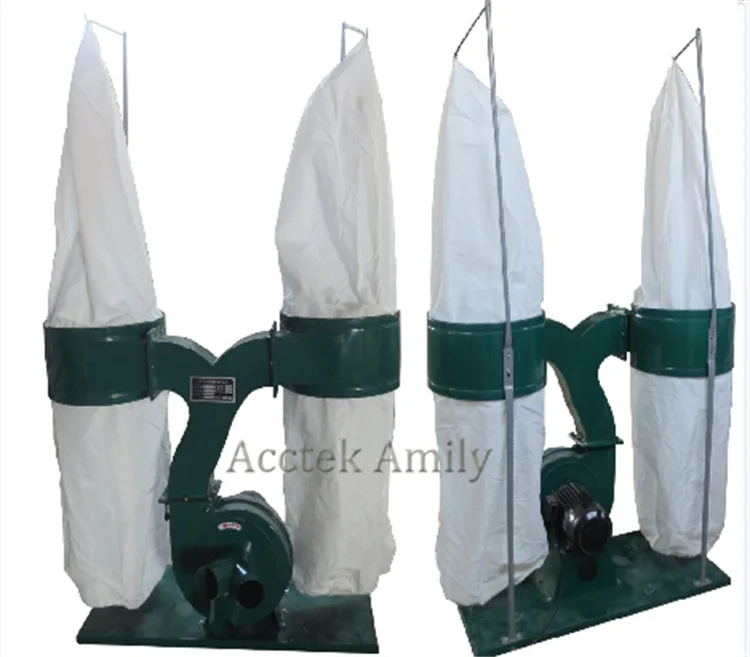

Dust Collector:

Dust colector system include complete suits: pump, two bags,pipe.

It is used for collect dusts produced during working, to keep the working environment clean.

Technical Parameters:

Machine Model	AKM1325C	AKM1530C
Working Area(X, Y, Z)	1300mm2500mm250mm	1500mm3000mm250mm
Machine StructureOverall Dimensions	Welded steel
Table Structure	Aluminum T-slot+vacuum table with 5.5kw vacuum pump
X, Y, Z Guides	Taiwan imported HIWIN 25mm rail guides
X, Y Transmission	Precise helical gear rack
Z Transmission	Ball screw
Spindle Power	9.0KW air cooling spindle
Collet	ER32
Spindle Speed	18000R/min to 24000R/min
Max.Traveling Speed	75000mm/min
Max.Working Speed	25000mm/min
Control System	Taiwan SYNTEC (Taiwan LNC, WEIHONG NK105 optional)
Tool Change Stores	8 pecs in a line or 10piece in disc
Positioning Accuracy	≤0.02mm
Processing Accuracy	±0.02mm
Motor	Servo Motor + Japanese Shimpo Gearbox
Driver	Servo driver
Auto Lubrication System	With
Work Zero Sensor X, Y, Z axis	With
Auto Height Sensor	With
Wave Filter	With
Dust Collector	3.0KW double bags dust collector
Working Voltage	AC phase 220V/380V, 50HZ/60HZ

Customization:

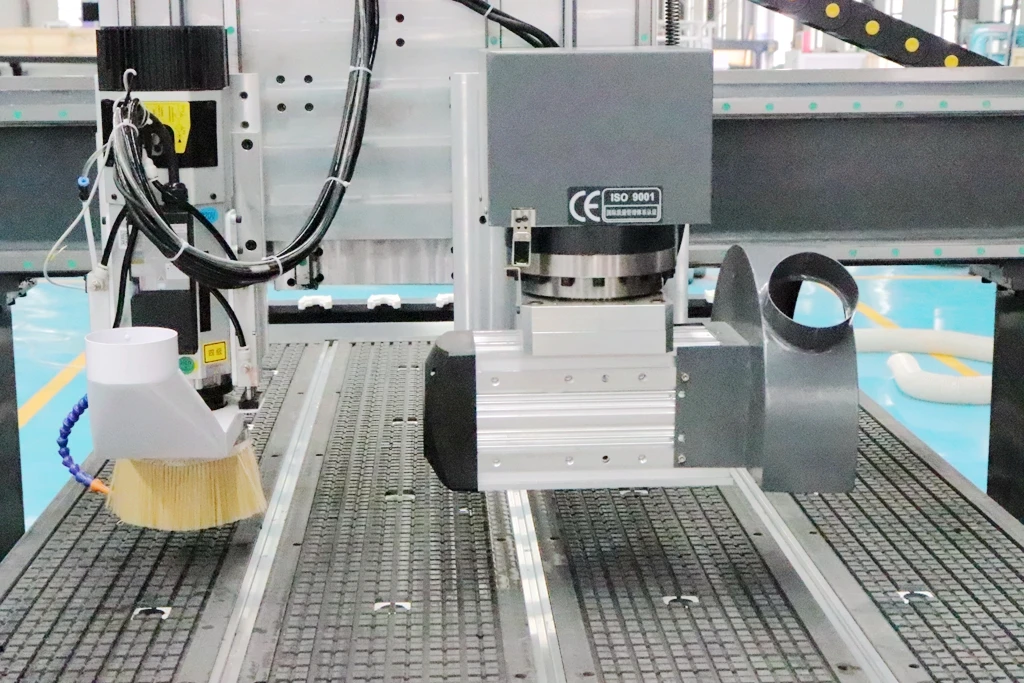

With cutting saw:

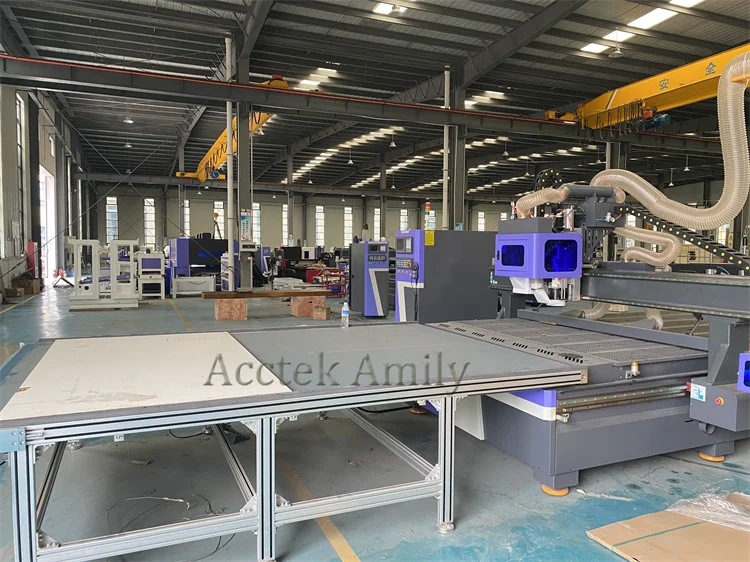

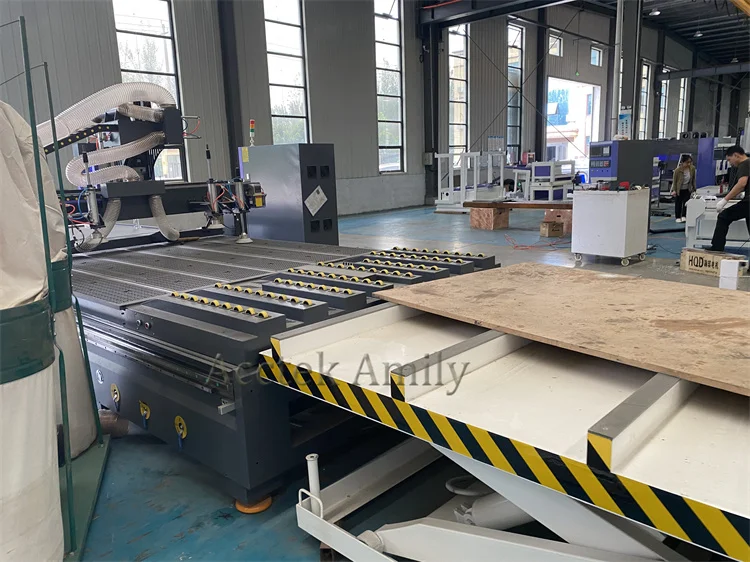

Automatic loading/unloading device:
