Descrição
- Stitch Formation: Lock Stitch
- Type: Industrial Sewing Machine
- Origin: Mainland China
- Place of Origin: Shanghai, China
- Brand Name: Weldy
- Condition: New
- Voltage: 220V/120V
- Frequency: 50-60HZ
- Welding Area: Depend
- Dimensions: 495(L)*370(W)*400(H)mm
- Usage: Hot melt plastic welding
- Warranty: 1 Year
- Key Selling Points: Competitive Price
- Weight (KG): 23 KG
- Power (kW): 1750W
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Welding speed: 0.5~8.5m/min
- Heating temperature: 0~450℃
- Material thickness: 1-3mm
- Welding seal thickness: 12mm*2
- Intermediate cavity: 15mm
- Joint width: 120mm
- Application: HDPE, LDPE, PVC,EVA,PP,PVC welding
- Welding material: HDPE, LDPE, PVC, EVA, PP, PVC

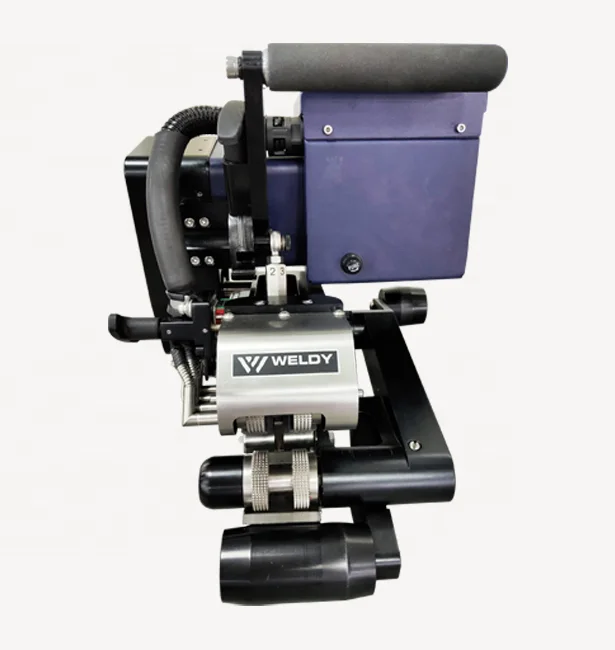

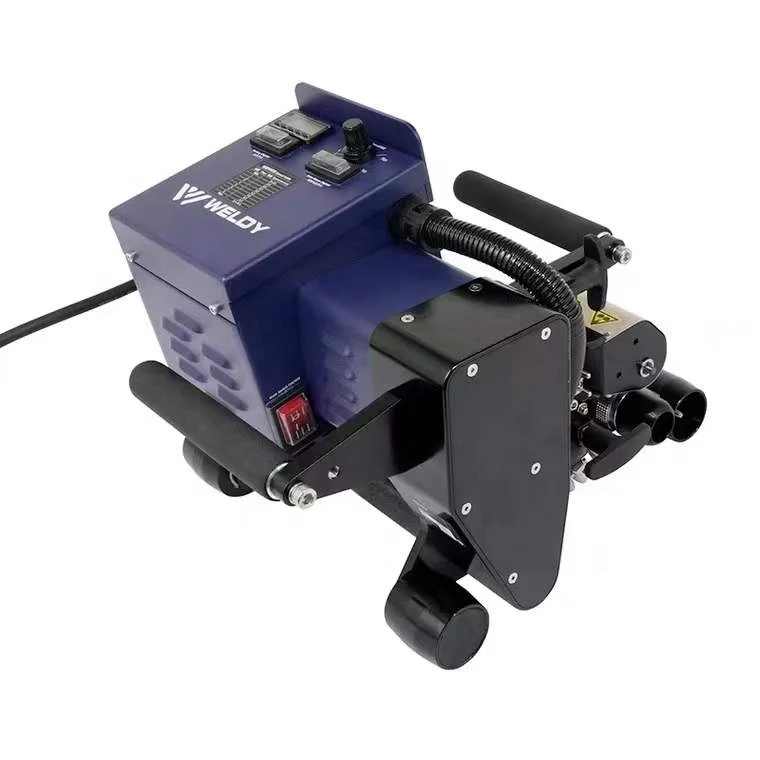

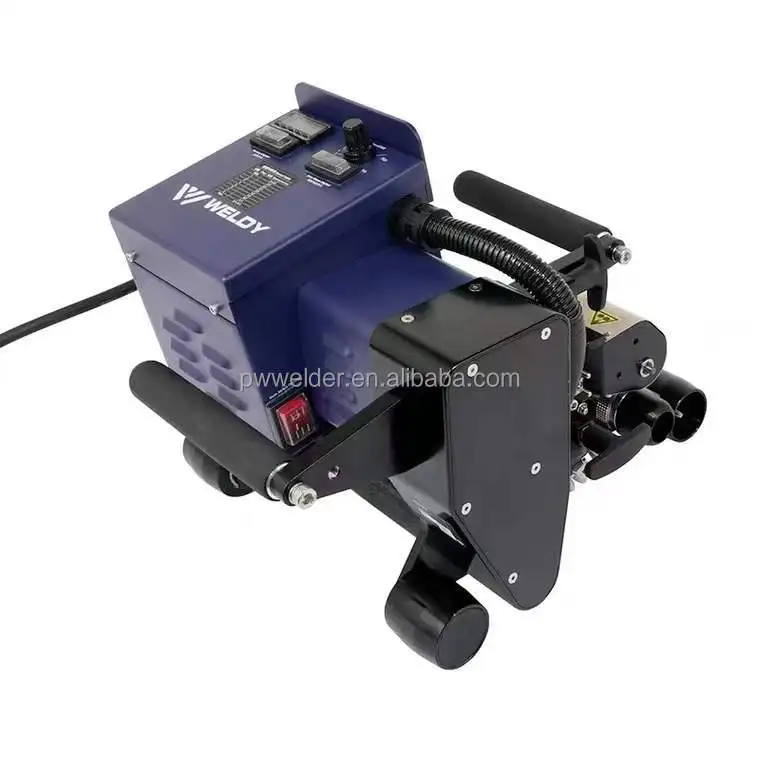

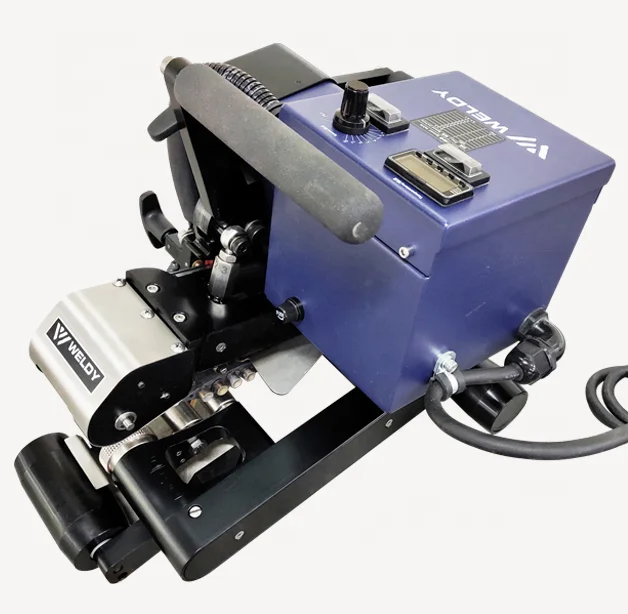

- Product name: Weldy WGW300 geomembrane welder
- Certificate: CE
Product Overview
Features of Weldy WGW300 Geomembrane Welder
WGW 300 - 230V / 1750W / copper wedge for PE / CEE-plug
* User-friendly and practical design
* Direct controls for temperature and air volume
* Powerful and durable drive motor
* Perfect welding thanks to optimal seam geometry
* Large rollers for uneven ground
Tips:

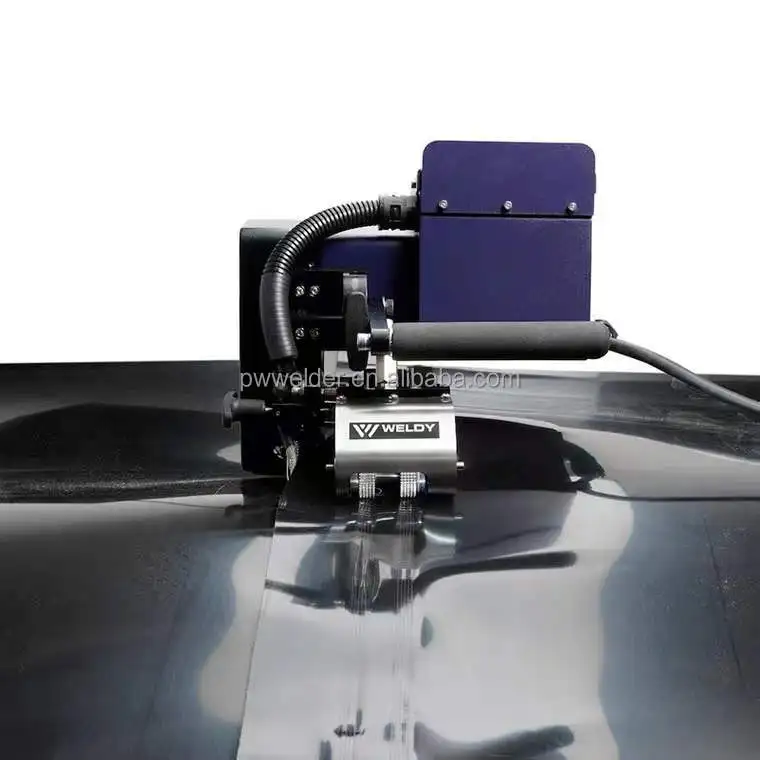

The WGW 300 hot-wedge welding machine from Weldy, welds thermoplastic geomembranes made of HDPE (0.8 to 2.5 mm), LDPE, TPO, FPO, PVC* (0.8 to 3.0 mm), etc. effortlessly and reliably. The geomembranes are typically used in landfills and mines, as well as for aquaculture, fish farms, irrigation systems, etc. and are permanently welded together. The WGW 300 has been deliberately designed to be simple and robust. The electrical controls are intelligently arranged.
* Direct controls for temperature and air volume
* Powerful and durable drive motor
* Perfect welding thanks to optimal seam geometry
* Large rollers for uneven ground
Tips:
The WGW 300 hot-wedge welding machine from Weldy, welds thermoplastic geomembranes made of HDPE (0.8 to 2.5 mm), LDPE, TPO, FPO, PVC* (0.8 to 3.0 mm), etc. effortlessly and reliably. The geomembranes are typically used in landfills and mines, as well as for aquaculture, fish farms, irrigation systems, etc. and are permanently welded together. The WGW 300 has been deliberately designed to be simple and robust. The electrical controls are intelligently arranged.
FEATURES AT A GLANCE

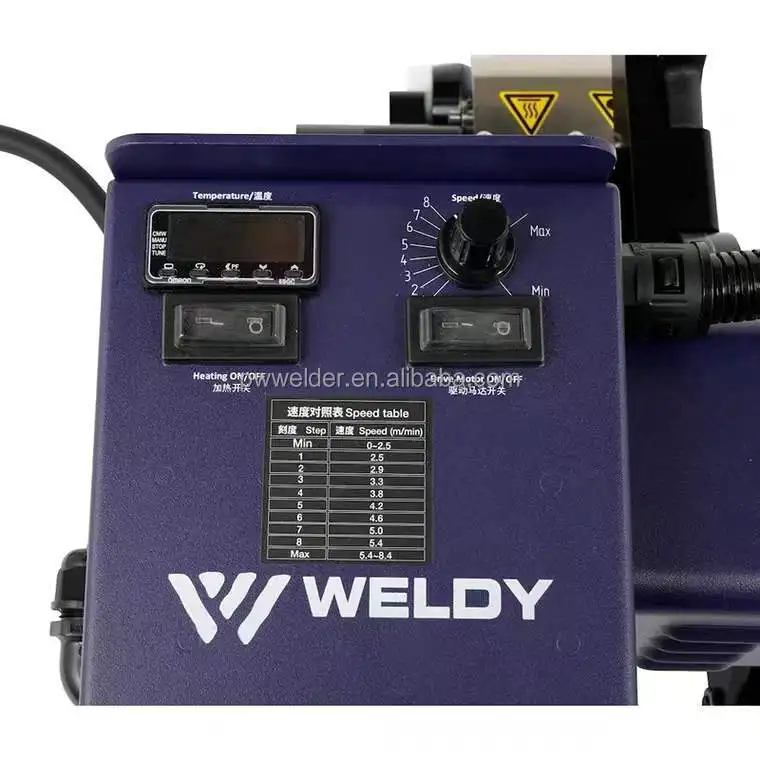

A: Heating and motor can be turned on and off directly with the controls, which enables fast, safe and intuitive operation;
B:
WGW 300 weighs 15 kg and can be easily stored and transported in the storage box supplied;
C: A steel wedge is required for welding PVC geomembranes;
D: The WGW 300 automatic welder is equipped with a powerful and durable motor;
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Model
|
Weldy WGW300
|
|
2
|
Power
|
1750W
|
|
3
|
Voltage
|
220V/120V
|
|
4
|
Welding speed
|
0.5-6.5m/min
|
|
5
|
Heating temperature
|
0-450℃
|
|
6
|
Material thickness
|
1-3mm
|
|
7
|
Welding seal thickness
|
12mm×2, Intermediate cavity:15mm
|
|
8
|
Joint width
|
120mm
|
