- Hign-concerned Chemical: None
- Plug: EU
- Type: Horizontal
- Origin: Mainland China
- CNC or Not: CNC
- Certification: CE
- Condition: New
Product Description

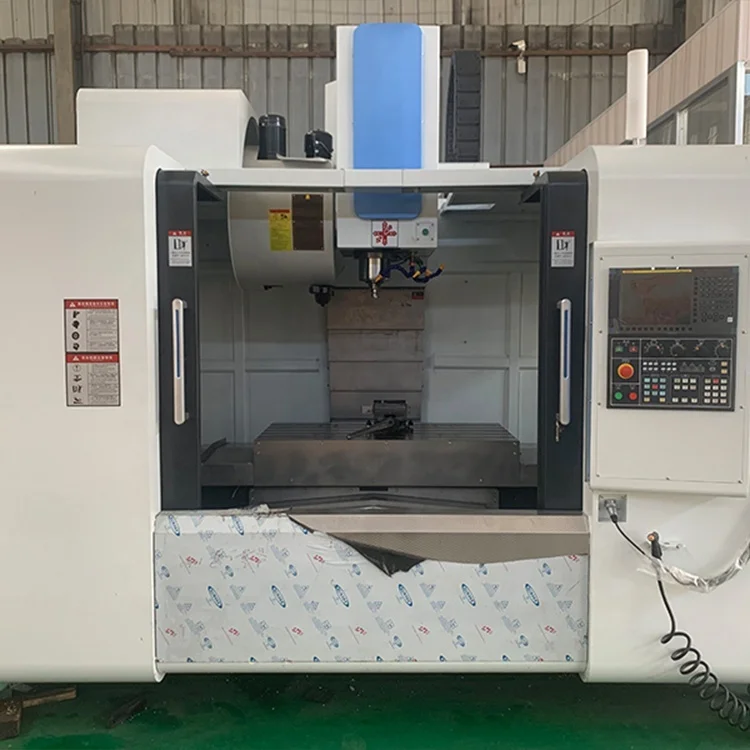

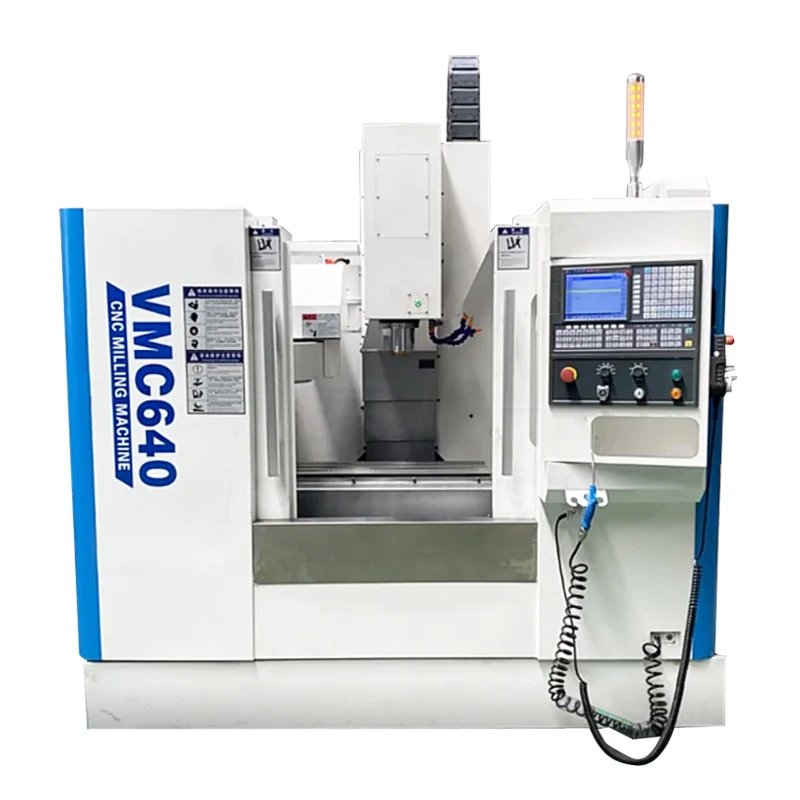

CNC Vertical Machining Center
CNC vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 5.5 kw even more, Spindle taper is BT40 or customized. It can load 500kgs work piece. It is quite new condition not used cnc machine center. Three control systems are available: New Generation, Siemens and FANUC.
Product Advantages
Product advantages
1. The struction of the precision being connected with automatic lubrication device.
3. The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure.
5. All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function.
Enhance machining accuracy.
Enhance machining accuracy.
6.Taiwan spindle/ball screw/ bearing is available.
8.Ultimate 10000rpm spindle speed is available.
9.Portable hand wheel.
10.OEM or ODM is available.
11.Customized color and voltage or LOGO.
12.China top one quality and good after sale service.
12.China top one quality and good after sale service.
Product Paramenters
Machining area | ||||
X axis travel | mm | 650 | ||
Y axis travel | mm | 400 | ||
Z axis travel | mm | 500 | ||
Distance from spindle nose to table surface | mm | 120-620 | ||
Working table | ||||
Table size ( X axis) | mm | 920 | ||
Table size ( Y axis) | mm | 400 | ||
T slot ( Width×Distance×Number) | - | 14/120/3 | ||
Max.table load | kg | 300 | ||
Spindle | ||||
Spindle speed | rpm | 40-6000 | ||
Main motor power | Kw | 5.5 | ||
Spindle tapper | - | BT40 | ||
Max. Spindle output torque | Nm | 26.3/48 | ||
FEED SYSTEM | ||||
Rapid feed speed on X | mm/min | 30000 | ||
Rapid feed speed on Y | mm/min | 30000 | ||
Rapid feed speed on Z | mm/min | 18000 | ||
Cutting feed speed | ||||
Screw size of X axis (diameter×helical pitch) | mm | 32×12 | ||
Screw size of Y axis (diameter×helical pitch) | mm | 32×12 | ||
Screw size of Z axis (diameter×helical pitch) | mm | 32×12 | ||
servo motor power | kw | 1.2/1.2/1.4 | ||
Accuracy | ||||
Positioning accuracy | mm | ±0.005/300 JIS | ||
Repeat Positioning accuracy | mm | ±0.003 JIS | ||
Dimension | mm | 2180x2052x2600 | ||
weight | kg | 3200 | ||

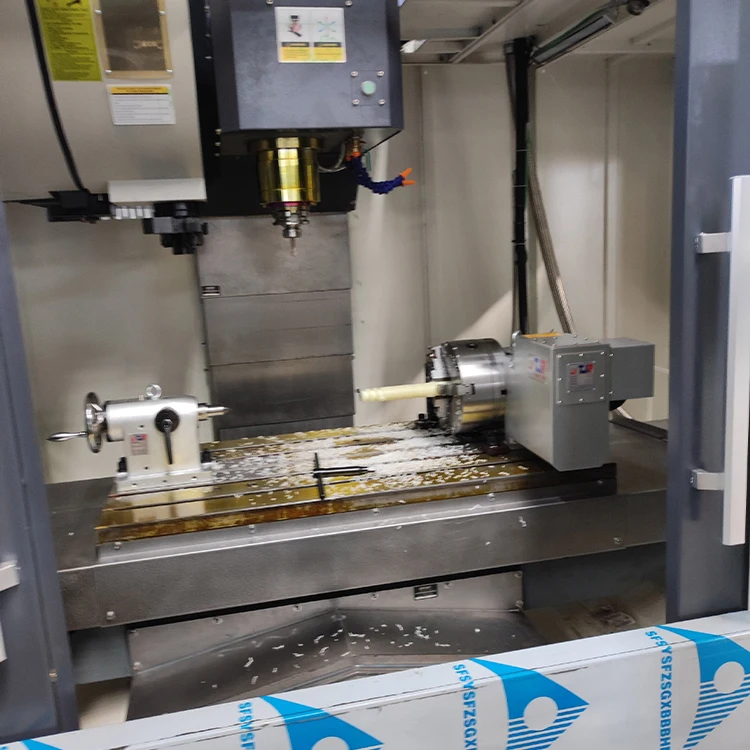

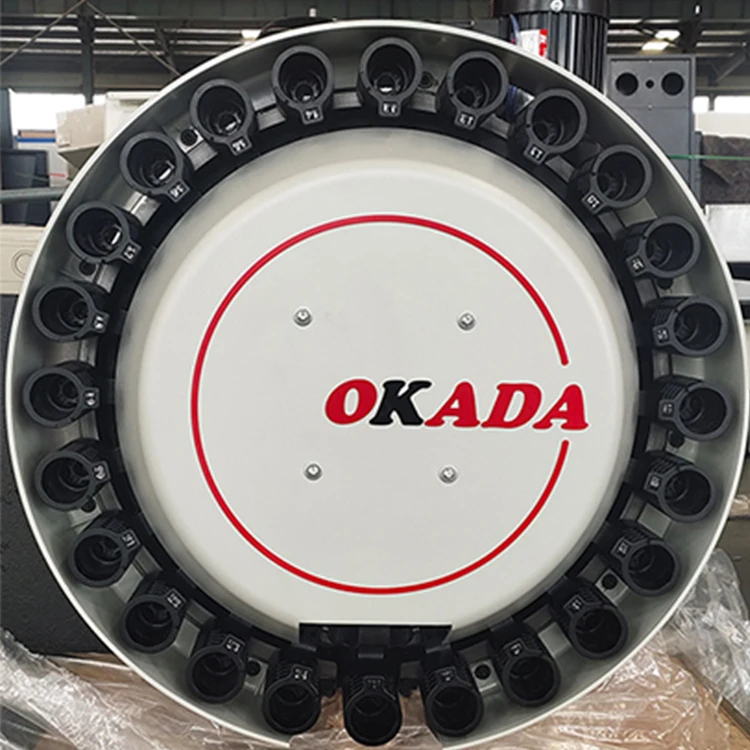

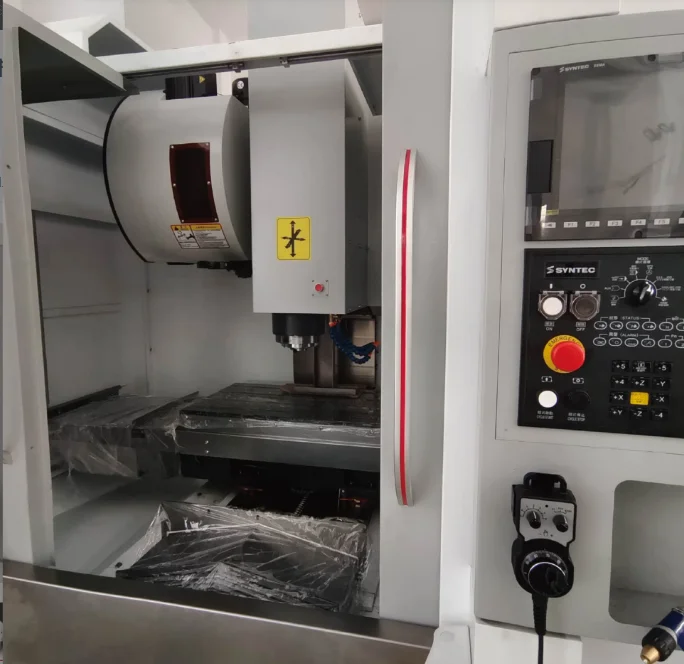

Product Details
Successful Project
Packing & Delivery

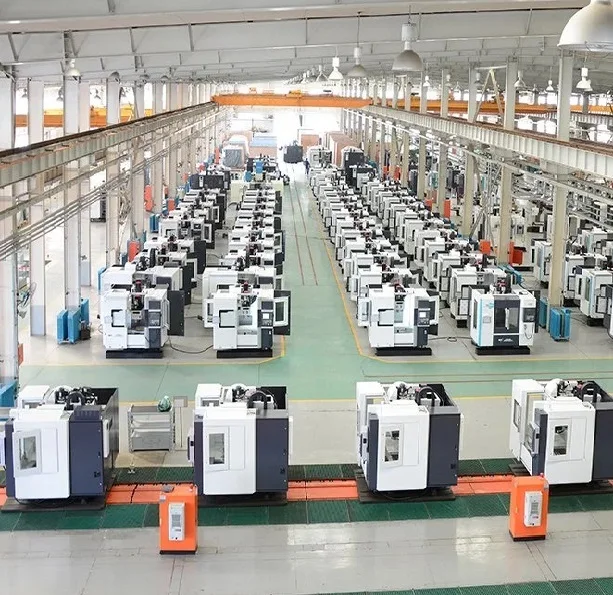

Company Profile
Henan Rowdai Machinery Equipment Co., LTD, is a supplier of machinery.We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc .
Our products provide customer more convenient in their business and expect to have more cooperate in future.
What we offer :
1) Good quality control
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1. What is your advance?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
Yes, you just need to sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
8. Do you provide samples? Is it free or extra ?
