- Hign-concerned Chemical: None
- DIY Supplies: Electrical
- Origin: Mainland China
- Condition: New
- Spindle Taper: BT40
- No. of Spindles: Single
- Dimension(L*W*H): 2100x2000x2300
- Weight (T): 6 T
- Table Size (mm): 1200x600
- CNC Control System: GSK, FA -NUC, MIT -SUBISHI, KND, S -iemens
- Number of Axes: 3, 4, 5
- Table Travel (X) (mm): 1100
- Table Travel (Y) (mm): 600
- Table Travel (Z) (mm): 600
- Positioning Accuracy (mm): ±0.005
- Repeatability (X/Y/Z) (mm): ±0.001
- Range of Spindle Speed(r.p.m): 20 - 8000 r.p.m
- Spindle Motor Power(kW): 11
- Max. Table Load(kg): 1000 kg
- Min. Time of Tool Change(s): 1
- Tool Magazine Capacity: 16, 20, 24
- Key Selling Points: Multifunctional
- Warranty: 1 Year
- Place of Origin: China
- Voltage: customized
- Marketing Type: New Product 2020
- Machinery Test Report: Not Available
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Machine Type: CNC Vertical Machining Center
- Application: General Machinery Processing
- Name: Vertical Machine Center CNC Machine
- Product type: Cnc 3/4/5 Axis Machine
- CNC Controller: Fanuc Siemens Syntec KND GSK
- Precision: High Speed
- Controlling Mode: Cnc Control
- Model: VMC1160H
- After-sales Service Provided: Online support
- Product name: 3-axis Vertical Cnc Machining Center
- Showroom Location: None
- Core Components: Motor
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining, metal ma
- Rapid Feed Speed(m/min): 24
- Feed Speed(mm/min): 20 - 20000 mm/min
VMC1160H Body CNC Vertical Machining Center
Products Description
Application:
This Machine is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
This Machine is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Parameters
|
specifications
|
unit
|
VMC1160H
|
|
Table size
|
mm
|
1200x600
|
|
Table maximum load
|
kg
|
800
|
|
X/Y/Z axis travel
|
mm
|
1100x600x600
|
|
Distance between spindle center and column surface
|
mm
|
650
|
|
Distance between spindle end face and worktable surface
|
mm
|
120-720
|
|
X/Y/Z rapid feed
|
m/min
|
24/24/20
|
|
Cutting feed
|
m/min
|
1-10000
|
|
Max. spindle speed
|
r/min
|
8000
|
|
Spindle taper
|
|
BT40
|
|
Spindle motor
|
kw
|
11
|
|
X/Y/Z axis servo motor
|
kw
|
3/3/4.5
|
|
X/Y/Z guide rail form
|
|
linear rail
|
|
Tools type
|
|
Arm 24
|
|
Machine dimension
|
mm
|
2100x2000x2300
|
|
Machine weight
|
kg
|
6000
|

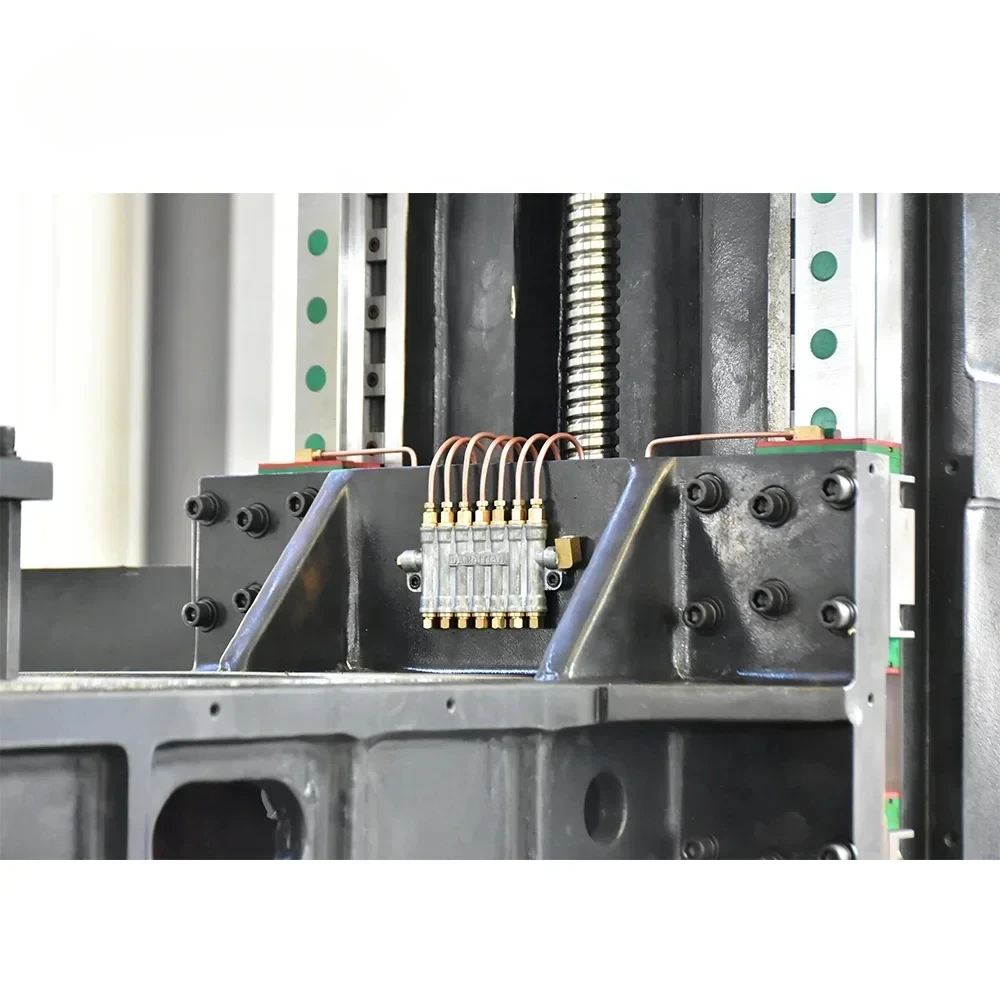

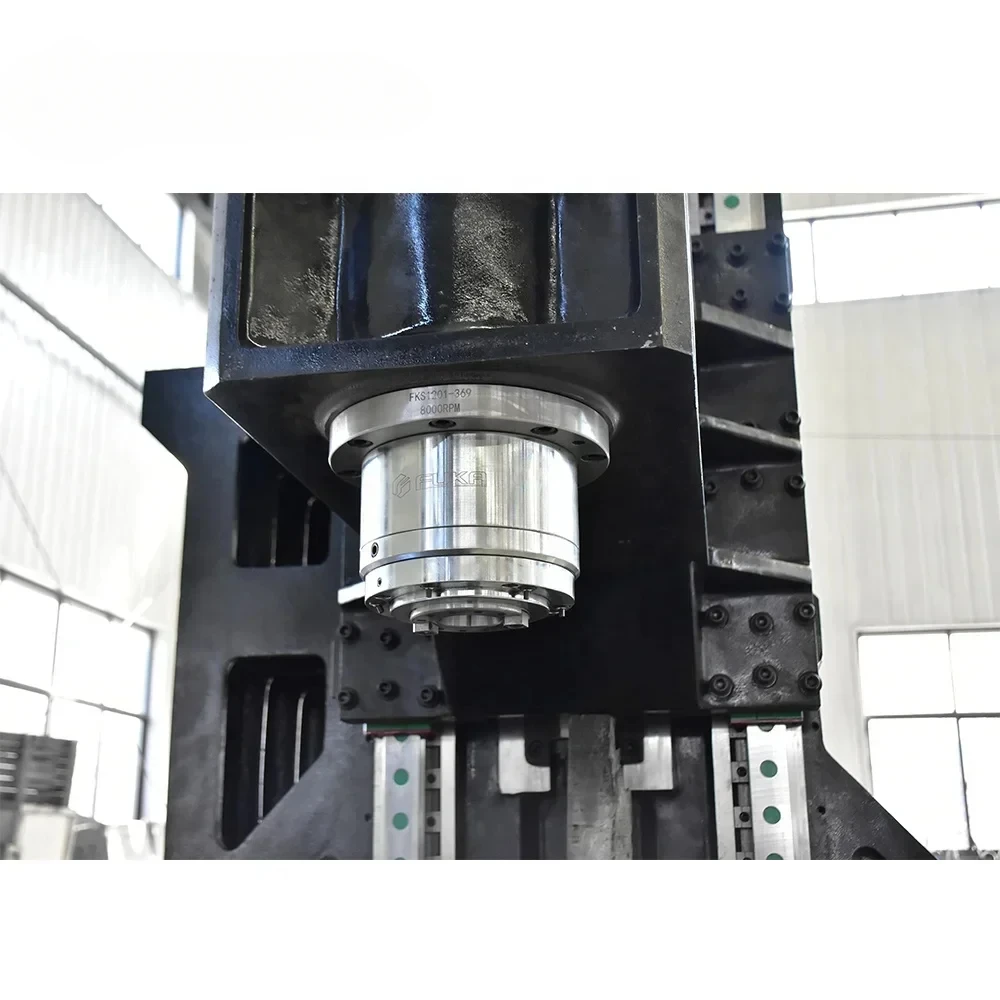

Details Images
