- Químico Hign-em causa: Nenhum
- materiais de bricolage: elétrico
- Origem: CN (Origem)
- Condition: New
- Spindle Taper: BT30
- No. of Spindles: Single
- Type: VERTICAL
- Dimension(L*W*H): 2350*2200*2400 mm
- Weight (T): 3.4 KG
- Table Size (mm): 260
- CNC Control System: Lynuc
- Table Travel (X) (mm): 400
- Table Travel (Y) (mm): 650
- Table Travel (Z) (mm): 250
- Positioning Accuracy (mm): ±0.008
- Repeatability (X/Y/Z) (mm): ±0.005
- Range of Spindle Speed(r.p.m): 1 - 30000 r.p.m
- Max. Table Load(kg): 30 kg
- Min. Time of Tool Change(s): 4
- Tool Magazine Capacity: 14
- Key Selling Points: Automatic
- Warranty: 1 Year
- Place of Origin: Guangdong, China
- Brand Name: LEYO
- Voltage: 380V 50HZ /220V 60 HZ
- Marketing Type: Hot Product 2019
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Machining Capacity: Medium Duty
- Rapid Feed Speed(mm/min): 0 - 30 mm/min

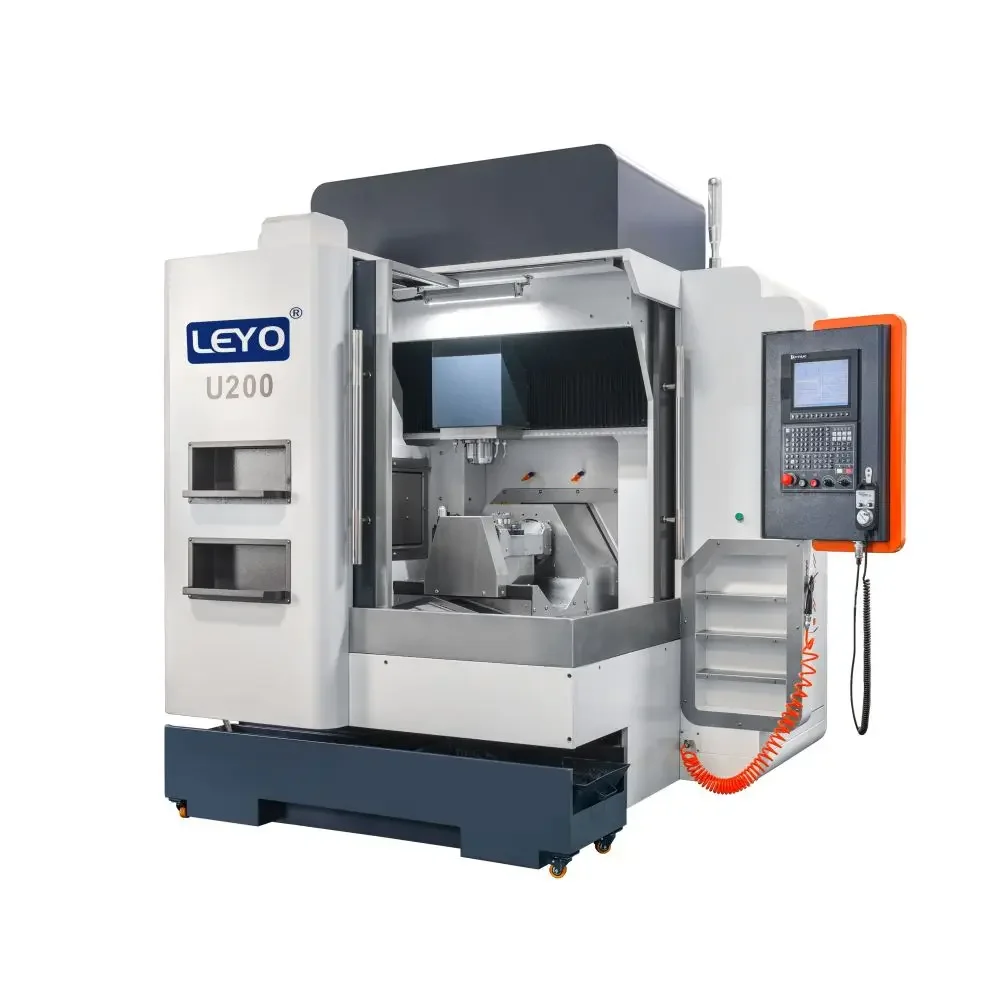

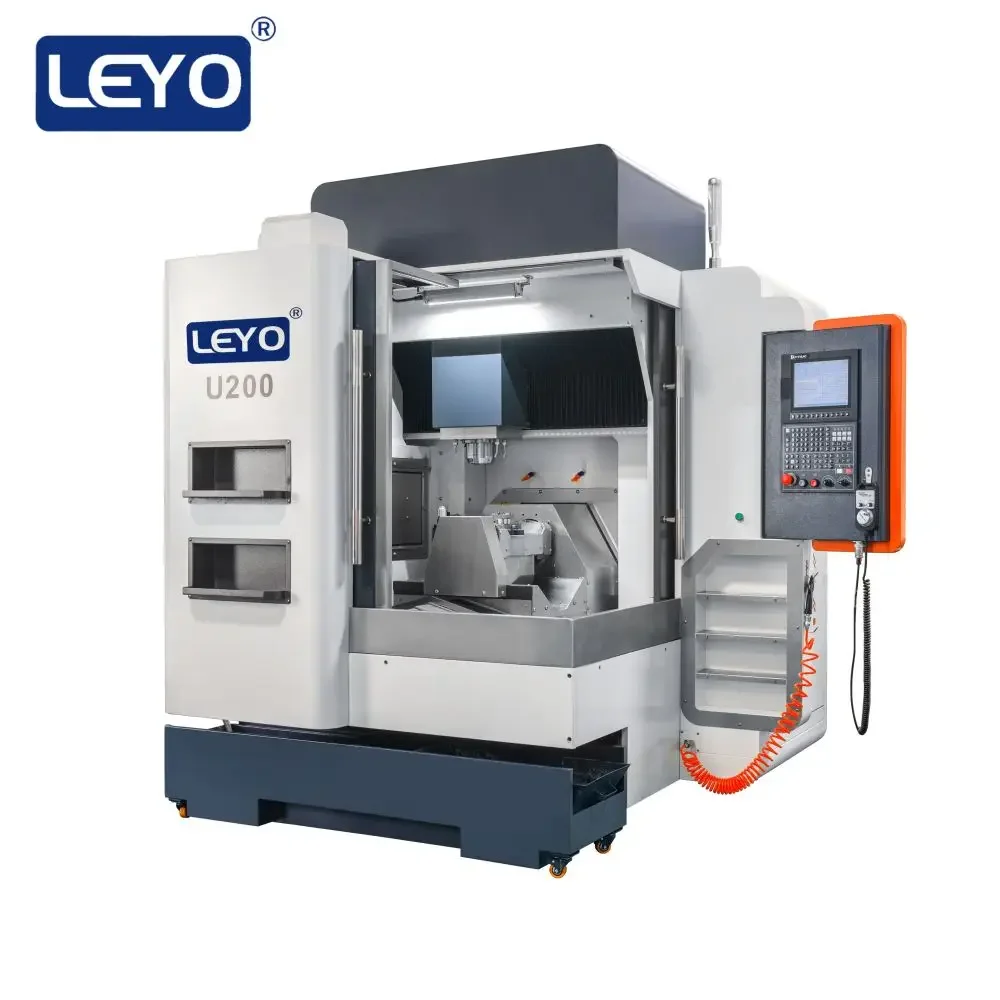

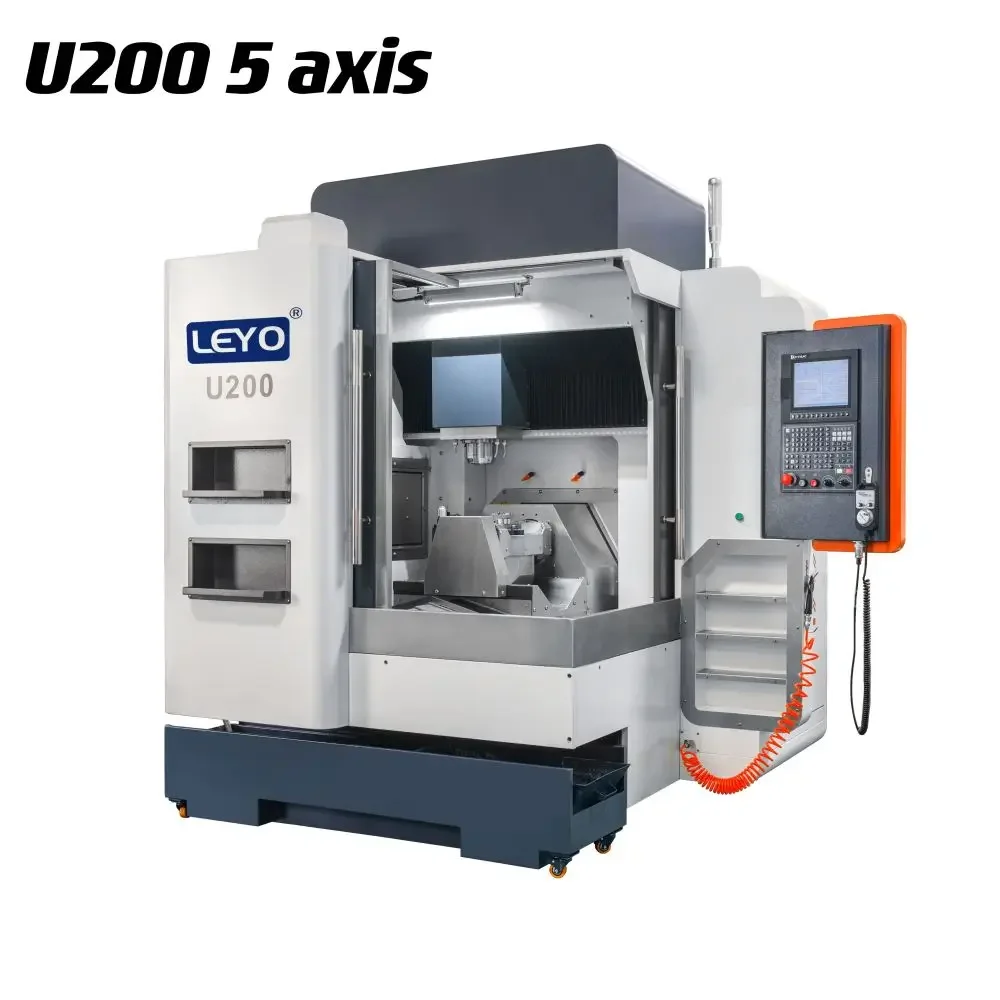

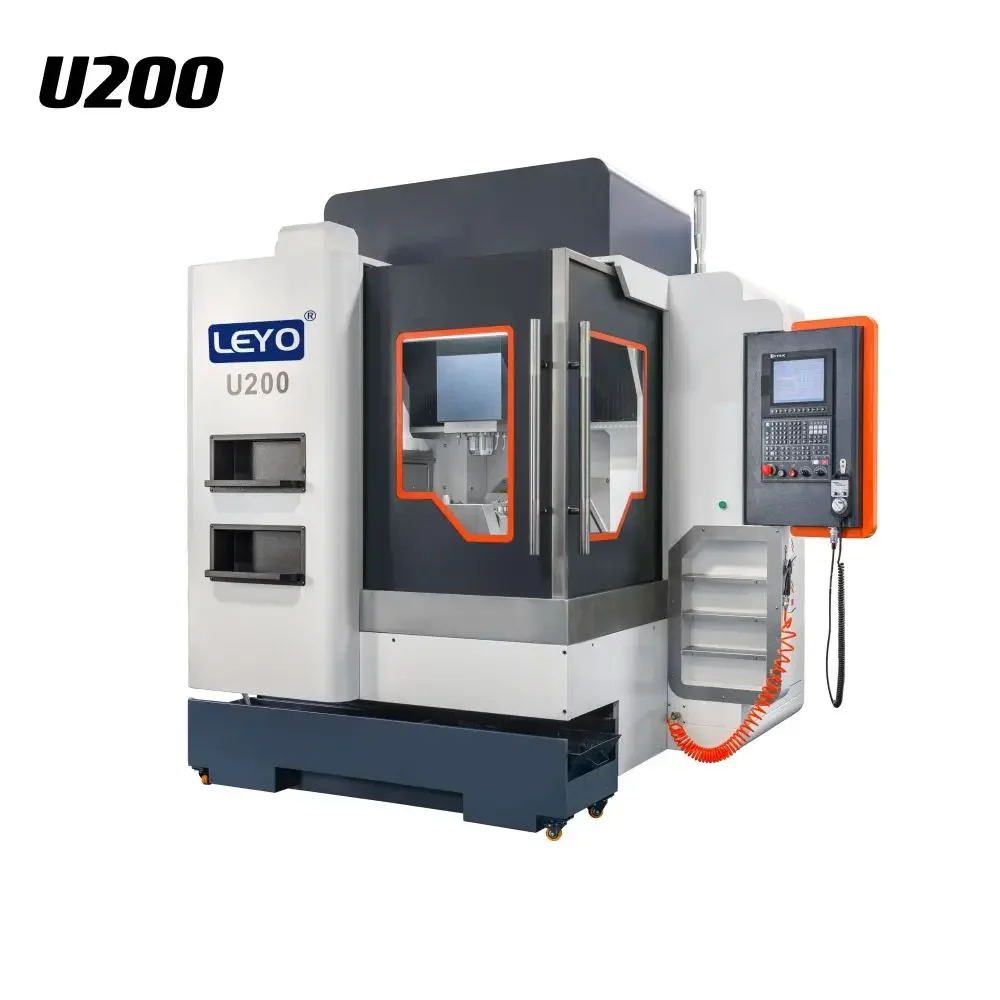

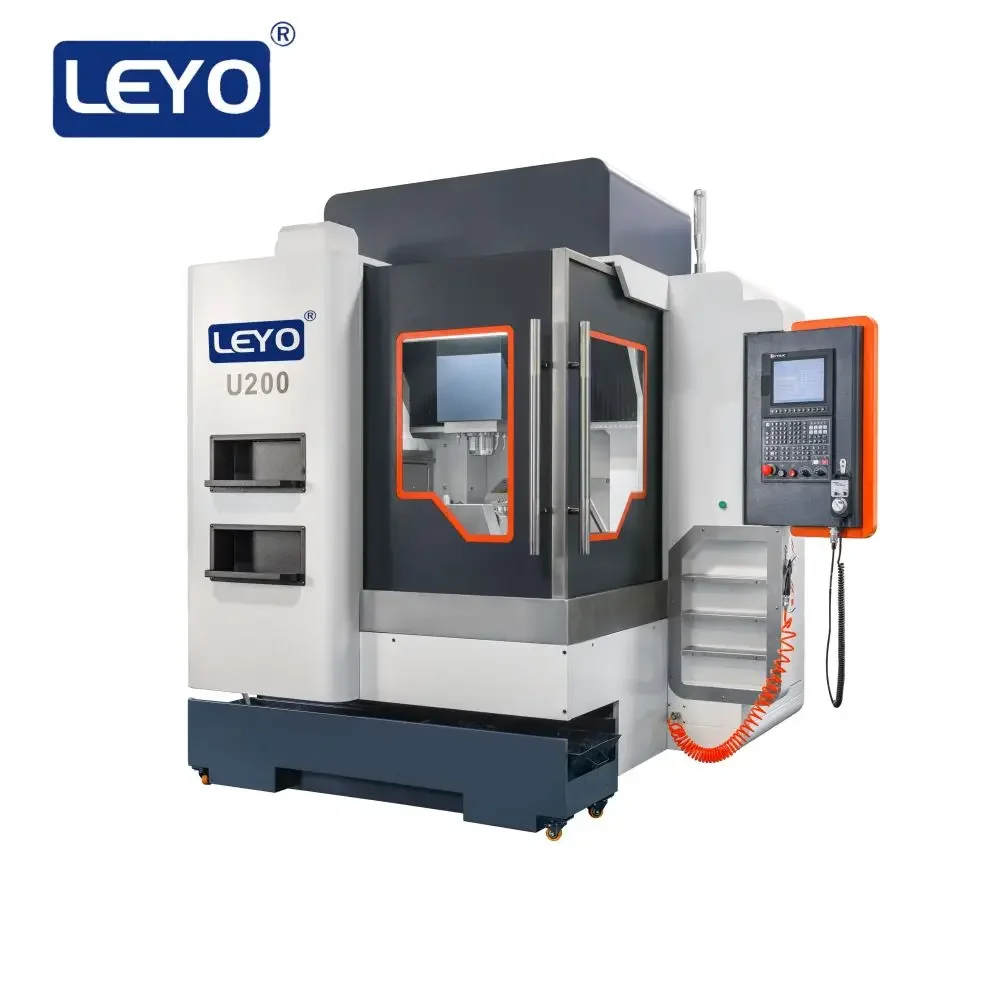

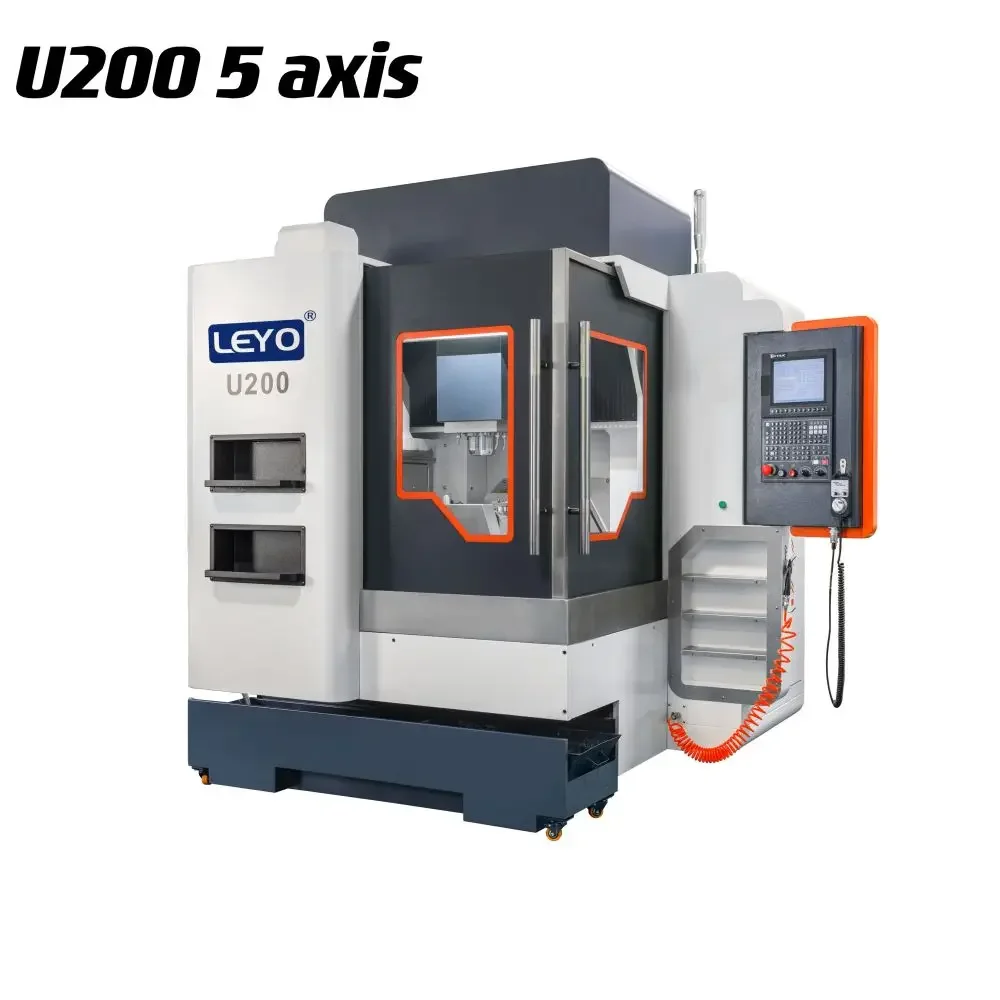

- Product name: Leyo U200 5 Axis Compact Machining Center
- Machine Type: Vertical Machine Centers
- Product type: 5 Axis Machine
- Keywords: 5 Axis Machining Center
- Function: Machining Metal
- Processing: Maching Center
- Precision: High Precision Machining Center
- Machine Name: VMC Vertical Machining Center
- Other Name: Compact Machining Center
- Spindle Bore(mm): 60
- Feed Speed(mm/min): 1 - 15000 mm/min
- Cutting torque: 120 N.m
Hello my dear friend, welcome to our shop, there must be something you need here, if you can't find what you need, please contact me. Please contact me as well to get the detailed shipping cost for the item! Please contact me as well to communicate the exact price! If you need to enquire about other models, customised items and discounts, please contact me and I will be online 24 hours a day. Whatsapp:+86 13627367167 Email: 3140006550@qq.com
Hot sale
Product Paramenters
|
LEYO U-200 5 Axis Machining Center Technical List
|
||||
|
Items
|
Unit
|
U-200
|
||
|
X-axis travel
|
mm
|
400
|
||
|
Y-axis travel
|
mm
|
650
|
||
|
Z-axis travel
|
mm
|
250
|
||
|
X-axis rapid moving speed
|
m/min
|
15
|
||
|
Y-axis rapid moving speed
|
m/min
|
15
|
||
|
Z-axis rapid moving speed
|
m/min
|
15
|
||
|
X/Y/Z axis position accuracy
|
mm
|
±0.008
|
||
|
X/Y/Z axis reposition accuracy
|
mm
|
±0.005
|
||
|
A-axis travel (tilt axis)
|
°
|
±110°
|
||
|
A-axis maximum speed
|
rpm
|
100
|
||
|
A-axis rated torque
|
N.m
|
110
|
||
|
A-axis position accuracy
|
arc
|
8"
|
||
|
A-axis reposition accuracy
|
arc
|
6"
|
||
|
C-axis travel (rotation axis)
|
°
|
360°
|
||
|
C-axis maximum speed
|
rpm
|
200
|
||
|
C-axis rated torque
|
N.m
|
30
|
||
|
C-axis position accuracy
|
arc
|
6"
|
||
|
C-axis reposition accuracy
|
arc
|
4"
|
||
|
A-axis braking mode
|
Air brake
|
|||
|
Distance from the highest end face of the spindle to the worktable
|
330
|
|||
|
Dimensions of worktable (rotarytable)
|
mm
|
260
|
||
|
Rotarytable bearing capacity
|
kg
|
30
|
||
|
Model and specification of spindle cone handle
|
NBT30
|
|||
|
Maximum spindle speed
|
rpm
|
30000
|
||
|
Rated power of spindle
|
kw
|
7.5
|
||
|
Rated torque of spindle
|
N.m
|
6.8
|
||
|
Maximum spindle torque
|
N.m
|
10
|
||
|
Tool magazine form
|
D-type tool magazine-servo
|
|||
|
Number of tools held in the tool magazine
|
pcs
|
14
|
||
|
Tool change time (T-T)
|
s
|
4
|
||
|
Maximum tool length
|
mm
|
200
|
||
|
Maximum tool weight
|
kg
|
4
|
||
|
Machine tool appearance dimensions (length x width x height)
|
mm
|
2350x2200x2400
|
||
|
Machine weight
|
kg
|
3400
|
||
|
Air demand for machine tools
|
kg/cm³
|
6
|
||
|
Total power of machine tool
|
kw
|
10
|
||
Products Description
LEYO U-200 five axis machining center description
LEYO U200 5 Axis Machining Center is a high-tech and high-precision machining center specifically designed for processing complex surfaces. This machining center is mainly used in industries such as aviation, aerospace, scientific research, precision instruments, and so on. The five axis linkage CNC machining center system is suitable for machining workpieces such as impellers, blades, marine propellers, heavy-duty generator rotors, steam turbine rotors, large diesel engine crankshafts, etc.
What's RTCP function? -Rotated Tool Center Point,in a word, it is tool follow function. 1.The 5 axis machine with RTCP function can clamp and place the workpiece casually, and the machine will automatically compensate the offset, greatly reduce the auxiliary time, improve the machining accuracy, and the post-processing is also very simple. 2.The 5 axis machine without RTCP function, the tool and spindle can only work according to the set program. In case of deviation, there are only two options: either replace the tool, or reprogram the spindle, return to the starting point and run again.
