PLEASE NOTE:

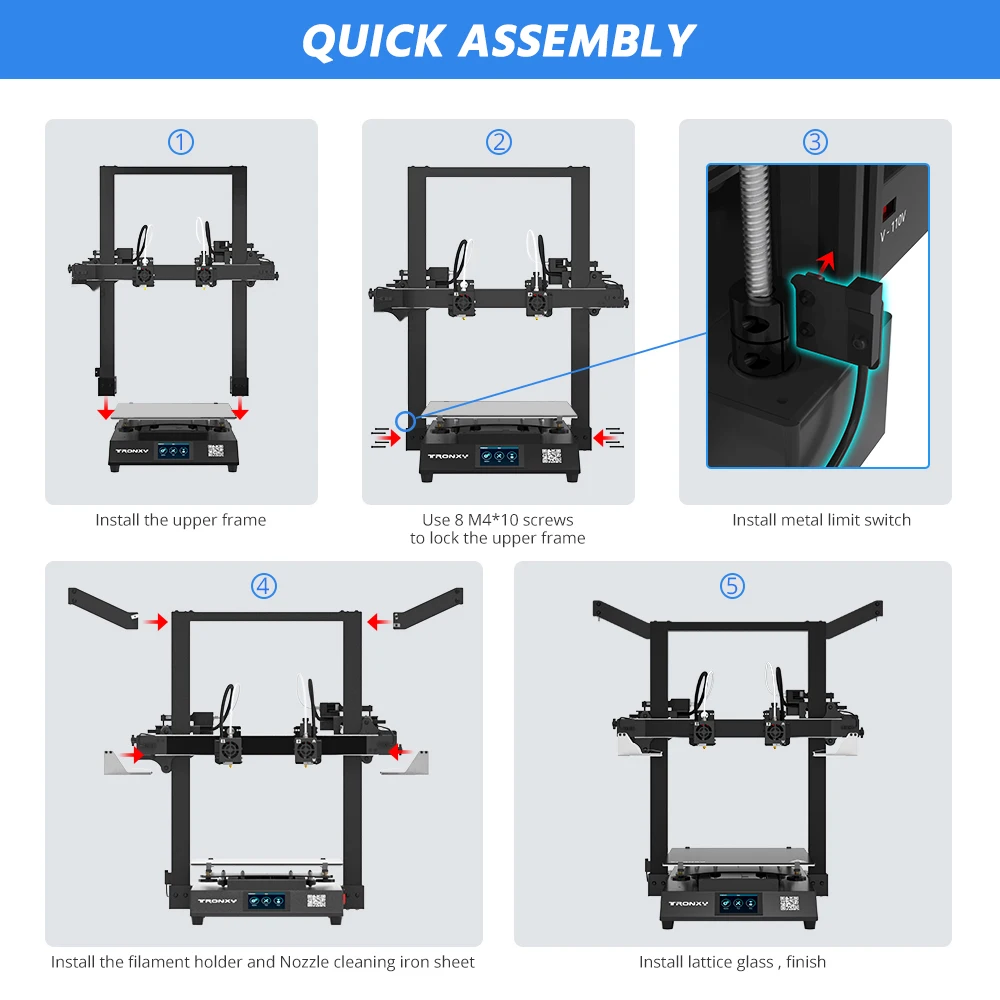

The complicated assembly process has been completed before leaving the factory, but the printer needs to be simply assembled to combine the assembled parts.

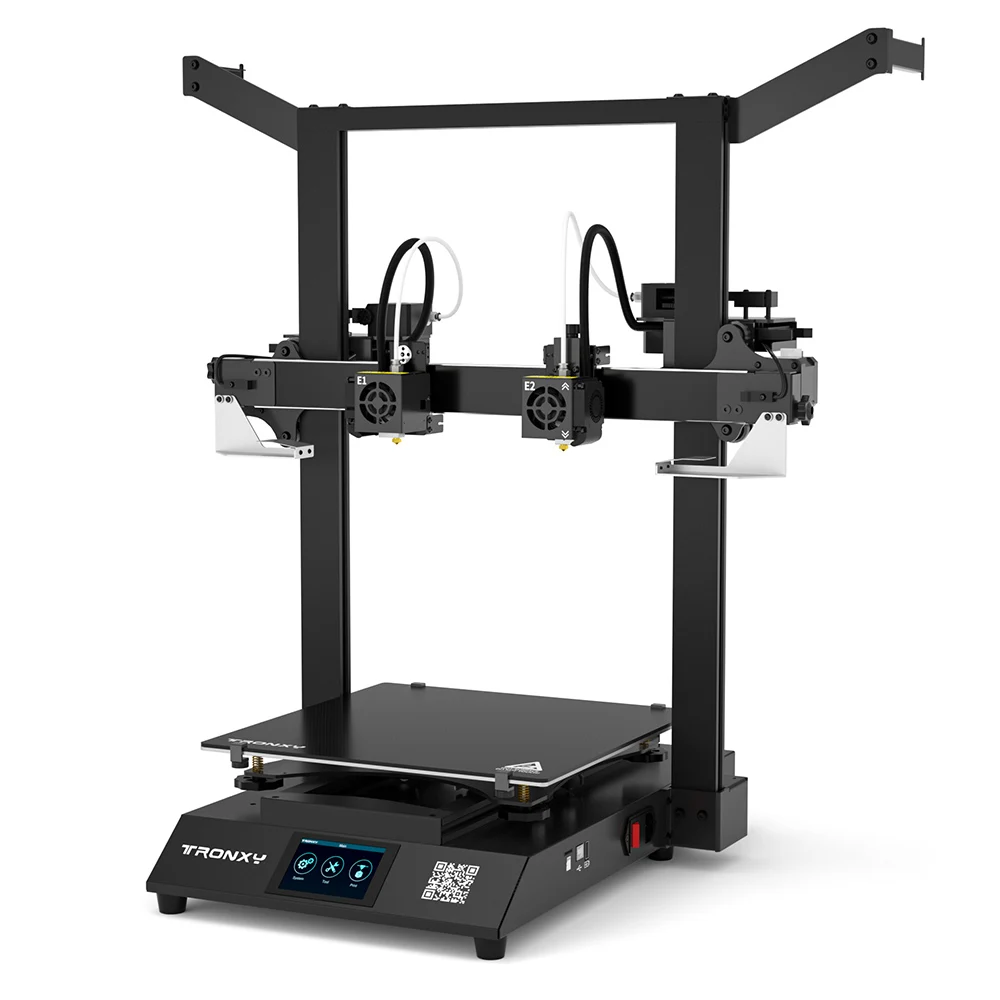

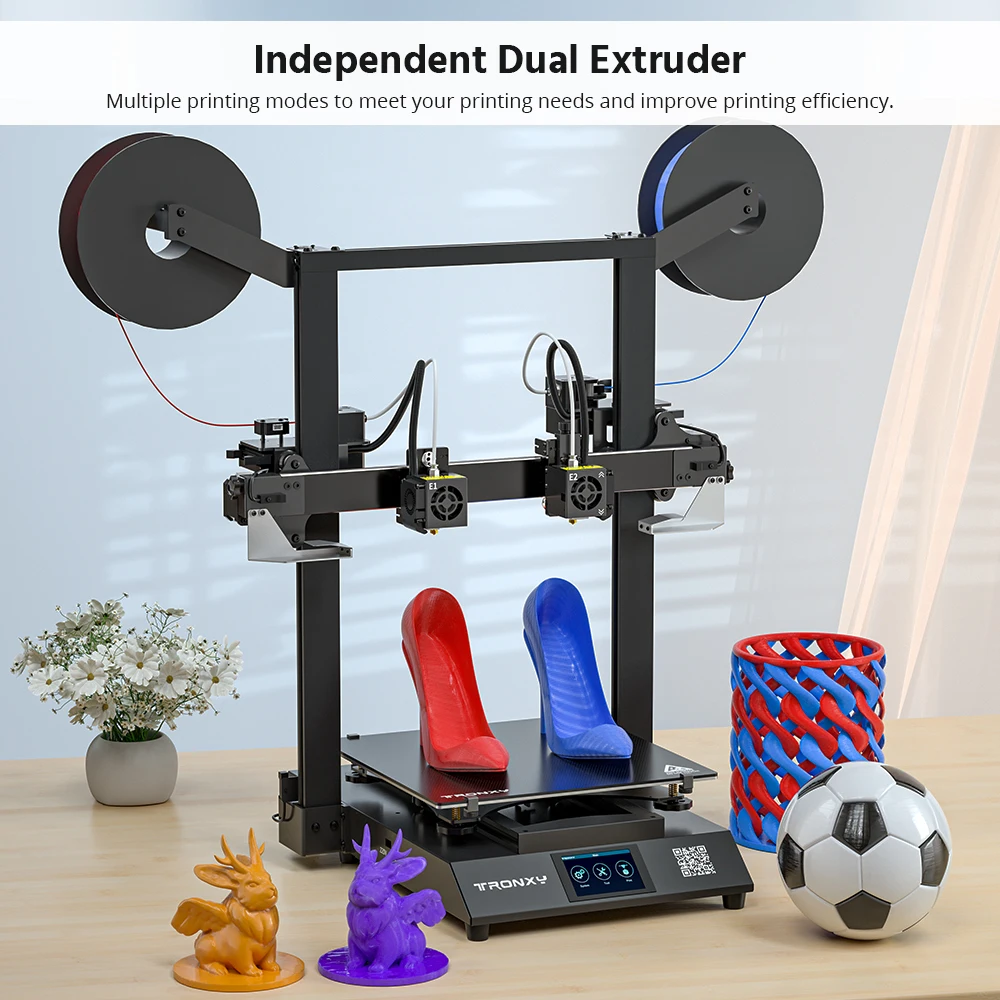

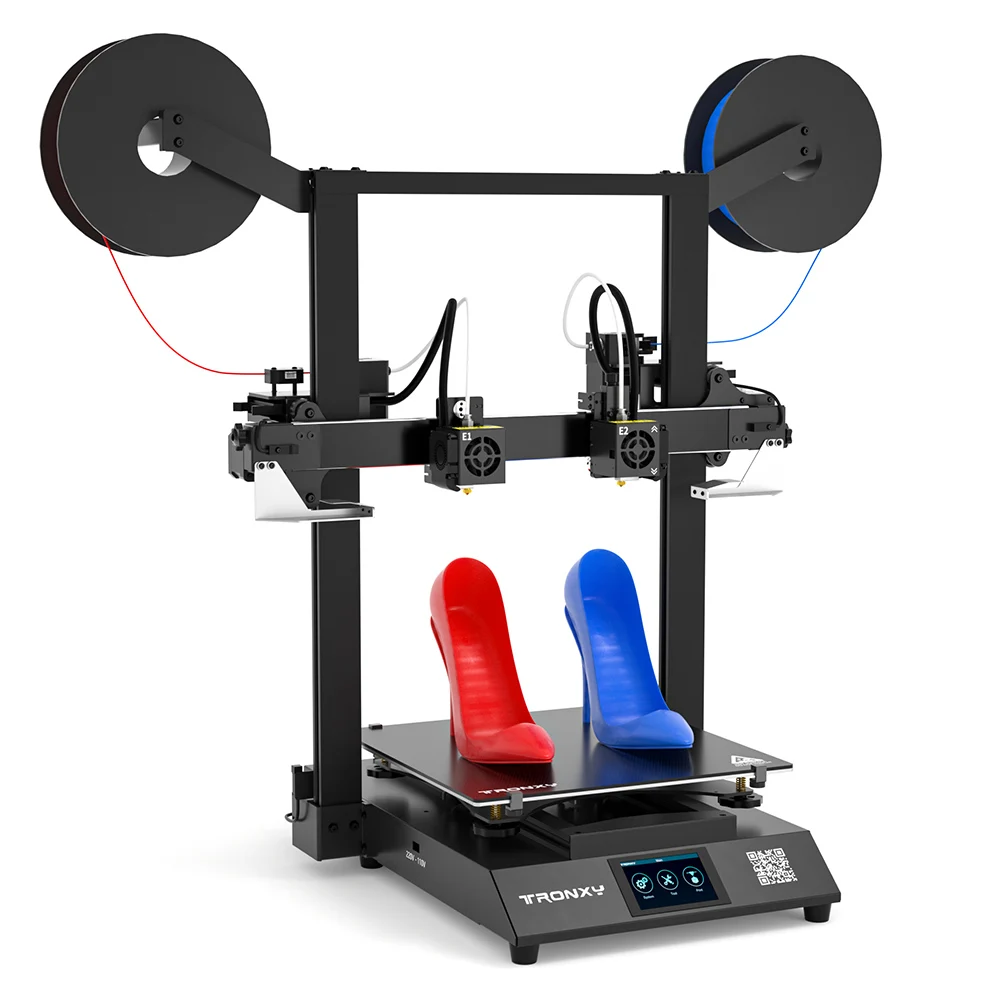

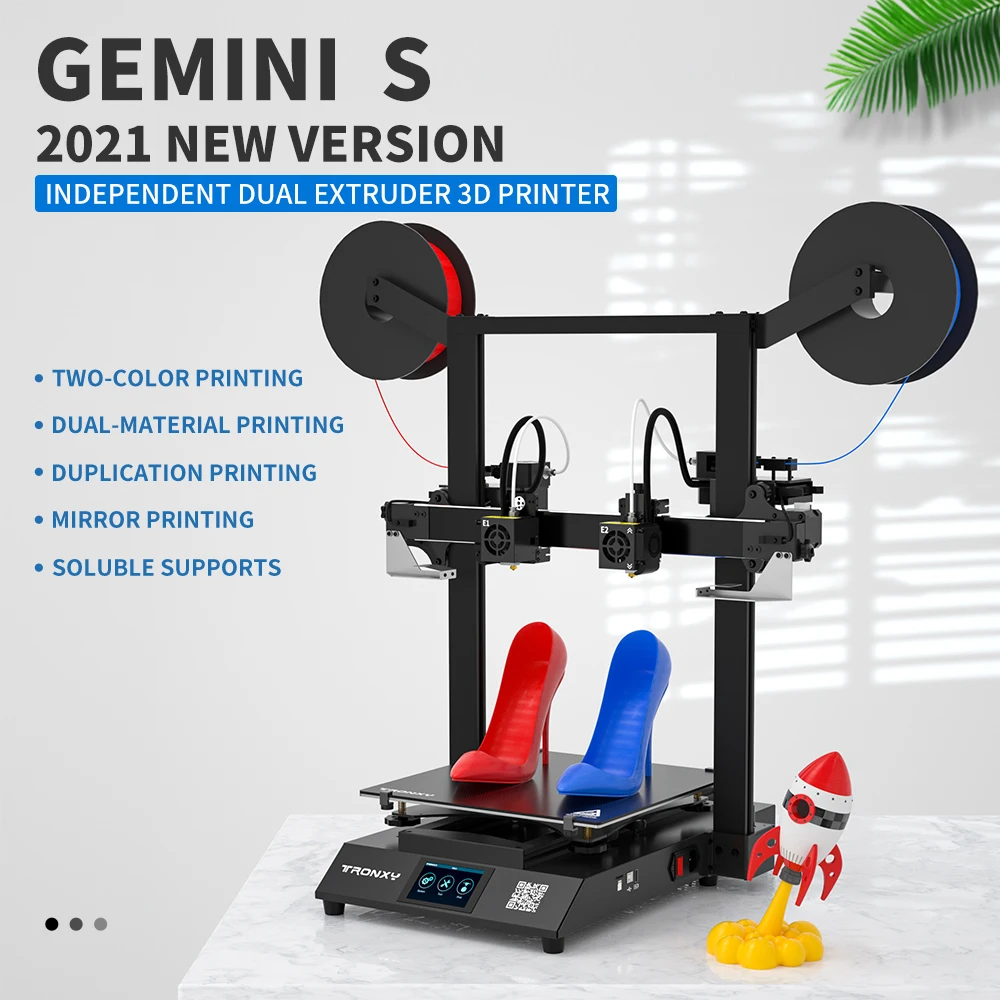

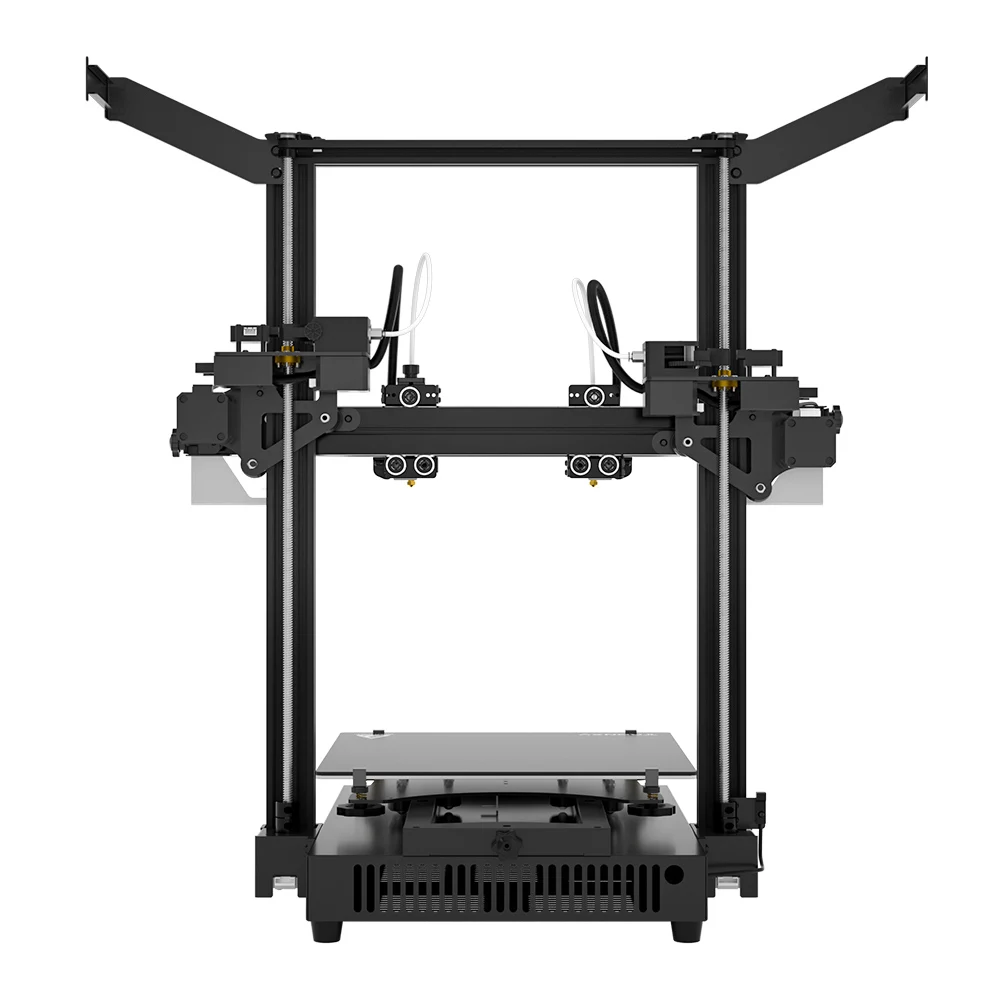

Independent Dual Extruder(IDEX)

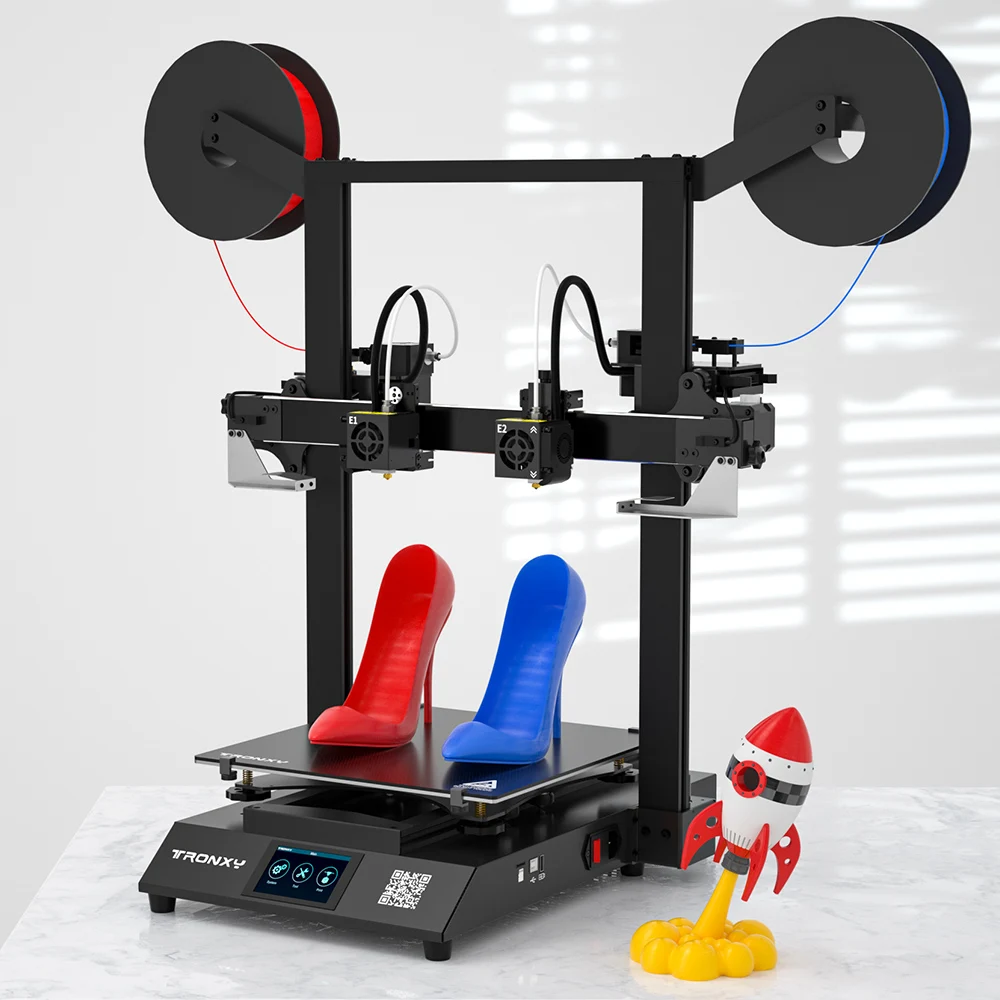

Two-color printing

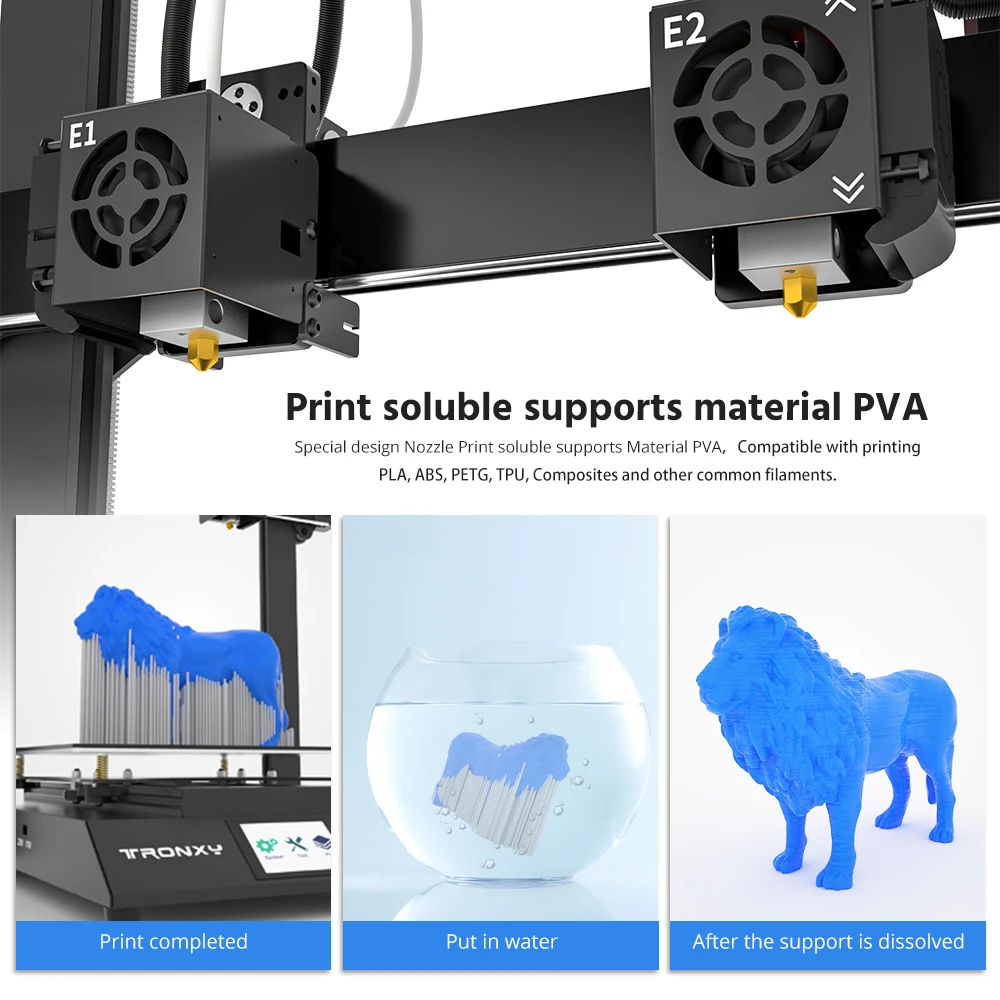

Dual-material printing
One Printer, 2 same-models printings, save half time

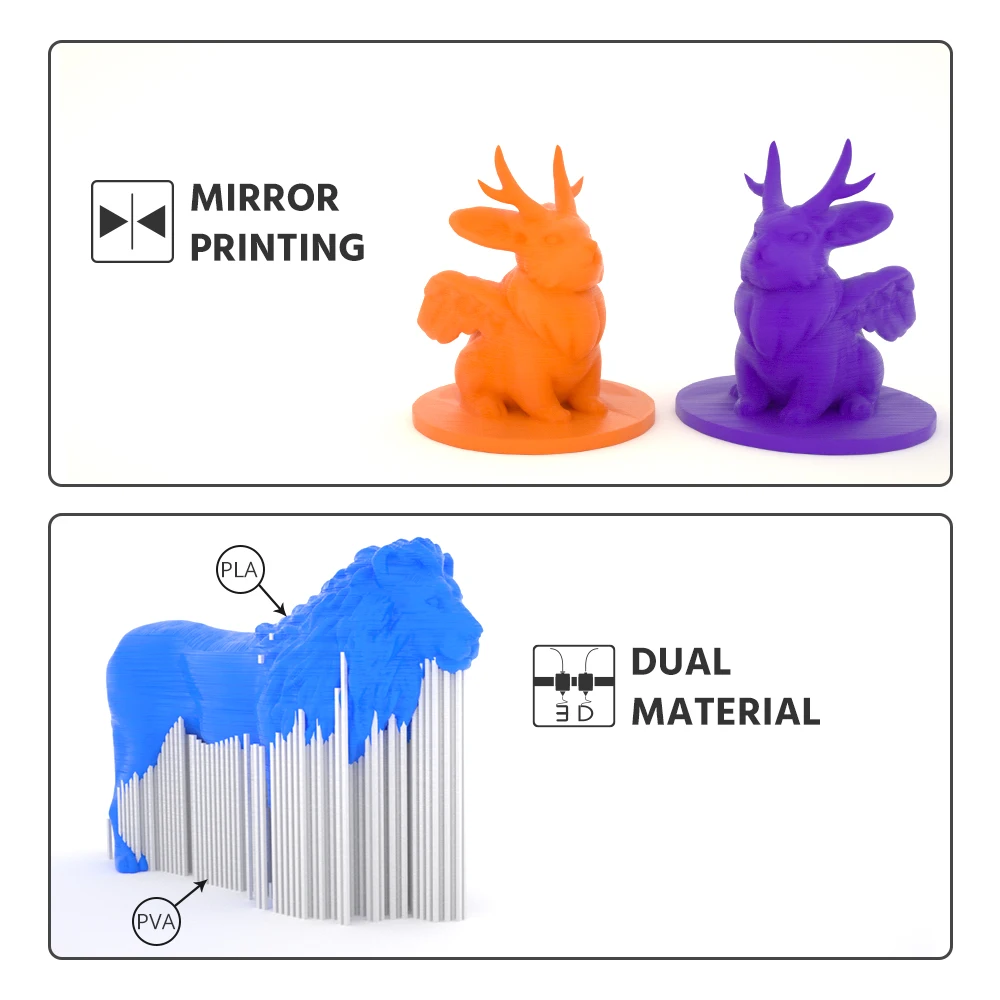

Mirror Printing AND Copy Printing

● Intergrated structure assembled in two stepsThe whole machine is composed of two parts, the upper frame and bottom base, which saves the cumbersome assembly process.
● High-performance silent motherboard The ultra-quiet motherboard is equipped with an ARM high-performance processing chip and a TMC ultra-quiet driver, which makes printing process is quieter, more accurate, and more stable.
● Intelligent memory Power failure resume printingIntelligent printing, automatically remember the printing progress, and restart the machine to resume printing in breakpoint after power off.

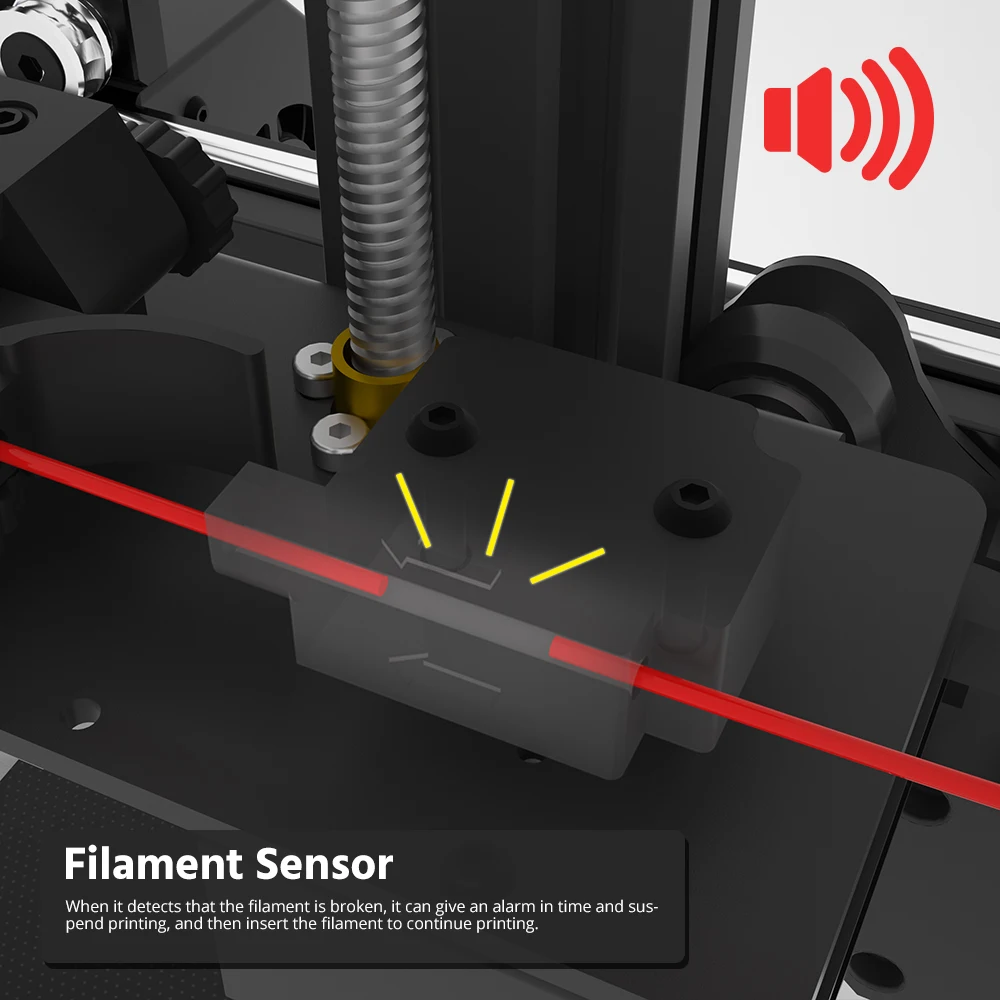

● Warning of broken filament detection GEMINI S is equipped with a high-sensitivity material broken detector.Once a materialbroken occurs, it will automatically stop printing and emit a warning sound.
● Equipped with TITAN extruder compatible with various consumables GEMINI S uses TITAN extruder.Suitable for all kinds of filaments, such as PLA, ABS, PETG, WOOD, TPU.

RESUME PRINT FUNCTION:

GEMINI S can resume printing from the last recorded extruder position after suffering unexpected power outages.

SEMI-ASSEMBLED KIT

This easy-to-setup kit comes partially assembled, allowing you to learn about the basic construction of 3D printers as you finish putting it together. A fun STEM educational experience in mechanical engineering and electronics.

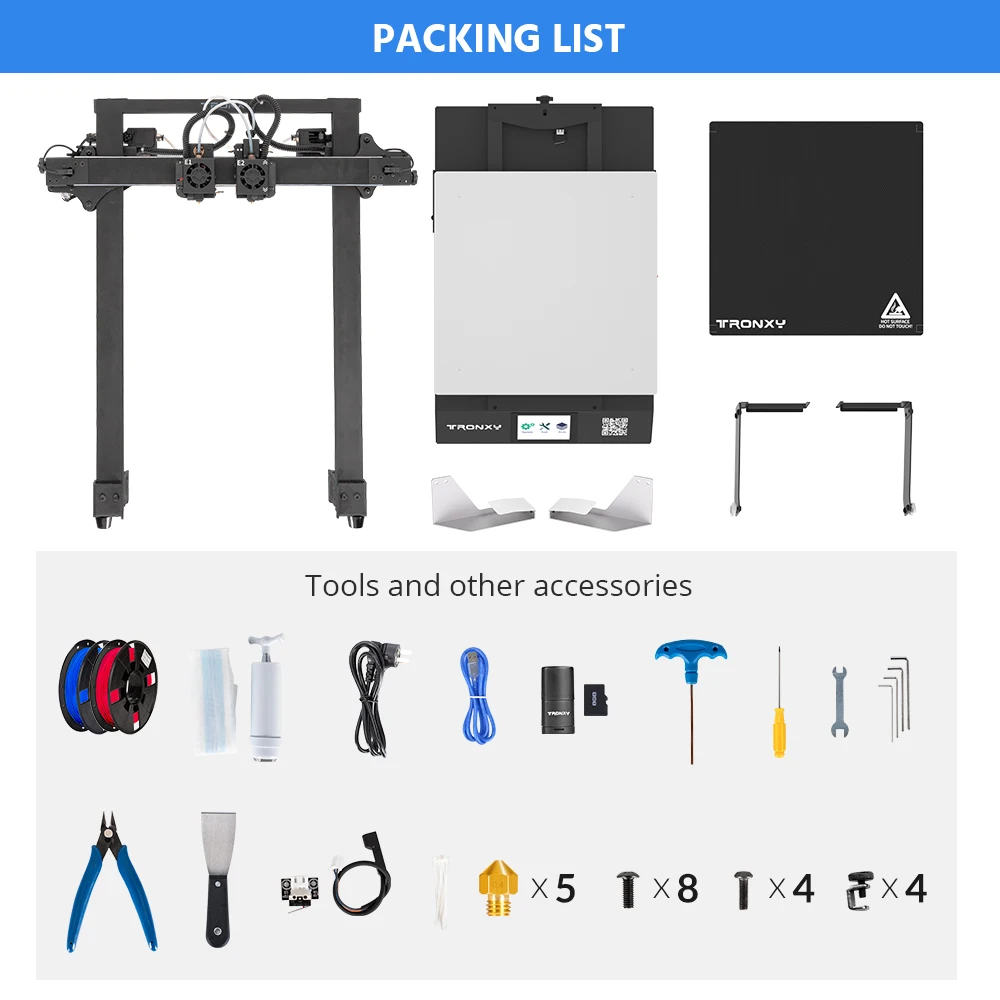

WHAT YOU GET:

GEMINI S 3D Printer, lifetime technical assistance and 24 hours professional customer service.

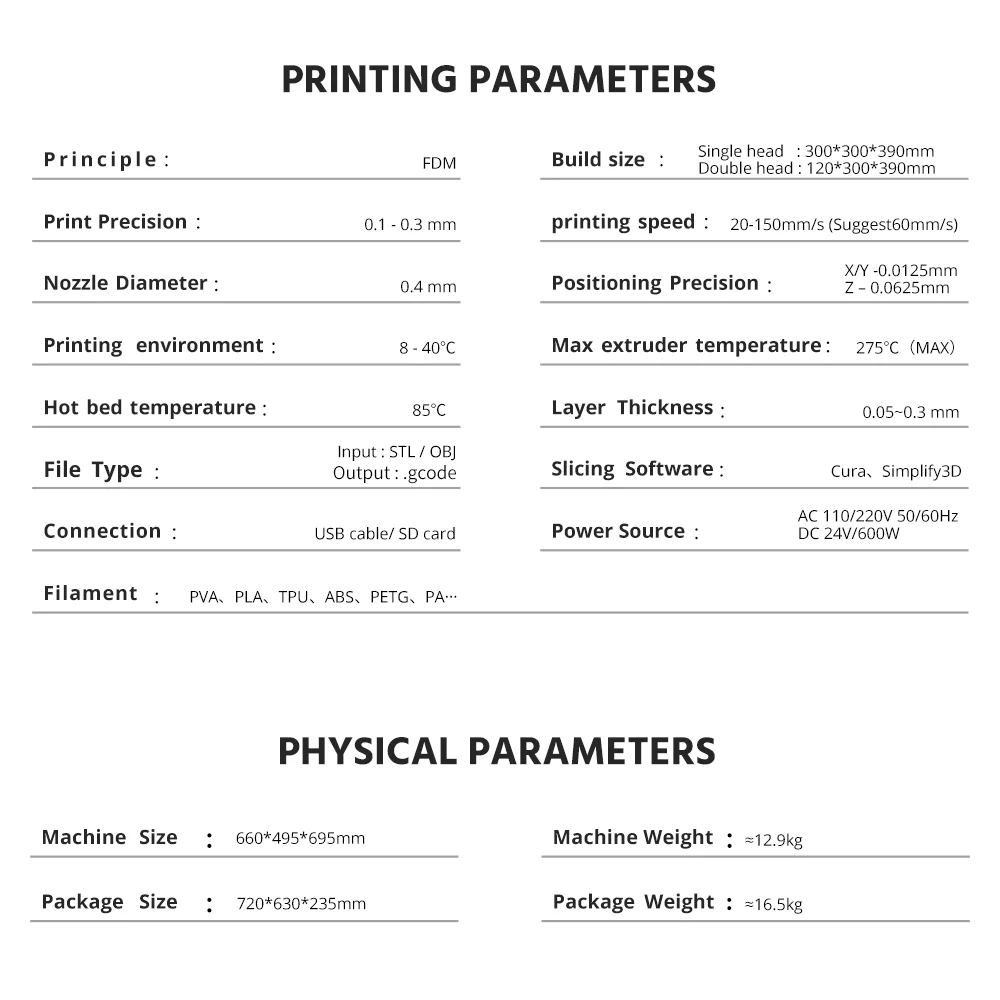

GEMINI S Print Parameters

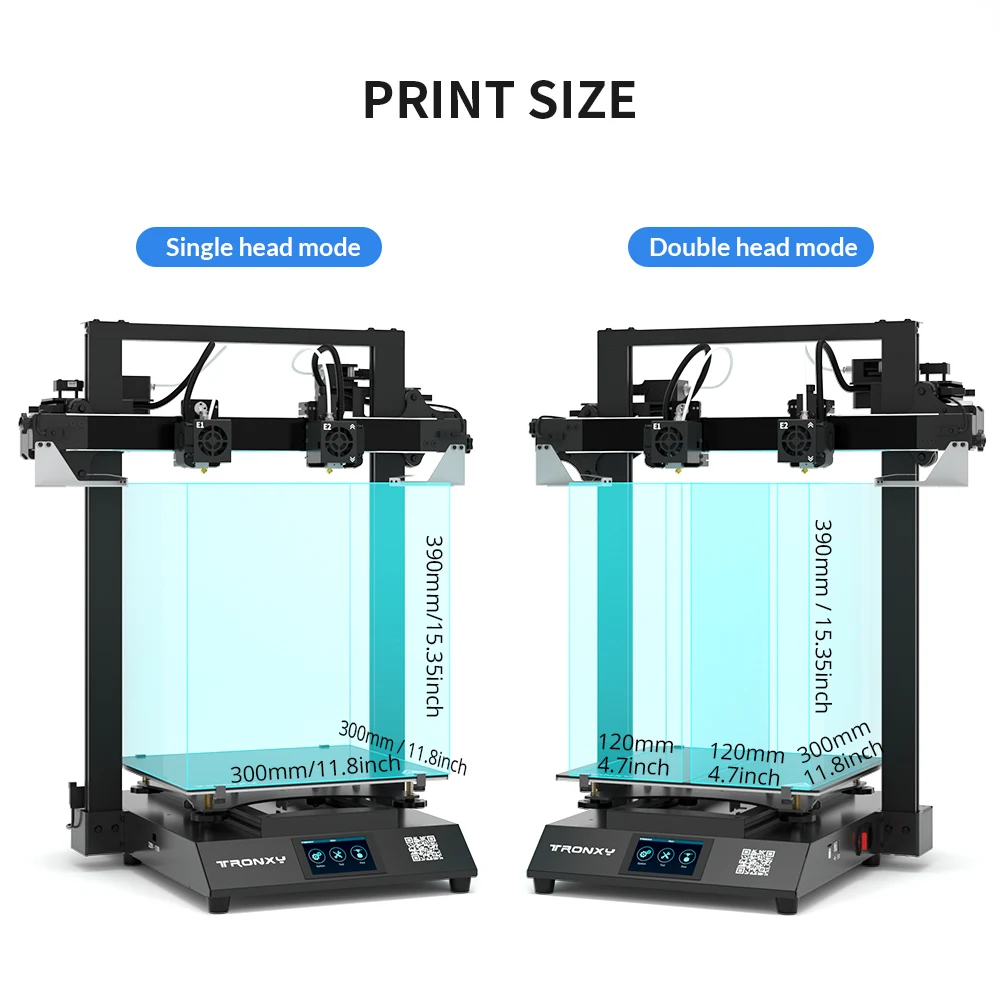

Print size:
300 *300 * 390mm(single head model)
120 *300 * 390mm(double head model)

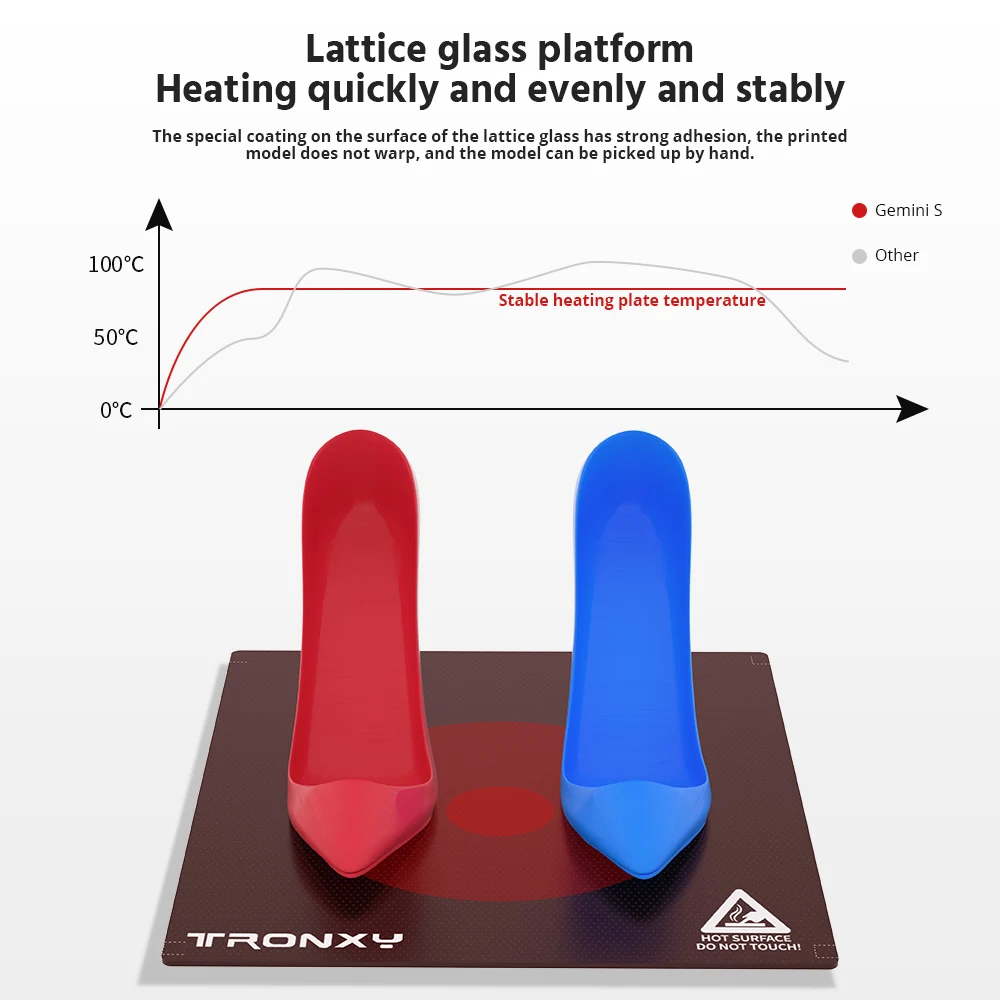

Hot bed size: 310*310mm

Print color: Monochrome
Print speed: 20-150mm / s
Print thickness: 0.1-0.3mm
Positioning accuracy: X / Y: S0.00625mm, Z: S0.00125mm
Nozzle size: 0.4 mm
Materials support: PLA / ABS / PETG

GEMINI S Temperature parameters

Environmental temp: 8 ℃ - 40 ℃
Nozzle temp: Max275 ℃
Heat bed temp: Max120 ℃

Software

Slicing software: Tronxy slicer
File format: STL.OBJ.DAE.AMF.G code
Operation software: Repetier-Host / Cura
Operation system: Windows
Connection: USB cable, TF card

Power Supply

Power input: 110V / 220V AC, 50 / 60Hz
Power output: 24V / 600W

Machine size: 660x695x495mm
Machine weight: 12.9kg

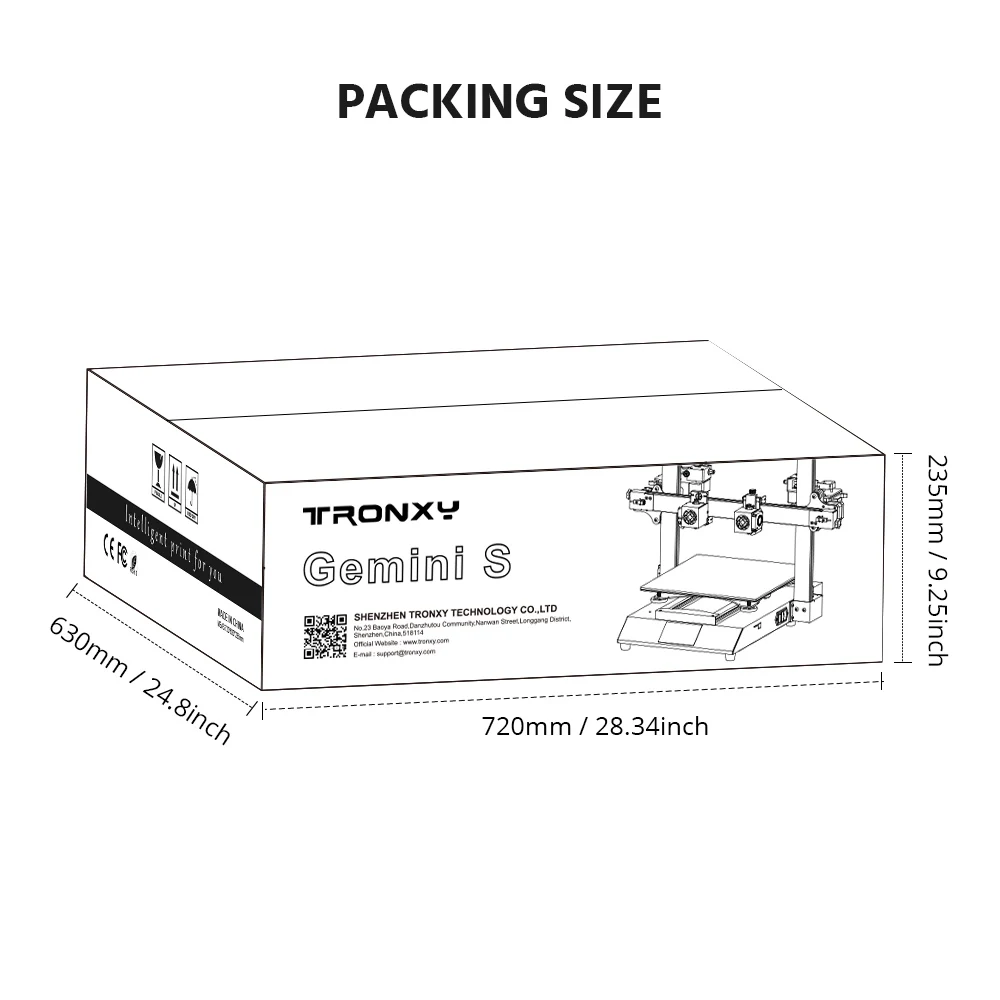

Package weight: 16.5kg
Machine materials: aluminum and sheet metal
Auto level: included
Power failure resume to print: included
Filament run out detector: included
