Descrição
- Químico Hign-em causa: Nenhum
- Número do modelo: Linear Stage Linear Axis
- Largura ou Diâmetro da Guia: 12mm
- Origem: CN (Origem)
- Certificado: CE
- Ballscrew type: SFU1605 SFU1204 SFU1610
- Ballscrew accuracy: C7 level
- Effective stroke: 100mm-1200mm Optional
- Slider Type: 2*MGN12R
- Maximum speed: 500mm/s
- Repeat positioning accuracy: 0.02mm-0.03
- Slide Material: Aviation aluminum
- Type 1: linear actuator
- Type 2: z axis cnc
- Type 3: linear rail
- Type 4: cnc z axis
- Type 5: cnc table
- Type 6: linear stage
- Type 7: xy table
- Type 8: SFU1204 SFU1605 SFU1610
- Type 9: cnc axis
- Type 10: sliding table
- Type 11: linear guide
- Type 12: linear module
- Type 13: linear guide rail
- Type 14: xyz gantry
- Type 15: linear axis
- Type 16: cnc sliding table
- Type 17: xyz stage
- Type 18: double linear rail
- Type 19: slide table
- Type 20: Nema 17 slide table
- Type 21: Nema 23 slide table
- Type 22: Nema 23 linear rail

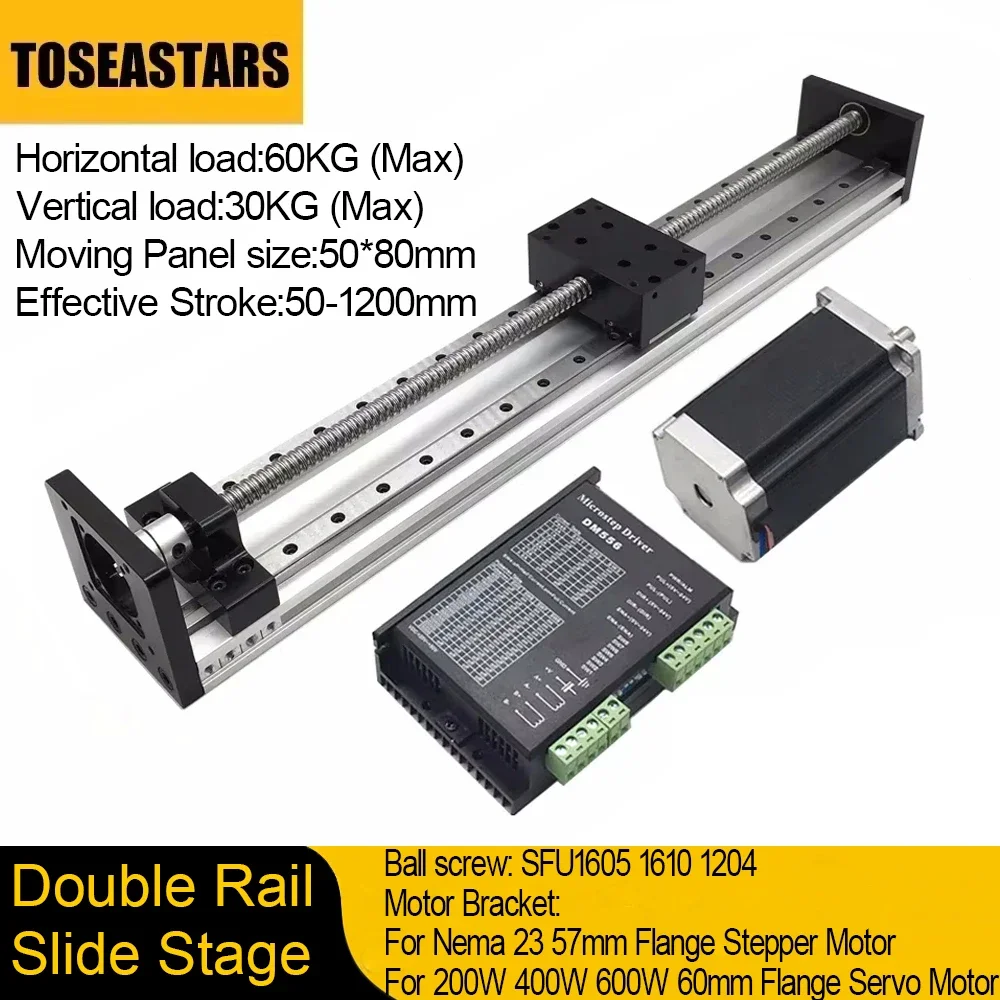

Option 1:
1Pcs* Slide Stage
Option 2:
1Pcs* Slide Stage

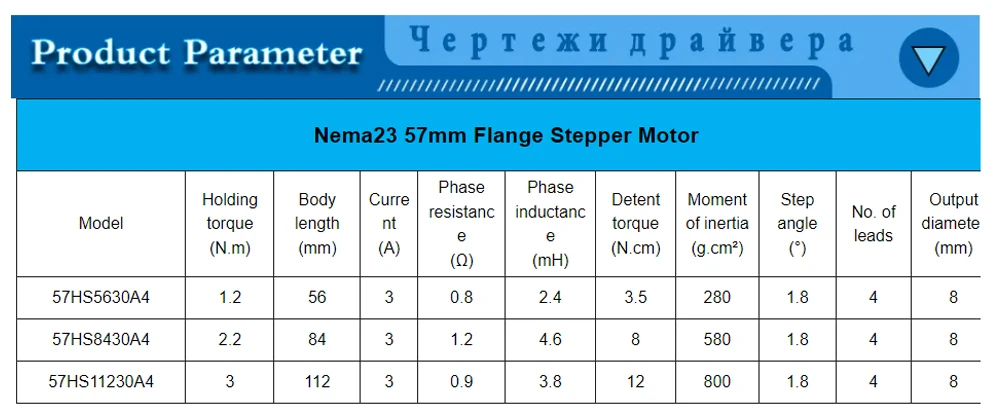

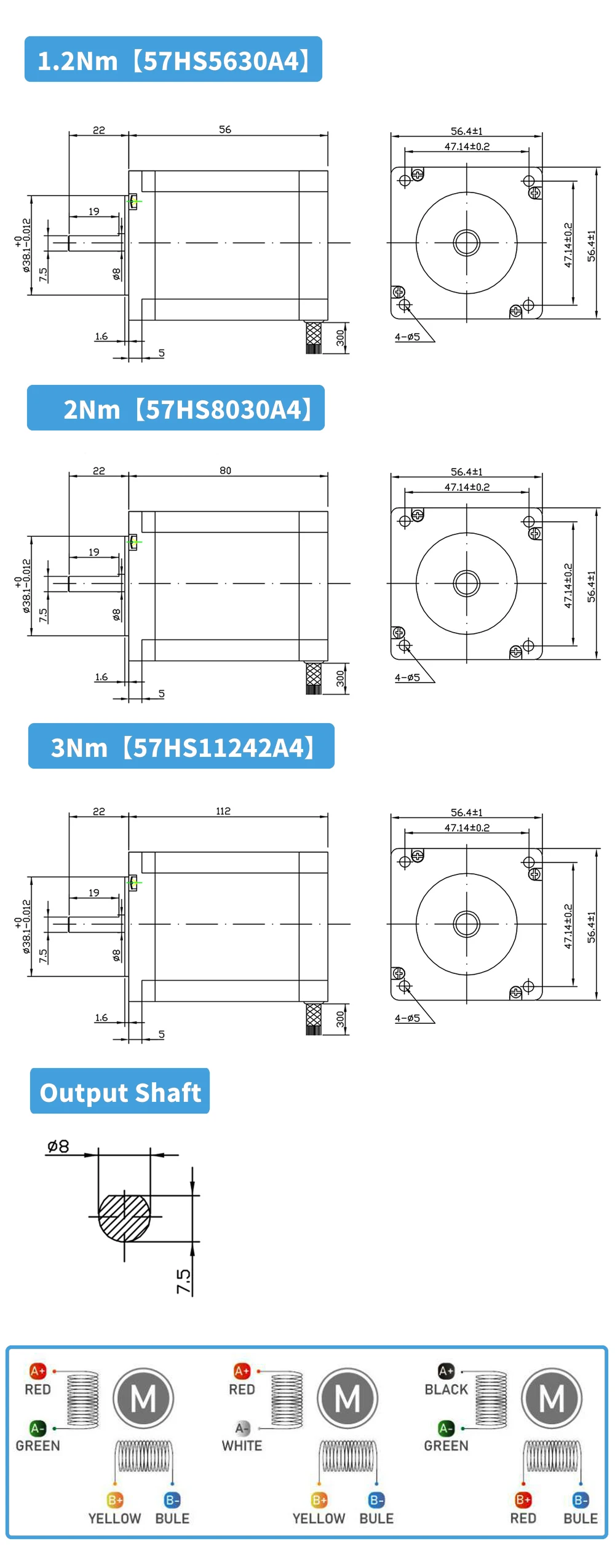

1Pcs* Nema 23 Stepper Motor
1Pcs* Nema 23 Stepper Motor Drive
Note:
1.3D Model (Click to open directly)

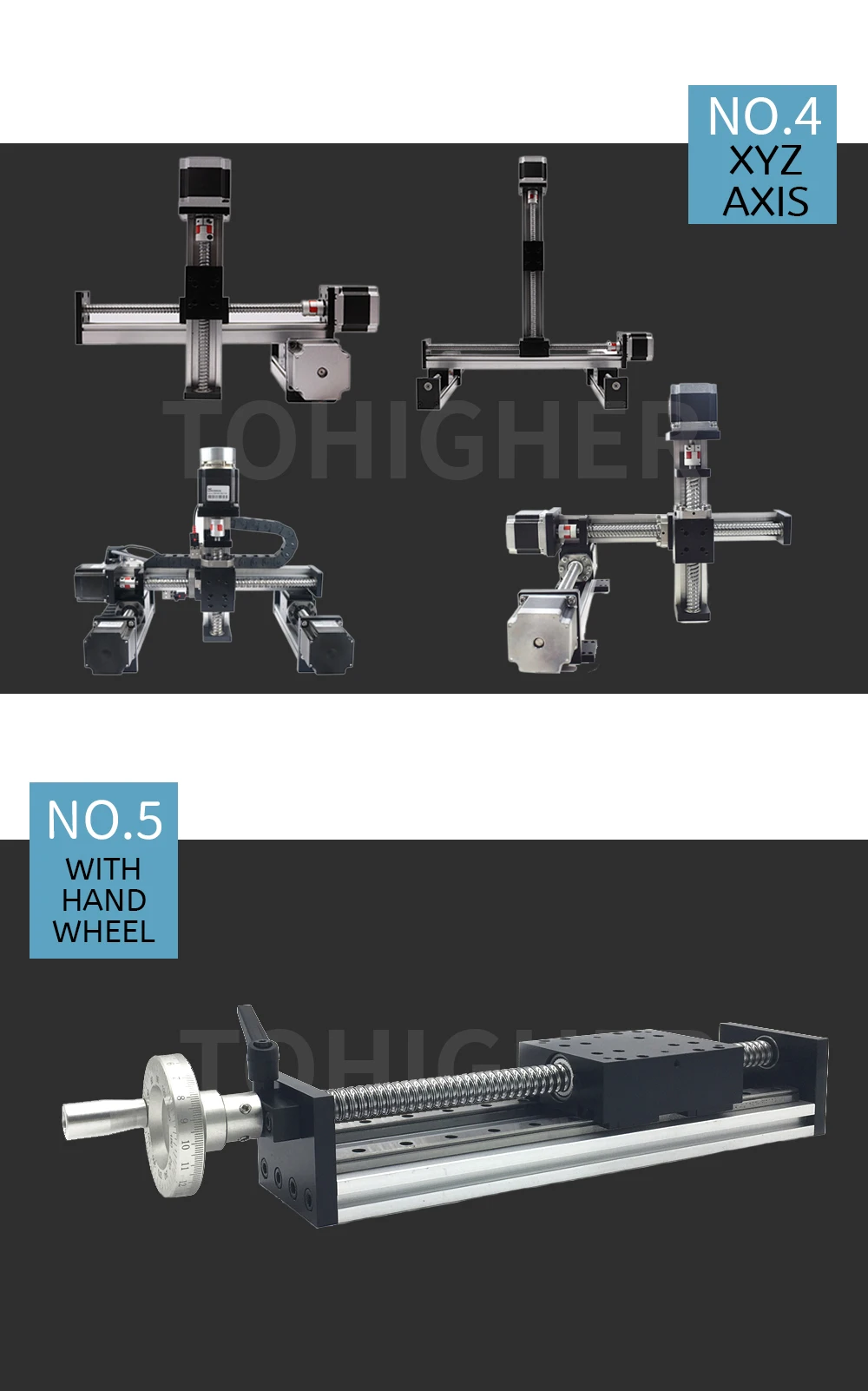

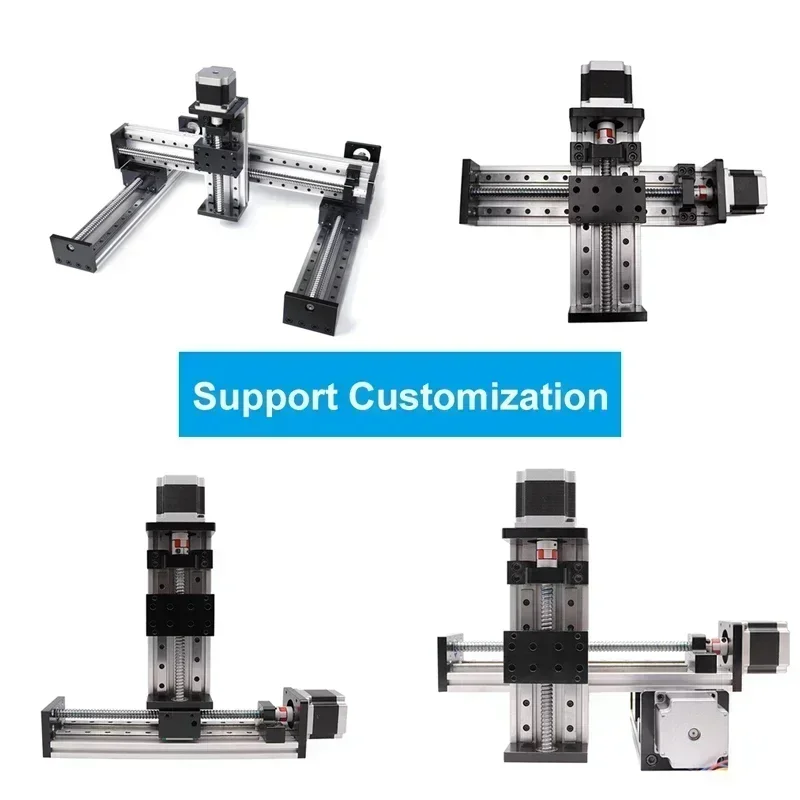

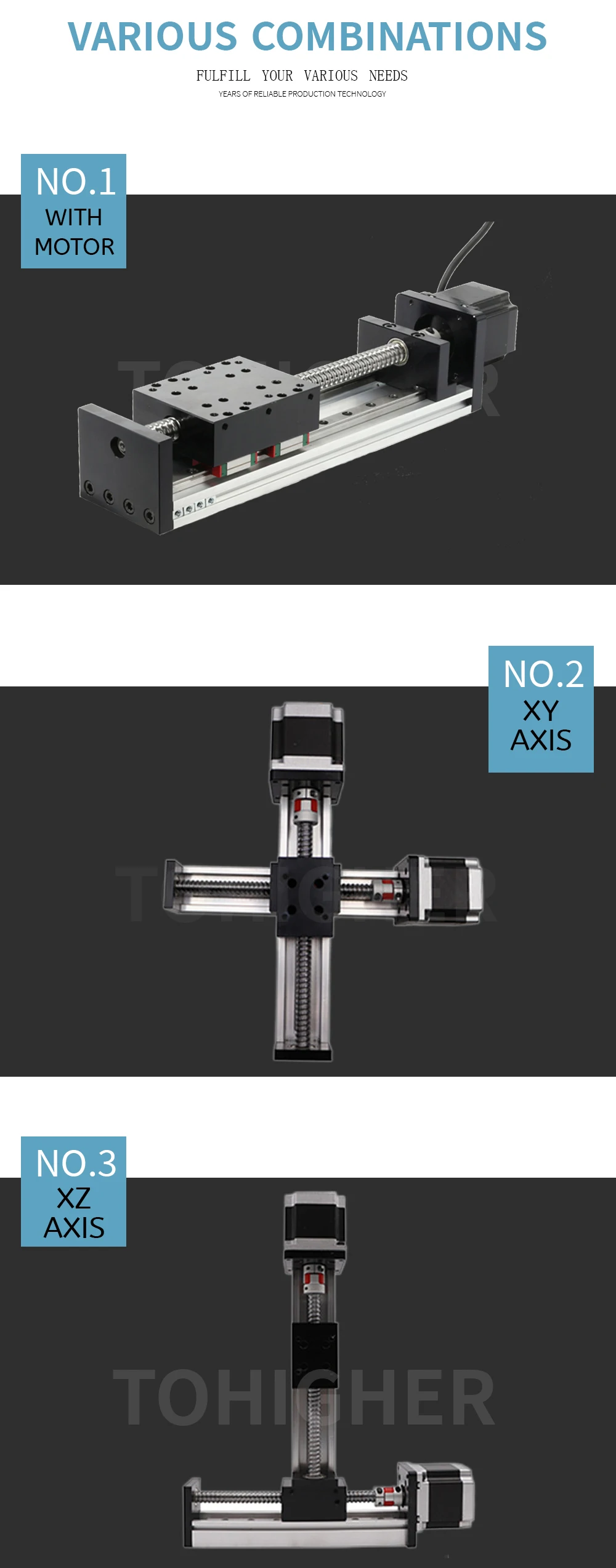

2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.
3.The slide table is configured with Nema23 motor bracket by default, other brackets can be customized, please contact customer service for details.

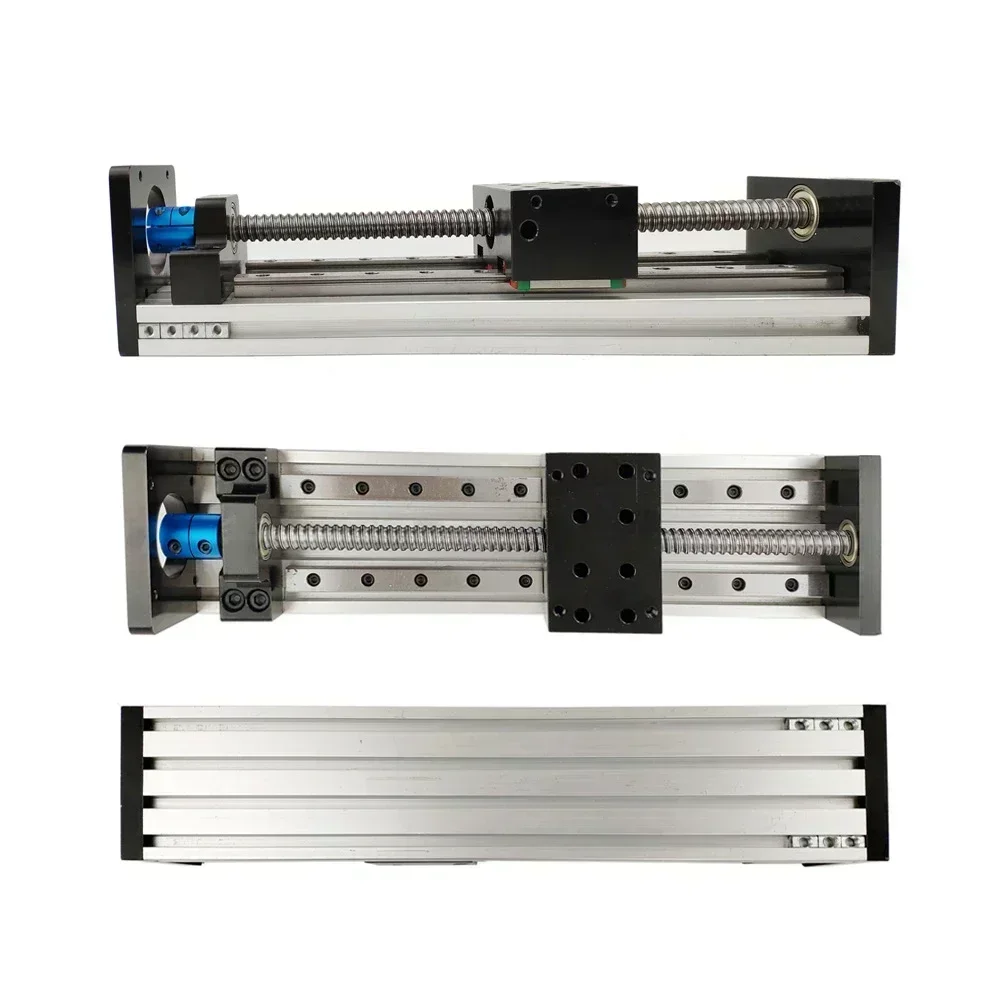

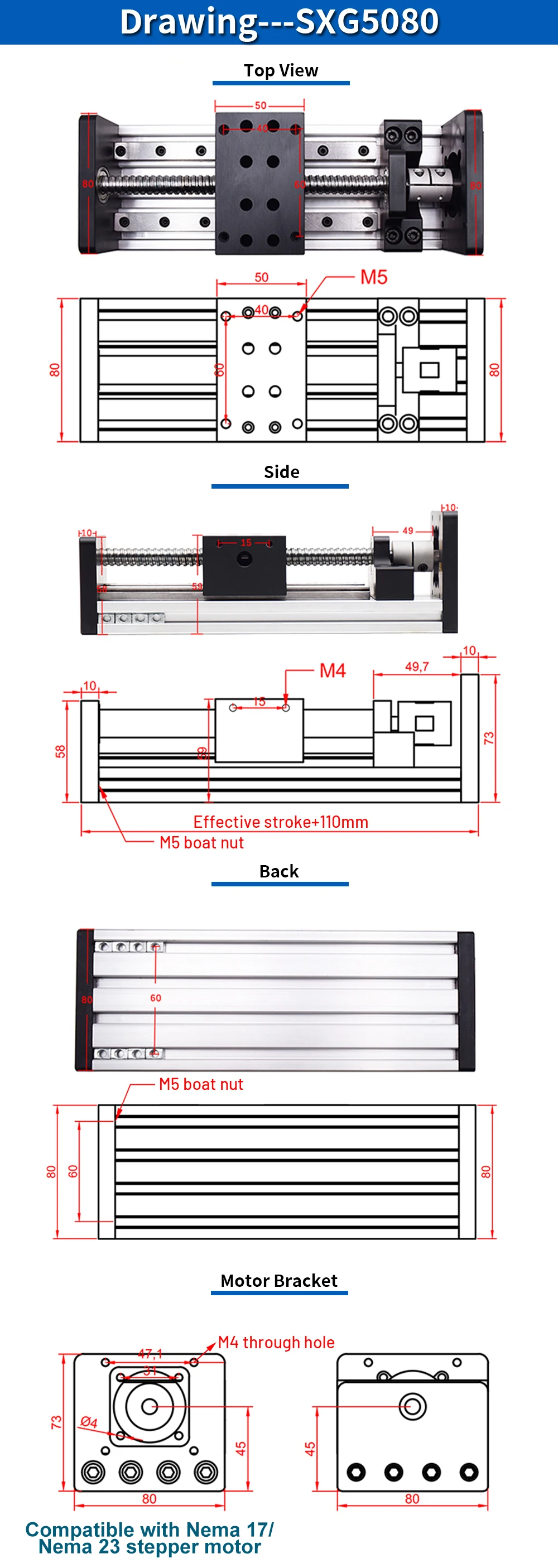

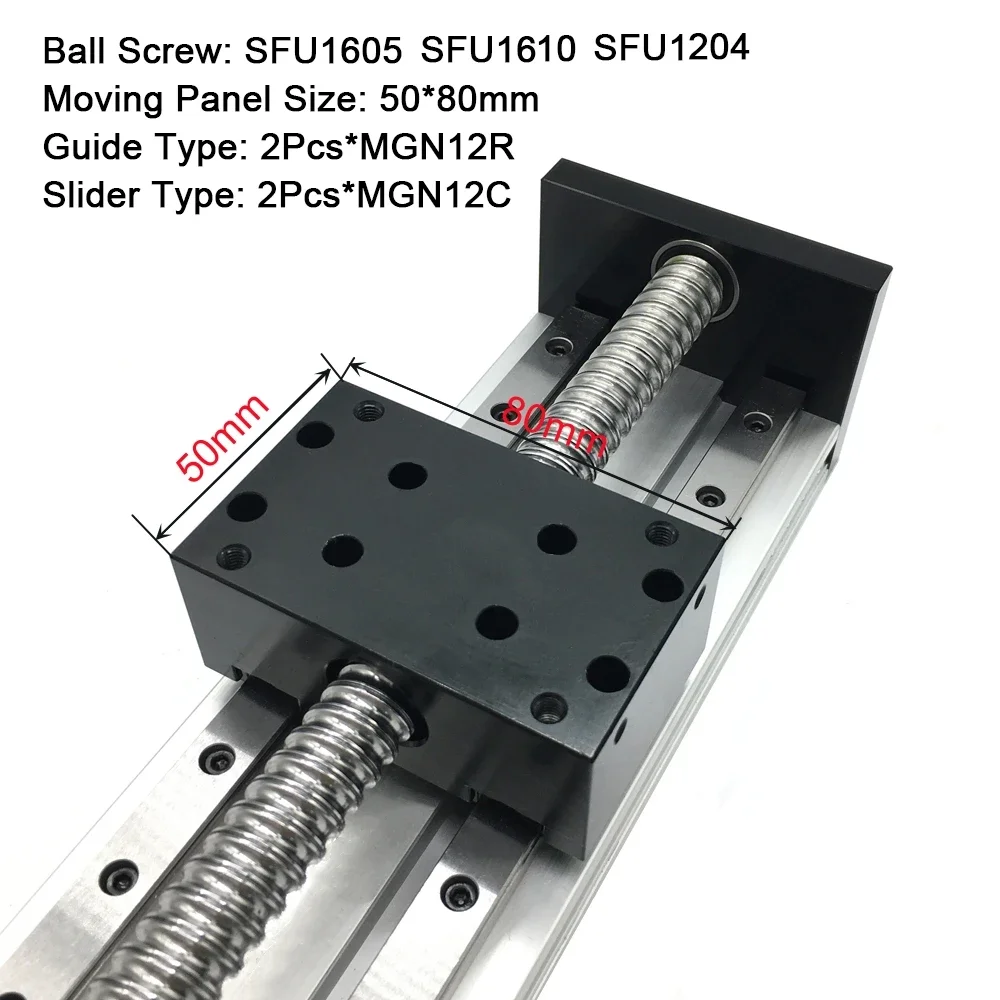

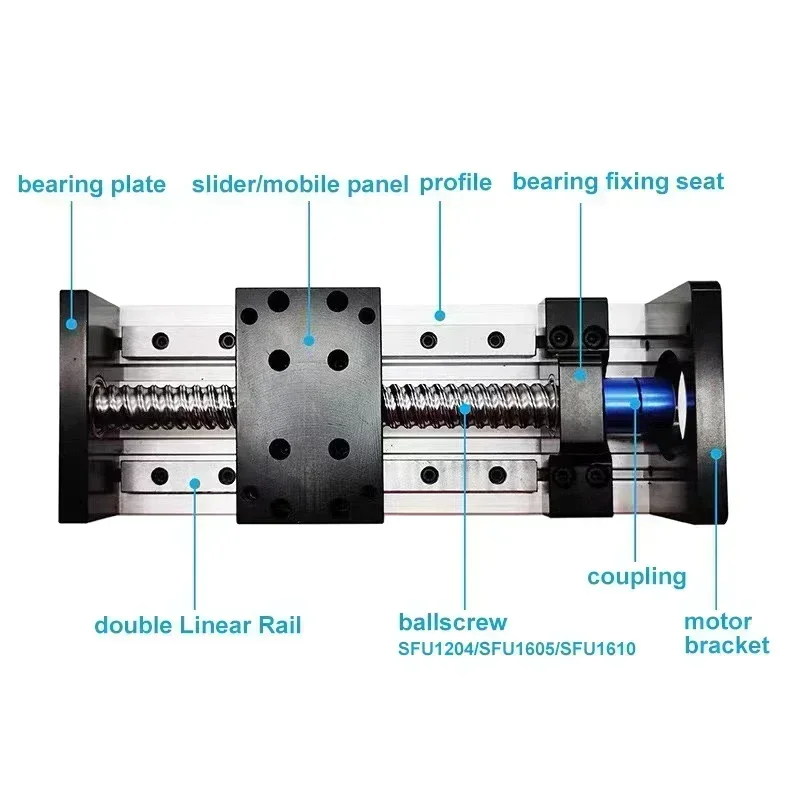

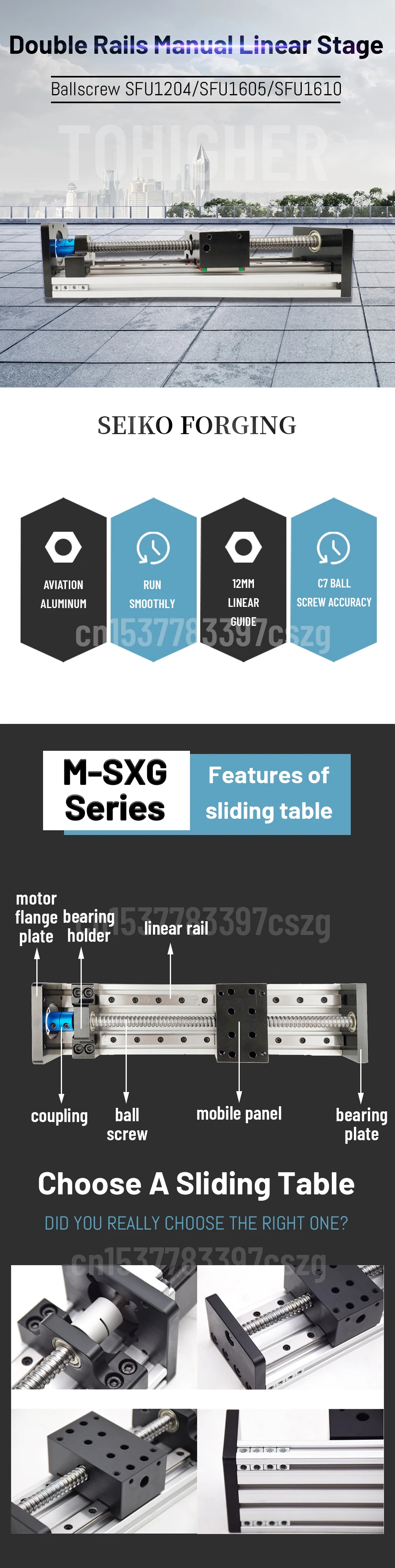

●Model: SXG5080 (50*80mm table)
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1204/ SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-1200mm Optional
●Total length: Effective stroke+110mm
●Mobile panel size: 50*80mm
●Guide diameter: 12mm
●Guide Type: 2*MGN12R
●Slider Type:2*MGN12C
●Horizontal load:Max 60KG
●Vertical load:Max 30KG
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm

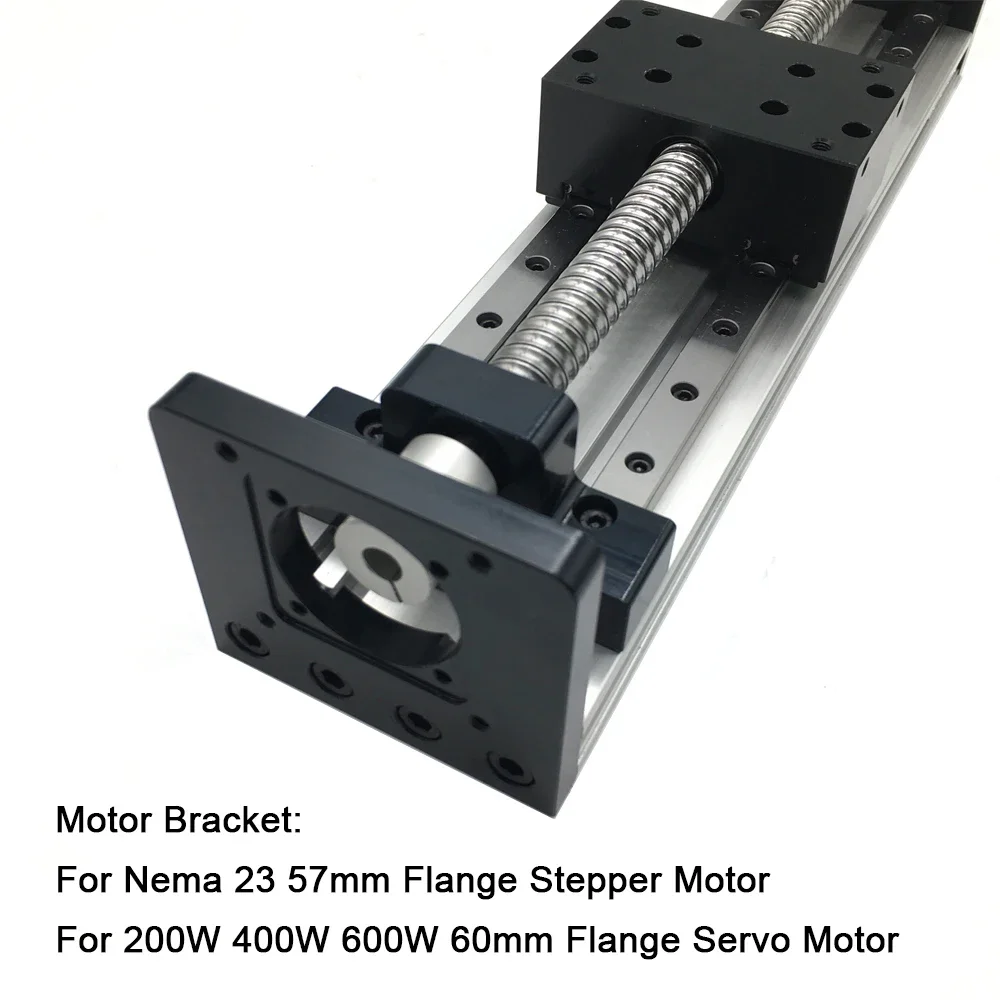

● Supported motor bracket (support customization):
SXG5080 Compatible with Nema 17/ Nema 23 stepper motor
or 200W 400W 600W 60mm Flange Servo Motor ;
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy

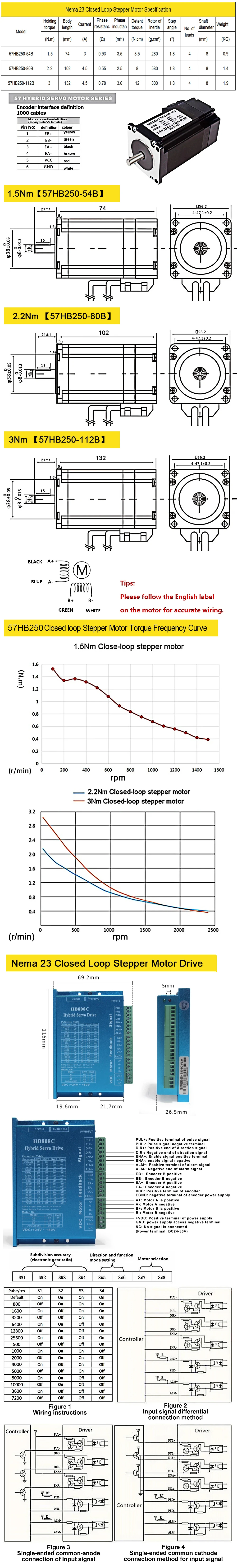

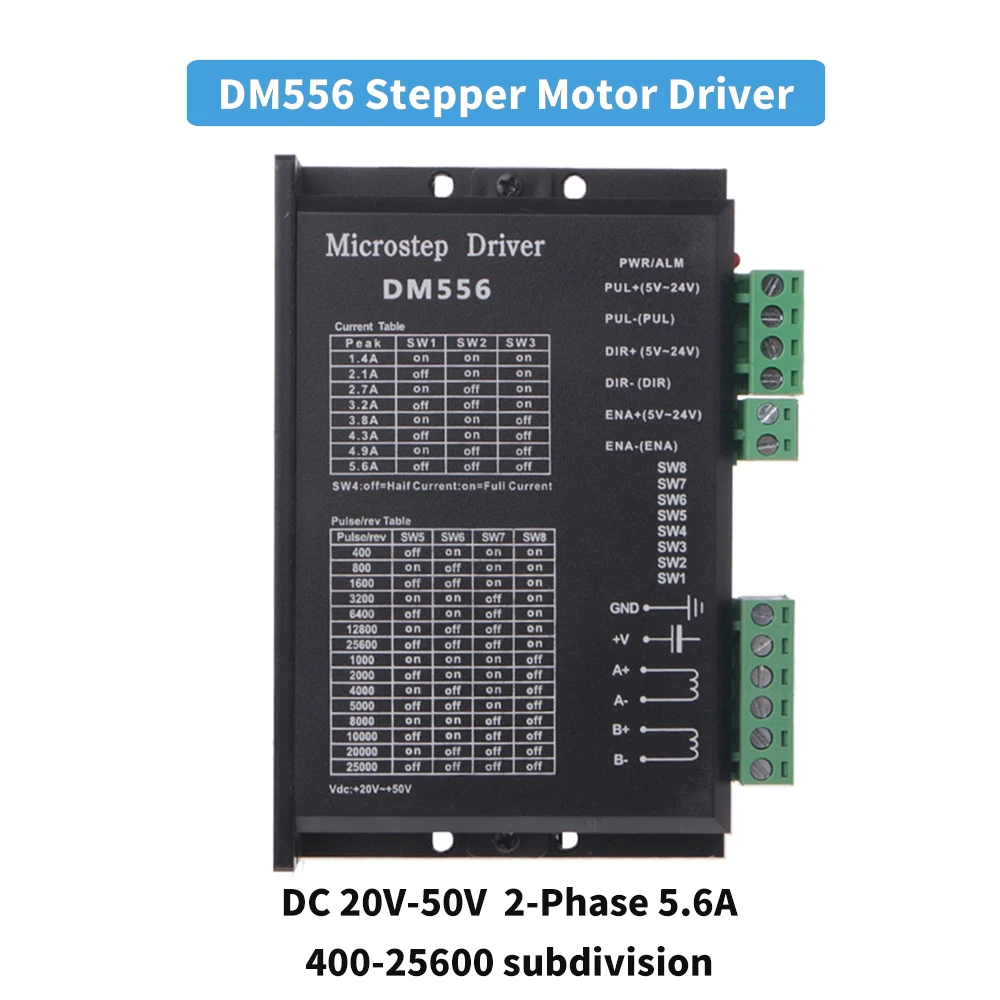

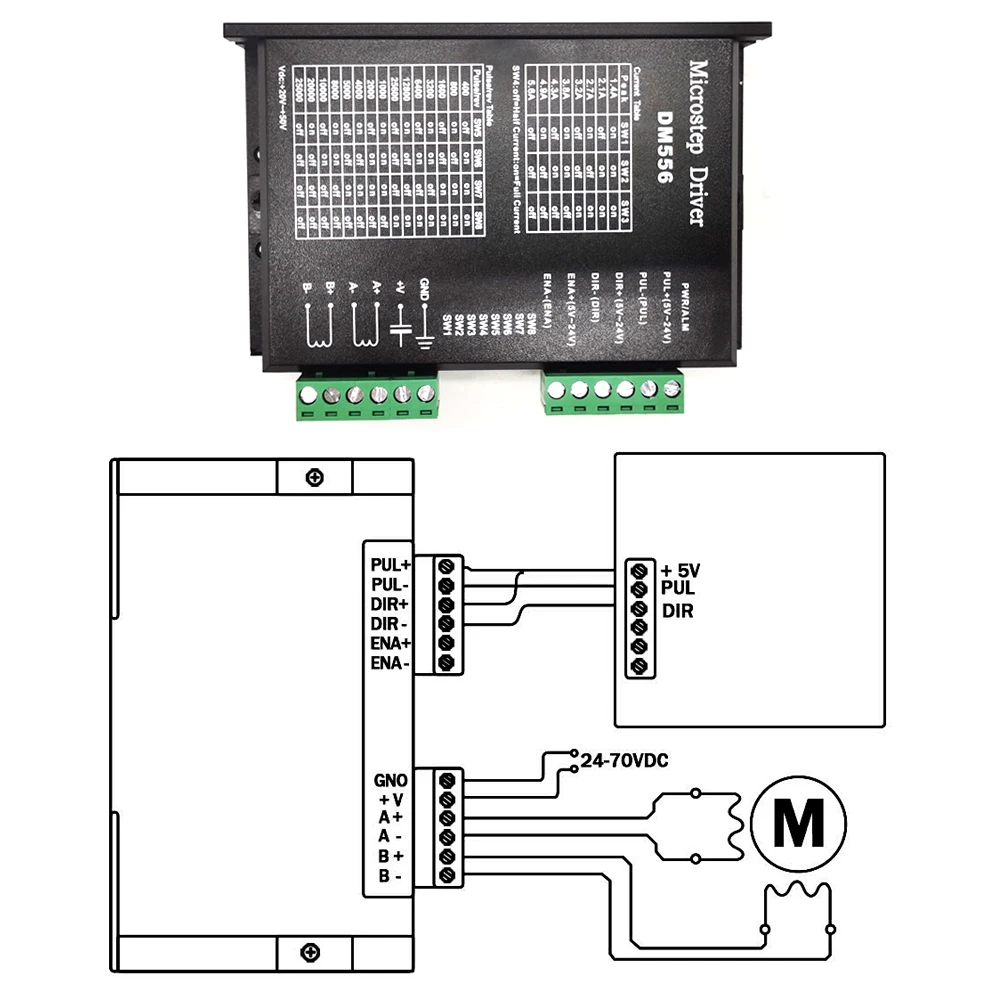

Motor Driver:
Model: DM556
Input voltage: DC 20-50V
Subdivision: 400-25600 steps/turn
Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution
Driver method: Bipolar constant current PWM driver
Pulse response frequency: 200KHz(Max)
Insulation resistance: 500MΩ
Insulation strength: 500V/min
Dimensions: 118*75.5*34mm / 4.6*3.0*1.3 inch
Cooling method: Natural cooling or Forced air cooling
Operating environment temperature: -5℃ ～ +50℃
