Product Description
Introduction——
Standard accessories
YJ5-988TD numerical control system, Alpha 4KW servo motor, hydraulic clamp, integral bed, row of tools, line rail automatic lubricating oil pump, electric cooling system, lighting system, Delisi Chint electric baby control components, a full set of technical data, with standard parts and tools.
Characteristics

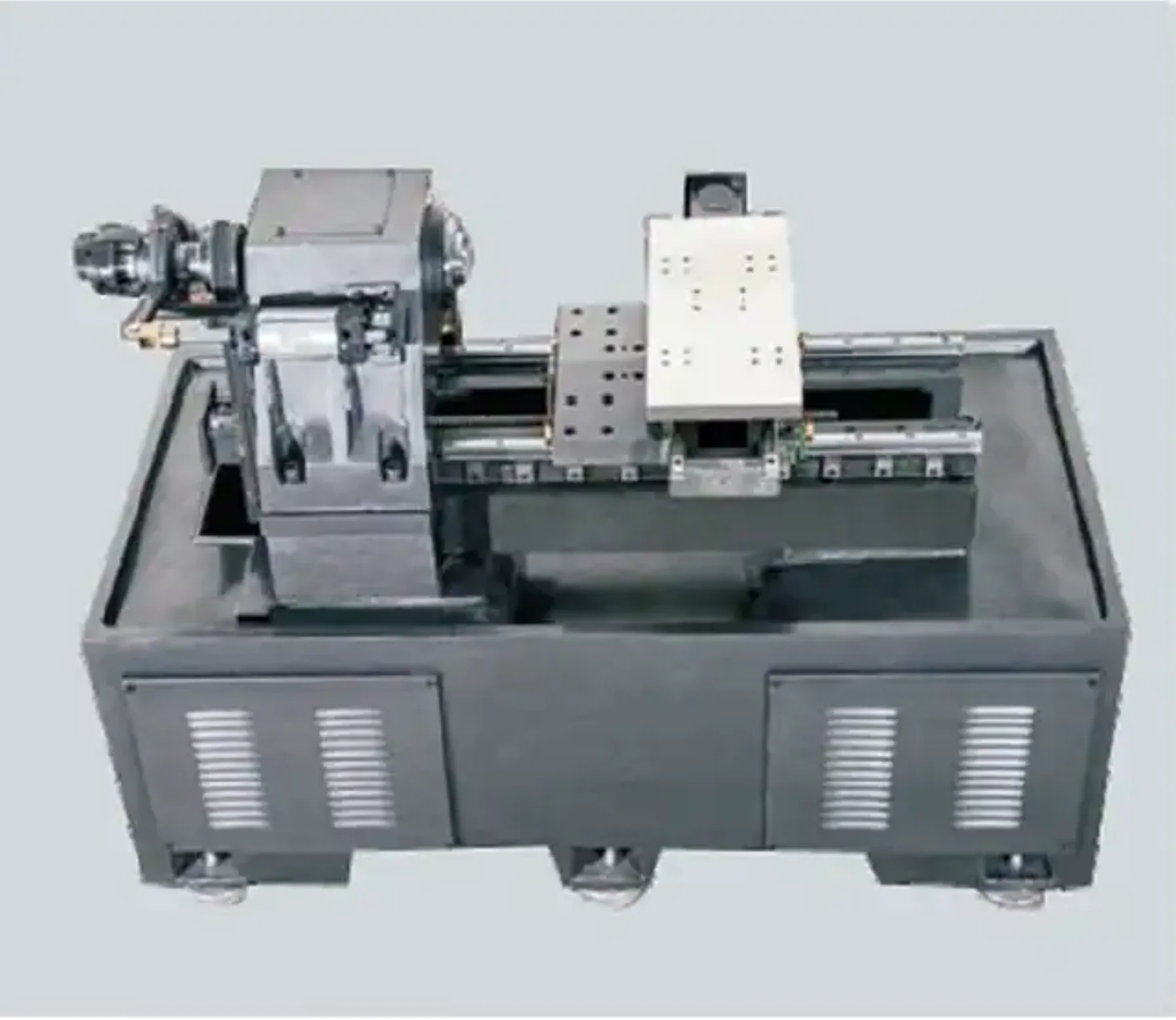

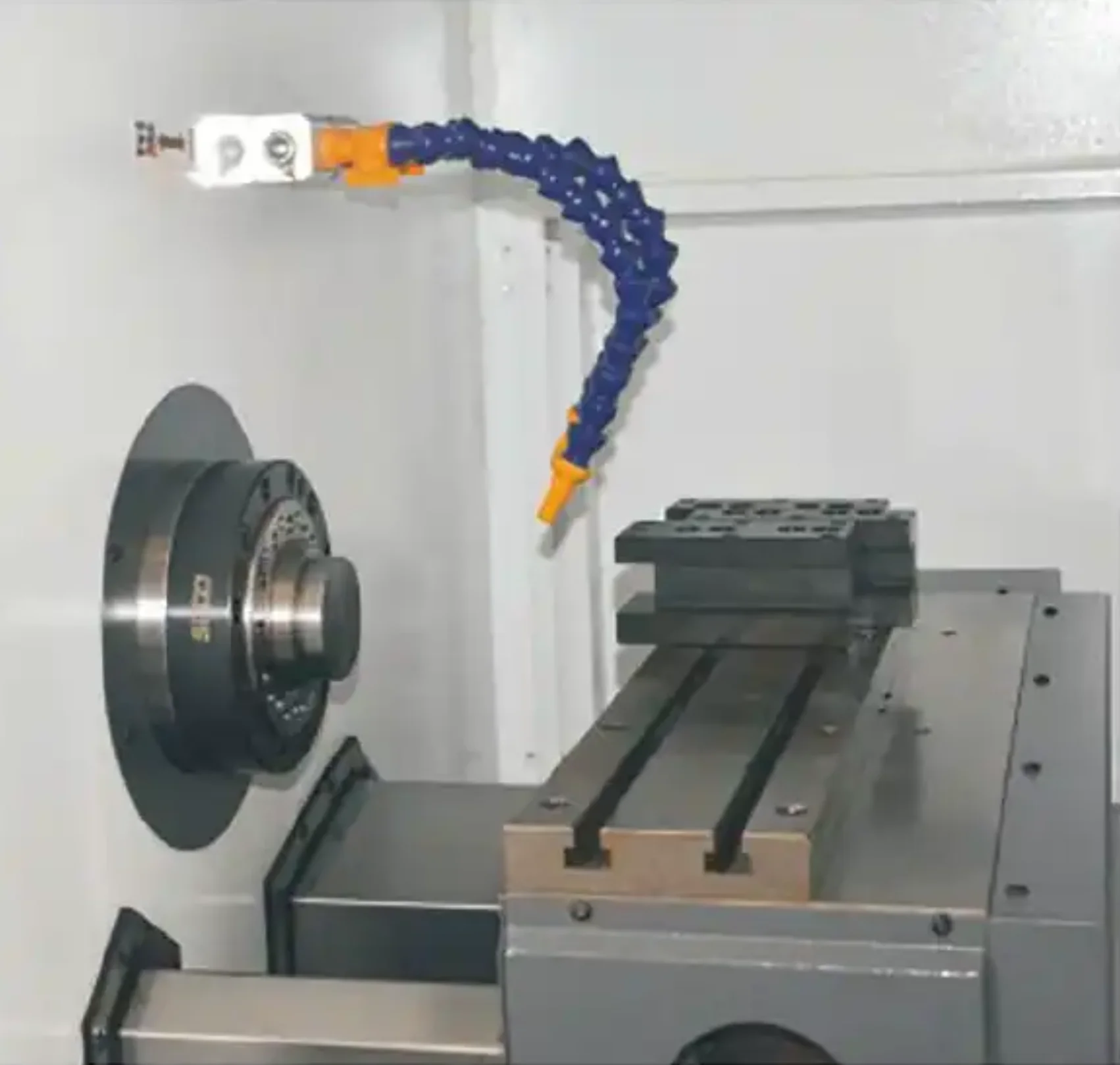

1, the spindle drive mode is belt type, the highest speed :4000rpm(standard) 2, the standard configuration of the tool holder for the row of knives 3, the main shaft is A2-5 sleeve type spindle, with high rigidity 4, chuck clamping production for hydraulic cylinder with collet clamp optional hydraulic chuck 5 electrical box internal separation type design, will control the ship's heat source part to be separated to avoid outside dust into the electric box, the rear side of the use of fan heat plate cooling two axis using high precision ball screw, combined with precision nut prepressure and tail pretension device to ensure that the machine back gap and thermal deformation for a long time to keep at a low value 5, X, Z axis using linear guide rail, with high rigidity, low noise, low friction, can do rapid displacement and obtain the best cycle accuracy. 6, the machine after strict inspection measures before shipment, to ensure the long-term stability of the precision of the machine
|
Name
|
Unit
|

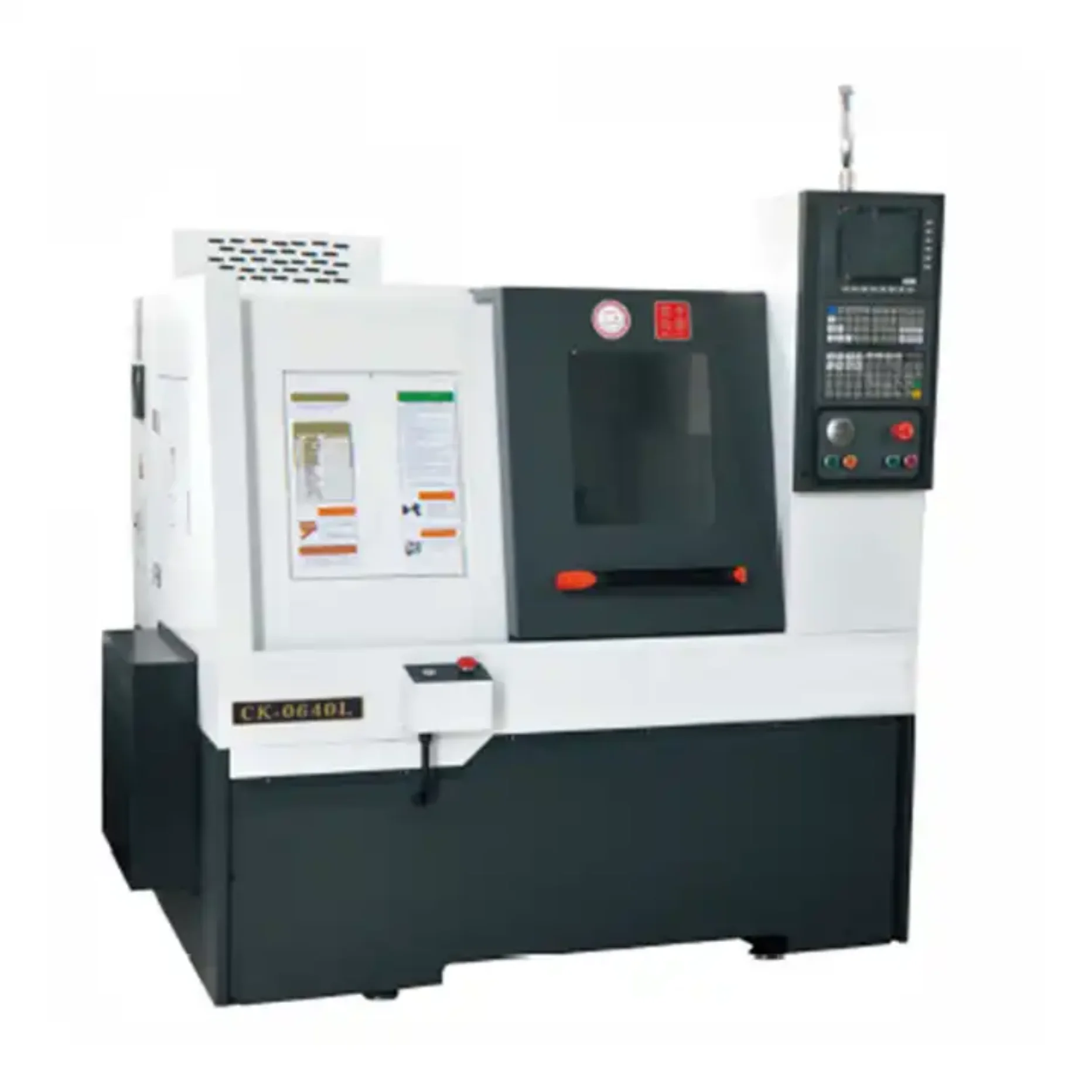

CK-0640L
|
|
Maximum turning diameter of bed body
|
mm
|
420
|
|
Maximum machining diameter
|
mm
|
280
|
|
Maximum machining diameter on the tool rest
|
mm
|
140
|
|
Maximum machining length
|
mm
|
320
|
|
Positioning accuracy
|
mm
|
±0.005/300
|
|
Maximum stroke of X axis
|
mm
|
500
|
|
Maximum stroke of Z axis
|
mm
|
400
|
|
Repeated positioning accuracy
|
mm
|
±0.003
|
|
Spindle speed
|
rpm
|
4000
|
|
Spindle motor
|
Kw
|
4
|
|
Rod through hole, pneumatic/hydraulic cylinder
|
mm
|
40/36
|
|
Spindle head form
|
/
|
A2-5
|
|
Bochen clip
|
/
|
/
|
|
Controller system
|
/
|
/
|
|
X/Z motor
|
NM
|
4/4
|
|
X/Z axis screw specification
|
mm
|
2510/3210
|
|
X/Z axis gauge specification
|
mm
|
30/30
|
|
Mechanical weight
|
kg
|
1500
|
|
Overall dimension
|
mm
|
1500*1300*1800
|
