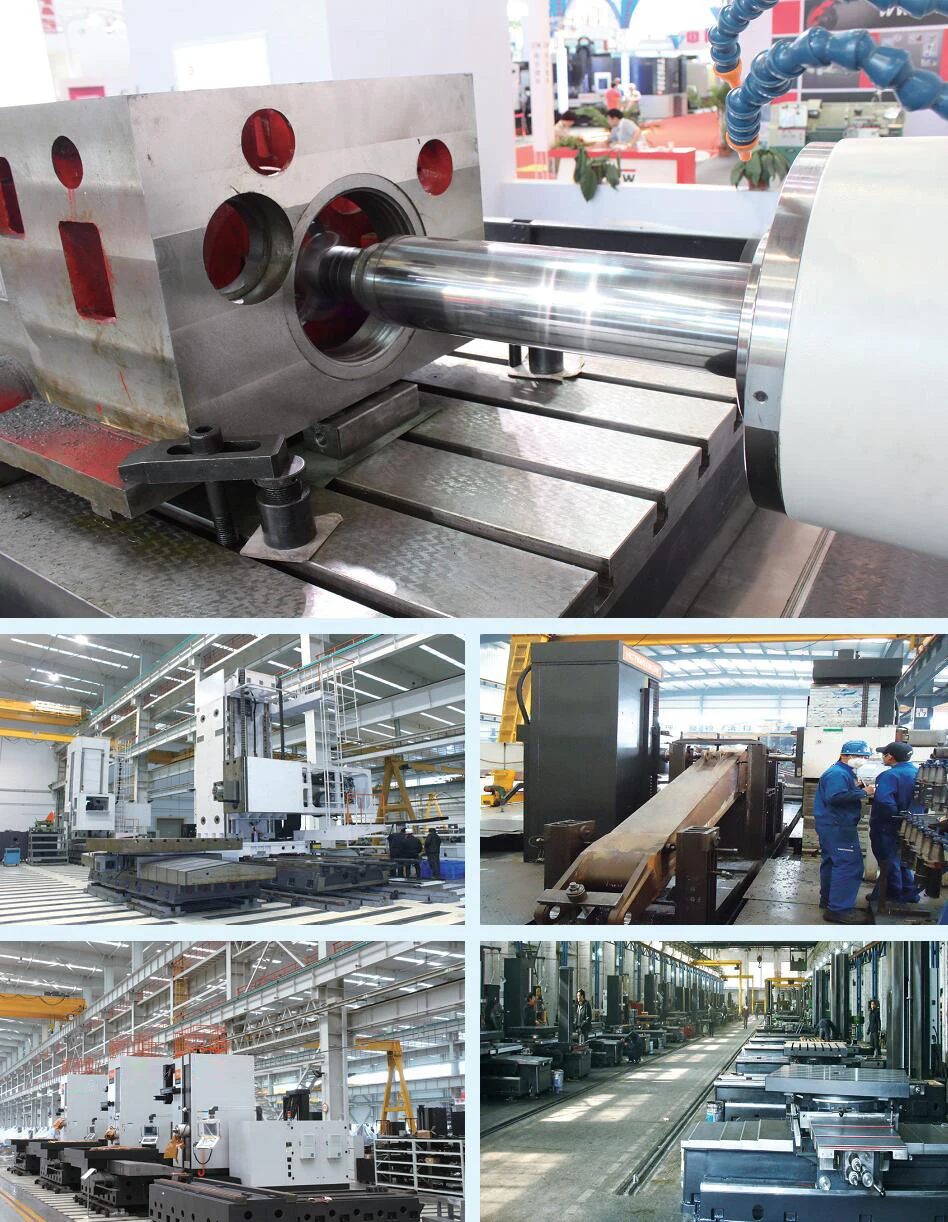

Product Description
1. This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation (optional Hirth CNC turret 360x1 °indexing). 2. X, Y, Z axis controlled by CNC system, could realize simultaneous motion. 3. Boring axis’ flexible and axis of facing head are controlled by servo motor, can realize automatic processing 4. X, Y, Z axis with rectangular sliding guide .Teflon plastic paste process, shock absorption, and high precision 5. The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.
|

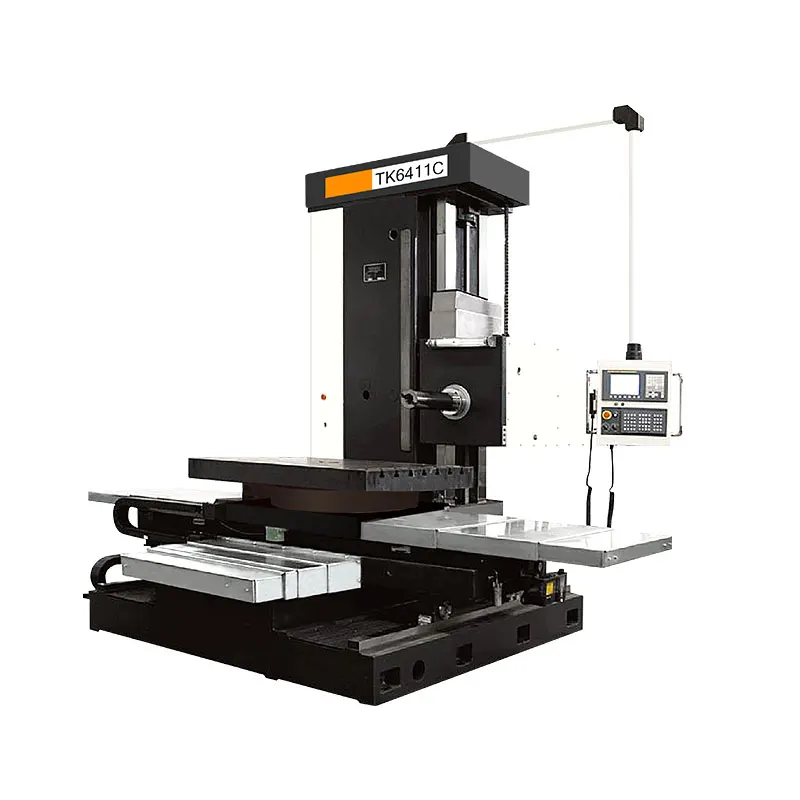

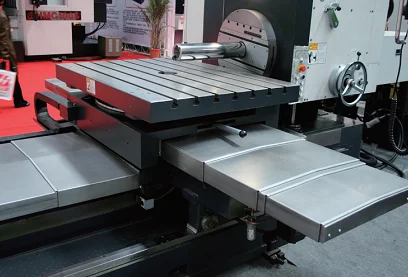

Horizontal milling boring machine
|
TK6411B
|
|
(TK6411C)
|
|
|
Table size
|
1350x 1000 mm
|
|
Spindle dia.
|
φ130 mm
|
|
X Travel
|
1500 mm
|
|
Y Travel
|
1200 mm(1140 mm)
|
|
Z Travel
|
1000 mm
|
|
W T ravel
|
550 mm
|
|
B Travel
|
Manual type( ± 360° CNC control)
|
|
Spindle center line to table
|
0 銆�1200 mm (1140mm )
|
|
T slot
|
7 銆�22mm 125mm (N/W/D)
|
|
Table loading
|
5T
|
|
CNC controller
|
SIEMENS 828D or FANUC Ol MD
|
|
Axes quantity
|
X/Y/Z/W 4 axis(X/Y/Z/W/B 5 axis)
|
|
Spindle taper
|
BT50(P50T-1)
|
|
Spindle speed
|
12 - 1000rpm
|
|
Main motor power& torque
|
F:18.5/22Kw(1600/2000Nm)
|
|
S: 17/20.5Kw(2000/2400Nm)
|
|
|
Max.boring/drilling dia.
|
O 250mm/
|
|
Max.axial feeding force on spindle
|
20000 Nm
|
|
X/Y/Z Rapid traverse
|
10000m m/m in
|
|
X/Y/Z axis Feeding speed
|
5 - 2000mm/min
|
|
W axis Feeding speed
|
5 銆�2000mm/min
|
|
W axis Rapid traverse
|
5000mm/min
|
|
X/Y/Z axis (GB/T17421.2-2000) Positioning accuracy
|
0.03/0.03/0.03 mm
|
|
W axis Positioning Accuracy (GB/T17421.2-2000)
|
0.03mm
|
|
(GB/T17421.2-2000)
|
0.015/0.015/0.015/0.015mm
|
|
Repeated accuracy
|
|
|
Machine dimension
|
5.1 x 3.7 x3.6m
|
|
Machine dimension
|
18.5T
|
