Syntec control foam molds making cnc router machine Jinan Quick woodworking 5 axis machining centers
Product Description
woodworking 5 axis machining centers,Compared with 3 axis CNC machining, from the perspective of technology and programming, 5 axis machining centers for complex surfaces has the following advantages: Improve processing quality and efficiency;Expand the scope of the process;Meet the new direction of compound development.
Mrs.Andy
Tel/Wechat/WhatsApp: +86 18660191093
Email: andy@quickcncrouter.com
Tel/Wechat/WhatsApp: +86 18660191093
Email: andy@quickcncrouter.com

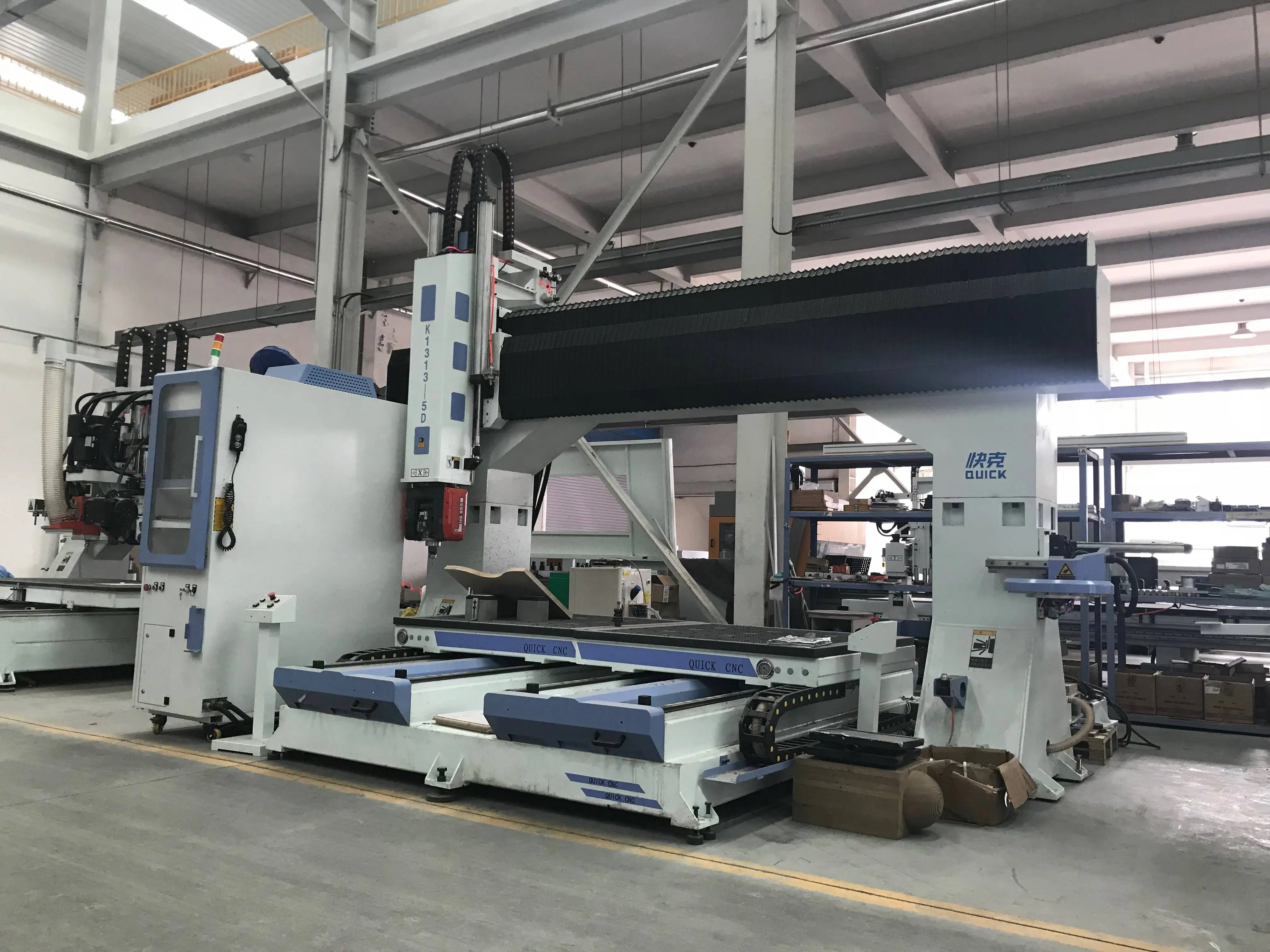

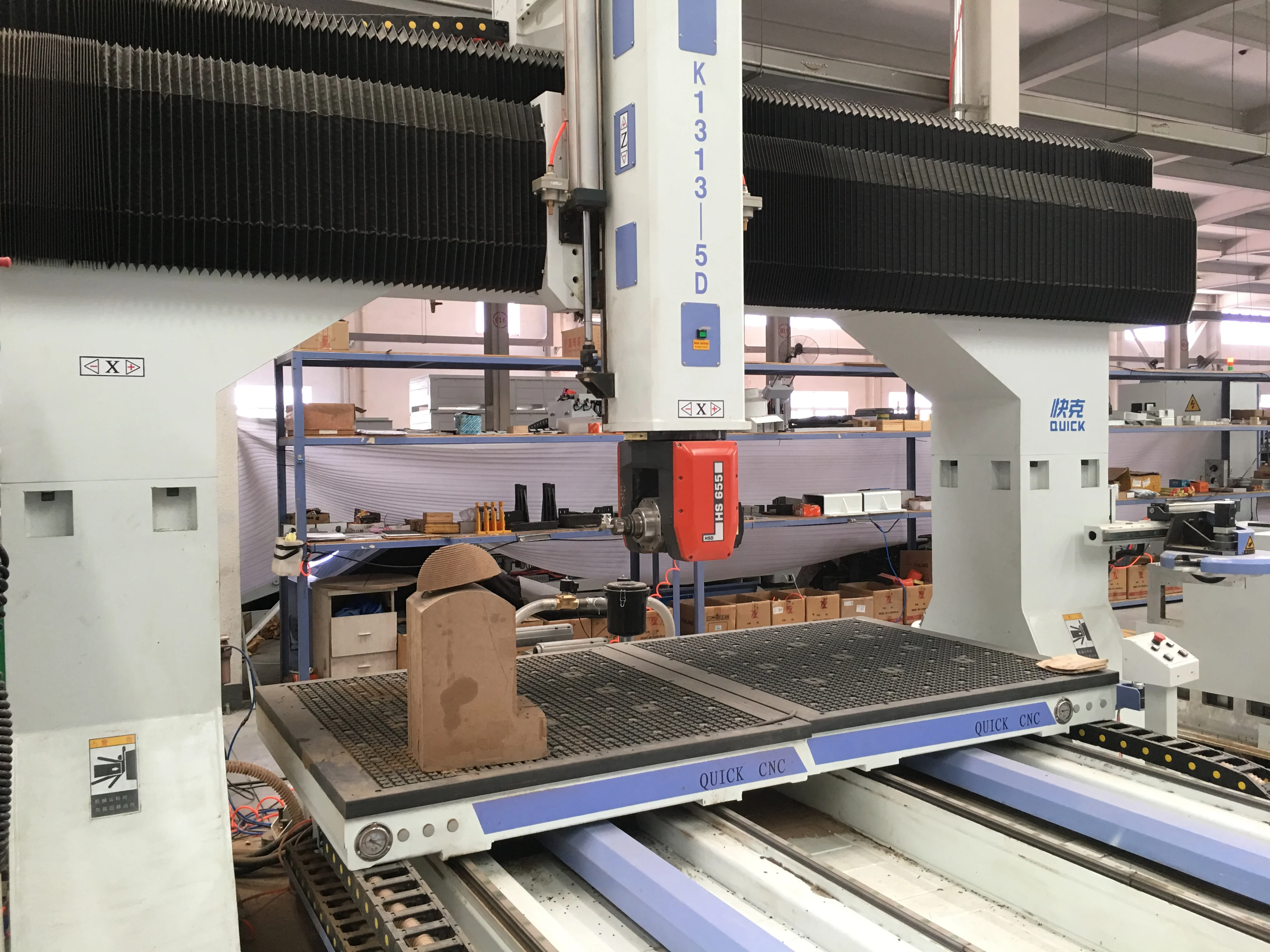

Machine at factory
Specification
|

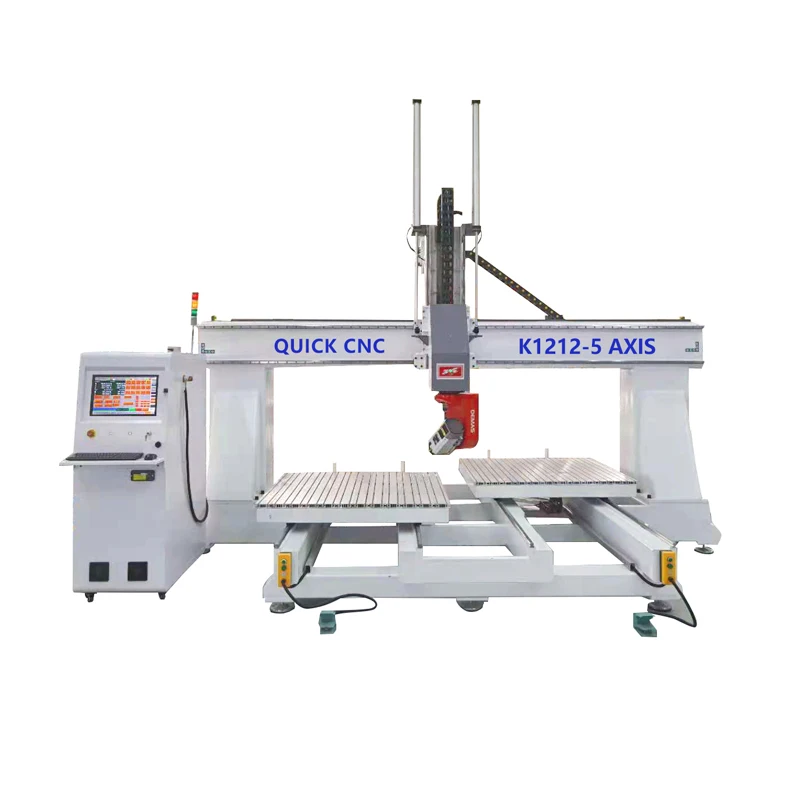

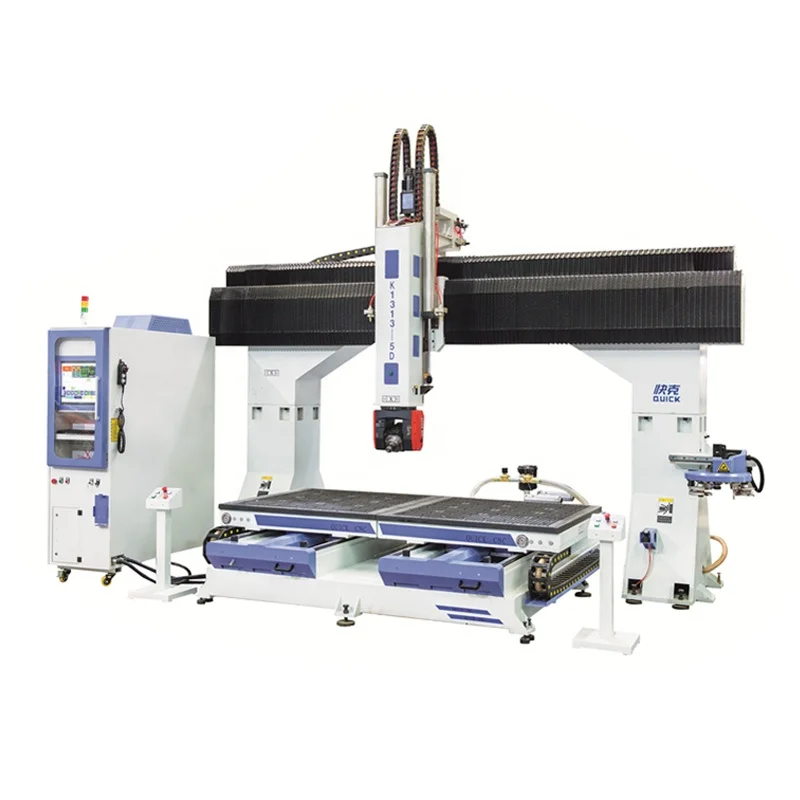

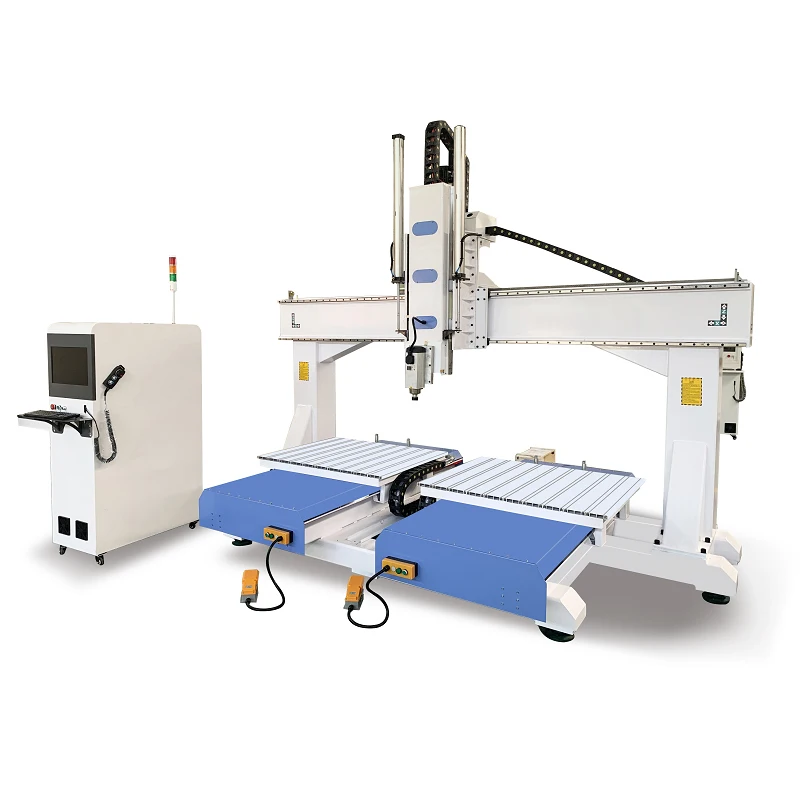

5 Axis CNC Machining Center
|
|
|
|
Working area
|
1300*2600*600mm(1300+1300)double table
|
|
|
X Axis
|
3200mm
|
|
|
Y Axis
|
1900mm
|
|
|
Z Axis
|
950mm
|
|
|
A Axis
|
±120°
|
|
|
C Axis
|
±245°
|
|
|
Repositioning resolution
|
0.02mm
|
|
|
X-Y movement
|
rack and pinion, gear drive
|
|
|
Z movement
|
ball screw drive/Taiwan
|
|
|
Guide
|
Linear square/Taiwan
|
|
|
Spindle power
|
Italy HSD 10kw
|
|
|
Spindle speed
|
24,000rpm
|
|
|
Inverter power
|
11kw
|
|
|
Tool Magazine
|
Disc type 10pcs auto tool changers
|
|
|
Drive motors
|
Servo/Japan YASKAWA
|
|
|
Working voltage
|
AC380V/50-60Hz, 3-phase
|
|
|
Reduce
|
Shimpo
|
|
|
Table
|
Vacuum table
|
|
|
Controller
|
Syntec
|
|
|
Pump
|
4kw Becker pump/TONGYOU pump
|
|
|
Accessories
|
Tool shank
|
|
|
|
Collects 12.7mm
|
|
|
|
Router bits
|
|
|
|
Tool box
|
|
Main parts
Disc type ATC
Disc type auto tool changers
HSD Spindle
Spindle is made by HSD, Italy, the features are high speed and low noise.
Vacuum table*2pcs
Two sections of special filtration systems, keep dust from entering into machine inside and prolong machine life.
Servo driving motor
Newest type, With high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time.

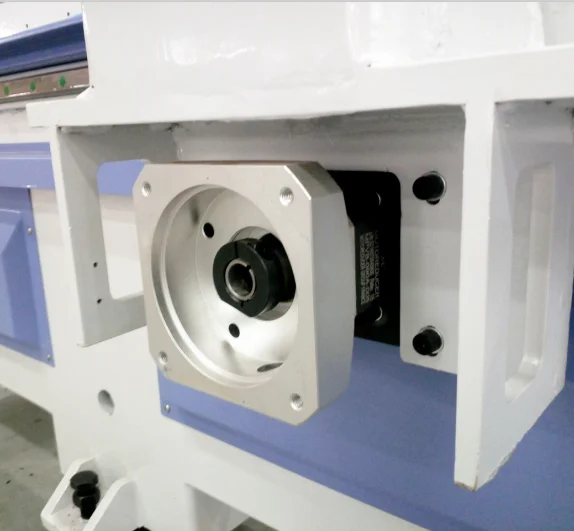

Planetary type reducer shimpo
The reducer is made by famous manufacturer in Japan.
SYNTEC TAIWAN 21A
New three-axis linkage motion mode to achieve
comprehensive controlling
Samples Show
At present, many furniture factories are using 5 axis machining centers to process some special-shaped and dangerous woodworking parts, such as European furniture elbows, European American chair backs, classical furniture tenons, and stair handrails.
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our Team
Related Products
Packing & Delivery
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
RFQ
Q: How long is your delivery time?
A: Generally it is 25-35 days, it is according to quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority. Our leaders always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
Quick CNC has been Alibaba's Gold supplier for 15years.
If you check with Alibaba, you will see that we have never got any complaints from any customers.
PS: All machines can be customized according to your requests
