CNC Controller

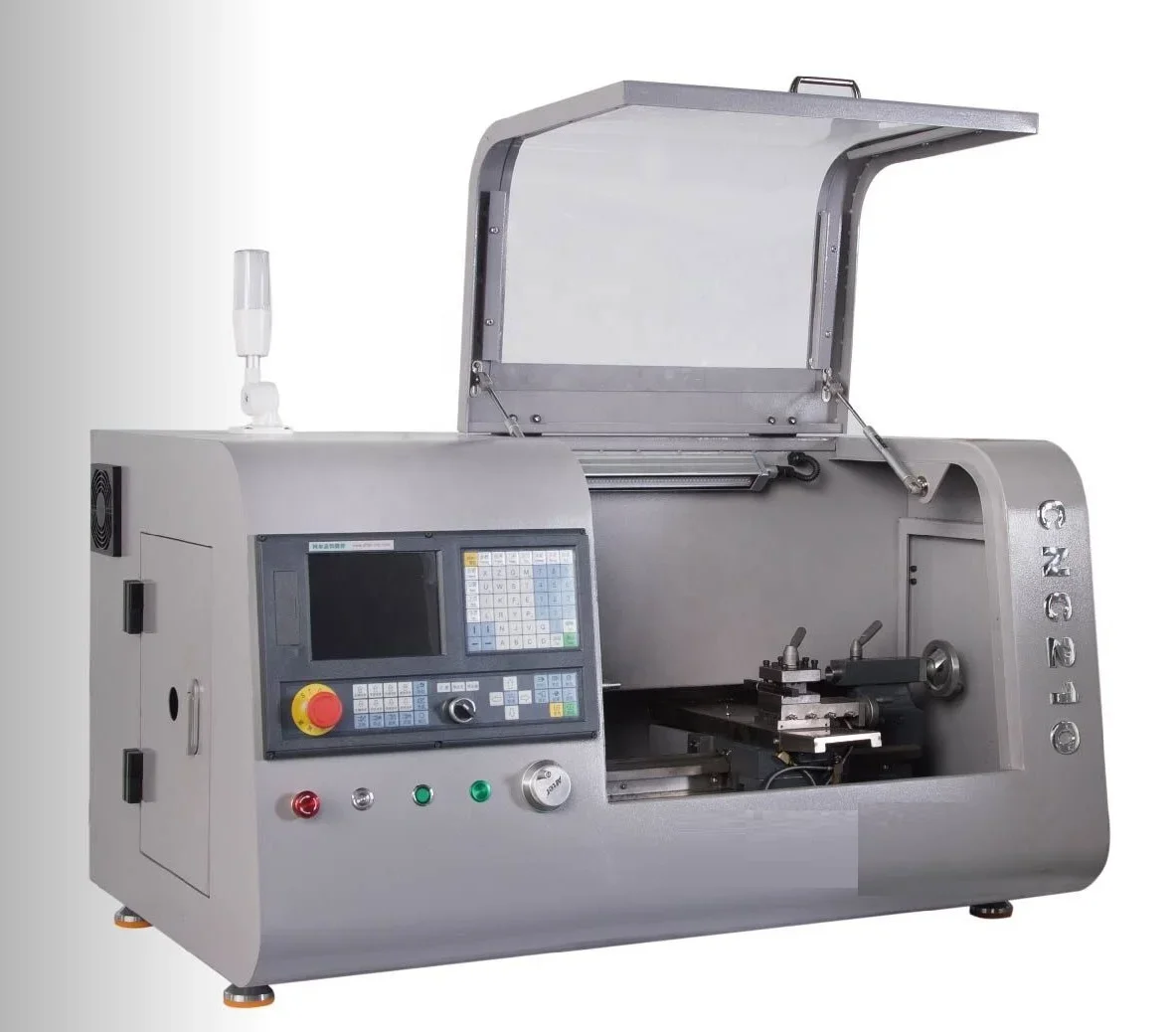

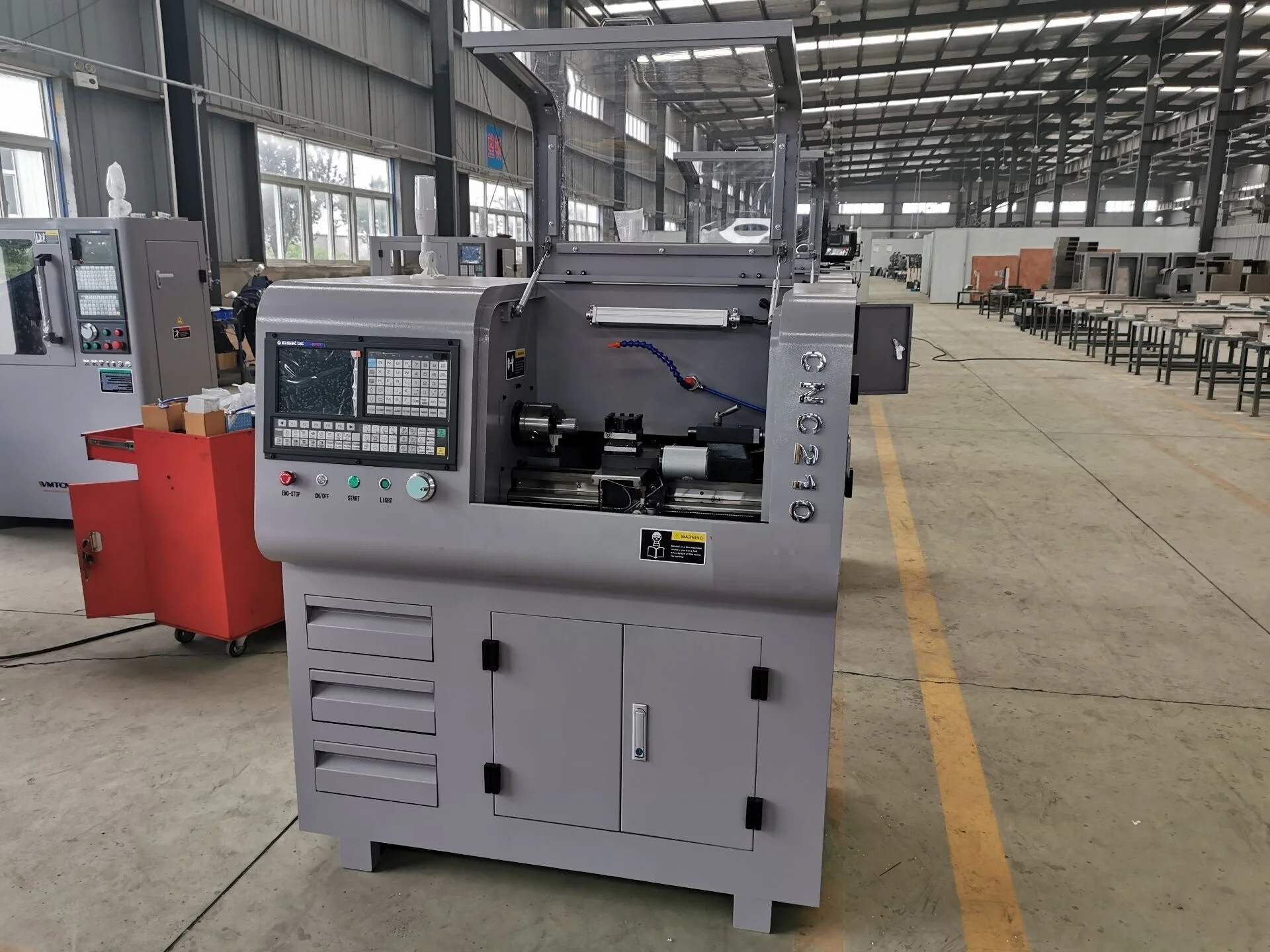

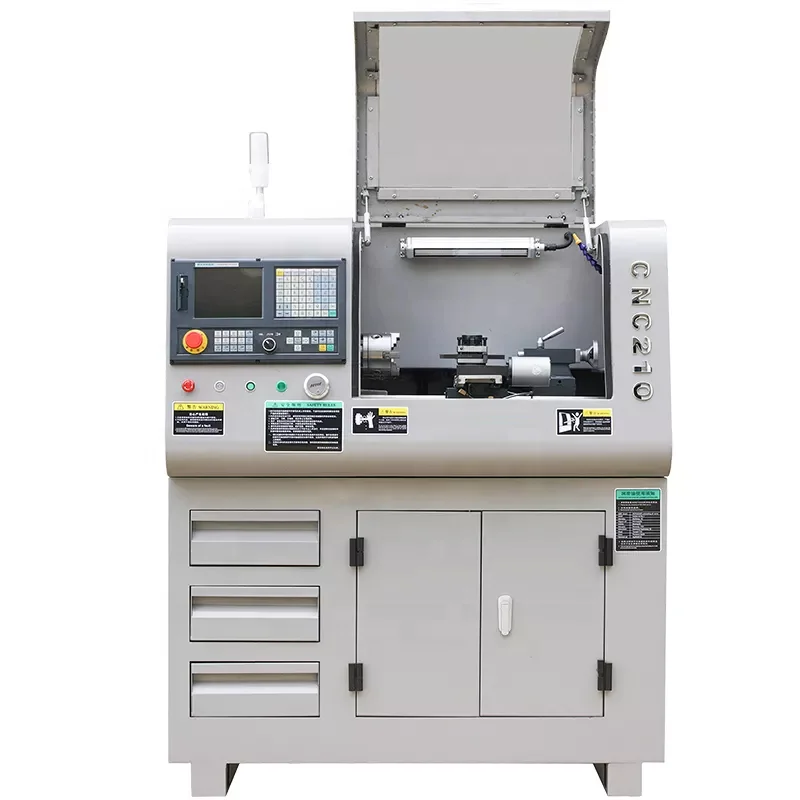

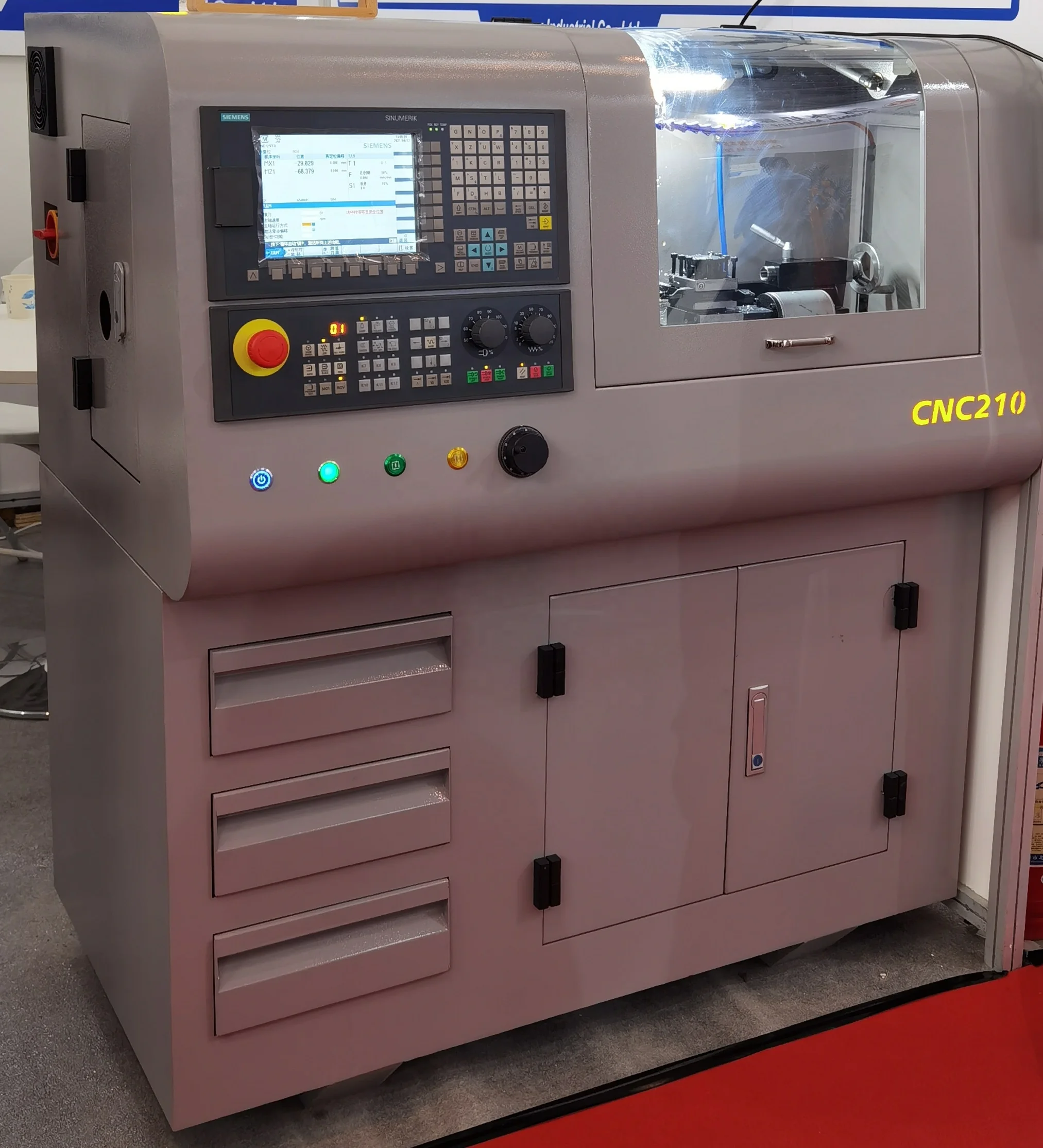

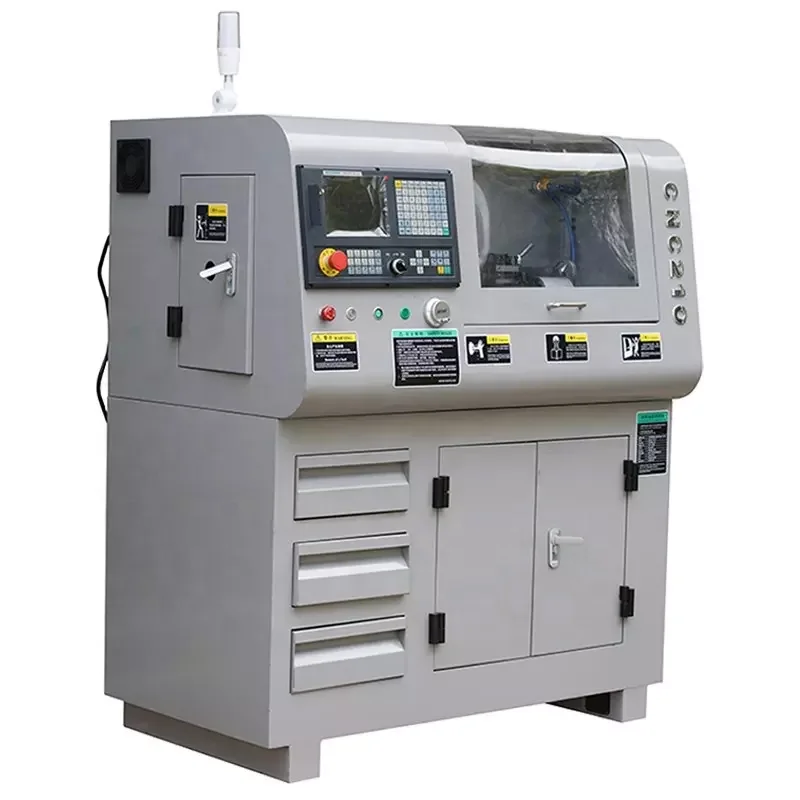

Small cnc lathe machine
CNC210/400 Swing over bed 210mm, length 400 mm
CNC210 for hobby and school education
1. Main motor:Servo motor;
2. Small size and cheap price;
3. Lower noise and high precision;
4. Suitable for educational training and mould machining.
|
Item |
Parameters |
|
Max. swing over bed |
210mm |
|
Max. swing over carriage |
100mm |
|
Max. length of work piece |
400mm |
|
Spindle bore |
26mm |
|
Spindle Taper |
MT4 |
|
X travel |
90mm |
|
Y travel |
300mm |
|
X moving speed |
2000mm/min |
|
Z moving speed |
2000mm/min |
|
Spindle motor power |
1.1kw |
|
X motor torque |
2NM |
|
Z motor torque |
2NM |
|
Mini setting unit |
0.001mm |
|
Tailstock diameter |
22mm |
|
Tailstock travel |
50mm |
|
Tailstock Taper |
MT2 |
|
Overall size |
1185*930*1440mm |
|
weight |
300kg |
