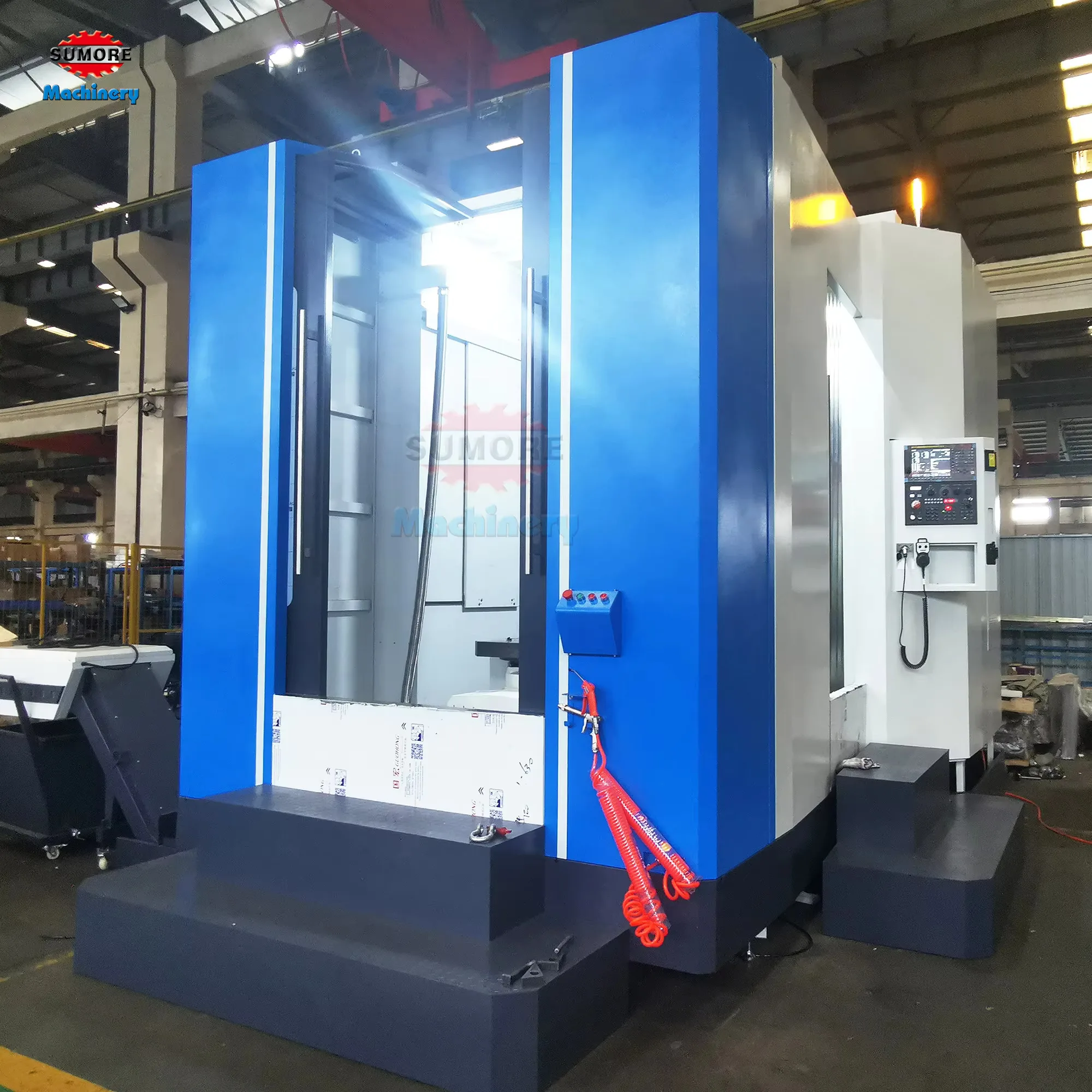

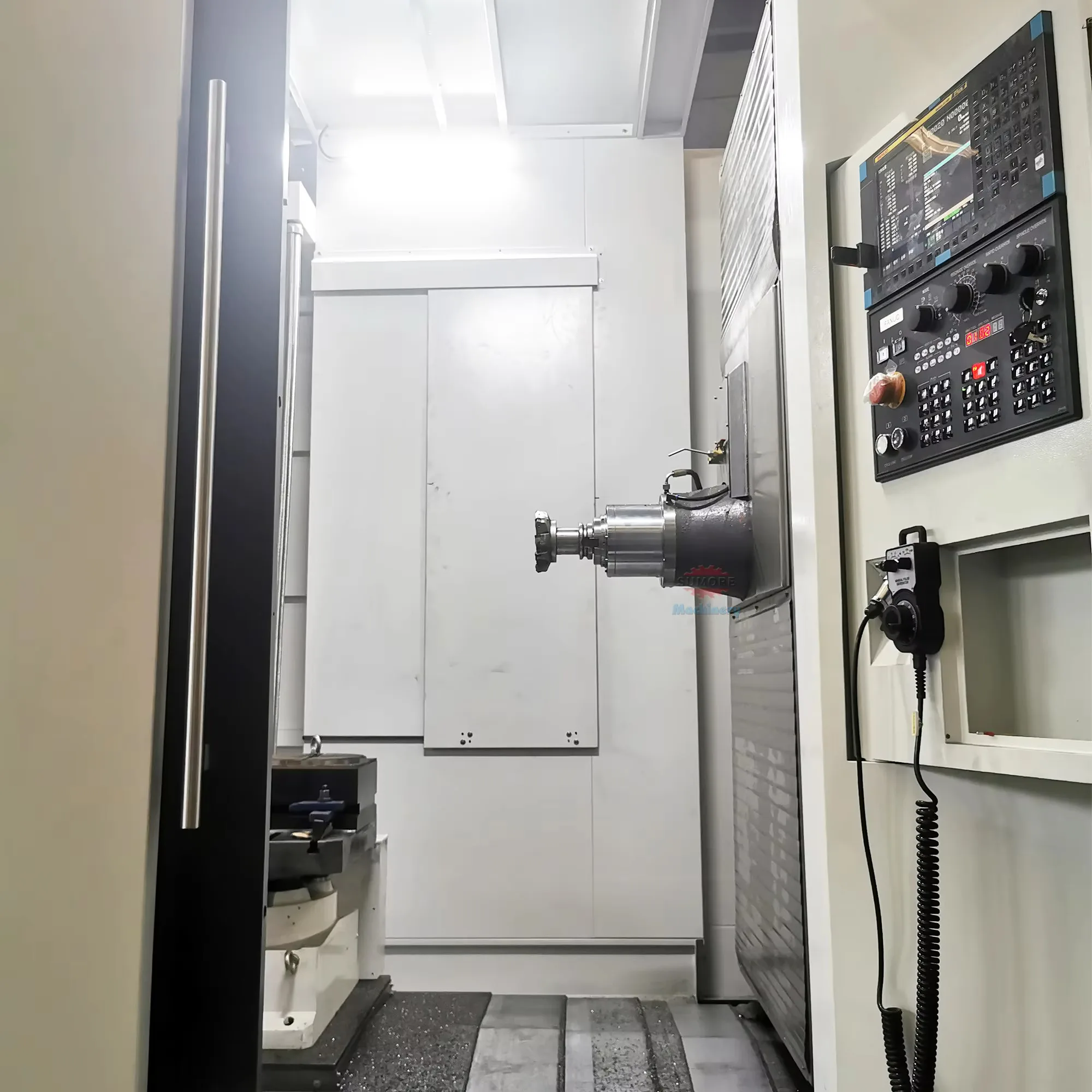

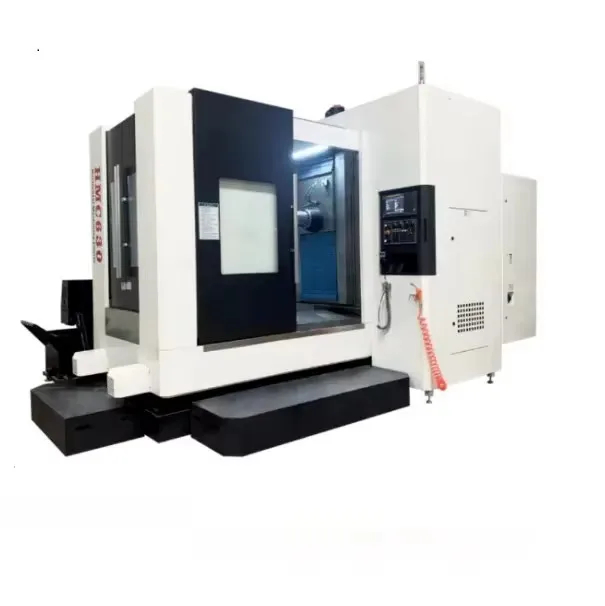

Name: Sumore Hmc500 Bt50 Fanuc Controller 3 Axis Heavy Duty Milg Hine Cnc Horizontal Center For Metal Hining
SKU: 1005008354808256
Availability: InStock

Product Description

MAIN CONFIGURATION & ACCESSORIES:

1. Resin sand casting;

4. Standard with belt driven spindle;

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;

9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.

17. Heat exchanger for electrical cabinet ;

19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

OPTIONAL CONFIGURATION & ACCESSORIES:

1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.

Specification

Model	HMC500	HMC630	HMC800	HMC1000
X-axis travel	800mm	1100mm	1600mm	2200mm
Y-axis travel	800mm	800mm	1000mm	1400mm
Z-axis travel	800mm	1100mm	1100mm	1200mm
Table size	500*500mm	630*630mm	800*800mm	1000*1000mm
	1°*360	1°*360	1°*360	1°*360
T slot size	5-18-100mm	5-18-100mm	6-22-125mm	125×22×6mm
Max. Loading of work table	800kg	1500kg	2500kg	6000kg
Spinlde center to table	50-850mm	50-850mm	0-1000mm	350-1550mm
Spindle nose to table surface		125-1225	180-1180	100-1300mm
Spindle taper	BT-40	BT-50	BT-50	BT-50
Spindle range	8000rpm	6000rpm	6000rpm	6000rpm
Spindle power	11/15KW	15/18.5KW	15/18.5KW	15/18.5KW
Cutting speed	1-8000mm/min	1-8000mm/min	1-8000mm/min	1-8000 mm/min
X/Y/Z fast speed	24/24/24 m/min	24/24/24 m/min	24/24/24 m/min	24/24/24m/min
X/Y/Z posion accuracy	+0.008	+0.008	+0.008	0.015
Repeatability	+0.005	+0.005	+0.005	0.008
Positioning accuracy of B axis	+10”	+10”	+10”	+10”
ATC	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)	24 pcs(optional 30pcs/40pcs 60pcs)
Tool change time	2.7S	5S	5S	5S
Max. Tool weight	8kg	18kg	18kg	18kg
Max. Dimeter of tool	75/125mm	112/200mm	125/230	φ80/φ150mm
Max. Lenght of tool	300mm	300mm	300mm	400mm
Maching weight	9500kg	12000kg	15000kg	20000Kg
Machine dimention	380032003280	486036003460	620048003800	6800×5200×3800mm

Company Profile

As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.

We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.

Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.

Hope to cooperate with you!

Packaging & Shipping

FAQ

1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.

3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?

We sincerely welcome you come to our factory.

4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.

5.Q:Can you accept OEM order?
