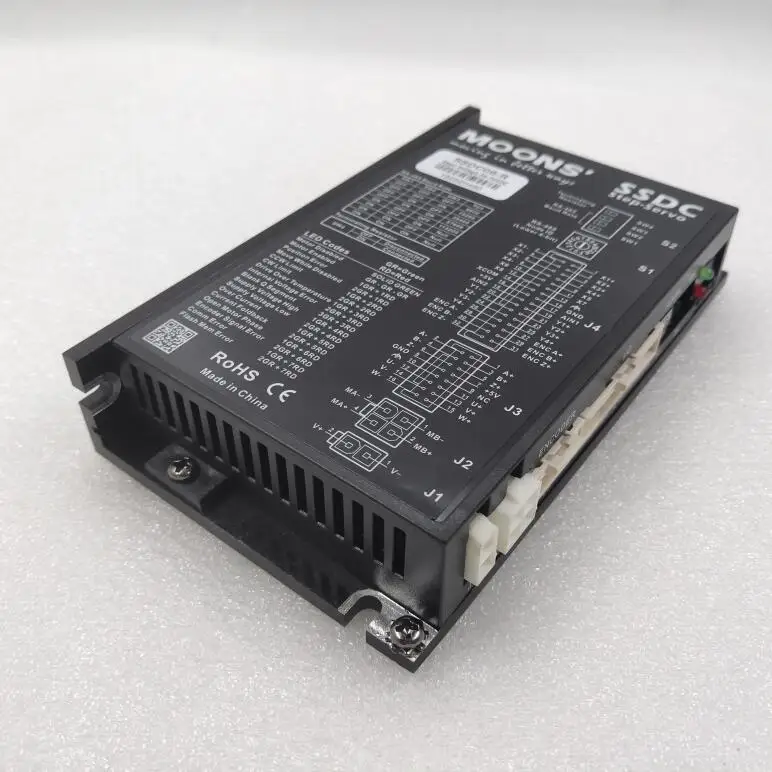

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes

, Author

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes

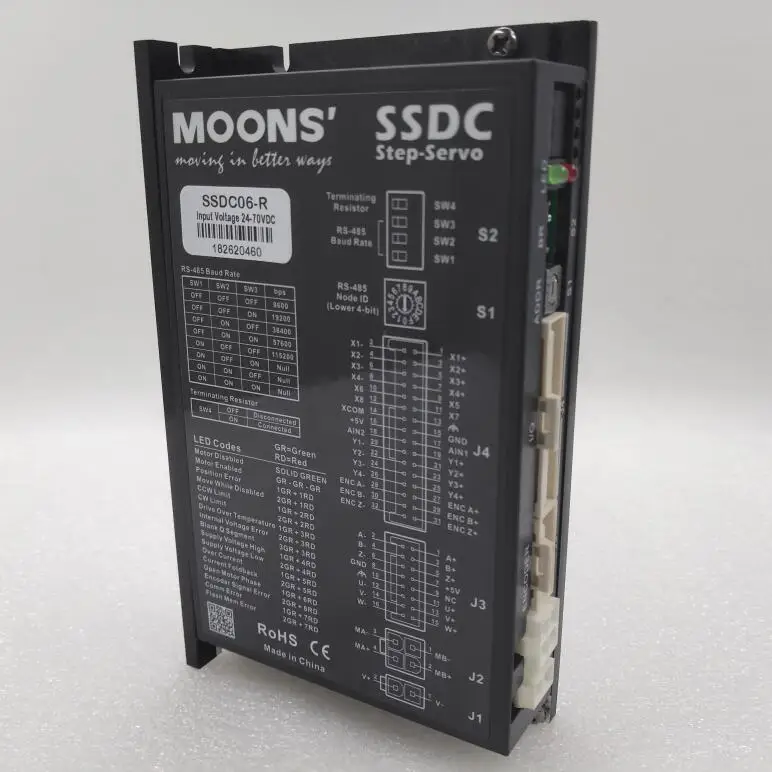

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes - Image 2

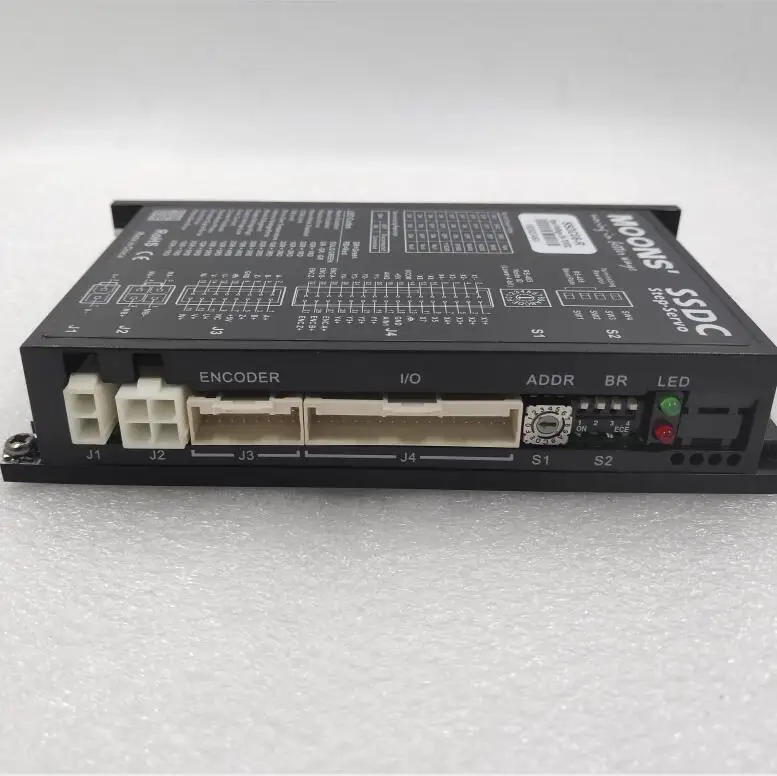

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes - Image 3

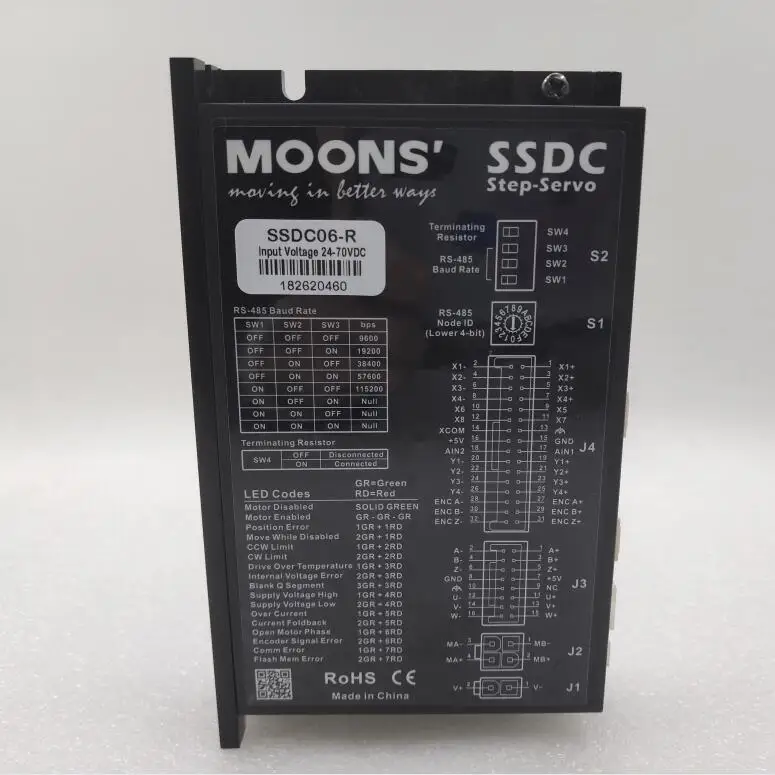

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes - Image 4

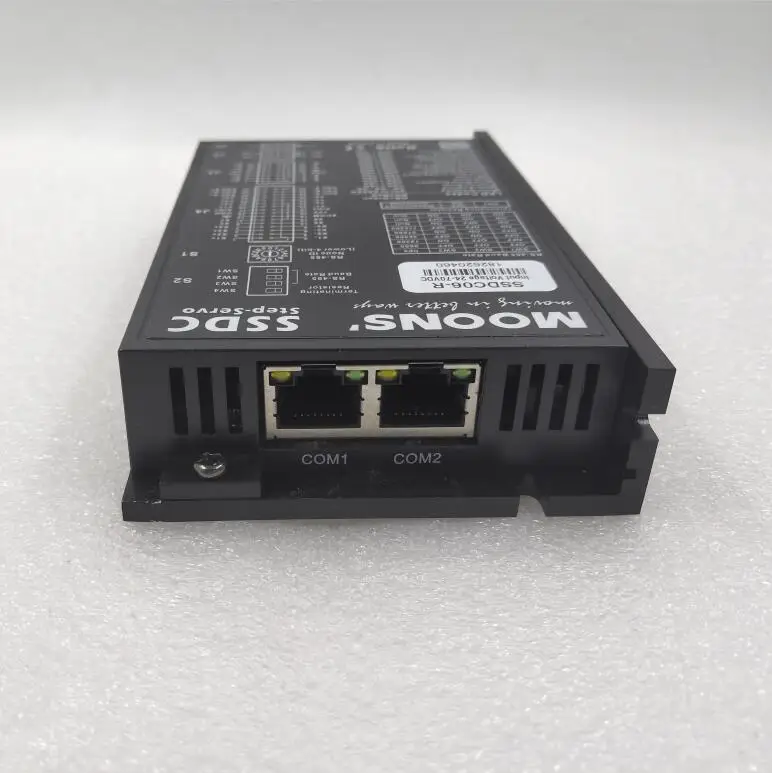

SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes - Image 5

R$ 1.125,00

9 em stock

Até 12x sem cartão com a Linha de Crédito. Saiba mais
Compre parcelado sem cartão com a Linha de Crédito Mercado Pago
1
Adicione o produto ao carrinho de compras e, na hora de pagar, selecione “Linha de Crédito”.
2
Inicie sessão no Mercado Pago.
3
Escolha o número de parcelas que melhor se adapte a você e pronto!

Crédito sujeito a aprovação.

Dúvidas? Confira nossa página de Ajuda.

REF: 1005004822107342

Descrição

  • DIY Supplies: ELECTRICAL
  • Brand Name: LanYuXuan
  • Origin: Mainland China
  • Certification: CE
  • Warranty: 12 months, 12 months
  • Place of Origin: Guangdong, China
  • Brand Name: MOONS
  • Model Number: SSDC06-R
  • Product name: MOONS 24-70V 0.1A-6A closed loop step-servo drive
  • Supply Voltage: 24-70 VDC
  • Output Current, Continuous: 6.0A
  • Output Current, Peak: 7.5A
  • Communication Ports: Dual RS-485
  • Phase: 2 Phase
  • Weight: 0.75kg
  • Encoder Feedback: Available
  • Certification: CE RoHS, CE ROHS

MOONS SSDC06-R 24-70V 0.1A-6A closed loop step-servo drive Modbus RTU RS-485 nema 17 23 24 stepping motor drive up to 32 axes



Production Detail

Parameter Unit Value
Supply Voltage   24-70 VDC
Control Modes   Modbus RTU,Pulse Mode,
,Analog Torque/Velocity/Position,
,Velocity Mode,SCL,Q Programming
Communication Ports   Dual RS-485
Analog Inputs   2
Encoder Output   Yes
IP Rating   IP20
Weight kg 0.75
Digital Input   8
Digital Output   4
Approval   CE,RoHS
Ambient Temperature Range:   0-40℃
Phase   2
Output Current, Continuous A 6
Encoder Feedback   Available
Output Current, Peak A 7.5

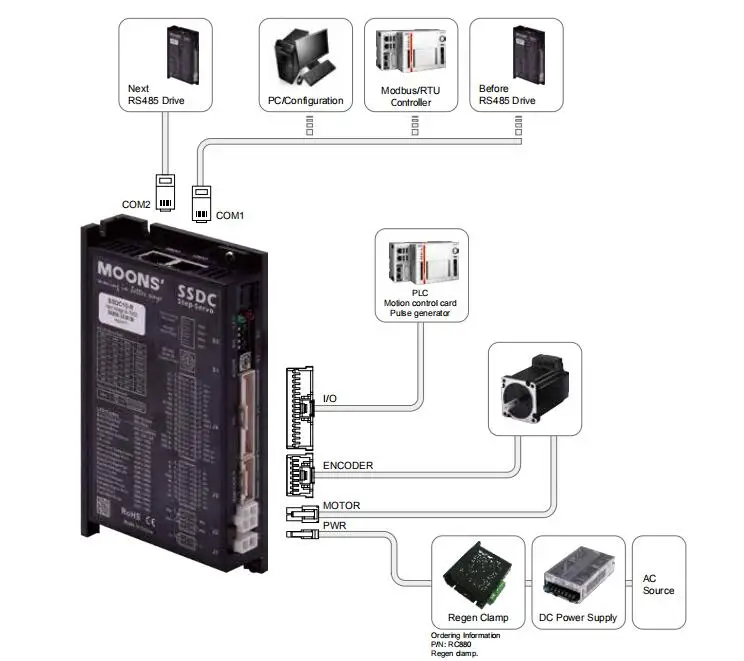

System Confifiguration



SSDC-R, RS485 Communication type
. RS-485/422 field bus control
. Modbus/RTU (Multi-axes) network, up to 32 axes per channel
. Accepts three types of pulse signal input as
. Pulse&Direction, CW/CCW and A/B Quadrature
. Analog control
. Stand alone program (Q programmer)

SSDC-C, CANopen Communication type
. Operates on a CANopen communication network and conforms to CiA301
and CiA402. It supports running stored Q programs via MOONS ' -specific CANopen objects.
. Up to 112 axes per channel
. Analog control

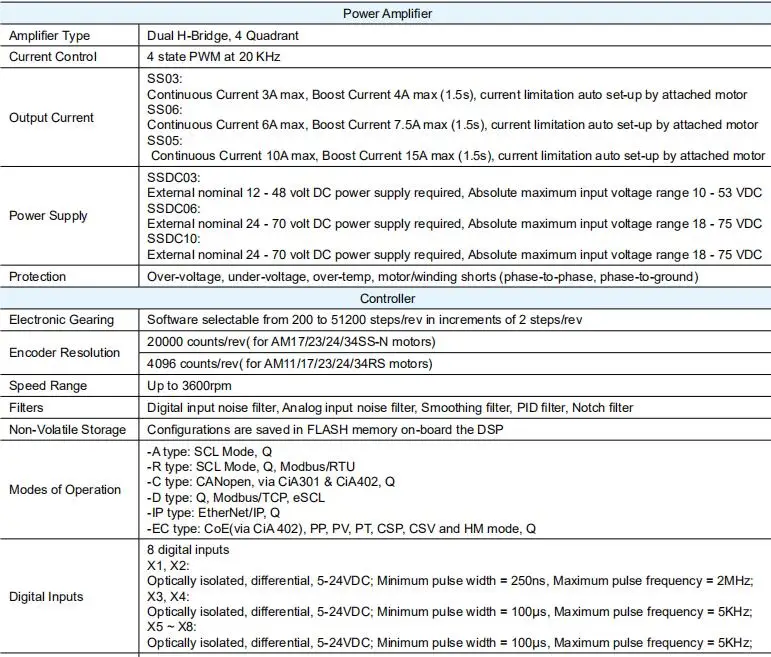

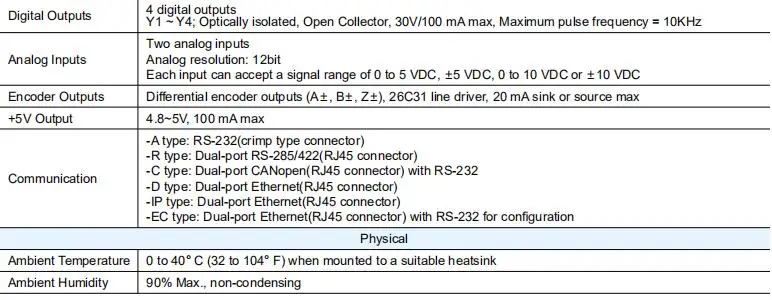

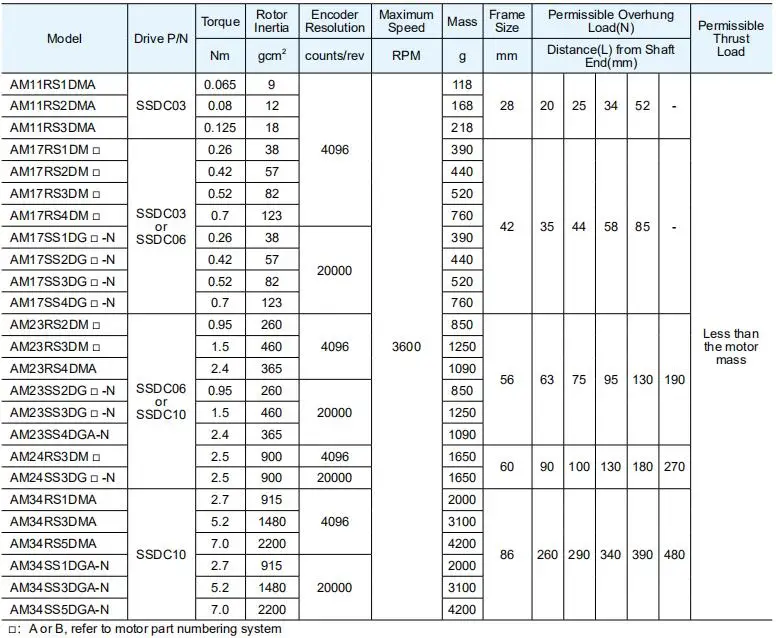

Technical Specifications

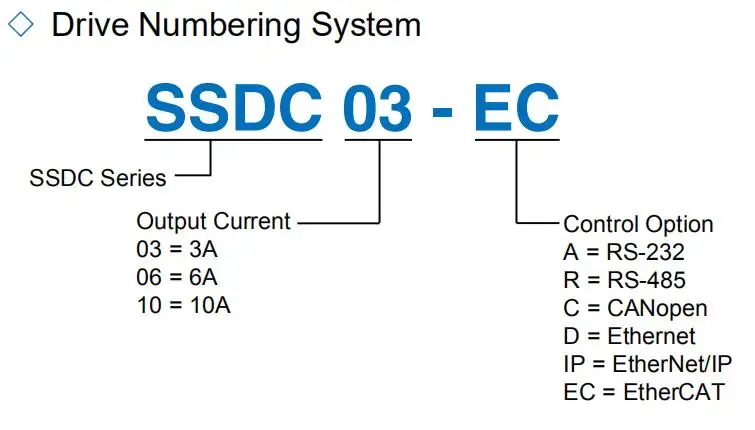

Numbering Information

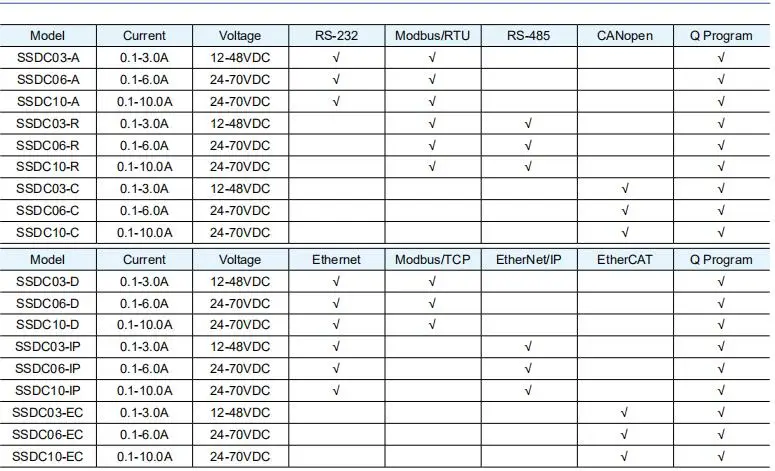

Ordering Information

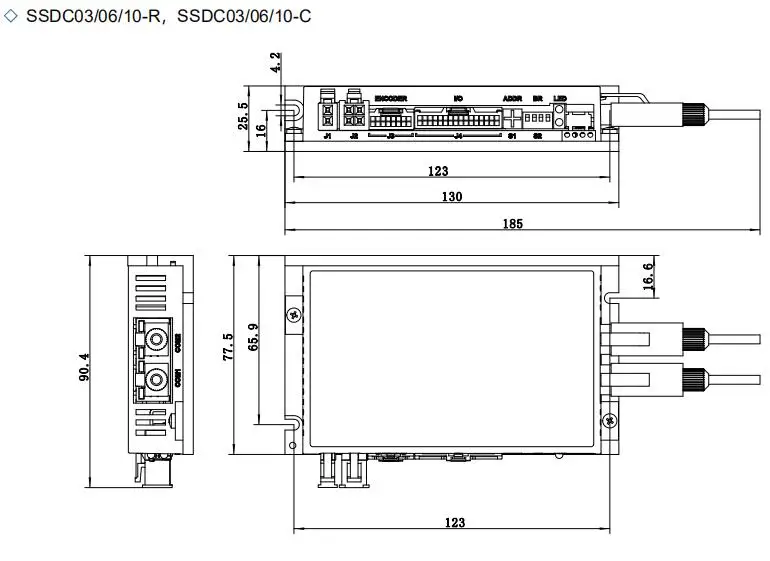

Driver Dimensions (Unit:mm)

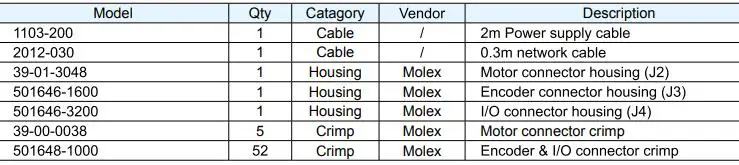

Standard Accessories  (include)

SSDC06-R drive

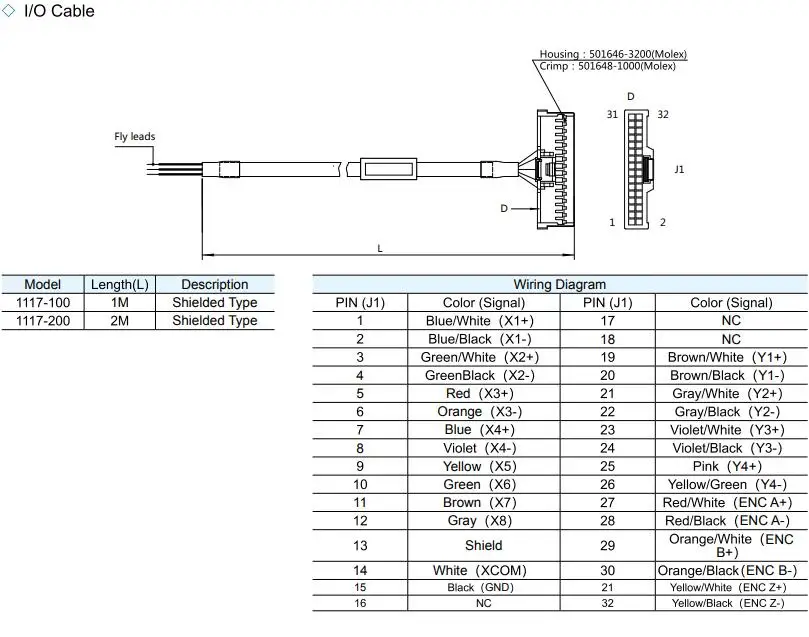

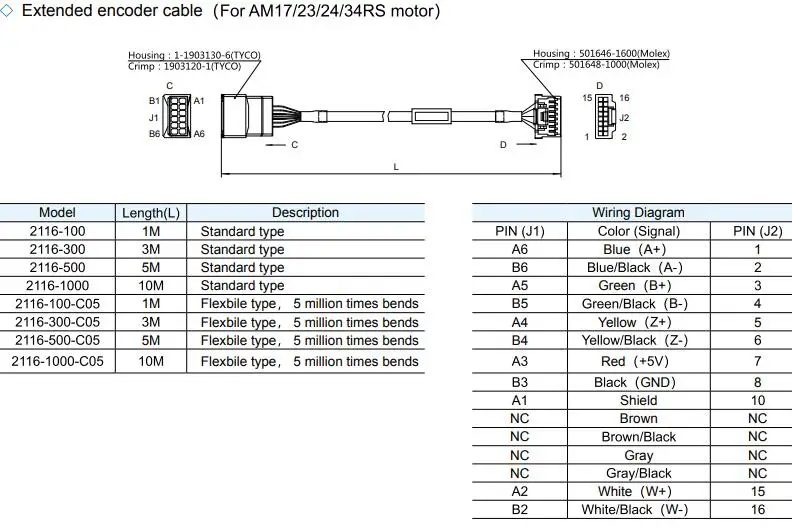

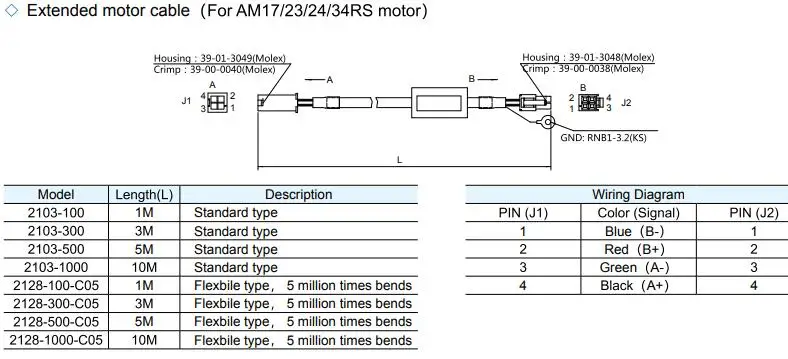

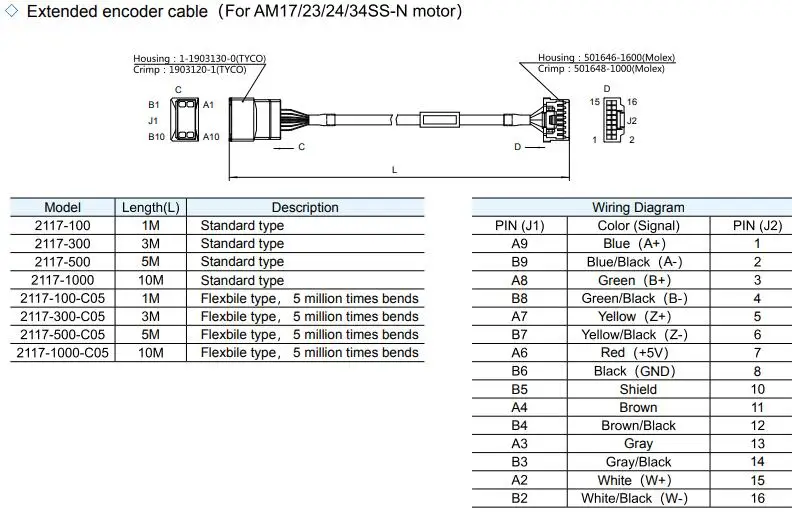

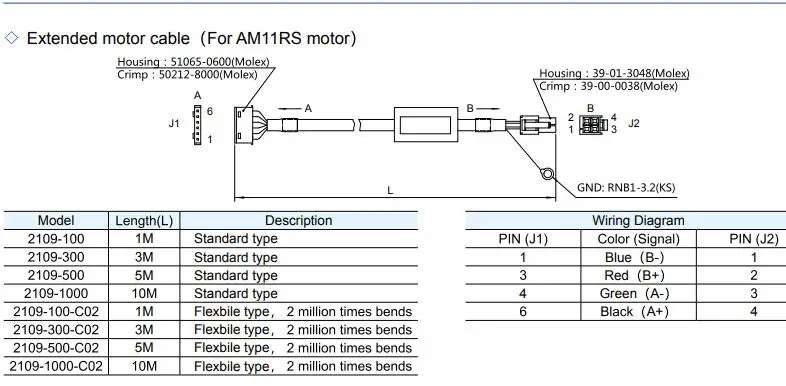

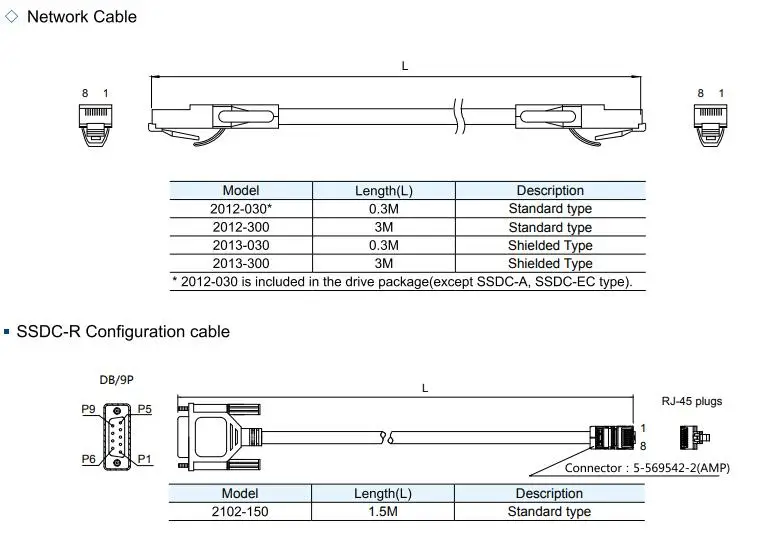

Optional Accessories(Sold sparately)

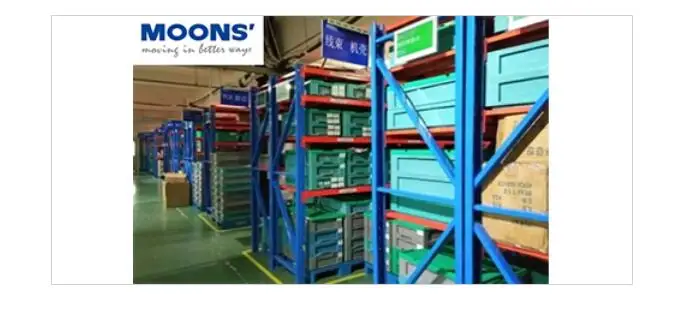

Packaging and Shipping



FAQ

1.Factory or Agent?
We are Factory , but have professional R&D team as introduced in company information.



2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 15-20 days.



3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.



4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.



5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
