- Hign-concerned Chemical: Acetochlor
- Type: Other
- Origin: Mainland China
- type: Horizontal
- range of spindle speed(r.p.m): 1 - 24000
- number of axes: 5
- no. of spindles: Single Phase
- machining capacity: Light Duty
- spindle taper: 250mm
- table travel (x) (mm): 400 mm
- table travel (y) (mm): 300 mm
- table travel (z) (mm): 400 mm
- positioning accuracy (mm): 0.01
- repeatability (x/y/z) (mm): 0.03-0.05
- place of origin: Guangdong, China
- brand name: ChinaCNCzone
- voltage: 110V/220V
- dimension(l*w*h): 820*800*950mm
- cnc control system: mach3 usb
- key selling points: High-accuracy
- weight (kg): 350
- spindle motor power(kw): 2.2
- warranty: 1 years
- max. table load(kg): 10 kg
- machinery test report: Provided
- video outgoing-inspection: Provided
- CNC or Not: CNC
- Shape dimension: 820*800*950mm
- Working table dimension: 500*300mm
- Machine frame material: 45#steel
- Principal axis collet: ER-20 1-13mm
- Command code: Tap, nc ,ncc, txt
- Computer connection: Ether port
- Condition: New
- Showroom Location: None
- Warranty of core components: 1 Year
- Table Travel (mm): 400*300*400
- Year: 2019
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! Please contact me for more details: Mobile: +86 15773165125 Whatsapp / Wechat:15575133652
Product Description

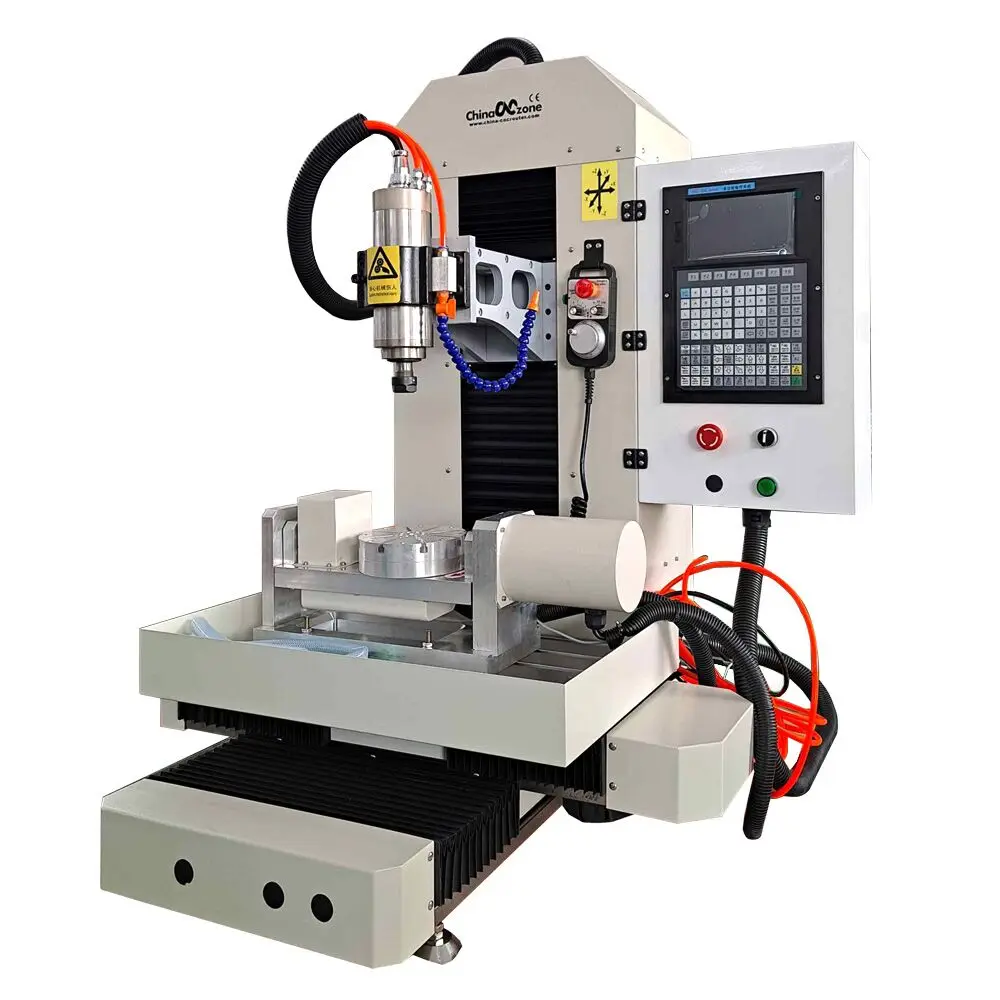

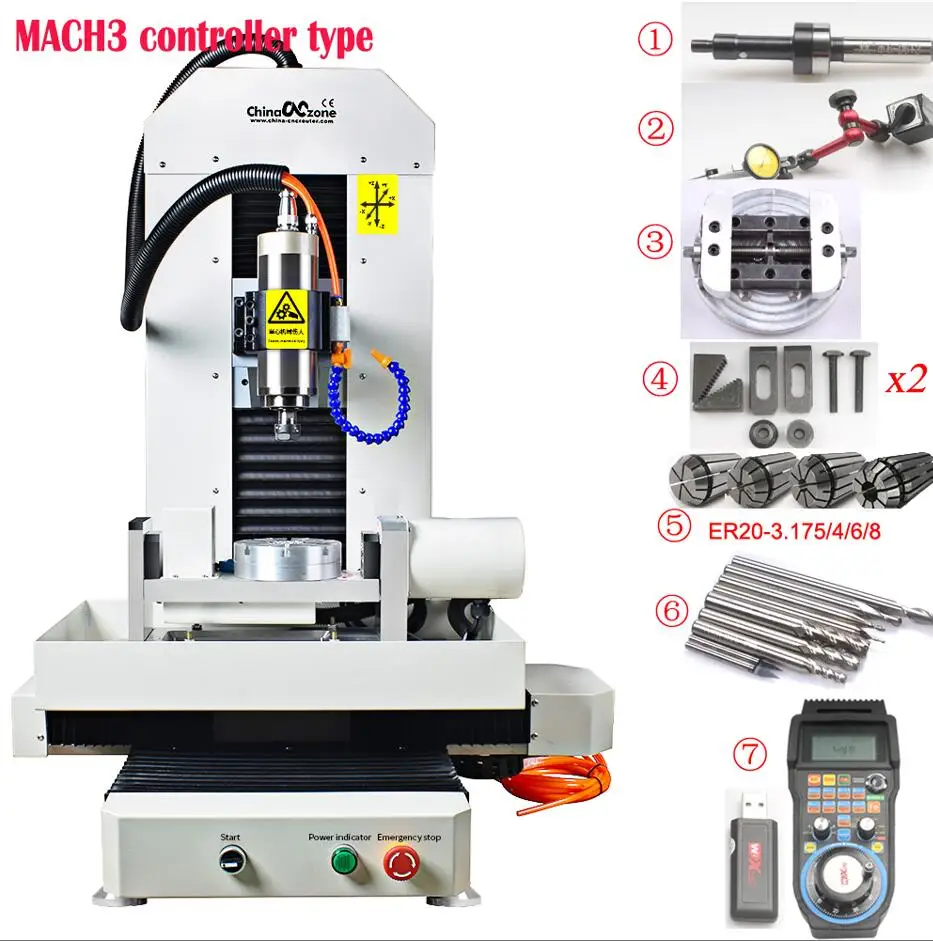

Steel structure 3040 5 axis CNC router 3D metal engraving machine
FREE TAX!!! to EU and RU!!!
1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.The delivery time is usually 20-40 days. and no tax fee by this way!
2/ Germany/ United Kingdom/ France/ Spain/ Italy/Poland/Austria/Belgium/Czech/Republic/Denmark/Lithuania/Bulgaria/Estonia/Greece/ Romania/Slovenia/Croatia/Luxembourg/Finland/Ireland/ Portugal/ Sweden
1/ We will ship this machine to Moscow by Toanda from China, and transfer to you from Moscow by Russia local shipping company with door to door shipping way. the machine will be deliveried to your home.The delivery time is usually 20-40 days. and no tax fee by this way!
2/ Germany/ United Kingdom/ France/ Spain/ Italy/Poland/Austria/Belgium/Czech/Republic/Denmark/Lithuania/Bulgaria/Estonia/Greece/ Romania/Slovenia/Croatia/Luxembourg/Finland/Ireland/ Portugal/ Sweden
All above country buyers free tax!!!we will ship by train to Poland, and transfer to your door by EU local shipping.
Steel structure standard Ether port 3040 5 axis CNC router 3D metal engraving machine
package weight：350kg
Steel structure DSP system no need computer connection 3040 5 axis CNC router 3D metal engraving machine
package weight：350kg
Specification Sheet
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.
|
Effective working travel(3axis)
|
|
400*300*400mm
|
|
|
Effective working travel(5axis)
|
|
200*200*200mm
|
|
|
Shape dimension
|
|
820*800*950mm
|
|
|
Working table dimension
|
|
500*300mm
|
|
|
Machine frame material
|
|
45#steel
|
|
|
Acceptable material size
|
|
400*300mm
|
|
|
Driving units
|
|
X/Y/Z Axis SFU1605 Ball srew C7 level
|
|
|
Sliding units
|
|
X/Y/Z Axis HGH20 linear guide
|
|
|
Control units
|
|
5pcs independent 542 step drive + MK6-V XHC motion controller
|
|
|
A/B axis Harmonic reducer
|
A axis(Rotary axis)
|
360degree
|
|
|
|
B axis(Slope)
|
90degree
|
|
|
|
speed ratio
|
1:50
|
|
|
|
Maximum torque
|
15N.m
|
|
|
Stepper motor type( closed-loop, servo motor optional)
|
|
57 two-phase four wire,2A 1.8N.m,500rpm suggested
|
|
|
|
|
58two-phase four wire,3A 1.2N.m,500rpm suggested
|
|
|
Spindle motor
|
|
Brand new 2200W water cooling spindle, 24000RPM
|
|
|
Principal axis collet
|
|
ER-20 1-13mm
|
|
|
Repeat accuracy
|
|
0.01mm
|
|
|
Spindle precision
|
|
radial beat accuracy 0.01 mm
|
|
|
Operating system
|
|
Newest Win10 and compatible with old version
|
|
|
Maximum speed
|
|
0-4000mm/min
|
|
|
Computer connection
|
|
USB port /DSP /RTCPsystem
|
|
|
Command code
|
|
Tap, nc ,ncc, txt
|
|
|
Safeguard
|
|
Limit switch
|
|
|
Operating Voltage
|
|
AC220V/110V
|
|
|
Warranty
|
|
1 Year
|
|
|
Package size
|
|
One wooden box,107*98*130cm
|
|
|
Gross weight
|
|
350KG
|
|
Our Advantages
Higher precision because:
1.Cross slippery platform design rather than gantry design.
2.steel base sheet is heavy which can make sure less vibration when work.
3.With auto-checking function.
4.2200w water-cooled spindle.
5.Ball screw
6.Stainless Steel sink for bits cooling
2.steel base sheet is heavy which can make sure less vibration when work.
3.With auto-checking function.
4.2200w water-cooled spindle.
5.Ball screw
6.Stainless Steel sink for bits cooling
Easy operating because:
1.steel structure 3040 5 axis metal cutting carving machine
2.Steel machine frame, more stable, Stronger rigidity
3.A,B axis use Harmonic reducer, High processing progress
4.Higher precision work on aluminum, Cooper,stainless steel(accuracy≤0.05mm)
5.Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw
2.Steel machine frame, more stable, Stronger rigidity
3.A,B axis use Harmonic reducer, High processing progress
4.Higher precision work on aluminum, Cooper,stainless steel(accuracy≤0.05mm)
5.Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw
You can buy this machine from us without any worry because:
1.CE approved.
2.Video support.
3. English manual available.
4.Mach 3 software send with the machine as a CD.
5.Can engrave material which hardness more than 45.
6.From reliable & trustable profesional China CNC Router manufacturer
2.Video support.
3. English manual available.
4.Mach 3 software send with the machine as a CD.
5.Can engrave material which hardness more than 45.
6.From reliable & trustable profesional China CNC Router manufacturer
Product packaging
Recommend Products
Most popular china wood-carving-machine-price low cost 4 axis 3040
The above machine is too expensive? Please look at this, the same working area can also engrave the material of the cylinder, the price is cheaper
Newest Mach3 USB 5 axis cnc machine HY6040 small 5 axis cnc milling machine 2200W
Do you want a bigger work area? Then choose this HY6040 5axis cnc router with a working area of 400*600mm.
3D 5 Axis Drilling Router Center Foam Hobby Sheet Metal Cutting Woodworking Tools Lathe Milling Cnc Machine
The same working area is cheaper. Except for hard metals, most soft metals can be carved with an accuracy of 0.03-0.05mm.
Company Profile
Certifications
FAQ
After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support
service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote
assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by eBay message with photos or videos . We will give you a
satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free
replacement can send when needed
PS: Any other question welcome to contact us by 1234 message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .
Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support
service.
Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote
assistance .
Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by eBay message with photos or videos . We will give you a
satisfied solution after check it.
Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.
Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free
replacement can send when needed
PS: Any other question welcome to contact us by 1234 message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
