- Produto Químico de Alta Preocupação: Nenhum
- Condição: novo
- Tipo: Vertical
- Origem: CN (Origem)
- Certificado: CE

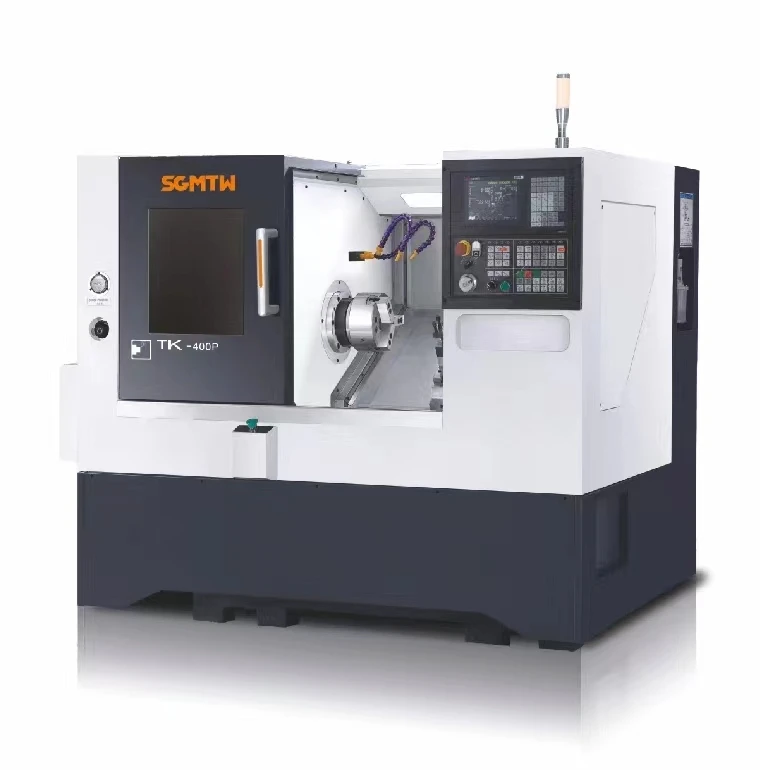

Product Description
|
Maximum Turning Diameter of Bed |
Φ480mm |
|
Max Dia of Processing(Plate) |
Φ330mm |
|
Max Dia of Processing(Roller) |
Φ290mm |
|
Max.Turning Length |
300mm |
|
Maximum Milling Length |
Φ52mm |
|
X-axis Effective Travel |
230mm |
|
Z-axis Effective Travel |
350mm |
|
X and Z axis Rapid Movement Rate |
20m/min |
|
X, Z axis Servo Motor |
7.5Z/7.5nm |
|
Spindle Nose Type |
A2-6 |
|
Main Apindle Through-hole Diameter |
Φ66mm |
|
Maximum Spindle Speed |
4200rpm |
|
Spindle Motor Power |
11kw |
|
Sleeve and Rotary Cylinder Specifications |
8inch |
|
X and Z axis Repetition Accuracy |
±0.005mm |
|
Repeated Positioning Accuracy |
±0.005mm |
|
Tailstock Sleeve Specifications |
/ |
|
Tailstock Sleeve Stroke |
/ |
|
Tailstock Pressure Range |
/ |
|
Tailstock Moving Mode |
/ |
|
Bed Structure Form |
35 Roller Slant Rail |
|
Shank Mode |
□25*25 |
|
Boring Bars Specification |
Φ32mm |
|
Cutter Spacing |
Baruffaldi 8 PCS |
|
Length *Width *Height |
2600*1600*1800 |
|
Weight |
2900kg |

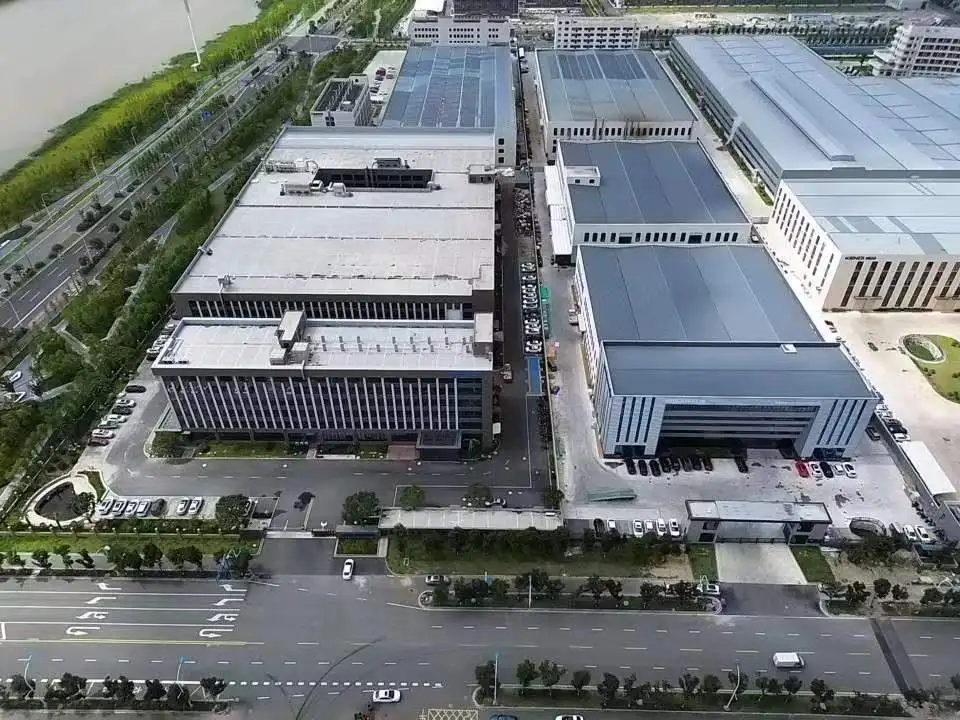

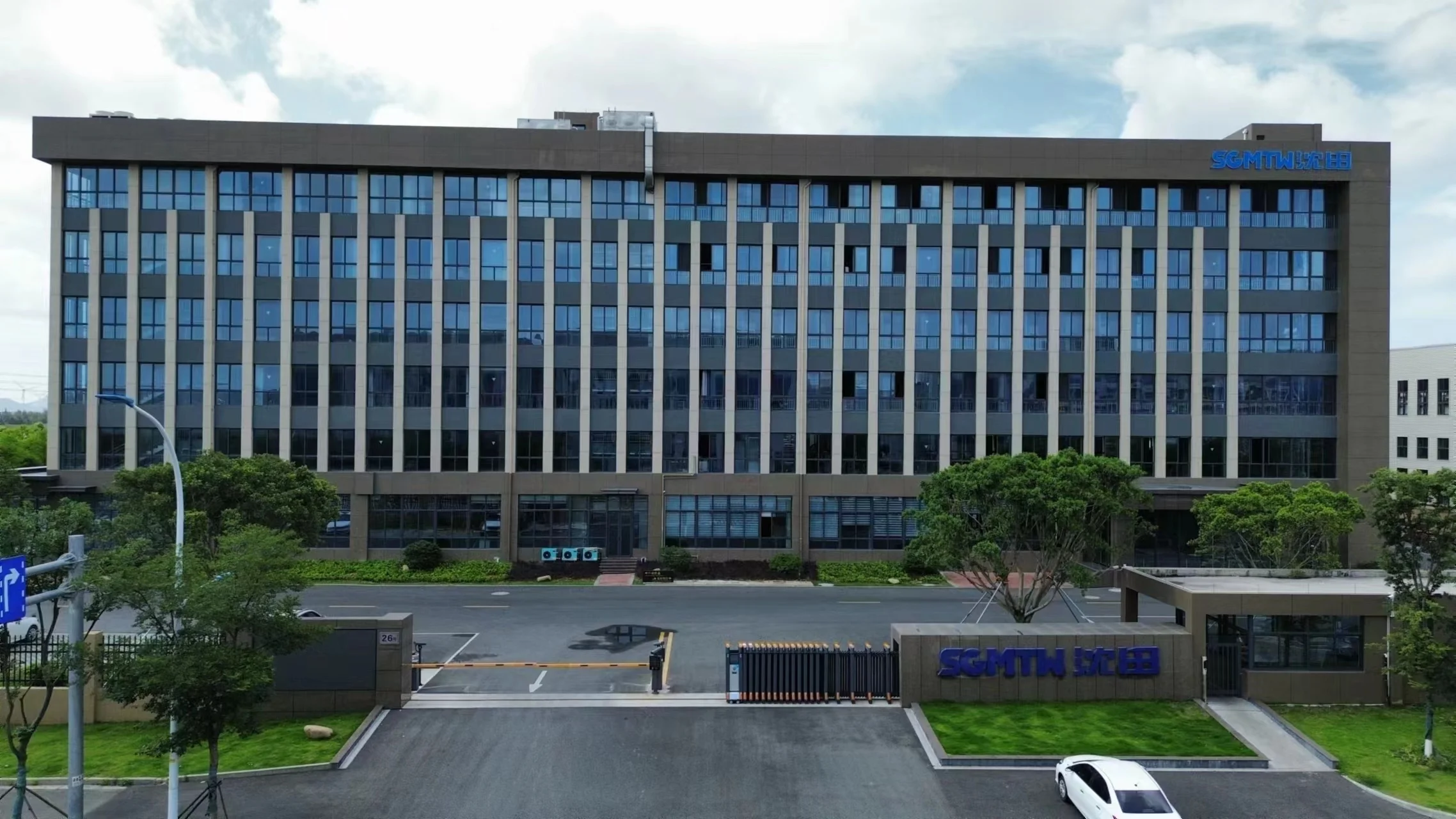

Why Choose Us
Qingdao Berrysun Machinery Co. Ltd., is a comprehensive high-tech enterprise which specialized in the research, development and production of various equipment such as CNC system,CNC machine tool,Automatic Production Line.Construction Machines, Farm Machines and Textxile Machines. Our company has established perfect hassle-free service system in quick response, which covers pre-sales, sales and post-sales to providespecialized and standardized services in quick response for the customers and safeguard the rights and interestes of the customers. By adhering to the service pinciple of "let customers be hassle-free",the company has its customers enjoy specialized high-quality services from time to time.

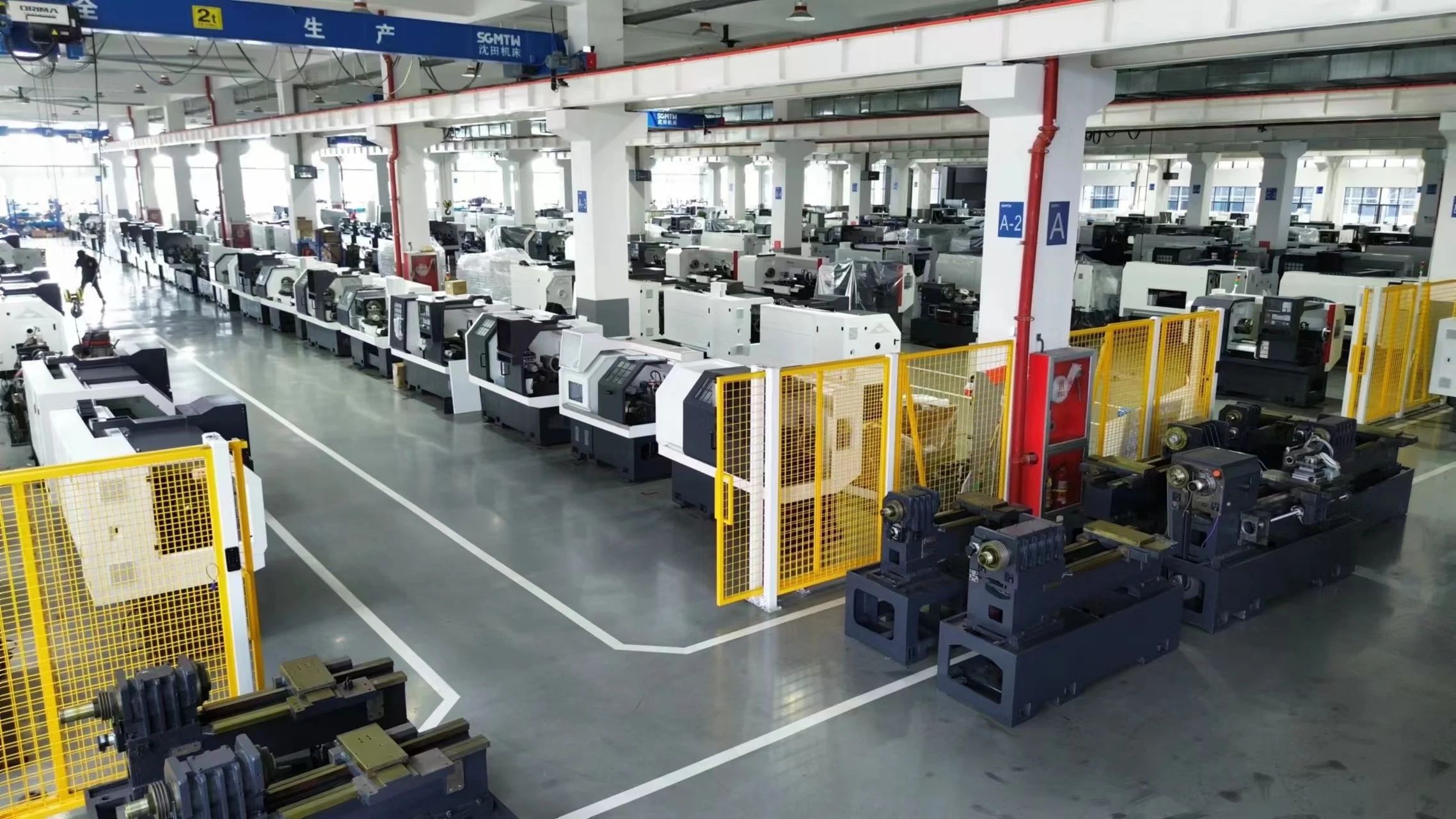

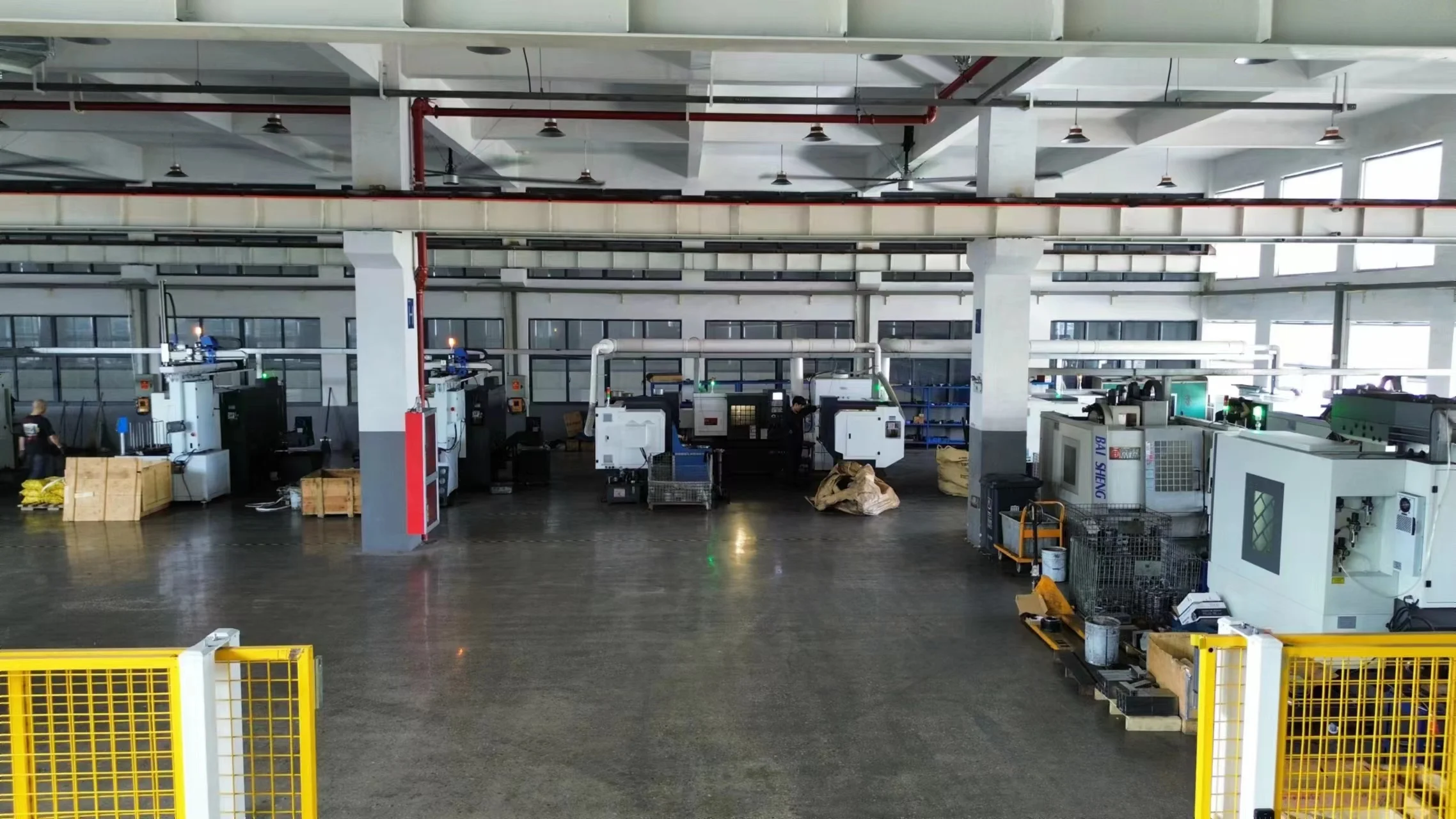

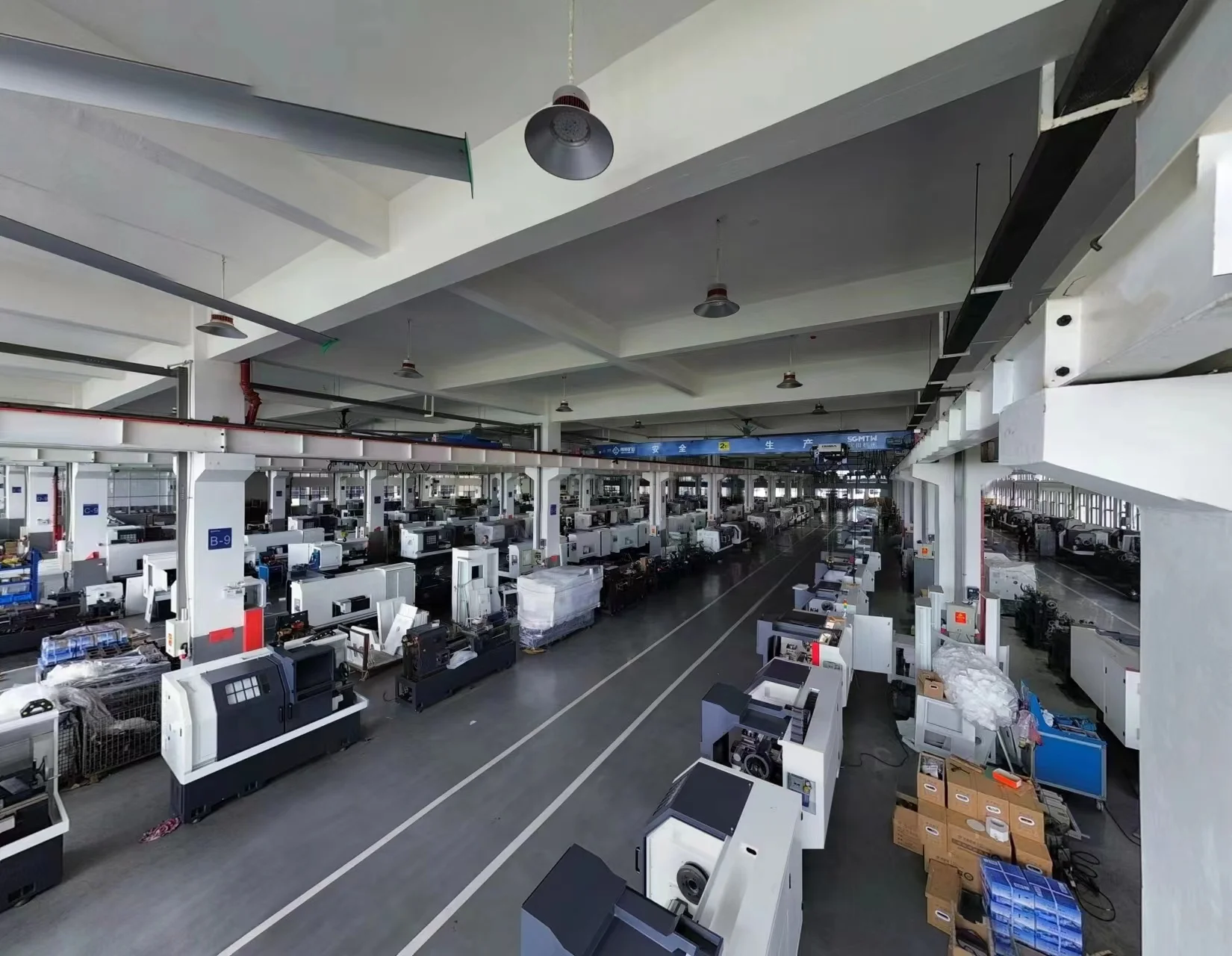

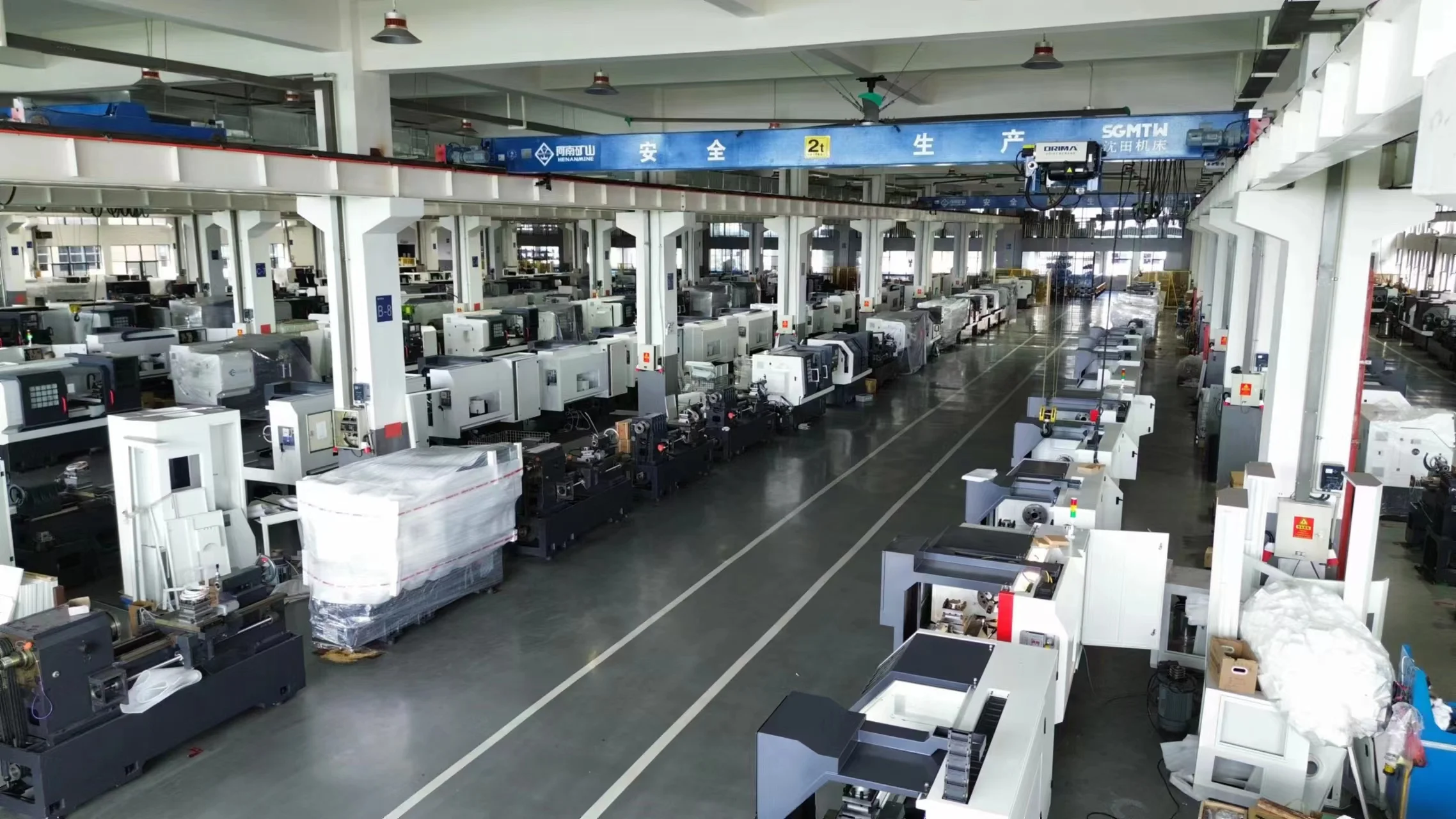

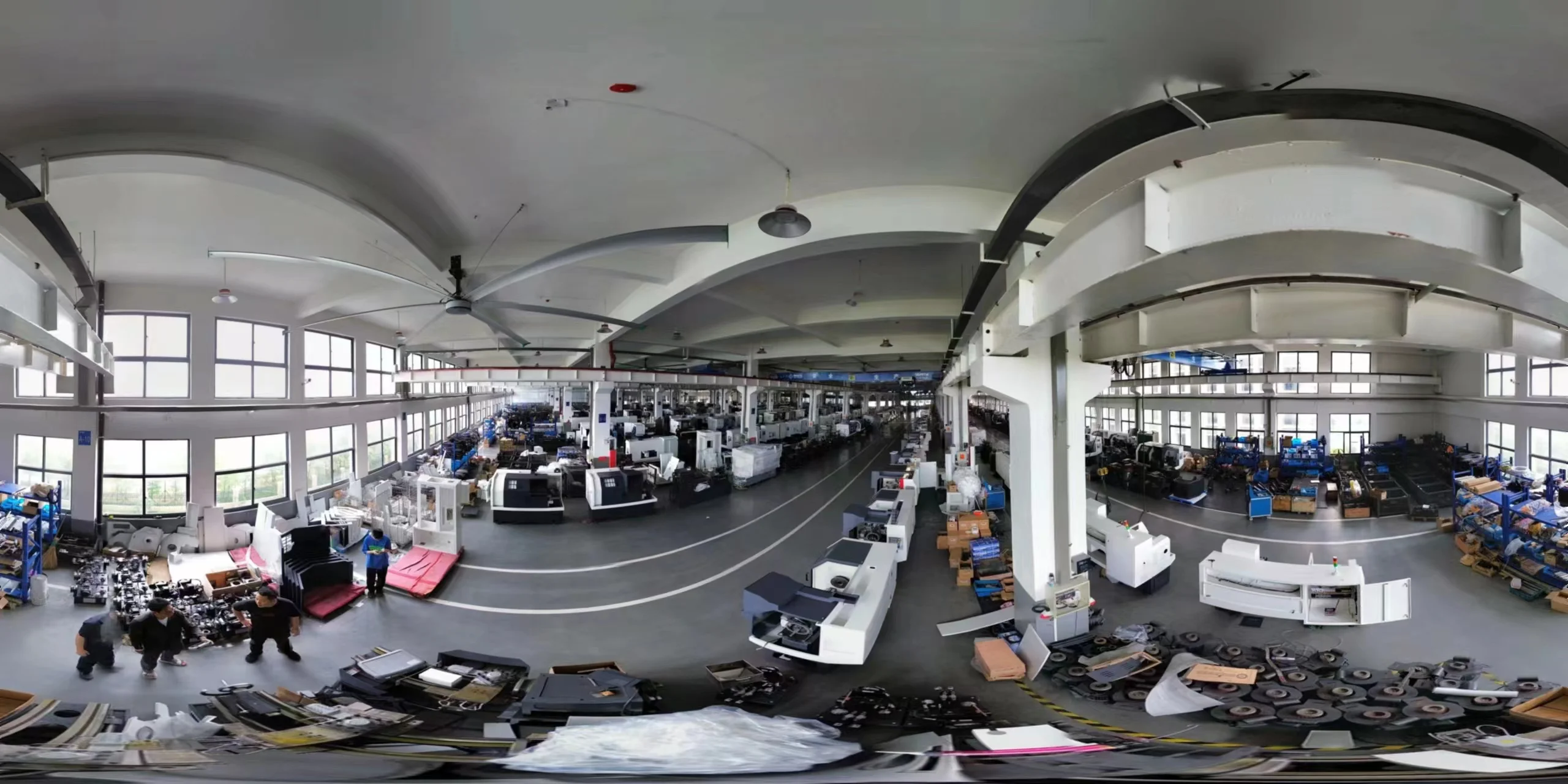

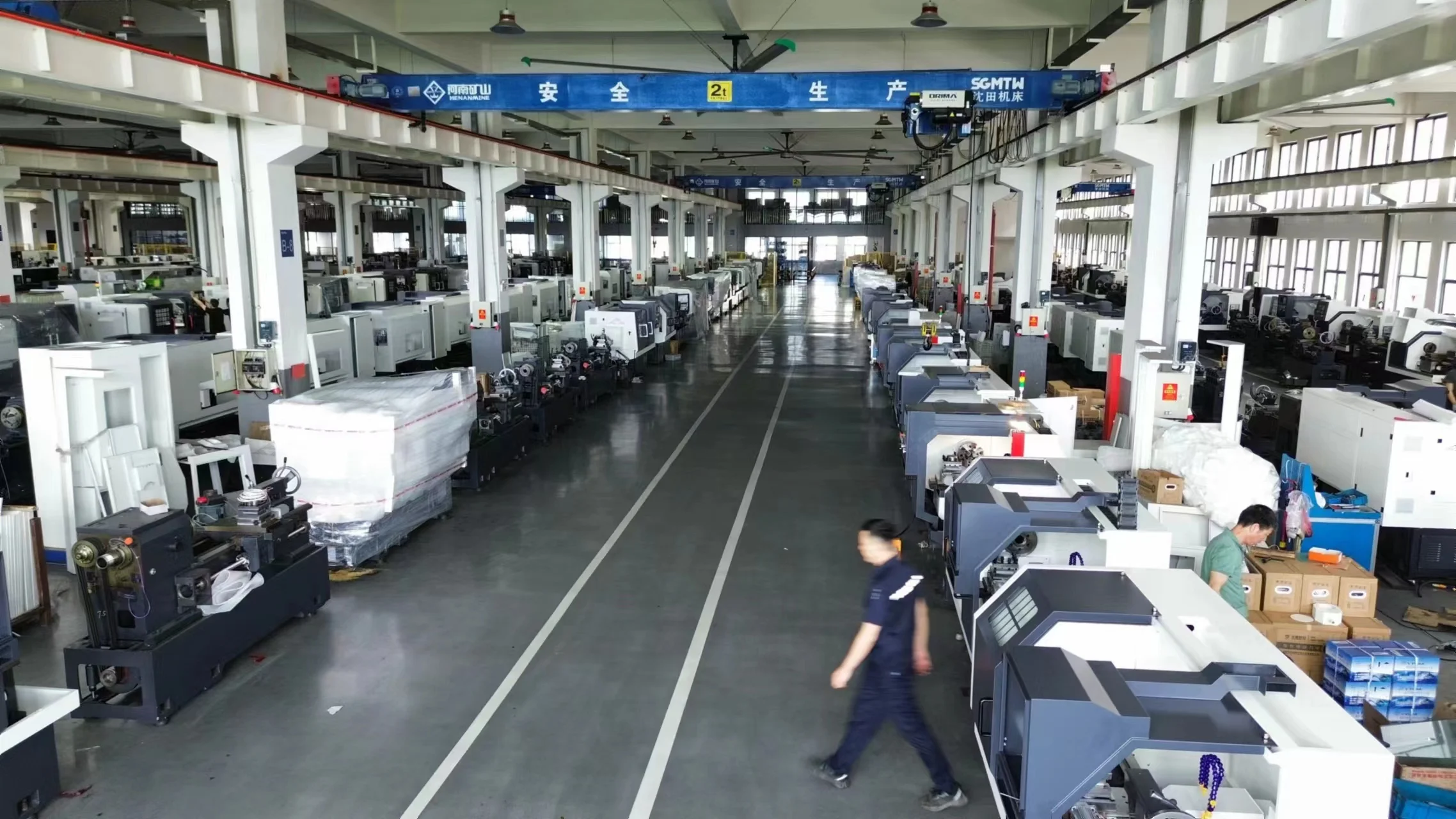

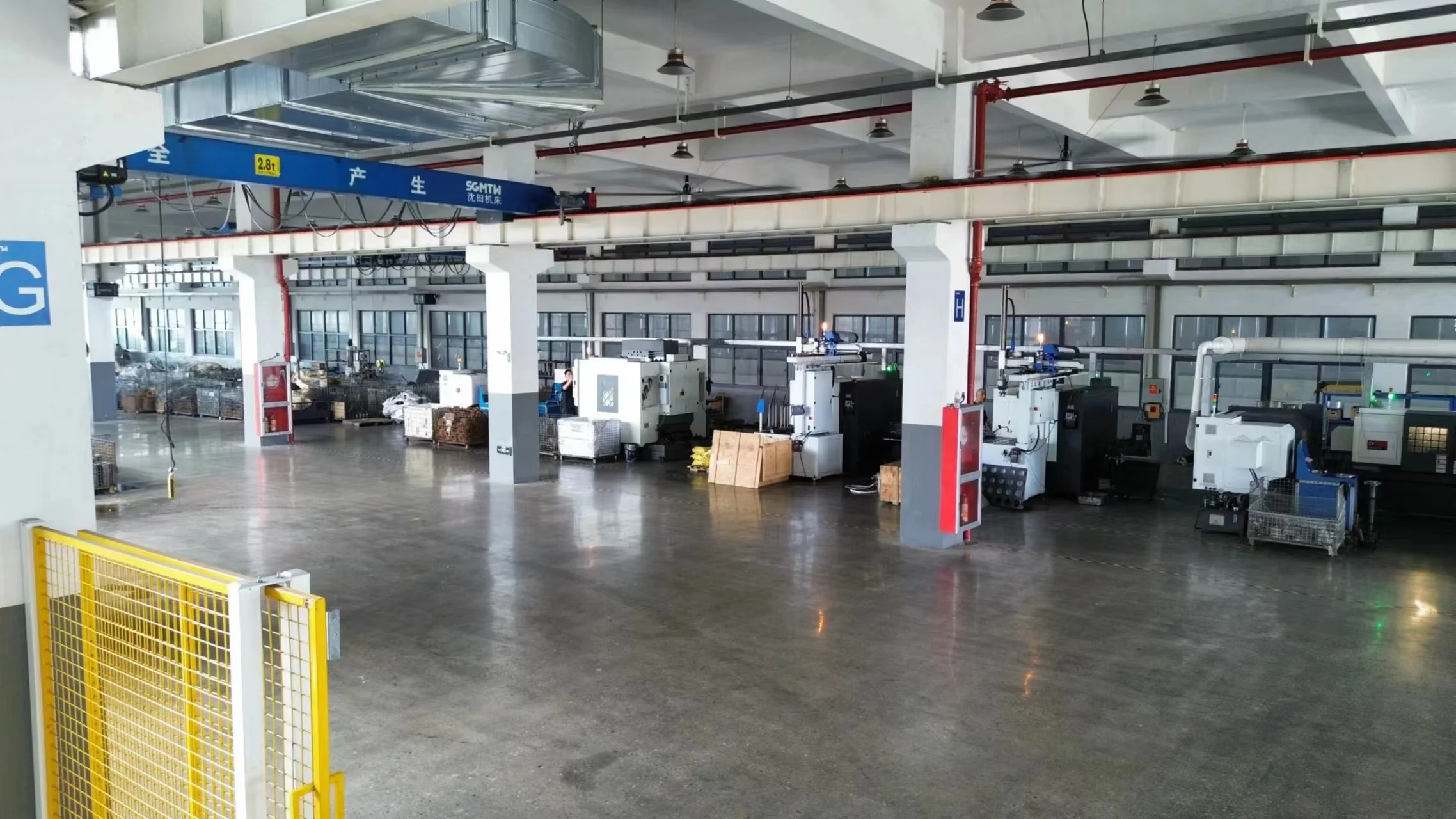

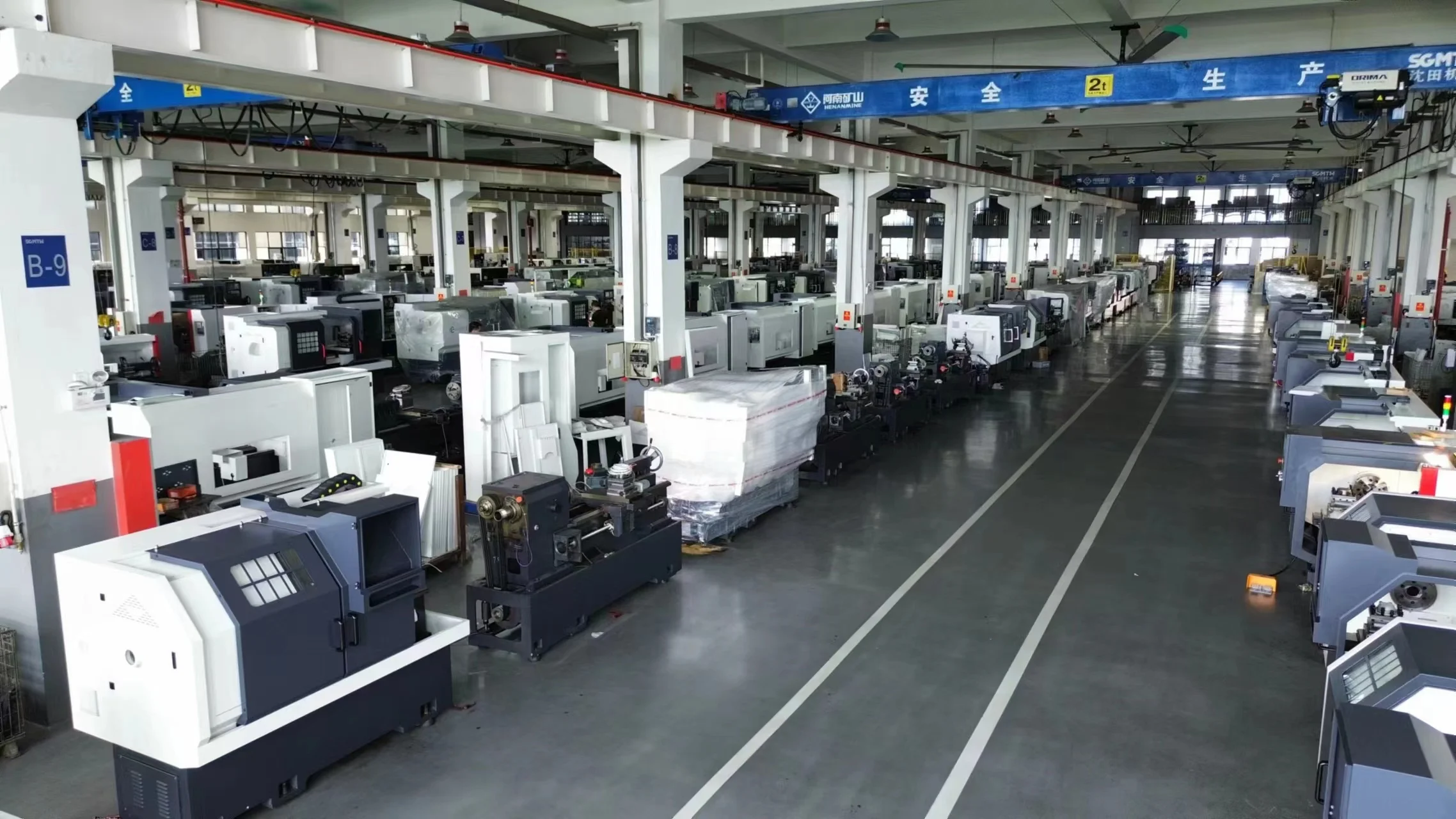

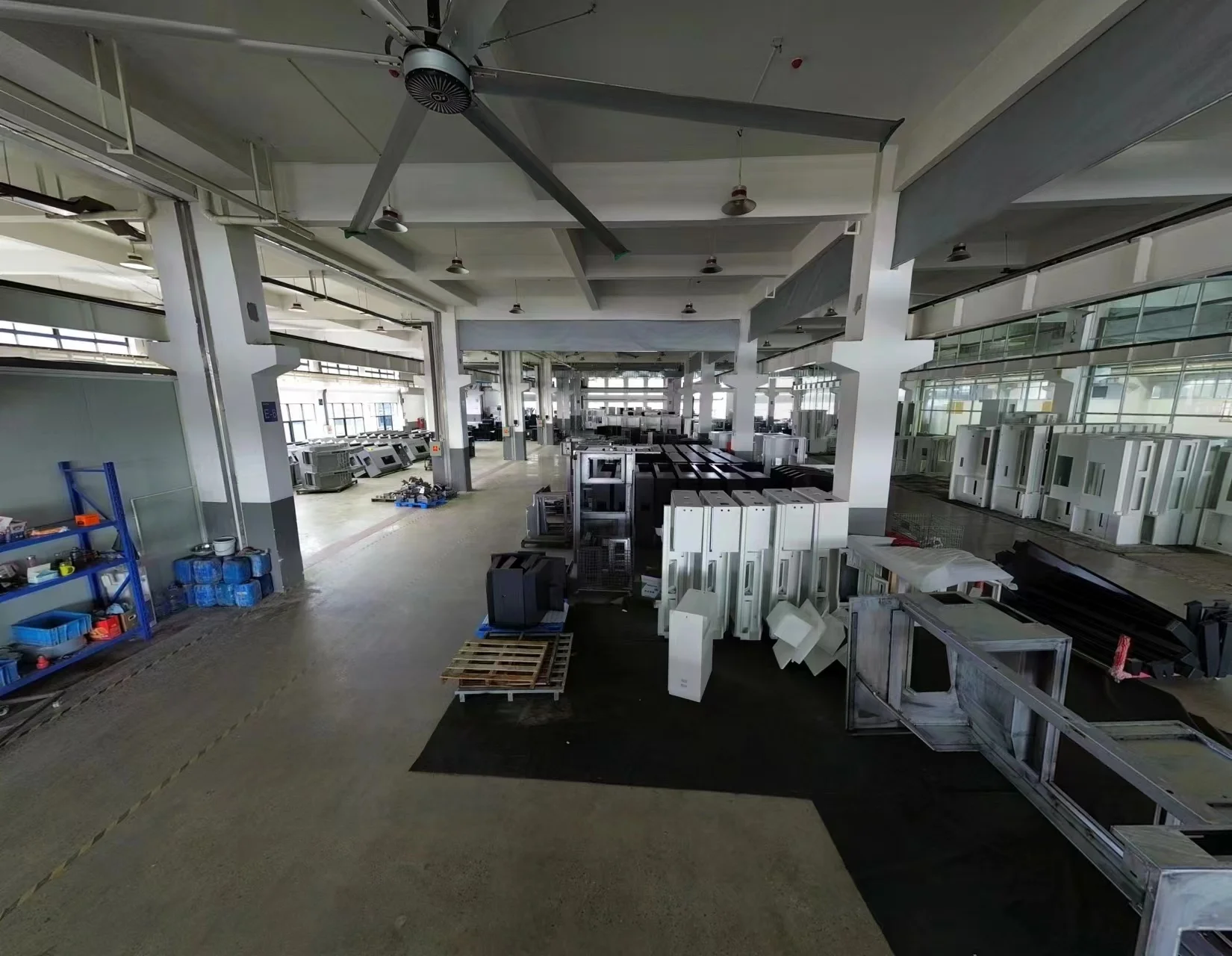

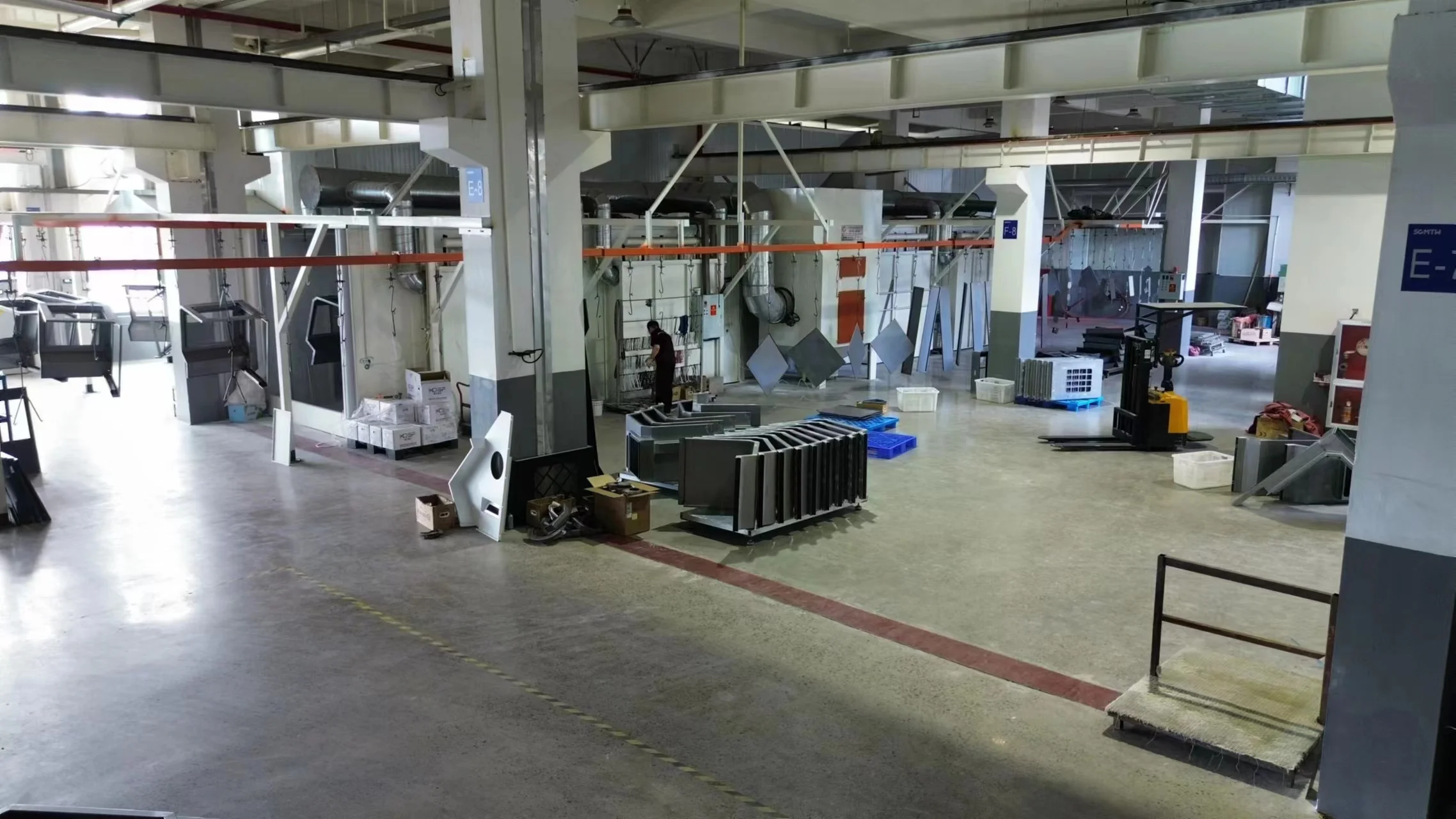

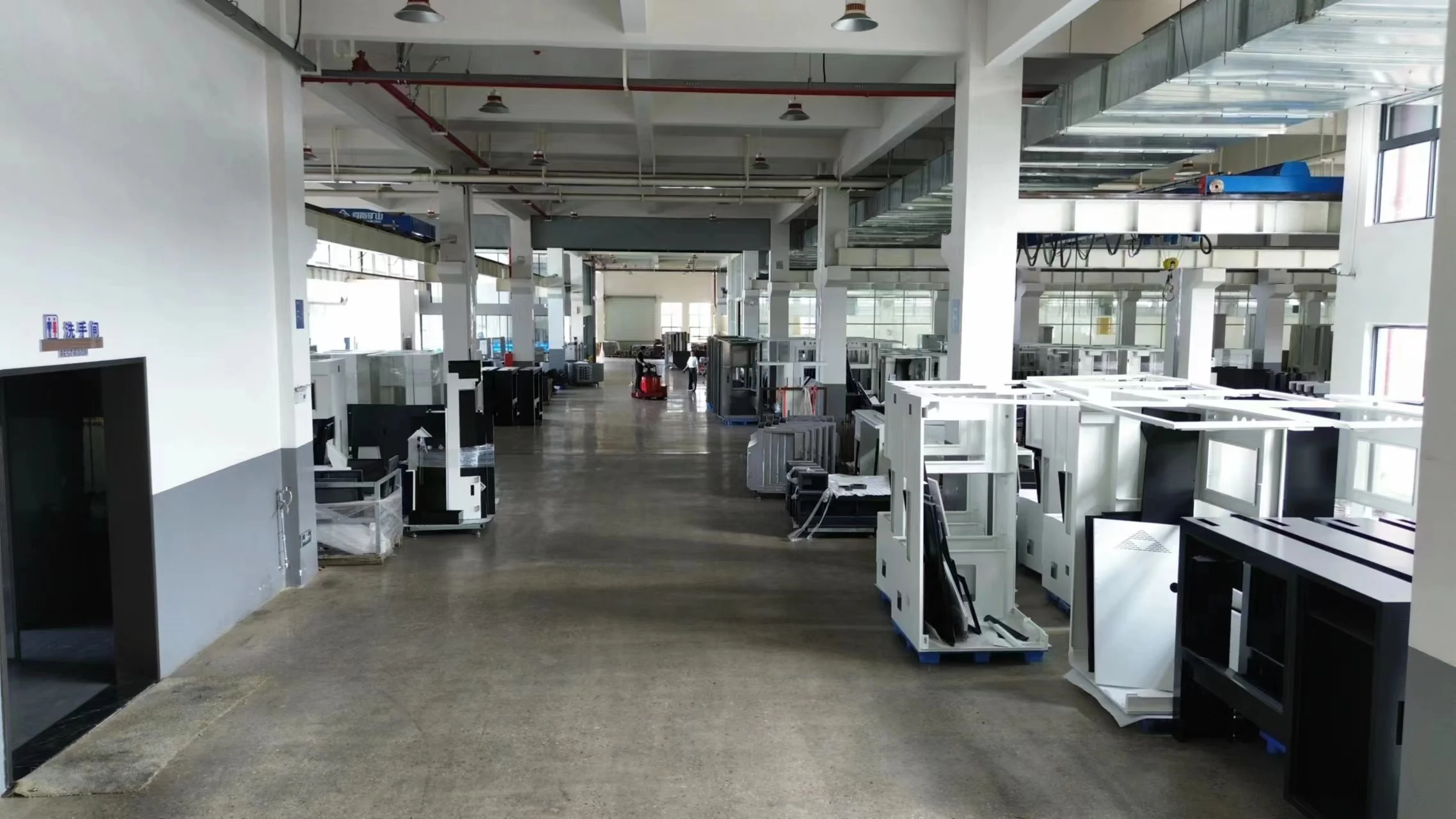

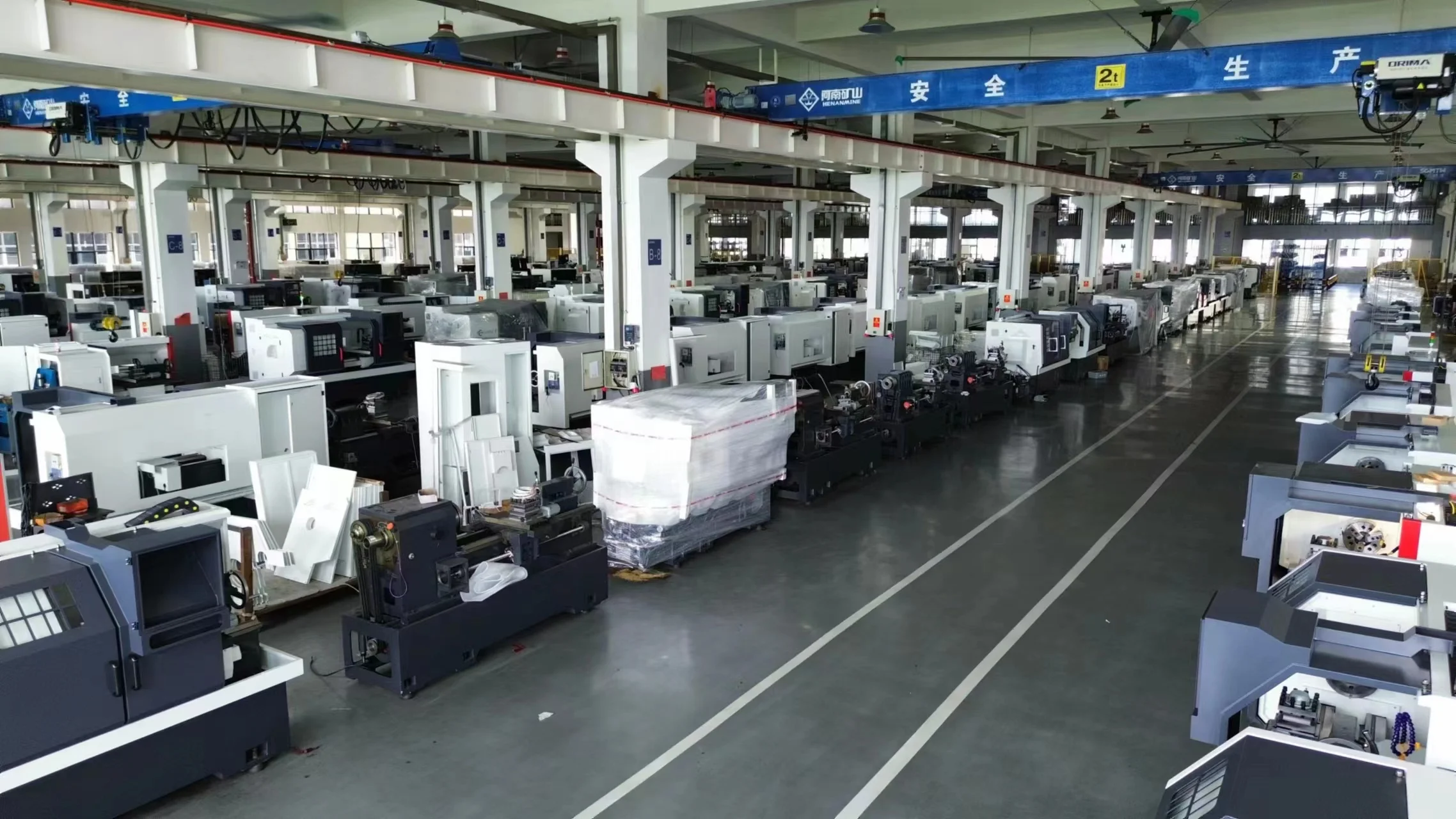

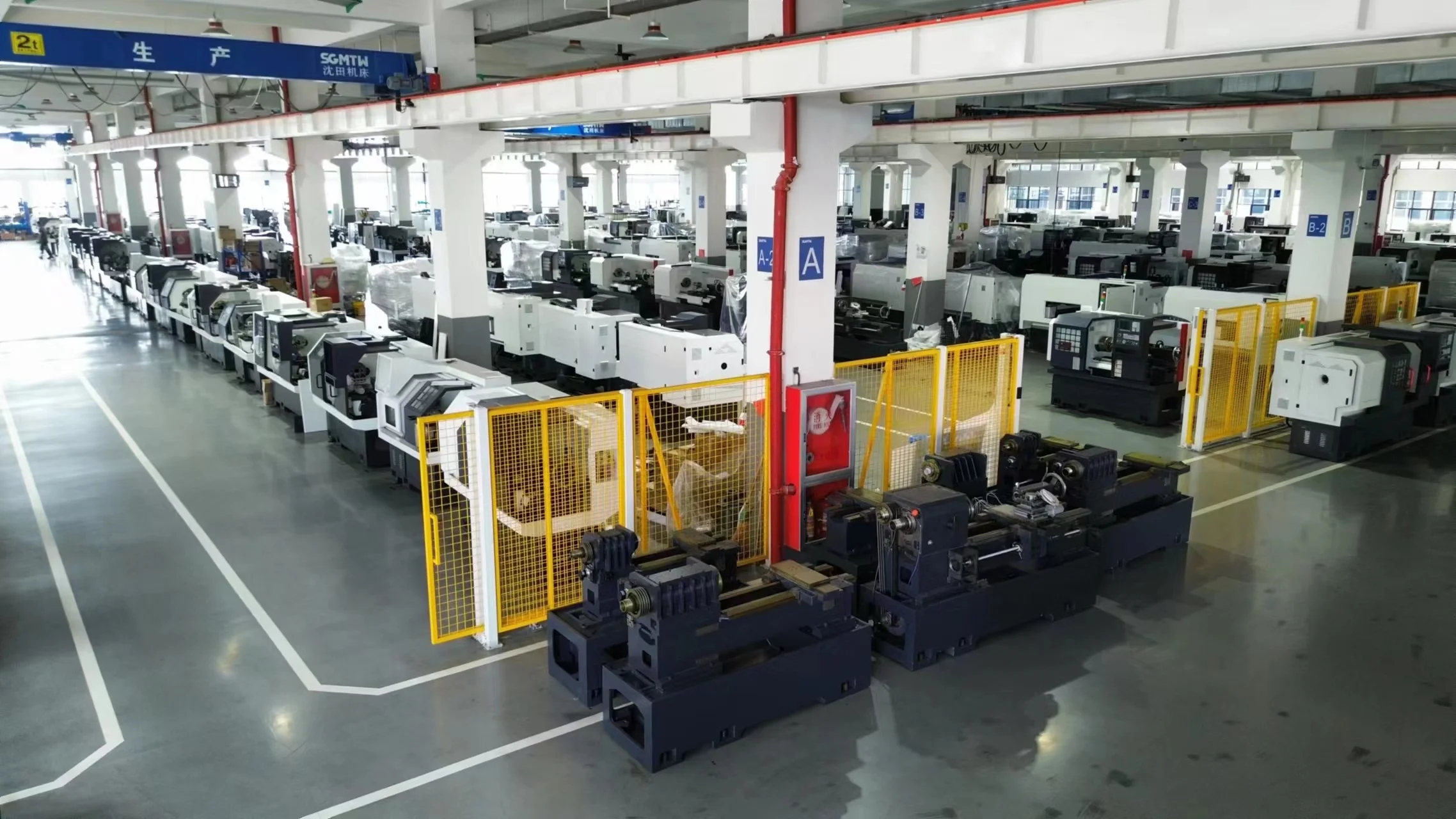

Production Line
Product packaging
FAQ
Q:.Why Choose Our Machines? 1)We are an experienced manufactruer with more than 20 years. 2)You will get reply in the first time. 3)Good Quality with Best Price. Q:What About The Delivery Time? 20-45 days after down payment received. Q:Do You Have Any Machine in Stock? Gerally some models have in stock, Mostly every machine is manufactured according to customers' requirement. Q:Could you OEM? Yes, OEM is acceptable.We could make the unique machine as per your specific configuration and requirements.
