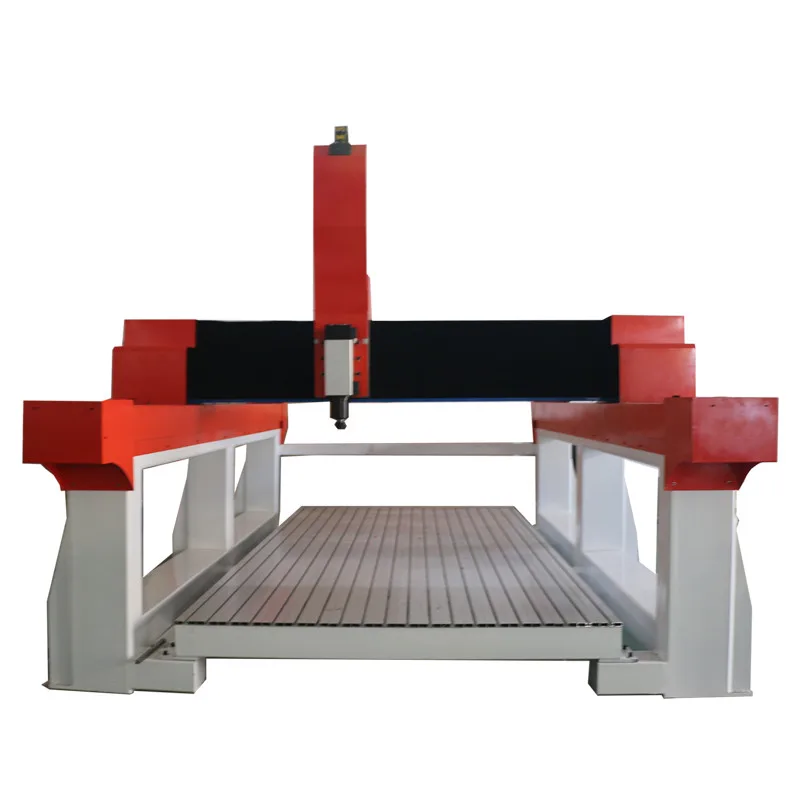

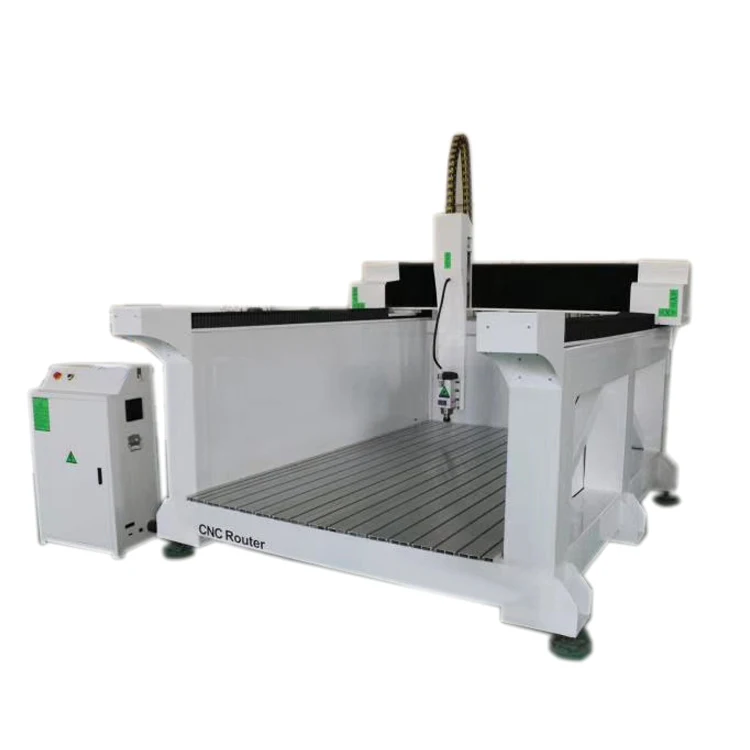

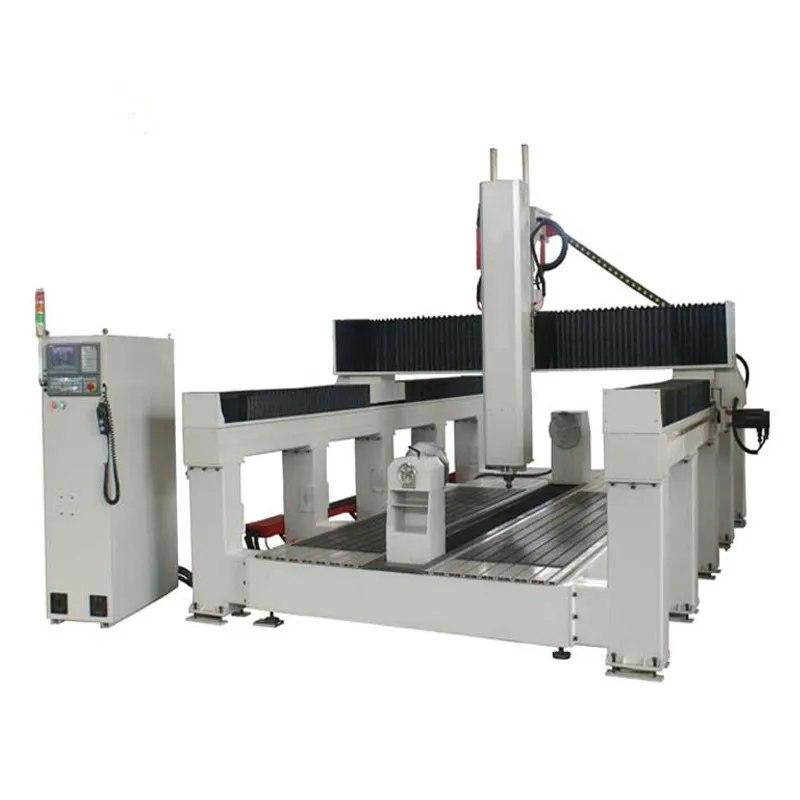

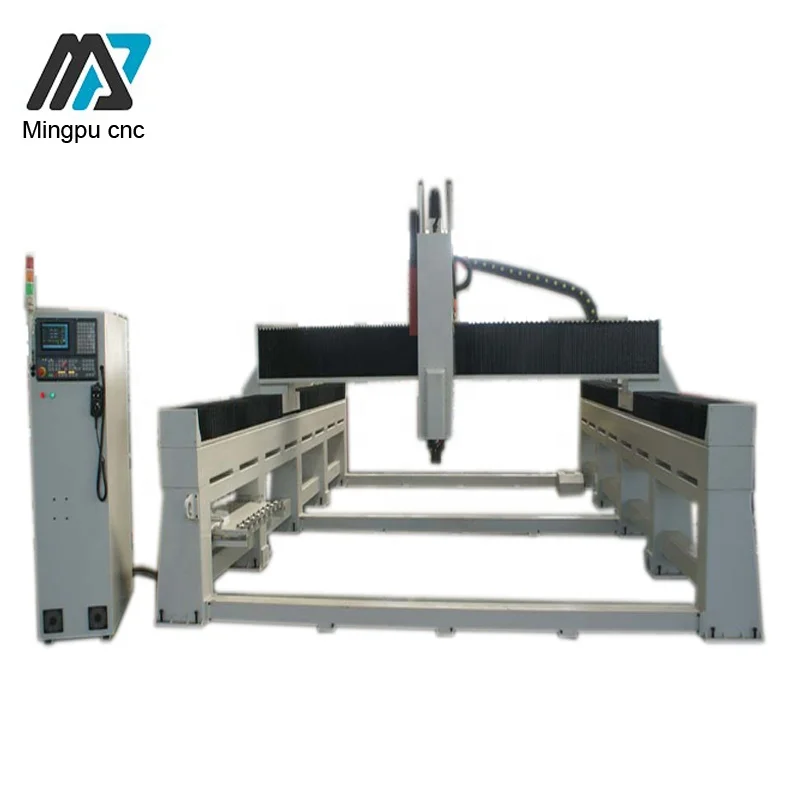

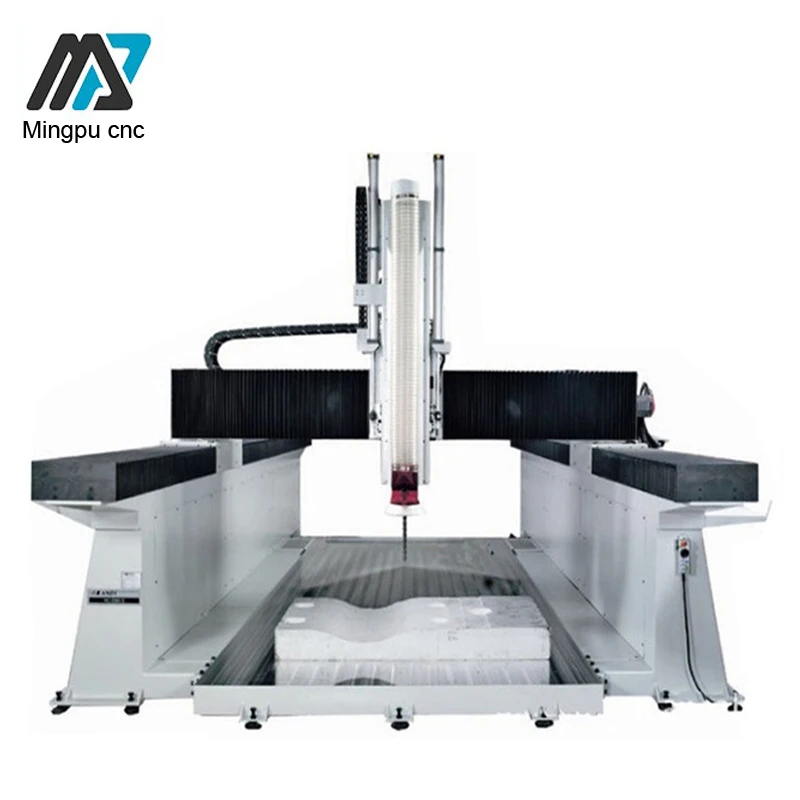

Router Cnc Foam Sculpture Wood Cutting Carving CNC Router Machine 5 Axis Cnc Kit
This kind of Cnc Wood Carving Machine 5 Axis Cnc Kit is one of the most popuplar one in woodworking industry. The cnc wood carving machine used Japan servo motors and drives. Water-cooling spindle or air-cooling spindle, DSP or NC studio system all can be used in this cnc wood carving machine 5 axis cnc kit. OEM cnc wood carving machine 5 axis cnc kit is available.
1. Product Feature of cnc wood carving machine 5 axis cnc router kit:
This type of cnc wood carving machine working area is 1325(1300*2500mm) with vacuum table, it is more convinient and time and labor saving.
The vacuum interface is in the middle of machine body so the absorption power is the biggest.
The optional part of vacuum type is vacuum pump, picture as follows.
2. The most common used cnc wood carving machine control system is DSP A11 control system with English version: easy operation with DSP handle, only 16 buttons.
3. other detailed parts of cnc wood carving machine
contractor: by the switch on the machine box, the machine current can be set up or cut off frequently and automatically.
Limit swith: it keeps certain machine parts working in a limited area and protect the machine.
tool sensor: it helps the cutter work in a right direction and more accurately.
Japan servo motors, Detal inverter: these all keep machine work powerful and quickly.
Tool box: cutters, collet, wrench, clamps, CD, data line etc.
4. The cnc wood carving machine 5 axis cnc router kit standard spindle is water-cooling 3.2kw: cutting thickness MDF0-20mm, very powerful. You can choose more powerful one according to your needs or choose air-cooling type.
Pls contact us to get advice.
|
Description |
Parameter |
|
X,Y,Z working area |
1300*2500*800mm |
|
X,Y Structure |
Rack and pinion; Taiwan TBI guide rail 20mm |
|
Z Structure |
Ball screw 2510; Taiwan TBI guide rail 20mm |
|
Motor |
Japan servo motors |
|
Drive |
Leadshine 860 |
|
Inverter |
Sifang 3.7kw |
|
Spindle |
Water-cooling |
|
Spindle power |
3.2kw |
|
Spindle speed |
6000-24000RPM |
|
Lathe bed frame |
Steel square tubes |
|
Table surface |
vacuum table |
|
Fixing method |
vacuum suck |
|
X,Y,Z repositioning accuracy |
±0.03mm |
|
X,Y,Z traveling accuracy |
±0.03/300mm |
|
Max working speed |
20000mm/min |
|
Max rapid travel speed |
30000mm/min |
|
Working voltage |
220V/50/60Hz |
|
Operating system |
DSP/NC Studio system |
|
Command language |
G code |
|
Computer interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Collet |
ER20/32 |
|
Resolution |
less than 0.02mm |
|
Software compatibility |
Type3/Artcam/Artcut/Ucancam/JDpaint etc |
|
Running environment |
0~45 centigrade |
|
Relative humidity |
30%~75% |

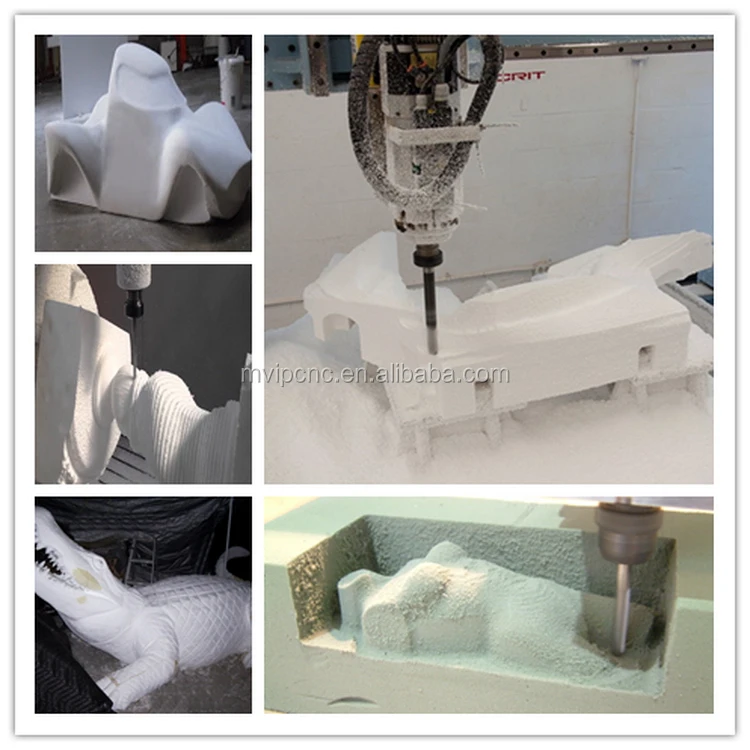

Application:
This cnc wood carving machine 5 axis cnc router kit can be applied to many industries as follows:
1. Furniture industry: doors, cabinets, tables, chairs
2. Advertising industry: signage, logo, badages, display board, meeting sign board, billboard
3. Artwork and decoration: wood carfs, gift box, jewelry box
4. electronic industry: circuit board, insulation material
5. Music industry: musical instruments, loudspeaker box
6. Light metal: aluminum, brass.
1.We have professional and skilled workers,they weld and paint the machine body of the machine ,so the price is competitive.
