Descrição
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Application: LASER CUTTING
- Condition: New
- Laser Type: CO2
- Cutting Area: 1300*2500mm (optional)
- Cutting Speed: 0-10000 mm/min, 0-10000 mm/min for laser cut casual women shoes
- Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Cutting Thickness: 0-25mm acrylic
- CNC or Not: Yes
- Cooling Mode: WATER COOLING, Circulation Water Cooling and Protection System
- Control Software: Lasercut/RD software
- Place of Origin: Hubei, China
- Brand Name: Perfect Laser
- Laser Source Brand: Reci
- Control System Brand: RD
- Weight (KG): 1200 KG
- Key Selling Points: Multi-functional
- Warranty: 1 Year
- Applicable Industries: metal and non-metal
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Laser tube
- Mode of Operation: Pulsed
- Configuration: gantry type
- Products handled: Sheet Metal and Tube
- Feature: Water-cooled
- product name: hybrid laser cutting machine
- Laser Power: 150W 180W 260W 300W
- Working area: 1300* 2500mm
- Water chiller: CW-6000
- Software: LaserCut 5.3 for laser cut casual women shoes
- Engraving Speed: 0-60000 mm/min for laser cut casual women shoes
- Certification: ce
Dear Friend: 1. If you can't find the product you need, please don't leave immediately, because not all of our products are displayed in our AliExpress store, please contact us and we will reply within 24 hours. 2. If you don't know which model is suitable for your project, please contact us, we will reply within 24 hours. 3. If you are interested in our products and want to know more, but there is no purchase requirement at present, please contact us, we will update our new products for you. 4. Because the price of raw materials and exchange rate change frequently, and our products are constantly upgrading, the product price is not regarded as the final transaction price, please contact us for the latest product information and price. Sincerely hope that I can provide you with satisfactory products and services, come and contact me! Mobile: +86 18711146837 Whatsapp: +86 18711146837 WeChat: +86 18711146837
PERFECT LASER-180w 260w 300wAlarm protection laser engraving and cutting machine for metal and non metal wood acrylic
(Model: PEDK-130250M)
Contact: Mandy
Email:sales04(@)perfectlaser.net Whatsapp: 0086 136 5988 5078
Product Description
laser cutting machine for metal and non metal wood acrylic is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness of this industrial laser cutter can reach 1-2mm stainless steel, 1-3mm carbon steel, 20-30mm acrylic, 10-20mm wood, 20-25mm MDF.
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.Materials can be cut:
Acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.
Acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

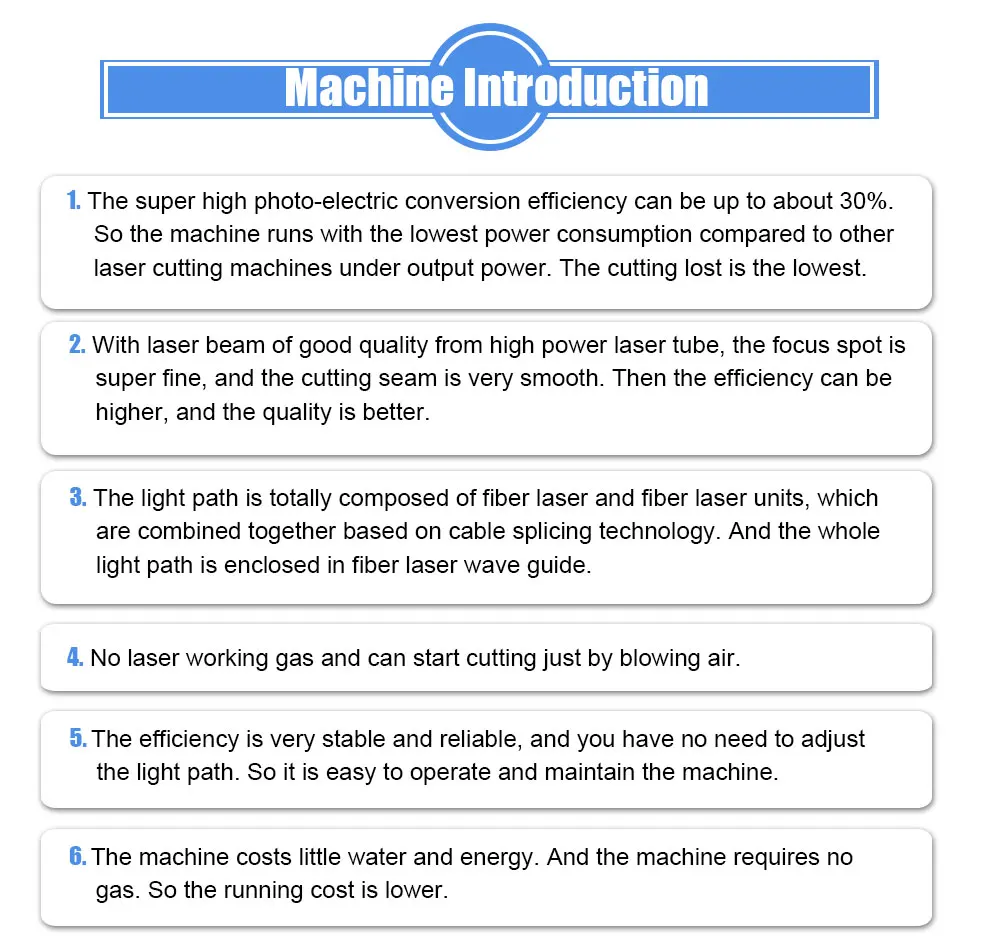

Machine Introduction
Mix Cutting Co2 Laser Cutting Machine is a newly super technology, mainly used to cut both metal and non-metal machine. The cutting thickness can reach 1.5mm stainless steel, 2.5mm carbon steel, 28mm acrylic, 23mm wood, 25mm MDF.
It's a so wonderful choice for user that have demand to cut 1-2mm thin metal material and thick non-metal materials. One machine can fulfill all your demand, no need to buy 2 machines (one Co2 laser engraving machine and one 500w YAG metal laser cutting machine). Saving much cost.
Technical Data
|
Model
|
PEDK-130250M
|
|
Working Area
|
1300*2500mm
|
|
Laser Power
|
150w/ 180w / 260w / 300w
|
|
Transmission Method & Driving System
|
1. Standard Machine use Belt Transmission + Chinese Top Brand "Leadshine" Step Motor and Driving System
2.Optional Machine use Ball Screw Transmission + Japan IMported Yaskawa Servo Motor and Driving System |
|
Laser Type
|
CO2 Sealed Laser Tube, 10.6um
|
|
Cooling Type
|
Water Cooling, 150w-180w Machine use CW-5000, 260w-300w Machine use CW-6000
|
|
Working Table
|
Stainless steel table
|
|
Laser Output Control
|
(0-100% Set by Software )
|
|
Smallest Character Engraving
|
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
|
|
Highest Scanning Precision
|
4000DPI
|
|
Positioning Accuracy
|
±0.02mm/m
|
|
Positioning Speed
|
20m/min
|
|
Max. Cutting Thickness
|
40mm
|
|
Max. Cutting Speed
|
20m/min
|
|
Controlling Software
|
DSP Control System
|
|
Graphic Format Supported
|
BMP, PLT, DST, DXF, and AI, etc
|
|
Compatible Software
|
CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software
|
|
Drive System
|
High-precision 3-phase Stepper Motor
|
|
Auxiliary Equipment
|
Exhaust Fan and Air Exhaust Pipe
|
|
Controlling software
|
Off-computer controlling system
|
|
Working voltage
|
AC110-220V ±10%/10A,50-60HZ
|
|
Power
|
<2000W
|
Samples
This laser cutter and engraver is widely suitable for cutting both metallic and non-metallicmaterials, such as: 1-2mm stainless steel, 1-3mm carbon steel, 1-28mm acrylic, PVC, 1-30mm MDF, 1-15mm wood and bamboo products, etc.
The laser cutter and engraver is widely used in advertising field, signage marking, electronics,mechanical parts, furniture,automotive, medical, instrument, saw blades and many other metal and non-metal industries.
The laser cutter and engraver is widely used in advertising field, signage marking, electronics,mechanical parts, furniture,automotive, medical, instrument, saw blades and many other metal and non-metal industries.
