Descrição
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Certification: CE
- Customized support: OEM
- Place of Origin: Jiangsu, China
- Brand Name: 3F Famed
- Gearing Arrangement: Planetary
- Output Torque: Rated 10 ~1950Nm
- Input Speed: Rated 2500 ~ 6000rpm
- Output Speed: Depends on motor and ratio
- Application: Textile, Food Processing Machine, CNC, AGV, Robotic Industry
- Mounting Position: Any direction
- Gearbox Size: 42 ~ 220mm
- Color: Gold black or Glod blue
- Ratio: 3 ~ 100
- Warranty: One year after the day of ex-factory
- Packing: Wooden box or carton
- Input Form: IEC Flange
- Certificate: CE & ISO
- Structures: Bearing Gear Box
My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931)
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
Product Description

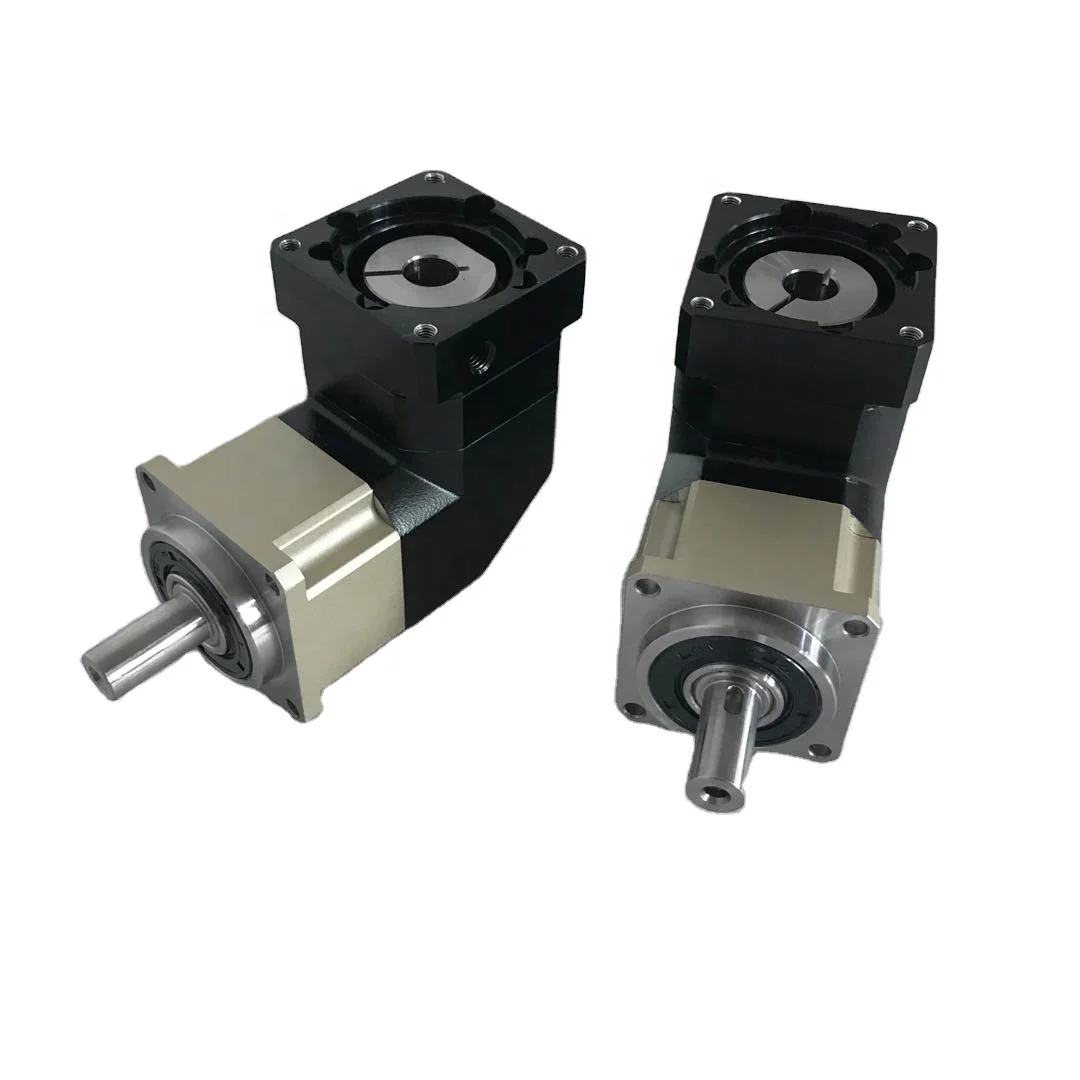

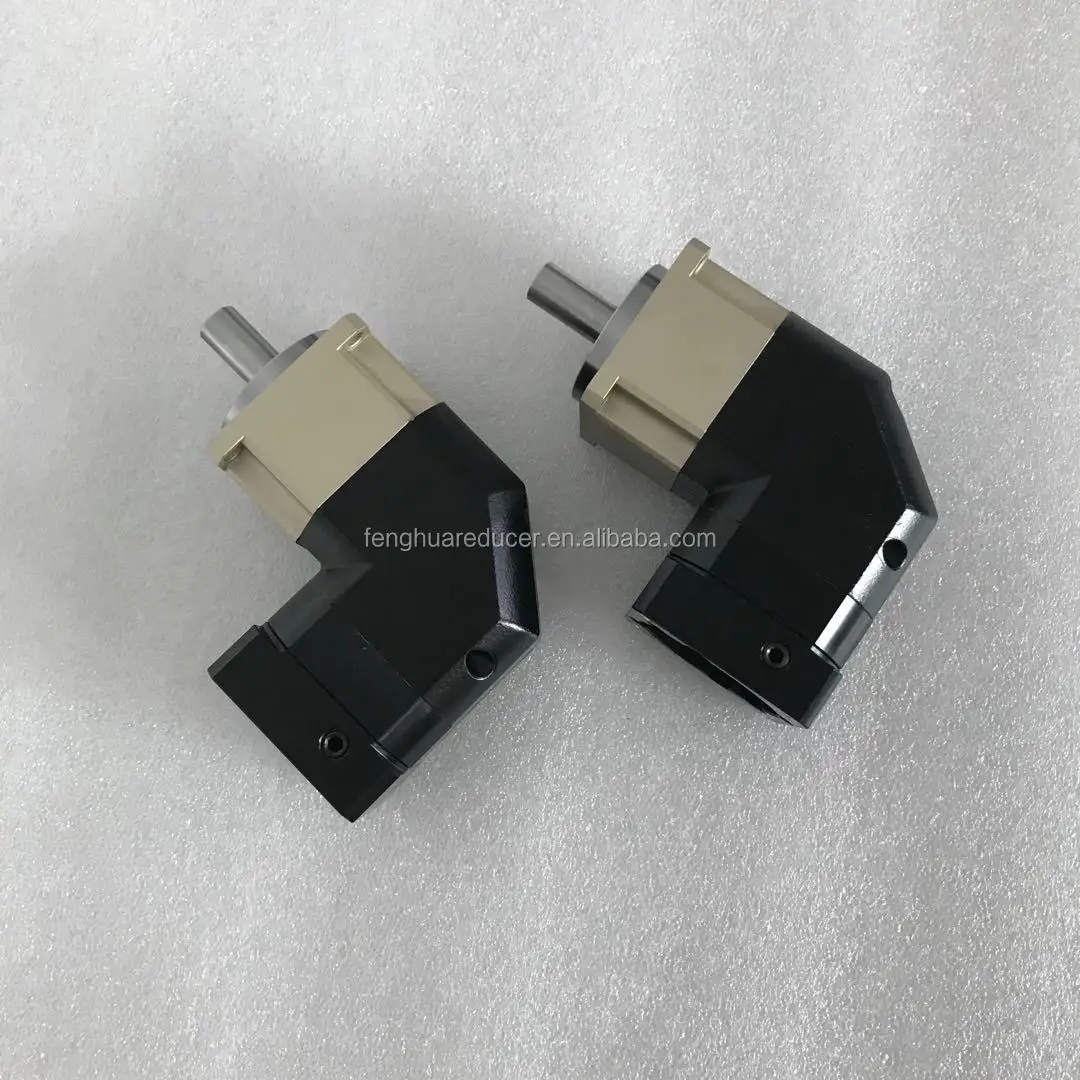

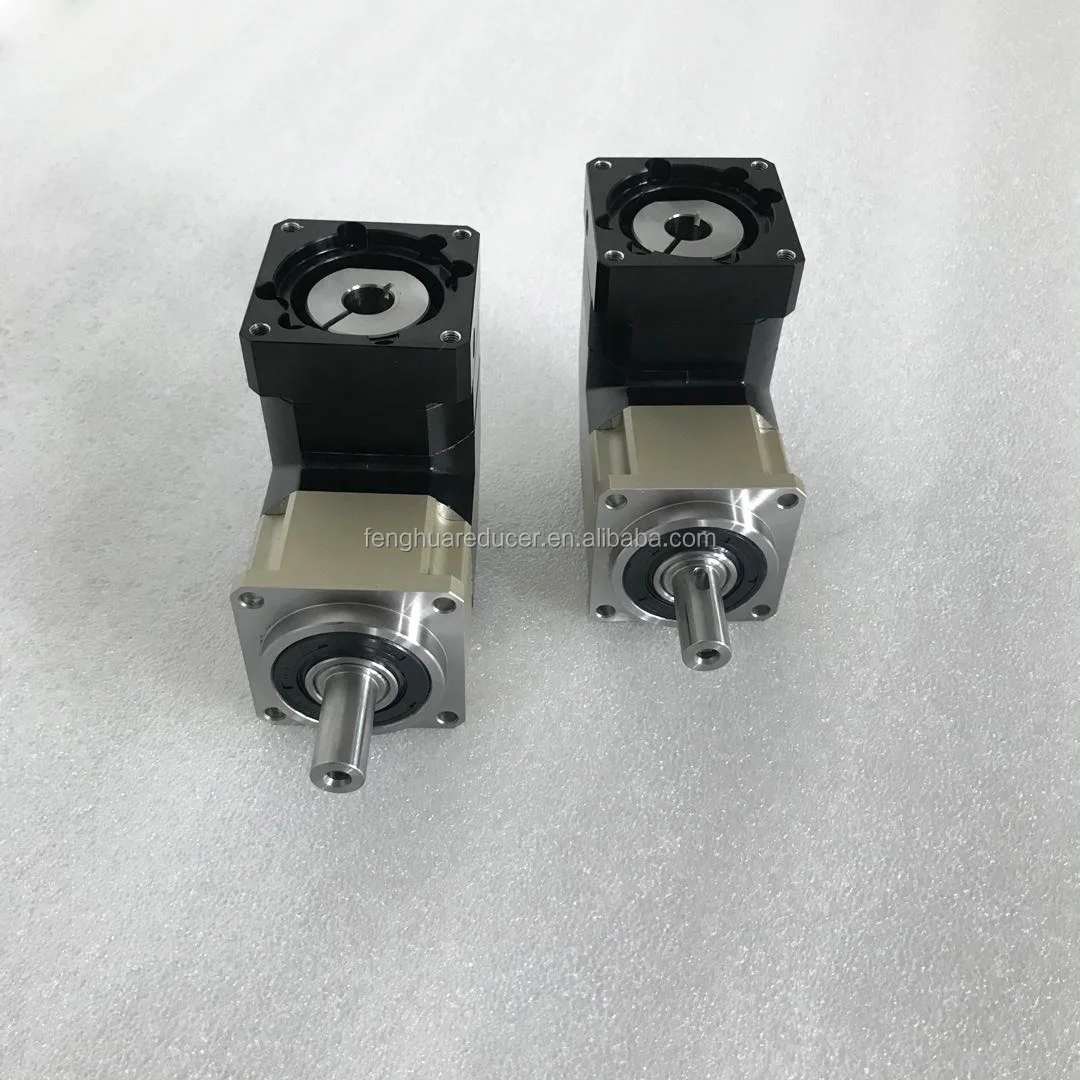

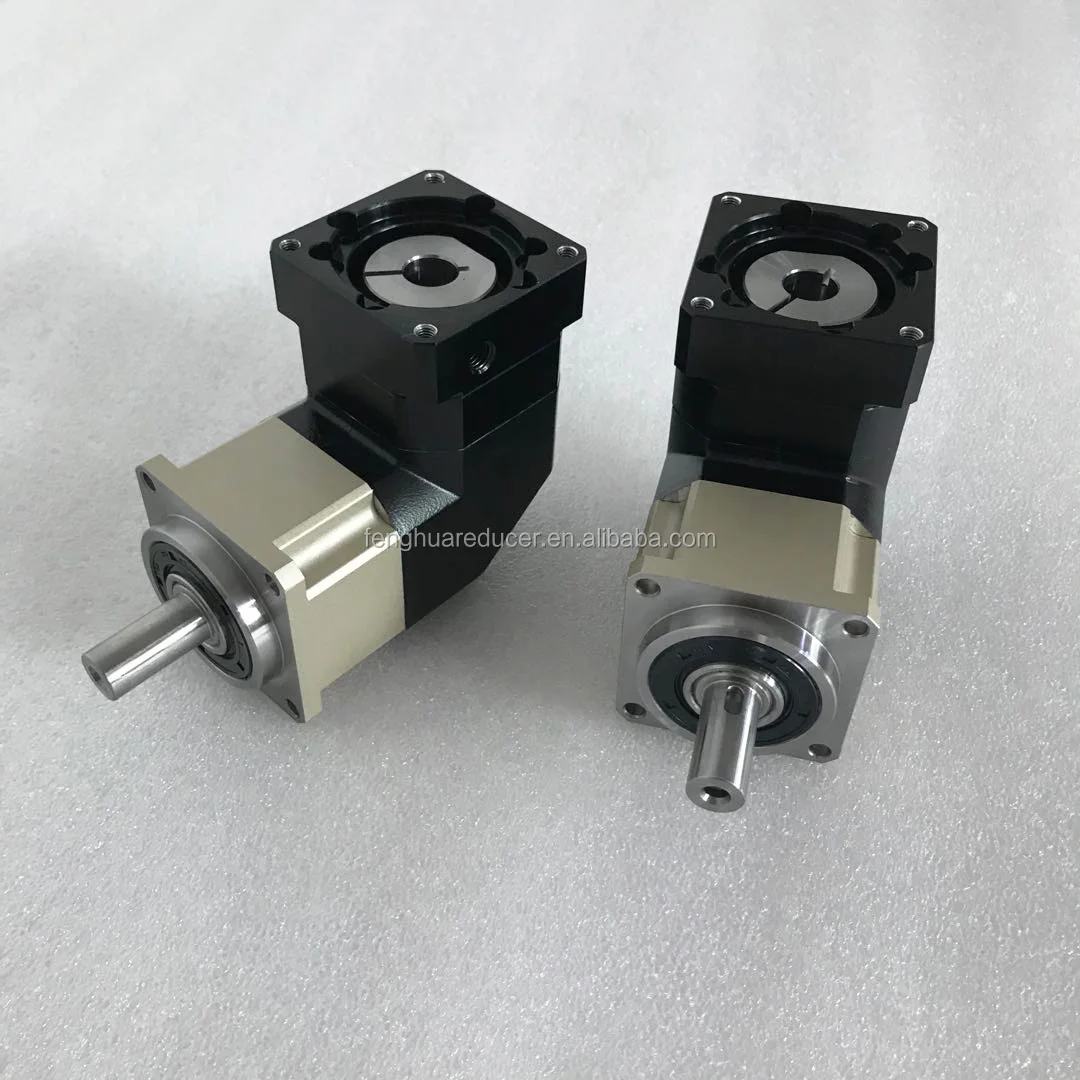

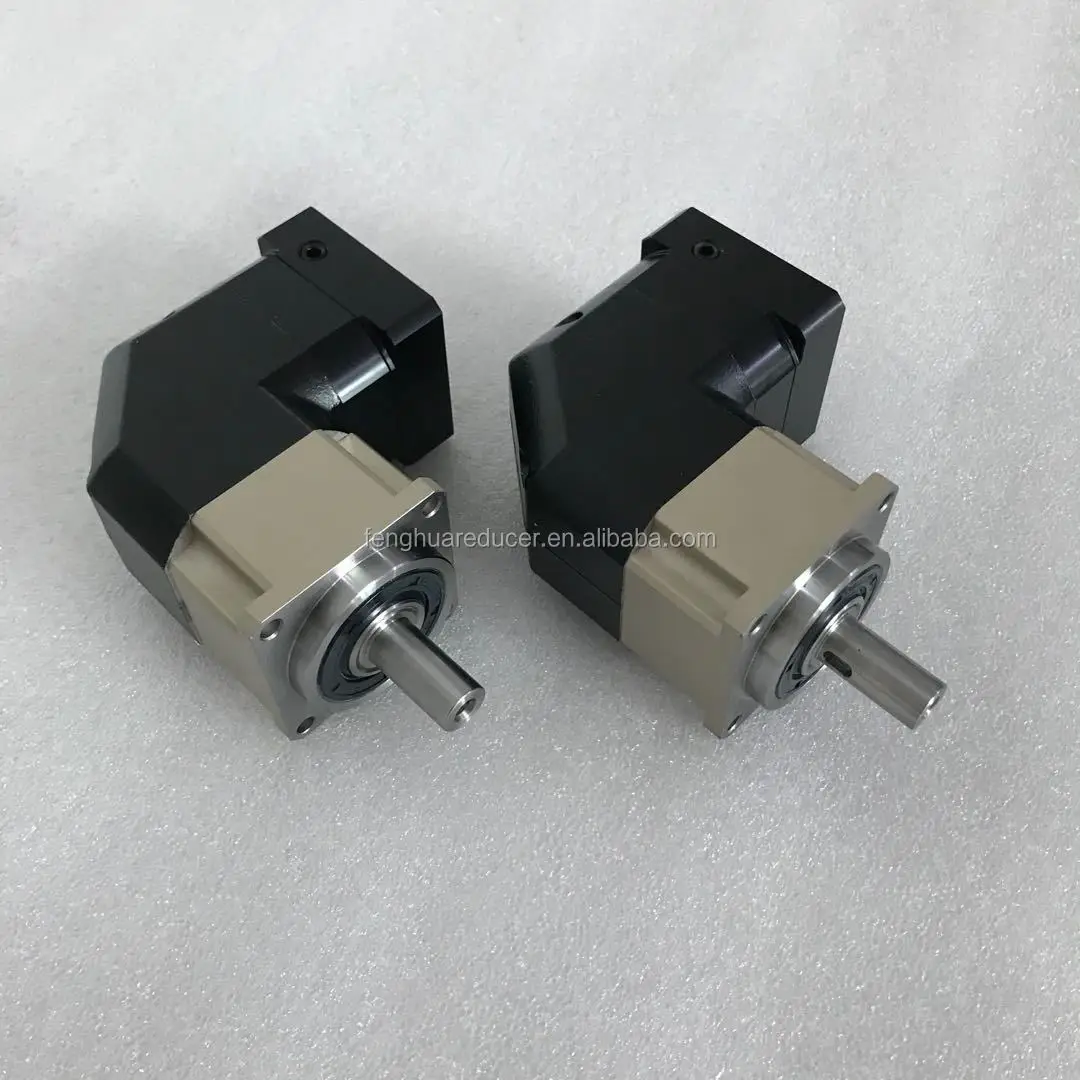

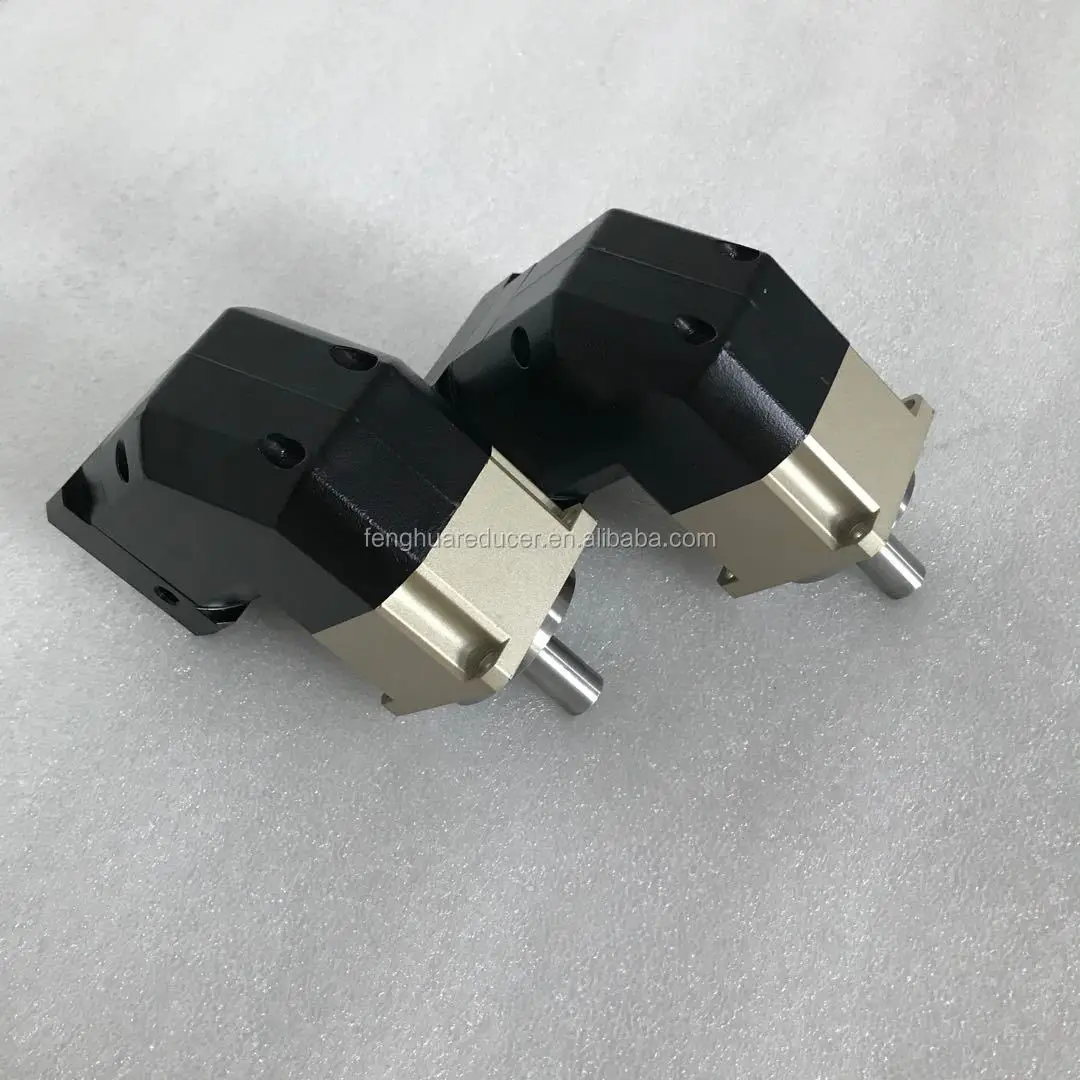

PAR Series Nema 34 Right Angle Speed Reducer Nema 17 Gearbox
PAR planetary gearbox is a type of high quality and low backlash right angle gearbox, which makes the gearbox easily mounted to the motion system and offer a solution to solve the space problem. The inner construction is designed with spiral bevel gears which features of better meshing performance, smooth transmission, low noise and high rigidity.
PAR right angle gearbox is not only the ideal option for the motion control system with limited space, but also the best choice for the transmission occasion that needs to change the motion direction. So it can help users to save the running cost and improve the transmission efficiency.
PAR right angle gearbox is not only the ideal option for the motion control system with limited space, but also the best choice for the transmission occasion that needs to change the motion direction. So it can help users to save the running cost and improve the transmission efficiency.
|
|
Precision Grade:
P1 ( ≤ 5 arcmin, ≤ 8 arcmin )
p2 ( ≤ 8 arcmin, ≤ 10 arcmin ) |
|
|
Service Life: 21000h
|
|
|
Operating Temperature: -15℃ ~ +90℃
|
|
|
Protection Grade: IP65
|
|
|
Mounting Position: Any Direction
|
|
|
Efficiency: ≥ 90% ~ ≥ 93%
|

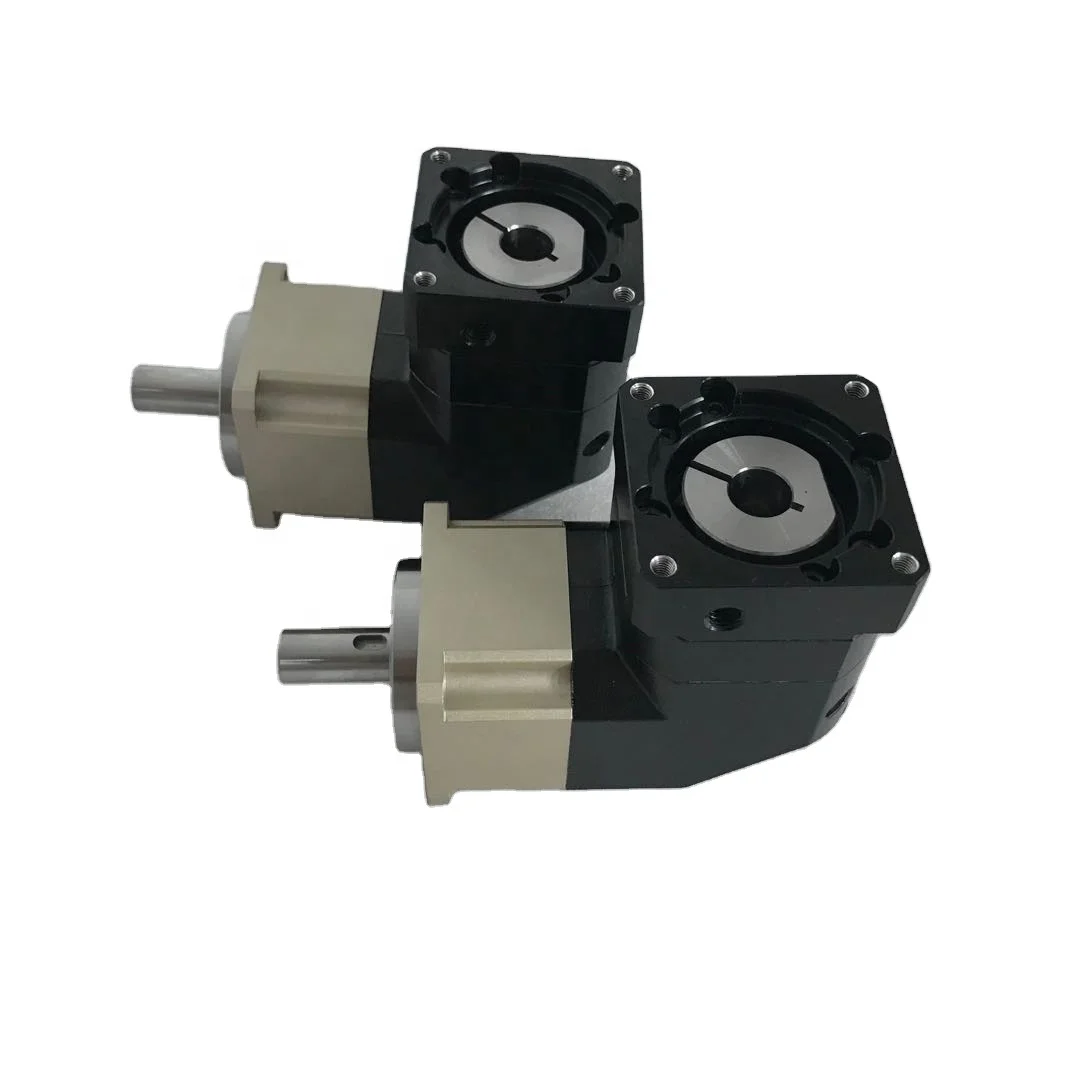

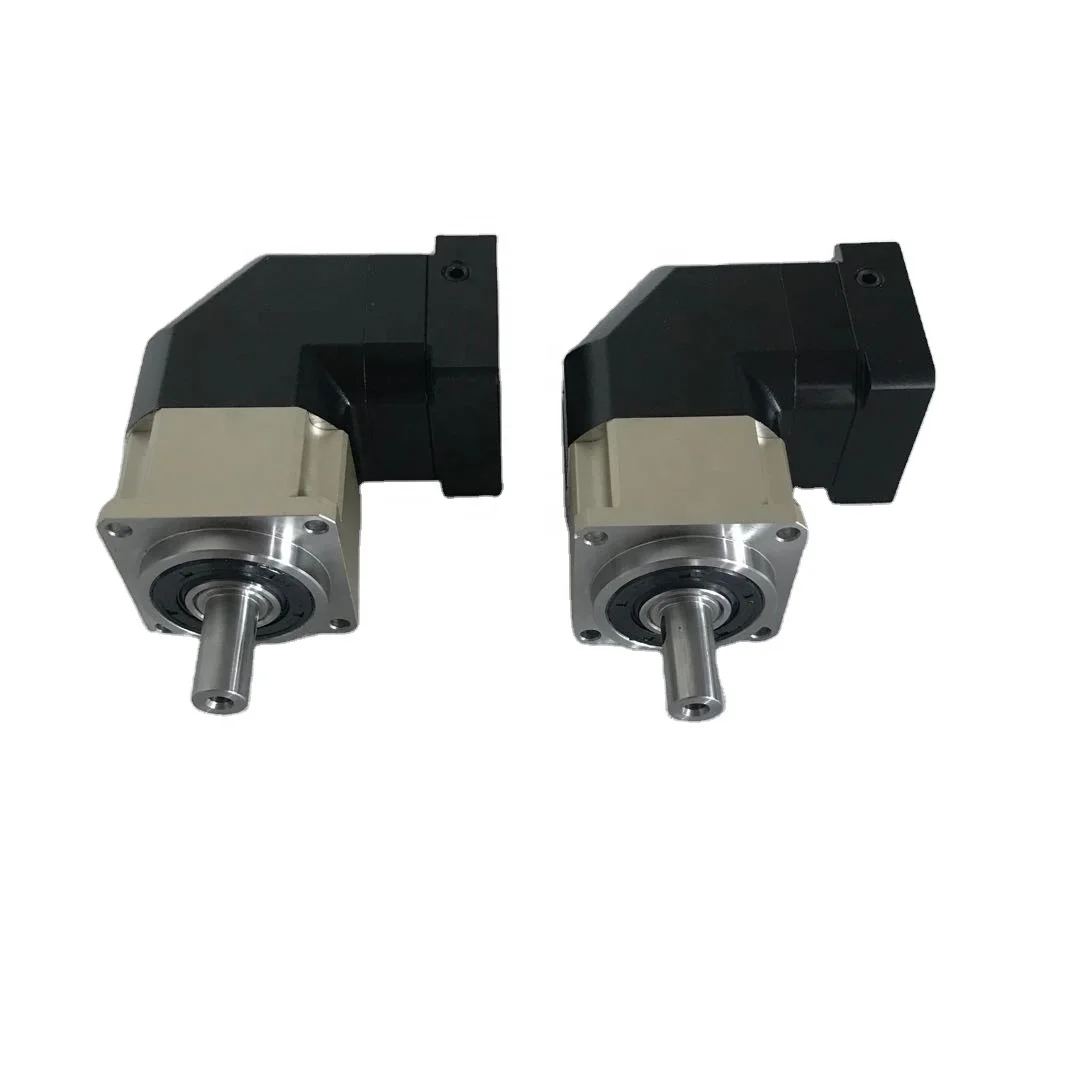

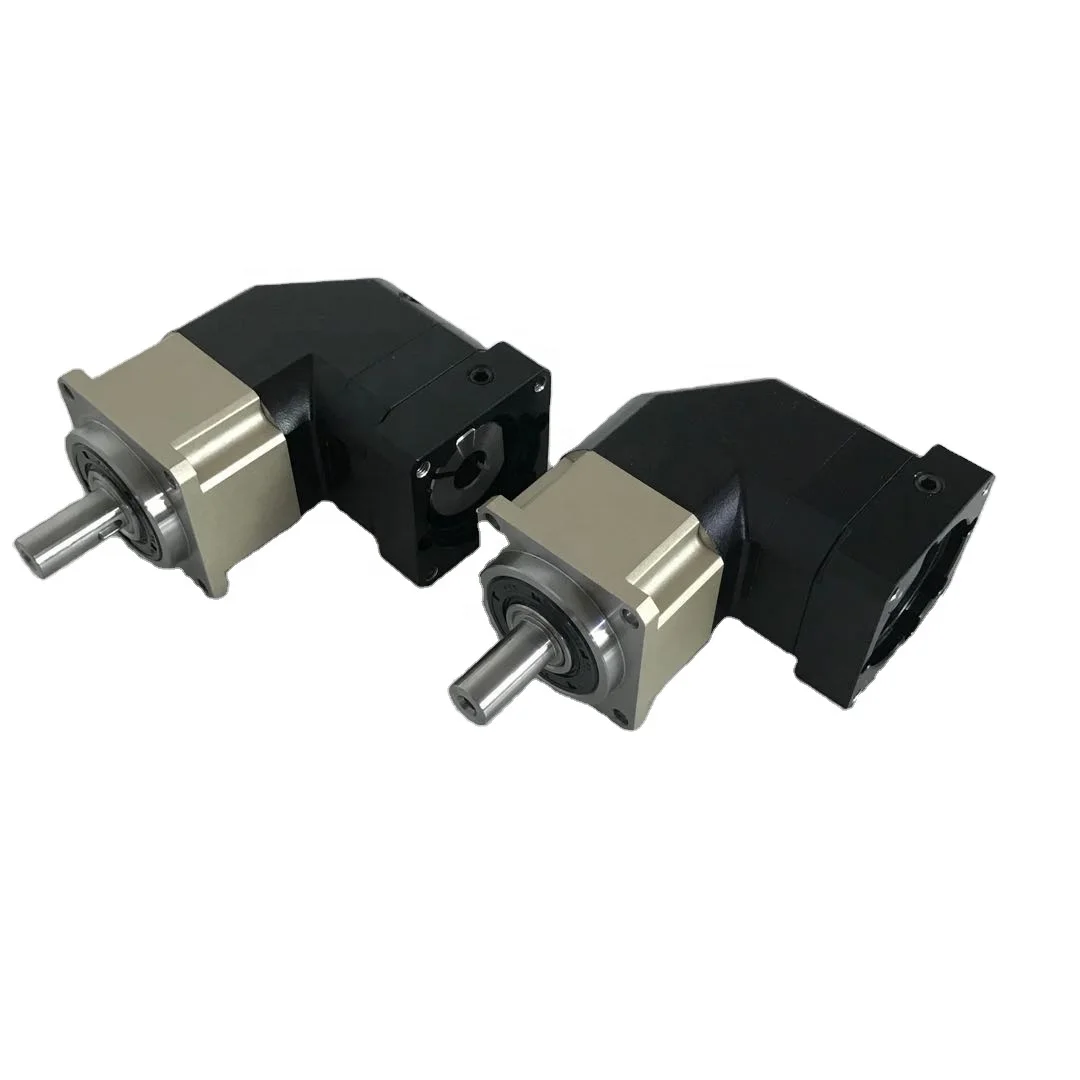

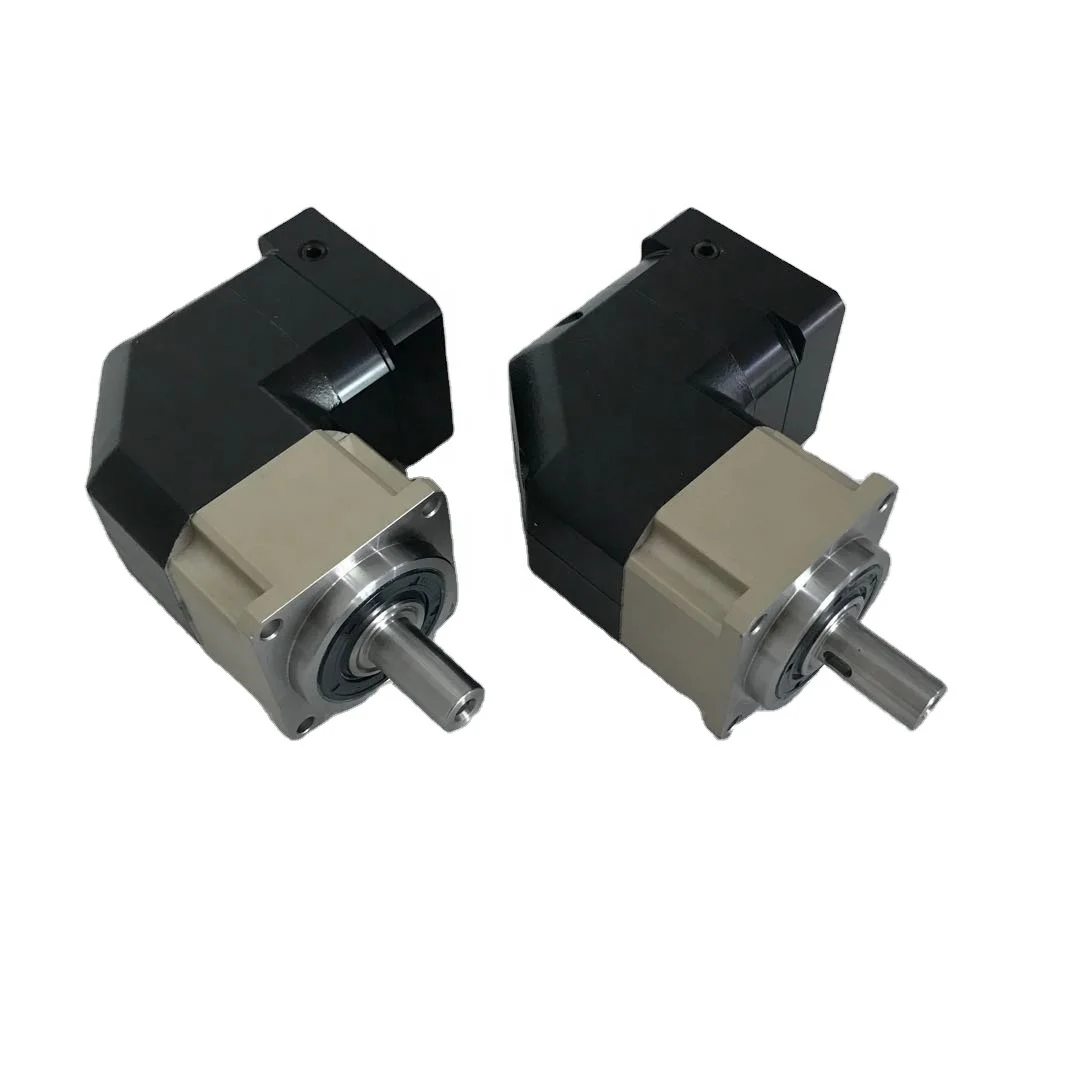

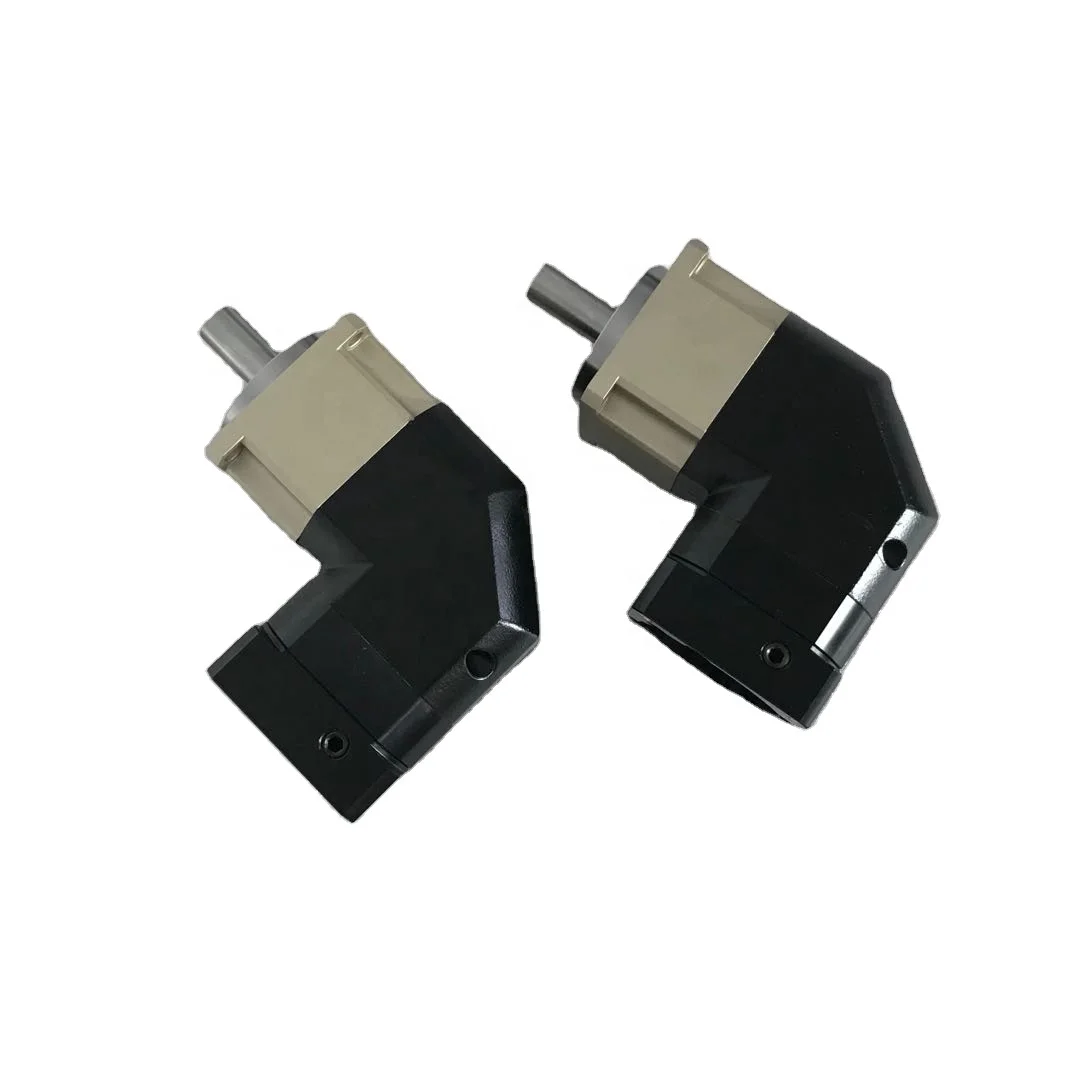

Detailed Images
* Space-saving
90 degree right angle construction achieves the space-saving.
90 degree right angle construction achieves the space-saving.
* Maintenance-free No need to replace the grease for the service life of the reducer. More convenient to install.
* High rigidity and torque The rigidity and torque are heavily enhanced by using integral roller bearing.
* No grease leakage High viscosity and non-separated grease are used to avoid the leakage.
* Methods of connector and flange Can be mounted to any motors all over the world.

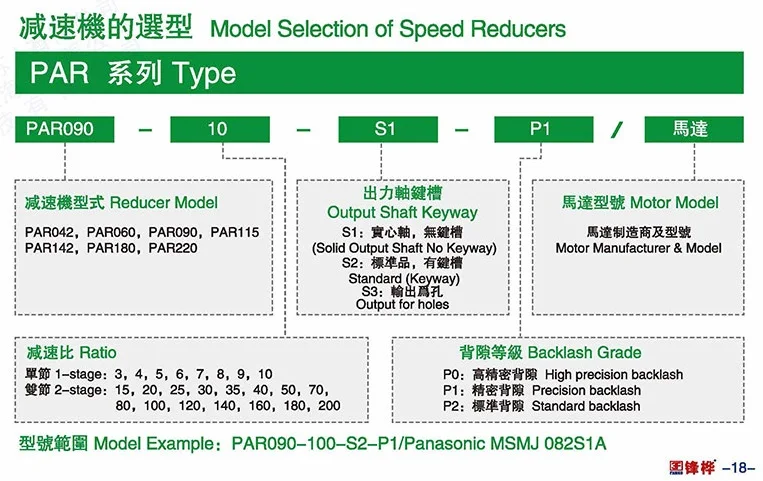

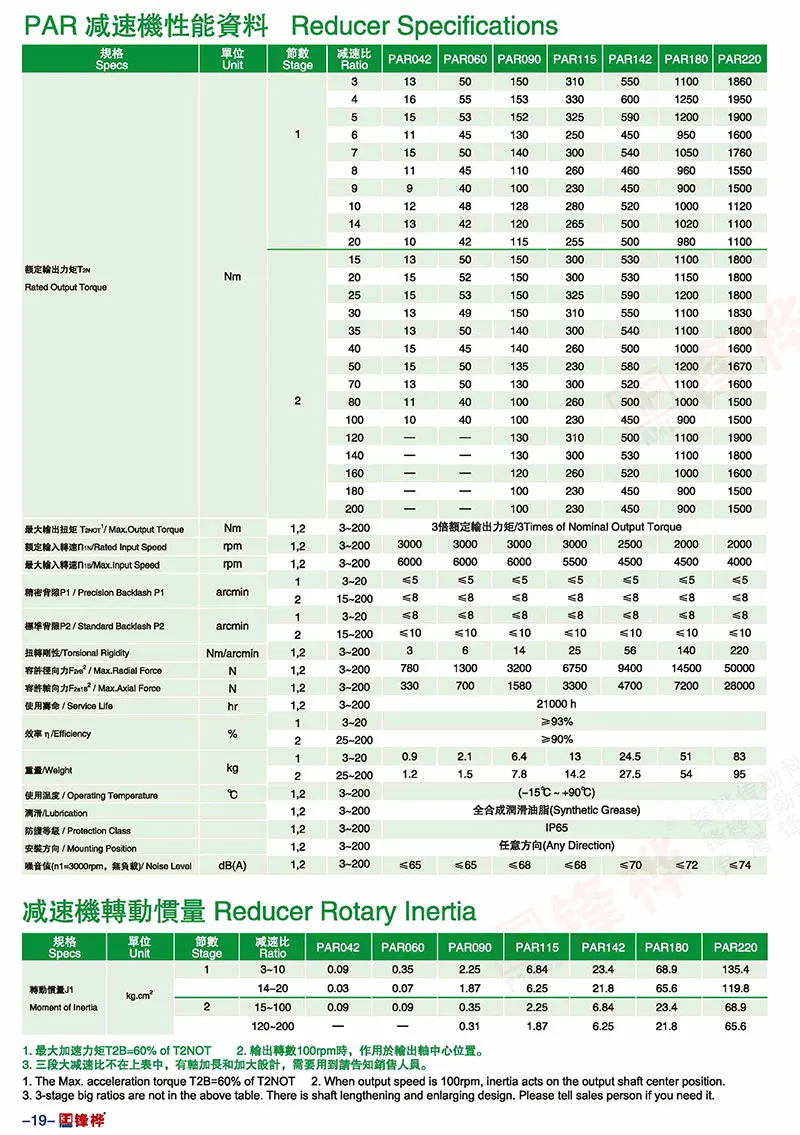

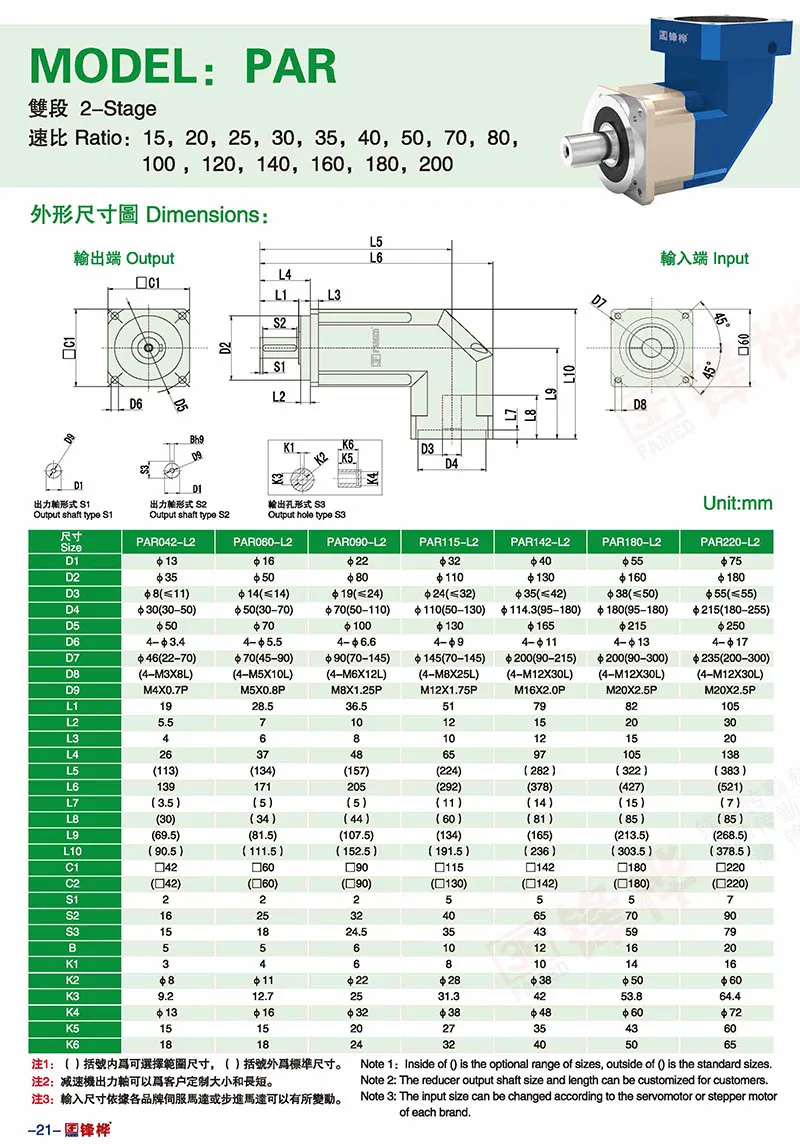

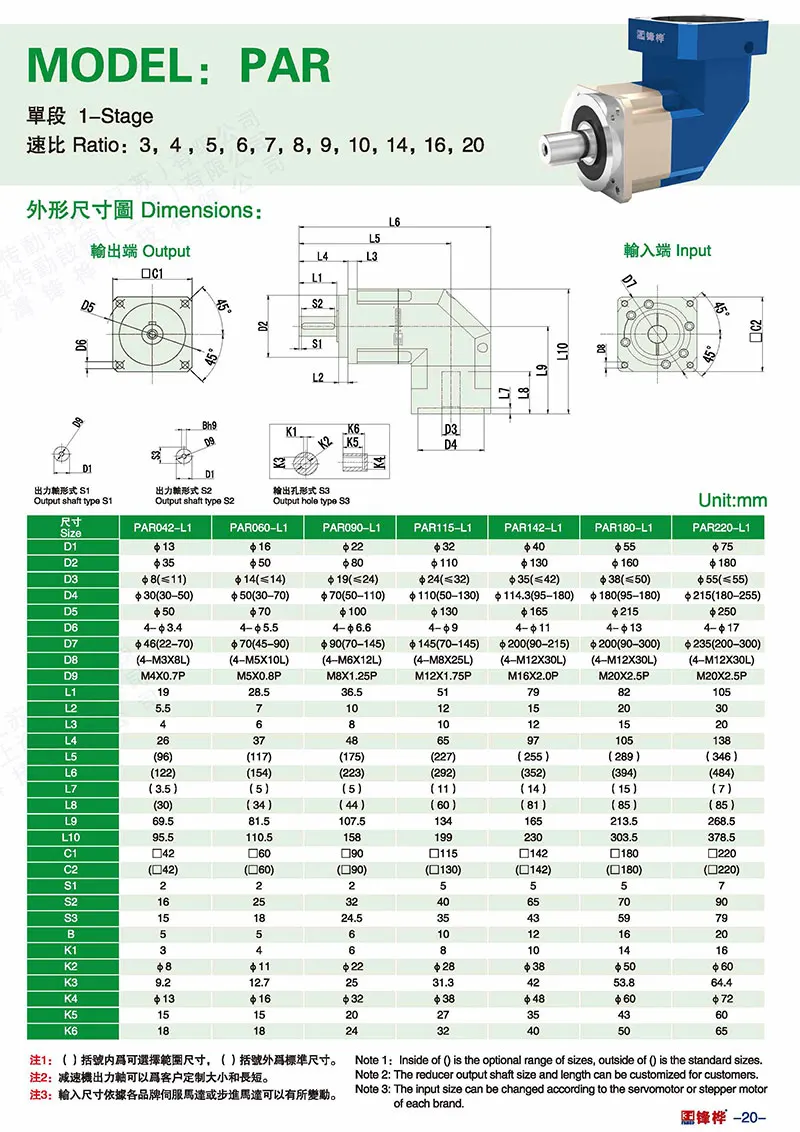

Specification
Related Products

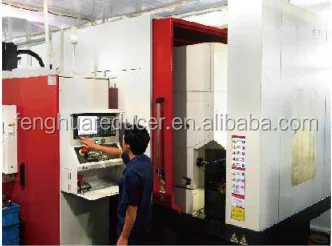

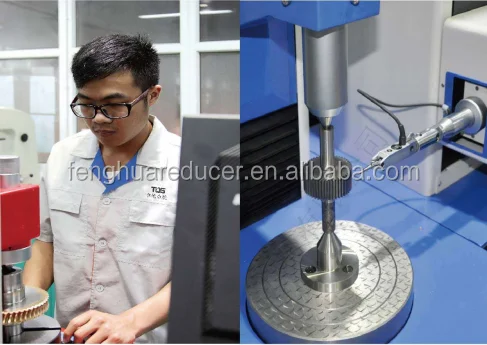

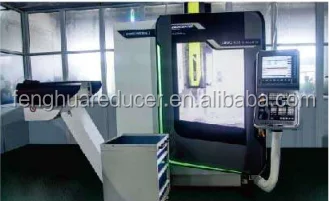

Company Introduction
